Sayfa 2-05A - Isuzu EPC

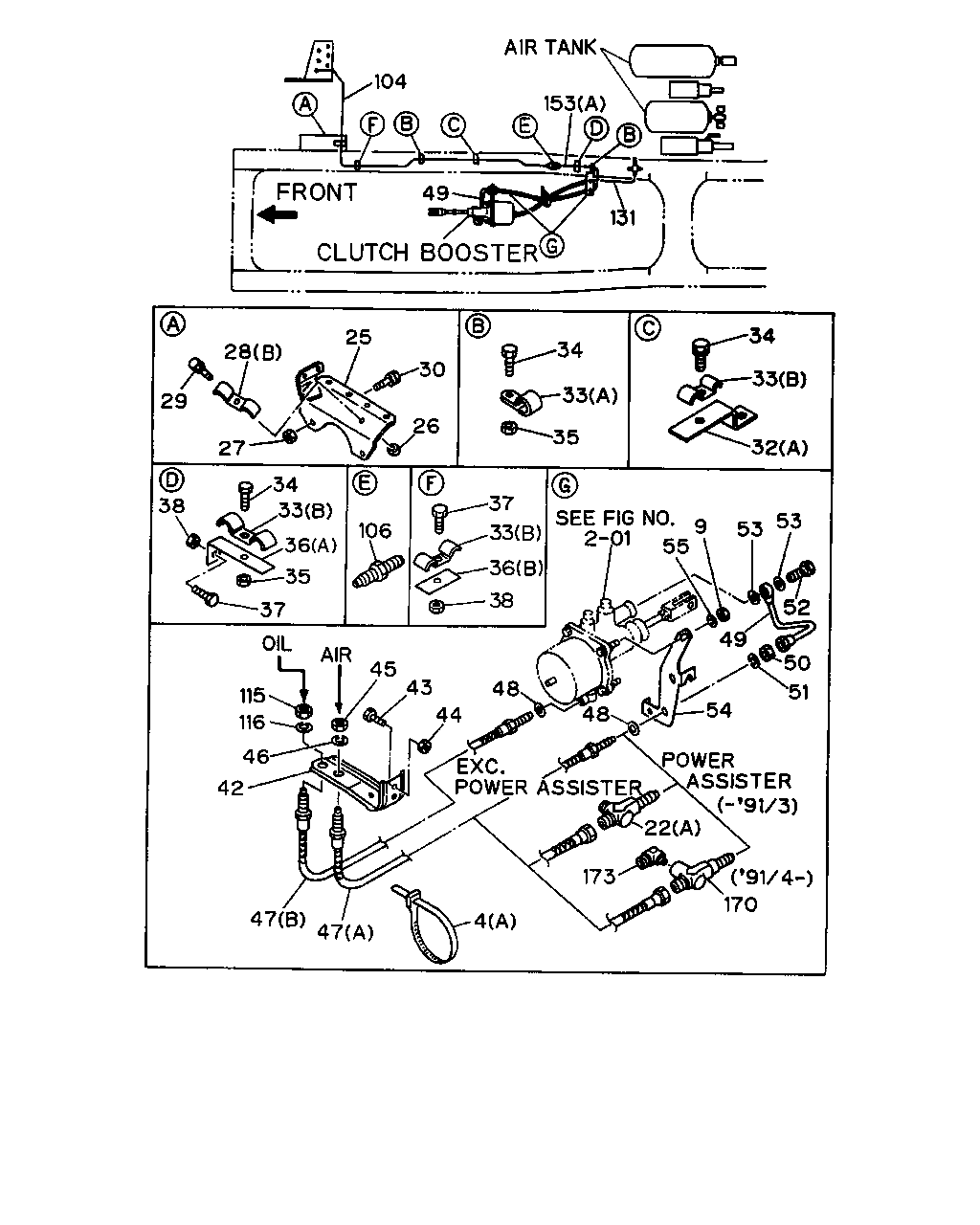

2-05A — CLUTCH PIPING (#2366) — 162 parça

104 153 131 49 25 28 29 30 26 27 34 38 33 37 35 36 106 37 35 33 34 34 32 33 53 53 9 55 33 38 36 52 49 50 51 54 48 48 44 43 45 115 116 46 42 47 47 4 173 22 170

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	CLIP; FLEX HOSE,CLU CONT (A) L=250	5-09707-030-0	01	1	9002-	●	●	●
9	NUT; BRKT,FLEX HOSE M10	9-09110-410-0	02	1	9002-9205	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	9206-	●	●	●
22	UNION; CLU PIPE EXZ&LHD(EX6*) (B) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●	●	●
22	UNION; CLU PIPE EXZ&LHD(EX6*) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (A)	1-09656-459-0	01	1	9002-9103	●		●
25	BRACKET; OIL PIPE	1-47475-894-0	01	1	9002-9306	●	●	●
25	BRACKET; OIL PIPE	1-47476-835-0	01	1	9307-	●		●
26	NUT; CLIP,OIL PIPE M8	9-09110-408-0	01	1	9002-	●	●	●
27	NUT; BRKT M8	9-09110-408-0	02	1	9002-9306	●	●	●
27	NUT; BRKT M8	9-09110-408-0	01	1	9307-	●		●
28	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
29	BOLT; CLIP,OIL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	9-01900-820-0	01	1	9002-9204	●	●	●
30	BOLT; BRKT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-9302	●	●	●
30	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	9-01900-830-0	02	1	9002-9204	●	●	●
30	BOLT; BRKT M8X30 W/LK WASHER	0-50040-830-0	02	1	9205-9302	●	●	●
30	BOLT; BRKT M8X30 FLANGE	0-28080-830-0	02	1	9303-9404	●	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9307-	●		●
32	BRACKET; CLIP OIL PIPE (A)	1-47475-774-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9306		●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9306	●		●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9002-9306		●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9307	●	●	●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9010-	●	●	●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 FLANGE	0-28080-616-0	01	1	9205-	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306	●		●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306	●		●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-	●		●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-	●		●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) M8	9-09110-408-0	03	1	9010-9306		●	●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) 6RB1 STD ENG(07L) M8	9-09110-408-0	03	1	9002-9009		●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9002-9009	●	●	●
35	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9010-9306	●	●	●
35	NUT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8	9-09110-408-0	02	1	9010-9203	●		●
35	NUT; PIPE CLIP EXZ&RHD(EX5*) DRIVER SEAT W/ARM REST(SGP) M8	9-09110-408-0	03	1	9307-	●		●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) M8	9-09110-408-0	03	1	9307-	●		●
35	NUT; PIPE CLIP EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP),NYLON TUBE AIR PIPING<Z29> M8	9-09110-408-0	01	1	9307-	●		●
35	NUT; PIPE CLIP EXZ&LHD(EX6*) M8	9-09110-408-0	01	1	9307-	●		●
36	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	9002-	●	●	●
36	BRACKET; CLIP EXZ&LHD(EX6*) (B) L=50	1-47475-299-2	02	1	9002-9307	●	●	●
36	BRACKET; CLIP EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) (B) L=50	1-47475-299-2	03	1	9308-	●		●
36	BRACKET; CLIP EXZ&LHD(EX6*) 10PD1 STD ENG(40L) (B) L=50	1-47475-299-2	03	1	9308-	●		●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	9-01900-825-0	01	1	9002-9204	●	●	●
37	BOLT; CLIP BRKT M8X25 W/LK WASHER	0-50040-825-0	01	1	9205-9302	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9303-9306	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	01	1	9307-	●		●
38	NUT; CLIP BRKT M8	9-09110-408-0	01	1	9002-	●	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47475-815-3	01	1	9002-	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	9-01900-825-0	02	1	9002-9204	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 W/LK WASHER	0-50040-825-0	02	1	9205-9302	●	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X25 FLANGE	0-28080-825-0	02	1	9303-	●	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8	9-09110-408-0	02	1	9002-	●	●	●
45	NUT; FLEX HOSE,CLU CONT M16	9-99111-416-0	02	1	9002-	●	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=16.2	9-09150-516-0	02	1	9002-	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (A) AIR L=460	0-07424-460-0	01	1	9002-9306	●	●	●
47	HOSE; FLEX,CLU CONT 6RB1 STD ENG(07L) (B) OIL L=390	1-09364-475-0	01	1	9002-9306	●	●	●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) (B) OIL L=500	1-09364-329-0	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=500	0-07472-500-1	01	1	9002-9004	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) ASSISTER SHIFT CONTROL<WX8> (A) AIR L=460	0-07472-460-1	01	1	9005-	●		●
47	HOSE; FLEX,CLU CONT 10PD1 STD ENG(40L) EXC. ASSISTER SHIFT CONTROL<WX8> (A) AIR L=590	0-07424-590-0	01	1	9002-	●		●
47	HOSE; FLEX,CLU CONT 12PD1 STD ENG(42L) (A) AIR L=490	0-07422-490-0	01	1	9002-9306	●
47	HOSE; FLEX,CLU CONT 12PD1 STD ENG(42L) (B) OIL L=450	1-09364-369-0	01	1	9002-9306	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	9002-	●	●	●
48	GASKET; FLEX HOSE,CLU CONT ASSISTER SHIFT CONTROL<WX8> ID=11 OD=18	9-09572-510-0	01	1	9501-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER EXC. 15? CLUCH TWIN PLATE(SGL) L=254	1-47487-082-0	01	1	9002-9306	●	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER L=254	1-47496-282-0	01	1	9307-	●		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER 15? CLUCH TWIN PLATE(SGL) L=275	1-47487-119-0	01	1	9002-9306	●
50	NUT; UNION M16	9-99111-416-0	01	1	9002-	●	●	●
51	WASHER; LK ID=16.2	9-09150-516-0	01	1	9002-	●	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-304-0	01	1	9002-9306	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47476-801-0	01	1	9307-	●		●
55	WASHER; LK,BRKT,FLEX HOSE ID=10.2	9-09150-510-0	02	1	9002-9205	●	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 6RB1 STD ENG(07L) L=1978 SERVICED BY L=2150	1-47437-958-0	01	1	9002-9306		●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=2537 SERVICED BY L=2700	1-47426-396-0	01	1	9307-	●		●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=2489 SERVICED BY L=2700	1-47434-415-0	01	1	9002-9306	●		●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9002-9306	●	●	●
106	UNION; OIL PIPE M12 STRAIGHT	9-09233-008-1	01	1	9307-9509	●		●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	9510-	●		●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	9002-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	9002-	●	●	●
131	PIPE; AIR,UNION TO FLEX HOSE 6RB1 STD ENG(07L) L=561 SERVICED BY L=600	1-47434-473-0	01	1	9002-9306		●	●
131	PIPE; AIR,UNION TO FLEX HOSE L=660 SERVICED BY L=700	1-47426-410-0	01	1	9307-	●		●
131	PIPE; AIR,UNION TO FLEX HOSE 10PD1 STD ENG(40L),12PD1 STD ENG(42L) L=632 SERVICED BY L=660	1-47437-964-0	01	1	9002-9306	●		●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306		●	●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405	●		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-	●		●
170	UNION; AIR PIPE ASSISTER SHIFT CONTROL<WX8>	1-09656-173-1	01	1	9104-	●		●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-137-0	01	1	9104-9302	●		●
173	CONNECTOR ASSISTER SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	9303-	●		●

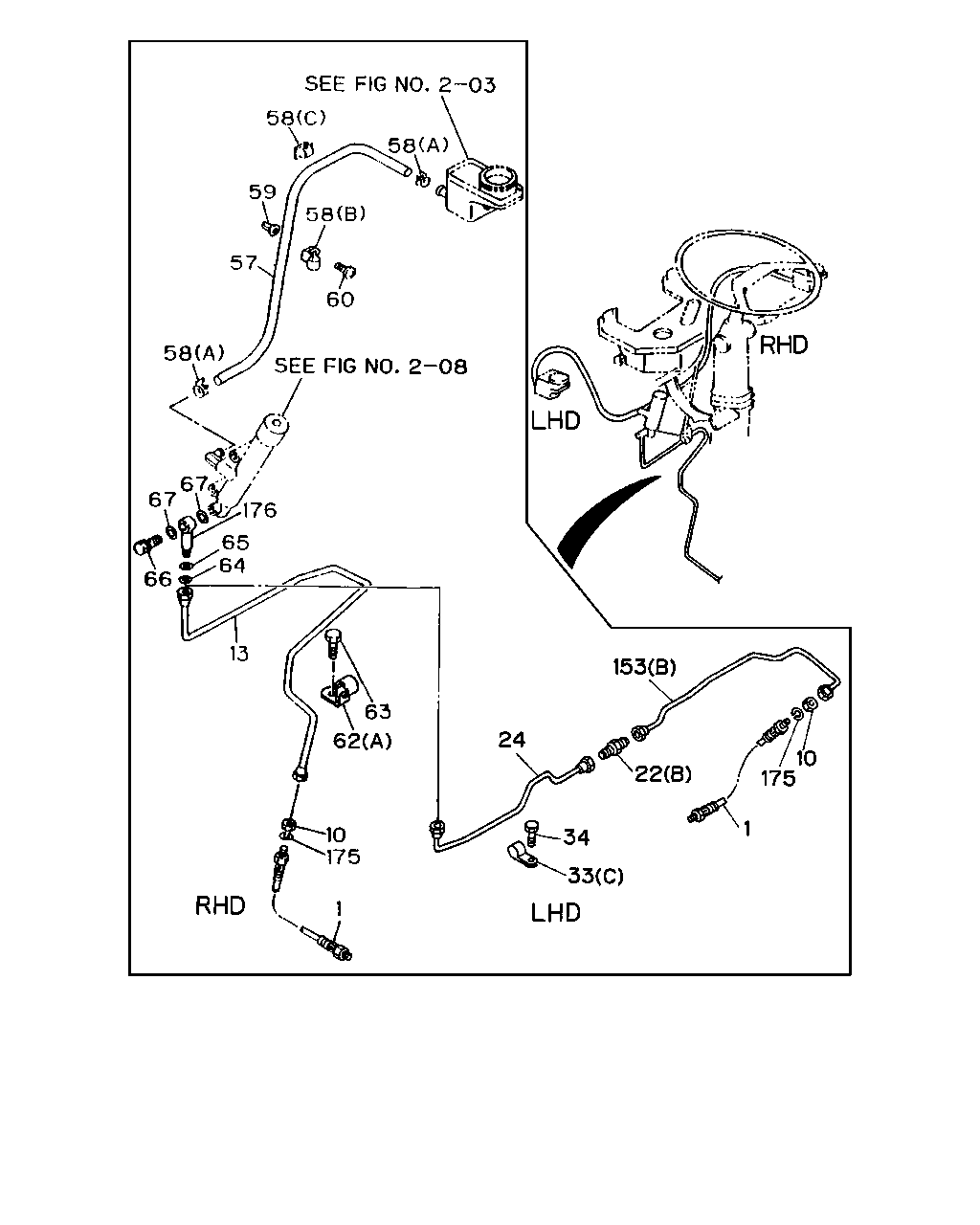

58 58 59 57 58 60 58 67 67 66 64 65 176 13 63 62 10 175 1 33 34 24 22 1 10 175 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,CLU CONT L=840	1-09364-466-0	01	1	9002-	●	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	02	1	9002-	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXZ&RHD(EX5*) L=716	1-47416-575-1	01	1	9002-9306	●	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL EXZ&RHD(EX5*) L=716	1-47425-253-1	01	1	9307-	●		●
22	UNION; CLU PIPE EXZ&LHD(EX6*) (B) M12 STRAIGHT	9-09233-008-1	01	1	9002-9509	●	●	●
22	UNION; CLU PIPE EXZ&LHD(EX6*) (B) M14 STRAIGHT	9-09223-008-1	01	1	9510-	●	●	●
22	UNION; CLU PIPE ASSISTER SHIFT CONTROL<WX8> (A)	1-09656-459-0	01	1	9002-9103	●		●
24	PIPE ASM; CLU,M/CYL TO UNION EXZ&LHD(EX6*) L=933	1-47416-511-2	01	1	9002-9306	●	●	●
24	PIPE ASM; CLU,M/CYL TO UNION EXZ&LHD(EX6*) L=933	1-47425-256-0	01	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 6RB1 STD ENG(07L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9002-9306		●	●
33	CLIP; OIL PIPE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9002-9306	●	●	●
33	CLIP; OIL PIPE (B) ID=9 & 7 L=15 & 15	1-09700-653-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE (B) ID=11 & 9 L=20 & 18	1-09700-713-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) (C) ID=9 L=16	9-09524-822-0	01	1	9002-	●	●	●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	03	1	9307-	●		●
33	CLIP; OIL PIPE EXZ&LHD(EX6*) 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (B) ID=9 & 7 L=15 & 15	1-09700-653-0	02	1	9002-9306	●		●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 6RB1 STD ENG(07L) M8X16 FLANGE	0-28080-816-0	03	1	9002-9306		●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9002-9204	●	●	●
34	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-9307	●	●	●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) EXC. DRIVER SEAT W/ARM REST(SGP) M8X25 FLANGE	0-28080-825-0	01	1	9308-	●		●
34	BOLT; PIPE CLIP M8X20 W/LK WASHER	9-01900-820-0	03	1	9002-9009	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28080-820-0	01	1	9010-	●	●	●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 W/LK WASHER	0-50000-616-0	01	1	9002-9204	●	●	●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) M6X16 FLANGE	0-28080-616-0	01	1	9205-	●	●	●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X16 W/LK WASHER	9-01900-816-0	02	1	9002-9306	●		●
34	BOLT; PIPE CLIP 10PD1 STD ENG(40L),12PD1 STD ENG(42L) M8X14 W/LK WASHER	9-01900-814-0	02	1	9204-9306	●		●
34	BOLT; PIPE CLIP EXZ&RHD(EX5*) 10PD1 STD ENG(40L) DRIVER SEAT W/ARM REST(SGP) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-	●		●
34	BOLT; PIPE CLIP EXZ&LHD(EX6*) 10PD1 STD ENG(40L) M8X16 W/LK WASHER	0-50040-816-0	03	1	9307-	●		●
57	HOSE; CLU M/CYL TO OIL TANK EXZ&RHD(EX5*) L=1800	1-09360-320-0	01	1	9002-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK EXZ&LHD(EX6*) L=1800	1-09360-320-0	01	1	9002-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=15	1-09704-018-1	02	1	9002-9006	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (A) ID=16	1-09707-171-0	02	1	9007-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL (C) ID=15	1-09987-115-0	01	1	9002-	●	●	●
58	CLIP; RUBBER HOSE TO M/CYL EXZ&RHD(EX5*) (B) ID=16 H=24 L=20	9-09527-015-0	01	1	9002-	●	●	●
59	GROMMET; SCREW,RUBBER HOSE CLIP,CLU EXZ&RHD(EX5*)	5-09983-012-0	01	1	9002-	●	●	●
60	SCREW; RUBBER HOSE CLIP,CLU CONT EXZ&RHD(EX5*) M5X16 TAPPING W/PL WASHER	0-74100-516-0	01	1	9002-	●	●	●
62	CLIP; CLU PIPE (A) ID=8 H=30 L=20	8-94220-978-0	01	1	9002-	●	●	●
62	CLIP; CLU PIPE (A) ID=9 H=20 L=20	9-09527-008-0	01	1	9002-	●	●	●
63	BOLT; CLIP,PIPE M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9002-	●	●	●
64	SEAL; EYE JOINT,CLU M/CYL	1-73998-453-0	01	1	9002-	●	●	●
65	WASHER; PL,SEAL,CLU M/CYL ID=15 OD=30	9-09160-614-0	01	1	9002-	●	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	9002-	●	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	9002-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX 6RB1 STD ENG(07L) (A) L=1255 SERVICED BY L=1400	1-47434-411-0	01	1	9002-9306		●	●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47434-410-0	01	1	9002-9306	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX EXZ&LHD(EX6*) (B) L=1206 SERVICED BY L=1250	1-47426-388-0	01	1	9307-	●		●
153	PIPE ASM; CLU,UNION TO FLEX 10PD1 STD ENG(40L),12PD1 STD ENG(42L) (A) L=698 SERVICED BY L=730	1-47437-955-0	01	1	9002-9306	●		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=707 SERVICED BY L=730	1-47426-382-0	01	1	9307-9405	●		●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=717 SERVICED BY L=730	1-47426-382-0	01	1	9406-	●		●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	02	1	9002-	●	●	●
176	JOINT; EYE,CLU M/CYL FLUID	1-09674-088-0	01	1	9002-	●	●	●
