Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#23654) — 55 parça
◀
[377A] NO.4 (16 parça)
[377A] NO.3 (12 parça)
[377A] NO.2 (13 parça)
[377A] NO.1 (14 parça)
▶

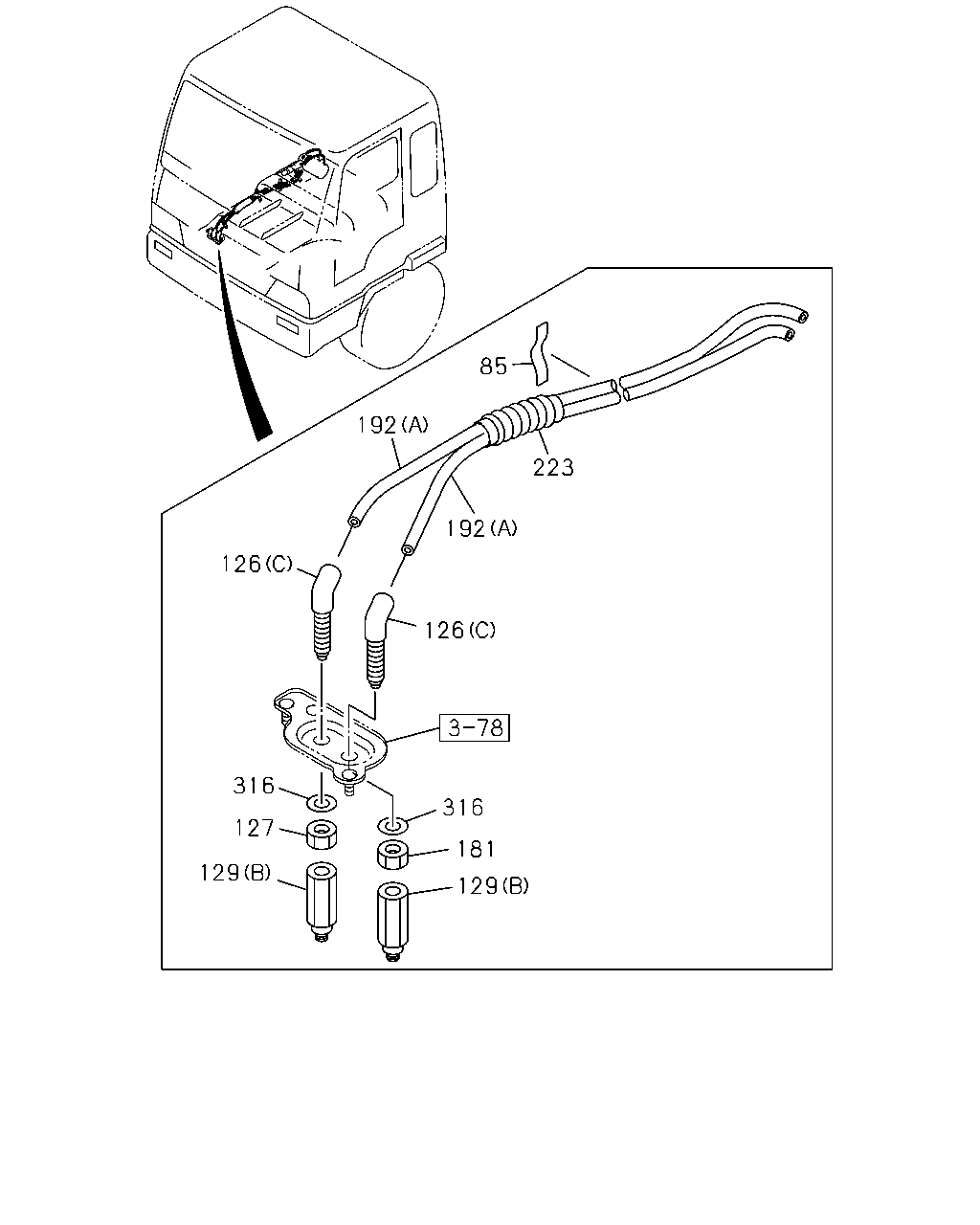

85
192
223
192
126
126
316
316
127
181
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
GASKET; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40
1-72498-022-1
05
1
0609-
126
UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0609-
126
UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0609-
126
UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0609-
127
NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20
0-91111-520-0
01
1
0609-
129
CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0609-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0609-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0609-
181
NUT; TUBE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M20
0-91111-520-0
01
1
0609-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8
1-87410-073-0
02
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0609-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0609-
316
WASHER; PL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21
0-91610-520-0
02
1
0609-

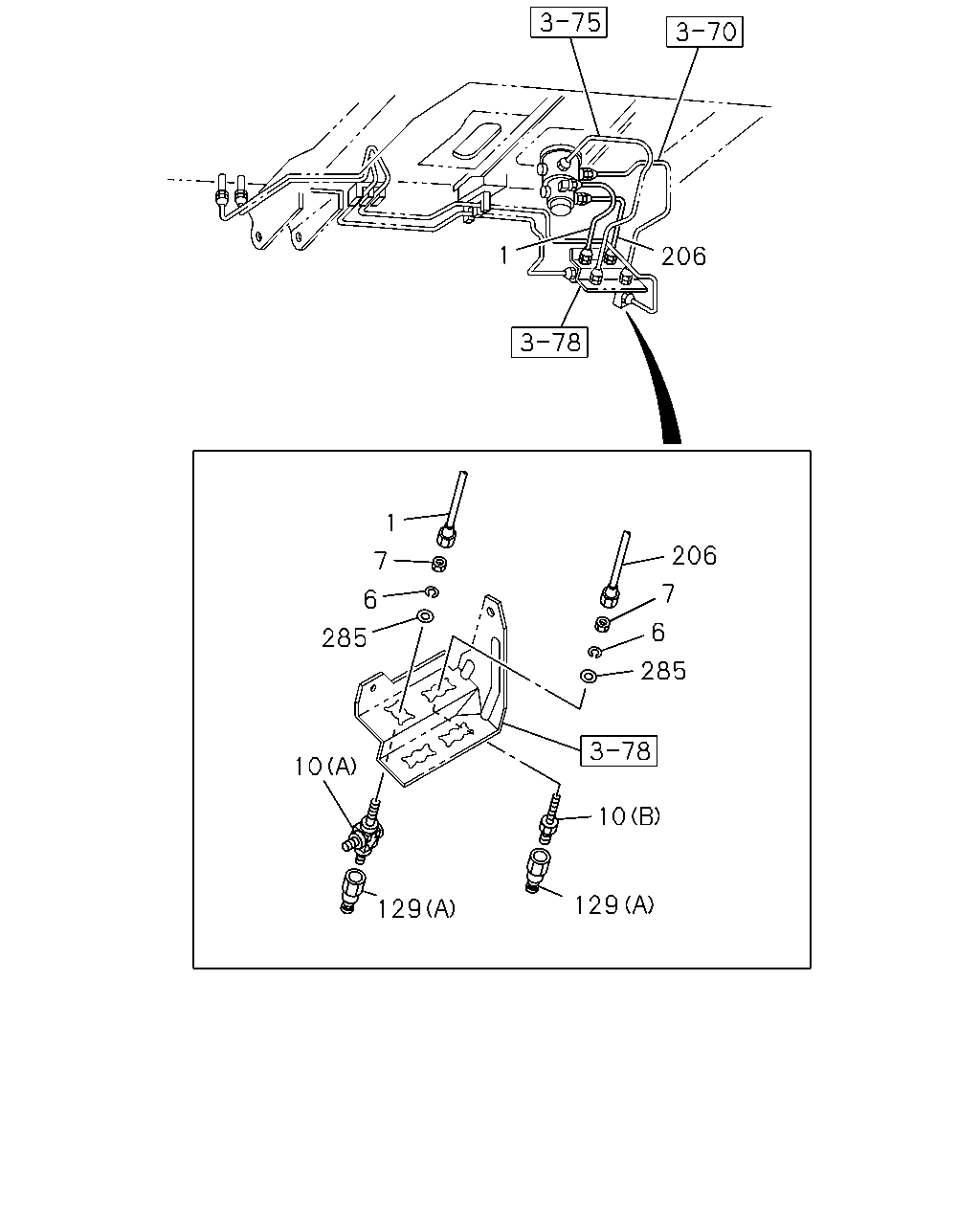

1
206
1
206
7
7
6
6
285
285
10
10
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0609-
6
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0609-
7
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0609-
10
CONNECTOR; FLEX HOSE
DUAL AIR GAUGE<UG2> (A)
1-09656-754-0
01
1
0609-
10
CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT
1-09654-380-0
01
1
0609-
10
CONNECTOR; FLEX HOSE
EXC. DUAL AIR GAUGE<UG2> (B) M16 STRAIGHT
1-09654-380-0
01
1
0609-
129
CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & M20 STRAIGHT
1-09660-877-0
02
1
0609-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0609-
129
CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0609-
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0609-
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0609-
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0609-
192
192
74
74
162
21
79
64
163
67
161
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
WASHER; LK,UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14.2
0-91510-514-0
01
1
0609-
64
GASKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 OD=18
9-09572-510-0
01
1
0609-
67
NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
0609-
74
ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-09660-881-0
01
1
0609-
74
ADAPTER; UNION TO NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0609-
79
BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
02
1
0609-
161
HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=580
0-57462-580-1
01
1
0609-
162
NUT; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M14
0-91111-514-0
01
1
0609-
163
BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-47475-464-0
01
1
0609-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8
1-87410-073-0
02
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-

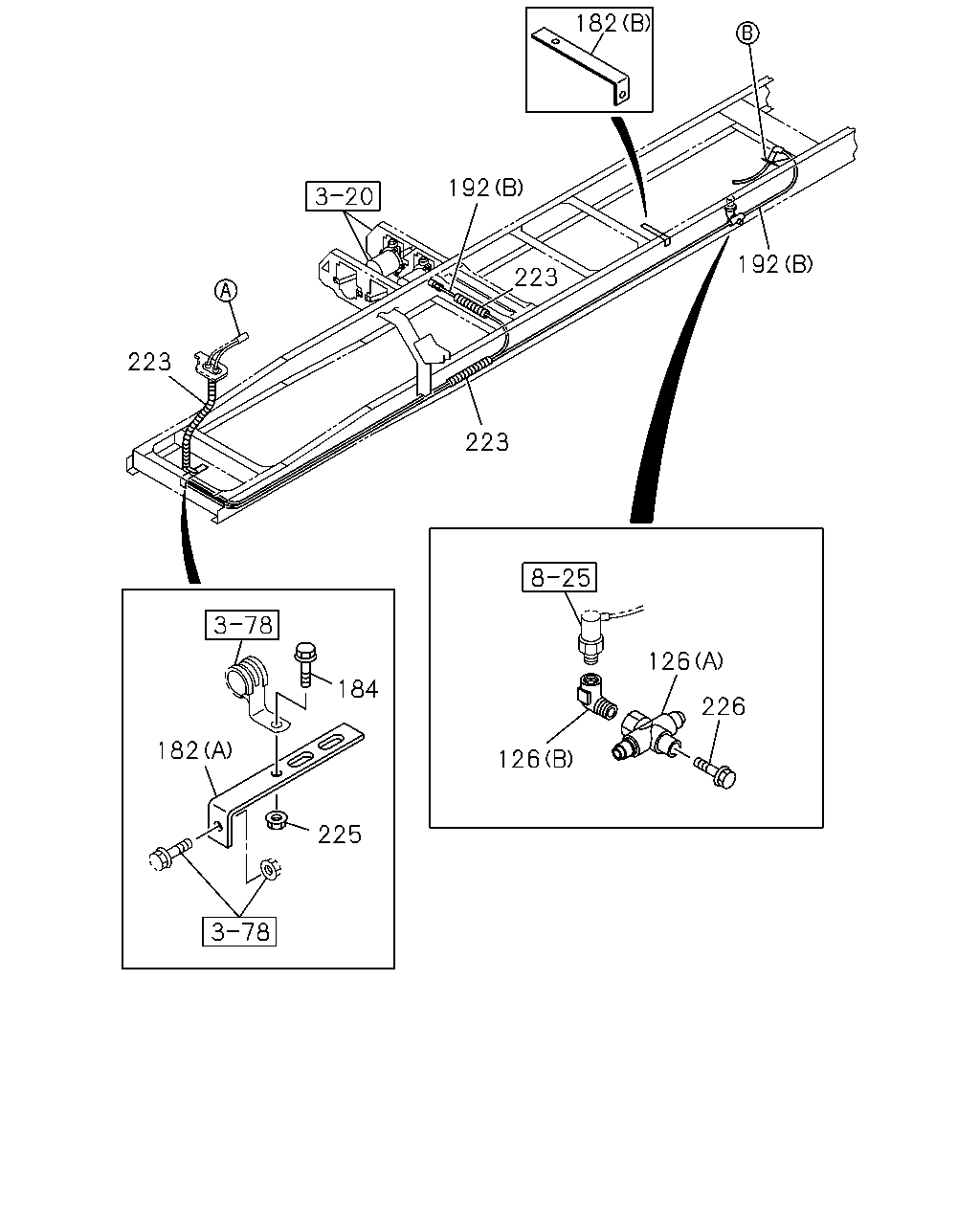

182
192
192
223
223
223
126
184
226
182
126
225
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
126
UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) PT1/4 & PT3/8 2WAY
1-09660-809-0
01
1
0609-
126
UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0609-
126
UNION; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12X2 & R3/8 3WAY
1-09661-131-0
01
1
0609-
182
BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=100 H=30
1-47477-645-2
01
1
0609-
182
BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-47479-287-0
01
1
0609-
184
BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE
0-28650-820-0
01
1
0609-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=8
1-87410-073-0
02
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
192
TUBE; NYLON
(B) SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0609-
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0609-
225
NUT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
01
1
0609-
226
BOLT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE
0-28650-820-0
01
1
0609-
