Isuzu WW
▶
TRUCKS
▶
FSR
▶
11028 - FSR(RHD) EURO4
▶
3 - Brakes, Brake System
▶

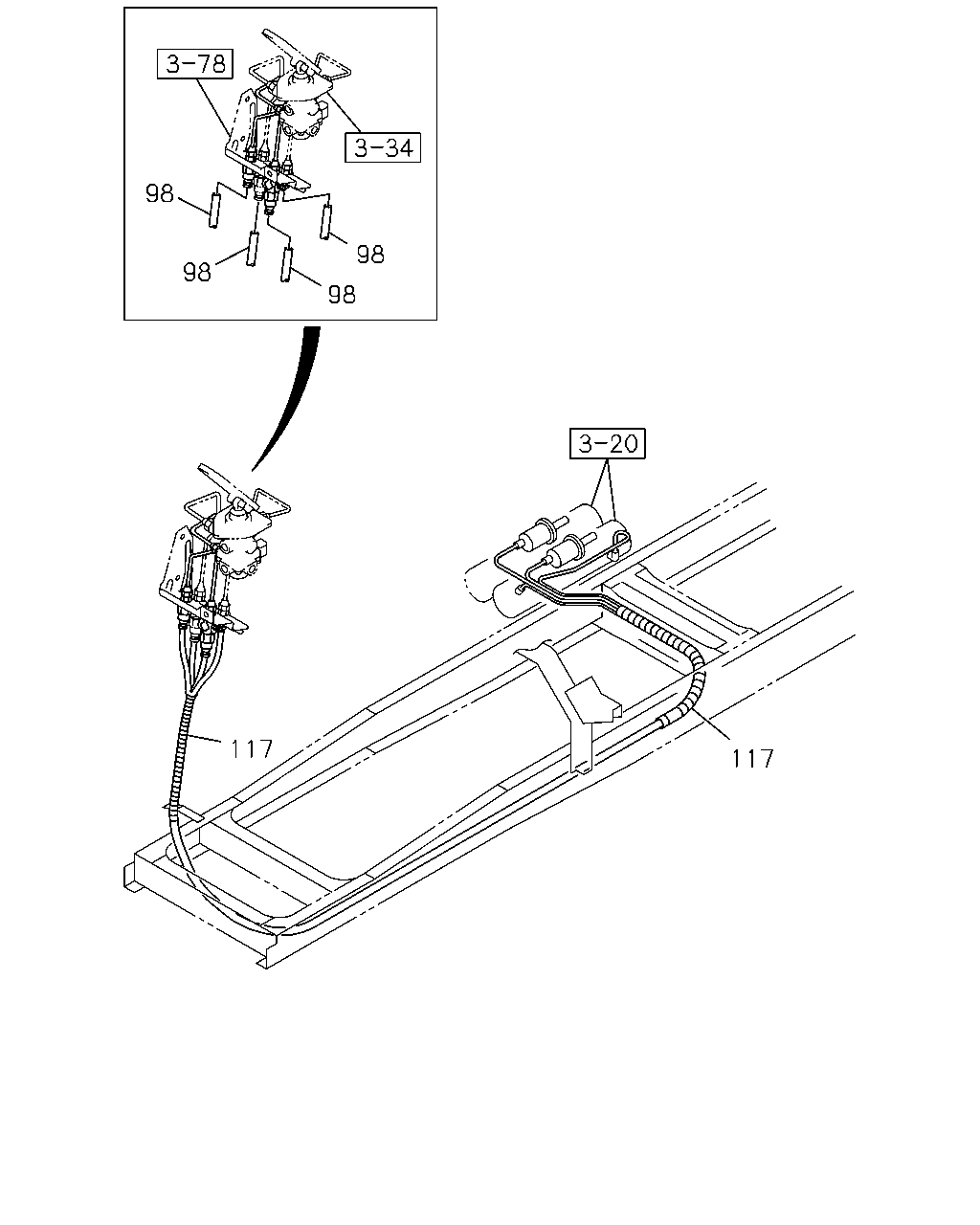

3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#23653) — 18 parça
◀
[375A] NO.2 (12 parça)
[375A] NO.1 (6 parça)
▶
98
98
98
98
117
117
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
98
TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=6000 OD=12
1-87411-013-0
02
1
0701-
98
TUBE; NYLON
DUAL AIR GAUGE<UG2> EXC. AIR SUSP DRIVER SEAT<A56> SERVICED BY L=8000 OD=12
1-87411-014-0
02
1
0701-
98
TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12
1-87411-013-0
03
1
0701-
98
TUBE; NYLON
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=6000 OD=12
1-87411-013-0
03
1
0701-
98
TUBE; NYLON
AIR SUSP DRIVER SEAT<A56> DUAL AIR GAUGE<UG2> SERVICED BY L=8000 OD=12
1-87411-014-0
01
1
0701-
98
TUBE; NYLON
EXC. DUAL AIR GAUGE<UG2> SERVICED BY L=8000 OD=12
1-87411-014-0
01
1
0701-
98
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0609-
98
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0609-
98
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0609-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
0609-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87411-033-0
AR
1
0609-
117
TUBE; CORRUGATE
SERVICED BY L=2000 ID=32
1-87411-035-0
AR
1
0609-
118
106
107
106
139
122
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT
1-09660-876-0
02
1
0609-
106
NUT; FLEX HOSE
M16
0-91111-516-0
02
1
0609-
107
WASHER; LK,FLEX HOSE
ID=16.2
0-91510-516-0
02
1
0609-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0609-
122
CONNECTOR; FLEX HOSE
M16 STRAIGHT
1-09654-380-0
01
1
0609-
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0609-
