Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#23642) — 295 parça

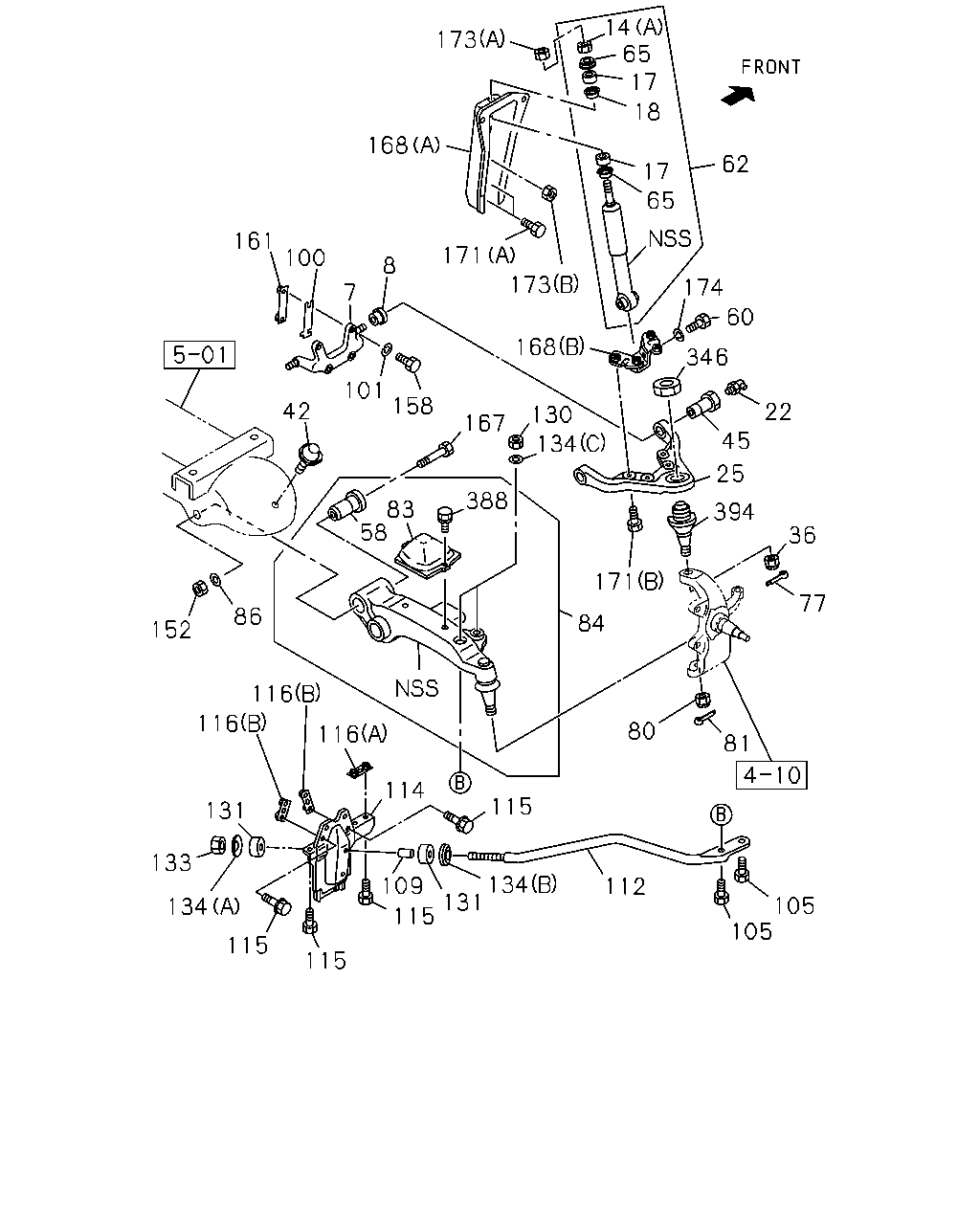

14 65 17 173 18 168 62 17 65 161 171 100 8 173 174 7 60 168 346 101 158 42 22 130 134 167 45 25 388 83 58 394 36 171 77 86 84 152 116 116 80 116 81 114 115 131 133 134 109 112 131 105 105 134 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	0106-	●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	0106-	●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9811-0003	●	●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9811-0003	●	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	9811-0003			●	●	●	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	0004-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9811-	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9811-0105	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9811-0105			●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	0106-	●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 05.556 PT1/8 ELBOW	9-09031-210-0	04	1	0106-	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	0106-	●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	0106-	●
36	06.174 NUT; UPR LINK END TO UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	0106-	●
42	06.176 RUBBER; REBOUND,FRT SUSPENSION FRT INDEPENDENT SUSPENSION(6PP)	8-97031-392-1	02	1	0106-	●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0106-	●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94336-509-1	02	1	0106-	●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) 04.083 M12X70	0-10806-270-0	02	1	0106-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97253-592-0	02	1	0106-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-985-0	02	1	9811-0003	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-613-0	02	1	0004-0105	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97260-214-0	02	1	0106-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97260-214-0	02	1	0106-		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97160-082-0	02	1	9811-0003			●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-615-0	02	1	0004-0105			●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-605-0	02	1	0106-			●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3)	8-97148-908-0	02	1	9811-0003						●
62	07.345 ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3)	8-97253-614-0	02	1	0004-0105						●
62	07.345 ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3)	8-97253-595-0	02	1	0106-						●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97048-436-4	02	1	9811-0003						●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97253-612-0	02	1	0004-0105						●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97260-213-0	02	1	0106-						●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	0106-	●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9811-0105	●	●	●	●	●	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0106-	●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0106-		●	●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0106-	●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 M22	9-09111-522-0	02	1	0106-	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0106-	●
83	06.174 RUBBER; BUMPER,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-391-1	02	1	0106-	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-086-1	01	1	0106-	●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-085-1	01	1	0106-	●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	0106-	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=1.6	8-94341-343-3	AR	1	0106-	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=3.2	8-94341-344-2	AR	1	0106-	●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=0.8	8-97020-095-2	AR	1	0106-	●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2	9-09150-814-0	08	1	0106-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> M16X60	8-97076-846-1	02	1	0106-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> M16X70	8-97215-586-0	02	1	0106-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M16X40	9-92061-640-0	02	1	0106-	●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.428 M16X50	9-92061-650-0	02	1	0106-	●
109	06.168 TUBE; DIST,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	0106-	●
112	06.168 BAR; STRUT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-376-2	01	1	0106-	●
112	06.168 BAR; STRUT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-375-2	01	1	0106-	●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-380-3	01	1	0106-	●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97105-693-2	01	1	0106-	●
115	06.168 BOLT; SUPPORT BRKT TO BODY FRT INDEPENDENT SUSPENSION(6PP) M12X35	8-97016-102-2	14	1	0106-	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97095-155-0	02	1	0106-0208	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97351-391-0	02	1	0209-	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97095-156-0	04	1	0106-0208	●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97351-392-0	04	1	0209-	●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	0106-	●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	0106-	●
131	07.170 RUBBER; CUSHION,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-603-0	04	1	0106-	●
133	07.172 NUT; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	0106-	●
134	07.172 WASHER; STRUT BAR KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	0106-	●
134	07.172 WASHER; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	0106-	●
134	07.172 WASHER; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	0106-	●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	0106-	●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-1	08	1	0106-	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP)	8-94464-558-0	04	1	0106-0208	●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) 06.168	8-97351-394-0	04	1	0209-	●
167	06.178 BOLT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) M22X135	8-94374-671-1	02	1	0106-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97031-383-2	02	1	0106-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-000-1	02	1	0106-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97141-876-0	01	1	9811-0105	●	●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DUMP CHASSIS(V4D) (C)	8-97141-876-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97240-795-0	01	1	0106-0106	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97240-795-0	01	1	0106-0106		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97240-795-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97316-015-1	01	1	0107-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97316-015-1	01	1	0107-		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97316-015-1	01	1	0107-			●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97141-877-0	01	1	9811-0105	●	●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DUMP CHASSIS(V4D) (C)	8-97141-877-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97183-837-0	01	1	0106-0106	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97183-837-0	01	1	0106-0106		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97183-837-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97316-007-1	01	1	0107-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97316-007-1	01	1	0107-		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97316-007-1	01	1	0107-			●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (C)	8-97113-932-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97113-932-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97321-206-0	01	1	0107-			●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (C)	8-97113-930-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97113-930-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97321-204-0	01	1	0107-			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28091-035-0	08	1	0106-	●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9811-0105	●	●		●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9811-0105			●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0106-	●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0106-		●		●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0106-			●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X30 FLANGE	0-28681-230-0	04	1	9811-0105			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	0106-	●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X30 FLANGE	0-28681-230-0	04	1	0106-			●
173	07.395 NUT; S/ABS DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0106-	●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	9811-	●	●	●	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9811-0105	●	●		●	●	●
173	07.395 NUT; S/ABS EXC. FRAME-KICK UP<7EW> 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9811-0105			●
173	07.395 NUT; S/ABS EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0106-	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0106-		●		●	●	●
173	07.395 NUT; S/ABS EXC. FRAME-KICK UP<7EW> 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0106-			●
173	07.395 NUT; S/ABS FRAME-KICK UP<7EW> 06.606 (B) M12	8-94139-015-0	02	1	9811-0105			●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	0106-	●
173	07.395 NUT; S/ABS FRAME-KICK UP<7EW> 06.606 (B) M12	8-94139-015-0	02	1	0106-			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=12.2	9-09150-812-0	02	1	0106-	●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) M52	8-97076-036-0	02	1	0106-	●
388	06.174 BOLT; BUMP RUBBER FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	0106-	●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	0106-	●

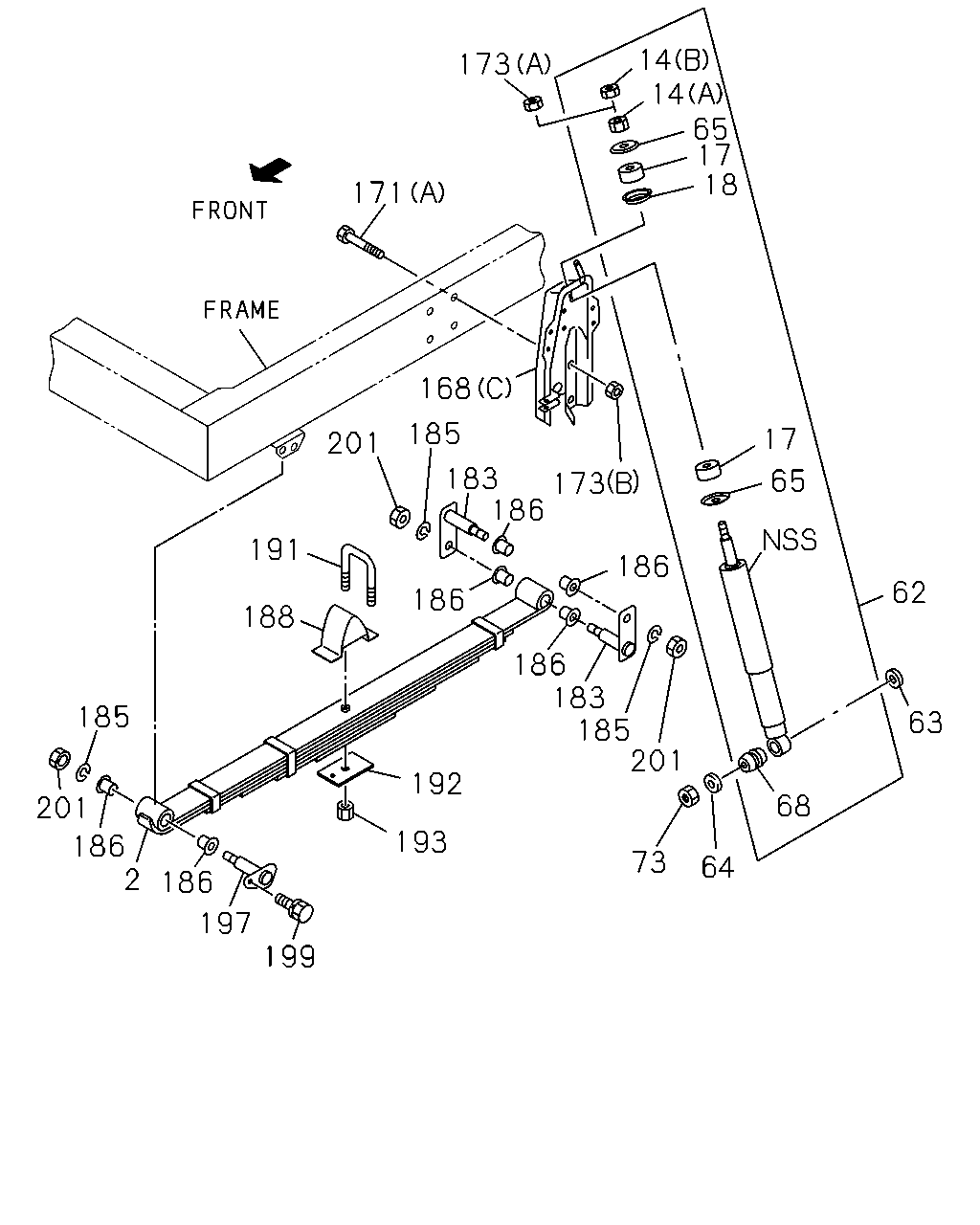

14 14 65 17 18 173 171 168 185 17 201 183 173 186 65 191 186 62 186 188 186 183 185 201 185 63 192 68 201 193 186 2 73 64 186 197 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.412 SPRING ASM; LEAF,FRT 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-625-2	01	1	9811-0105	●	●
2	07.412 SPRING ASM; LEAF,FRT EXC. AUSTRALIA EQUIPMENT(RR3) 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-625-2	01	1	9811-0105						●
2	07.412 SPRING ASM; LEAF,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP) 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-625-2	01	1	0106-	●
2	07.412 SPRING ASM; LEAF,FRT 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-625-2	01	1	0106-		●
2	07.412 SPRING ASM; LEAF,FRT EXC. AUSTRALIA EQUIPMENT(RR3) 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-625-2	01	1	0106-						●
2	07.412 SPRING ASM; LEAF,FRT 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-626-2	01	1	9811-0105	●	●
2	07.412 SPRING ASM; LEAF,FRT EXC. AUSTRALIA EQUIPMENT(RR3) 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-626-2	01	1	9811-0105						●
2	07.412 SPRING ASM; LEAF,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP) 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-626-2	01	1	0106-	●
2	07.412 SPRING ASM; LEAF,FRT 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-626-2	01	1	0106-		●
2	07.412 SPRING ASM; LEAF,FRT EXC. AUSTRALIA EQUIPMENT(RR3) 6-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97071-626-2	01	1	0106-						●
2	07.412 SPRING ASM; LEAF,FRT DUMP CHASSIS(V4D) 5-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97033-405-3	01	1	9811-			●
2	07.412 SPRING ASM; LEAF,FRT DUMP CHASSIS(V4D) 5-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97033-406-3	01	1	9811-			●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 7-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-94343-094-3	01	1	9811-			●	●	●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 7-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-94343-094-3	01	1	9811-			●	●		●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) 7-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-94343-095-3	01	1	9811-			●	●	●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 4.0-4.5TON(RPR) AUSTRALIA EQUIPMENT(RR3) 7-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-94343-095-3	01	1	9811-			●	●		●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 9-LEAF	8-97182-183-0	01	1	9811-				●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 9-LEAF	8-97182-185-0	01	1	9811-				●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S) 8-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97070-510-1	01	1	9811-				●
2	07.412 SPRING ASM; LEAF,FRT G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S) 8-LEAF SEE FIG-NO 4-55 FOR COMPONENT.	8-97070-511-1	01	1	9811-				●
14	07.389 NUT; S/ABS,UPR 09.011 (A) M10	9-09110-410-0	02	1	9811-0003	●	●
14	07.389 NUT; S/ABS,UPR 06.822 (B) M10	9-09111-410-0	02	1	9811-0003	●	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	9811-0003			●	●	●	●
14	07.389 NUT; S/ABS,UPR (A) M10	8-94317-772-0	02	1	0004-	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9811-	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS ID=13 OD=38	9-51631-063-0	02	1	9811-0105	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9811-0105			●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	0106-	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97253-592-0	02	1	0106-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97107-985-0	02	1	9811-0003	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-613-0	02	1	0004-0105	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97260-214-0	02	1	0106-	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97260-214-0	02	1	0106-		●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97160-082-0	02	1	9811-0003			●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-615-0	02	1	0004-0105			●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97253-605-0	02	1	0106-			●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3)	8-97148-908-0	02	1	9811-0003						●
62	07.345 ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3)	8-97253-614-0	02	1	0004-0105						●
62	07.345 ABSORBER ASM; SHOCK,FRT AUSTRALIA EQUIPMENT(RR3)	8-97253-595-0	02	1	0106-						●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97048-436-4	02	1	9811-0003						●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97253-612-0	02	1	0004-0105						●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. AUSTRALIA EQUIPMENT(RR3)	8-97260-213-0	02	1	0106-						●
63	07.347 WASHER; PL,S/ABS,LWR 07.529 ID=17 OD=32	9-09164-616-0	02	1	9811-0105	●	●	●	●	●	●
63	07.347 WASHER; PL,S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.529 ID=17 OD=32	9-09164-616-0	02	1	0106-	●
63	07.347 WASHER; PL,S/ABS,LWR 07.529 ID=17 OD=32	9-09164-616-0	02	1	0106-		●	●	●	●	●
64	07.347 WASHER; S/ABS,LWR ID=12.5	9-51679-022-0	02	1	9811-0105	●	●	●	●	●	●
64	07.347 WASHER; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP) ID=12.5	9-51679-022-0	02	1	0106-	●
64	07.347 WASHER; S/ABS,LWR ID=12.5	9-51679-022-0	02	1	0106-		●	●	●	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	0106-	●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9811-0105	●	●	●	●	●	●
65	07.347 WASHER; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0106-	●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0106-		●	●	●	●	●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	9811-0105	●	●	●	●	●	●
68	07.388 BUSHING; S/ABS EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 TOKICO	8-94224-694-0	02	1	0106-	●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	0106-		●	●	●	●	●
73	07.347 NUT; BRKT,SHOCK M12	9-99111-512-0	02	1	9811-0105	●	●	●	●	●	●
73	07.347 NUT; BRKT,SHOCK EXC. FRT INDEPENDENT SUSPENSION(6PP) M12	9-99111-512-0	02	1	0106-	●
73	07.347 NUT; BRKT,SHOCK M12	9-99111-512-0	02	1	0106-		●	●	●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97031-383-2	02	1	0106-	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-000-1	02	1	0106-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97141-876-0	01	1	9811-0105	●	●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DUMP CHASSIS(V4D) (C)	8-97141-876-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97240-795-0	01	1	0106-0106	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97240-795-0	01	1	0106-0106		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97240-795-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97316-015-1	01	1	0107-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97316-015-1	01	1	0107-		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97316-015-1	01	1	0107-			●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97141-877-0	01	1	9811-0105	●	●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DUMP CHASSIS(V4D) (C)	8-97141-877-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97183-837-0	01	1	0106-0106	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97183-837-0	01	1	0106-0106		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97183-837-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97316-007-1	01	1	0107-	●
168	07.380 BRACKET; S/ABS,FRT SUSP (C)	8-97316-007-1	01	1	0107-		●		●	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. FRAME-KICK UP<7EW> (C)	8-97316-007-1	01	1	0107-			●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (C)	8-97113-932-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97113-932-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97321-206-0	01	1	0107-			●
168	07.380 BRACKET; S/ABS,FRT SUSP DUMP CHASSIS(V4D) (C)	8-97113-930-0	01	1	9811-0105			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97113-930-0	01	1	0106-0106			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRAME-KICK UP<7EW> (C)	8-97321-204-0	01	1	0107-			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28091-035-0	08	1	0106-	●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9811-0105	●	●		●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	9811-0105			●
171	07.395 BOLT; S/ABS BRKT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0106-	●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0106-		●		●	●	●
171	07.395 BOLT; S/ABS BRKT EXC. FRAME-KICK UP<7EW> 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0106-			●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X30 FLANGE	0-28681-230-0	04	1	9811-0105			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	0106-	●
171	07.395 BOLT; S/ABS BRKT FRAME-KICK UP<7EW> (A) M12X30 FLANGE	0-28681-230-0	04	1	0106-			●
173	07.395 NUT; S/ABS DISC BRAKE FRT<J52> EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0106-	●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	9811-	●	●	●	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9811-0105	●	●		●	●	●
173	07.395 NUT; S/ABS EXC. FRAME-KICK UP<7EW> 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	9811-0105			●
173	07.395 NUT; S/ABS EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0106-	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0106-		●		●	●	●
173	07.395 NUT; S/ABS EXC. FRAME-KICK UP<7EW> 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0106-			●
173	07.395 NUT; S/ABS FRAME-KICK UP<7EW> 06.606 (B) M12	8-94139-015-0	02	1	9811-0105			●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	0106-	●
173	07.395 NUT; S/ABS FRAME-KICK UP<7EW> 06.606 (B) M12	8-94139-015-0	02	1	0106-			●
183	07.436 SHACKLE; FRT SUSP	8-94468-235-2	04	1	9811-0105	●	●	●	●	●	●
183	07.436 SHACKLE; FRT SUSP EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94468-235-2	04	1	0106-	●
183	07.436 SHACKLE; FRT SUSP	8-94468-235-2	04	1	0106-		●	●	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> 07.172 ID=16.5	8-97070-925-1	06	1	9811-0105	●	●	●	●	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.172 ID=16.5	8-97070-925-1	06	1	0106-	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> 07.172 ID=16.5	8-97070-925-1	06	1	0106-		●	●	●	●	●
186	07.105 BUSHING; SHACKLE	8-97081-531-0	12	1	9811-0105	●	●	●	●	●	●
186	07.105 BUSHING; SHACKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-531-0	12	1	0106-	●
186	07.105 BUSHING; SHACKLE	8-97081-531-0	12	1	0106-		●	●	●	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR AUSTRALIA EQUIPMENT(RR3)	8-94150-264-2	02	1	9811-0105	●		●	●		●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR AUSTRALIA EQUIPMENT(RR3) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94150-264-2	02	1	0106-	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR AUSTRALIA EQUIPMENT(RR3)	8-94150-264-2	02	1	0106-			●	●		●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94150-265-2	02	1	9811-0105	●		●	●		●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94150-265-2	02	1	9811-0105		●			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. AUSTRALIA EQUIPMENT(RR3),FRT INDEPENDENT SUSPENSION(6PP)	8-94150-265-2	02	1	0106-	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94150-265-2	02	1	0106-		●			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR EXC. AUSTRALIA EQUIPMENT(RR3)	8-94150-265-2	02	1	0106-			●	●		●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> L=95	8-94127-916-3	02	1	9811-0104	●	●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) L=95	8-94127-916-3	02	1	9811-0104						●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> L=95	8-97304-073-0	02	1	0105-0105	●	●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) L=95	8-97304-073-0	02	1	0105-0105						●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=95	8-97304-073-0	02	1	0106-	●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> L=95	8-97304-073-0	02	1	0106-		●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. AUSTRALIA EQUIPMENT(RR3) L=95	8-97304-073-0	02	1	0106-						●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=95	8-94127-916-3	04	1	9811-0104	●	●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-94127-916-3	04	1	9811-0104			●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, AUSTRALIA EQUIPMENT(RR3) L=95	8-94127-916-3	04	1	9811-0104						●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=95	8-97304-073-0	04	1	0105-0105	●	●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-97304-073-0	04	1	0105-0105			●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, AUSTRALIA EQUIPMENT(RR3) L=95	8-97304-073-0	04	1	0105-0105						●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>,FRT INDEPENDENT SUSPENSION(6PP) L=95	8-97304-073-0	04	1	0106-	●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59> L=95	8-97304-073-0	04	1	0106-		●
191	07.417 U-BOLT; FRT SPR DUMP CHASSIS(V4D) L=95	8-97304-073-0	04	1	0106-			●
191	07.417 U-BOLT; FRT SPR EXC. FRONT STABILIZER SHAFT<F59>, AUSTRALIA EQUIPMENT(RR3) L=95	8-97304-073-0	04	1	0106-						●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> L=105	8-94252-452-4	02	1	9811-0104	●	●				●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> L=105	8-97304-074-0	02	1	0105-0105	●	●				●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> EXC. FRT INDEPENDENT SUSPENSION(6PP) L=105	8-97304-074-0	02	1	0106-	●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> L=105	8-97304-074-0	02	1	0106-		●				●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=105	8-94252-452-4	04	1	9811-0104			●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) L=105	8-94252-452-4	04	1	9811-0104				●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105	8-94252-452-4	04	1	9811-0104					●
191	07.417 U-BOLT; FRT SPR AUSTRALIA EQUIPMENT(RR3) EXC. FRONT STABILIZER SHAFT<F59> L=105	8-94252-452-4	04	1	9811-0104						●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=105	8-97304-074-0	04	1	0105-0105			●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) L=105	8-97304-074-0	04	1	0105-0105				●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) L=105	8-97304-074-0	04	1	0105-0105					●
191	07.417 U-BOLT; FRT SPR AUSTRALIA EQUIPMENT(RR3) EXC. FRONT STABILIZER SHAFT<F59> L=105	8-97304-074-0	04	1	0105-0105						●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) EXC. DUMP CHASSIS(V4D) L=105	8-97304-074-0	04	1	0106-			●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.0-4.5TON(RPR),G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.0-5.5TON(RPT), G.V.W. 5.5-6.0TON(RPU) L=105	8-97304-074-0	04	1	0106-				●
191	07.417 U-BOLT; FRT SPR G.V.W. 4.5-5.0TON(RPS),G.V.W. 5.5-6.0TON(RPU) L=105	8-97304-074-0	04	1	0106-					●
191	07.417 U-BOLT; FRT SPR AUSTRALIA EQUIPMENT(RR3) EXC. FRONT STABILIZER SHAFT<F59> L=105	8-97304-074-0	04	1	0106-						●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) L=135	8-94175-945-1	04	1	9811-0104				●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) L=135	8-97304-077-0	04	1	0105-				●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S) L=115	8-94138-988-2	04	1	9811-0104				●
191	07.417 U-BOLT; FRT SPR G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S) L=115	8-97304-075-0	04	1	0105-				●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) L=115	8-94138-988-2	02	1	9811-0104						●
191	07.417 U-BOLT; FRT SPR FRONT STABILIZER SHAFT<F59> AUSTRALIA EQUIPMENT(RR3) L=115	8-97304-075-0	02	1	0105-						●
192	07.436 PIECE; DIST 07.425	8-94249-413-1	02	1	9811-0105	●					●
192	07.436 PIECE; DIST EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.425	8-94249-413-1	02	1	0106-	●
192	07.436 PIECE; DIST 07.425	8-94249-413-1	02	1	0106-						●
193	07.417 NUT; U BOLT M14 FLANGE	8-94137-483-0	08	1	9811-0105	●	●	●	●	●	●
193	07.417 NUT; U BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) M14 FLANGE	8-94137-483-0	08	1	0106-	●
193	07.417 NUT; U BOLT M14 FLANGE	8-94137-483-0	08	1	0106-		●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	9811-0105	●	●	●	●	●	●
197	07.427 PIN; FRT SPR,FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94117-900-1	02	1	0106-	●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	0106-		●	●	●	●	●
199	07.427 BOLT 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●	●	●	●	●	●
199	07.427 BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-	●
199	07.427 BOLT 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-		●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.870 M16	9-99110-416-0	06	1	9811-0105	●	●	●	●	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.870 M16	9-99110-416-0	06	1	0106-	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.870 M16	9-99110-416-0	06	1	0106-		●	●	●	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	06	1	9811-0105	●	●	●	●	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF>,FRT INDEPENDENT SUSPENSION(6PP) 07.529 M16 FLANGE	8-97147-389-0	06	1	0106-	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	06	1	0106-		●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
