◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01B - CLUTCH ▶
2-01B — CLUTCH (#2364) — 92 parça

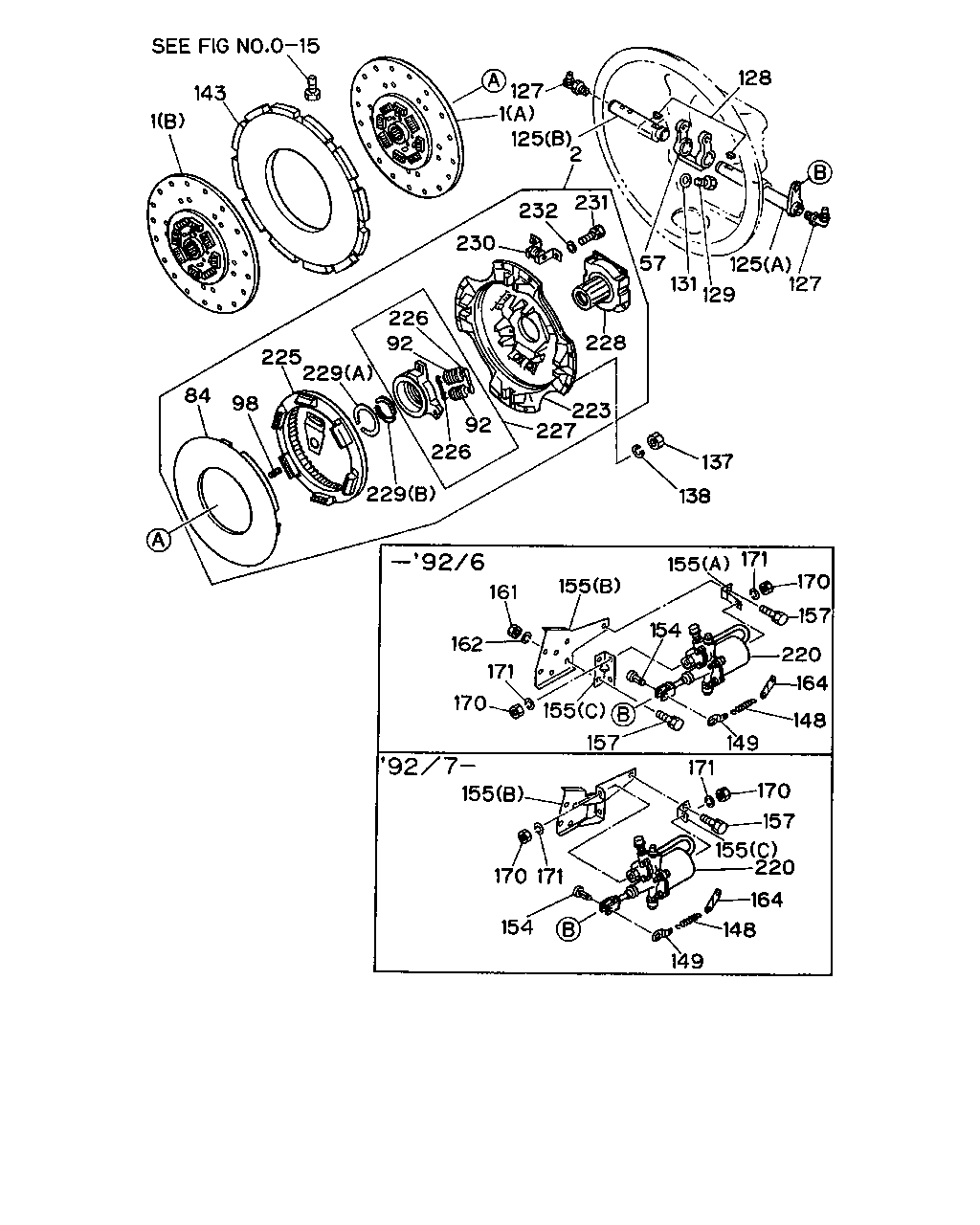

çizim 28540
155 170 154 171 149 171 170 157 155 220 164 148 149 148 164 220 157 155 170 162 171 161 155 155 171 154 157 170 138 137 223 227 92 226 229 229 225 98 84 92 226 228 230 232 231 57 125 131 129 127 128 2 125 1 127 143 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 DISC; CLUTCH
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) FRONT 14" 		1-31240-327-0 01 1 9002-9306 ● ● ● ●
1 DISC; CLUTCH
6RB1 STD ENG(07L),6RA1TC ENG(19L),10PD1 STD ENG(40L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 14" 		1-31240-328-0 01 1 9002-9306 ● ● ● ●
1 DISC; CLUTCH
6RB1TC ENG(30L),12PD1 STD ENG(42L) (A) FRONT 14" 		1-31240-348-0 01 1 9002- ● ● ● ●
1 DISC; CLUTCH
6RB1TC ENG(30L),12PD1 STD ENG(42L) (B) REAR 14" 		1-31240-349-0 01 1 9002- ● ● ● ●
1 DISC; CLUTCH
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (A) FRONT 14" 		1-31240-554-0 01 1 9002-9306 ●
1 DISC; CLUTCH
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B) REAR 14" 		1-31240-555-0 01 1 9002-9306 ●
1 DISC; CLUTCH
8PD1 STD ENG(38L),10PD1 STD ENG(40L) (A) FRONT 14" 		1-31240-327-0 01 1 9307- ● ●
1 DISC; CLUTCH
8PD1 STD ENG(38L),10PD1 STD ENG(40L) (B) REAR 14" 		1-31240-328-0 01 1 9307- ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1 STD ENG(07L) 		1-31220-141-2 01 1 9002-9306 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RB1TC ENG(30L),12PD1 STD ENG(42L) 		1-31220-186-0 01 1 9002-9306 ● ● ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) 		1-31220-186-0 01 1 9002-9306 ●
2 PLATE ASM; PRESSURE,CLU
10PD1 STD ENG(40L) 		1-31220-142-1 01 1 9002-9306 ● ●
2 PLATE ASM; PRESSURE,CLU
6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31220-142-1 01 1 9002-9306 ●
2 PLATE ASM; PRESSURE,CLU
6RB1TC ENG(30L) 		1-31220-186-0 01 1 9307- ● ●
2 PLATE ASM; PRESSURE,CLU
10PD1 STD ENG(40L) 		1-31220-142-1 01 1 9307- ● ●
2 PLATE ASM; PRESSURE,CLU
8PD1 STD ENG(38L) 		1-31220-141-2 01 1 9307- ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9307-9412 ● ● ● ● ● ●
57 FORK; SHIFT,CLU 1-31341-020-0 01 1 9501- ● ● ●
84 PLATE; PRESSURE 1-31221-088-0 01 1 9002- ● ● ● ● ● ●
92 SPRING; CLU
6RB1 STD ENG(07L),8PD1 STD ENG(38L) 		1-31214-044-0 06 1 9002- ● ● ● ●
92 SPRING; CLU
6RA1TC ENG(19L),6RB1TC ENG(30L),10PD1 STD ENG(40L),12PD1 STD ENG(42L) 		1-31214-043-0 06 1 9002- ● ● ● ●
98 SPRING; RETURN 1-31233-008-0 04 1 9002- ● ● ● ● ● ●
125 SHAFT; CLU
(B) L=146 		1-31342-085-0 01 1 9002-9412 ● ● ● ● ● ●
125 SHAFT; CLU
(B) WO/LEVER L=146 		1-31342-283-0 01 1 9501- ● ● ●
125 SHAFT; CLU
(A) L=225 W/LEVER 		1-31342-246-0 01 1 9002-9006 ● ● ● ● ● ●
125 SHAFT; CLU
COUNTER SHAFT BRAKE<BAP> (A) L=225 W/LEVER 		1-31342-246-0 01 1 9007-9306 ● ● ● ● ● ●
125 SHAFT; CLU
(A) W/LEVER L=225 W/LEVER 		1-31342-246-0 01 1 9307-9412 ● ● ●
125 SHAFT; CLU
(A) W/LEVER L=225 		1-31342-285-0 01 1 9501- ● ● ●
125 SHAFT; CLU
CLUTCH BRAKE<BBG> (A) W/LEVER L=225 		1-31342-134-0 01 1 9007-9306 ● ● ● ● ● ●
127 NIPPLE; GREASE,CLU SHAFT
PT1/8 ELBOW 		9-09031-210-0 02 1 9501- ● ● ●
128 KEY; FEATHER,CLU SHAFT 1-31349-007-0 01 1 9002- ● ● ● ● ● ●
129 BOLT; SHIFT FORK 1-09087-021-0 02 1 9002- ● ● ● ● ● ●
131 WASHER; LK,SHIFT FORK
ID=11.4 		9-09850-072-0 02 1 9002- ● ● ● ● ● ●
137 BOLT; CLU COVER
M16X28 		1-09087-026-0 08 1 9002- ● ● ● ● ● ●
138 WASHER; LK,CLU COVER
ID=9.8 		1-09500-020-0 08 1 9002- ● ● ● ● ● ●
143 PLATE; INTERMEDIATE
6RB1 STD ENG(07L),6RA1TC ENG(19L),8PD1 STD ENG(38L),10PD1 STD ENG(40L) 		1-31221-025-0 01 1 9002- ● ● ● ●
143 PLATE; INTERMEDIATE
6RB1TC ENG(30L),12PD1 STD ENG(42L) 		1-31221-058-0 01 1 9002- ● ● ● ●
148 SPRING; CLU RETURN 9-09744-034-0 01 1 9002- ● ● ● ● ● ●
149 EYE; SPRING,RETURN SPRING 1-31426-019-1 01 1 9002- ● ● ● ● ● ●
154 PIN; JAW JOINT 1-31424-001-1 01 1 9002-9312 ● ● ● ● ● ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 9401- ● ● ● ● ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-066-0 01 1 9002-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
(C) 		1-31429-344-0 01 1 9207- ● ● ● ● ● ●
155 BRACKET; MINIPACK
(A) 		1-31429-116-0 01 1 9002-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-300-0 01 1 9002-9007 ● ● ● ● ● ●
155 BRACKET; MINIPACK
COUNTER SHAFT BRAKE<BAP> (B) 		1-31429-300-0 01 1 9008-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
COUNTER SHAFT BRAKE<BAP> (B) 		1-31429-343-0 01 1 9207-9306 ● ● ● ● ● ●
155 BRACKET; MINIPACK
(B) 		1-31429-343-0 01 1 9307- ● ● ●
155 BRACKET; MINIPACK
CLUTCH BRAKE<BBG> (B) 		1-31429-215-0 01 1 9008-9206 ● ● ● ● ● ●
155 BRACKET; MINIPACK
CLUTCH BRAKE<BBG> (B) 		1-31429-342-0 01 1 9207-9306 ● ● ● ● ● ●
157 BOLT; BRKT
M10X18 		0-20801-018-0 03 1 9002-9007 ● ● ● ● ● ●
157 BOLT; BRKT
COUNTER SHAFT BRAKE<BAP> M10X18 		0-20801-018-0 03 1 9008-9206 ● ● ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 04 1 9002-9206 ● ● ● ● ● ●
157 BOLT; BRKT
M10X25 W/LK WASHER 		0-50051-025-0 05 1 9207- ● ● ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X18 		0-20801-018-0 01 1 9008-9206 ● ● ● ● ● ●
157 BOLT; BRKT
CLUTCH BRAKE<BBG> M10X25 		0-20801-025-0 02 1 9008-9206 ● ● ● ● ● ●
161 NUT; BRKT
CLUTCH BRAKE<BBG> M10 		9-09110-510-0 02 1 9007-9206 ● ● ● ● ● ●
162 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 03 1 9002-9206 ● ● ● ● ● ●
164 EYE; SPRING 1-31426-016-1 01 1 9002- ● ● ● ● ● ●
170 NUT; BOOSTER FIX
M8 		9-09110-408-0 03 1 9002- ● ● ● ● ● ●
171 WASHER; LK,BOOSTER FIX
ID=8.2 		9-09150-508-0 03 1 9002- ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-224-0 01 1 9002-9007 ● ● ● ● ● ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-351-0 01 1 9008- ● ● ● ● ● ●
223 COVER; CLU 1-31211-030-0 01 1 9002- ● ● ● ● ● ●
225 RING; ADJUSTING 1-31239-022-0 01 1 9002- ● ● ● ● ● ●
226 PIVOT 1-31239-023-0 06 1 9002- ● ● ● ● ● ●
227 RETAINER
6RB1 STD ENG(07L),10PD1 STD ENG(40L) 		1-31239-024-0 01 1 9002- ● ● ● ●
227 RETAINER
6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31239-024-0 01 1 9002- ●
227 RETAINER
6RB1TC ENG(30L),12PD1 STD ENG(42L) 		1-31239-025-0 01 1 9002- ● ● ●
227 RETAINER
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) 		1-31239-025-0 01 1 9002- ●
228 BEARING; RELEASE
6RB1 STD ENG(07L),10PD1 STD ENG(40L) 		1-31320-038-0 01 1 9002-9306 ● ● ● ●
228 BEARING; RELEASE
6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31320-038-0 01 1 9002-9306 ●
228 BEARING; RELEASE
8PD1 STD ENG(38L),10PD1 STD ENG(40L) 		1-31320-038-0 01 1 9307- ● ●
228 BEARING; RELEASE
6RB1TC ENG(30L),12PD1 STD ENG(42L) 		1-31320-039-0 01 1 9002- ● ● ●
228 BEARING; RELEASE
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) 		1-31320-039-0 01 1 9002- ●
229 RING
(A) 		1-31239-028-0 01 1 9002- ● ● ● ● ● ●
229 RING
6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B) 		1-31239-026-0 02 1 9002-9306 ● ● ● ●
229 RING
6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 		1-31239-026-0 02 1 9002-9306 ●
229 RING
8PD1 STD ENG(38L),10PD1 STD ENG(40L) (B) 		1-31239-026-0 02 1 9307- ● ●
229 RING
6RB1TC ENG(30L),12PD1 STD ENG(42L) (B) 		1-31239-027-0 02 1 9002- ● ● ●
229 RING
6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B) 		1-31239-027-0 02 1 9002- ●
230 ADJUSTER 1-31239-029-0 01 1 9002- ● ● ● ● ● ●
231 BOLT; ADJUSTER 1-31239-030-0 02 1 9002- ● ● ● ● ● ●
232 WASHER; ADJUSTER 1-31239-031-0 02 1 9002- ● ● ● ● ● ●
çizim 29573
142 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
139 BRAKE; CLU
6RB1 STD ENG(07L),10PD1 STD ENG(40L) CLUTCH BRAKE<BBG> 		1-31259-036-0 01 1 9002-9306 ● ● ● ●
139 BRAKE; CLU
6RA1TC ENG(19L) CLUTCH BRAKE<BBG> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31259-036-0 01 1 9002-9306 ●
139 BRAKE; CLU
6RA1TC ENG(19L),6RB1TC ENG(30L) CLUTCH BRAKE<BBG> NEW ZEALAND EQUIPMENT(PK5) 		1-31259-037-0 01 1 9009-9306 ● ● ●
139 BRAKE; CLU
6RB1TC ENG(30L),12PD1 STD ENG(42L) CLUTCH BRAKE<BBG> 		1-31259-038-0 01 1 9002-9008 ● ● ●
139 BRAKE; CLU
6RA1TC ENG(19L) CLUTCH BRAKE<BBG> NEW ZEALAND EQUIPMENT(PK5) 		1-31259-038-0 01 1 9002-9008 ●
139 BRAKE; CLU
6RB1TC ENG(30L) CLUTCH BRAKE<BBG> EXC. NEW ZEALAND EQUIPMENT(PK5) 		1-31259-038-0 01 1 9009-9306 ● ● ●
139 BRAKE; CLU
12PD1 STD ENG(42L) CLUTCH BRAKE<BBG> 		1-31259-038-0 01 1 9009-9306 ●
142 PLATE; ANTI RATTLE
6RB1TC ENG(30L),12PD1 STD ENG(42L) 		1-31229-049-0 04 1 9002- ● ● ● ●
