◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40A - STEERING UNIT ▶
4-40A — STEERING UNIT (#23639) — 14 parça

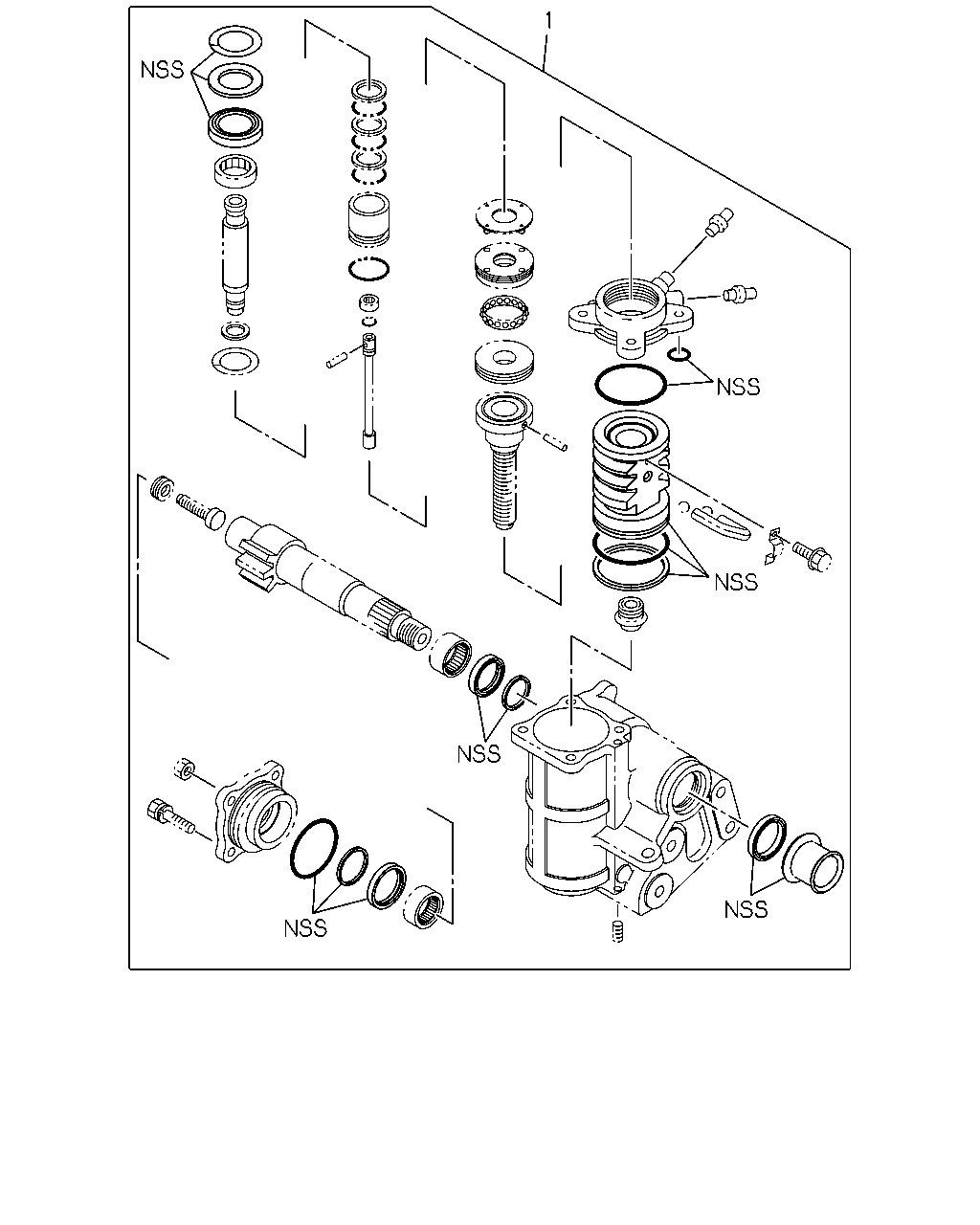

çizim 45739
1
BalonParca AdiParca NoAdetTipApplied Date
1 06.507 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: A = 8-97251-842-1, 97251842 		8-97264-465-0 01 1 -

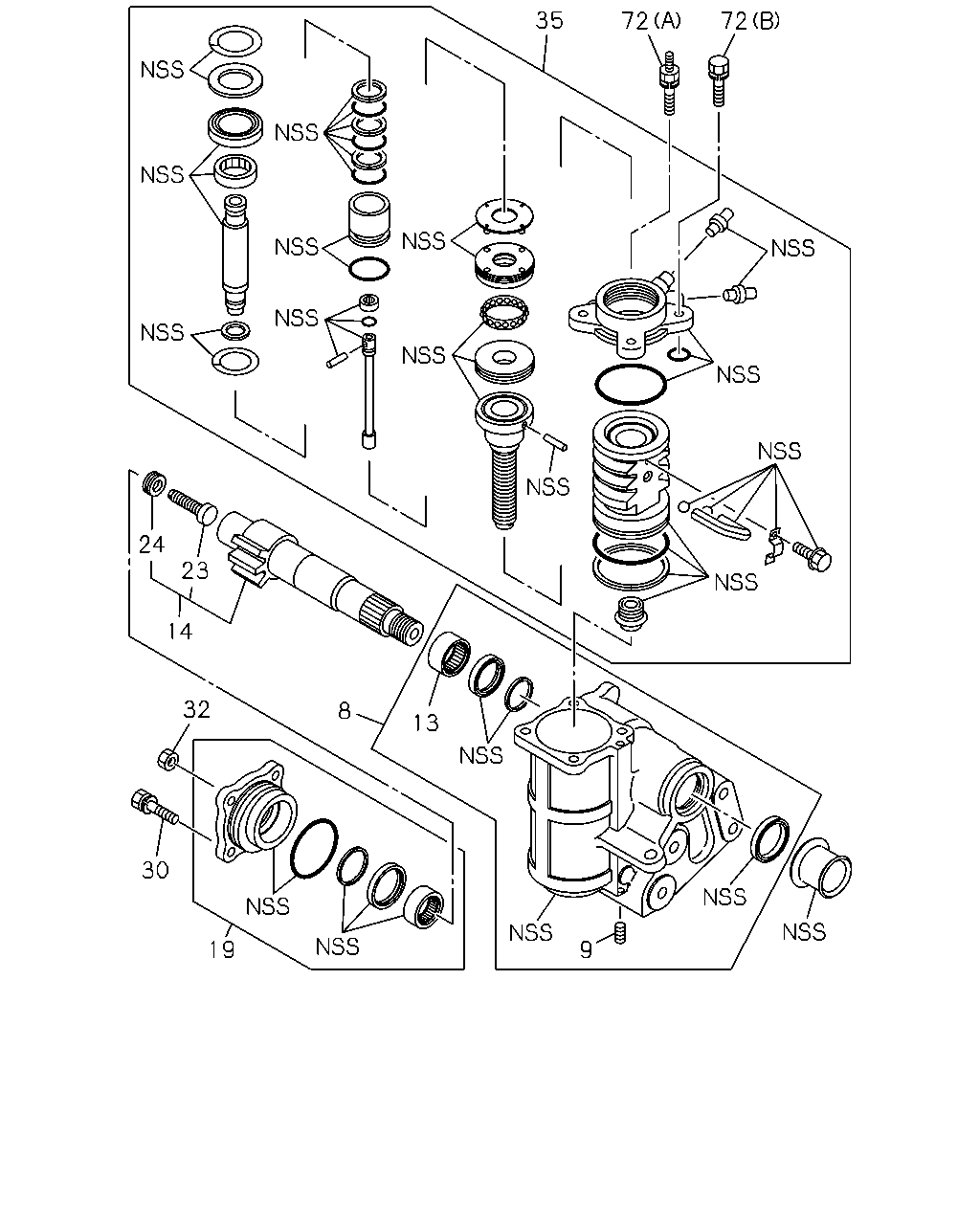

çizim 46223
35 72 72 24 23 14 32 8 13 30 19 9
BalonParca AdiParca NoAdetTipApplied Date
8 06.803 BOX ASM; STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97202-842-1 01 1 -
9 06.806 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-820-0 02 1 -
13 06.786 BEARING; SHAFT,BOX SIDE,STRG UNI
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-828-0 01 1 -
14 06.850 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97202-843-0 01 1 -
19 06.807 COVER; SIDE STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-933-1 01 1 -
23 06.822 SCREW; ADJ,SECTOR SHAFT,STRG UNI
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-842-0 01 1 -
24 06.822 RETAINER; STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-841-0 01 1 -
30 06.809 BOLT; COVER STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-836-0 04 1 -
32 06.822 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97014-834-0 01 1 -
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97264-469-0 01 1 -0212
35 06.586 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 8-97251-842-1, 97251842 		8-97287-221-0 01 1 0301-
72 06.550 BOLT; HSG FIX STRG UNIT
(B) ASM PART: A = 8-97251-842-1, 97251842 		1-44519-110-0 03 1 -
72 06.550 BOLT; HSG FIX STRG UNIT
06.809, (A) ASM PART: A = 8-97251-842-1, 97251842 		8-97078-178-0 01 1 -
