Sayfa 4-35 - Isuzu EPC

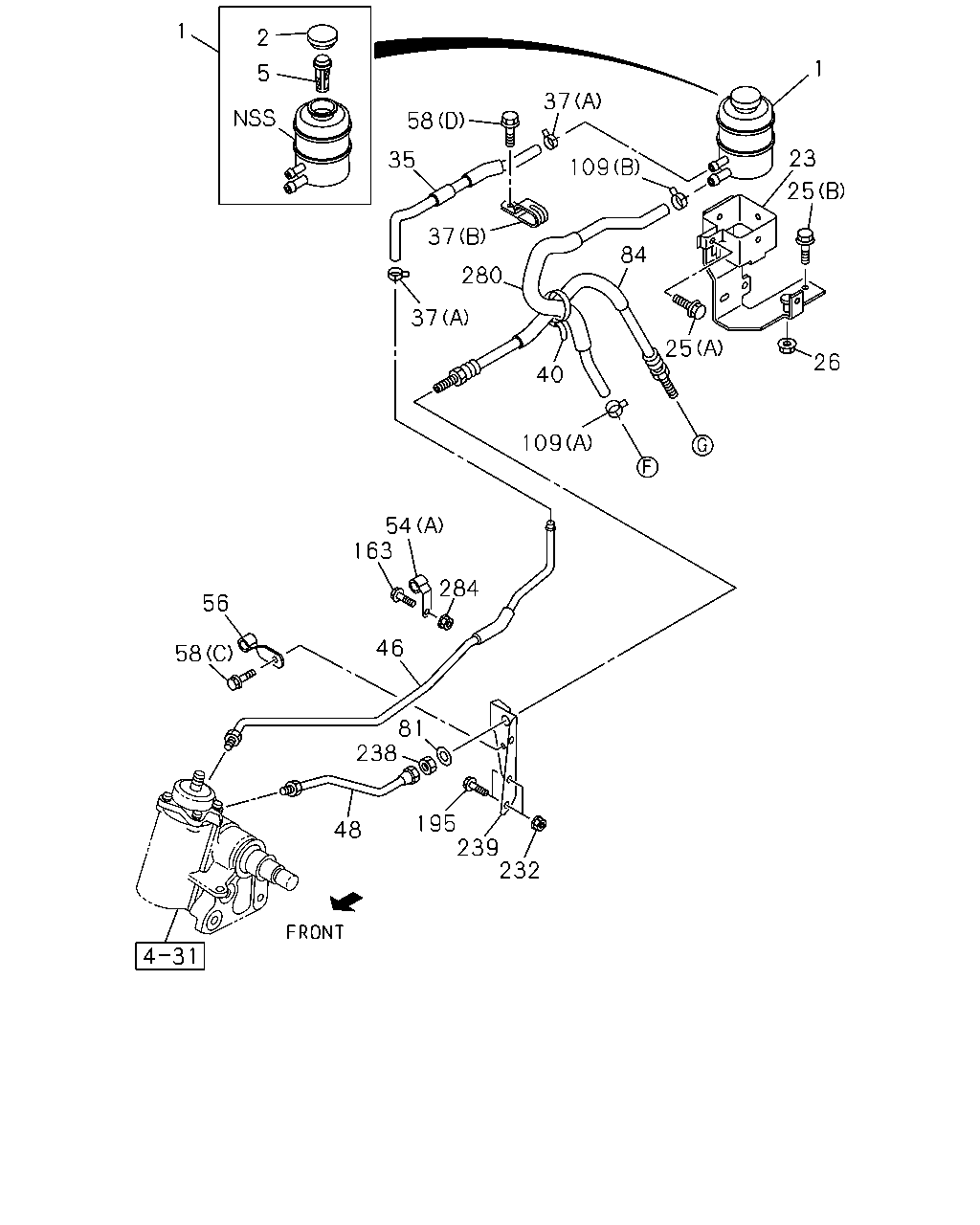

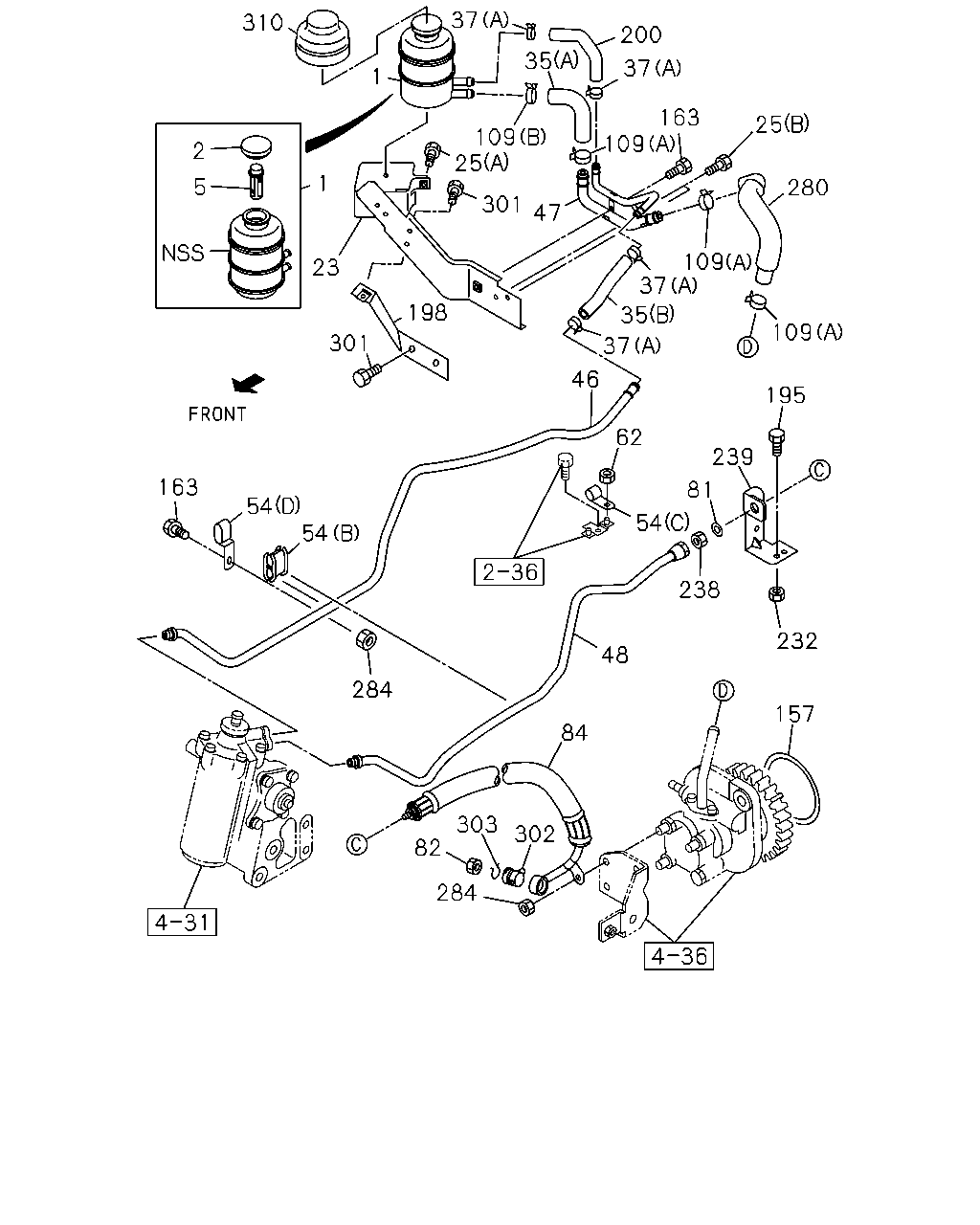

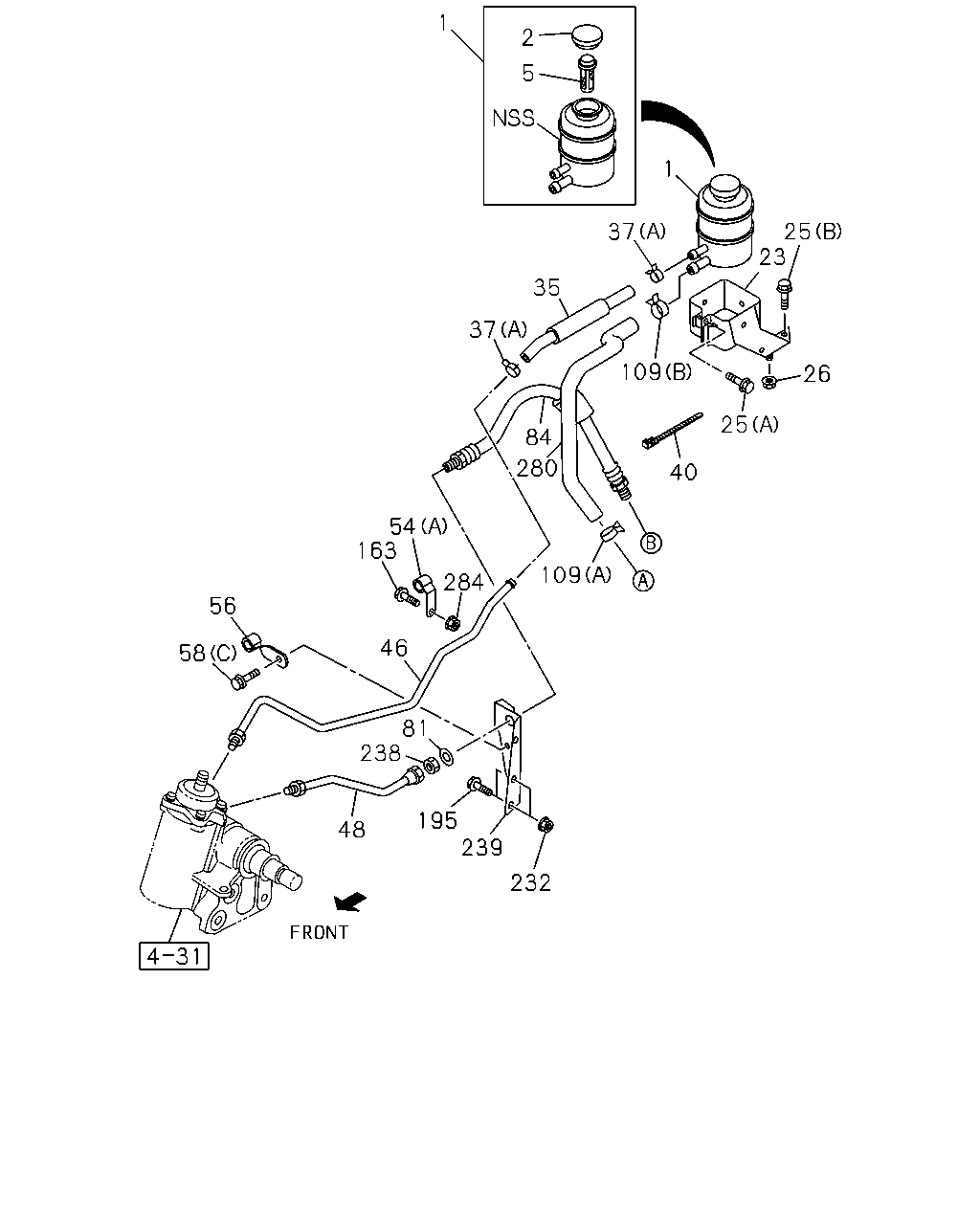

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#23637) — 488 parça

37 310 200 35 37 1 163 109 25 109 25 2 1 5 280 301 47 109 37 23 198 35 109 301 37 46 195 62 239 163 81 54 54 54 238 232 48 284 157 84 303 302 82 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9811-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9811-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9811-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	9811-0105	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0106-	●	●	●	●		●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX) POWER STEERING<N40>	8-97289-416-0	01	1	0106-	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	9811-0107	●		●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	0108-	●		●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●		●
25	06.635 BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0107	●		●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	0106-	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97081-444-3	01	1	9811-0105	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	0106-	●	●	●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX) POWER STEERING<N40>	8-97289-444-1	01	1	0106-	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	9811-0107	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0108-	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	9811-0107	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	0108-	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0107	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0107	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	0108-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	0108-	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) POWER STEERING<N40> 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0106-	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97262-189-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97262-188-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-190-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40>	8-97262-190-0	01	1	0106-			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97205-632-0	01	1	9811-0101	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97262-186-0	01	1	0102-0105	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-186-0	01	1	0106-	●	●	●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97048-127-3	01	1	9811-0101	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97262-192-0	01	1	0102-0105	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-192-0	01	1	0106-0107	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-192-0	01	1	0108-0205	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97353-649-0	01	1	0206-	●		●	●	●	●
47	06.671 PIPE; RETURN 4HF1 ENG(RLS) POWER STEERING<N40>	8-97046-041-1	01	1	9811-0107	●		●	●	●	●
47	06.671 PIPE; RETURN 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97046-041-1	01	1	0108-	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0106-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97205-630-0	01	1	9811-0101	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97261-623-0	01	1	0102-0105	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97261-623-0	01	1	0106-	●	●	●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97048-128-4	01	1	9811-0101	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97262-191-0	01	1	0102-0105	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-191-0	01	1	0106-0107	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-191-0	01	1	0108-0205	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97353-648-0	01	1	0206-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	9811-0105	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0106-	●	●	●	●		●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0108-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	0108-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (C) ID=11 L=20	9-09525-035-0	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (C) ID=11 L=20	9-09525-035-0	01	1	0108-	●		●	●	●	●
62	06.670 NUT; CLIP FIX 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0107	●		●	●	●	●
62	06.670 NUT; CLIP FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●		●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●		●
81	06.672 WASHER; LK,FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●		●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-0105	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●	●		●
82	06.672 NUT; FLEX HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	9811-0107	●		●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0108-	●		●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97047-717-4	01	1	9811-0105	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97047-717-4	01	1	0106-	●	●	●	●		●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX) POWER STEERING<N40>	8-97260-171-2	01	1	0106-	●		●	●
84	06.670 HOSE; FLEX,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97130-893-0	01	1	9811-0107	●		●	●	●	●
84	06.670 HOSE; FLEX,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97130-893-0	01	1	0108-	●		●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	9811-0107	●		●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0108-	●		●	●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-875-2	01	1	9811-0107	●		●	●	●	●
157	06.673 GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-875-2	01	1	0108-	●		●	●	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●		●
163	06.671 BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0107	●		●	●	●	●
163	06.671 BOLT; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●	●	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●		●
195	06.635 BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0107	●		●	●	●	●
195	06.635 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●		●	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING 4HF1 ENG(RLS) POWER STEERING<N40>	8-97081-778-1	01	1	9811-0107	●		●	●	●	●
198	06.672 STAY; OIL TANK,POWER STEERING 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97081-778-1	01	1	0108-	●		●	●	●	●
200	06.670 HOSE; RUBBER,RETURN 4HF1 ENG(RLS) POWER STEERING<N40>	8-97080-109-0	01	1	9811-0107	●		●	●	●	●
200	06.670 HOSE; RUBBER,RETURN 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97080-109-0	01	1	0108-	●		●	●	●	●
232	06.672 NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
232	06.672 NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0107	●		●	●	●	●
232	06.672 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●		●	●	●	●
232	06.672 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●	●	●
232	06.672 NUT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●	●		●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-0105	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0106-0107	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0108-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	0106-	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-879-0	01	1	9811-0105	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97089-879-0	01	1	0106-	●	●	●	●		●
239	06.606 BRACKET; FLEX HOSE 4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	9811-0107	●		●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	0108-	●		●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1 ENG(RJX) POWER STEERING<N40>	8-97315-641-1	01	1	0106-	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	9811-0105	●	●	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0106-	●	●	●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0106-	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	9811-0107	●		●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	0108-	●		●	●	●	●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
284	06.670 NUT; PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●		●
284	06.670 NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0107	●		●	●	●	●
284	06.670 NUT; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-	●		●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	9811-9812	●		●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9901-0107	●		●	●	●	●
301	06.672 BOLT; STAY,OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
302	06.672 CAP; EYE JOINT 4HF1 ENG(RLS) POWER STEERING<N40> 06.606	8-97028-715-0	01	1	9811-9904	●		●	●	●	●
303	06.635 HOLDER; P/S PUMP 4HF1 ENG(RLS) POWER STEERING<N40> 06.606	8-97029-905-0	01	1	9811-9904	●		●	●	●	●
310	06.672 COVER; OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97103-394-0	01	1	9811-0107	●		●	●		●
310	06.672 COVER; OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97103-394-0	01	1	0108-	●		●			●
310	06.672 COVER; OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97103-394-0	01	1	0108-				●

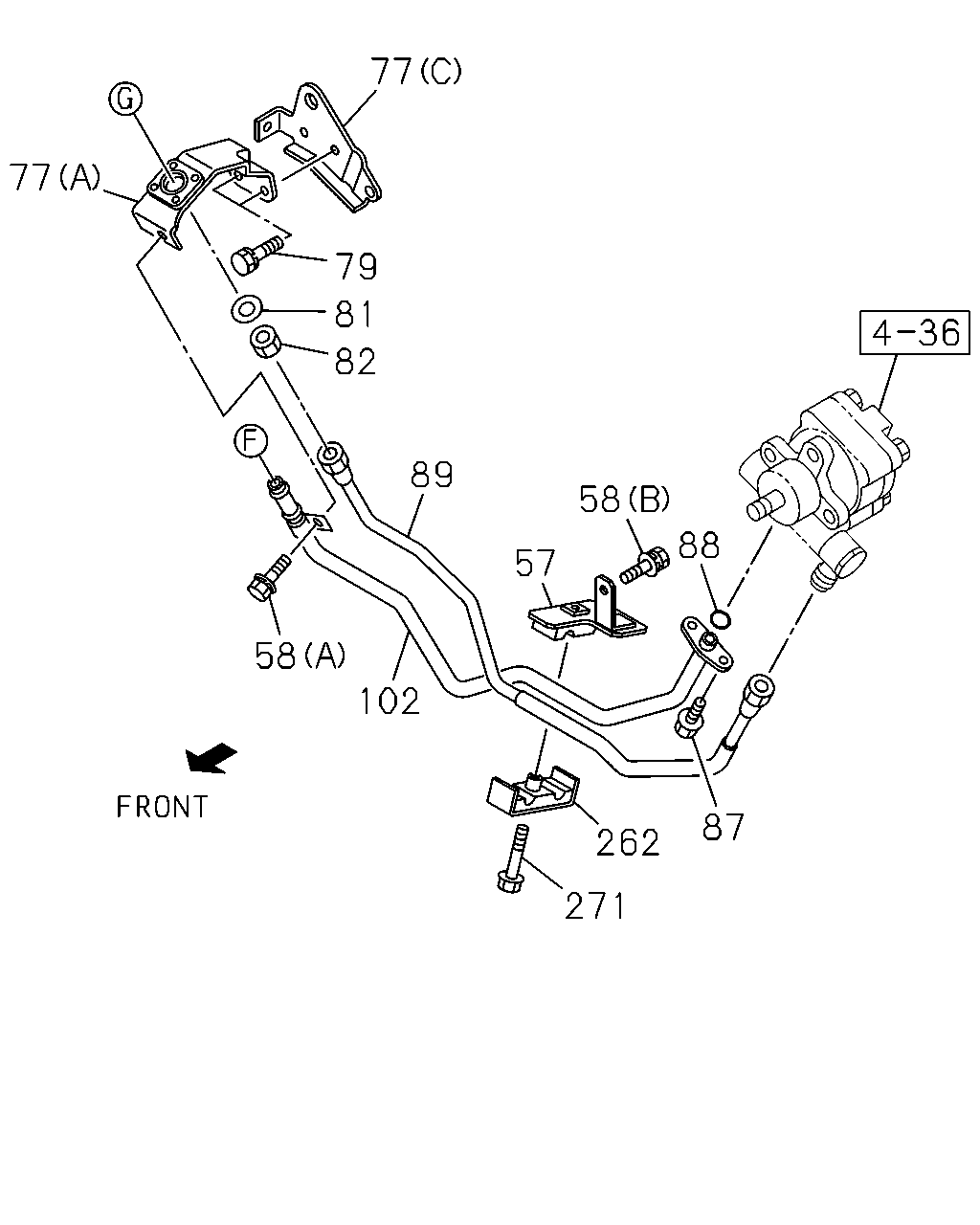

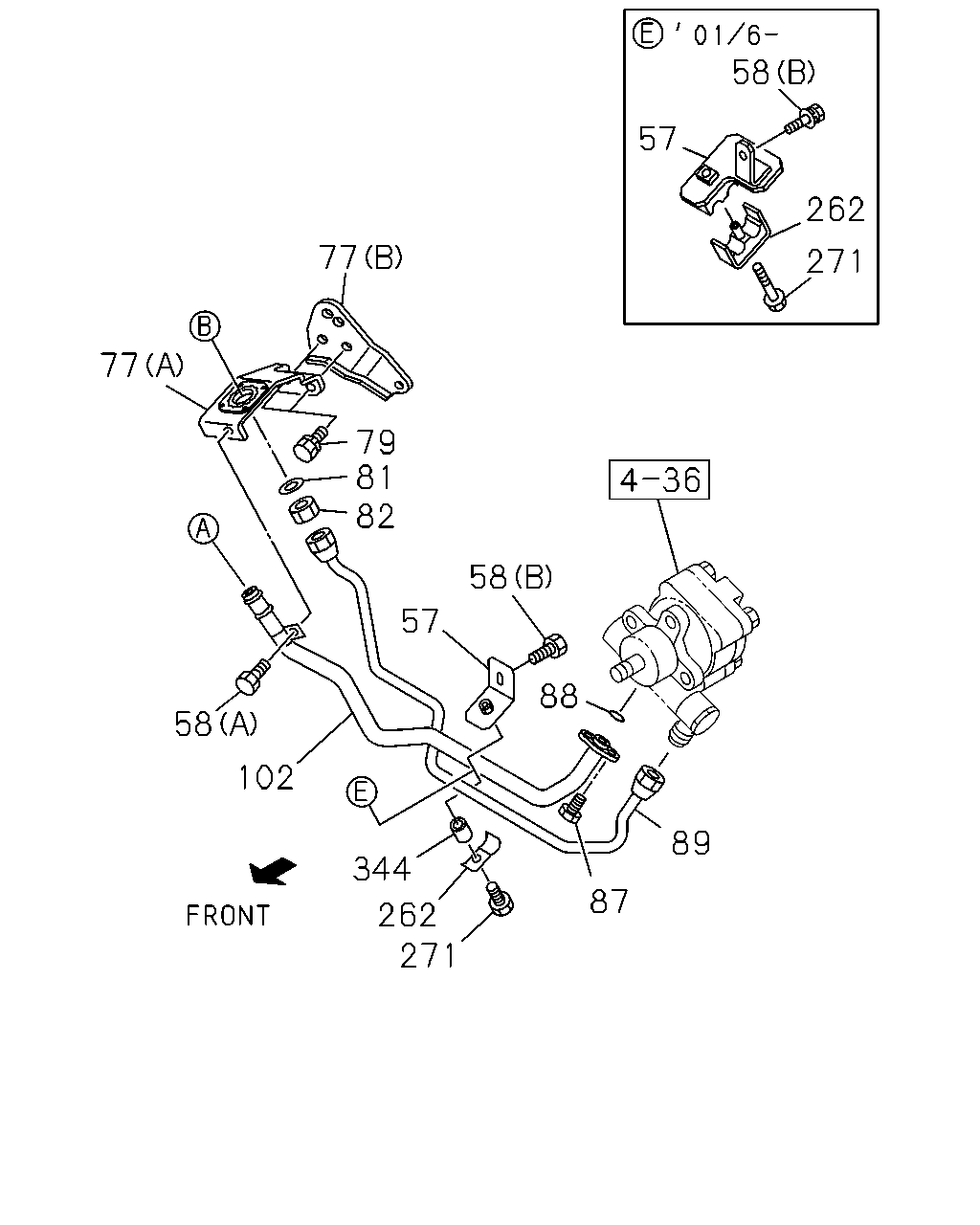

77 77 79 81 82 89 58 88 57 58 102 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97101-943-0	01	1	9811-0105	●	●	●	●	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-558-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) POWER STEERING<N40> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97075-615-0	01	1	9811-	●	●	●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) ,FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>,THAILAND EQUIPMENT(PM9) (A)	8-97074-053-0	01	1	9811-9811	●	●	●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> POWER STEERING<N40> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> (A)	8-97074-053-0	01	1	9811-9811	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> POWER STEERING<N40> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97074-053-0	01	1	9811-9811	●			●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (A)	8-97074-053-0	01	1	9811-9811			●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) ,FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>,THAILAND EQUIPMENT(PM9) (A)	8-97208-424-0	01	1	9812-0105	●	●	●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> POWER STEERING<N40> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> (A)	8-97208-424-0	01	1	9812-0105	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> POWER STEERING<N40> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97208-424-0	01	1	9812-0105	●			●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (A)	8-97208-424-0	01	1	9812-0105			●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0106-	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0106-		●				●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) (B)	8-97073-947-0	01	1	9811-0105			●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (C)	8-97240-137-0	01	1	0106-	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97240-137-0	01	1	0106-	●		●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) ,FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>,THAILAND EQUIPMENT(PM9) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105	●	●	●	●		●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> POWER STEERING<N40> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105	●		●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> POWER STEERING<N40> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105	●			●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105			●	●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-	●		●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-		●				●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●		●
81	06.672 WASHER; LK,FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●		●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-0105	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●	●		●
82	06.672 NUT; FLEX HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	9811-0107	●		●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0108-	●		●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●		●
88	06.673 RING; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	9811-0105	●	●	●	●	●	●
88	06.673 RING; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	0106-	●	●	●	●		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97148-571-0	01	1	9811-9811	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-442-0	01	1	9812-9903	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97227-155-0	01	1	9904-0105	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97312-555-0	01	1	0106-	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97312-556-0	01	1	0106-	●	●	●	●		●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97136-516-0	01	1	9811-9811	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-446-0	01	1	9812-9812	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97223-147-0	01	1	9901-9904	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97226-682-0	01	1	9905-0105	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-557-1	01	1	0106-	●	●	●	●		●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-94154-657-1	01	1	9811-9811	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-447-1	01	1	9812-0105	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97300-961-0	01	1	0106-	●	●	●	●		●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.525 M8X30	8-94247-692-0	01	1	9811-9812	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0106-	●	●	●	●		●

1 2 5 1 25 23 37 35 37 109 26 25 84 280 40 54 163 109 284 56 46 58 81 238 195 239 48 232

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9811-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9811-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9811-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	9811-0105	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0106-	●	●	●	●		●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX) POWER STEERING<N40>	8-97289-416-0	01	1	0106-	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	9811-0107	●		●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	0108-	●		●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●		●
25	06.635 BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0107	●		●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0005	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0006-0105	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	0106-	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97081-444-3	01	1	9811-0105	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	0106-	●	●	●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX) POWER STEERING<N40>	8-97289-444-1	01	1	0106-	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	9811-0107	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0108-	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	9811-0107	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	0108-	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0107	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0107	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	0108-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	0108-	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) POWER STEERING<N40> 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0106-	●		●	●
40	06.672 CLIP; BAND 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	9811-0105	●	●	●	●	●	●
40	06.672 CLIP; BAND 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	0106-	●	●	●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97262-189-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97262-188-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-190-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40>	8-97262-190-0	01	1	0106-			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97205-632-0	01	1	9811-0101	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97262-186-0	01	1	0102-0105	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-186-0	01	1	0106-	●	●	●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97048-127-3	01	1	9811-0101	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97262-192-0	01	1	0102-0105	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-192-0	01	1	0106-0107	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-192-0	01	1	0108-0205	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97353-649-0	01	1	0206-	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0106-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97205-630-0	01	1	9811-0101	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97261-623-0	01	1	0102-0105	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97261-623-0	01	1	0106-	●	●	●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97048-128-4	01	1	9811-0101	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97262-191-0	01	1	0102-0105	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-191-0	01	1	0106-0107	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-191-0	01	1	0108-0205	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97353-648-0	01	1	0206-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	9811-0105	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0106-	●	●	●	●		●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0108-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	0108-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (C) ID=11 L=20	9-09525-035-0	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (C) ID=11 L=20	9-09525-035-0	01	1	0108-	●		●	●	●	●
56	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	9811-0105	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) POWER STEERING<N40> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●		●
81	06.672 WASHER; LK,FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●		●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97047-717-4	01	1	9811-0105	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97047-717-4	01	1	0106-	●	●	●	●		●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX) POWER STEERING<N40>	8-97260-171-2	01	1	0106-	●		●	●
84	06.670 HOSE; FLEX,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97130-893-0	01	1	9811-0107	●		●	●	●	●
84	06.670 HOSE; FLEX,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97130-893-0	01	1	0108-	●		●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	9811-0107	●		●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0108-	●		●	●	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●		●
163	06.671 BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0107	●		●	●	●	●
163	06.671 BOLT; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●	●	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●		●
195	06.635 BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0107	●		●	●	●	●
195	06.635 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●		●	●	●	●
232	06.672 NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
232	06.672 NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0107	●		●	●	●	●
232	06.672 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●		●	●	●	●
232	06.672 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●	●	●
232	06.672 NUT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●	●		●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-0105	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0106-0107	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0108-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	0106-	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-879-0	01	1	9811-0105	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97089-879-0	01	1	0106-	●	●	●	●		●
239	06.606 BRACKET; FLEX HOSE 4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	9811-0107	●		●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	0108-	●		●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1 ENG(RJX) POWER STEERING<N40>	8-97315-641-1	01	1	0106-	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	9811-0105	●	●	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0106-	●	●	●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0106-	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	9811-0107	●		●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	0108-	●		●	●	●	●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
284	06.670 NUT; PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●		●
284	06.670 NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0107	●		●	●	●	●
284	06.670 NUT; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-	●		●	●	●	●

58 57 262 77 271 77 79 81 82 58 57 88 58 102 89 344 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97101-943-0	01	1	9811-0105	●	●	●	●	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-558-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) POWER STEERING<N40> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-97075-615-0	01	1	9811-	●	●	●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) ,FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>,THAILAND EQUIPMENT(PM9) (A)	8-97074-053-0	01	1	9811-9811	●	●	●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> POWER STEERING<N40> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> (A)	8-97074-053-0	01	1	9811-9811	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> POWER STEERING<N40> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97074-053-0	01	1	9811-9811	●			●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (A)	8-97074-053-0	01	1	9811-9811			●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) ,FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>,THAILAND EQUIPMENT(PM9) (A)	8-97208-424-0	01	1	9812-0105	●	●	●	●		●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> POWER STEERING<N40> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> (A)	8-97208-424-0	01	1	9812-0105	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> POWER STEERING<N40> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) (A)	8-97208-424-0	01	1	9812-0105	●			●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> (A)	8-97208-424-0	01	1	9812-0105			●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0106-	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) POWER STEERING<N40> (A)	8-97208-424-0	01	1	0106-		●				●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) (B)	8-97073-947-0	01	1	9811-0105			●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) (C)	8-97240-137-0	01	1	0106-	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) HEATER & DEFROSTER(C41) POWER STEERING<N40> EXC. HONG KONG EQUIPMENT(PQ1) (C)	8-97240-137-0	01	1	0106-	●		●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> EXC. AIR CONDITIONER MANUAL CONT(C60) ,FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51>,THAILAND EQUIPMENT(PM9) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105	●	●	●	●		●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> POWER STEERING<N40> THAILAND EQUIPMENT(PM9) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUD E COMPENSATOR(EE2),TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105	●		●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) FAN FLUID DRIVE<KA3> OIL COOLER<KC4> TURBOCHARGER<K51> POWER STEERING<N40> PARTIAL OIL FILTER<S6A> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105	●			●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC) HEATER & DEFROSTER(C41) FAN FLUID DRIVE<KA3> POWER STEERING<N40> HONG KONG EQUIPMENT(PQ1) EURO2 SPECIFICATION<7AF> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	9811-0105			●	●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-	●		●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-		●				●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●		●
81	06.672 WASHER; LK,FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●		●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-0105	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●	●		●
82	06.672 NUT; FLEX HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	9811-0107	●		●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 06.606 M12 SELF LOCK	8-97028-390-1	01	1	0108-	●		●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9811-0105	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●	●		●
88	06.673 RING; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	9811-0105	●	●	●	●	●	●
88	06.673 RING; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 06.609 ID=11.0	9-09561-111-0	01	1	0106-	●	●	●	●		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97148-571-0	01	1	9811-9811	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-442-0	01	1	9812-9903	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97227-155-0	01	1	9904-0105	●	●	●	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97312-555-0	01	1	0106-	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97312-556-0	01	1	0106-	●	●	●	●		●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97136-516-0	01	1	9811-9811	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-446-0	01	1	9812-9812	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97223-147-0	01	1	9901-9904	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97226-682-0	01	1	9905-0105	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97312-557-1	01	1	0106-	●	●	●	●		●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-94154-657-1	01	1	9811-9811	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-447-1	01	1	9812-0105	●	●	●	●	●	●
262	06.672 CLIP; P/S PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97300-961-0	01	1	0106-	●	●	●	●		●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 06.525 M8X30	8-94247-692-0	01	1	9811-9812	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-0105	●	●	●	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 03.704 M8X40 FLANGE	0-28680-840-0	01	1	0106-	●	●	●	●		●
344	04.681 PIECE; DISTANCE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97214-563-0	01	1	9812-0105	●	●	●	●	●	●

1 2 1 5 37 58 109 23 35 25 37 84 280 37 25 26 40 109 54 163 284 56 46 58 81 238 195 239 232 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.635 TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9811-	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S POWER STEERING<N40> 06.635	8-94146-153-2	01	1	9811-	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9811-	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	9811-0105	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97066-500-3	01	1	0106-	●	●	●	●		●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX) POWER STEERING<N40>	8-97289-416-0	01	1	0106-	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	9811-0107	●		●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97101-040-1	01	1	0108-	●		●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9811-	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●		●
25	06.635 BOLT; OIL TANK BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	9811-0107	●		●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	03	1	9811-0005	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0006-0105	●	●	●	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	0106-	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97081-444-3	01	1	9811-0105	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97081-444-3	01	1	0106-	●	●	●	●		●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX) POWER STEERING<N40>	8-97289-444-1	01	1	0106-	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	9811-0107	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (B) L=150	0-09809-150-0	01	1	0108-	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	9811-0107	●		●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (A)	8-97080-108-1	01	1	0108-	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0107	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HF1 ENG(RLS) POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	9811-0107	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	0108-	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 04.930 (A) ID=16	8-94238-568-0	02	1	0108-	●		●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) POWER STEERING<N40> 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0106-	●		●	●
40	06.672 CLIP; BAND 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	9811-0105	●	●	●	●	●	●
40	06.672 CLIP; BAND 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 L=250	5-09707-030-1	01	1	0106-	●	●	●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97262-189-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97262-188-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-190-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) POWER STEERING<N40>	8-97262-190-0	01	1	0106-			●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97205-632-0	01	1	9811-0101	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97262-186-0	01	1	0102-0105	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-186-0	01	1	0106-	●	●	●	●		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97048-127-3	01	1	9811-0101	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40>	8-97262-192-0	01	1	0102-0105	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-192-0	01	1	0106-0107	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-192-0	01	1	0108-0205	●		●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97353-649-0	01	1	0206-	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0106-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97205-630-0	01	1	9811-0101	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97261-623-0	01	1	0102-0105	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97261-623-0	01	1	0106-	●	●	●	●		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97048-128-4	01	1	9811-0101	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40>	8-97262-191-0	01	1	0102-0105	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-191-0	01	1	0106-0107	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97262-191-0	01	1	0108-0205	●		●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97353-648-0	01	1	0206-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	9811-0105	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> (A) ID=11 L=40	8-94259-342-0	01	1	0106-	●	●	●	●		●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 03.162 (D) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0108-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (B) ID=10X2 H=22	8-94252-455-2	01	1	0108-	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (C) ID=11 L=20	9-09525-035-0	01	1	9811-0107	●		●	●	●	●
54	06.672 CLIP; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 (C) ID=11 L=20	9-09525-035-0	01	1	0108-	●		●	●	●	●
56	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	9811-0105	●	●	●	●	●	●
56	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9811-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	9811-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9811-9811	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.780 (A) M8X30 W/LK WASHER	0-50040-830-0	01	1	9812-9812	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 08.080 (A) M6X16	8-94238-894-0	01	1	9901-9903	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	9904-0105	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●	●		●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) POWER STEERING<N40> 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9811-0105	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-0107	●	●	●	●		●
81	06.672 WASHER; LK,FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0108-	●	●	●	●		●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97047-717-4	01	1	9811-0105	●	●	●	●	●	●
84	06.670 HOSE; FLEX,P/S 4JB1 ENG(RLF) POWER STEERING<N40>	8-97047-717-4	01	1	0106-	●	●	●	●		●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX) POWER STEERING<N40>	8-97260-171-2	01	1	0106-	●		●	●
84	06.670 HOSE; FLEX,P/S 4HF1 ENG(RLS) POWER STEERING<N40>	8-97130-893-0	01	1	9811-0107	●		●	●	●	●
84	06.670 HOSE; FLEX,P/S 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97130-893-0	01	1	0108-	●		●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE POWER STEERING<N40> 08.846 (B) ID=22	8-94382-401-0	01	1	9811-	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	9811-0107	●		●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> (A) ID=21	8-94242-034-0	02	1	0108-	●		●	●	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●	●		●
163	06.671 BOLT; OIL PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0107	●		●	●	●	●
163	06.671 BOLT; OIL PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-	●		●	●	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●	●	●	●	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●		●
195	06.635 BOLT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0107	●		●	●	●	●
195	06.635 BOLT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●		●	●	●	●
232	06.672 NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
232	06.672 NUT; BRKT 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0107	●		●	●	●	●
232	06.672 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●		●	●	●	●
232	06.672 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0105	●	●	●	●	●	●
232	06.672 NUT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●	●	●	●		●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	9811-0105	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0106-0107	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) POWER STEERING<N40> 06.897 M16	8-94370-339-0	01	1	0108-	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	0106-	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97089-879-0	01	1	9811-0105	●	●	●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97089-879-0	01	1	0106-	●	●	●	●		●
239	06.606 BRACKET; FLEX HOSE 4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	9811-0107	●		●	●	●	●
239	06.606 BRACKET; FLEX HOSE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97033-926-2	01	1	0108-	●		●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1 ENG(RJX) POWER STEERING<N40>	8-97315-641-1	01	1	0106-	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97062-797-1	01	1	9811-0105	●	●	●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	0106-	●	●	●	●		●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	0106-	●		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	9811-0107	●		●	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40>	8-97106-424-0	01	1	0108-	●		●	●	●	●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
284	06.670 NUT; PIPE 4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●		●
284	06.670 NUT; PIPE 4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-0107	●		●	●	●	●
284	06.670 NUT; PIPE 4HG1 ENG(RJH),4HF1 ENG(RLS) POWER STEERING<N40> 07.633 M8 FLANGE	0-91150-108-0	02	1	0108-	●		●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
