Sayfa 4-10 - Isuzu EPC

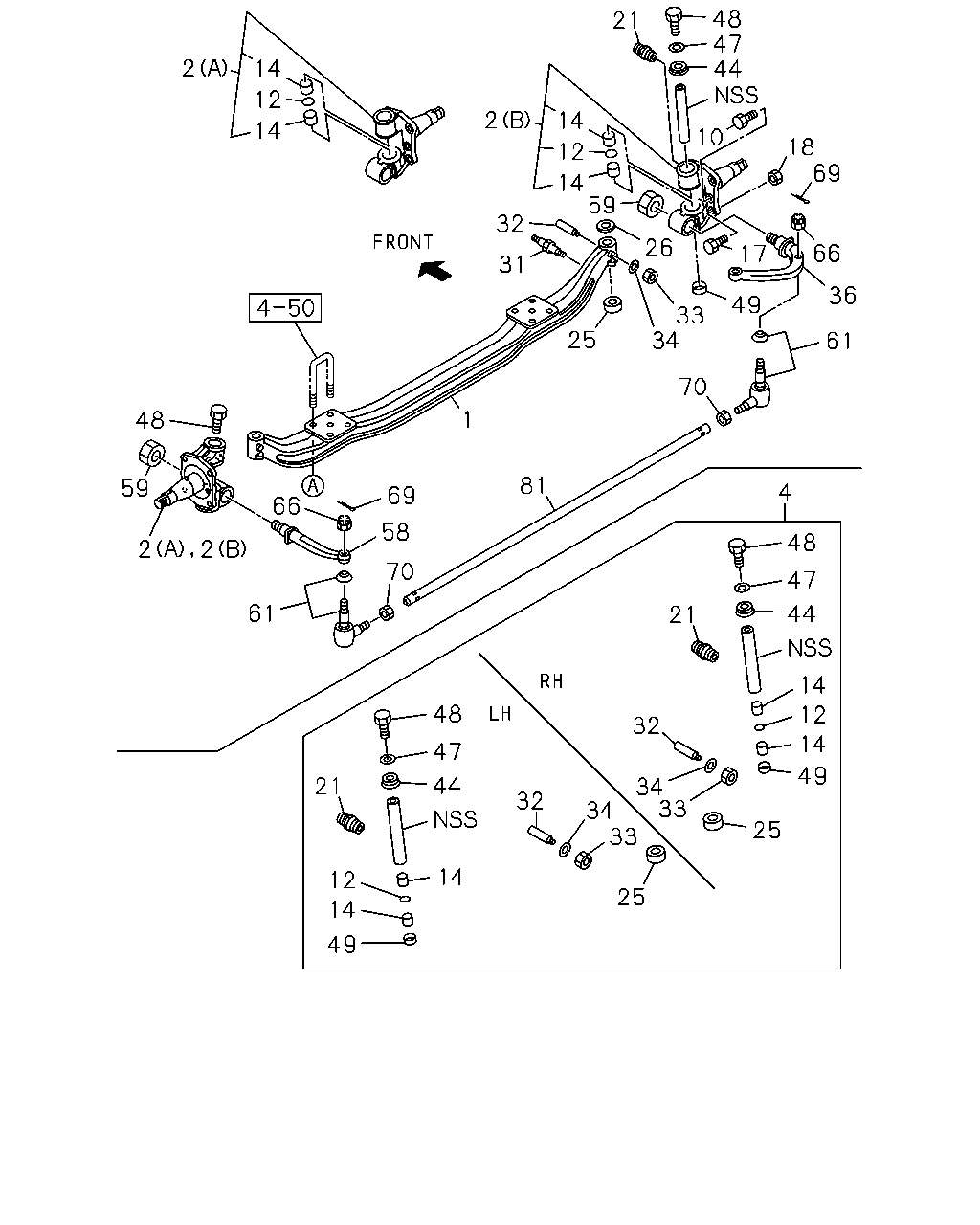

4-10 — FRONT AXLE (#23630) — 186 parça

48 47 44 21 2 14 12 2 14 14 10 18 69 12 14 59 32 26 66 17 31 36 49 33 34 25 61 70 1 48 59 81 66 4 69 58 48 2 2 70 47 61 44 21 14 48 12 32 14 47 49 44 21 34 33 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	06.008 AXLE; FRT	8-97137-585-0	01	1	9811-0105	●	●	●	●	●	●
1	06.008 AXLE; FRT EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97137-585-2	01	1	0106-	●
1	06.008 AXLE; FRT	8-97137-585-2	01	1	0106-		●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	0106-0209	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97320-368-1	01	1	0210-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	0106-0209	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97320-367-1	01	1	0210-	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-781-0	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-781-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-783-0	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-783-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-682-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-682-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-546-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-546-1	01	1	0106-	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-546-1	01	1	0106-		●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-681-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-681-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-545-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-545-1	01	1	0106-	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-545-1	01	1	0106-		●	●	●	●	●
4	06.203 KING PIN KIT	5-87831-608-1	01	1	9811-0105	●	●	●	●	●	●
4	06.203 KING PIN KIT EXC. FRT INDEPENDENT SUSPENSION(6PP)	5-87831-608-1	01	1	0106-	●
4	06.203 KING PIN KIT	5-87831-608-1	01	1	0106-		●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9811-0105	●	●	●	●	●	●
10	06.009 PLUG; PLATE,KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94107-661-0	01	1	0106-	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0106-		●	●	●	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	9811-0105	●	●	●	●	●	●
12	06.021 GASKET; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.225	9-09561-230-0	02	1	0106-	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	0106-		●	●	●	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9811-0105	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) DAIDO WO/NOTCH	8-94107-672-2	04	1	0106-	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	0106-		●	●	●	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9811-0105	●	●	●	●	●	●
14	06.021 BUSHING; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) JBK	8-94127-925-2	04	1	0106-	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	0106-		●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (ASD) M12X27.5	8-94433-409-1	03	1	9811-0105	●
17	06.009 BOLT; STOPPER KNUCKLE (ASD) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X27.5	8-94433-409-1	03	1	0106-	●
17	06.009 BOLT; STOPPER KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) M12X24 EYE-BOLT	5-09000-208-1	03	1	9811-0105	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9811-0105		●	●	●	●	●
17	06.009 BOLT; STOPPER KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) EXC. FRT INDEPENDENT SUSPENSION(6PP) M12X24 EYE-BOLT	5-09000-208-1	03	1	0106-	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	0106-		●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (ASD)	8-94433-410-1	03	1	9811-0105	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (ASD) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94433-410-1	03	1	0106-	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) 07.347 M12	9-99111-512-0	03	1	9811-0105	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9811-0105		●	●	●	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE (09V),(10V),(22H),(23H),(25H),(26H), (29H),(45C) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.347 M12	9-99111-512-0	03	1	0106-	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	0106-		●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9811-0105	●	●	●	●	●	●
21	06.166 NIPPLE; GREASE,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0106-	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0106-		●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	9811-0105	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-943-0	01	1	0106-	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0106-		●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	9811-0105	●	●	●	●	●	●
25	06.210 BEARING; THRUST,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.021	8-94248-883-2	01	1	0106-	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.50	8-94162-574-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.55	8-94162-575-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.60	8-94162-576-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.65	8-94162-577-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	01	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.460 T=1.95	8-94168-490-0	01	1	0106-	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	01	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.70	8-94174-352-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.80	8-94174-354-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	0106-		●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9811-0105	●	●	●	●	●	●
26	06.022 SHIM; KING PIN,BRG EXC. FRT INDEPENDENT SUSPENSION(6PP) T=0.90	8-94174-356-0	AR	1	0106-	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	0106-		●	●	●	●	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	9811-0105	●	●	●	●	●	●
31	07.347 PIN; S/ABS,LWR EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-944-0	02	1	0106-	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	0106-		●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9811-0105	●	●	●	●	●	●
32	06.216 BOLT; KEY,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97141-945-1	02	1	0106-	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	0106-		●	●	●	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9811-0105	●	●	●	●	●	●
33	06.216 NUT; KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 09.011 M10	9-09110-410-0	02	1	0106-	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	0106-		●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9811-0105	●	●	●	●	●	●
34	06.216 WASHER; LK,KEY BOLT EXC. FRT INDEPENDENT SUSPENSION(6PP) 00.002 ID=10.2	9-09150-510-0	02	1	0106-	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	0106-		●	●	●	●	●
36	06.103 ARM; KNUCKLE	8-97137-454-0	01	1	9811-9907	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. AXLE ISUZU PRODUCTION<8BF>	8-97137-454-0	01	1	9908-9909	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE AXLE ISUZU PRODUCTION<8BF>	8-97204-075-0	01	1	9908-9909	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE	8-97204-075-0	01	1	9910-0105	●	●	●	●	●	●
36	06.103 ARM; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97204-075-0	01	1	0106-	●
36	06.103 ARM; KNUCKLE	8-97204-075-0	01	1	0106-		●	●	●	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9811-0105	●	●	●	●	●	●
44	06.225 COVER; KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) OD=36	8-94248-675-1	02	1	0106-	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-1	02	1	0106-		●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9811-0105	●	●	●	●	●	●
47	06.225 WASHER; PL,COVER,KING PIN EXC. FRT INDEPENDENT SUSPENSION(6PP) 06.896 ID=10.5	9-09164-510-0	02	1	0106-	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	0106-		●	●	●	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9811-0105	●	●	●	●	●	●
48	06.225 BOLT; COVER EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.642 M10X16	0-20801-016-0	02	1	0106-	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	0106-		●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9811-0008	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0009-0105	●	●	●	●	●	●
49	06.225 CAP; KNUCKLE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97261-587-0	02	1	0106-	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0106-		●	●	●	●	●
58	06.103 ARM; TIE ROD	8-97138-303-0	01	1	9811-0105	●	●	●	●	●	●
58	06.103 ARM; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97138-303-0	01	1	0106-	●
58	06.103 ARM; TIE ROD	8-97138-303-0	01	1	0106-		●	●	●	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9811-0105	●	●	●	●	●	●
59	06.104 NUT; TIE ROD ARM EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94247-724-0	02	1	0106-	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	0106-		●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	9811-9903	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97222-510-0	01	1	9904-0105	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97222-510-0	01	1	0106-0204	●
61	06.233 ROD END; TIE ROD	8-97222-510-0	01	1	0106-0204		●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-101-1	01	1	0205-	●
61	06.233 ROD END; TIE ROD	8-97142-101-1	01	1	0205-		●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	9811-9903	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD	8-97222-509-0	01	1	9904-0105	●	●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97222-509-0	01	1	0106-0204	●
61	06.233 ROD END; TIE ROD	8-97222-509-0	01	1	0106-0204		●	●	●	●	●
61	06.233 ROD END; TIE ROD EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-100-1	01	1	0205-	●
61	06.233 ROD END; TIE ROD	8-97142-100-1	01	1	0205-		●	●	●	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9811-0105	●	●	●	●	●	●
66	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.917 M16 SLOTTED	9-99116-516-0	02	1	0106-	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	0106-		●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9811-0105	●	●	●	●	●	●
69	06.255 PIN; SPLIT,TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0106-	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0106-		●	●	●	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9811-0105	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20 LH THREAD	8-94254-726-0	01	1	0106-	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0106-		●	●	●	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9811-0105	●	●	●	●	●	●
70	06.234 NUT; TIE ROD END EXC. FRT INDEPENDENT SUSPENSION(6PP) M20	9-99111-420-0	01	1	0106-	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	0106-		●	●	●	●	●
81	06.230 ROD; TIE	8-97142-023-0	01	1	9811-0105	●	●	●	●	●	●
81	06.230 ROD; TIE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97142-023-0	01	1	0106-	●
81	06.230 ROD; TIE	8-97142-023-0	01	1	0106-		●	●	●	●	●

132 352 131 129 86 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-103-3	01	1	0106-0209	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97320-368-1	01	1	0210-	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-94375-102-3	01	1	0106-0209	●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP)	8-97320-367-1	01	1	0210-	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-781-0	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-781-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-783-0	01	1	9811-9905	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-783-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-682-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-682-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-546-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-546-1	01	1	0106-	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-546-1	01	1	0106-		●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-681-0	01	1	9906-9909	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-681-0	01	1	9910-0008	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-545-0	01	1	0009-0105	●	●	●	●	●	●
2	06.020 KNUCKLE; FRT AXLE EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97261-545-1	01	1	0106-	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-545-1	01	1	0106-		●	●	●	●	●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97081-578-2	02	1	0106-	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-592-0	01	1	0106-	●
129	07.412 BAR; TORSION,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP)	8-97075-591-0	01	1	0106-	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-208-3	01	1	0106-	●
131	07.436 ARM; HEIGHT CONT FRT INDEPENDENT SUSPENSION(6PP)	8-94336-207-3	01	1	0106-	●
132	07.436 COLLAR; TORSION BAR FRT INDEPENDENT SUSPENSION(6PP)	8-94336-145-0	02	1	0106-	●
352	07.436 PLUG; PLATE FRT INDEPENDENT SUSPENSION(6PP)	8-97325-053-0	02	1	0110-	●

116 85 126 116 115 82 134 85 108 126 109 238 109 108 96 91 242 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	F
82	07.241 BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	8-97170-624-1	01	1	9811-	●	●	●
85	07.242 WASHER; STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245	9-51779-027-0	04	1	9811-	●	●	●
91	07.243 BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-752-0	02	1	9811-	●	●	●
96	07.242 NUT; STAB BAR TO CONT ARM FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9811-	●	●	●
106	06.216 BOLT; CAP FIX FRONT STABILIZER SHAFT<F59> 09.171 M10X30 W/LK WASHER	0-50041-030-0	02	1	9811-	●	●	●
108	07.242 CAP FRONT STABILIZER SHAFT<F59>	8-97170-631-0	04	1	9811-	●	●	●
109	07.244 BUFFER; STAB BAR FRONT STABILIZER SHAFT<F59>	8-97170-622-0	04	1	9811-	●	●	●
115	07.242 WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 07.245 ID=15.0 OD=32	9-51631-049-0	02	1	9811-	●	●	●
116	07.242 NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> 06.164 M10 LOCK NUT	9-09131-510-0	02	1	9811-	●	●	●
126	07.243 RUBBER; MTG,STAB BAR FRONT STABILIZER SHAFT<F59> 07.244	5-51631-017-0	04	1	9811-	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97170-630-0	01	1	9811-0104	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-056-0	01	1	0105-	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97170-629-0	01	1	9811-0104	●	●	●
134	07.242 BRACKET; STAB TO AXLE FRONT STABILIZER SHAFT<F59>	8-97304-055-0	01	1	0105-	●	●	●
238	07.240 ROD LINK ASM; STABILIZER,FRT FRONT STABILIZER SHAFT<F59> 07.242	8-97170-751-0	02	1	9811-	●	●	●
242	07.242 CAP; LINK ROD FRONT STABILIZER SHAFT<F59>	8-97170-746-0	02	1	9811-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
