Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#2363) — 181 parça

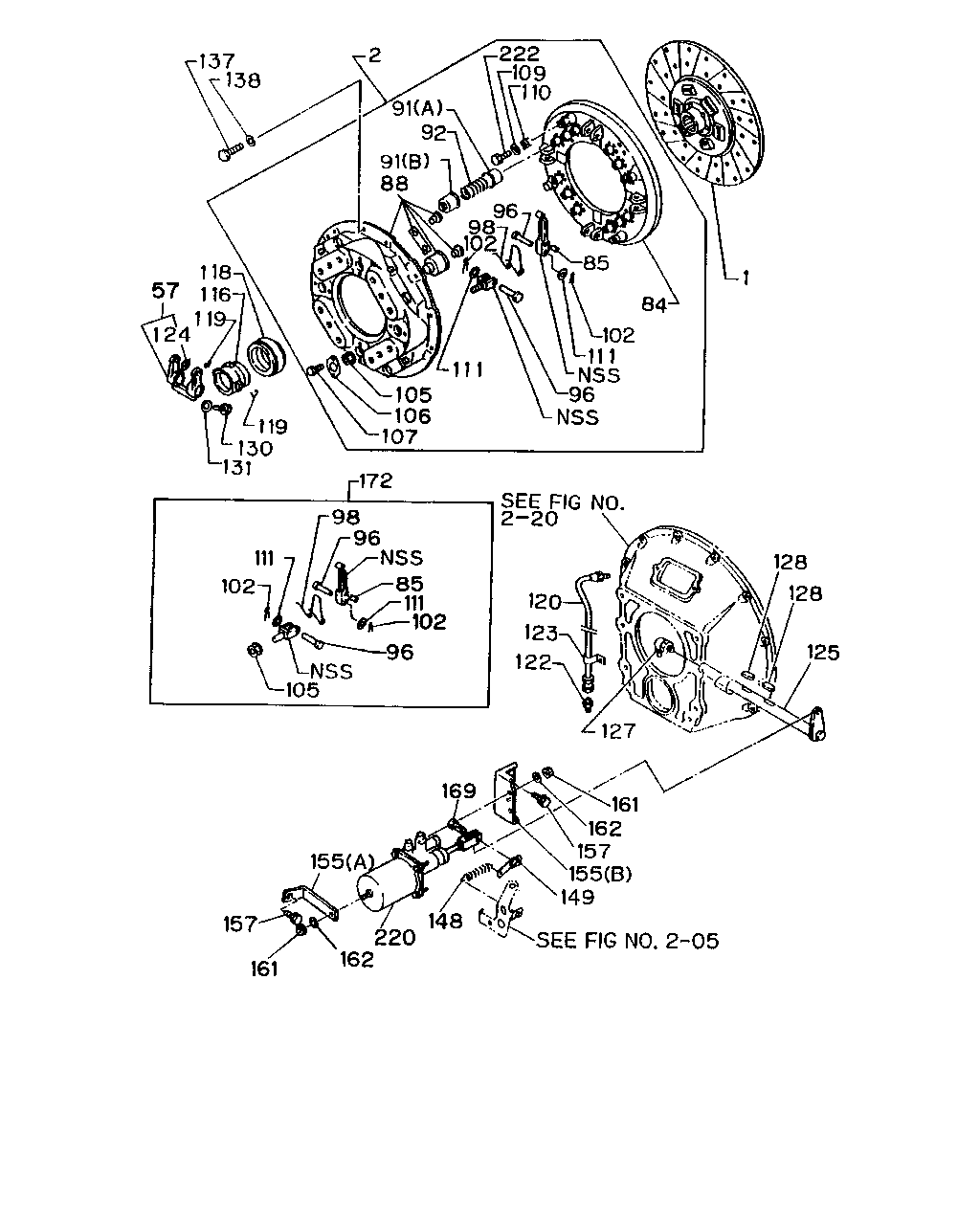

137 2 138 91 222 92 91 88 109 110 1 85 96 98 102 84 102 111 96 111 105 106 107 119 130 131 118 57 116 124 119 111 102 105 102 96 96 98 172 85 111 120 123 122 127 128 125 128 161 162 157 155 149 148 220 162 161 157 155 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17"	1-31240-542-0	01	1	9002-9011	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17"	1-31240-395-0	01	1	9012-	●	●	●
1	DISC; CLUTCH 12PD1 STD ENG(42L) (A) FRONT 15"	1-31240-538-1	01	1	9002-9306	●
1	DISC; CLUTCH 12PD1 STD ENG(42L) (B) REAR 15"	1-31240-539-1	01	1	9002-9306	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-234-1	01	1	9002-9306		●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-227-1	01	1	9002-	●		●
2	PLATE ASM; PRESSURE,CLU 12PD1 STD ENG(42L)	1-31220-196-0	01	1	9002-9306	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-	●	●	●
84	PLATE; PRESSURE 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31221-041-0	01	1	9002-	●	●	●
84	PLATE; PRESSURE 12PD1 STD ENG(42L)	1-31221-063-0	01	1	9002-9306	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	9002-	●	●	●
88	COVER SUB ASM; CLU 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31210-008-0	01	1	9002-	●	●	●
88	COVER SUB ASM; CLU 12PD1 STD ENG(42L)	1-31210-020-0	01	1	9002-9306	●
91	SEAT; SPR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31219-032-0	04	1	9002-	●	●	●
91	SEAT; SPR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31219-033-0	04	1	9002-	●	●	●
91	SEAT; SPR 12PD1 STD ENG(42L) (A)	1-31219-009-0	12	1	9002-9306	●
91	SEAT; SPR 12PD1 STD ENG(42L) (B)	1-31219-010-0	12	1	9002-9306	●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-09580-273-0	12	1	9002-9306		●	●
92	SPRING; CLU 10PD1 STD ENG(40L)	1-31214-026-0	12	1	9002-	●		●
92	SPRING; CLU 12PD1 STD ENG(42L)	1-31214-033-0	12	1	9002-9306	●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	9002-	●	●	●
98	SPRING; RETURN 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31233-001-0	04	1	9002-	●	●	●
98	SPRING; RETURN 12PD1 STD ENG(42L)	1-31233-005-0	04	1	9002-9306	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9002-	●	●	●
105	NUT; SUPPORT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	9-31235-061-0	04	1	9002-	●	●	●
105	NUT; SUPPORT 12PD1 STD ENG(42L) M16	1-31239-013-0	04	1	9002-9306	●
106	PLATE; LK,LEVER SUPPORT	1-31239-002-0	04	1	9002-9007	●	●	●
106	PLATE; LK,LEVER SUPPORT 12PD1 STD ENG(42L)	1-31239-002-0	04	1	9008-9306	●
106	PLATE; LK,LEVER SUPPORT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31239-019-0	04	1	9008-	●	●	●
107	BOLT; LK PLATE	1-31239-010-0	08	1	9002-9007	●	●	●
107	BOLT; LK PLATE 12PD1 STD ENG(42L)	1-31239-010-0	08	1	9008-9306	●
107	BOLT; LK PLATE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9008-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9002-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9002-	●	●	●
111	WASHER; PL,STRAP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=14	9-09651-098-0	08	1	9002-	●	●	●
111	WASHER; PL,STRAP 12PD1 STD ENG(42L) (B) M10	1-31229-012-0	08	1	9002-9306	●
111	WASHER; PL,STRAP 12PD1 STD ENG(42L) (A) ID=14	9-09651-098-0	16	1	9002-9306	●
116	BLOCK; SHIFT,CLU	1-31321-067-0	01	1	9002-9003	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9004-	●	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9002-9003	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9004-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9002-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9002-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	9002-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	9-09917-576-0	01	1	9002-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9002-	●	●	●
125	SHAFT; CLU W/LEVER L=477	1-31342-240-1	01	1	9002-	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9002-9412	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9501-	●		●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9002-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9002-	●	●	●
137	BOLT; CLU COVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X25	0-23801-025-0	12	1	9002-9504	●	●	●
137	BOLT; CLU COVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X78	1-09020-123-0	02	1	9002-9306	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X100	9-01651-200-0	10	1	9002-9005	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X100	0-16811-200-0	10	1	9006-9105	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X100	0-16806-200-0	10	1	9106-9306	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X28	9-02351-228-0	04	1	9002-9005	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X28	0-23801-228-0	04	1	9006-9306	●
138	WASHER; LK,CLU COVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=10.2	9-09150-510-0	12	1	9002-9504	●	●	●
138	WASHER; LK,CLU COVER 12PD1 STD ENG(42L) ID=12.2	9-09150-512-0	16	1	9002-9306	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31429-288-0	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31429-289-1	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 12PD1 STD ENG(42L) (B)	1-31429-282-0	01	1	9002-9306	●
155	BRACKET; MINIPACK 12PD1 STD ENG(42L) (A)	1-31429-283-1	01	1	9002-9306	●
157	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X20 W/LK WASHER	0-50051-020-0	03	1	9002-9205	●	●	●
157	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X18 FLANGE	0-28181-018-0	03	1	9206-	●	●	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M10X20 W/LK WASHER	0-50051-020-0	02	1	9002-9205	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M10X18 FLANGE	0-28181-018-0	02	1	9206-9306	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M12X20 W/LK WASHER	9-01931-220-0	01	1	9002-9005	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M12X20 W/LK WASHER	0-50051-220-0	01	1	9006-9205	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M12X20 FLANGE	0-28181-220-0	01	1	9206-9306	●
161	NUT; BRKT M10	9-09110-410-0	03	1	9002-9205	●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-	●	●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9002-9312	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-	●	●	●
172	LEVER KIT; RELEASE,CLU 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-87830-526-1	01	1	9002-	●	●	●
172	LEVER KIT; RELEASE,CLU 12PD1 STD ENG(42L)	1-87830-649-0	01	1	9002-9306	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31800-344-0	01	1	9002-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 12PD1 STD ENG(42L)	1-31800-328-1	01	1	9002-9306	●
222	BOLT; STRAP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M12X30	1-09040-016-0	04	1	9002-	●	●	●
222	BOLT; STRAP 12PD1 STD ENG(42L) M10X26	1-09040-047-0	08	1	9002-9306	●

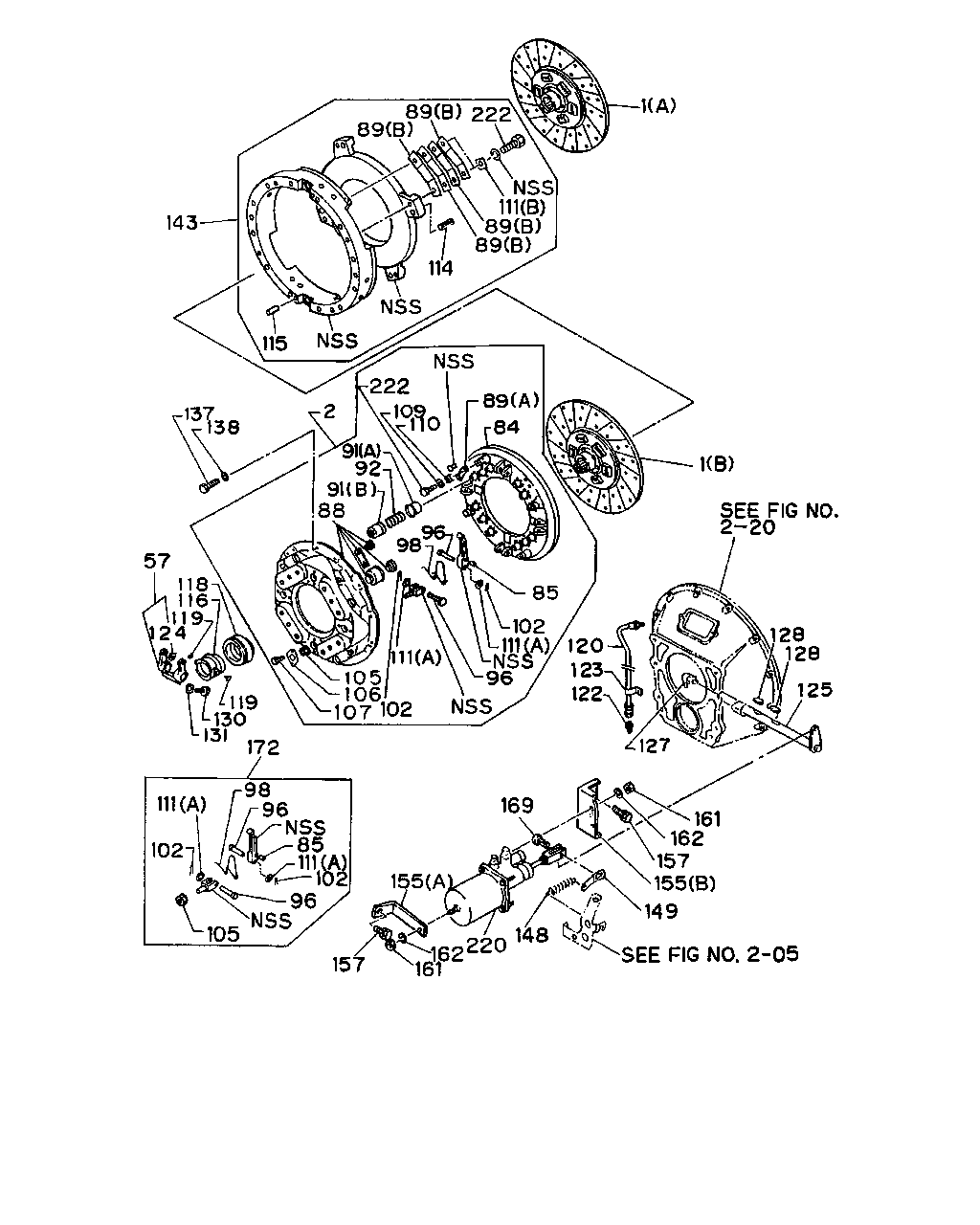

1 222 89 89 143 111 89 89 114 115 137 138 2 222 91 88 91 92 89 84 110 109 1 85 96 98 57 124 131 172 130 119 119 116 118 111 105 106 107 102 98 111 102 105 96 85 111 102 96 157 161 162 220 148 149 155 169 161 162 157 155 127 122 102 111 96 123 120 128 128 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17"	1-31240-542-0	01	1	9002-9011	●	●	●
1	DISC; CLUTCH 6RB1 STD ENG(07L),10PD1 STD ENG(40L) 17"	1-31240-395-0	01	1	9012-	●	●	●
1	DISC; CLUTCH 12PD1 STD ENG(42L) (A) FRONT 15"	1-31240-538-1	01	1	9002-9306	●
1	DISC; CLUTCH 12PD1 STD ENG(42L) (B) REAR 15"	1-31240-539-1	01	1	9002-9306	●
2	PLATE ASM; PRESSURE,CLU 6RB1 STD ENG(07L)	1-31220-234-1	01	1	9002-9306		●	●
2	PLATE ASM; PRESSURE,CLU 10PD1 STD ENG(40L)	1-31220-227-1	01	1	9002-	●		●
2	PLATE ASM; PRESSURE,CLU 12PD1 STD ENG(42L)	1-31220-196-0	01	1	9002-9306	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-	●	●	●
84	PLATE; PRESSURE 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31221-041-0	01	1	9002-	●	●	●
84	PLATE; PRESSURE 12PD1 STD ENG(42L)	1-31221-063-0	01	1	9002-9306	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	9002-	●	●	●
88	COVER SUB ASM; CLU 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31210-008-0	01	1	9002-	●	●	●
88	COVER SUB ASM; CLU 12PD1 STD ENG(42L)	1-31210-020-0	01	1	9002-9306	●
89	PLATE; STRAP 12PD1 STD ENG(42L) (A)	1-31229-010-0	12	1	9002-9306	●
89	PLATE; STRAP 12PD1 STD ENG(42L) (B)	1-31229-011-0	16	1	9002-9306	●
91	SEAT; SPR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31219-032-0	04	1	9002-	●	●	●
91	SEAT; SPR 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31219-033-0	04	1	9002-	●	●	●
91	SEAT; SPR 12PD1 STD ENG(42L) (A)	1-31219-009-0	12	1	9002-9306	●
91	SEAT; SPR 12PD1 STD ENG(42L) (B)	1-31219-010-0	12	1	9002-9306	●
92	SPRING; CLU 6RB1 STD ENG(07L)	1-09580-273-0	12	1	9002-9306		●	●
92	SPRING; CLU 10PD1 STD ENG(40L)	1-31214-026-0	12	1	9002-	●		●
92	SPRING; CLU 12PD1 STD ENG(42L)	1-31214-033-0	12	1	9002-9306	●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	9002-	●	●	●
98	SPRING; RETURN 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31233-001-0	04	1	9002-	●	●	●
98	SPRING; RETURN 12PD1 STD ENG(42L)	1-31233-005-0	04	1	9002-9306	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	9002-	●	●	●
105	NUT; SUPPORT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	9-31235-061-0	04	1	9002-	●	●	●
105	NUT; SUPPORT 12PD1 STD ENG(42L) M16	1-31239-013-0	04	1	9002-9306	●
106	PLATE; LK,LEVER SUPPORT	1-31239-002-0	04	1	9002-9007	●	●	●
106	PLATE; LK,LEVER SUPPORT 12PD1 STD ENG(42L)	1-31239-002-0	04	1	9008-9306	●
106	PLATE; LK,LEVER SUPPORT 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31239-019-0	04	1	9008-	●	●	●
107	BOLT; LK PLATE	1-31239-010-0	08	1	9002-9007	●	●	●
107	BOLT; LK PLATE 12PD1 STD ENG(42L)	1-31239-010-0	08	1	9008-9306	●
107	BOLT; LK PLATE 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9008-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	9002-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	9002-	●	●	●
111	WASHER; PL,STRAP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=14	9-09651-098-0	08	1	9002-	●	●	●
111	WASHER; PL,STRAP 12PD1 STD ENG(42L) (B) M10	1-31229-012-0	08	1	9002-9306	●
111	WASHER; PL,STRAP 12PD1 STD ENG(42L) (A) ID=14	9-09651-098-0	16	1	9002-9306	●
114	PIN; STRAIGHT,INTERMEDIATE PLATE 12PD1 STD ENG(42L)	1-09748-023-0	04	1	9002-9306	●
115	PIN; STRAIGHT,FLYWHEEL,SPACER 12PD1 STD ENG(42L) D=10 L=25	1-09740-039-1	02	1	9002-9306	●
116	BLOCK; SHIFT,CLU	1-31321-067-0	01	1	9002-9003	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9004-	●	●	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9002-9003	●	●	●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9004-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9002-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9002-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	9002-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	9002-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	9-09917-576-0	01	1	9002-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9002-	●	●	●
125	SHAFT; CLU W/LEVER L=477	1-31342-240-1	01	1	9002-	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9002-9412	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9501-	●		●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	9002-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	9002-	●	●	●
137	BOLT; CLU COVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X25	0-23801-025-0	12	1	9002-9504	●	●	●
137	BOLT; CLU COVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X20 FLANGE	0-28181-020-0	12	1	9505-	●	●	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X78	1-09020-123-0	02	1	9002-9306	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X100	9-01651-200-0	10	1	9002-9005	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X100	0-16811-200-0	10	1	9006-9105	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X100	0-16806-200-0	10	1	9106-9306	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X28	9-02351-228-0	04	1	9002-9005	●
137	BOLT; CLU COVER 12PD1 STD ENG(42L) M12X28	0-23801-228-0	04	1	9006-9306	●
138	WASHER; LK,CLU COVER 6RB1 STD ENG(07L),10PD1 STD ENG(40L) ID=10.2	9-09150-510-0	12	1	9002-9504	●	●	●
138	WASHER; LK,CLU COVER 12PD1 STD ENG(42L) ID=12.2	9-09150-512-0	16	1	9002-9306	●
143	PLATE; INTERMEDIATE 12PD1 STD ENG(42L)	1-31221-066-0	01	1	9002-9306	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102	●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (B)	1-31429-288-0	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 6RB1 STD ENG(07L),10PD1 STD ENG(40L) (A)	1-31429-289-1	01	1	9002-	●	●	●
155	BRACKET; MINIPACK 12PD1 STD ENG(42L) (B)	1-31429-282-0	01	1	9002-9306	●
155	BRACKET; MINIPACK 12PD1 STD ENG(42L) (A)	1-31429-283-1	01	1	9002-9306	●
157	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X20 W/LK WASHER	0-50051-020-0	03	1	9002-9205	●	●	●
157	BOLT; BRKT 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M10X18 FLANGE	0-28181-018-0	03	1	9206-	●	●	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M10X20 W/LK WASHER	0-50051-020-0	02	1	9002-9205	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M10X18 FLANGE	0-28181-018-0	02	1	9206-9306	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M12X20 W/LK WASHER	9-01931-220-0	01	1	9002-9005	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M12X20 W/LK WASHER	0-50051-220-0	01	1	9006-9205	●
157	BOLT; BRKT 12PD1 STD ENG(42L) M12X20 FLANGE	0-28181-220-0	01	1	9206-9306	●
161	NUT; BRKT M10	9-09110-410-0	03	1	9002-9205	●	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-	●	●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9002-9312	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-	●	●	●
172	LEVER KIT; RELEASE,CLU 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-87830-526-1	01	1	9002-	●	●	●
172	LEVER KIT; RELEASE,CLU 12PD1 STD ENG(42L)	1-87830-649-0	01	1	9002-9306	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6RB1 STD ENG(07L),10PD1 STD ENG(40L)	1-31800-344-0	01	1	9002-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 12PD1 STD ENG(42L)	1-31800-328-1	01	1	9002-9306	●
222	BOLT; STRAP 6RB1 STD ENG(07L),10PD1 STD ENG(40L) M12X30	1-09040-016-0	04	1	9002-	●	●	●
222	BOLT; STRAP 12PD1 STD ENG(42L) M10X26	1-09040-047-0	08	1	9002-9306	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
