Sayfa 4-01 - Isuzu EPC

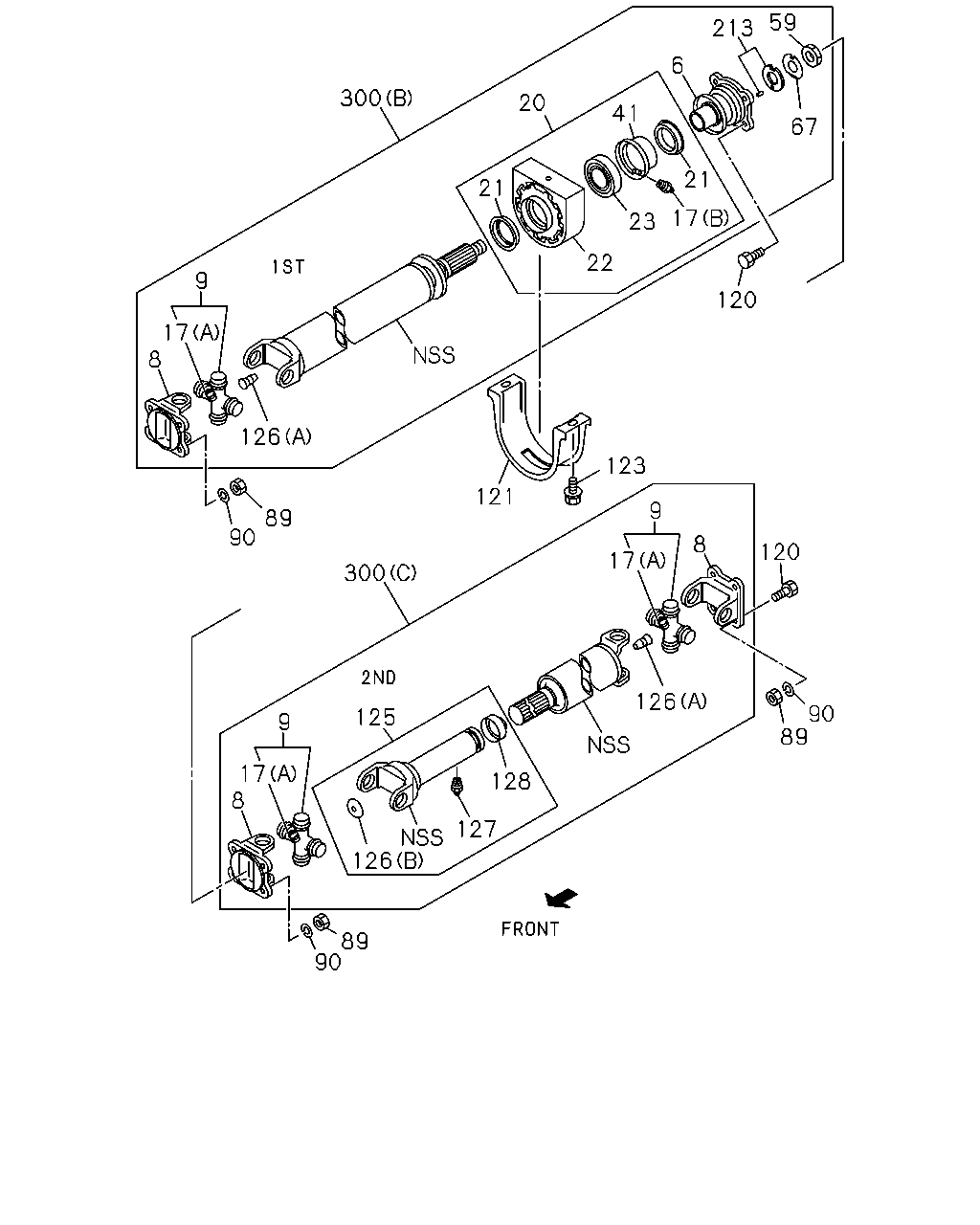

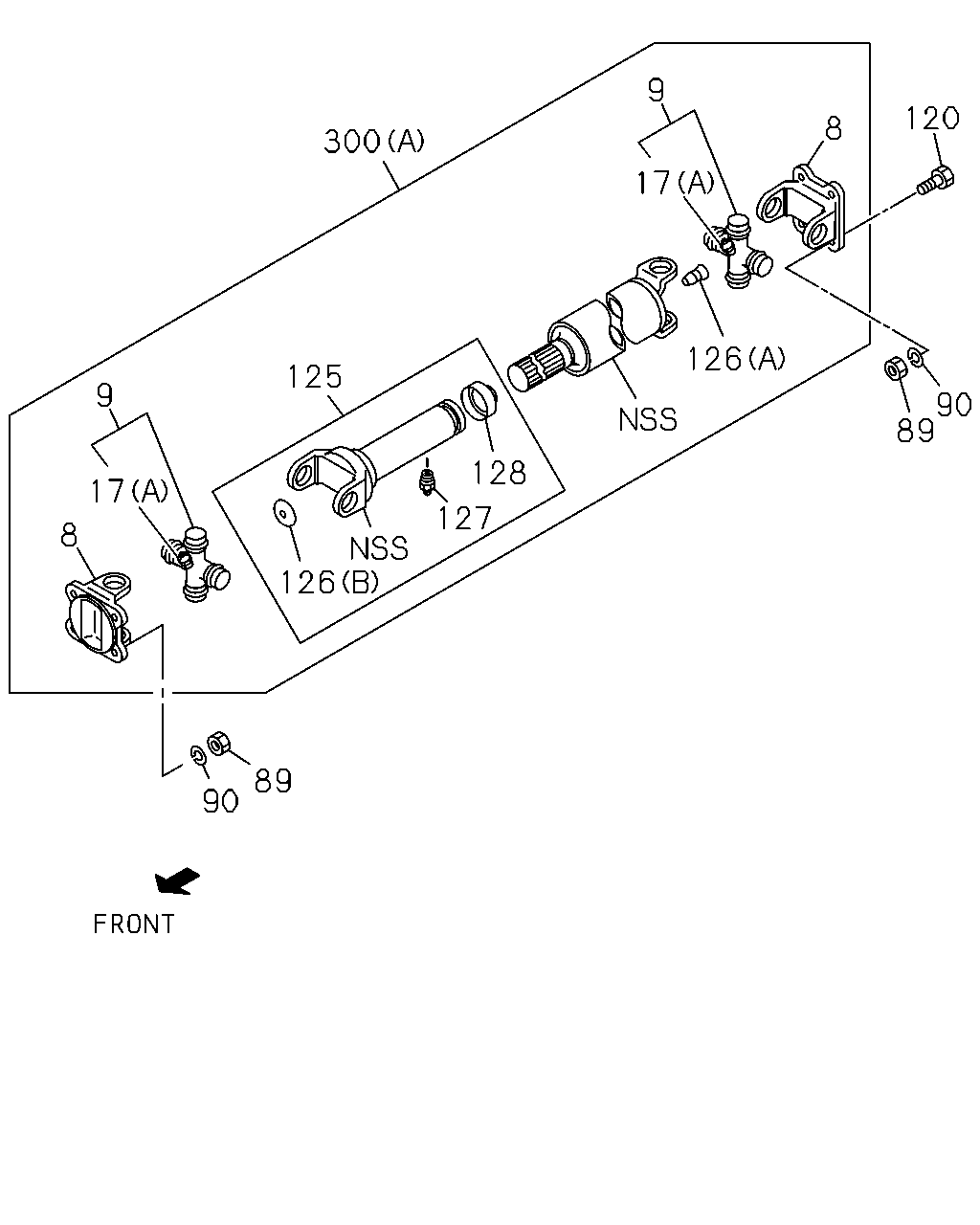

4-01 — PROPELLER SHAFT (#23628) — 322 parça

59 213 6 300 20 41 67 21 21 17 23 22 9 120 17 8 126 123 121 9 89 90 8 120 17 300 126 90 89 125 9 17 8 128 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97036-123-0	01	1	9811-0105	●	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97036-123-0	01	1	0106-0107	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0106-0107		●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97036-123-0	01	1	0108-	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT	8-97036-123-0	01	1	0108-		●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	8-94258-907-1	01	1	9811-0105	●	●
6	05.600 COUPLING ASM; DRIVER,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-94258-907-1	01	1	0106-	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-116-0	02	1	9811-0105	●	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-116-0	02	1	0106-	●		●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97035-619-1	02	1	9811-9904	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97225-254-0	02	1	9905-0105	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	02	1	0106-0107	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	02	1	0108-	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97035-619-1	01	1	9811-9904	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97225-254-0	01	1	9905-0105	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	01	1	0106-0107	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97225-254-0	01	1	0106-0107		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	01	1	0108-	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97225-254-0	01	1	0108-		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-116-0	01	1	9811-0105	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-116-0	01	1	0106-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-135-0	02	1	9811-0105	●	●	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-135-0	02	1	0106-	●		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97080-505-0	02	1	9811-0105	●	●	●		●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	02	1	0106-0107	●	●	●		●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	02	1	0108-	●	●	●		●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97080-505-0	01	1	9811-0105	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	01	1	0106-0107	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97080-505-0	01	1	0106-0107		●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	01	1	0108-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97080-505-0	01	1	0108-		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-135-0	01	1	9811-0105	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-135-0	01	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	9811-0105	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0106-0107	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0108-	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	9811-0105	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0106-	●		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	9811-0105	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0106-0107	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0106-0107		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0108-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0108-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	9811-0105	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0106-0107	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0106-0107		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0108-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0108-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	9811-0105	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0106-0107	●
20	05.600 BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0106-0107		●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0108-	●
20	05.600 BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE	5-37510-007-0	01	1	0108-		●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	9811-0105	●	●
20	05.600 BEARING ASM; CTR,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) W/NIPPLE;GREASE DOWN SIDE	5-37510-008-0	01	1	0106-	●
21	05.590 SEAL; OIL,CENTER BRG 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.601 ID=49	5-09625-067-1	02	1	9811-0105	●	●
21	05.590 SEAL; OIL,CENTER BRG 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.601 ID=49	5-09625-067-1	02	1	0106-0107	●
21	05.590 SEAL; OIL,CENTER BRG 05.601 ID=49	5-09625-067-1	02	1	0106-0107		●
21	05.590 SEAL; OIL,CENTER BRG 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.601 ID=49	5-09625-067-1	02	1	0108-	●
21	05.590 SEAL; OIL,CENTER BRG 05.601 ID=49	5-09625-067-1	02	1	0108-		●
21	05.590 SEAL; OIL,CENTER BRG 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) ID=39	5-09625-063-0	02	1	9811-0105	●	●
21	05.590 SEAL; OIL,CENTER BRG 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=39	5-09625-063-0	02	1	0106-	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HF1 ENG(RLS) M/T MXA5R(RMT)	5-37516-005-1	01	1	9811-0105	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	5-37516-005-1	01	1	0106-0107	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	5-37516-005-1	01	1	0106-0107		●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	5-37516-005-1	01	1	0108-	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST	5-37516-005-1	01	1	0108-		●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37516-006-1	01	1	9811-0105	●	●
22	05.600 RUBBER; CUSHION,CENTER BRG,1ST 4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37516-006-1	01	1	0106-	●
23	05.600 BEARING; CENTER,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) OD=80	5-09800-068-0	01	1	9811-0105	●	●
23	05.600 BEARING; CENTER,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) OD=80	5-09800-068-0	01	1	0106-0107	●
23	05.600 BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	0106-0107		●
23	05.600 BEARING; CENTER,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) OD=80	5-09800-068-0	01	1	0108-	●
23	05.600 BEARING; CENTER,PROP SHAFT OD=80	5-09800-068-0	01	1	0108-		●
23	05.600 BEARING; CENTER,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) D=75	5-09800-067-0	01	1	9811-0105	●	●
23	05.600 BEARING; CENTER,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5) D=75	5-09800-067-0	01	1	0106-	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	5-37512-004-0	01	1	9811-0105	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	5-37512-004-0	01	1	0106-0107	●
41	05.601 COVER; CENTER BRG,PROP SHAFT	5-37512-004-0	01	1	0106-0107		●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	5-37512-004-0	01	1	0108-	●
41	05.601 COVER; CENTER BRG,PROP SHAFT	5-37512-004-0	01	1	0108-		●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37512-005-0	01	1	9811-0105	●	●
41	05.601 COVER; CENTER BRG,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	5-37512-005-0	01	1	0106-	●
59	05.586 NUT; RET TO SUPPORT 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.595 M30 H=23	1-09449-068-0	01	1	9811-0105	●	●
59	05.586 NUT; RET TO SUPPORT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.595 M30 H=23	1-09449-068-0	01	1	0106-0107	●
59	05.586 NUT; RET TO SUPPORT 05.595 M30 H=23	1-09449-068-0	01	1	0106-0107		●
59	05.586 NUT; RET TO SUPPORT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.595 M30 H=23	1-09449-068-0	01	1	0108-	●
59	05.586 NUT; RET TO SUPPORT 05.595 M30 H=23	1-09449-068-0	01	1	0108-		●
59	05.586 NUT; RET TO SUPPORT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20	9-09841-038-0	01	1	9811-0105	●	●
59	05.586 NUT; RET TO SUPPORT 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20	9-09841-038-0	01	1	0106-	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.595 ID=30.5	1-09503-025-0	01	1	9811-0105	●	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.595 ID=30.5	1-09503-025-0	01	1	0106-0107	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 05.595 ID=30.5	1-09503-025-0	01	1	0106-0107		●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.595 ID=30.5	1-09503-025-0	01	1	0108-	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 05.595 ID=30.5	1-09503-025-0	01	1	0108-		●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	9811-0105	●	●
67	05.586 WASHER; PROP SHAFT TO COUPLING D 4JB1 ENG(RLF) M/T MSB5M(RM5) ID=20.5 OD=47 T=1.2	9-09855-214-0	01	1	0106-	●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10	8-94159-009-1	08	1	9811-0105		●	●		●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	9811-0105				●
89	05.586 NUT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10	8-94159-009-1	08	1	0106-			●		●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0106-				●
89	05.586 NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	08	1	9811-0105			●		●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12	8-94477-841-0	08	1	0106-			●		●
89	05.586 NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	08	1	0106-						●
89	05.586 NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	12	1	9811-0105	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12	8-94477-841-0	12	1	0106-0107	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0106-0107		●
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M12	8-94477-841-0	12	1	0108-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0108-		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10	8-94159-009-1	12	1	9811-0105	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10	8-94159-009-1	12	1	0106-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	9811-0105		●	●		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	9-09150-610-0	08	1	9811-0105				●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	0106-			●		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	9-09150-610-0	08	1	0106-				●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	9811-0105			●		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	0106-			●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	0106-						●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	9811-0105	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	0106-0107	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0106-0107		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	0108-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0108-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	12	1	9811-0105	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	12	1	0106-	●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X29	8-97168-458-1	04	1	9811-0105		●	●		●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9811-0105				●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10X29	8-97168-458-1	04	1	0106-			●		●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0106-				●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	04	1	9811-0105			●		●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12X35	8-94477-842-0	04	1	0106-			●		●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	04	1	0106-						●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	9811-0105	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	0106-0107	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0106-0107		●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	0108-	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0108-		●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X29	8-97168-458-1	08	1	9811-0105	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10X29	8-97168-458-1	08	1	0106-	●
121	05.598 RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	9811-	●	●
123	05.601 BOLT; RET 01.252 M10X25 W/LK&PL WASHER	0-50141-025-0	04	1	9811-	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) L=177	8-97211-131-0	01	1	9811-0105	●	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) L=177	8-97211-131-0	01	1	0106-	●		●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) L=191	8-97036-126-1	01	1	9811-0105	●	●	●		●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) L=191	8-97036-126-1	01	1	0106-0107	●	●	●		●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) L=191	8-97036-126-1	01	1	0108-	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HF1 ENG(RLS) M/T MXA5R(RMT) (A)	1-09600-023-0	01	1	9811-0105	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	9811-0105	●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (A)	1-09600-023-0	01	1	0106-0107	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX),4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	0106-0107	●	●
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (A)	1-09600-023-0	01	1	0108-	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	0108-	●	●
126	05.556 PLUG; SPLINED YOKE 4HF1 ENG(RLS) M/T MXA5R(RMT) (B)	8-94366-900-0	01	1	9811-0105	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B)	8-94366-900-0	01	1	0106-0107	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B)	8-94366-900-0	01	1	0108-	●	●	●		●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9811-	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 05.545	8-97020-597-1	01	1	9811-0105	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 05.545	8-97020-597-1	01	1	0106-	●		●	●	●	●
128	05.586 SEAL; SLEEVE 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97145-746-0	01	1	9811-0105	●	●	●		●	●
128	05.586 SEAL; SLEEVE 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97145-746-0	01	1	0106-0107	●	●	●		●	●
128	05.586 SEAL; SLEEVE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97145-746-0	01	1	0108-	●	●	●		●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	9-09855-212-0	01	1	9811-0105	●	●
213	05.586 WASHER ASM; PROP SHAFT TO COUPLI 4JB1 ENG(RLF) M/T MSB5M(RM5)	9-09855-212-0	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T) (A) L=1045	8-97101-849-1	01	1	9811-0105			●		●	●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (A) L=1028	8-97206-687-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (A) L=1037	8-97143-265-0	01	1	0106-			●		●	●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5S(R45) (A) L=1122	8-97211-661-0	01	1	9811-0105			●			●
300	05.544 SHAFT ASM; PROP,RR (A) L=1122	8-97211-661-0	01	1	9811-0105				●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. REAR WIDE TREAD(V4T) (A) L=1122	8-97211-661-0	01	1	9811-0105					●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5S(R45) (A) L=1084	8-97211-674-0	01	1	0106-			●			●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-97211-674-0	01	1	0106-				●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. REAR WIDE TREAD(V4T) (A) L=1084	8-97211-674-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) (A) L=1009	8-97206-685-0	01	1	9811-0105					●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) REAR WIDE TREAD(V4T) (A) L=1009	8-97206-685-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR WIDE TREAD(V4T) (A) L=1064	8-97211-664-0	01	1	9811-0105					●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) REAR WIDE TREAD(V4T) (A) L=1064	8-97211-664-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) (C) L=1050	8-97206-688-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) (C) L=1050	8-97206-688-0	01	1	0106-0107	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050	8-97206-688-0	01	1	0106-0107		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (C) L=1050	8-97206-688-0	01	1	0108-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050	8-97206-688-0	01	1	0108-		●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) (B) L=856	8-97206-681-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B) L=856	8-97206-681-0	01	1	0106-0107	●
300	05.544 SHAFT ASM; PROP,RR (B) L=856	8-97206-681-0	01	1	0106-0107		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B) L=856	8-97206-681-1	01	1	0108-	●
300	05.544 SHAFT ASM; PROP,RR (B) L=856	8-97206-681-1	01	1	0108-		●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) L=1044	8-97211-672-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) (C) L=1044	8-97211-672-0	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) (B) L=914	8-97211-669-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) (B) L=914	8-97211-669-0	01	1	0106-	●

9 120 8 300 17 126 125 9 90 89 128 17 127 8 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
8	05.544 YOKE; FLANGE,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-116-0	02	1	9811-0105	●	●	●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-116-0	02	1	0106-	●		●	●	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97035-619-1	02	1	9811-9904	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97225-254-0	02	1	9905-0105	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	02	1	0106-0107	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	02	1	0108-	●	●	●		●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97035-619-1	01	1	9811-9904	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97225-254-0	01	1	9905-0105	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	01	1	0106-0107	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97225-254-0	01	1	0106-0107		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97225-254-0	01	1	0108-	●
8	05.544 YOKE; FLANGE,PROP SHAFT	8-97225-254-0	01	1	0108-		●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-116-0	01	1	9811-0105	●	●
8	05.544 YOKE; FLANGE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-116-0	01	1	0106-	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-135-0	02	1	9811-0105	●	●	●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45)	8-97211-135-0	02	1	0106-	●		●	●	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97080-505-0	02	1	9811-0105	●	●	●		●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	02	1	0106-0107	●	●	●		●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	02	1	0108-	●	●	●		●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97080-505-0	01	1	9811-0105	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	01	1	0106-0107	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97080-505-0	01	1	0106-0107		●
9	05.548 JOURNAL ASM; PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97080-505-0	01	1	0108-	●
9	05.548 JOURNAL ASM; PROP SHAFT	8-97080-505-0	01	1	0108-		●
9	05.548 JOURNAL ASM; PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-135-0	01	1	9811-0105	●	●
9	05.548 JOURNAL ASM; PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5)	8-97211-135-0	01	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	9811-0105	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0106-0107	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	02	1	0108-	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	9811-0105	●	●	●		●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0106-	●		●	●	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JB1 ENG(RLF) 08.984 (B) M6 STRAIGHT	9-09031-006-0	02	1	0106-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	9811-0105	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0106-0107	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0106-0107		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0108-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (B) M6 STRAIGHT	9-09031-006-0	01	1	0108-		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	9811-0105	●	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0106-0107	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0106-0107		●
17	05.601 NIPPLE; GREASE,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0108-	●
17	05.601 NIPPLE; GREASE,PROP SHAFT 05.556 (A) PT1/8 ELBOW	9-09031-210-0	01	1	0108-		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10	8-94159-009-1	08	1	9811-0105		●	●		●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	9811-0105				●
89	05.586 NUT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10	8-94159-009-1	08	1	0106-			●		●	●
89	05.586 NUT; YOKE TO RR AXLE M10	8-94159-009-1	08	1	0106-				●
89	05.586 NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	08	1	9811-0105			●		●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12	8-94477-841-0	08	1	0106-			●		●
89	05.586 NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	08	1	0106-						●
89	05.586 NUT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12	8-94477-841-0	12	1	9811-0105	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12	8-94477-841-0	12	1	0106-0107	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0106-0107		●
89	05.586 NUT; YOKE TO RR AXLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M12	8-94477-841-0	12	1	0108-	●
89	05.586 NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0108-		●
89	05.586 NUT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10	8-94159-009-1	12	1	9811-0105	●	●
89	05.586 NUT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10	8-94159-009-1	12	1	0106-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	9811-0105		●	●		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	9-09150-610-0	08	1	9811-0105				●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	08	1	0106-			●		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=10.2	9-09150-610-0	08	1	0106-				●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	9811-0105			●		●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	0106-			●		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	08	1	0106-						●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	9811-0105	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	0106-0107	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0106-0107		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 00.002 ID=12.2	9-09150-812-0	12	1	0108-	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 00.002 ID=12.2	9-09150-812-0	12	1	0108-		●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	12	1	9811-0105	●	●
90	05.586 WASHER; LK,YOKE TO RR AXLE 4JB1 ENG(RLF) 00.002 ID=10.2	9-09150-610-0	12	1	0106-	●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X29	8-97168-458-1	04	1	9811-0105		●	●		●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	9811-0105				●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10X29	8-97168-458-1	04	1	0106-			●		●	●
120	05.586 BOLT; YOKE TO RR AXLE M10X29	8-97168-458-1	04	1	0106-				●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	04	1	9811-0105			●		●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12X35	8-94477-842-0	04	1	0106-			●		●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	04	1	0106-						●
120	05.586 BOLT; YOKE TO RR AXLE 4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	9811-0105	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JH1 ENG(RJX),4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	0106-0107	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0106-0107		●
120	05.586 BOLT; YOKE TO RR AXLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M12X35	8-94477-842-0	08	1	0108-	●
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0108-		●
120	05.586 BOLT; YOKE TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF) M10X29	8-97168-458-1	08	1	9811-0105	●	●
120	05.586 BOLT; YOKE TO RR AXLE 4JB1 ENG(RLF) M10X29	8-97168-458-1	08	1	0106-	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) L=177	8-97211-131-0	01	1	9811-0105	●	●	●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) L=177	8-97211-131-0	01	1	0106-	●		●	●	●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HF1 ENG(RLS) M/T MXA5R(RMT) L=191	8-97036-126-1	01	1	9811-0105	●	●	●		●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) L=191	8-97036-126-1	01	1	0106-0107	●	●	●		●	●
125	05.545 YOKE ASM; SPLINED,PROP SHAFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) L=191	8-97036-126-1	01	1	0108-	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HF1 ENG(RLS) M/T MXA5R(RMT) (A)	1-09600-023-0	01	1	9811-0105	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	9811-0105	●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (A)	1-09600-023-0	01	1	0106-0107	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX),4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	0106-0107	●	●
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (A)	1-09600-023-0	01	1	0108-	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (A)	1-09600-023-0	01	1	0108-	●	●
126	05.556 PLUG; SPLINED YOKE 4HF1 ENG(RLS) M/T MXA5R(RMT) (B)	8-94366-900-0	01	1	9811-0105	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B)	8-94366-900-0	01	1	0106-0107	●	●	●		●	●
126	05.556 PLUG; SPLINED YOKE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B)	8-94366-900-0	01	1	0108-	●	●	●		●	●
127	05.586 NIPPLE; GREASE,SPLINED YOKE 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9811-	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 05.545	8-97020-597-1	01	1	9811-0105	●	●	●	●	●	●
128	05.586 SEAL; SLEEVE 4JB1 ENG(RLF) M/T MSB5M(RM5),M/T MSB5S(R45) 05.545	8-97020-597-1	01	1	0106-	●		●	●	●	●
128	05.586 SEAL; SLEEVE 4HF1 ENG(RLS) M/T MXA5R(RMT)	8-97145-746-0	01	1	9811-0105	●	●	●		●	●
128	05.586 SEAL; SLEEVE 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97145-746-0	01	1	0106-0107	●	●	●		●	●
128	05.586 SEAL; SLEEVE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA)	8-97145-746-0	01	1	0108-	●	●	●		●	●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) EXC. REAR WIDE TREAD(V4T) (A) L=1045	8-97101-849-1	01	1	9811-0105			●		●	●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) FRAME-KICK UP<7EW> (A) L=1028	8-97206-687-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) EXC. REAR WIDE TREAD(V4T),FRAME-KICK UP<7EW> (A) L=1037	8-97143-265-0	01	1	0106-			●		●	●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5S(R45) (A) L=1122	8-97211-661-0	01	1	9811-0105			●			●
300	05.544 SHAFT ASM; PROP,RR (A) L=1122	8-97211-661-0	01	1	9811-0105				●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. REAR WIDE TREAD(V4T) (A) L=1122	8-97211-661-0	01	1	9811-0105					●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5S(R45) (A) L=1084	8-97211-674-0	01	1	0106-			●			●
300	05.544 SHAFT ASM; PROP,RR (A) L=1084	8-97211-674-0	01	1	0106-				●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) EXC. REAR WIDE TREAD(V4T) (A) L=1084	8-97211-674-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) REAR WIDE TREAD(V4T) (A) L=1009	8-97206-685-0	01	1	9811-0105					●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) REAR WIDE TREAD(V4T) (A) L=1009	8-97206-685-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) REAR WIDE TREAD(V4T) (A) L=1064	8-97211-664-0	01	1	9811-0105					●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) REAR WIDE TREAD(V4T) (A) L=1064	8-97211-664-0	01	1	0106-					●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) (C) L=1050	8-97206-688-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) (C) L=1050	8-97206-688-0	01	1	0106-0107	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050	8-97206-688-0	01	1	0106-0107		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (C) L=1050	8-97206-688-0	01	1	0108-	●
300	05.544 SHAFT ASM; PROP,RR (C) L=1050	8-97206-688-0	01	1	0108-		●
300	05.544 SHAFT ASM; PROP,RR 4HF1 ENG(RLS) M/T MXA5R(RMT) (B) L=856	8-97206-681-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B) L=856	8-97206-681-0	01	1	0106-0107	●
300	05.544 SHAFT ASM; PROP,RR (B) L=856	8-97206-681-0	01	1	0106-0107		●
300	05.544 SHAFT ASM; PROP,RR 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M/T MXA5R(RMT),M/T MXA5S(RNA) (B) L=856	8-97206-681-1	01	1	0108-	●
300	05.544 SHAFT ASM; PROP,RR (B) L=856	8-97206-681-1	01	1	0108-		●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) L=1044	8-97211-672-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) (C) L=1044	8-97211-672-0	01	1	0106-	●
300	05.544 SHAFT ASM; PROP,RR 4JG2 ENG(RJC),4JB1 ENG(RLF) M/T MSB5M(RM5) (B) L=914	8-97211-669-0	01	1	9811-0105	●	●
300	05.544 SHAFT ASM; PROP,RR 4JB1 ENG(RLF) M/T MSB5M(RM5) (B) L=914	8-97211-669-0	01	1	0106-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
