3-58 — FIXING PARTS; OIL PIPING (#23626) — 104 parça

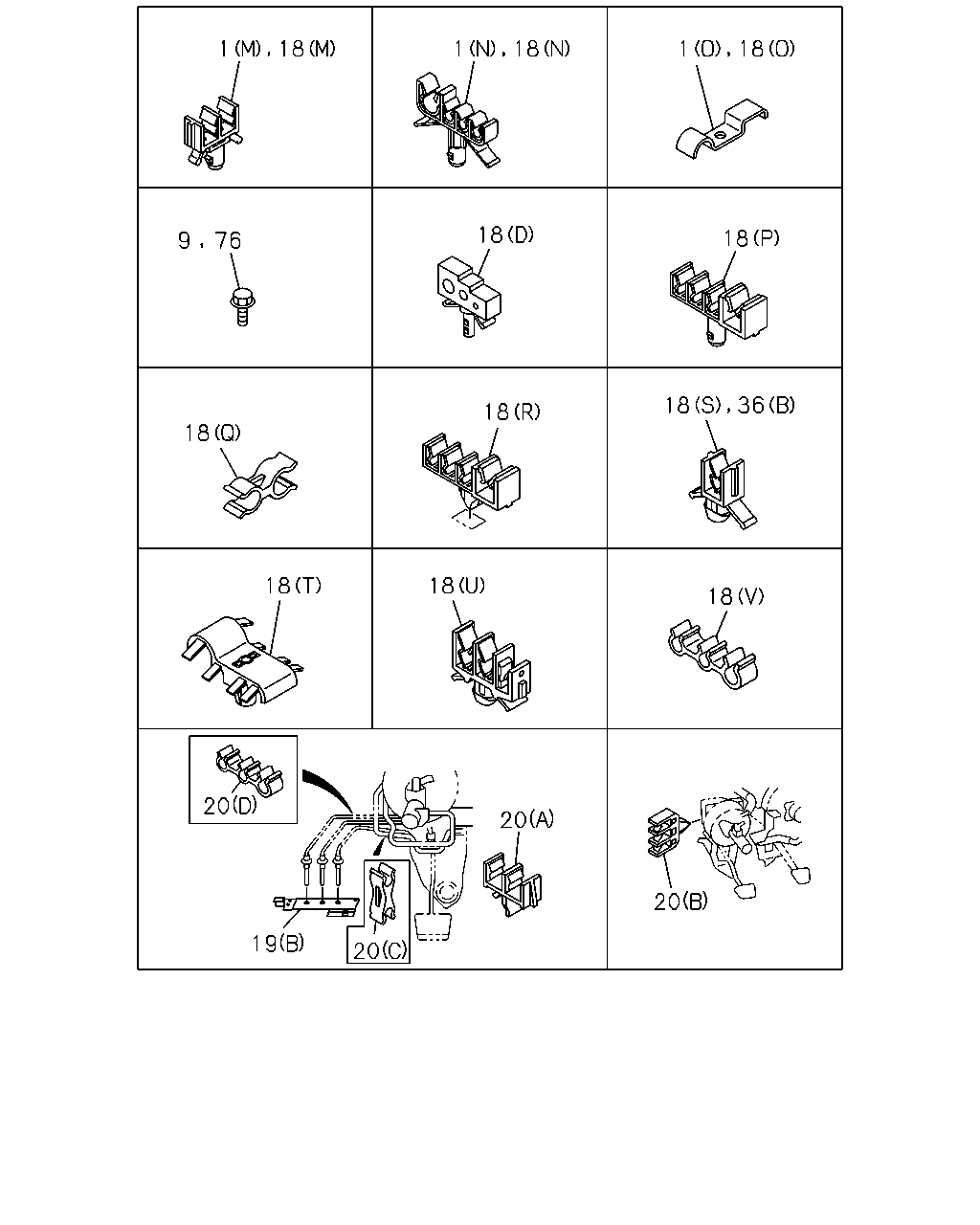

çizim 46341
1 18 1 18 1 18 18 18 9 76 18 18 18 18 18 20 20 20 19 20 18 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
00.785 (A) B=14 L=16 		9-09916-996-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (B) ID=8 & 6.5X2 &4.8 		8-94492-600-1 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
04.685 (C) ID=4.76X3 		8-94122-333-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8 H=26 		8-94249-685-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(G) ID=4.8X2 		8-94316-410-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(J) ID=4.8 H=32.5 		8-94405-141-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.483 (K) ID=9 & 7 L=15 & 15 		1-09700-060-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(L) ID=6.35 & 4.76X2 		8-94107-732-1 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(M) ID=4.8X2 		8-94455-816-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(N) ID=10 & 4.76X3 		8-97168-820-0 AR 1 0010-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(O) 		8-97038-627-0 AR 1 0012-0105 ● ● ● ● ● ●
9 04.686 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ●
9 04.686 BOLT; BRKT
FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
18 04.686 CLIP; BRK PIPE
00.785 (A) B=14 L=16 		9-09916-996-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=8 & 6.5X2 &4.8 		8-94492-600-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
04.685 (C) ID=4.76X3 		8-94122-333-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=12 & 6.35 & 4.76 		8-97254-201-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=4.8 H=26 		8-94249-685-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=4.8X2 		8-94316-410-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(I) ID=6.5 & 4.8X2 		8-94131-710-2 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(J) ID=4.8 H=32.5 		8-94405-141-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(K) ID=4.8X2 		8-94389-060-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(L) ID=6.35 & 4.76X2 		8-94107-732-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(M) ID=4.8X2 		8-94455-816-0 AR 1 0106-0107 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(N) ID=10 & 4.76X3 		8-97168-820-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(O) 		8-97038-627-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(P) ID=10 & 4.76X3 		8-97168-819-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(Q) ID=6.4 & 4.8 		8-94257-329-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
06.672 (R) ID=10 & 4.8X3 		8-97038-938-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (S) H=28.5 		8-94486-808-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(T) 		8-97074-319-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (U) ID=5 & 6.5 & 8.2 		8-94128-316-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(V) ID=6.4 & 4.8X2 		8-94146-043-0 AR 1 0112- ● ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
(B) 		8-97042-258-4 01 1 9811- ● ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
EXC. REAR WIDE TREAD(V4T) (A) 		8-97068-790-0 01 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ● ● ● ●
36 04.686 CLIP; BRK PIPE
EXC. REAR WIDE TREAD(V4T) (A) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0105 ●
36 04.686 CLIP; BRK PIPE
EXC. REAR WIDE TREAD(V4T) 03.162 (B) H=28.5 		8-94486-808-0 01 1 9811-0105 ●
76 04.686 BOLT; BRKT,OIL PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 9811- ● ● ● ● ● ●

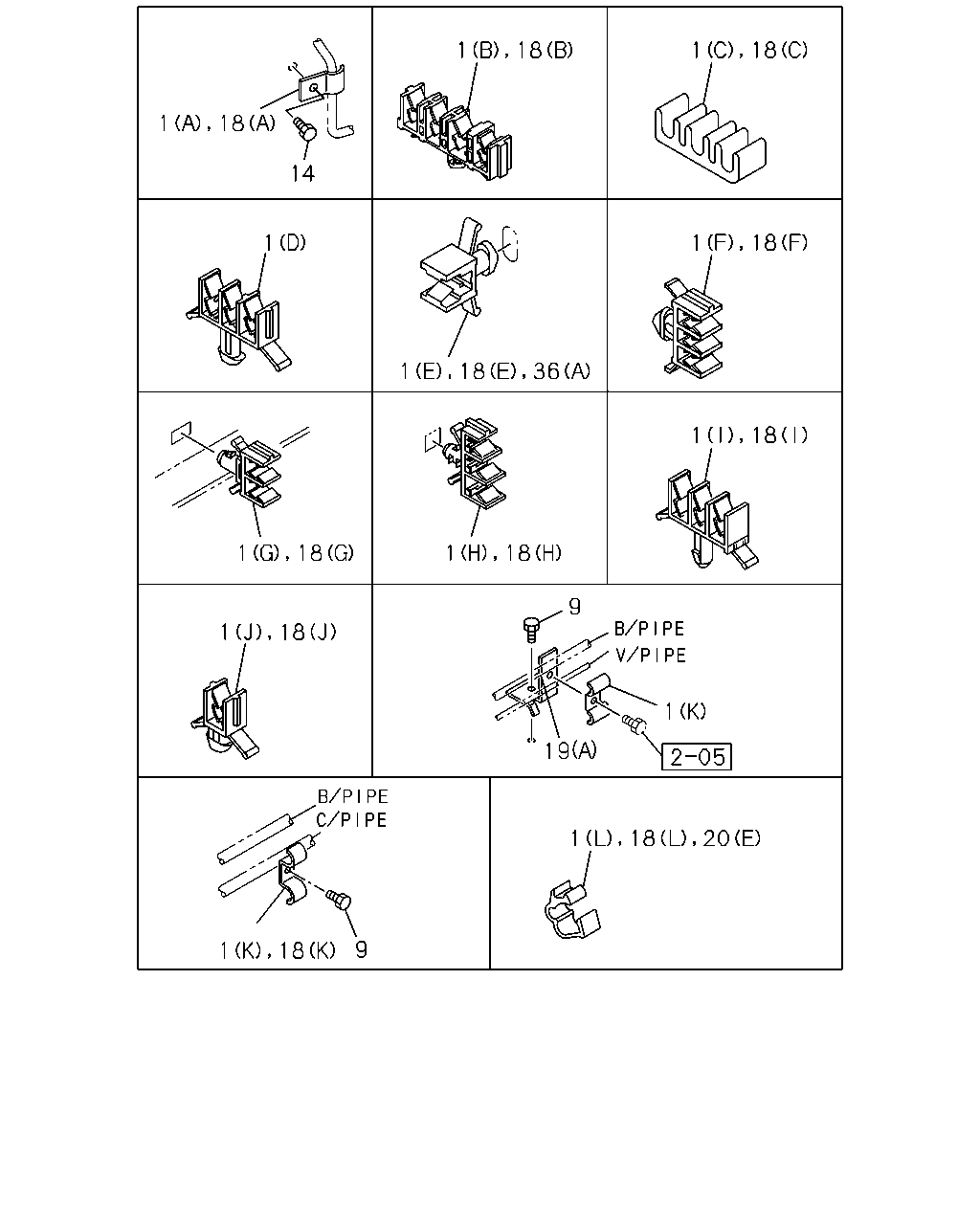

çizim 47367
1 18 1 18 18 1 14 1 1 18 1 1 18 18 1 18 1 9 1 18 1 19 1 9 1 18 18 36 18 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.686 CLIP; OIL PIPE TO BODY
00.785 (A) B=14 L=16 		9-09916-996-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (B) ID=8 & 6.5X2 &4.8 		8-94492-600-1 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
04.685 (C) ID=4.76X3 		8-94122-333-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(D) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(E) ID=4.8 H=26 		8-94249-685-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(G) ID=4.8X2 		8-94316-410-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(I) ID=6.5 & 4.8X2 		8-94131-710-2 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(J) ID=4.8 H=32.5 		8-94405-141-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
03.483 (K) ID=9 & 7 L=15 & 15 		1-09700-060-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(L) ID=6.35 & 4.76X2 		8-94107-732-1 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(M) ID=4.8X2 		8-94455-816-0 AR 1 9811-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(N) ID=10 & 4.76X3 		8-97168-820-0 AR 1 0010-0105 ● ● ● ● ● ●
1 04.686 CLIP; OIL PIPE TO BODY
(O) 		8-97038-627-0 AR 1 0012-0105 ● ● ● ● ● ●
9 04.686 BOLT; BRKT
EXC. REAR WIDE TREAD(V4T) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9811-0105 ●
9 04.686 BOLT; BRKT
FRAME-KICK UP<7EW> 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ●
14 04.686 BOLT; CLIP,OIL PIPE
DUMP CHASSIS(V4D) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 9811-0105 ●
14 04.686 BOLT; CLIP,OIL PIPE
4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
14 04.686 BOLT; CLIP,OIL PIPE
FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ●
14 04.686 BOLT; CLIP,OIL PIPE
EXC. REAR WIDE TREAD(V4T) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9811-0105 ●
14 04.686 BOLT; CLIP,OIL PIPE
FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
14 04.686 BOLT; CLIP,OIL PIPE
FRAME-KICK UP<7EW> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
18 04.686 CLIP; BRK PIPE
00.785 (A) B=14 L=16 		9-09916-996-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (B) ID=8 & 6.5X2 &4.8 		8-94492-600-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
04.685 (C) ID=4.76X3 		8-94122-333-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (D) ID=12 & 6.35 & 4.76 		8-97254-201-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(E) ID=4.8 H=26 		8-94249-685-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(F) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(G) ID=4.8X2 		8-94316-410-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (H) ID=10 & 6.4 & 4.8 		8-97064-484-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(I) ID=6.5 & 4.8X2 		8-94131-710-2 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(J) ID=4.8 H=32.5 		8-94405-141-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(K) ID=4.8X2 		8-94389-060-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(L) ID=6.35 & 4.76X2 		8-94107-732-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(M) ID=4.8X2 		8-94455-816-0 AR 1 0106-0107 ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(N) ID=10 & 4.76X3 		8-97168-820-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(O) 		8-97038-627-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(P) ID=10 & 4.76X3 		8-97168-819-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(Q) ID=6.4 & 4.8 		8-94257-329-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
06.672 (R) ID=10 & 4.8X3 		8-97038-938-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (S) H=28.5 		8-94486-808-0 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(T) 		8-97074-319-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
03.162 (U) ID=5 & 6.5 & 8.2 		8-94128-316-1 AR 1 0106- ● ● ● ● ● ●
18 04.686 CLIP; BRK PIPE
(V) ID=6.4 & 4.8X2 		8-94146-043-0 AR 1 0112- ● ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
(B) 		8-97042-258-4 01 1 9811- ● ● ● ● ● ●
19 04.686 BRACKET; OIL PIPE
EXC. REAR WIDE TREAD(V4T) (A) 		8-97068-790-0 01 1 9811-0105 ●
20 04.686 CLIP; BRK PIPE
(E) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(A) ID=4.8X2 		8-94113-470-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(D) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (C) ID=4.6X2 		8-94241-454-0 01 1 9811- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(B) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 9811- ● ● ● ● ● ●
36 04.686 CLIP; BRK PIPE
EXC. REAR WIDE TREAD(V4T) (A) ID=4.8 H=26 		8-94249-685-0 02 1 9811-0105 ●
36 04.686 CLIP; BRK PIPE
EXC. REAR WIDE TREAD(V4T) 03.162 (B) H=28.5 		8-94486-808-0 01 1 9811-0105 ●
