◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#23624) — 375 parça

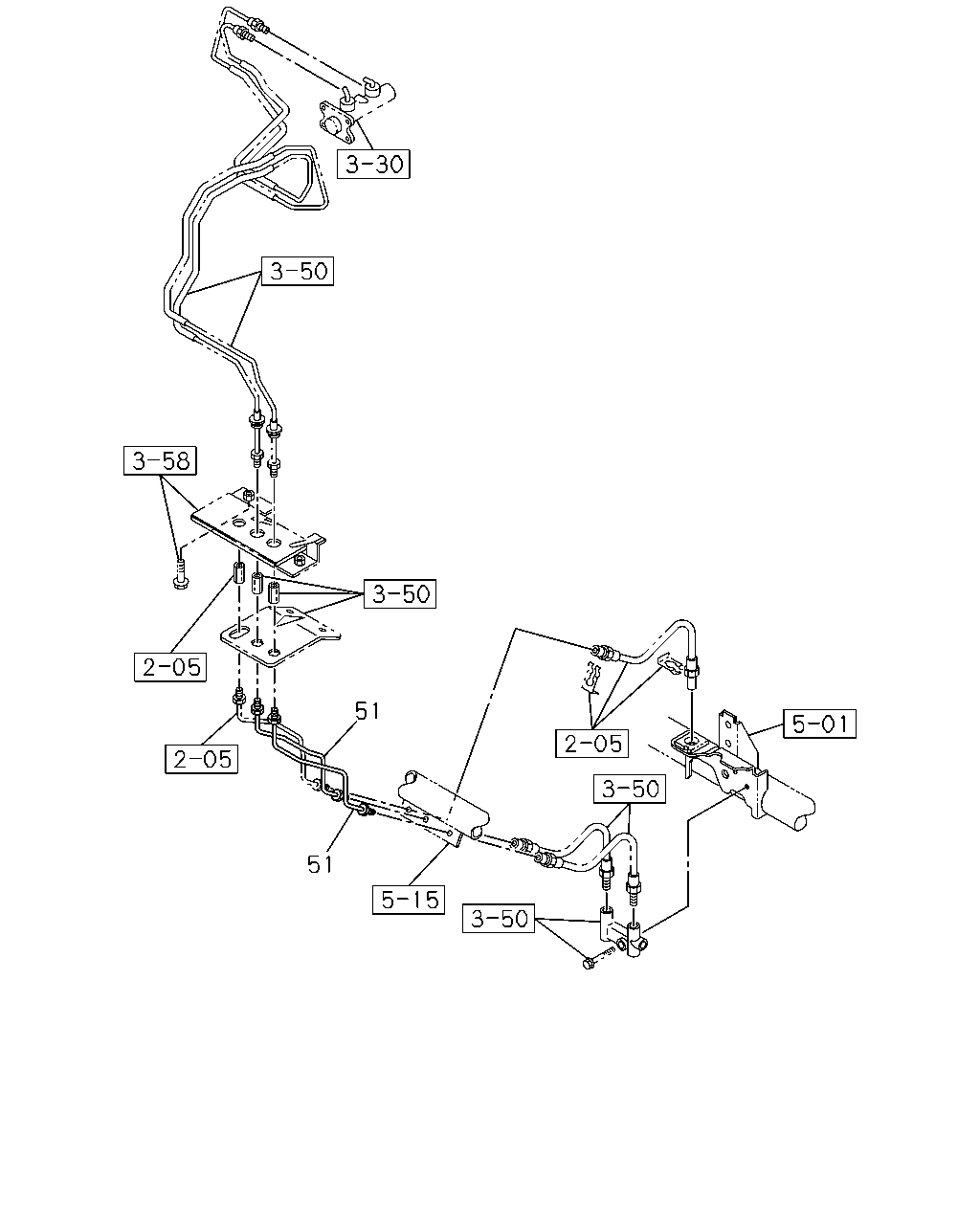

çizim 9607
51 51
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
51 04.685 PIPE; BRK 8-97035-978-0 02 1 9811- ● ● ● ● ● ●
çizim 10056
13
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE STANDARD 244MM(R39) TURBOCHARGER<K51> EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0010-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97300-213-0 01 1 0106- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 9811-0009 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE STANDARD 244MM(R39) EXC. BRK WHL LK CONT DSPV<JL8>, TURBOCHARGER<K51>,BRK WHL LK CONT LSPV<6PH> 		8-97041-000-3 01 1 0010-0105 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1 ENG(RJX) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97288-014-2 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97078-164-2 01 1 9811-0105 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) REAR AXLE HEAVY DUTY 292MM(G73) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97310-662-0 01 1 0106- ● ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, CHARGEAIR COOLER<6PL>,FRAME-KICK UP<7EW> 		8-97166-500-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97202-128-0 01 1 9811- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97255-086-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1 ENG(RJX) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97287-442-0 01 1 0106- ●
13 04.685 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97178-897-0 01 1 9811-0105 ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 0106-0107 ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97178-897-0 01 1 0106-0107 ●
13 04.685 PIPE; OIL,UNION TO UNION
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97178-897-0 01 1 0108- ●
13 04.685 PIPE; OIL,UNION TO UNION 8-97178-897-0 01 1 0108- ●
13 04.685 PIPE; OIL,UNION TO UNION
4JH1 ENG(RJX) EXC. BRK WHL LK CONT DSPV<JL8>,BRK WHL LK CONT LSPV<6PH> 		8-97287-443-0 01 1 0106- ●
çizim 46188
48 46 95 99 95 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97329-460-0 01 1 0203- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97208-981-1 01 1 9811- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9811-0105 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97259-532-2 01 1 0106- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-528-1 01 1 9811- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97130-054-1 01 1 9811-9812 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97223-542-0 01 1 9901- ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97148-829-1 01 1 9811-0105 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97148-829-1 01 1 0106- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97259-522-1 01 1 0106- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97329-461-0 01 1 0203- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97208-980-1 01 1 9811- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9811-0105 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97247-853-2 01 1 0106- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97259-360-2 01 1 0106- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-529-1 01 1 9811- ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97130-055-1 01 1 9811-9812 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97223-543-0 01 1 9901- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97148-830-2 01 1 9811-0105 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97148-830-2 01 1 0106- ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) 		8-97122-973-1 01 1 9811-0105 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (A) 		8-97182-266-0 01 1 9811-0105 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 		8-97122-131-0 01 1 9811-0105 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-134-0 01 1 9811-0105 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97206-417-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97206-418-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97259-355-2 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-357-2 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (B) 		8-97301-505-0 01 1 0106- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-973-1 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-266-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (B) 		8-97092-863-4 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 05.476 (B) 		8-97142-368-1 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 		8-97122-131-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-134-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (B) 		8-97173-706-0 01 1 0106-0107 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (B) 		8-97173-706-0 01 1 0108- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) 		8-97259-509-1 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (A) 		8-97259-508-0 01 1 0106-0202 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (A) 		8-97259-508-0 01 1 0203- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (B) 		8-97252-344-0 01 1 0106- ●

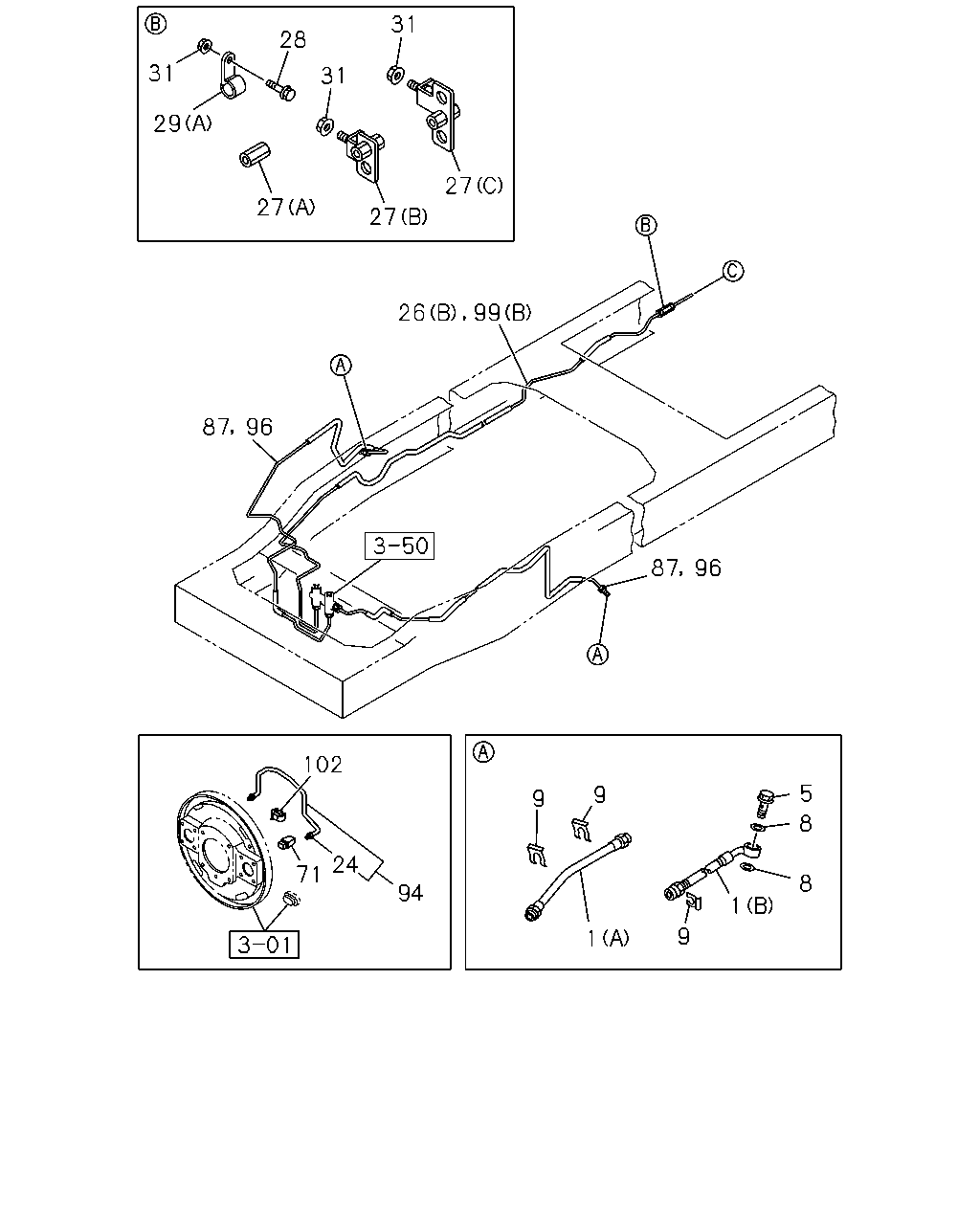

çizim 46222
31 28 31 31 29 27 27 27 87 96 87 96 102 5 9 9 8 24 71 8 94 1 9 1 26 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97035-063-0 02 1 9811-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-063-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97035-063-0 02 1 0106- ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0106- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0106- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811-0105 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0106- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0106- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0106- ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 04 1 9811-9902 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
AXLE ISUZU PRODUCTION<8BF> EXC. INDONESIA EQUIPMENT(S4S) 08.963 		9-09217-625-0 02 1 9903-9909 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 9910-0105 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0106- ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0106- ● ●
24 04.686 NUT; UNION,OIL PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 08.963 		9-09217-625-0 02 1 0106- ● ● ●
24 04.686 NUT; UNION,OIL PIPE
4JH1 ENG(RJX),4JB1 ENG(RLF) 08.963 		9-09217-625-0 02 1 0106- ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. INDONESIA EQUIPMENT(S4S),AXLE ISUZU PRODUCTION<8BF> 08.963 		9-09217-625-0 04 1 9903-9909 ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
TURBOCHARGER<K51> EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97301-505-0 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.685 (A) 		8-97122-132-0 01 1 9811-0105 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97092-863-4 01 1 9811-0009 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97092-863-4 01 1 9811-0009 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TURBOCHARGER<K51>,BRK WHL LK CONT LSPV<6PH> (B) 		8-97092-863-4 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97092-863-4 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97092-863-4 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRAME-KICK UP<7EW> (B) 		8-97142-368-1 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97173-706-0 01 1 9811-0002 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97173-706-0 01 1 0003-0105 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97252-344-0 01 1 0003-0105 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97259-369-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97287-444-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97287-444-0 01 1 0106- ● ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97288-260-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 9811-0105 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97259-943-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (E) 		8-97259-943-0 01 1 0106- ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 9811-0105 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 9811-0105 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0106- ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0106-0107 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0106-0107 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0108- ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0108- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0108- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0108- ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0108- ● ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0108- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 9811-0105 ● ● ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 0106- ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0106-0107 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0106-0107 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0108- ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0108- ● ●
29 04.686 CLIP; UNION
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0108- ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ●
31 04.686 NUT; UNION CLIP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ●
71 04.686 GROMMET; OIL PIPE
AXLE ISUZU PRODUCTION<8BF> 05.002 		9-09756-034-0 02 1 9903-9909 ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AXLE ISUZU PRODUCTION<8BF> 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) AXLE ISUZU PRODUCTION<8BF> ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) AXLE ISUZU PRODUCTION<8BF> 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) AXLE ISUZU PRODUCTION<8BF> EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 9910-0105 ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0106- ● ● ● ●
71 04.686 GROMMET; OIL PIPE
4JH1 ENG(RJX),4JB1 ENG(RLF) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) AXLE ISUZU PRODUCTION<8BF> INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) (AQE),(50C),(94H),(95H),(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 0106-0107 ●
71 04.686 GROMMET; OIL PIPE
(AQE),(50C),(94H),(95H),(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 0108- ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97091-448-3 01 1 9811-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97087-439-4 01 1 9811-0004 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97258-135-0 01 1 0005-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 9811-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9811-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> 		8-97108-750-1 01 1 9811-0105 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97139-860-3 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97019-223-0 01 1 9811-0105 ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97019-223-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97019-223-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0106- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97019-223-0 01 1 0106- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JH1 ENG(RJX),4JB1 ENG(RLF) 		8-97019-223-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97019-222-0 01 1 9811-0105 ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97019-222-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97019-222-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0106- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97019-222-0 01 1 0106- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JH1 ENG(RJX),4JB1 ENG(RLF) 		8-97019-222-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-94154-916-0 02 1 9811-0105 ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.685 		8-97122-132-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.685 		8-97122-132-0 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97208-982-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 04.685 		8-97100-833-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97100-833-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97100-833-3 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.685 L=918 		8-94249-679-4 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 L=918 		8-94249-679-4 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 04.685 L=918 		8-94249-679-4 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97208-514-1 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 04.685 		8-97123-265-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-448-3 01 1 0106-0107 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-448-3 01 1 0108- ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97258-135-0 01 1 0106-0107 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97258-135-0 01 1 0108- ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 04.685 		8-97108-750-1 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97139-860-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) EXC. FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) 04.685 		8-97077-519-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) EXC. FRAME-KICK UP<7EW> 05.476 		8-97200-660-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) 05.476 		8-97200-660-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97206-417-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97206-418-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97259-355-2 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-357-2 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (B) 		8-97301-505-0 01 1 0106- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-973-1 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-266-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (B) 		8-97092-863-4 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 05.476 (B) 		8-97142-368-1 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 		8-97122-131-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-134-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (B) 		8-97173-706-0 01 1 0106-0107 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (B) 		8-97173-706-0 01 1 0108- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) 		8-97259-509-1 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (A) 		8-97259-508-0 01 1 0106-0202 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (A) 		8-97259-508-0 01 1 0203- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (B) 		8-97252-344-0 01 1 0106- ●
102 04.686 CLIP; PIPE
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 04.685 		8-94128-306-0 01 1 9811-0105 ●

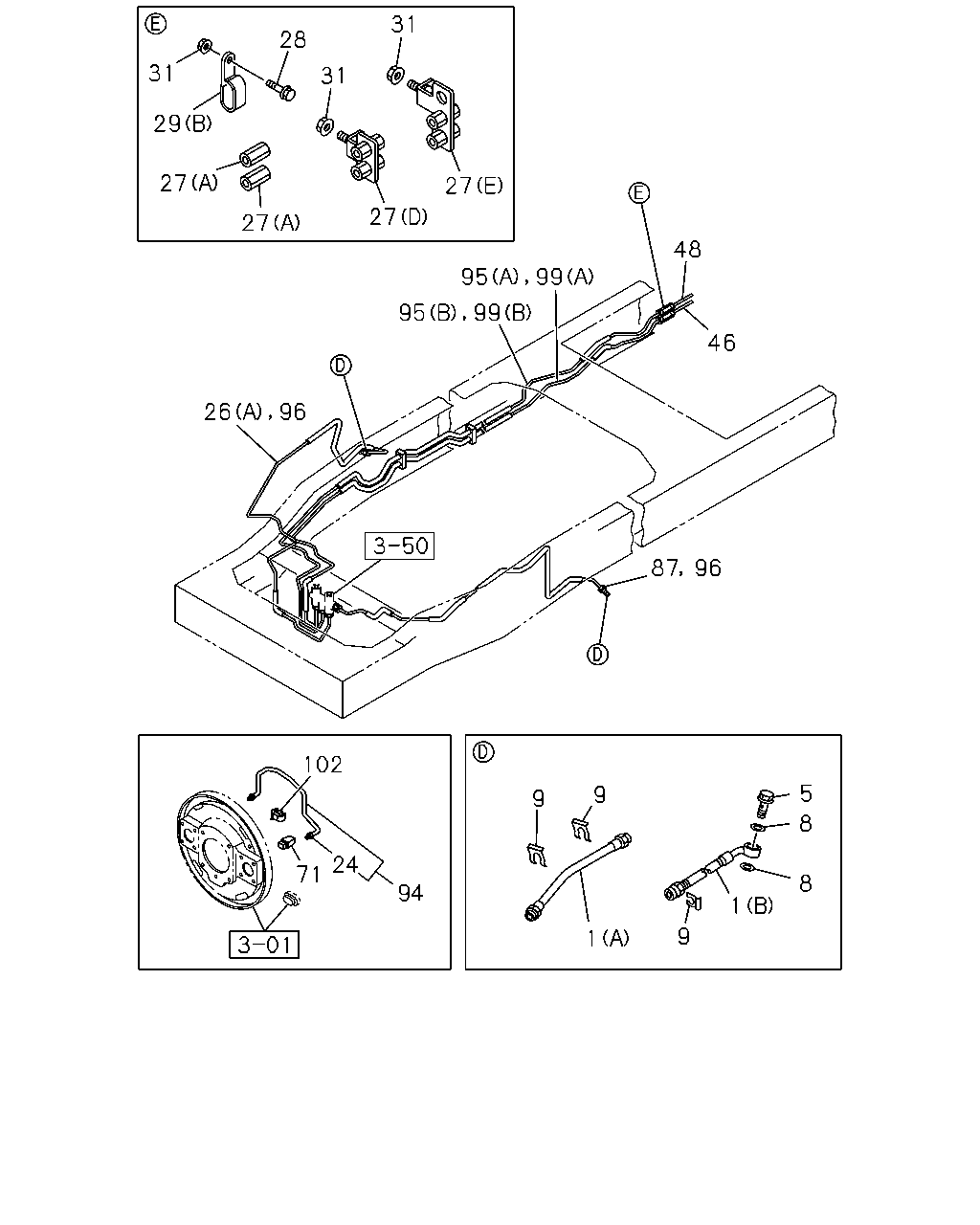

çizim 46266
31 28 31 31 29 27 27 27 27 48 95 99 46 96 26 87 96 102 5 9 9 8 24 71 8 94 1 9 1 95 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97035-064-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97035-063-0 02 1 9811-0105 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97035-063-0 02 1 0106- ●
1 04.680 HOSE; FLEX,FRT BRK
(A) 		8-97035-063-0 02 1 0106- ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22 		5-09675-017-0 02 1 0106- ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0106- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 9811-0105 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0106- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.681 		8-94137-662-0 02 1 0106- ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0106- ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 04 1 9811-9902 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
AXLE ISUZU PRODUCTION<8BF> EXC. INDONESIA EQUIPMENT(S4S) 08.963 		9-09217-625-0 02 1 9903-9909 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 9910-0105 ● ● ● ● ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 08.963 		9-09217-625-0 02 1 0106- ●
24 04.686 NUT; UNION,OIL PIPE
08.963 		9-09217-625-0 02 1 0106- ● ●
24 04.686 NUT; UNION,OIL PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 08.963 		9-09217-625-0 02 1 0106- ● ● ●
24 04.686 NUT; UNION,OIL PIPE
4JH1 ENG(RJX),4JB1 ENG(RLF) 08.963 		9-09217-625-0 02 1 0106- ● ●
24 04.686 NUT; UNION,OIL PIPE
EXC. INDONESIA EQUIPMENT(S4S),AXLE ISUZU PRODUCTION<8BF> 08.963 		9-09217-625-0 04 1 9903-9909 ● ● ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
TURBOCHARGER<K51> EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97301-505-0 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
4JG2 ENG(RJC),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.685 (A) 		8-97122-132-0 01 1 9811-0105 ● ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97092-863-4 01 1 9811-0009 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97092-863-4 01 1 9811-0009 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. TURBOCHARGER<K51>,BRK WHL LK CONT LSPV<6PH> (B) 		8-97092-863-4 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97092-863-4 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97092-863-4 01 1 0010-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
FRAME-KICK UP<7EW> (B) 		8-97142-368-1 01 1 9811-0105 ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97173-706-0 01 1 9811-0002 ● ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> (B) 		8-97173-706-0 01 1 0003-0105 ● ●
26 05.476 PIPE; BRK,JOINT TO 2 WAY
(B) 		8-97252-344-0 01 1 0003-0105 ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97259-369-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) (C) 		8-97287-444-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97287-444-0 01 1 0106- ● ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. BRK WHL LK CONT LSPV<6PH> (B) 		8-97288-260-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 9811-0105 ● ● ● ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97259-943-0 01 1 0106- ●
27 04.686 UNION; BRK PIPE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (E) 		8-97259-943-0 01 1 0106- ● ●
27 04.686 UNION; BRK PIPE
EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 9811-0105 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 9811-0105 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 02 1 0106- ● ● ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0106-0107 ● ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0106-0107 ● ●
27 04.686 UNION; BRK PIPE
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0108- ● ● ●
27 04.686 UNION; BRK PIPE
08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0108- ● ●
27 04.686 UNION; BRK PIPE
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 08.963 (A) M10 STRAIGHT 		9-09227-005-0 01 1 0108- ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9811-0105 ● ● ● ● ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ● ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0106-0107 ● ●
28 04.686 BOLT; UNION CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0108- ● ● ●
28 04.686 BOLT; UNION CLIP
02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0108- ● ●
28 04.686 BOLT; UNION CLIP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0108- ●
29 04.686 CLIP; UNION
BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 9811-0105 ● ● ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) ID=16X2 L=20 		9-09535-533-0 01 1 0106- ● ● ● ●
29 04.686 CLIP; UNION
EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 9811-0105 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0106-0107 ● ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0106-0107 ● ●
29 04.686 CLIP; UNION
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0108- ● ● ●
29 04.686 CLIP; UNION
03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0108- ● ●
29 04.686 CLIP; UNION
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH> 03.162 (A) ID=16 L=20 		9-09525-532-0 01 1 0108- ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 9811-0105 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0106-0107 ●
31 04.686 NUT; UNION CLIP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ● ●
31 04.686 NUT; UNION CLIP
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97329-460-0 01 1 0203- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97208-981-1 01 1 9811- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> 		8-97093-658-3 01 1 9811-0105 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97259-532-2 01 1 0106- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-528-1 01 1 9811- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97130-054-1 01 1 9811-9812 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97223-542-0 01 1 9901- ●
46 04.685 PIPE; BRK,JOINT TO VLV
BRK WHL LK CONT LSPV<6PH> 		8-97148-829-1 01 1 9811-0105 ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97148-829-1 01 1 0106- ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97259-522-1 01 1 0106- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97329-461-0 01 1 0203- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97208-980-1 01 1 9811- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JG2 ENG(RJC) BRK WHL LK CONT LSPV<6PH> 		8-97093-659-3 01 1 9811-0105 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97247-853-2 01 1 0106- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97259-360-2 01 1 0106- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-529-1 01 1 9811- ● ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97130-055-1 01 1 9811-9812 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> 		8-97223-543-0 01 1 9901- ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
BRK WHL LK CONT LSPV<6PH> 		8-97148-830-2 01 1 9811-0105 ●
48 04.685 PIPE; BRK,BYPASS VLV TO CONN
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97148-830-2 01 1 0106- ●
71 04.686 GROMMET; OIL PIPE
AXLE ISUZU PRODUCTION<8BF> 05.002 		9-09756-034-0 02 1 9903-9909 ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) AXLE ISUZU PRODUCTION<8BF> 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) AXLE ISUZU PRODUCTION<8BF> ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) AXLE ISUZU PRODUCTION<8BF> 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) AXLE ISUZU PRODUCTION<8BF> EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 9910-0105 ● ● ● ● ●
71 04.686 GROMMET; OIL PIPE
4JG2 ENG(RJC),4JB1 ENG(RLF) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
EXC. FRT INDEPENDENT SUSPENSION(6PP) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0106- ● ● ● ●
71 04.686 GROMMET; OIL PIPE
4JH1 ENG(RJX),4JB1 ENG(RLF) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 4.0-4.5TON(RPR),G.V.W. 5.0-5.5TON(RPT),G.V.W. 5.5-6.0TON(RPU) EXC. ENGINE POWER N-SPEC(7QV) 05.002 		9-09756-034-0 02 1 0106- ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) AXLE ISUZU PRODUCTION<8BF> INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 9903-9909 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 9910-0105 ●
71 04.686 GROMMET; OIL PIPE
4HF1 ENG(RLS) (AQE),(50C),(94H),(95H),(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 0106-0107 ●
71 04.686 GROMMET; OIL PIPE
(AQE),(50C),(94H),(95H),(98H) G.V.W. 6.5-7.0TON(RPW) INDONESIA EQUIPMENT(S4S) 05.002 		8-97044-742-1 02 1 0108- ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 		8-97091-448-3 01 1 9811-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97087-439-4 01 1 9811-0004 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 		8-97258-135-0 01 1 0005-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF) L=918 		8-94249-679-4 01 1 9811-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97100-833-3 01 1 9811-0105 ● ● ● ● ● ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> 		8-97108-750-1 01 1 9811-0105 ●
87 04.685 PIPE; BRK,5 WAY TO UNION
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 		8-97139-860-3 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97019-223-0 01 1 9811-0105 ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97019-223-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97019-223-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-223-0 01 1 0106- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97019-223-0 01 1 0106- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JH1 ENG(RJX),4JB1 ENG(RLF) 		8-97019-223-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97019-222-0 01 1 9811-0105 ● ● ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97019-222-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) 		8-97019-222-0 01 1 9811-0105 ●
94 04.685 PIPE; BRK,W/C TO W/C
EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97019-222-0 01 1 0106- ●
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. INDONESIA EQUIPMENT(S4S) 		8-97019-222-0 01 1 0106- ● ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4JH1 ENG(RJX),4JB1 ENG(RLF) 		8-97019-222-0 01 1 0106- ● ●
94 04.685 PIPE; BRK,W/C TO W/C
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 		8-94154-916-0 02 1 9811-0105 ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (B) 		8-97122-973-1 01 1 9811-0105 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> (A) 		8-97182-266-0 01 1 9811-0105 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 		8-97122-131-0 01 1 9811-0105 ● ●
95 04.686 PIPE ASM; BRK,6 WAY 2 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-134-0 01 1 9811-0105 ● ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.685 		8-97122-132-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 04.685 		8-97122-132-0 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97208-982-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP) 04.685 		8-97100-833-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 		8-97100-833-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97100-833-3 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP) 04.685 L=918 		8-94249-679-4 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
04.685 L=918 		8-94249-679-4 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JB1 ENG(RLF) 04.685 L=918 		8-94249-679-4 01 1 0106- ● ● ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 05.476 		8-97208-514-1 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX),4JB1 ENG(RLF) DISC BRAKE FRT<J52> FRT INDEPENDENT SUSPENSION(6PP) 04.685 		8-97123-265-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-448-3 01 1 0106-0107 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENS ION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97091-448-3 01 1 0108- ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97258-135-0 01 1 0106-0107 ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. DISC BRAKE FRT<J52>,FRT INDEPENDENT SUSPENSION(6PP),FRAME-KICK UP<7EW> 04.685 		8-97258-135-0 01 1 0108- ● ● ● ● ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> 04.685 		8-97108-750-1 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97139-860-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) EXC. FRAME-KICK UP<7EW> 04.685 		8-97077-519-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) 04.685 		8-97077-519-3 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) EXC. FRAME-KICK UP<7EW> 05.476 		8-97200-660-0 01 1 0106- ●
96 04.686 PIPE ASM; 6 WAY
4JH1 ENG(RJX) 05.476 		8-97200-660-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97206-417-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97206-418-0 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97259-355-2 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97259-357-2 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (B) 		8-97301-505-0 01 1 0106- ● ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97122-973-1 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-266-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>,FRT INDEPENDENT SUSPENSION(6PP) 05.476 (B) 		8-97092-863-4 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 05.476 (B) 		8-97142-368-1 01 1 0106- ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 		8-97122-131-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 		8-97122-134-0 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (B) 		8-97173-706-0 01 1 0106-0107 ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. BRK WHL LK CONT LSPV<6PH>, FRAME-KICK UP<7EW> 05.476 (B) 		8-97173-706-0 01 1 0108- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) 		8-97259-509-1 01 1 0106- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (A) 		8-97259-508-0 01 1 0106-0202 ●
99 04.686 PIPE ASM; 4/5/6 WAY
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> (A) 		8-97259-508-0 01 1 0203- ● ●
99 04.686 PIPE ASM; 4/5/6 WAY
05.476 (B) 		8-97252-344-0 01 1 0106- ●
102 04.686 CLIP; PIPE
4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S),ENGINE POWER N-SPEC(7QV) 04.685 		8-94128-306-0 01 1 9811-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
