◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#23623) — 34 parça
çizim 45399
145 19 59 59 56 146 7 7 155 8 10 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 9811- ● ● ● ● ● ●
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 		8-94167-006-0 02 1 9811- ● ● ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE
EXC. BRK WHL LK CONT LSPV<6PH> 		5-47456-009-1 01 1 9811- ● ● ● ●
9 04.686 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 9811- ● ●
10 04.686 BOLT; JOINT
03.163 M6X40 FLANGE 		0-28680-640-0 01 1 9811- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97035-989-1 01 1 9811-0109 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION 8-97314-590-0 01 1 0110- ● ● ● ● ● ●
56 04.686 BRACKET; UNION,BRK 8-97078-564-1 01 1 9811- ● ● ● ● ● ●
59 04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT 		9-09227-005-0 02 1 9811- ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97145-913-0 01 1 9811-0109 ● ● ● ● ● ●
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-97314-583-0 01 1 0110- ● ● ● ● ● ●
146 04.685 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ● ● ●
155 04.686 JOINT; 6WAY
BRK WHL LK CONT LSPV<6PH> 		8-97120-033-2 01 1 9811- ● ● ● ●

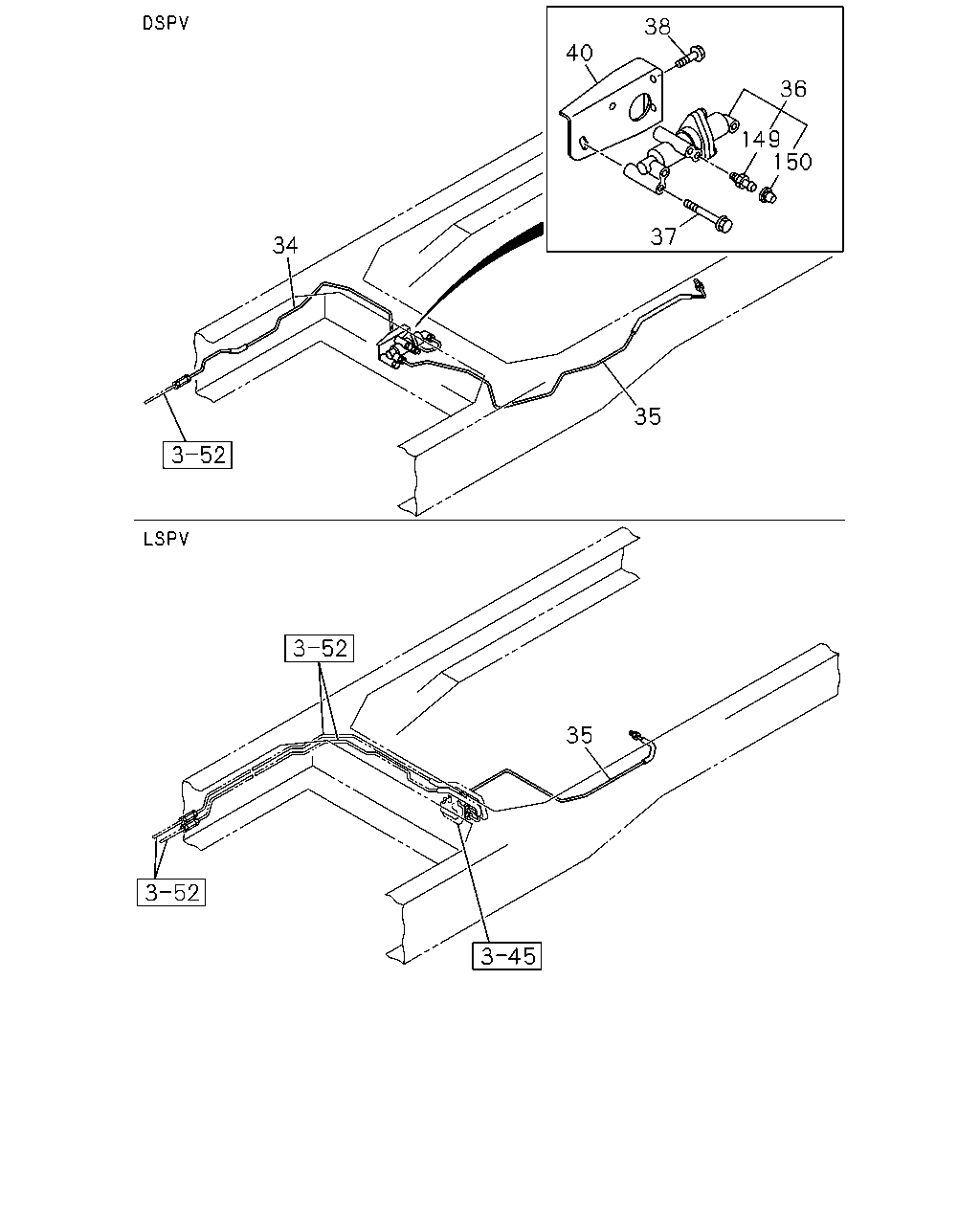

çizim 47268
38 40 36 149 150 37 34 35 35
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
34 04.685 PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8> 		5-47411-773-0 01 1 9811-0105 ● ●
34 04.685 PIPE; BRK,UNION TO DSPV
BRK WHL LK CONT DSPV<JL8> 		8-97072-951-3 01 1 0106- ● ●
34 04.685 PIPE; BRK,UNION TO DSPV
4JB1 ENG(RLF) BRK WHL LK CONT DSPV<JL8> 00.785 SERVICED BY L=1870 		5-47411-782-0 01 1 0106- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 		8-97305-268-1 01 1 0106- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97305-268-1 01 1 0106- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
REAR AXLE STANDARD 244MM(R39) BRK WHL LK CONT DSPV<JL8> 		8-97091-258-1 01 1 9811- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-502-1 01 1 9811-0105 ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97106-502-1 01 1 0106- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97100-892-0 01 1 9811-0105 ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97100-892-0 01 1 0106- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> 		8-97070-371-0 01 1 9811-0105 ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JB1 ENG(RLF),4HF1 ENG(RLS) BRK WHL LK CONT LSPV<6PH> 		8-97070-371-0 01 1 0106- ● ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JB1 ENG(RLF) BRK WHL LK CONT DSPV<JL8> 		8-97131-337-0 01 1 0106- ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97259-523-1 01 1 0106-0202 ●
35 04.685 PIPE; BRK,VLV TO RR AXLE
4JH1 ENG(RJX) BRK WHL LK CONT LSPV<6PH> CHARGE AIR COOLER<6PL> 		8-97259-523-1 01 1 0203- ● ●
36 04.690 VALVE ASM; DSPV
BRK WHL LK CONT DSPV<JL8> 		8-97082-058-0 01 1 9811- ● ● ●
37 04.690 BOLT; BRKT TO DSPV
BRK WHL LK CONT DSPV<JL8> 01.840 M8X70 FLANGE 		0-28080-870-0 02 1 9811- ● ● ●
38 04.690 BOLT; BRKT TO FRAME
BRK WHL LK CONT DSPV<JL8> 02.664 M8X20 FLANGE 		0-28680-820-0 02 1 9811- ● ● ●
40 04.690 BRACKET
BRK WHL LK CONT DSPV<JL8> 		8-94156-783-4 01 1 9811- ● ● ●
149 04.685 PLUG; BLEEDER,DSV
BRK WHL LK CONT DSPV<JL8> 		8-97093-663-0 01 1 9811- ● ● ●
150 04.685 CAP; BLEEDER PLUG,DSV
BRK WHL LK CONT DSPV<JL8> 		8-97093-662-0 01 1 9811- ● ● ●
