◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-56B - EXHAUST BRAKE SYSTEM ▶
1-56B — EXHAUST BRAKE SYSTEM (#2362) — 29 parça

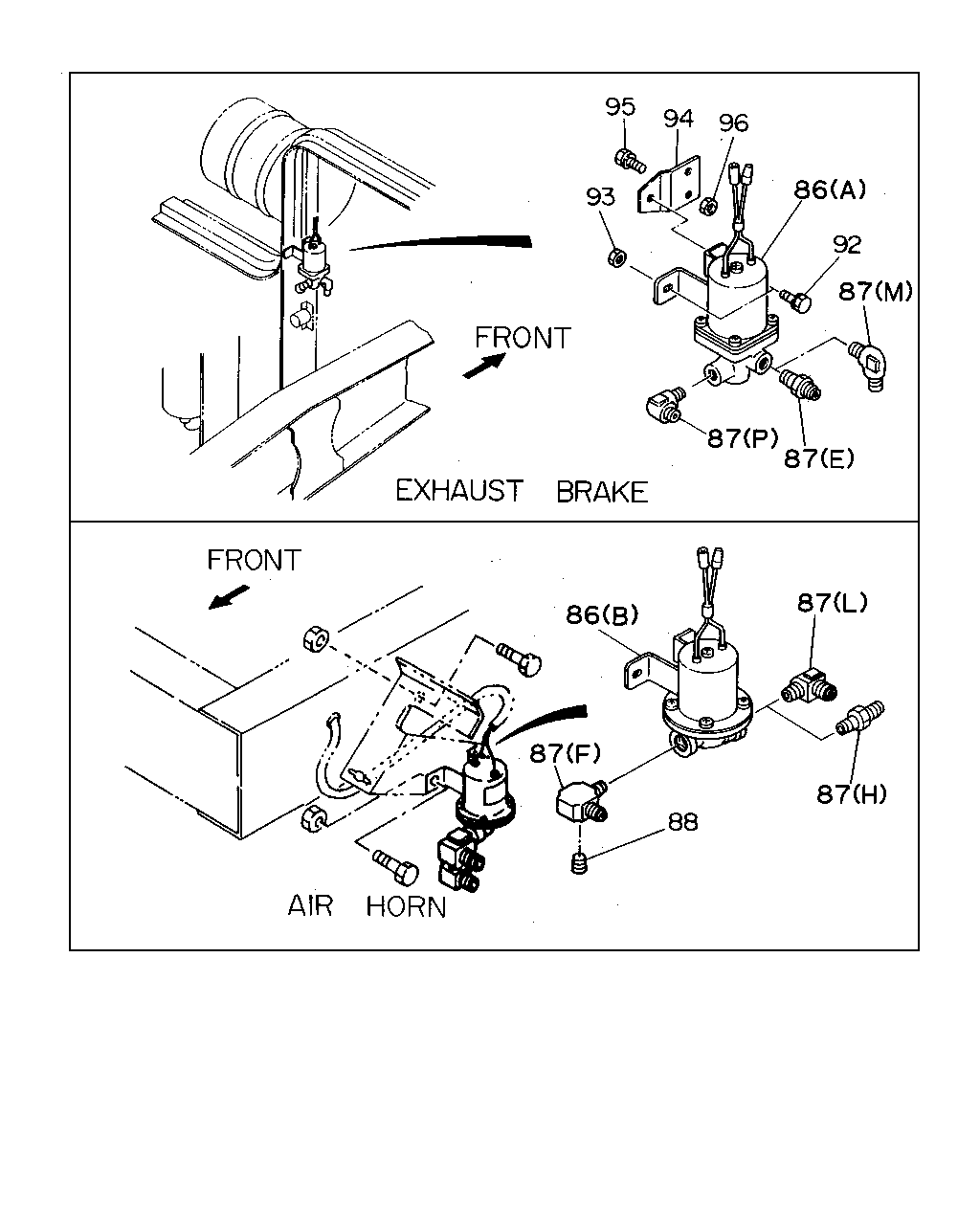

çizim 95243
95 94 96 93 86 92 87 87 87 87 86 87 88 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
(A) 		1-82563-094-0 01 1 9002-9006 ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-172-0 01 1 9007-9012 ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-158-0 01 1 9101-9306 ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-402-0 01 1 9307- ● ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-299-1 01 1 9002- ● ● ●
87 CONNECTOR
(M) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302 ●
87 CONNECTOR
(M) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303-9306 ●
87 CONNECTOR
(F) 		1-09656-316-1 01 1 9002- ● ● ●
87 CONNECTOR
(P) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302 ● ●
87 CONNECTOR
(P) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ● ● ●
87 CONNECTOR
(E) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002- ● ●
87 CONNECTOR
EXZ&RHD(EX*5**) (H) M14 		1-09650-031-0 01 1 9002-9103 ●
87 CONNECTOR
EXZ&RHD(EX*5**) (H) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104- ●
87 CONNECTOR
(H) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104- ●
87 CONNECTOR
(L) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9002- ●
87 CONNECTOR
EXZ&LHD(EX*6**) (L) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9002- ●
88 PLUG
PT3/8 		9-09204-517-0 01 1 9002- ● ● ●
92 BOLT; MAG VLV
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9002-9302 ● ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ●
93 NUT; MAG VLV
M8 		9-09110-408-0 01 1 9002- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-022-1 01 1 9002-9207 ● ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) 		1-82569-022-1 01 1 9208- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9002-9207 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8X22 W/LK WASHER 		0-50040-822-0 02 1 9208-9302 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ●
96 NUT; BRKT,MAG VLV,EXH BRAKE
M8 		9-09110-408-0 02 1 9002-9207 ● ●
96 NUT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8 		9-09110-408-0 02 1 9208- ● ● ●
