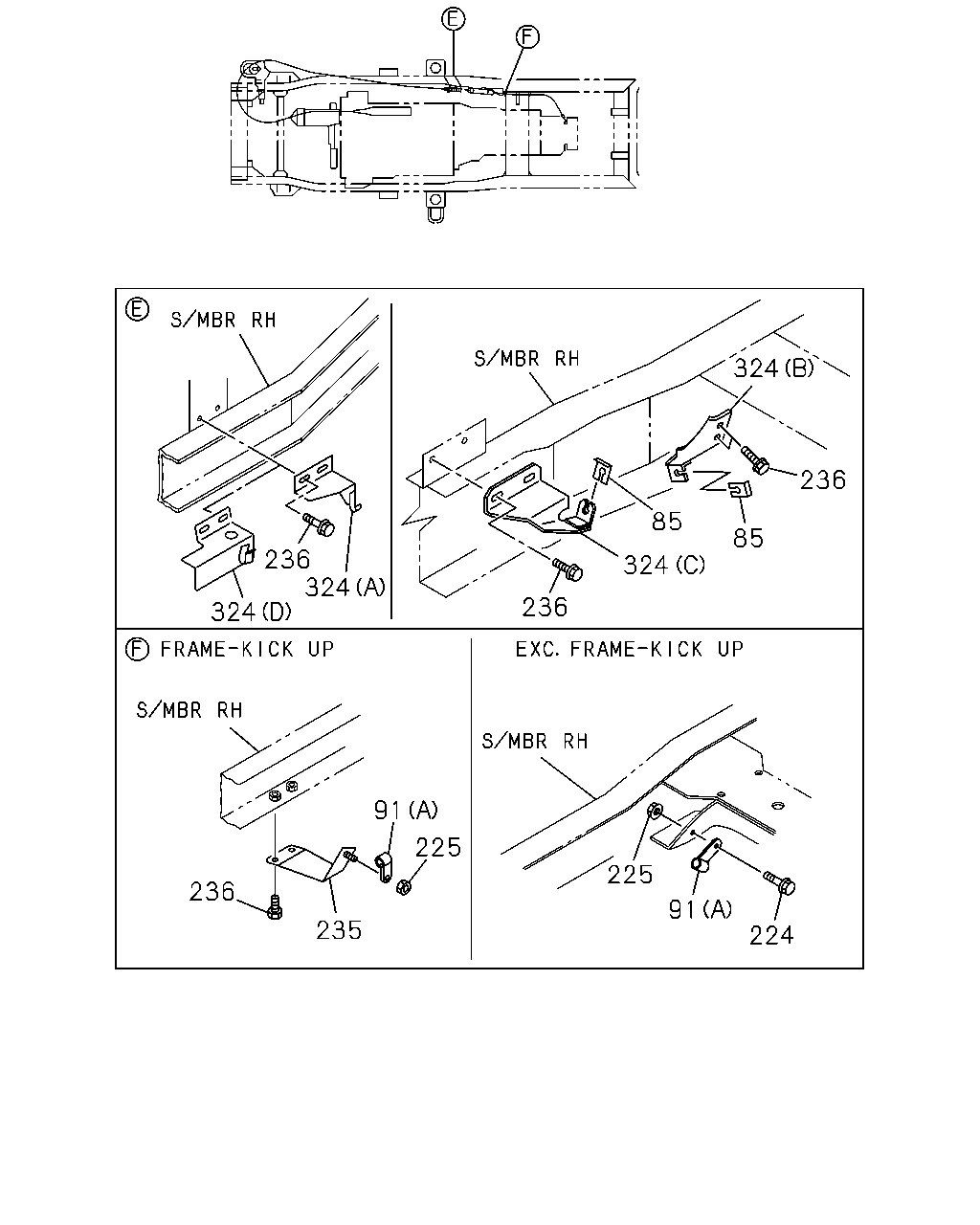

3-11 — PARKING BRAKE CONTROL (#23618) — 111 parça

324 236 85 85 236 324 324 236 324 91 225 225 236 91 235 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
85	04.785 CLIP; BRKT 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97084-216-0	02	1	9905-0009	●
85	04.785 CLIP; BRKT 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97084-216-0	02	1	0010-0107	●	●
85	04.785 CLIP; BRKT 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97084-216-0	02	1	0108-		●
85	04.785 CLIP; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97084-216-0	02	1	0108-	●
91	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	9811-0105	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	0106-	●	●		●		●
91	04.785 CLIP; PARKING BRK CABLE (B) ID=13 L=50	9-09525-286-0	01	1	0106-			●
91	04.785 CLIP; PARKING BRK CABLE 4HF1 ENG(RLS) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	9811-9904	●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	9905-0105	●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0106-0107	●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0108-	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●		●		●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
224	04.785 BOLT; CABLE CLIP 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9811-9904	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9905-0105	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-0107	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0108-	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●		●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
225	04.785 NUT; CABLE CLIP 4HF1 ENG(RLS) M10 FLANGE	0-91150-110-0	01	1	9811-9904	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) M10 FLANGE	0-91150-110-0	01	1	9905-0105	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) M10 FLANGE	0-91150-110-0	01	1	0106-0107	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) M10 FLANGE	0-91150-110-0	01	1	0108-	●	●		●	●	●
235	04.785 BRACKET; CONT CABLE TO FRAME FRAME-KICK UP<7EW>	8-97176-465-1	01	1	9811-				●
236	04.785 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●	●		●	●	●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105				●
236	04.785 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0107	●	●		●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0107				●
236	04.785 BOLT; BRKT TO FRAME 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0107					●
236	04.785 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-0107						●
236	04.785 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-		●		●
236	04.785 BOLT; BRKT TO FRAME FRAME-KICK UP<7EW> 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-				●
236	04.785 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-	●
236	04.785 BOLT; BRKT TO FRAME 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-					●
236	04.785 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0108-						●
236	04.785 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) 09.008 M10X20 FLANGE	0-28081-020-0	02	1	9905-0009	●
236	04.785 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) 09.008 M10X20 FLANGE	0-28081-020-0	02	1	0010-0107	●	●
236	04.785 BOLT; BRKT TO FRAME 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) 09.008 M10X20 FLANGE	0-28081-020-0	02	1	0108-		●
236	04.785 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) 09.008 M10X20 FLANGE	0-28081-020-0	02	1	0108-	●
324	04.785 BRACKET 4JH1 ENG(RJX) (D)	8-97289-364-0	01	1	0106-	●	●		●
324	04.785 BRACKET 4HF1 ENG(RLS) (A)	8-97140-998-2	01	1	9811-9904	●	●		●	●	●
324	04.785 BRACKET 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97140-998-2	01	1	9905-0107	●	●		●	●	●
324	04.785 BRACKET 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97140-998-2	01	1	0108-	●	●		●	●	●
324	04.785 BRACKET 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-97105-722-0	01	1	9905-0009	●
324	04.785 BRACKET 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-97105-722-0	01	1	0010-0107	●	●
324	04.785 BRACKET 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-97105-722-0	01	1	0108-		●
324	04.785 BRACKET 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-97105-722-0	01	1	0108-	●
324	04.785 BRACKET 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (C)	8-97112-916-0	01	1	9905-0009	●
324	04.785 BRACKET 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (C)	8-97112-916-0	01	1	0010-0107	●	●
324	04.785 BRACKET 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (C)	8-97112-916-0	01	1	0108-		●
324	04.785 BRACKET 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (C)	8-97112-916-0	01	1	0108-	●

225 89 224 91 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
89	04.785 BRACKET; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97113-984-1	01	1	9811-0105	●	●	●	●	●	●
89	04.785 BRACKET; CLIP 4JB1 ENG(RLF)	8-97113-984-1	01	1	0106-	●	●		●		●
89	04.785 BRACKET; CLIP	8-97113-984-1	01	1	0106-			●
91	04.785 CLIP; PARKING BRK CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	9811-0105	●	●	●	●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JB1 ENG(RLF) (B) ID=13 L=50	9-09525-286-0	01	1	0106-	●	●		●		●
91	04.785 CLIP; PARKING BRK CABLE (B) ID=13 L=50	9-09525-286-0	01	1	0106-			●
91	04.785 CLIP; PARKING BRK CABLE 4HF1 ENG(RLS) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	9811-9904	●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	9905-0105	●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0106-0107	●	●		●	●	●
91	04.785 CLIP; PARKING BRK CABLE 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) 00.799 (A) ID=13 L=20	1-09701-138-1	01	1	0108-	●	●		●	●	●
181	04.785 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
181	04.785 BOLT; BRKT 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●		●		●
181	04.785 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
224	04.785 BOLT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9811-0105	●	●	●	●	●	●
224	04.785 BOLT; CABLE CLIP 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●		●		●
224	04.785 BOLT; CABLE CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
224	04.785 BOLT; CABLE CLIP 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9811-9904	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	9905-0105	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0106-0107	●	●		●	●	●
224	04.785 BOLT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S), FRAME-KICK UP<7EW> 03.405 M10X25 FLANGE	0-28681-025-0	01	1	0108-	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●	●	●	●	●	●
225	04.785 NUT; CABLE CLIP 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●		●
225	04.785 NUT; CABLE CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●
225	04.785 NUT; CABLE CLIP 4HF1 ENG(RLS) M10 FLANGE	0-91150-110-0	01	1	9811-9904	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) M10 FLANGE	0-91150-110-0	01	1	9905-0105	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) M10 FLANGE	0-91150-110-0	01	1	0106-0107	●	●		●	●	●
225	04.785 NUT; CABLE CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) M10 FLANGE	0-91150-110-0	01	1	0108-	●	●		●	●	●

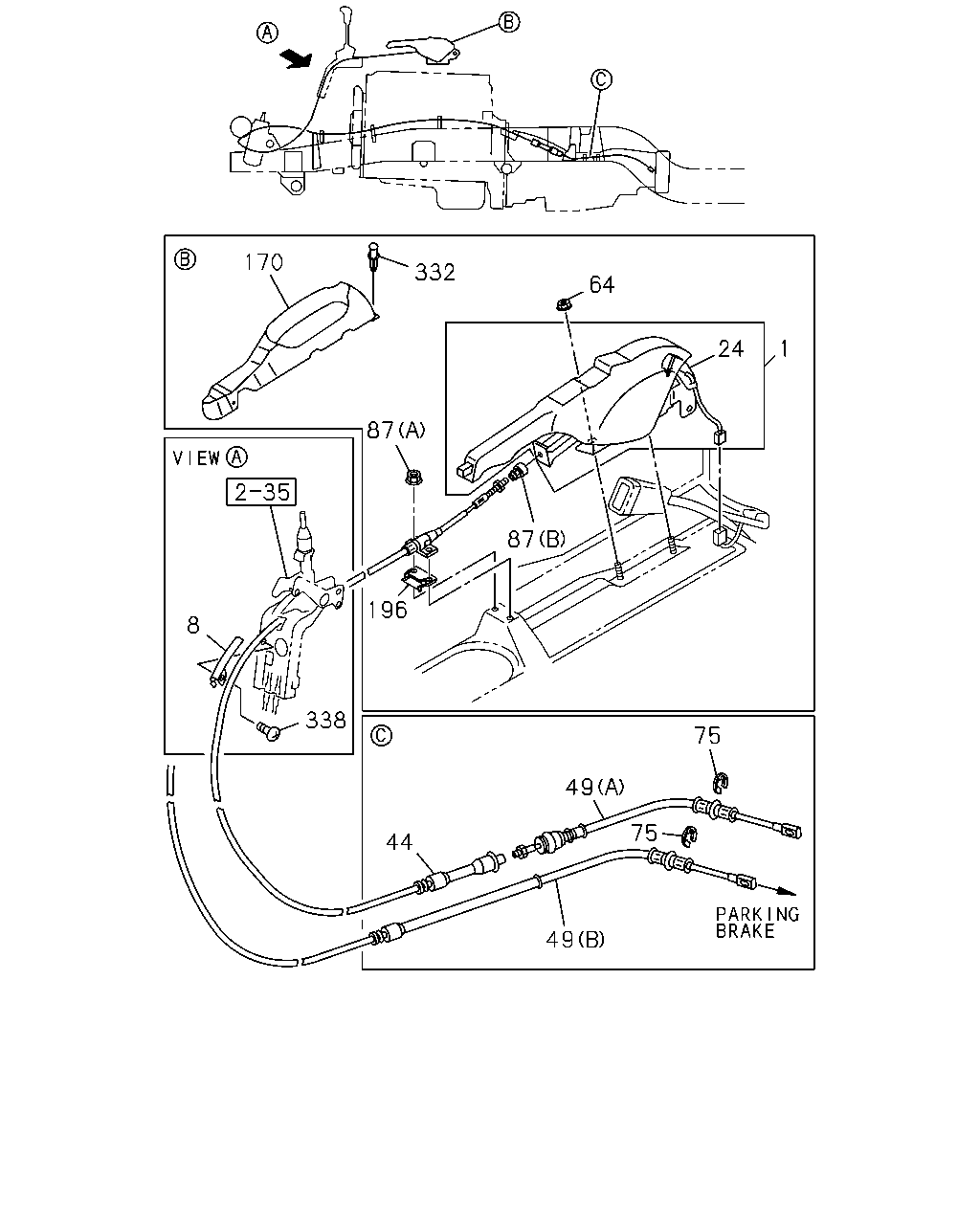

170 332 64 24 1 87 87 196 8 338 75 49 75 44 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97890-438-1	01	1	9811-0108	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97995-846-0	01	1	0109-0110	●	●	●	●	●	●
1	04.592 STEM ASM; PARKING BRK DARK GRAY	8-97996-542-1	01	1	0111-	●	●	●	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97071-939-0	01	1	9811-9904	●	●	●	●	●	●
8	04.592 GUIDE; PARKING BRK	8-97190-672-0	01	1	9905-	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97890-859-0	01	1	9811-0108	●	●	●	●	●	●
24	04.589 SWITCH ASM; PARK BRK	8-97995-828-1	01	1	0109-	●	●	●	●	●	●
44	04.779 CABLE; PARKING BRK,FRT 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97176-237-0	01	1	9905-0009	●
44	04.779 CABLE; PARKING BRK,FRT 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97176-237-0	01	1	0010-0107	●	●
44	04.779 CABLE; PARKING BRK,FRT 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97176-237-0	01	1	0108-		●
44	04.779 CABLE; PARKING BRK,FRT 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S)	8-97176-237-0	01	1	0108-	●
49	04.779 CABLE; PARKING BRK 4JH1 ENG(RJX) (B)	8-97260-320-0	01	1	0106-	●	●		●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) (B)	8-97215-424-0	01	1	9811-9904	●	●		●	●	●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97215-424-0	01	1	9905-0107	●	●		●	●	●
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97215-424-0	01	1	0108-	●	●		●	●	●
49	04.779 CABLE; PARKING BRK 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97184-270-0	01	1	9811-0105	●	●		●	●	●
49	04.779 CABLE; PARKING BRK (B)	8-97184-270-0	01	1	9811-0105			●
49	04.779 CABLE; PARKING BRK 4JB1 ENG(RLF) (B)	8-97184-270-0	01	1	0106-	●	●		●		●
49	04.779 CABLE; PARKING BRK (B)	8-97184-270-0	01	1	0106-			●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-97063-113-6	01	1	9905-0009	●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-97063-113-6	01	1	0010-0107	●	●
49	04.779 CABLE; PARKING BRK 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-97063-113-6	01	1	0108-		●
49	04.779 CABLE; PARKING BRK 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-97063-113-6	01	1	0108-	●
64	04.595 NUT; PARKING BRK 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9811-	●	●	●	●	●	●
75	04.790 RING; SNAP,HAND BRK CABLE 04.681 ID=12	9-09185-412-0	01	1	9811-	●	●	●	●	●	●
87	04.785 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
87	04.785 NUT (B) M6	8-97088-730-1	01	1	9811-	●	●	●	●	●	●
170	04.595 COVER; PARKING BRK LEVER DARK GRAY	8-97155-172-0	01	1	9811-	●	●	●	●	●	●
196	04.784 SPACER; CABLE TO LEVER	8-97066-277-2	01	1	9811-	●	●	●	●	●	●
332	04.785 CLIP; COVER 03.602 D6X12.5	8-94146-425-0	01	1	9811-	●	●	●	●	●	●
338	04.785 SCREW; GUIDE 16.270 M6X10	9-03497-610-0	01	1	9811-	●	●	●	●	●	●
