3-10 — BRAKE PEDAL AND CONTROL (#23617) — 38 parça

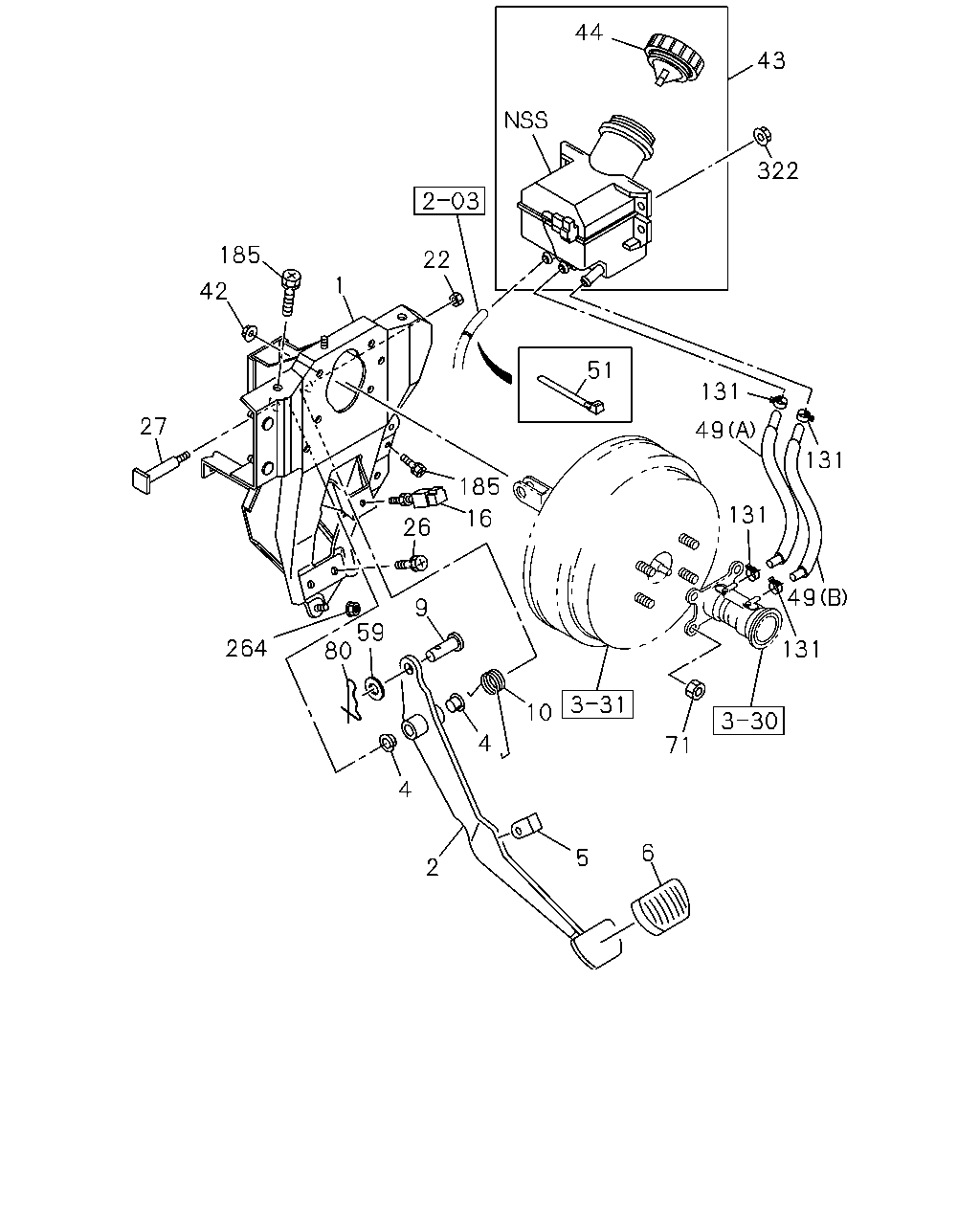

çizim 44719
44 43 322 185 22 1 42 51 131 27 49 131 185 131 16 26 49 9 59 80 131 264 10 4 71 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.634 BRACKET ASM; PEDAL 8-97853-209-8 01 1 9811-9905 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-97896-968-1 01 1 9906- ● ● ● ● ● ●
2 04.625 PEDAL; BRK 8-97853-210-3 01 1 9811- ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
04.792 		8-94238-596-0 02 1 9811- ● ● ● ● ● ●
5 04.634 STOPPER; BRK PEDAL 8-97853-602-1 01 1 9811- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
00.829 		8-97853-413-2 01 1 9811- ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-94410-276-0 01 1 9811- ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 9811- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 9811-0105 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
4JH1 ENG(RJX) 03.340 		8-94337-761-0 01 1 0106- ● ● ●
16 02.447 SWITCH; STOP LAMP
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97855-187-0 01 1 0106-0107 ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 0106-0107 ● ●
16 02.447 SWITCH; STOP LAMP
4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97855-187-0 01 1 0108- ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97855-187-0 01 1 0108- ● ●
16 02.447 SWITCH; STOP LAMP
4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 		8-97855-187-0 01 1 0108- ●
22 04.634 NUT; SHAFT
00.833 M10 FLANGE 		1-09440-022-0 01 1 9811- ● ● ● ● ● ●
26 04.634 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 02 1 9811-0110 ● ● ● ● ● ●
26 04.634 BOLT; PEDAL
00.833 M10X22 W/PL WASHER 		8-97313-188-0 02 1 0111- ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97866-667-0 01 1 9811- ● ● ● ● ● ●
42 04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9811- ● ● ● ● ● ●
43 04.651 TANK ASM; OIL
DISC BRAKE FRT<J52> 		8-97178-245-1 01 1 0106- ●
43 04.651 TANK ASM; OIL 8-97049-568-4 01 1 9811-9811 ● ● ● ● ● ●
43 04.651 TANK ASM; OIL 8-97179-813-1 01 1 9812-0105 ● ● ● ● ● ●
43 04.651 TANK ASM; OIL
EXC. DISC BRAKE FRT<J52> 		8-97179-813-1 01 1 0106- ●
43 04.651 TANK ASM; OIL 8-97179-813-1 01 1 0106- ● ● ● ● ●
44 04.651 CAP; OIL TANK 8-97095-698-0 01 1 9811-9811 ● ● ● ● ● ●
44 04.651 CAP; OIL TANK 8-97178-291-1 01 1 9812- ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(B) 		8-97129-582-0 01 1 9811-0109 ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A),(B) 		8-97129-582-0 02 1 0110- ● ● ● ● ● ●
49 04.680 HOSE; OIL TANK TO BRK M/CYL
(A) 		8-97173-291-0 01 1 9811-0109 ● ● ● ● ● ●
51 04.681 CLIP; HOSE,OIL TANK
03.162 L=140 		5-09707-031-1 01 1 9811- ● ● ● ● ● ●
59 04.634 WASHER; PL,JAW JOINT
02.575 ID=15 		9-09160-514-0 01 1 9811- ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 04 1 9811- ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 9811- ● ● ● ● ● ●
131 04.681 CLIP; RUBBER HOSE,OIL TANK TO BR 8-97130-480-0 04 1 9811- ● ● ● ● ● ●
185 04.634 BOLT; BRKT
09.003 M10X25 FLANGE 		0-28691-025-0 02 1 9811- ● ● ● ● ● ●
264 04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
04.010 M8 FLANGE 		8-97046-127-0 01 1 9811- ● ● ● ● ● ●
322 04.651 NUT; OIL TANK
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811- ● ● ● ● ● ●
