Sayfa 2-85 - Isuzu EPC

2-85 — POWER TAKE OFF CONTROL (#23612) — 155 parça

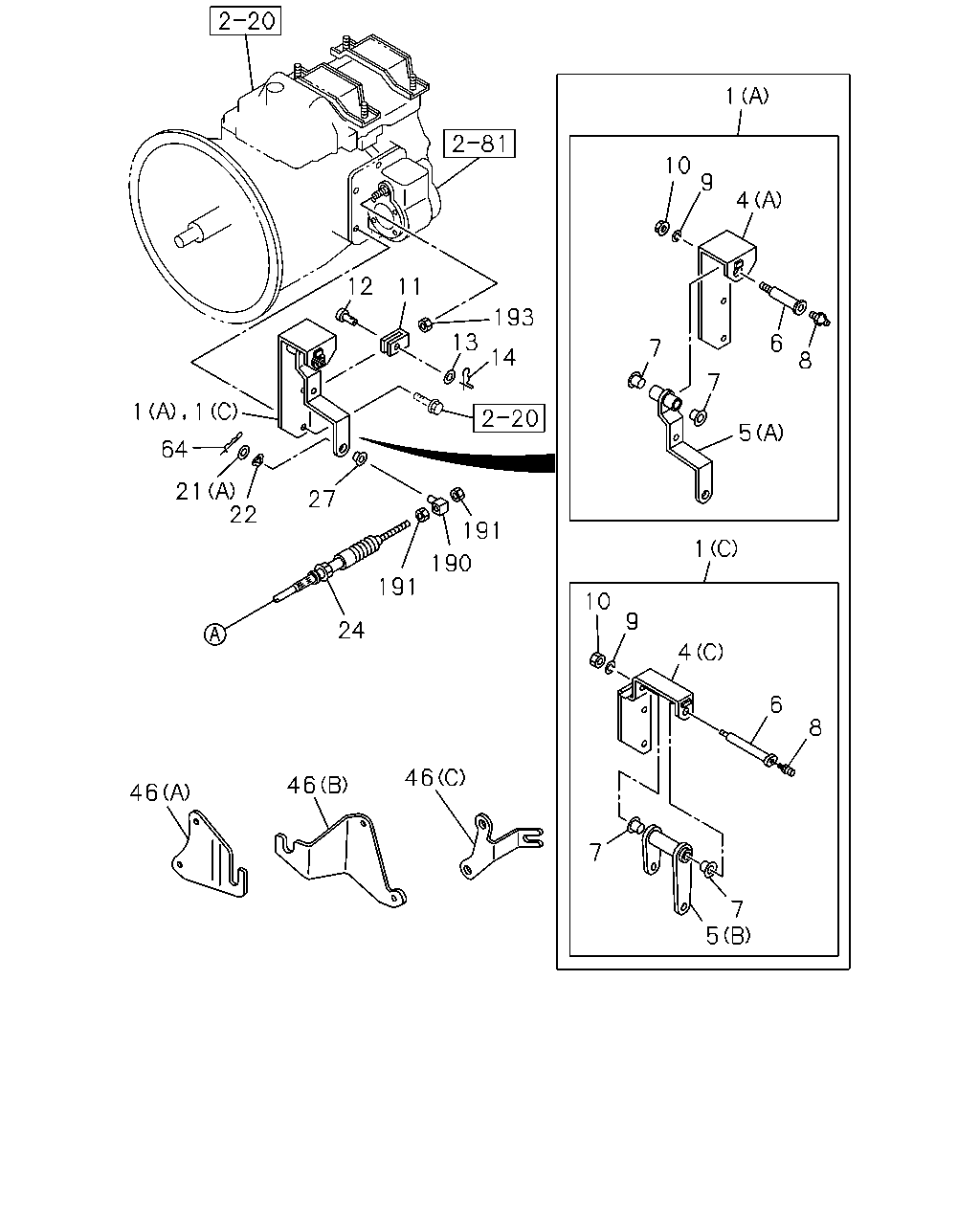

1 10 9 4 12 11 193 13 6 7 14 8 7 1 1 5 64 21 22 27 191 1 190 191 10 9 24 4 6 8 46 46 46 7 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9811-	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (B)	8-97210-807-0	01	1	9811-	●		●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (C)	8-94169-638-3	01	1	9811-			●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9811-	●	●
4	04.439 BRACKET; PTO CONT PTO W/OIL PUMP(7RT) (B)	8-97078-944-2	01	1	9811-	●		●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (C)	8-94169-639-0	01	1	9811-			●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	9811-	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9811-			●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94419-941-1	01	1	9811-	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-94147-829-1	01	1	9811-			●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9811-	●	●	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9811-	●	●	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9811-	●	●	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9811-	●	●	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9811-	●	●	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9811-	●	●	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9811-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9811-0105	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9811-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9811-0105			●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	0106-			●	●
22	04.439 WASHER; LK,LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	9811-0105	●
22	04.439 WASHER; LK,LEVER PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0106-	●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-1	01	1	9811-	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-	●	●
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9811-0105			●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0106-			●	●
27	04.439 BUSHING; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	9811-0105	●
27	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0106-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (B)	8-97022-848-1	01	1	9811-9812	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (B)	8-97219-994-0	01	1	9901-9910	●
46	04.439 BRACKET; PTO,TRANS SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) (B)	8-97240-638-0	01	1	9911-	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (C)	8-97260-329-0	01	1	0106-0204	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (C)	8-97351-069-0	01	1	0205-	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9811-0105			●	●
46	04.439 BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	0106-			●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-	●	●	●	●
190	04.439 BOSS; LEVER,PTO 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	9811-0105	●
190	04.439 BOSS; LEVER,PTO PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0106-	●	●
190	04.439 BOSS; LEVER,PTO PTO W/OIL PUMP(7RT)	8-97178-885-0	01	1	9811-	●		●	●
191	04.439 NUT; BOSS 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	9811-0105	●
191	04.439 NUT; BOSS PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0106-	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9811-	●	●	●	●

195 172 195 258 195 172 172 195 173 195 172 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-1	01	1	9811-	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-	●	●
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9811-0105			●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0106-			●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9811-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	9811-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 02.559 (D) M8X25 FLANGE	0-28680-825-0	02	1	9811-	●	●	●	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0009	●		●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0009	●		●	●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0010-0105	●		●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0010-0105	●			●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●	●	●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●	●		●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (D)	8-97079-557-3	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (E)	8-97079-558-3	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0009	●		●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0009	●		●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0010-0105	●		●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0010-0105	●			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●	●		●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9811-9904	●		●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	9905-	●		●	●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (B) L=484	8-97122-738-1	01	1	9811-	●		●	●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A) L=3113	8-97187-097-0	01	1	9811-0009	●		●	●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A)	8-97239-313-0	01	1	0010-	●		●	●

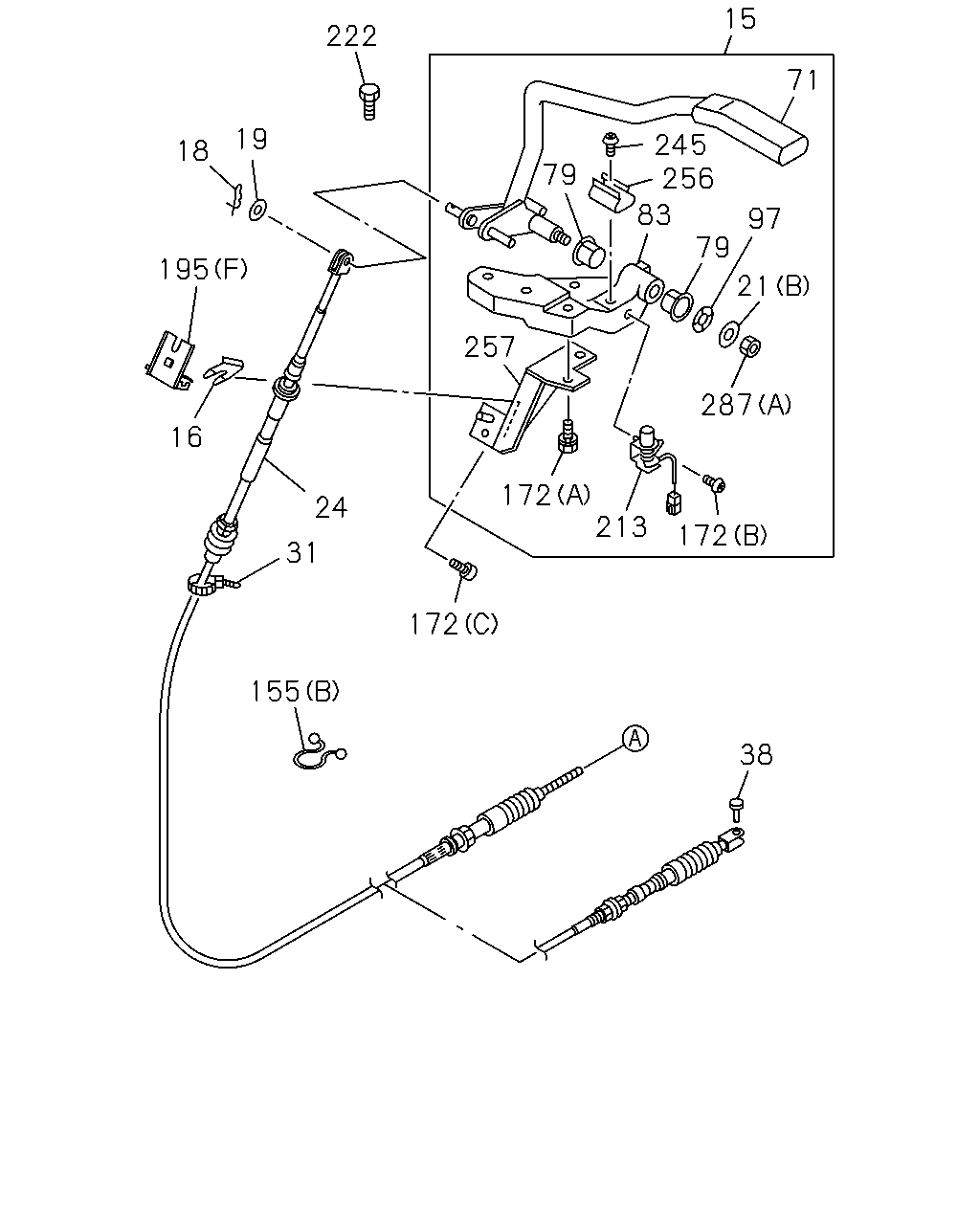

15 222 71 19 245 256 18 79 83 97 79 195 21 257 287 16 172 213 24 172 31 172 155 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-805-3	01	1	9811-	●	●	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9811-	●	●	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9811-	●	●	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9811-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	9811-0105	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9811-	●	●	●	●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9811-0105			●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	0106-			●	●
24	04.439 CABLE; PTO CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) PTO TRANSMISSION SIDE(V66) L=2810	8-97185-425-1	01	1	9811-	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-	●	●
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9811-0105			●	●
24	04.439 CABLE; PTO CONT PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	0106-			●	●
31	04.439 CLIP; BAND,CABLE PTO W/OIL PUMP(7RT) 02.559 L=300	1-09707-001-1	01	1	9811-	●		●	●
38	04.439 PIN; JOINT,CABLE TO LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9811-0105			●	●
38	04.439 PIN; JOINT,CABLE TO LEVER PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	0106-			●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97177-806-1	01	1	9811-	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9811-0204	●	●	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-	●	●	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97117-352-0	01	1	9811-	●	●	●	●
97	04.439 WASHER; LK PTO TRANSMISSION SIDE(V66) 00.832 ID=15 OD=25	8-11053-111-0	01	1	9811-	●	●	●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 (B) ID=15	1-09709-003-0	01	1	9811-	●	●	●	●
155	04.439 CLIP; CABLE PTO W/OIL PUMP(7RT) 04.027 (A)	8-94152-900-0	01	1	9811-	●		●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 03.704 (A) M8X16 W/LK WASHER	0-50040-816-0	02	1	9811-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 16.270 (B) M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	9811-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 01.062 (C) M8X16 FLANGE	0-28080-816-0	01	1	9811-	●	●	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 02.559 (D) M8X25 FLANGE	0-28680-825-0	02	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) 04.027 (F)	8-97088-407-1	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (D)	8-97079-557-3	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (E)	8-97079-558-3	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) (B)	8-97085-695-3	01	1	9811-	●	●	●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0009	●		●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9811-0009	●		●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0010-0105	●		●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0010-0105	●			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) DUAL RR TIRE&DBL CAB(NKC5WF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●	●	●	●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-	●	●		●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97076-428-6	01	1	9811-9904	●		●	●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB(NKB5SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF) PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	9905-	●		●	●
213	04.439 SWITCH; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97041-412-1	01	1	9811-	●	●	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	04	1	9811-	●	●	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9811-	●	●	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66)	8-97117-351-0	01	1	9811-	●	●	●	●
257	04.439 REINFORCEMENT; PTO PTO TRANSMISSION SIDE(V66)	8-97088-406-3	01	1	9811-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9811-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO W/OIL PUMP(7RT) 16.176 (B) M6	9-09110-406-0	01	1	9811-	●		●	●

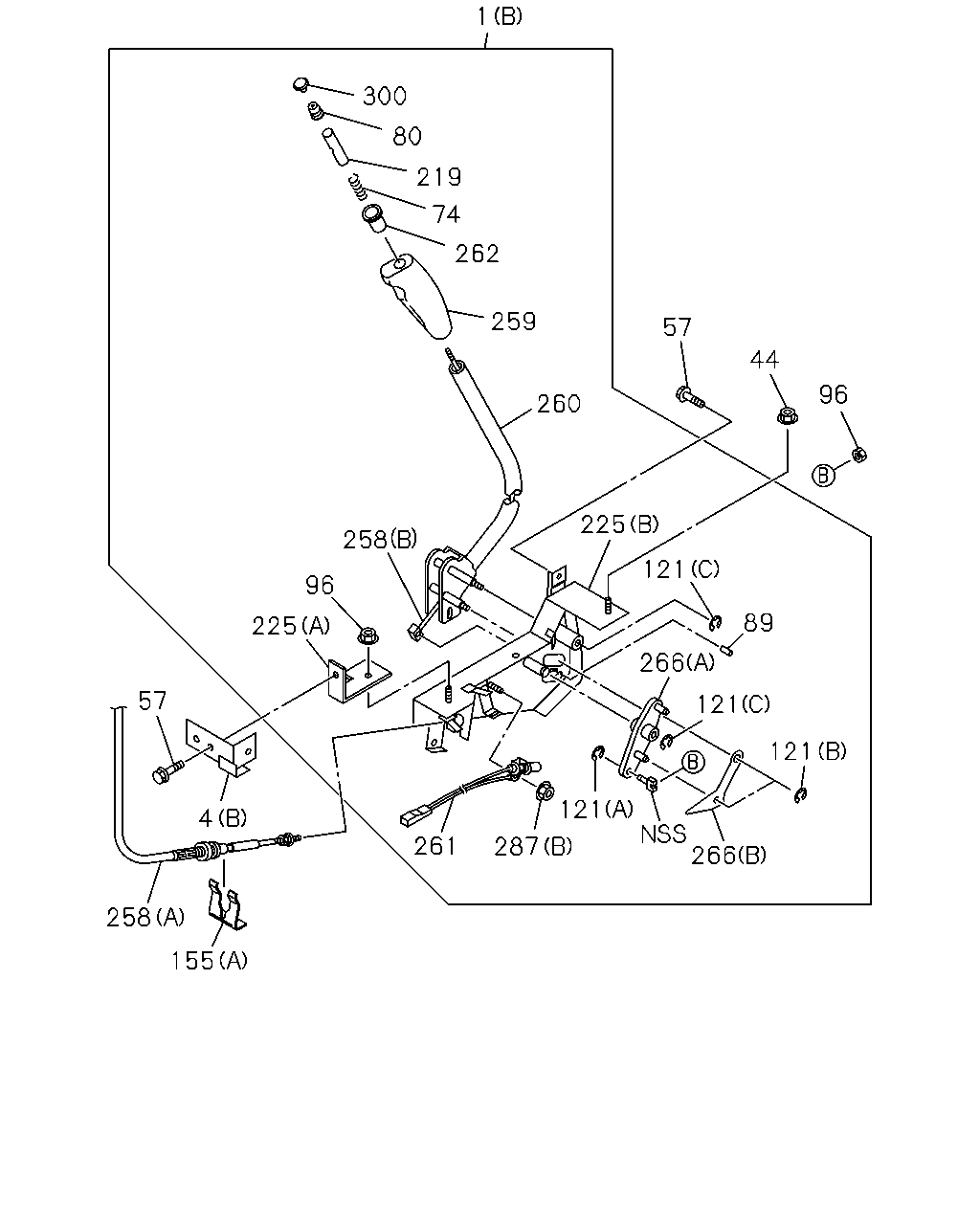

1 300 80 219 74 262 259 57 44 96 260 225 258 121 96 89 225 266 57 121 121 121 266 4 261 287 258 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	9811-	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO W/OIL PUMP(7RT) (B)	8-97210-807-0	01	1	9811-	●		●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (C)	8-94169-638-3	01	1	9811-			●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	9811-	●	●
4	04.439 BRACKET; PTO CONT PTO W/OIL PUMP(7RT) (B)	8-97078-944-2	01	1	9811-	●		●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (C)	8-94169-639-0	01	1	9811-			●	●
44	04.439 NUT; BRKT PTO W/OIL PUMP(7RT) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-	●		●	●
57	04.439 BOLT; BRKT PTO W/OIL PUMP(7RT) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	9811-	●		●	●
74	04.439 SPRING; RETURN,CONT LEVER PTO W/OIL PUMP(7RT)	1-79997-061-1	01	1	0106-	●		●	●
80	04.439 COVER; CONT LEVER PTO W/OIL PUMP(7RT)	8-97122-741-0	01	1	9811-	●		●	●
89	04.439 PIN; JOINT ROD PTO W/OIL PUMP(7RT) 04.435	8-94244-536-0	01	1	9811-	●		●	●
96	04.439 NUT PTO W/OIL PUMP(7RT) 00.777 M8 W/LK WASHER	8-94279-050-0	01	1	9811-	●		●	●
96	04.439 NUT PTO W/OIL PUMP(7RT) 00.413 M6	9-09110-506-0	01	1	9811-	●		●	●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 04.040 (A) ID=4	9-09185-404-0	01	1	9811-	●		●	●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 04.040 (B) ID=6	9-09185-406-0	02	1	9811-	●		●	●
121	04.439 RING; SNAP PTO W/OIL PUMP(7RT) 08.934 (C) ID=10	9-09185-410-0	02	1	9811-	●		●	●
155	04.439 CLIP; CABLE PTO TRANSMISSION SIDE(V66) 09.663 (B) ID=15	1-09709-003-0	01	1	9811-	●	●	●	●
155	04.439 CLIP; CABLE PTO W/OIL PUMP(7RT) 04.027 (A)	8-94152-900-0	01	1	9811-	●		●	●
219	04.439 KNOB; LEVER PTO W/OIL PUMP(7RT)	8-97122-736-0	01	1	9811-	●		●	●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (A)	8-97066-493-1	01	1	9811-	●		●	●
225	04.439 BRACKET; CONT LEVER PTO W/OIL PUMP(7RT) (B)	8-97177-813-0	01	1	9811-	●		●	●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (B) L=484	8-97122-738-1	01	1	9811-	●		●	●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A) L=3113	8-97187-097-0	01	1	9811-0009	●		●	●
258	04.439 CABLE; DUMP CONT PTO W/OIL PUMP(7RT) (A)	8-97239-313-0	01	1	0010-	●		●	●
259	04.439 GRIP; CONT LEVER PTO W/OIL PUMP(7RT)	8-97141-653-0	01	1	9811-	●		●	●
260	04.439 LEVER; DUMP CONT PTO W/OIL PUMP(7RT)	8-97122-739-0	01	1	9811-	●		●	●
261	04.439 SWITCH; DUMP CONT PTO W/OIL PUMP(7RT)	8-97038-838-0	01	1	9811-0009	●		●	●
261	04.439 SWITCH; DUMP CONT PTO W/OIL PUMP(7RT)	8-97300-136-0	01	1	0010-0109	●		●	●
261	04.439 SWITCH; DUMP CONT PTO W/OIL PUMP(7RT)	8-97306-670-1	01	1	0110-	●		●	●
262	04.439 RETAINER; SPRING PTO W/OIL PUMP(7RT)	8-97129-397-0	01	1	9811-	●		●	●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (B)	8-97118-982-0	01	1	9811-	●		●	●
266	04.439 LINK; CONT PTO W/OIL PUMP(7RT) (A)	8-97210-814-0	01	1	9811-	●		●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE(V66) 00.777 (A) M8 W/LK WASHER	8-94279-050-0	01	1	9811-	●	●	●	●
287	04.439 NUT; SWITCH,CONT LEVER PTO W/OIL PUMP(7RT) 16.176 (B) M6	9-09110-406-0	01	1	9811-	●		●	●
300	04.439 CAP; KNOB PTO W/OIL PUMP(7RT)	8-97122-740-0	01	1	9811-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
