Sayfa 2-81 - Isuzu EPC

2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#23611) — 269 parça

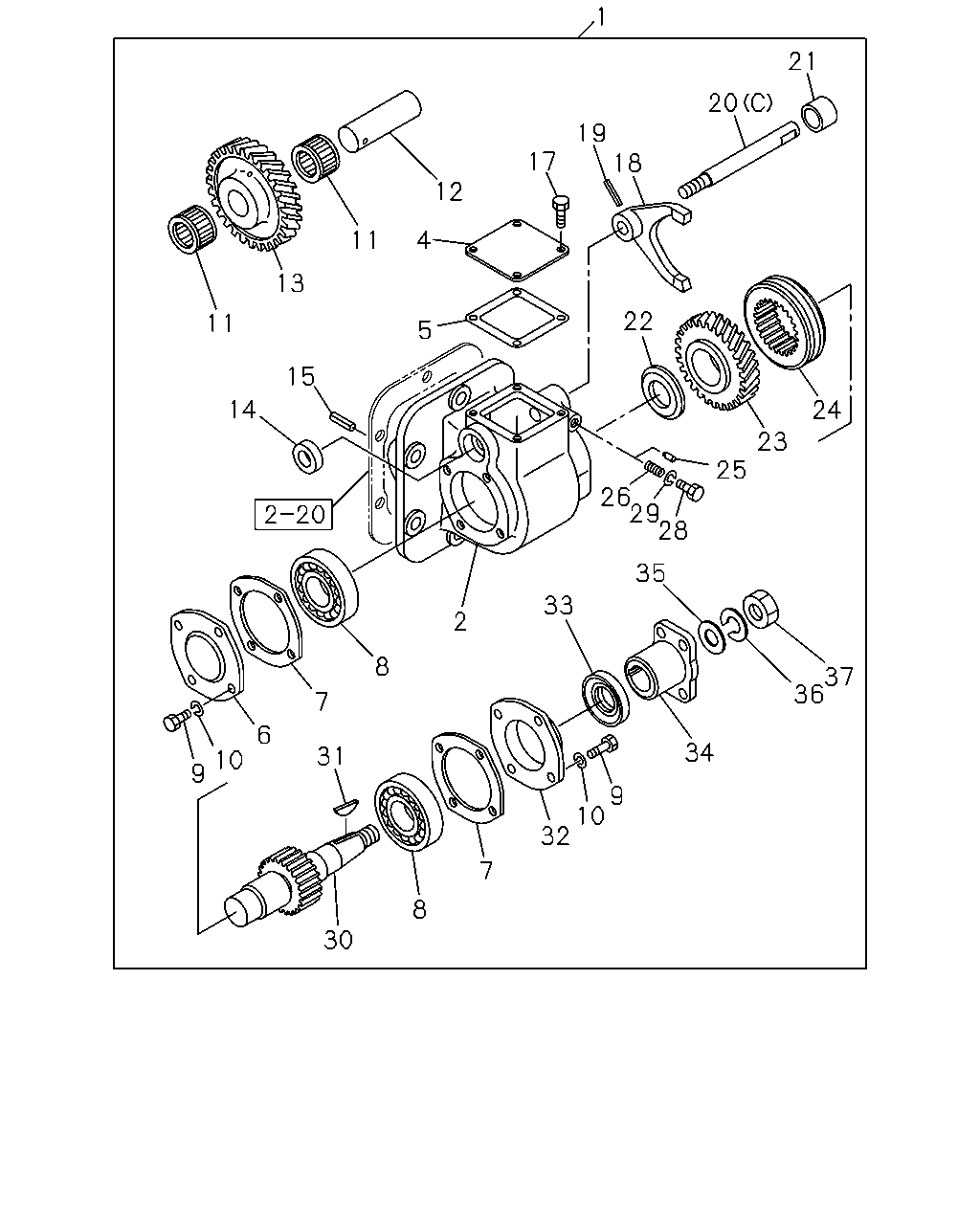

1 21 20 19 18 17 12 11 4 13 22 11 5 15 14 24 23 25 26 29 28 35 33 2 8 37 36 7 6 34 31 10 9 9 10 32 7 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97178-512-1	01	1	9811-9903	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97224-687-2	01	1	9904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO W/OIL PUMP(7RT)	8-97186-940-4	01	1	9811-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	9811-			●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97175-878-0	01	1	9811-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97186-944-0	01	1	9811-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9811-			●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9811-0003			●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	9811-0003	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	0004-	●	●	●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9811-0003			●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	9811-0003	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	0004-0109	●	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	9811-	●	●	●	●
7	04.439 GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66)	9-38152-604-1	02	1	9811-0003			●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9811-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO W/OIL PUMP(7RT) ID=25 OD=52	9-00090-657-0	02	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9811-0204	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0205-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 09.171 M10X45 FLANGE	0-28181-045-0	03	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9811-0003			●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 00.027 M8X16	0-20800-816-0	08	1	0004-			●	●
10	04.439 WASHER; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	04	1	9811-0003			●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO W/OIL PUMP(7RT) NSK	9-00096-646-0	02	1	9811-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	9811-			●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	9811-0105	●		●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	0106-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0106-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-97106-719-0	01	1	9811-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9811-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO W/OIL PUMP(7RT) Z=32	8-97139-698-0	01	1	9811-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9811-	●	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO W/OIL PUMP(7RT)	9-09724-052-0	02	1	9811-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	9811-0105	●		●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	0106-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0106-			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0004-0204			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0205-	●	●	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 00.206 M8X12 W/LK WASHER	0-50040-812-0	04	1	9811-0003			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	9811-0204	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97175-881-0	01	1	9811-9811	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9811-9811			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9812-9903	●		●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9904-			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	9904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-694-0	01	1	9811-	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9811-9903	●		●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9904-0003			●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	9904-0003	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0004-	●	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO W/OIL PUMP(7RT)	9-09678-514-0	01	1	9811-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-94156-954-1	01	1	9811-9903	●		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-94156-954-1	01	1	9904-0003			●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-97224-714-0	01	1	9904-0003	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-97224-714-0	01	1	0004-	●	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO W/OIL PUMP(7RT) (B)	8-97139-703-0	01	1	9811-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO W/OIL PUMP(7RT) (A)	8-97186-946-1	01	1	9811-	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9811-	●	●	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO W/OIL PUMP(7RT)	8-97139-693-0	01	1	9811-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	9811-0105	●		●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	0106-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0106-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=19	5-38240-005-2	01	1	9811-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9811-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO W/OIL PUMP(7RT) Z=19	8-97186-947-0	01	1	9811-	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0110-	●	●	●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38244-602-2	01	1	9811-0109	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9811-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-695-0	01	1	9811-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9811-	●	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO W/OIL PUMP(7RT)	8-97139-700-0	01	1	9811-	●
28	04.439 BOLT; SPRING,SIDE PTO PTO W/OIL PUMP(7RT)	8-97167-623-0	01	1	9811-0108	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 04.686 M8X12	0-20800-812-0	01	1	9811-0108	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	8-97318-428-0	01	1	0109-	●	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9811-0108			●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9811-0003	●		●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0004-0108	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 00.002 ID=8.2	9-09150-508-0	01	1	0109-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9811-0003			●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	9811-0003	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	0004-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97186-945-0	01	1	9811-	●
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-08055-628-0	01	1	9811-0003			●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9811-0003	●	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0004-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9811-0003	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0004-	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9811-0003			●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	9811-0003	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0004-	●	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	9811-	●	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	9811-	●	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	9811-	●	●	●	●

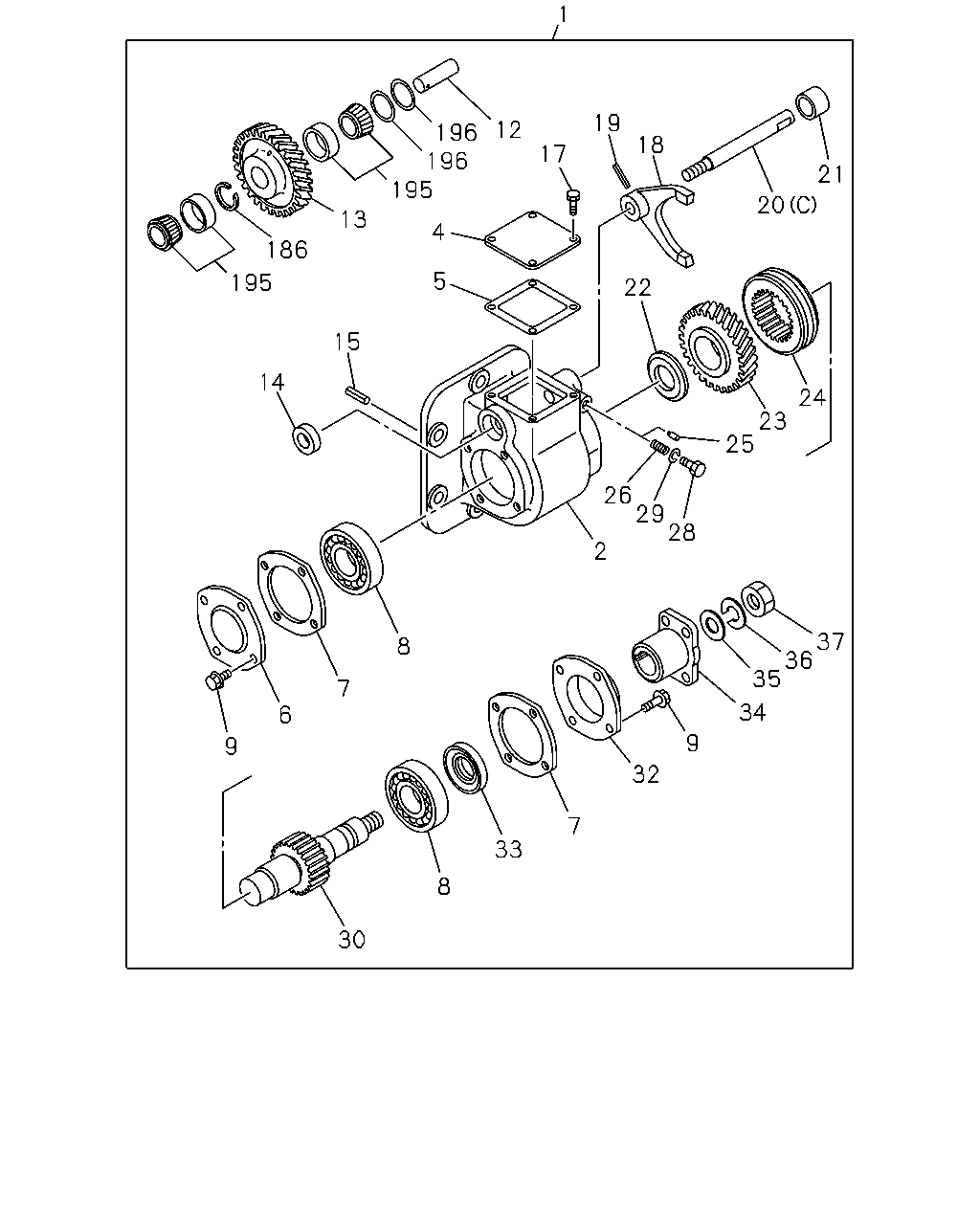

1 19 12 196 196 195 18 17 21 20 13 4 186 5 195 22 15 14 24 23 25 26 29 28 2 37 36 35 8 7 34 6 9 9 32 7 33 8 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97178-512-1	01	1	9811-9903	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97224-687-2	01	1	9904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO W/OIL PUMP(7RT)	8-97186-940-4	01	1	9811-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	9811-			●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97175-878-0	01	1	9811-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97186-944-0	01	1	9811-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9811-			●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38131-603-1	01	1	9811-0003			●	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	9811-0003	●
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97106-718-0	01	1	0004-	●	●	●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38132-602-1	01	1	9811-0003			●	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	9811-0003	●
5	04.439 GASKET; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97077-326-0	01	1	0004-0109	●	●	●	●
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66)	9-38151-604-0	01	1	9811-	●	●	●	●
7	04.439 GASKET; OUTPUT SHAFT COVER,SIDE PTO TRANSMISSION SIDE(V66)	9-38152-604-1	02	1	9811-0003			●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9811-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO W/OIL PUMP(7RT) ID=25 OD=52	9-00090-657-0	02	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9811-0204	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0205-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 09.171 M10X45 FLANGE	0-28181-045-0	03	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9811-0003			●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 00.027 M8X16	0-20800-816-0	08	1	0004-			●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	9811-0105	●		●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	0106-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0106-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-97106-719-0	01	1	9811-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9811-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO W/OIL PUMP(7RT) Z=32	8-97139-698-0	01	1	9811-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9811-	●	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO W/OIL PUMP(7RT)	9-09724-052-0	02	1	9811-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	9811-0105	●		●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	0106-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0106-			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0004-0204			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0205-	●	●	●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 00.206 M8X12 W/LK WASHER	0-50040-812-0	04	1	9811-0003			●	●
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	04	1	9811-0204	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97175-881-0	01	1	9811-9811	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9811-9811			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9812-9903	●		●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9904-			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	9904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-694-0	01	1	9811-	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9811-9903	●		●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9904-0003			●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	9904-0003	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0004-	●	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO W/OIL PUMP(7RT)	9-09678-514-0	01	1	9811-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-94156-954-1	01	1	9811-9903	●		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-94156-954-1	01	1	9904-0003			●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-97224-714-0	01	1	9904-0003	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-97224-714-0	01	1	0004-	●	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO W/OIL PUMP(7RT) (B)	8-97139-703-0	01	1	9811-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO W/OIL PUMP(7RT) (A)	8-97186-946-1	01	1	9811-	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9811-	●	●	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO W/OIL PUMP(7RT)	8-97139-693-0	01	1	9811-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	9811-0105	●		●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	0106-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0106-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=19	5-38240-005-2	01	1	9811-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9811-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO W/OIL PUMP(7RT) Z=19	8-97186-947-0	01	1	9811-	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-0	01	1	0110-	●	●	●	●
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38244-602-2	01	1	9811-0109	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9811-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-695-0	01	1	9811-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9811-	●	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO W/OIL PUMP(7RT)	8-97139-700-0	01	1	9811-	●
28	04.439 BOLT; SPRING,SIDE PTO PTO W/OIL PUMP(7RT)	8-97167-623-0	01	1	9811-0108	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 04.686 M8X12	0-20800-812-0	01	1	9811-0108	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	8-97318-428-0	01	1	0109-	●	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9811-0108			●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9811-0003	●		●	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0004-0108	●
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) 00.002 ID=8.2	9-09150-508-0	01	1	0109-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9811-0003			●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	9811-0003	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	0004-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97186-945-0	01	1	9811-	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-38161-608-0	01	1	9811-0003	●	●	●	●
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38152-024-0	01	1	0004-	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	9-09924-533-1	01	1	9811-0003	●	●	●	●
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0004-	●	●	●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	9-33239-659-0	01	1	9811-0003			●	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	9811-0003	●
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97118-184-0	01	1	0004-	●	●	●	●
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 02.575 ID=15	9-09160-514-0	01	1	9811-	●	●	●	●
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 00.796 ID=14.2	9-09150-514-0	01	1	9811-	●	●	●	●
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.172 M14	9-99111-414-0	01	1	9811-	●	●	●	●
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	9811-	●	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	9811-	●	●
195	04.439 BEARING; ROLLER,TAPER,PTO PTO TRANSMISSION SIDE(V66) KOYO	8-97106-735-0	02	1	9811-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	9811-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	9811-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	9811-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	9811-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	9811-	●	●
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	9811-	●	●

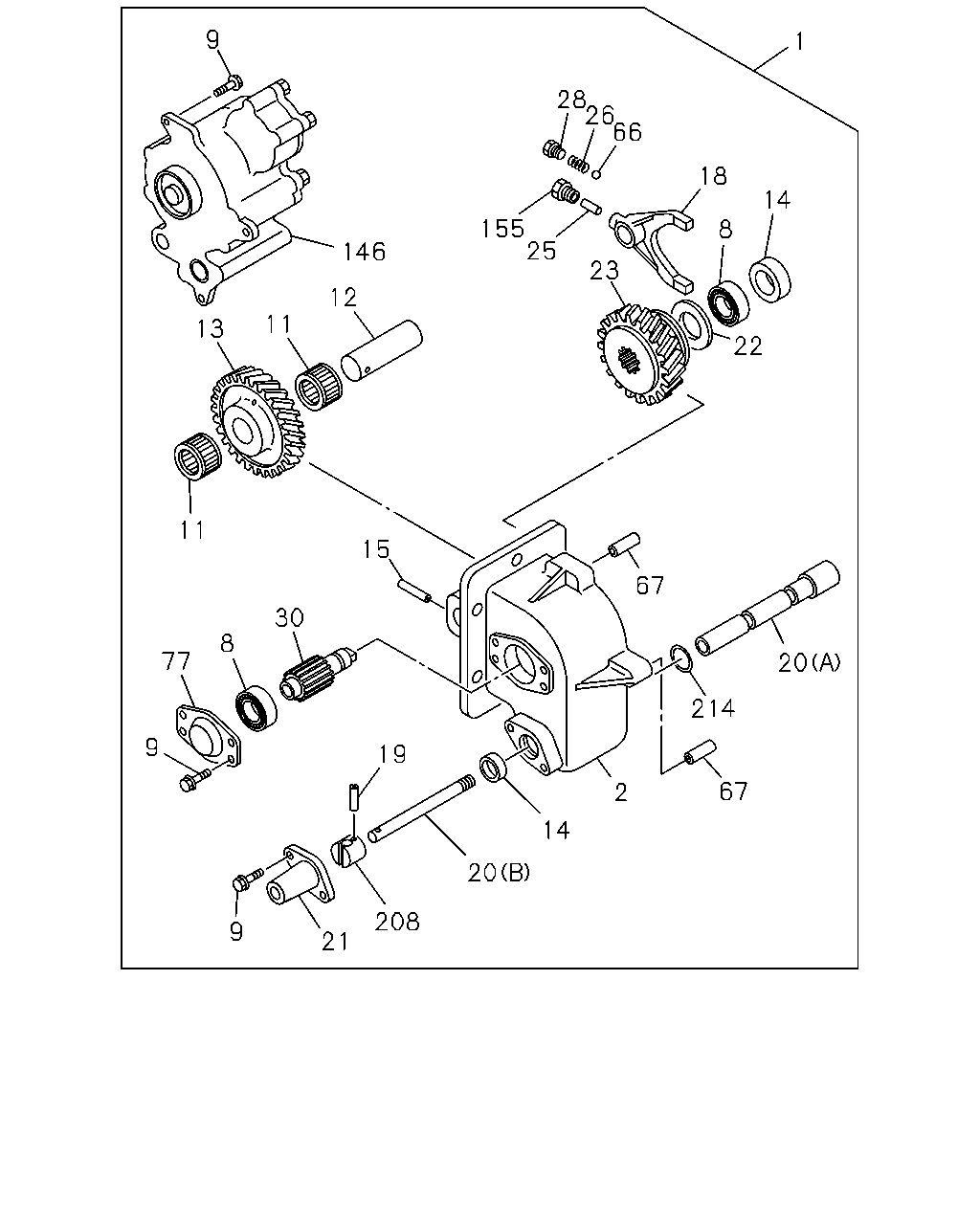

9 1 28 26 66 18 14 155 25 8 146 23 12 11 13 22 11 15 67 30 8 77 20 214 9 19 67 2 14 20 208 9 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97178-512-1	01	1	9811-9903	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=A	8-97224-687-2	01	1	9904-	●	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO W/OIL PUMP(7RT)	8-97186-940-4	01	1	9811-	●
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) IDENTIFICATION=H	8-94343-025-3	01	1	9811-			●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97175-878-0	01	1	9811-	●	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97186-944-0	01	1	9811-	●
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97076-703-1	01	1	9811-			●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	9811-	●	●	●	●
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO W/OIL PUMP(7RT) ID=25 OD=52	9-00090-657-0	02	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9811-0204	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	08	1	0205-	●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 01.062 M8X16 FLANGE	0-28080-816-0	04	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO W/OIL PUMP(7RT) 09.171 M10X45 FLANGE	0-28181-045-0	03	1	9811-	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 03.704 M8X16 W/LK WASHER	0-50040-816-0	08	1	9811-0003			●	●
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 00.027 M8X16	0-20800-816-0	08	1	0004-			●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO W/OIL PUMP(7RT) NSK	9-00096-646-0	02	1	9811-	●	●
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	9-00096-646-0	02	1	9811-			●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	9811-0105	●		●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38211-606-0	01	1	0106-	●	●
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-606-0	01	1	0106-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=32	8-97106-719-0	01	1	9811-	●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=34	9-38241-614-1	01	1	9811-			●	●
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO W/OIL PUMP(7RT) Z=32	8-97139-698-0	01	1	9811-	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09724-015-0	01	1	9811-	●	●	●	●
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO W/OIL PUMP(7RT)	9-09724-052-0	02	1	9811-	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	9811-0105	●		●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT) L=16	9-09878-613-0	01	1	0106-	●	●
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=16	9-09878-613-0	01	1	0106-			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97175-881-0	01	1	9811-9811	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9811-9811			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9812-9903	●		●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97027-045-0	01	1	9904-			●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	9904-	●	●
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-694-0	01	1	9811-	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9811-9903	●		●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 05.511 L=25 OD=4	9-09678-515-0	01	1	9904-0003			●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	9904-0003	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0004-	●	●	●	●
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO W/OIL PUMP(7RT)	9-09678-514-0	01	1	9811-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-94156-954-1	01	1	9811-9903	●		●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-94156-954-1	01	1	9904-0003			●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-97224-714-0	01	1	9904-0003	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-97224-714-0	01	1	0004-	●	●	●	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO W/OIL PUMP(7RT) (B)	8-97139-703-0	01	1	9811-	●
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO W/OIL PUMP(7RT) (A)	8-97186-946-1	01	1	9811-	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO TRANSMISSION SIDE(V66)	9-33545-602-0	01	1	9811-	●	●	●	●
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO W/OIL PUMP(7RT)	8-97139-693-0	01	1	9811-	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	9811-0105	●		●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	9-38245-603-1	01	1	0106-	●	●
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66)	9-38245-603-1	01	1	0106-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=19	5-38240-005-2	01	1	9811-	●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=22	9-38241-612-1	01	1	9811-			●	●
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO W/OIL PUMP(7RT) Z=19	8-97186-947-0	01	1	9811-	●
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	9811-	●	●	●	●
25	04.439 PIN; LK,SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-695-0	01	1	9811-	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	9811-	●	●	●	●
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO W/OIL PUMP(7RT)	8-97139-700-0	01	1	9811-	●
28	04.439 BOLT; SPRING,SIDE PTO PTO W/OIL PUMP(7RT)	8-97167-623-0	01	1	9811-0108	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 04.686 M8X12	0-20800-812-0	01	1	9811-0108	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO W/OIL PUMP(7RT)	8-97318-428-0	01	1	0109-	●	●	●	●
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66) 00.206 M8X10 FLANGE	0-28080-810-0	01	1	9811-0108			●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	9-38211-607-1	01	1	9811-0003			●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	9811-0003	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97118-183-0	01	1	0004-	●	●	●	●
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97186-945-0	01	1	9811-	●
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-699-0	01	1	9811-	●
67	04.439 PIN; STRAIGHT PTO W/OIL PUMP(7RT) 00.862 OD=8 L=20	9-08150-820-0	02	1	9811-	●
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO PTO W/OIL PUMP(7RT)	8-97139-688-0	01	1	9811-	●
146	04.439 PUMP ASM; OIL,PTO PTO W/OIL PUMP(7RT)	8-97201-883-1	01	1	9811-	●
155	04.439 PLUG; SHIFTER ROD PTO W/OIL PUMP(7RT)	8-97139-701-0	01	1	9811-0108	●
155	04.439 PLUG; SHIFTER ROD PTO W/OIL PUMP(7RT)	8-97318-430-0	01	1	0109-	●
208	04.439 CONNECTOR; CABLE PTO W/OIL PUMP(7RT)	8-97139-704-0	01	1	9811-	●
214	04.439 GASKET; SHIFT ROD PTO W/OIL PUMP(7RT)	9-09561-125-0	01	1	9811-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
