1-56A — EXHAUST BRAKE SYSTEM (#2361) — 53 parça

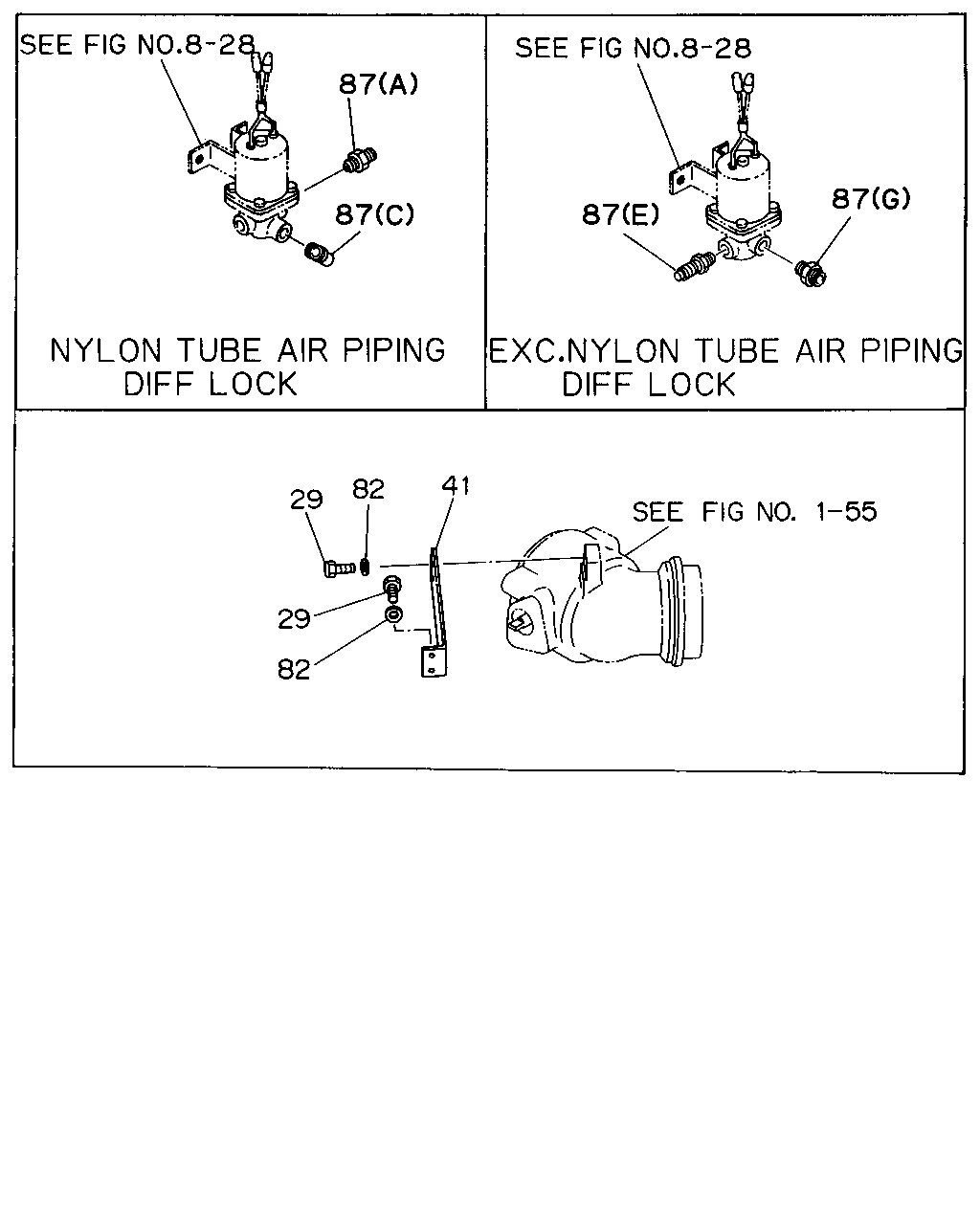

çizim 93313
87 87 87 87 41 82 29 29 82
BalonParca AdiParca NoAdetTipApplied Date A B C
29 BOLT; CONT CYL
M10X20 		1-09020-073-2 04 1 9002- ● ●
41 BRACKET 1-14149-114-0 01 1 9002- ● ●
82 WASHER; DISH 1-09500-007-0 04 1 9002- ● ●
87 CONNECTOR
(M) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302 ● ● ●
87 CONNECTOR
(M) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303- ●
87 CONNECTOR
(F) 		1-09656-316-1 01 1 9002- ● ● ●
87 CONNECTOR
(P) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302 ● ● ●
87 CONNECTOR
(P) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ● ● ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (E) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002- ● ● ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (G) M20 & PT1/4 		9-09902-386-0 01 1 9002-9306 ● ● ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (A) 		1-09660-226-0 01 1 9002-9306 ● ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (C) M14 & PT1/4 ELBOW 		1-09660-233-0 01 1 9002-9306 ● ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 		1-09650-031-0 01 1 9002-9103 ● ●
87 CONNECTOR
EXZ&RHD(EX*5**) EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 		1-09650-031-0 01 1 9002-9103 ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104- ● ●
87 CONNECTOR
EXZ&RHD(EX*5**) EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104- ●
87 CONNECTOR
EXZ&LHD(EX*6**) (L) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9002-9306 ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW 		1-09660-551-0 01 1 9307- ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (D) 17/32" PT1/4 		1-09660-573-0 01 1 9307- ●

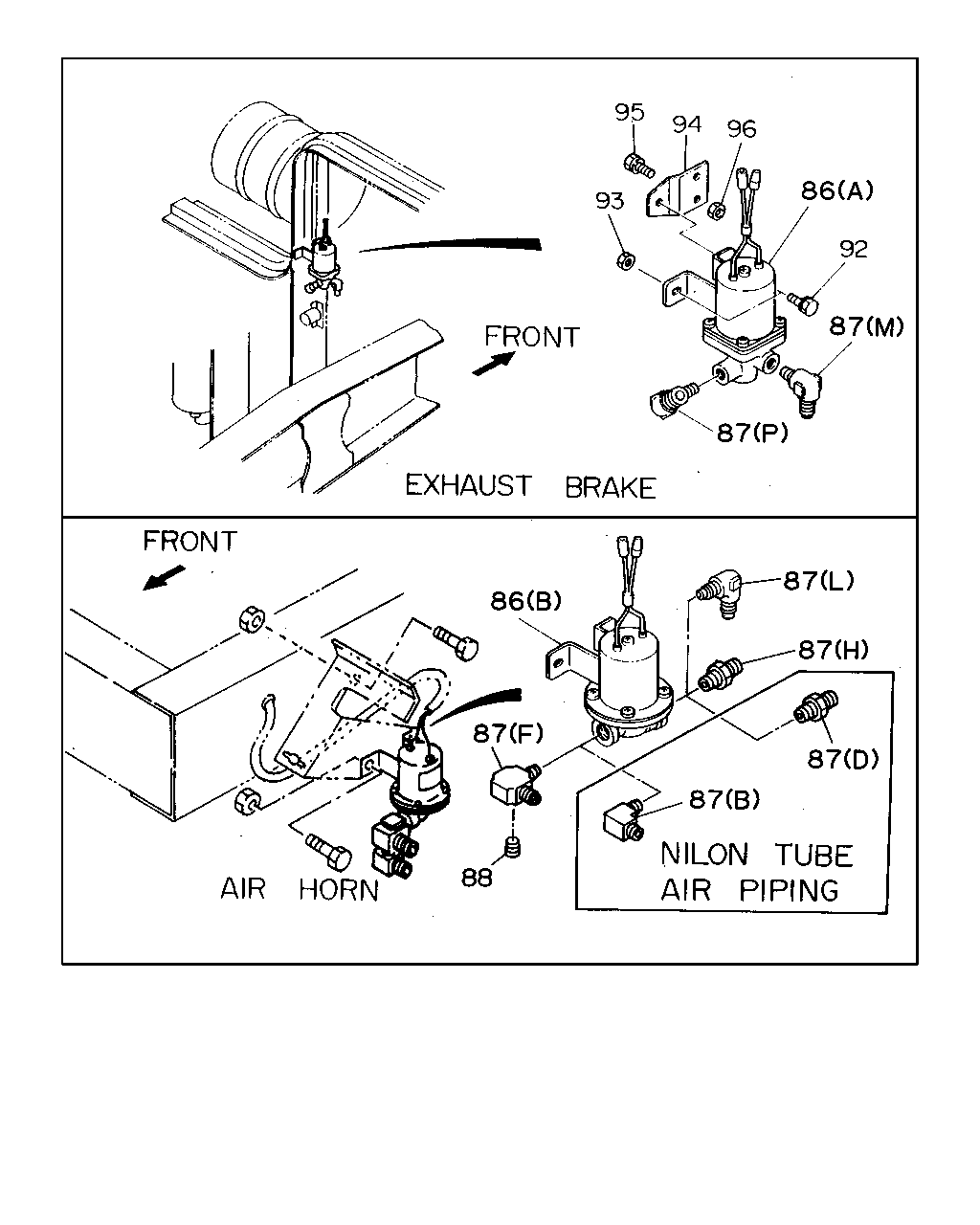

çizim 93766
95 94 96 86 92 87 87 93 86 87 87 87 88 87 87
BalonParca AdiParca NoAdetTipApplied Date A B C
86 VALVE; MAG,EXH BRK
(A) 		1-82563-094-0 01 1 9002-9006 ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-172-0 01 1 9007-9012 ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-158-0 01 1 9101-9306 ● ● ●
86 VALVE; MAG,EXH BRK
(A) 		1-82563-402-0 01 1 9307- ●
86 VALVE; MAG,EXH BRK
(B) 		1-82563-299-1 01 1 9002- ● ● ●
87 CONNECTOR
(M) PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9302 ● ● ●
87 CONNECTOR
(M) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 9303- ●
87 CONNECTOR
(F) 		1-09656-316-1 01 1 9002- ● ● ●
87 CONNECTOR
(P) M20 & PT1/4 ELBOW 		1-09660-137-0 01 1 9002-9302 ● ● ●
87 CONNECTOR
(P) M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9303- ● ● ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (E) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 9002- ● ● ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (G) M20 & PT1/4 		9-09902-386-0 01 1 9002-9306 ● ● ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (A) 		1-09660-226-0 01 1 9002-9306 ● ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (C) M14 & PT1/4 ELBOW 		1-09660-233-0 01 1 9002-9306 ● ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 		1-09650-031-0 01 1 9002-9103 ● ●
87 CONNECTOR
EXZ&RHD(EX*5**) EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 		1-09650-031-0 01 1 9002-9103 ●
87 CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104- ● ●
87 CONNECTOR
EXZ&RHD(EX*5**) EXC. NYLON TUBE AIR PIPING<Z29> (H) M14 & PT1/4 STRAIGHT 		1-09650-332-1 01 1 9104- ●
87 CONNECTOR
EXZ&LHD(EX*6**) (L) M14 & PT1/4 ELBOW 		1-09650-432-0 01 1 9002-9306 ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (B) 17/32" PT1/4 ELBOW 		1-09660-551-0 01 1 9307- ●
87 CONNECTOR
NYLON TUBE AIR PIPING<Z29> (D) 17/32" PT1/4 		1-09660-573-0 01 1 9307- ●
88 PLUG
PT3/8 		9-09204-517-0 01 1 9002- ● ● ●
92 BOLT; MAG VLV
M8X25 W/LK WASHER 		0-50040-825-0 02 1 9002-9302 ● ● ●
92 BOLT; MAG VLV
M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ●
92 BOLT; MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 9307- ●
93 NUT; MAG VLV
M8 		9-09110-408-0 01 1 9002- ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE 1-82569-022-1 01 1 9002-9207 ● ● ●
94 BRACKET; MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) 		1-82569-022-1 01 1 9208- ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X22 W/LK WASHER 		0-50040-822-0 02 1 9002-9207 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8X22 W/LK WASHER 		0-50040-822-0 02 1 9208-9302 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8X25 FLANGE 		0-28080-825-0 02 1 9303-9306 ● ● ●
95 BOLT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8X20 FLANGE 		0-28080-820-0 02 1 9307- ● ● ●
96 NUT; BRKT,MAG VLV,EXH BRAKE
M8 		9-09110-408-0 02 1 9002-9207 ● ● ●
96 NUT; BRKT,MAG VLV,EXH BRAKE
EXC. CAB UP 50MM(W60) M8 		9-09110-408-0 02 1 9208- ● ● ●
