◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#23609) — 279 parça

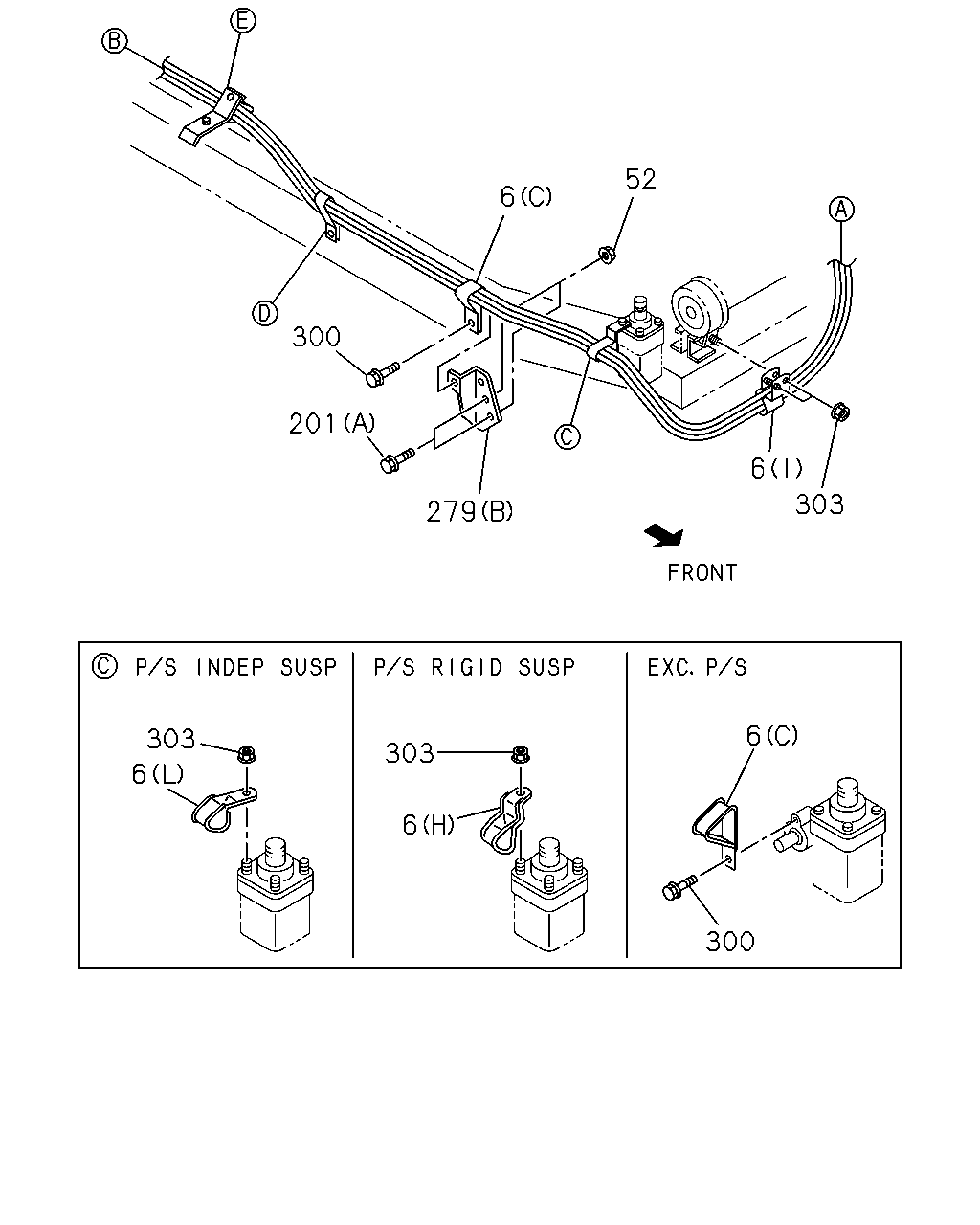

çizim 9603
52 6 300 201 6 303 279 6 303 303 6 6 300
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0106- ●
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-448-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (K) 		8-94458-385-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9811-9903 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9904-0105 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(G) 		8-97036-332-1 01 1 0106- ● ●
52 04.047 NUT; BRKT
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ●
52 04.047 NUT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9811-0105 ● ●
52 04.047 NUT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0107 ● ●
52 04.047 NUT; BRKT
EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0106-0107 ● ●
52 04.047 NUT; BRKT
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ● ●
52 04.047 NUT; BRKT
4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 02 1 0108- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ●
201 04.032 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ● ●
201 04.032 BOLT; BRKT
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (D) M6X12 FLANGE 		0-28080-612-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9811- ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 9811-0105 ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 9811-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0106-0107 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 0106-0107 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0108- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 0108- ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97066-629-5 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97289-620-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 9811-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0106- ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0107 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0107 ● ● ● ●
300 00.854 BOLT; CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0107 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0108- ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0108- ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0108- ● ●
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ● ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
303 00.855 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●

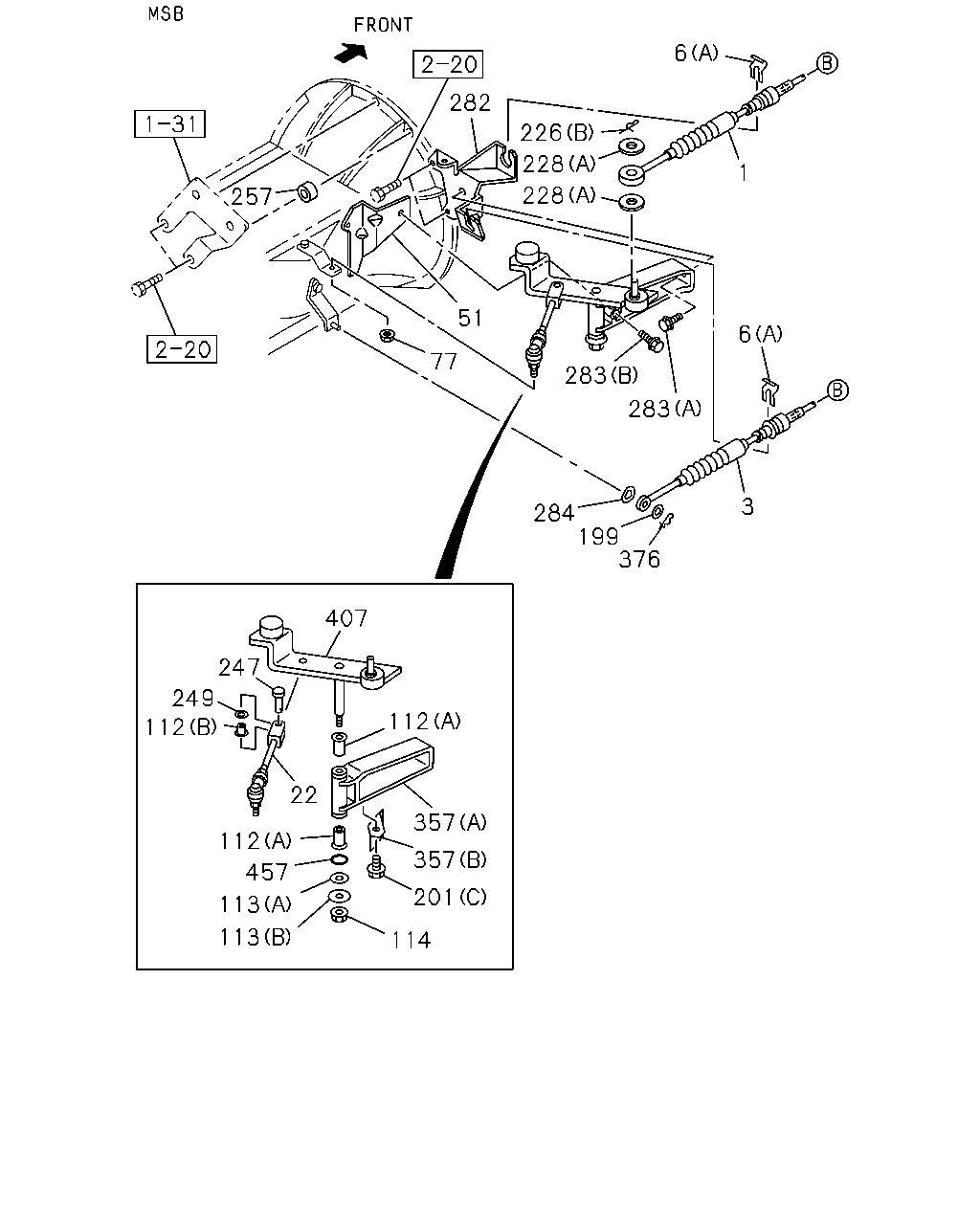

çizim 45841
6 282 226 228 1 228 257 51 6 77 283 283 3 284 199 376 407 247 249 112 112 22 357 112 357 457 201 113 113 114
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2779 		8-97176-467-0 01 1 9811- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2643 		8-97176-466-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-0 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> 		8-97176-475-0 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> L=2868 		8-97289-614-1 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97176-475-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2810 		8-97176-474-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0106- ●
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-448-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (K) 		8-94458-385-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9811-9903 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9904-0105 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(G) 		8-97036-332-1 01 1 0106- ● ●
22 04.035 ROD; CONT,SHIFT
FLOOR REMOTE SHIFT<M11> 		8-97174-058-0 01 1 9811-0105 ● ●
22 04.035 ROD; CONT,SHIFT
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 		8-97174-058-0 01 1 0106- ● ●
22 04.035 ROD; CONT,SHIFT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 		8-97134-286-0 01 1 0106- ● ●
51 04.010 BRACKET; GEAR CONT
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97029-286-0 01 1 9811-0105 ● ●
51 04.010 BRACKET; GEAR CONT 8-97029-286-0 01 1 0106- ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905 ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
FLOOR REMOTE SHIFT<M11> M8 T=8.0 		8-94363-045-0 01 1 9906-0105 ● ●
77 04.037 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 0106- ● ●
112 04.046 BUSHING; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (A) 		8-97174-057-0 02 1 9811-0105 ● ●
112 04.046 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 0106- ● ●
112 04.046 BUSHING; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (B) 		8-97174-060-0 01 1 9811-0105 ● ●
112 04.046 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 0106- ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 9811-0105 ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 02 1 0106- ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 9811-0105 ● ●
113 04.046 WASHER; RELAY LEVER
08.929 (B) ID=15 OD=36 		9-09164-714-0 01 1 0106- ● ●
113 04.046 WASHER; RELAY LEVER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 16.682 (A) ID=10.5 OD=22 		9-09160-610-0 01 1 0106- ● ●
114 04.037 NUT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 04.785 M10 FLANGE 		0-91150-110-0 01 1 9811-0105 ● ●
114 04.037 NUT; RELAY LEVER
04.785 M10 FLANGE 		0-91150-110-0 01 1 0106- ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9811- ● ● ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ●
201 04.032 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ● ●
201 04.032 BOLT; BRKT
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (D) M6X12 FLANGE 		0-28080-612-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9811- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9811- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811- ● ● ● ●
247 04.010 PIN; CONT ROD TO LEVER
FLOOR REMOTE SHIFT<M11> 04.037 		9-09876-059-1 01 1 9811-0105 ● ●
247 04.010 PIN; CONT ROD TO LEVER
04.037 		9-09876-059-1 01 1 0106- ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
FLOOR REMOTE SHIFT<M11> 04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 9811-0105 ● ●
249 04.010 WASHER; RUBBER,CONT ROD TO LEVER
04.037 ID=8.5 T=1.5 		9-09851-889-0 01 1 0106- ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 		8-94369-173-0 01 1 9811-0105 ● ●
257 00.851 PIECE; DIST,RELAY LEVER
4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 		8-94369-173-0 01 1 0106- ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9811-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97182-260-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0106- ● ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97034-142-1 01 1 9811-0105 ● ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 0106- ● ●
283 04.037 BOLT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 9811-0105 ● ●
283 04.037 BOLT; RELAY LEVER
03.405 (A) M10X25 FLANGE 		0-28681-025-0 01 1 0106- ● ●
283 04.037 BOLT; RELAY LEVER
FLOOR REMOTE SHIFT<M11> 03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 9811-0105 ● ●
283 04.037 BOLT; RELAY LEVER
03.162 (B) M10X35 FLANGE 		0-28681-035-0 01 1 0106- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9811- ● ● ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> (A) 		8-97182-166-0 01 1 9811-0105 ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97182-166-0 01 1 0106- ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97089-692-0 01 1 0106- ● ●
357 04.010 BRACKET; RELAY LEVER
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97174-056-0 01 1 0106- ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 9811- ● ● ● ●
407 04.030 LEVER; RELAY,SHIFT
FLOOR REMOTE SHIFT<M11> 		8-97174-055-1 01 1 9811-0105 ● ●
407 04.030 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 0106- ● ●
457 04.010 GASKET
FLOOR REMOTE SHIFT<M11> ID=13.8 		9-09561-114-0 02 1 9811-0105 ● ●
457 04.010 GASKET
ID=13.8 		9-09561-114-0 02 1 0106- ● ●

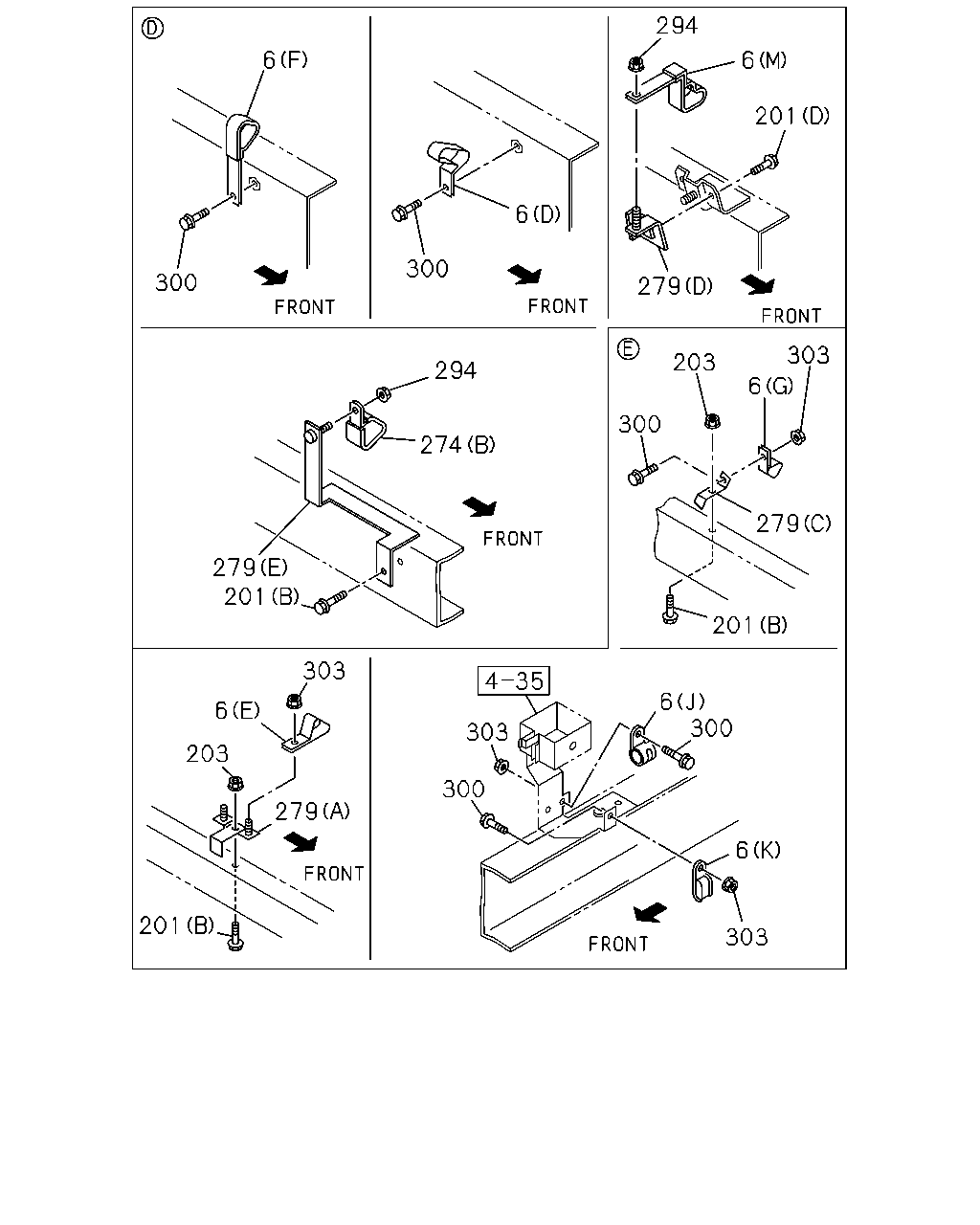

çizim 48023
294 6 6 201 6 300 300 279 303 203 294 6 300 274 279 279 201 201 303 6 300 6 303 203 300 279 6 201 303
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0106- ●
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-448-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (K) 		8-94458-385-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9811-9903 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9904-0105 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(G) 		8-97036-332-1 01 1 0106- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ●
201 04.032 BOLT; BRKT
EXC. FRT INDEPENDENT SUSPENSION(6PP) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
4HF1 ENG(RLS) 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ●
201 04.032 BOLT; BRKT
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 9811-0105 ● ●
201 04.032 BOLT; BRKT
02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
EXC. POWER STEERING<N40> 02.559 (A) M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
201 04.032 BOLT; BRKT
FRT INDEPENDENT SUSPENSION(6PP) 01.428 (D) M6X12 FLANGE 		0-28080-612-0 01 1 0106- ● ●
201 04.032 BOLT; BRKT
FLOOR REMOTE SHIFT<M11> FRT INDEPENDENT SUSPENSION(6PP) 01.062 (C) M8X16 FLANGE 		0-28080-816-0 01 1 0106- ● ●
203 04.032 NUT; BRKT FIX
4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
203 04.032 NUT; BRKT FIX
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ●
203 04.032 NUT; BRKT FIX
4HG1 ENG(RJH),4HF1 ENG(RLS) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ●
203 04.032 NUT; BRKT FIX
EXC. POWER STEERING<N40>,DUMP CHASSIS(V4D) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 9811-0105 ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0106- ● ● ● ●
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (A) 		8-97028-496-1 01 1 9811- ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 9811-0105 ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 9811-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0106-0107 ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 0106-0107 ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (B) 		8-97047-898-0 01 1 0108- ● ● ● ●
279 04.047 BRACKET; CABLE TO FRAME
4HG1 ENG(RJH),4HF1 ENG(RLS) (B) 		8-97047-898-0 01 1 0108- ●
279 04.047 BRACKET; CABLE TO FRAME
FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97066-629-5 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) (E) 		8-97289-620-0 01 1 0106- ● ●
279 04.047 BRACKET; CABLE TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 9811-0105 ● ●
279 04.047 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (C) 		8-97103-234-0 01 1 0106- ● ●
294 00.854 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
300 00.854 BOLT; CLIP
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 9811-0105 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0107 ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0107 ● ● ● ●
300 00.854 BOLT; CLIP
4JB1 ENG(RLF),4HF1 ENG(RLS) 02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0106-0107 ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0108- ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0108- ● ● ● ●
300 00.854 BOLT; CLIP
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0108- ● ●
300 00.854 BOLT; CLIP
EXC. POWER STEERING<N40> 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9811- ● ● ● ●
300 00.854 BOLT; CLIP
4JH1 ENG(RJX) 02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 02 1 9811- ● ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ● ● ●
303 00.855 NUT; CLIP
07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
303 00.855 NUT; CLIP
POWER STEERING<N40> 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ● ● ●
303 00.855 NUT; CLIP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●

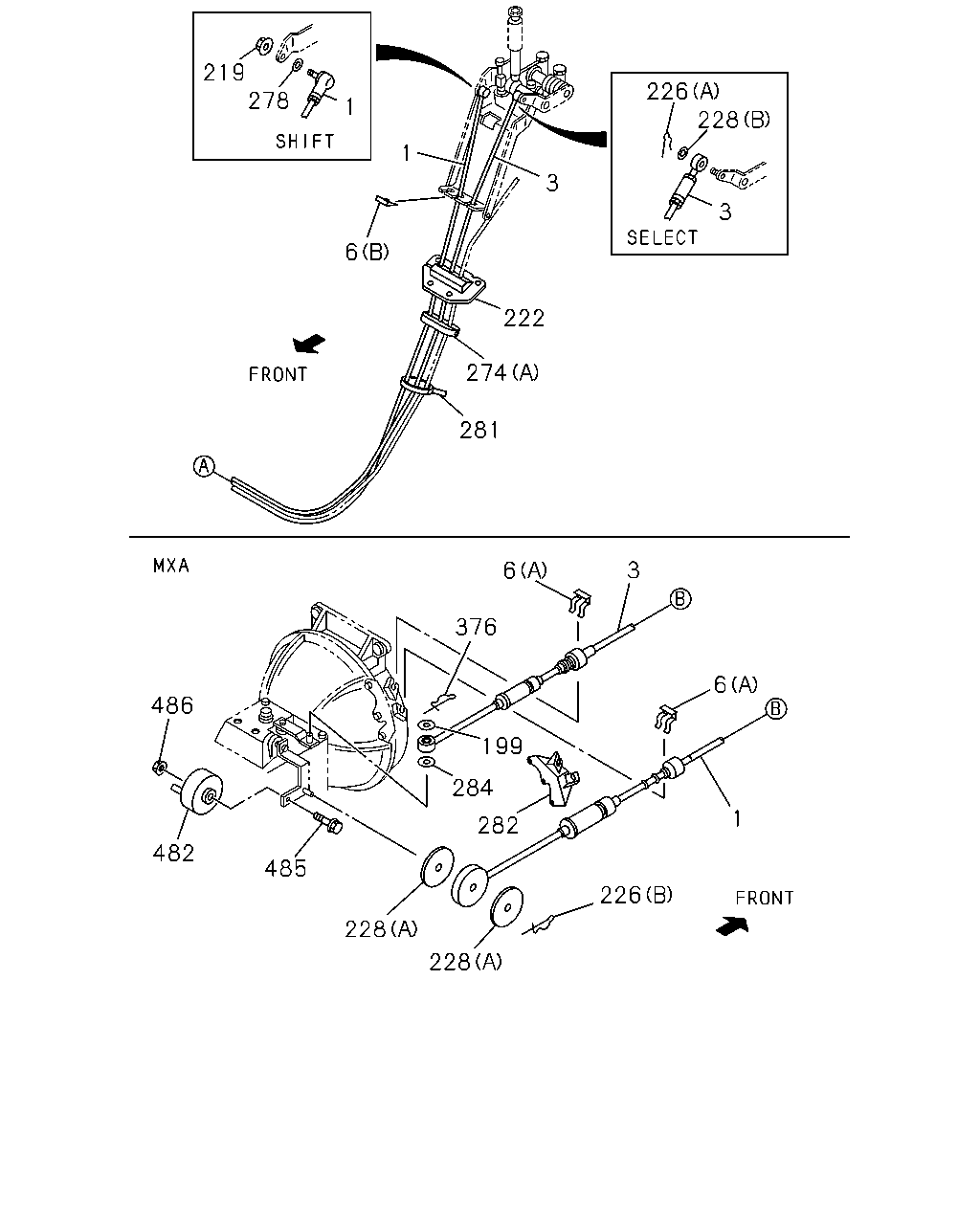

çizim 48743
219 278 226 228 1 1 3 3 6 222 274 281 3 6 376 6 486 199 284 1 282 482 485 226 228 228
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2779 		8-97176-467-0 01 1 9811- ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2643 		8-97176-466-0 01 1 9811-0105 ● ●
1 00.854 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-0 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> 		8-97176-475-0 01 1 9811-0105 ●
3 00.852 CABLE; SELECT,TRANS CONT
4JH1 ENG(RJX) FLOOR REMOTE SHIFT<M11> L=2868 		8-97289-614-1 01 1 0106- ● ●
3 00.852 CABLE; SELECT,TRANS CONT
4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97176-475-0 01 1 0106- ●
3 00.852 CABLE; SELECT,TRANS CONT
FLOOR REMOTE SHIFT<M11> L=2810 		8-97176-474-0 01 1 9811-0105 ● ●
3 00.852 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) (F) 		8-97036-331-1 01 1 9811-9903 ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (F) 		8-97036-331-1 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (F) 		8-97036-331-1 01 1 0106- ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> (E) 		8-97039-295-0 01 1 9811-0105 ●
6 04.047 CLIP; CABLE
4HG1 ENG(RJH),4HF1 ENG(RLS) (E) 		8-97039-295-0 01 1 0106- ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (M) 		8-97036-330-1 01 1 0106- ●
6 04.047 CLIP; CABLE
(C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
EXC. POWER STEERING<N40> (C) 		8-97036-333-1 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
(I) 		8-97147-985-0 01 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (B) 		8-97011-448-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=19.2 		8-97211-011-0 02 1 9811- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> (H) 		8-97036-334-2 01 1 9811-0105 ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> EXC. FRT INDEPENDENT SUSPENSION(6PP) (H) 		8-97036-334-2 01 1 0106- ● ● ● ●
6 04.047 CLIP; CABLE
POWER STEERING<N40> FRT INDEPENDENT SUSPENSION(6PP) (L) 		8-97039-296-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.686 (J) ID=21 L=24 		8-94176-807-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JH1 ENG(RJX) 04.785 (K) 		8-94458-385-1 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9811-9903 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (D) 		8-97036-329-2 01 1 9904-0105 ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) (D) 		8-97036-329-2 01 1 9904-0105 ● ●
6 04.047 CLIP; CABLE
4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ●
6 04.047 CLIP; CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP) (D) 		8-97036-329-2 01 1 0106- ● ●
6 04.047 CLIP; CABLE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> (G) 		8-97036-332-1 01 1 9811-0105 ● ●
6 04.047 CLIP; CABLE
(G) 		8-97036-332-1 01 1 0106- ● ●
199 04.012 WASHER; PL,SELECT
FLOOR REMOTE SHIFT<M11> 16.674 ID=8.4 		9-09160-508-0 01 1 9811- ● ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 07.633 M8 FLANGE 		0-91150-108-0 01 1 9811-9905 ● ● ●
219 04.047 NUT; FLANGE,SHAFT CABLE
FLOOR REMOTE SHIFT<M11> 04.037 M8 T=8.0 		8-94363-045-0 01 1 9906- ● ● ● ●
222 04.010 GROMMET; CABLE
FLOOR REMOTE SHIFT<M11> 		8-97061-403-2 01 1 9811-0105 ● ● ●
222 04.010 GROMMET; CABLE 8-97061-403-2 01 1 0106- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.833 (A) L=27.7 		8-94111-137-0 01 1 9811- ● ● ● ●
226 04.047 PIN; SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (B) L=23 		8-94170-378-0 01 1 9811- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> (A) ID=8.2 OD=40 		8-97182-975-0 02 1 9811- ● ● ● ●
228 04.047 WASHER; PL,SHIFT CABLE
FLOOR REMOTE SHIFT<M11> 00.206 (B) ID=8.4 		9-09164-508-0 01 1 9811- ● ● ● ●
274 04.008 CLIP; CONT CABLE
FLOOR REMOTE SHIFT<M11> EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 9811-0105 ● ● ●
274 04.008 CLIP; CONT CABLE
EXC. MANUAL TILT CAB<RWZ> (A) 		8-97093-491-1 01 1 0106- ● ● ● ●
274 04.008 CLIP; CONT CABLE
4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.047 (B) 		8-97036-333-1 01 1 0106- ● ●
278 00.854 WASHER; LK,SHIFT WIRE
FLOOR REMOTE SHIFT<M11> 01.276 ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9811- ● ● ● ●
281 04.042 CLIP; BAND
03.162 L=140 		5-09707-031-1 01 1 9811- ● ● ● ●
282 04.010 BRACKET; TRANS SIDE
4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> 		8-97182-260-0 01 1 9811-0105 ●
282 04.010 BRACKET; TRANS SIDE
4HG1 ENG(RJH),4HF1 ENG(RLS) 		8-97182-260-0 01 1 0106- ●
282 04.010 BRACKET; TRANS SIDE
4JH1 ENG(RJX) 		8-97260-120-0 01 1 0106- ● ●
282 04.010 BRACKET; TRANS SIDE
4JG2 ENG(RJC),4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97034-142-1 01 1 9811-0105 ● ●
282 04.010 BRACKET; TRANS SIDE 8-97034-142-1 01 1 0106- ● ●
284 00.854 WASHER; WAVE,SELECT CABLE,CAB
FLOOR REMOTE SHIFT<M11> ID=8.4 OD=14 		5-09550-002-0 01 1 9811- ● ● ● ●
376 04.047 PIN; SNAP,SELECT CABLE
FLOOR REMOTE SHIFT<M11> L=23 		8-94170-378-0 01 1 9811- ● ● ● ●
482 04.047 WEIGHT; SHIFT CABLE
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97066-730-2 01 1 9811- ● ●
485 04.047 BOLT; WEIGHT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> M12X60 FLANGE 		0-28091-260-0 01 1 9811- ● ●
486 04.047 NUT; WEIGHT
HONG KONG EQUIPMENT(PQ1),AUSTRALIA EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 06.509 M12 FLANGE 		8-94436-194-0 01 1 9811- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
