Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#23607) — 205 parça

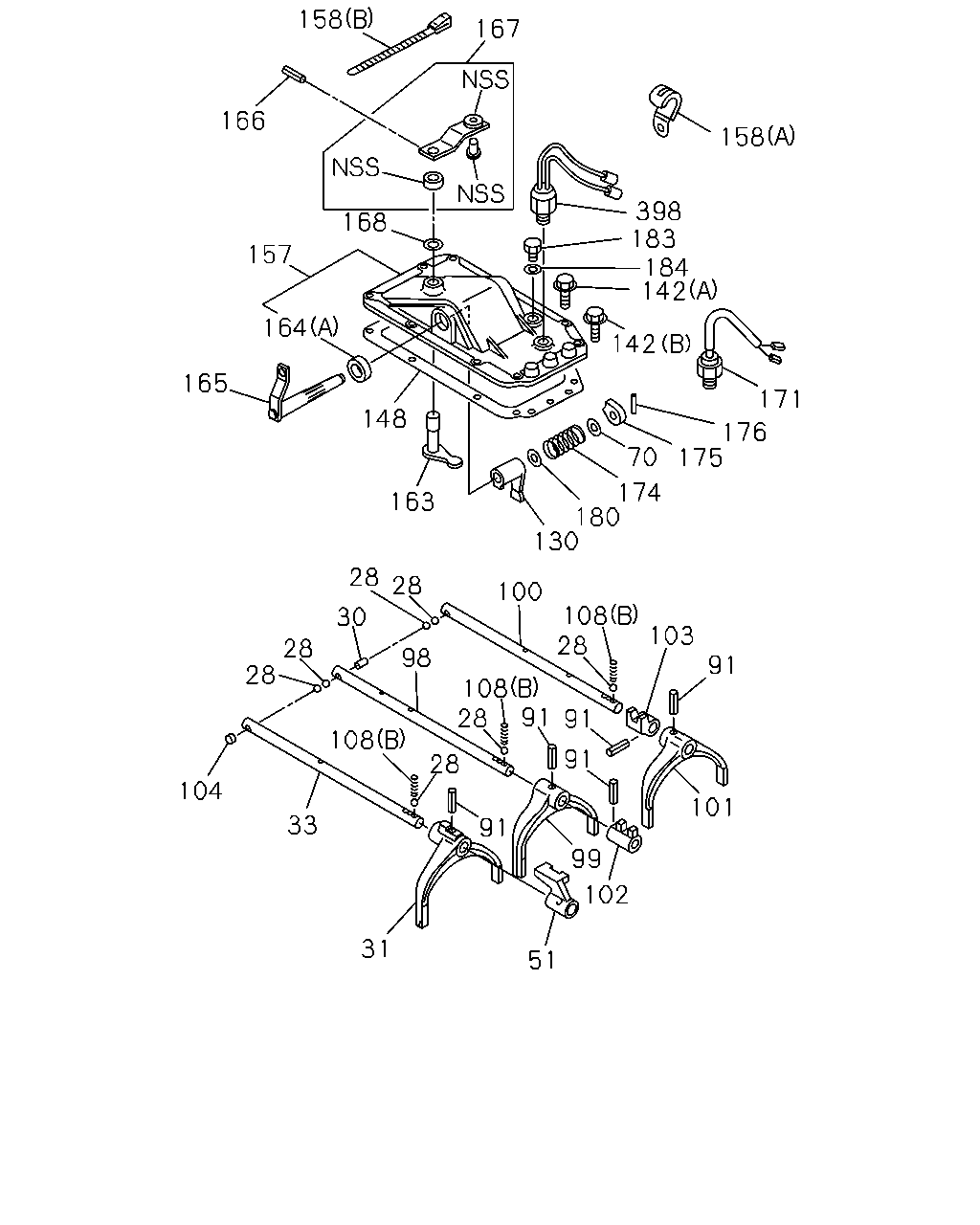

158 167 166 158 398 183 184 142 168 157 164 142 165 171 148 176 175 70 174 180 130 163 28 28 100 108 28 30 103 28 28 98 91 108 91 108 91 28 104 101 33 91 99 102 31 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	9-00097-010-0	07	1	9811-0105	●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-	●	●	●	●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97035-041-0	01	1	9811-			●	●
30	04.307 PIN; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.311	5-33534-001-0	01	1	9811-0105	●	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	0106-	●	●
31	04.302 ARM; SHIFT,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97011-365-1	01	1	9811-0105	●	●
31	04.302 ARM; SHIFT,LOW & 2ND	8-97011-365-1	01	1	0106-	●	●
33	04.309 ROD; SHIFT,LOW & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97011-370-1	01	1	9811-0105	●	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97011-370-1	01	1	0106-	●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97022-837-2	01	1	9811-0105	●	●
51	04.303 BLOCK; SHIFT,1ST & 2ND	8-97022-837-2	01	1	0106-	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94461-345-0	01	1	9811-			●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-			●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9811-			●	●
91	04.302 PIN; SPR,SHIFT ARM 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.303 L=25 OD=5	8-94135-771-0	06	1	9811-0105	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	0106-	●	●
98	04.309 ROD; SHIFT,TOP & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97011-371-1	01	1	9811-0105	●	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97011-371-1	01	1	0106-	●	●
99	04.302 ARM; SHIFT,4TH & 3RD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97011-366-1	01	1	9811-0105	●	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-97011-366-1	01	1	0106-	●	●
100	04.309 ROD; SHIFT,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94316-923-0	01	1	9811-0105	●	●
100	04.309 ROD; SHIFT,REV & 5TH	8-94316-923-0	01	1	0106-	●	●
101	04.302 ARM; SHIFT,REV & 5TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97107-545-0	01	1	9811-0105	●	●
101	04.302 ARM; SHIFT,REV & 5TH	8-97107-545-0	01	1	0106-	●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97017-573-1	01	1	9811-0105	●	●
102	04.303 BLOCK; SHIFT,3RD & 4TH	8-97017-573-1	01	1	0106-	●	●
103	04.303 BLOCK; SHIFT,REV TO OD 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94135-719-4	01	1	9811-0105	●	●
103	04.303 BLOCK; SHIFT,REV TO OD	8-94135-719-4	01	1	0106-	●	●
104	04.311 PLUG; PLATE 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.105 OD=16	9-09201-316-0	01	1	9811-9905	●	●
104	04.311 PLUG; PLATE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.105 OD=16	9-09201-316-0	01	1	9906-0105	●	●
104	04.311 PLUG; PLATE 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 04.105 OD=16	9-09201-316-0	01	1	9906-0105	●	●
104	04.311 PLUG; PLATE 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> 04.105 OD=16	9-09201-316-0	01	1	9906-0105		●
104	04.311 PLUG; PLATE 04.105 OD=16	9-09201-316-0	01	1	0106-	●	●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9811-			●	●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105	●	●	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-	●	●	●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94340-131-2	01	1	9811-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94105-141-2	01	1	9811-0105	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0106-	●	●
142	04.012 BOLT; QUAD BOX 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.105 (A) M8X25	8-94128-786-0	08	1	9811-0105	●	●
142	04.012 BOLT; QUAD BOX 04.105 (A) M8X25	8-94128-786-0	08	1	0106-	●	●
142	04.012 BOLT; QUAD BOX 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.105 (B) M8X30	8-97029-705-0	02	1	9811-0105	●	●
142	04.012 BOLT; QUAD BOX 04.105 (B) M8X30	8-97029-705-0	02	1	0106-	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.012	8-94257-162-0	01	1	9811-0105	●	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 04.012	8-94257-162-0	01	1	0106-	●	●
157	04.105 BOX; QUAD,TRANS 4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9911			●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97249-547-0	01	1	9811-			●	●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9811-0105	●	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0106-	●	●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9811-0105	●	●
157	04.105 BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	0106-	●	●
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX) (C)	8-97300-317-0	01	1	0106-			●	●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.152 (A) ID=8.5	5-09700-275-0	01	1	9811-0105	●	●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	0106-	●	●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) L=140	5-09707-031-1	01	1	9811-0105	●	●
158	04.105 CLIP; HARNESS EXHAUST BRAKE<NF8> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94159-268-1	01	1	9811-0105	●	●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	0106-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (A) OD=27	8-97304-068-0	01	1	0012-			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9811-0011			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (B) OD=32	8-97304-066-0	01	1	0012-			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.309 (A) OD=27	8-94128-784-0	02	1	9811-0011	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) OD=27	8-97304-068-0	02	1	0012-0105	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	02	1	0106-	●	●
165	04.302 LEVER; SHIFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-816-0	01	1	9811-			●	●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9811-0105	●	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0106-	●	●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9811-0105	●	●
165	04.302 LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	0106-	●	●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.303 L=25 OD=5	8-94135-771-0	01	1	9811-0105	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0106-	●	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9811-			●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97262-957-0	01	1	0106-			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97035-560-1	01	1	9811-0105	●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	0106-	●	●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94249-250-1	01	1	9811-0105	●	●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0106-	●	●	●	●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	9811-0105	●	●	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0106-	●	●	●
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97165-946-1	01	1	0106-			●	●
174	04.307 SPRING; REV 4HF1 ENG(RLS)	8-97035-052-0	01	1	9811-0105			●
174	04.307 SPRING; REV 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97035-052-0	01	1	0106-0107			●	●
174	04.307 SPRING; REV 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97035-052-0	01	1	0108-			●	●
174	04.307 SPRING; REV 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97031-927-0	01	1	9811-0105	●	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	0106-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-819-0	01	1	9811-			●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	9811-0105	●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0106-	●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105	●	●	●
176	04.302 PIN; SPR,STOPPER 4JH1 ENG(RJX),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-0107			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-0107	●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-0107		●
176	04.302 PIN; SPR,STOPPER 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	0108-			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0108-	●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0108-		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9811-0105	●	●
176	04.302 PIN; SPR,STOPPER EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	0106-		●
176	04.302 PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	0106-	●
180	04.302 WASHER; REV STOP SPRING 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.307	8-94249-244-0	01	1	9811-0105	●	●
180	04.302 WASHER; REV STOP SPRING 04.307	8-94249-244-0	01	1	0106-	●	●
183	04.105 PLUG; SCREW,OIL FILTER 4JG2 ENG(RJC),4JB1 ENG(RLF) M18	8-94337-946-1	01	1	9811-0105	●	●
183	04.105 PLUG; SCREW,OIL FILTER M18	8-94337-946-1	01	1	0106-	●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.422 ID=15.3	8-94336-511-0	01	1	9811-0105	●	●
184	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 04.422 ID=15.3	8-94336-511-0	01	1	0106-	●	●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97165-947-1	01	1	9811-0105	●	●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0106-	●	●	●	●

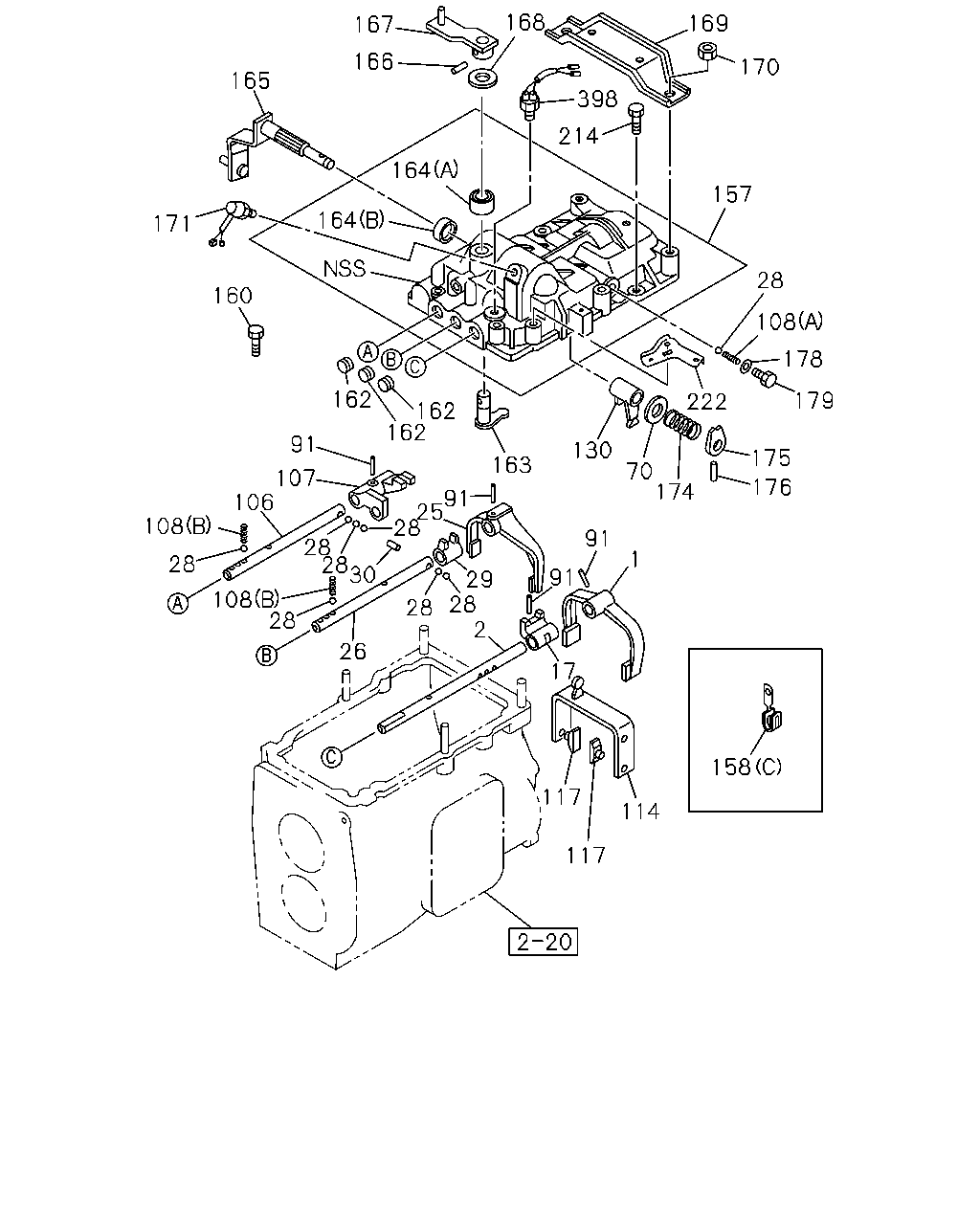

168 169 167 166 170 165 398 214 164 157 164 171 28 160 108 178 162 179 222 162 162 91 130 175 163 70 174 107 106 176 91 25 28 108 91 28 28 30 1 28 91 29 28 2 108 28 28 26 17 158 117 114 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	04.302 ARM; SHIFT,1ST & REV 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-825-1	01	1	9811-			●	●
2	04.309 ROD; SHIFT,1ST & REV 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-820-0	01	1	9811-			●	●
17	04.303 BLOCK; SHIFT,1ST & REV 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-829-1	01	1	9811-			●	●
25	04.302 ARM; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-826-2	01	1	9811-			●	●
26	04.309 ROD; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97129-493-0	01	1	9811-			●	●
28	04.311 BALL; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	9-00097-010-0	07	1	9811-0105	●	●	●
28	04.311 BALL; INTER LK	9-00097-010-0	07	1	0106-	●	●	●	●
29	04.303 BLOCK; SHIFT,2ND & 3RD 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-830-0	01	1	9811-			●	●
30	04.307 PIN; INTER LK 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97035-041-0	01	1	9811-			●	●
30	04.307 PIN; INTER LK 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.311	5-33534-001-0	01	1	9811-0105	●	●
30	04.307 PIN; INTER LK 04.311	5-33534-001-0	01	1	0106-	●	●
70	04.302 WASHER; PL,SHIFT LEVER 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94461-345-0	01	1	9811-			●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 04.303 L=25 OD=5	8-94135-771-0	03	1	9811-			●	●
91	04.302 PIN; SPR,SHIFT ARM 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) L=32	8-97011-596-2	02	1	9811-			●	●
91	04.302 PIN; SPR,SHIFT ARM 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.303 L=25 OD=5	8-94135-771-0	06	1	9811-0105	●	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 L=25 OD=5	8-94135-771-0	06	1	0106-	●	●
106	04.309 ROD; SHIFT,OD TO TOP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97166-578-0	01	1	9811-			●	●
107	04.303 BLOCK; SHIFT,OD TO TOP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-832-0	01	1	9811-			●	●
108	04.311 SPRING; LOCK BALL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (A)	8-97035-053-0	01	1	9811-			●	●
108	04.311 SPRING; LOCK BALL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) OD=6.8 L=31.6	9-09740-114-0	03	1	9811-0105	●	●	●
108	04.311 SPRING; LOCK BALL (B) OD=6.8 L=31.6	9-09740-114-0	03	1	0106-	●	●	●	●
114	04.302 ARM; SHIFT,OD TO TOP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-827-1	01	1	9811-			●	●
117	04.302 PIECE; SHIFT,OD TO TOP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94316-996-0	02	1	9811-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94340-131-2	01	1	9811-			●	●
130	04.302 LEVER; SHIFT,INTERNAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94105-141-2	01	1	9811-0105	●	●
130	04.302 LEVER; SHIFT,INTERNAL	8-94105-141-2	01	1	0106-	●	●
157	04.105 BOX; QUAD,TRANS 4HF1 ENG(RLS)	8-97167-640-0	01	1	9811-9911			●
157	04.105 BOX; QUAD,TRANS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97249-547-0	01	1	9811-			●	●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	9811-0105	●	●
157	04.105 BOX; QUAD,TRANS EXHAUST BRAKE<NF8>	8-94340-145-0	01	1	0106-	●	●
157	04.105 BOX; QUAD,TRANS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	9811-0105	●	●
157	04.105 BOX; QUAD,TRANS EXC. EXHAUST BRAKE<NF8>	8-94340-146-0	01	1	0106-	●	●
158	04.105 CLIP; HARNESS 4JH1 ENG(RJX) (C)	8-97300-317-0	01	1	0106-			●	●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.152 (A) ID=8.5	5-09700-275-0	01	1	9811-0105	●	●
158	04.105 CLIP; HARNESS 01.152 (A) ID=8.5	5-09700-275-0	01	1	0106-	●	●
158	04.105 CLIP; HARNESS 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 03.162 (B) L=140	5-09707-031-1	01	1	9811-0105	●	●
158	04.105 CLIP; HARNESS EXHAUST BRAKE<NF8> 03.162 (B) L=140	5-09707-031-1	01	1	0106-	●	●
160	04.105 PLUG; BLIND 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. EXHAUST BRAKE<NF8> 08.971 M14X9	9-99202-314-0	01	1	9811-			●
162	04.105 COVER; SHIFT ROD,QUAD BOX 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-94101-319-0	04	1	9811-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-886-0	01	1	9811-			●	●
163	04.302 LEVER; SELECT,INTERNAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94159-268-1	01	1	9811-0105	●	●
163	04.302 LEVER; SELECT,INTERNAL	8-94159-268-1	01	1	0106-	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) 04.309 (A) OD=27	8-94128-784-0	01	1	9811-0011			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (A) OD=27	8-97304-068-0	01	1	0012-			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HF1 ENG(RLS) (B) OD=32	8-94462-019-0	01	1	9811-0011			●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) (B) OD=32	8-97304-066-0	01	1	0012-			●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.309 (A) OD=27	8-94128-784-0	02	1	9811-0011	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) OD=27	8-97304-068-0	02	1	0012-0105	●	●
164	04.105 SEAL; OIL,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=27	8-97304-068-0	02	1	0106-	●	●
165	04.302 LEVER; SHIFT 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-816-0	01	1	9811-			●	●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	9811-0105	●	●
165	04.302 LEVER; SHIFT EXHAUST BRAKE<NF8>	8-97036-221-0	01	1	0106-	●	●
165	04.302 LEVER; SHIFT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	9811-0105	●	●
165	04.302 LEVER; SHIFT EXC. EXHAUST BRAKE<NF8>	8-97035-557-0	01	1	0106-	●	●
166	04.302 PIN; SPR,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.303 L=25 OD=5	8-94135-771-0	01	1	9811-0105	●	●	●
166	04.302 PIN; SPR,SELECT LEVER 04.303 L=25 OD=5	8-94135-771-0	01	1	0106-	●	●	●	●
167	04.302 LEVER; SELECT,EXTERNAL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97035-558-1	01	1	9811-			●
167	04.302 LEVER; SELECT,EXTERNAL 4JH1 ENG(RJX)	8-97262-957-0	01	1	0106-			●	●
167	04.302 LEVER; SELECT,EXTERNAL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97035-560-1	01	1	9811-0105	●	●
167	04.302 LEVER; SELECT,EXTERNAL	8-97035-560-1	01	1	0106-	●	●
168	04.302 WASHER; LK,SELECT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94249-250-1	01	1	9811-0105	●	●	●
168	04.302 WASHER; LK,SELECT LEVER	8-94249-250-1	01	1	0106-	●	●	●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HF1 ENG(RLS)	8-94112-892-1	02	1	9811-9901			●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-94112-892-2	02	1	9902-0201			●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3)	8-94112-892-2	02	1	0202-			●
169	00.029 BRACKET; ENG MTG TO TRANS 4JH1 ENG(RJX)	8-94112-892-2	02	1	0106-0201			●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4JH1 ENG(RJX)	8-94112-892-2	02	1	0202-			●	●
169	00.029 BRACKET; ENG MTG TO TRANS 4HG1 ENG(RJH),4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3)	8-94112-892-2	02	1	0202-			●
170	04.105 NUT; CONT BOX 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) M12 FLANGE	8-94249-242-0	04	1	9811-			●	●
171	04.054 SWITCH; NEUTRAL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	9811-0105	●	●	●
171	04.054 SWITCH; NEUTRAL 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8>	8-97165-946-1	01	1	0106-	●	●	●
171	04.054 SWITCH; NEUTRAL 4JH1 ENG(RJX)	8-97165-946-1	01	1	0106-			●	●
174	04.307 SPRING; REV 4HF1 ENG(RLS)	8-97035-052-0	01	1	9811-0105			●
174	04.307 SPRING; REV 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97035-052-0	01	1	0106-0107			●	●
174	04.307 SPRING; REV 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97035-052-0	01	1	0108-			●	●
174	04.307 SPRING; REV 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97031-927-0	01	1	9811-0105	●	●
174	04.307 SPRING; REV	8-97031-927-0	01	1	0106-	●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97034-819-0	01	1	9811-			●	●
175	04.302 RING; STOPPER,SHIFT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	9811-0105	●	●
175	04.302 RING; STOPPER,SHIFT LEVER EXHAUST BRAKE<NF8>	8-94249-048-2	01	1	0106-	●	●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	9811-0105	●	●	●
176	04.302 PIN; SPR,STOPPER 4JH1 ENG(RJX),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-0107			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-0107	●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0106-0107		●
176	04.302 PIN; SPR,STOPPER 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 04.555 L=30 OD=4	9-09678-549-0	02	1	0108-			●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0108-	●	●
176	04.302 PIN; SPR,STOPPER 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	02	1	0108-		●
176	04.302 PIN; SPR,STOPPER 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	9811-0105	●	●
176	04.302 PIN; SPR,STOPPER EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	0106-		●
176	04.302 PIN; SPR,STOPPER EXC. EXHAUST BRAKE<NF8> 04.555 L=30 OD=4	9-09678-549-0	01	1	0106-	●
178	04.307 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 08.929	9-09571-612-0	01	1	9811-			●	●
179	04.311 PLUG; LOCK BALL 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97031-668-0	01	1	9811-			●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 04.105 M8X25	8-94128-786-0	04	1	9811-			●	●
214	04.510 BOLT; CONT BOX,SUB TRANS 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) 04.105 M8X45	8-94132-164-0	06	1	9811-			●	●
222	04.057 BRACKET; CLIP 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97061-051-0	01	1	9811-			●	●
398	02.698 SWITCH; REV LAMP 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97165-947-1	01	1	9811-0105	●	●	●
398	02.698 SWITCH; REV LAMP	8-97165-947-1	01	1	0106-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
