2-08 — CLUTCH MASTER CYLINDER (#23602) — 50 parça

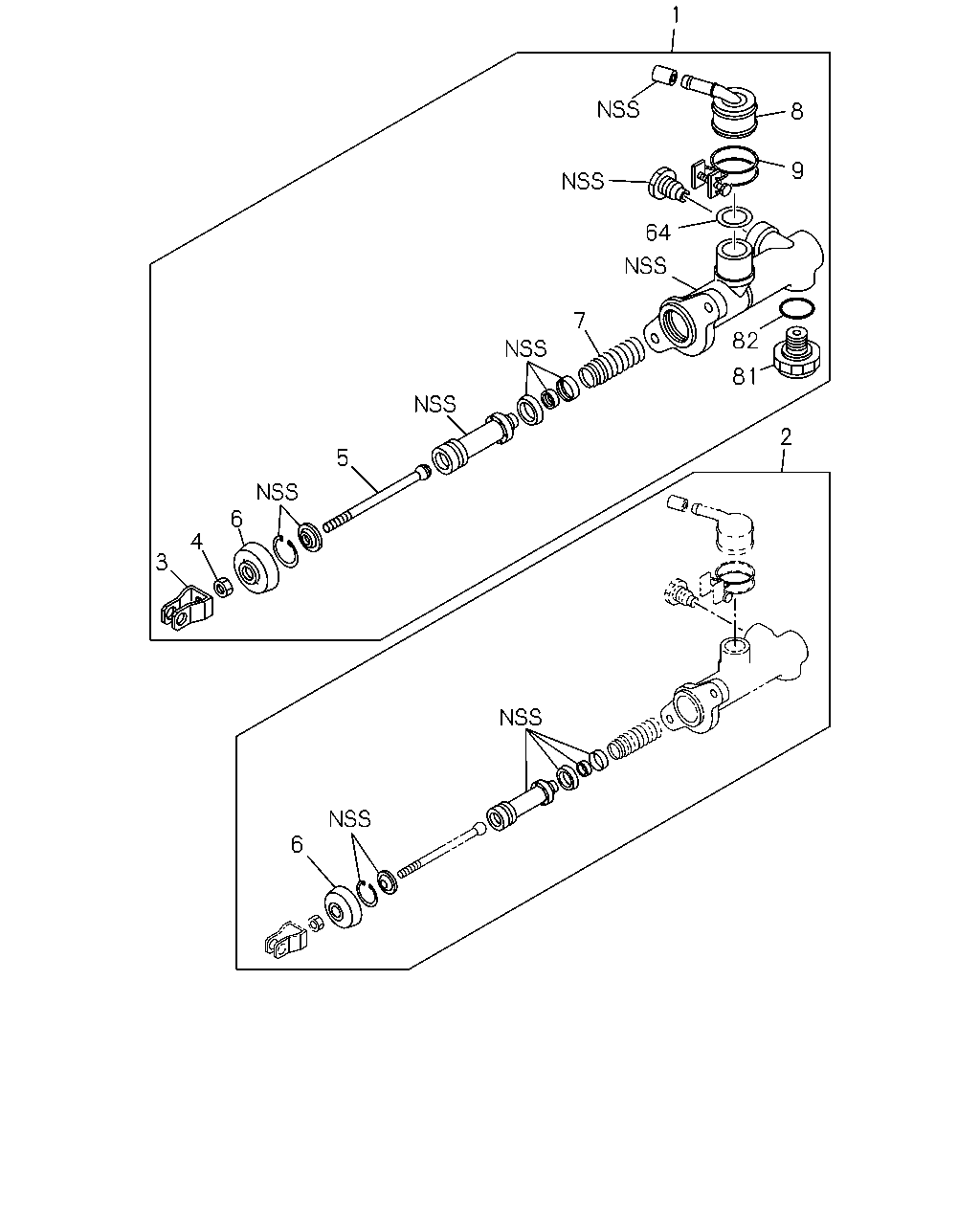

1 8 9 64 7 82 81 2 5 6 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T>	8-97162-964-0	01	1	9811-9902	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T>	8-97210-747-1	01	1	9903-	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH<S2T>	8-97162-963-0	01	1	9811-0105	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T>	8-97300-210-0	01	1	0106-	●			●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97162-963-0	01	1	0106-	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	5-87831-617-0	01	1	9811-	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	9811-0105	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0106-	●	●	●	●
3	00.777 JOINT; JAW,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-770-0	01	1	9811-0105	●	●	●
3	00.777 JOINT; JAW,CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-770-0	01	1	0106-	●	●	●	●
4	00.777 NUT; JAW JOINT EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8	9-09111-408-0	01	1	9811-0105	●	●	●
4	00.777 NUT; JAW JOINT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T> 00.787 M8	9-09111-408-0	01	1	0106-	●	●	●	●
5	00.775 ROD; PUSH,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-768-0	01	1	9811-0105	●	●	●
5	00.775 ROD; PUSH,CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-768-0	01	1	0106-	●	●	●	●
6	00.775 BOOT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-153-0	01	1	9811-	●
6	00.775 BOOT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	9811-0105	●	●	●
6	00.775 BOOT; CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0106-	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-148-0	01	1	9811-	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	9811-0105	●	●	●
7	00.775 SPRING ASM; CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0106-	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-154-0	01	1	9811-	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97163-191-0	01	1	9811-0105	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97163-191-0	01	1	0106-	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-143-0	01	1	9811-	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	9811-0105	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	0106-	●	●	●	●
64	00.777 GASKET; CONNECTOR EXC. POWER ASSIST CLUTCH<S2T>	8-97167-767-0	01	1	9811-0105	●	●	●
64	00.777 GASKET; CONNECTOR 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-767-0	01	1	0106-	●	●	●	●
81	00.777 DAMPER; MASTER CYL 4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T>	8-97190-913-0	01	1	0106-	●			●
82	00.777 GASKET; DAMPER 4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T>	8-97191-396-0	01	1	0106-	●			●

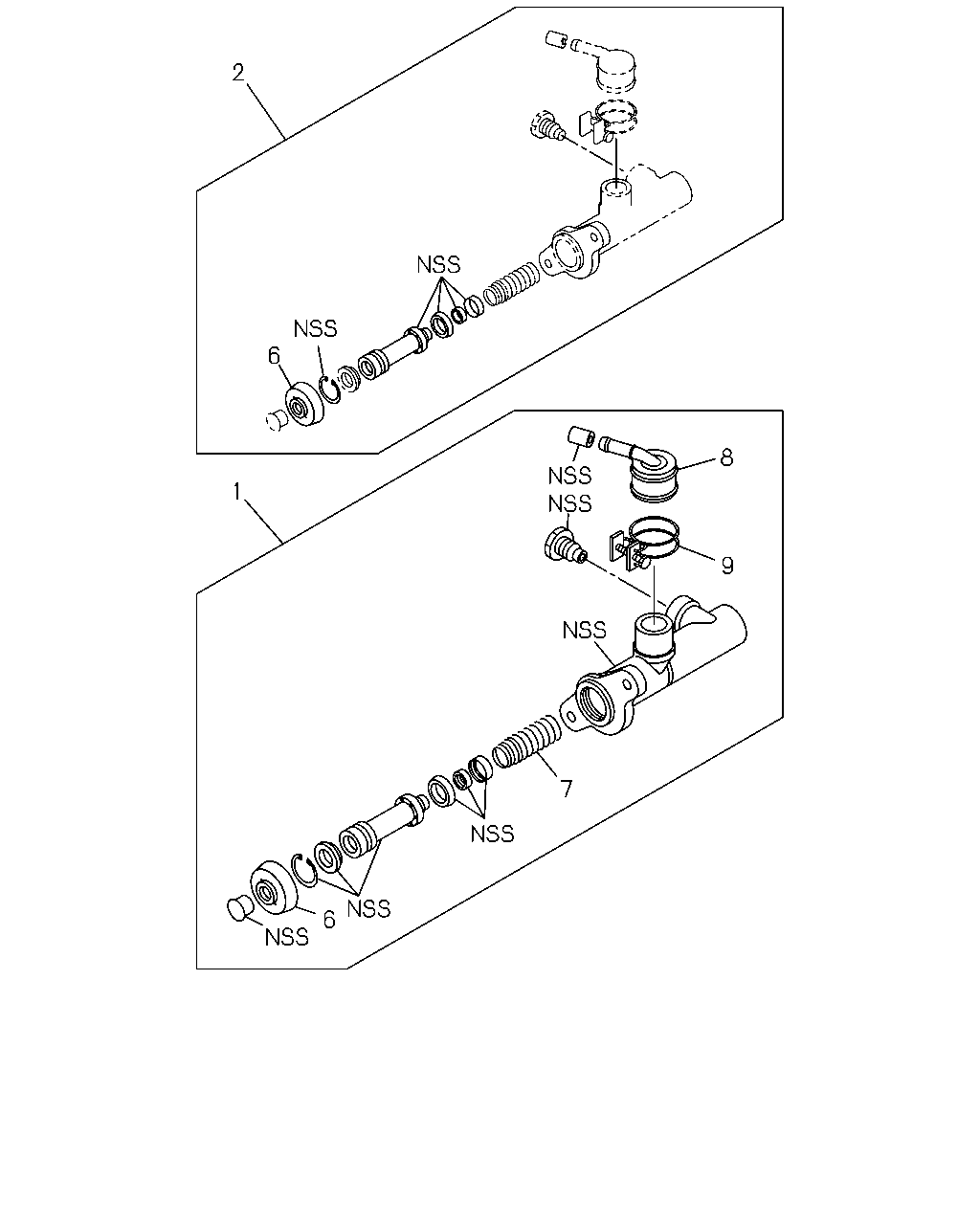

2 6 8 1 9 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T>	8-97162-964-0	01	1	9811-9902	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH<S2T>	8-97210-747-1	01	1	9903-	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH<S2T>	8-97162-963-0	01	1	9811-0105	●	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4JH1 ENG(RJX) EXC. POWER ASSIST CLUTCH<S2T>	8-97300-210-0	01	1	0106-	●			●
1	00.775 CYLINDER ASM; CLUTCH MASTER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97162-963-0	01	1	0106-	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	5-87831-617-0	01	1	9811-	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	9811-0105	●	●	●
2	00.775 REPAIR KIT; CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	5-87831-597-0	01	1	0106-	●	●	●	●
6	00.775 BOOT; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-153-0	01	1	9811-	●
6	00.775 BOOT; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	9811-0105	●	●	●
6	00.775 BOOT; CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-94412-200-0	01	1	0106-	●	●	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-148-0	01	1	9811-	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	9811-0105	●	●	●
7	00.775 SPRING ASM; CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-780-0	01	1	0106-	●	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-154-0	01	1	9811-	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97163-191-0	01	1	9811-0105	●	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97163-191-0	01	1	0106-	●	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL POWER ASSIST CLUTCH<S2T>	8-97163-143-0	01	1	9811-	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	9811-0105	●	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. POWER ASSIST CLUTCH<S2T>	8-97167-773-0	01	1	0106-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
