6-03 — RADIATOR GRILLE
(#236) — 45 parça
◀

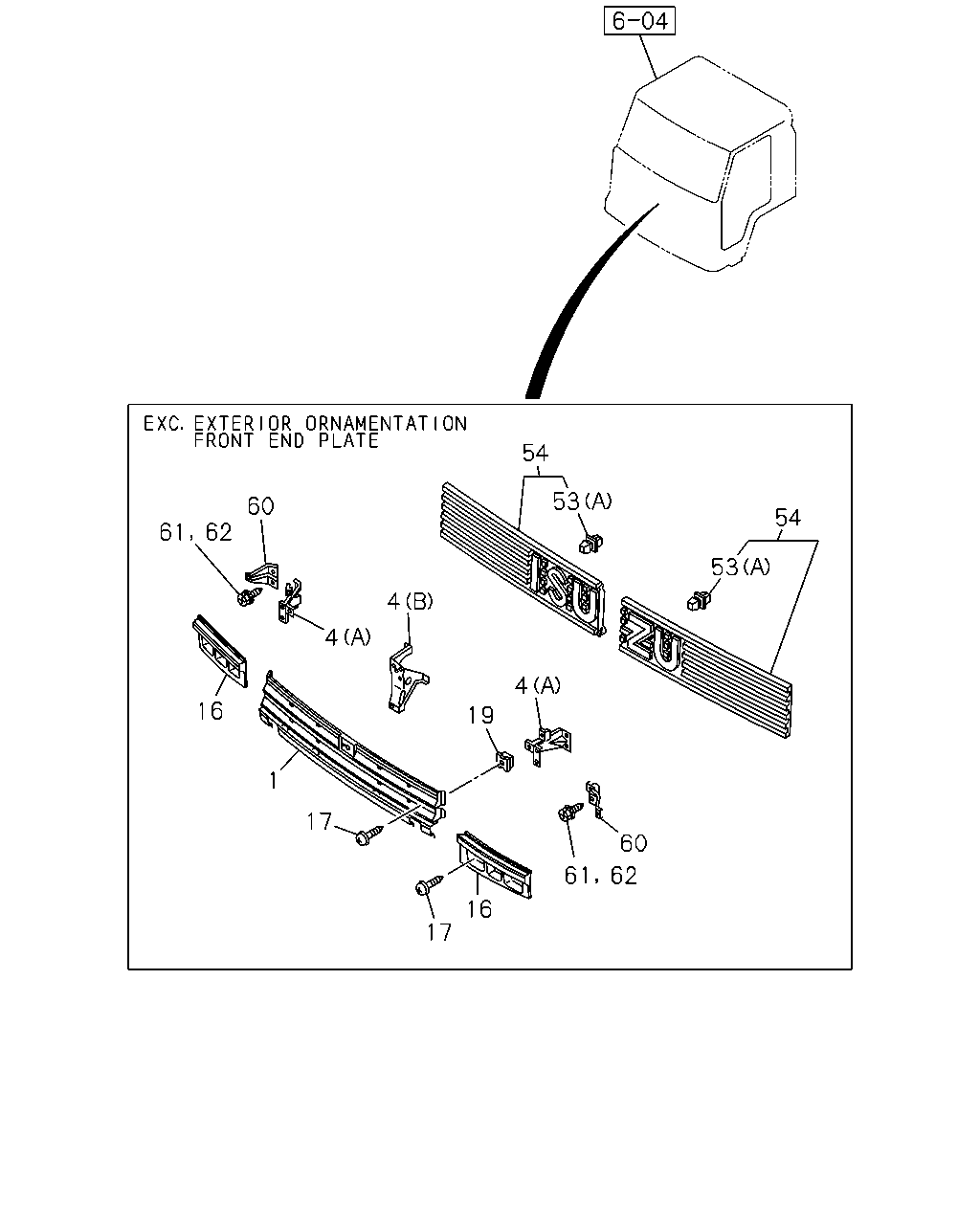

[603A] NO.1 (22 parça)
[603A] NO.2 (23 parça)
▶
61
62
60
4
4
16
1
17
19
4
60
62
61
16
17
54
53
53
54
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
1-71118-437-1
01
1
9212-
4
BRACKET; RAD GRILLE
(B)
1-71118-421-2
01
1
9212-
4
BRACKET; RAD GRILLE
(A)
1-71118-584-0
01
1
9212-
4
BRACKET; RAD GRILLE
(A)
1-71118-585-0
01
1
9212-
16
GRILLE; RAD,SIDE
WHITE
1-71118-200-3
01
1
9212-
16
GRILLE; RAD,SIDE
WHITE
1-71118-199-3
01
1
9212-
17
SCREW; RAD GRILLE
M5X20 TAPPING W/PL WASHER
0-74315-520-0
04
1
9212-
17
SCREW; RAD GRILLE
M6X20 W/PL WASHER
1-09981-376-0
04
1
9212-
19
GROMMET; SCREW,RAD GRILLE
D=10X10 L=10 M5 BLACK
1-09983-102-0
04
1
9212-
53
CLIP; ORNAMENT GRILLE
(A)
1-09987-056-1
14
1
9212-9309
53
CLIP; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)
1-09987-056-1
12
1
9310-
53
CLIP; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)
8-94385-563-3
01
1
9310-
53
CLIP; ORNAMENT GRILLE
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)
1-09987-056-1
14
1
9310-
54
GRILLE; ORNAMENT
1-76218-017-2
01
1
9212-9309
54
GRILLE; ORNAMENT
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-017-2
01
1
9310-
54
GRILLE; ORNAMENT
1-76218-016-2
01
1
9212-9309
54
GRILLE; ORNAMENT
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-016-2
01
1
9310-
54
GRILLE; ORNAMENT
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-068-1
01
1
9310-
60
BRACKET; RAD GRILLE SIDE
1-71118-577-2
01
1
9212-
60
BRACKET; RAD GRILLE SIDE
1-71118-576-2
01
1
9212-
61
BOLT; BRKT
M6X20 W/LK&PL WASHER
1-09980-493-0
08
1
9303-
62
SCREW; BRKT,RAD GRILLE
M6X20 W/LK&PL WASHER
8-94279-347-0
08
1
9212-9302
54
53
53
60
62
61
4
4
16
1
17
16
17
4
19
116
60
62
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
1-71118-437-1
01
1
9212-
4
BRACKET; RAD GRILLE
(B)
1-71118-421-2
01
1
9212-
4
BRACKET; RAD GRILLE
(A)
1-71118-584-0
01
1
9212-
4
BRACKET; RAD GRILLE
(A)
1-71118-585-0
01
1
9212-
16
GRILLE; RAD,SIDE
WHITE
1-71118-200-3
01
1
9212-
16
GRILLE; RAD,SIDE
WHITE
1-71118-199-3
01
1
9212-
17
SCREW; RAD GRILLE
M5X20 TAPPING W/PL WASHER
0-74315-520-0
04
1
9212-
17
SCREW; RAD GRILLE
M6X20 W/PL WASHER
1-09981-376-0
04
1
9212-
19
GROMMET; SCREW,RAD GRILLE
D=10X10 L=10 M5 BLACK
1-09983-102-0
04
1
9212-
53
CLIP; ORNAMENT GRILLE
(A)
1-09987-056-1
14
1
9212-9309
53
CLIP; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)
1-09987-056-1
12
1
9310-
53
CLIP; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)
8-94385-563-3
01
1
9310-
53
CLIP; ORNAMENT GRILLE
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)
1-09987-056-1
14
1
9310-
54
GRILLE; ORNAMENT
1-76218-017-2
01
1
9212-9309
54
GRILLE; ORNAMENT
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-017-2
01
1
9310-
54
GRILLE; ORNAMENT
1-76218-016-2
01
1
9212-9309
54
GRILLE; ORNAMENT
EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-016-2
01
1
9310-
54
GRILLE; ORNAMENT
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-068-1
01
1
9310-
60
BRACKET; RAD GRILLE SIDE
1-71118-577-2
01
1
9212-
60
BRACKET; RAD GRILLE SIDE
1-71118-576-2
01
1
9212-
61
BOLT; BRKT
M6X20 W/LK&PL WASHER
1-09980-493-0
08
1
9303-
62
SCREW; BRKT,RAD GRILLE
M6X20 W/LK&PL WASHER
8-94279-347-0
08
1
9212-9302
116
MOLDING; ORNAMENT GRILLE
EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>
1-76218-049-3
04
1
9310-
