1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#23595) — 180 parça
çizim 46059
74 137 139 140 138 180 141 142 143 144 6 146
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 03.632 VALVE; EXH BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97173-325-0 01 1 9811-0105 ● ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97173-325-0 01 1 0106- ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97209-820-0 01 1 9811-0010 ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97288-526-0 01 1 0011-0105 ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97288-526-0 01 1 0106-0107 ● ● ● ●
6 03.632 VALVE; EXH BRAKE
EXHAUST BRAKE<NF8> 		8-97288-526-0 01 1 0106-0107 ●
6 03.632 VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97288-526-0 01 1 0108-0201 ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97308-581-0 01 1 0202- ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 9811-0105 ● ●
6 03.632 VALVE; EXH BRAKE
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 0106- ● ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 0106- ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97177-309-0 01 1 0106- ●
74 03.634 CONNECTOR; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94311-454-0 01 1 9811-0105 ● ● ● ● ● ●
74 03.634 CONNECTOR; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94311-454-0 01 1 0106- ● ● ● ● ●
137 03.634 CHAMBER; POWER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94158-416-0 01 1 9811-0105 ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94158-416-0 01 1 0106- ● ● ● ● ●
137 03.634 CHAMBER; POWER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97173-330-0 01 1 9811-0010 ● ● ● ● ●
137 03.634 CHAMBER; POWER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97257-279-0 01 1 0011-0105 ● ● ● ● ●
137 03.634 CHAMBER; POWER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0106-0107 ● ● ● ●
137 03.634 CHAMBER; POWER
EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0106-0107 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0108- ● ● ● ● ●
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 9811-0105 ● ●
137 03.634 CHAMBER; POWER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97173-327-0 01 1 0106- ● ● ●
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 0106- ● ● ●
137 03.634 CHAMBER; POWER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) 		8-97313-946-0 01 1 0106- ●
138 03.634 BEARING; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-004-0 01 1 9811-0105 ● ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-004-0 01 1 0106- ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 03.440 		8-94311-446-0 01 1 9811-0105 ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 9811-0105 ● ●
138 03.634 BEARING; EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0106-0107 ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0106-0107 ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 03.440 		8-94311-446-0 01 1 0106-0107 ●
138 03.634 BEARING; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0108- ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0108- ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 03.440 		8-94311-446-0 01 1 0108- ●
139 03.634 GASKET; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 9811-0105 ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0106-0107 ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0108- ● ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 9811-0105 ● ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 0106- ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97093-853-0 01 1 9811-0010 ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97257-283-0 01 1 0011-0105 ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0106-0107 ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0106-0107 ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0108- ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 9811-0105 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0106-0107 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0108- ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97177-310-0 01 1 9811-0105 ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97177-310-0 01 1 0106- ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97177-311-0 01 1 9811-0105 ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 9811-0105 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0106-0107 ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0106-0107 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97177-311-0 01 1 0106-0107 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0108- ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0108- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97177-311-0 01 1 0108- ●
143 03.636 PIN; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-008-0 01 1 9811-0105 ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-008-0 01 1 0106- ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-94311-452-0 01 1 9811-0105 ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 9811-0105 ● ●
143 03.636 PIN; EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0106-0107 ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0106-0107 ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-94311-452-0 01 1 0106-0107 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0108- ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0108- ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-94311-452-0 01 1 0108- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.440 		8-97010-295-1 01 1 9811-0105 ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.440 		8-97010-295-1 01 1 0106- ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97029-428-0 01 1 9811-0105 ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 9811-0105 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0106-0107 ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0106-0107 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97029-428-0 01 1 0106-0107 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0108- ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0108- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97029-428-0 01 1 0108- ●
146 03.634 NUT; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9811-0105 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0106-0107 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0108-0201 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0202- ● ● ● ● ● ●
180 03.640 COLLAR; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.440 		8-97018-597-0 02 1 9811-0105 ● ● ● ● ● ●
180 03.640 COLLAR; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.440 		8-97018-597-0 02 1 0106- ● ● ● ● ●

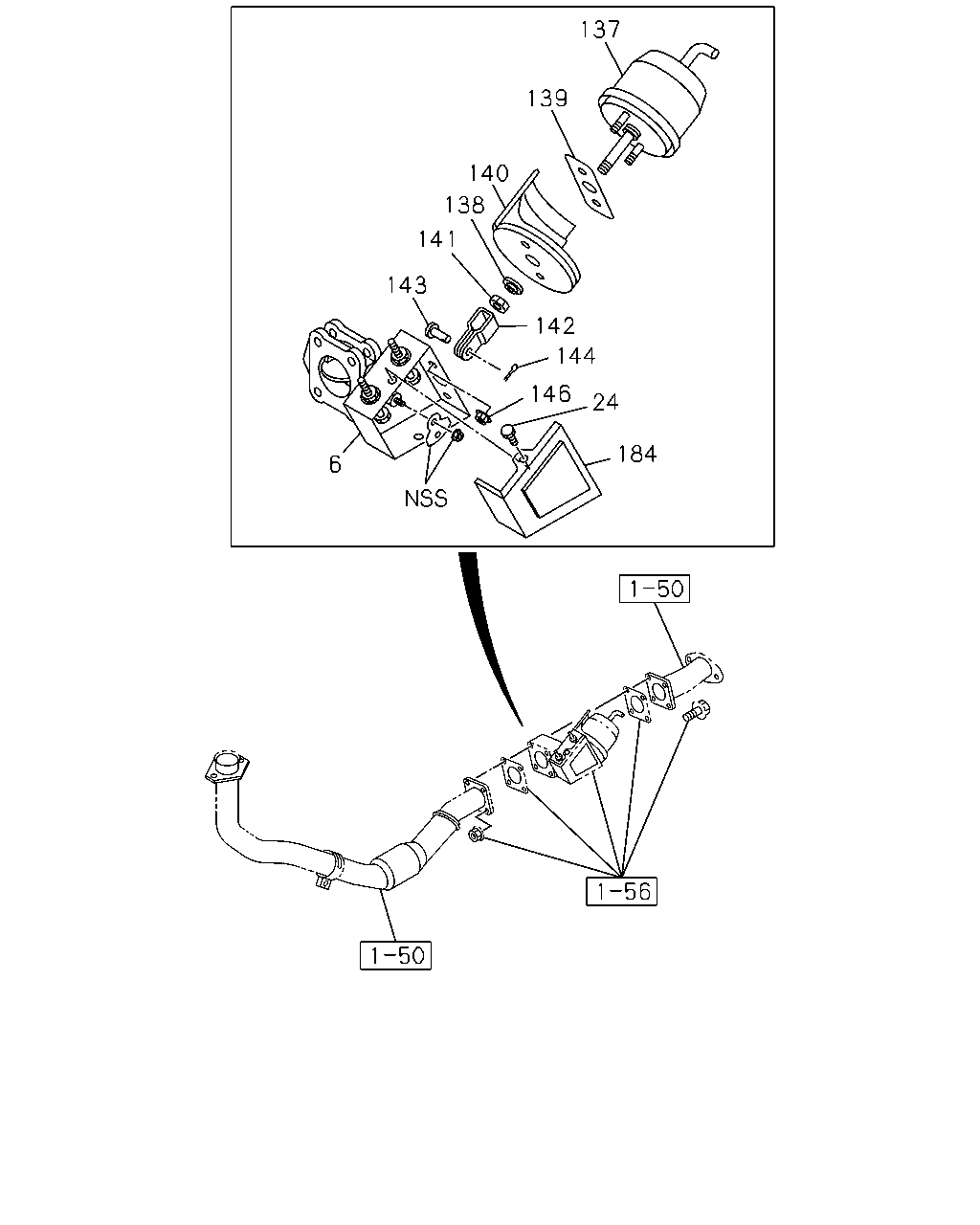

çizim 47241
137 139 140 138 141 143 142 144 146 24 184 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 03.632 VALVE; EXH BRAKE
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97173-325-0 01 1 9811-0105 ● ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97173-325-0 01 1 0106- ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97209-820-0 01 1 9811-0010 ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97288-526-0 01 1 0011-0105 ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97288-526-0 01 1 0106-0107 ● ● ● ●
6 03.632 VALVE; EXH BRAKE
EXHAUST BRAKE<NF8> 		8-97288-526-0 01 1 0106-0107 ●
6 03.632 VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97288-526-0 01 1 0108-0201 ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97308-581-0 01 1 0202- ● ● ● ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 9811-0105 ● ●
6 03.632 VALVE; EXH BRAKE
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 0106- ● ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-309-0 01 1 0106- ● ●
6 03.632 VALVE; EXH BRAKE
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97177-309-0 01 1 0106- ●
24 03.634 BOLT; COVER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 03.444 		8-97065-029-0 02 1 9811-0105 ● ● ● ● ●
24 03.634 BOLT; COVER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 9811-0105 ● ●
24 03.634 BOLT; COVER
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0106-0107 ● ● ● ● ●
24 03.634 BOLT; COVER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0106-0107 ● ●
24 03.634 BOLT; COVER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 03.444 		8-97065-029-0 02 1 0106-0107 ●
24 03.634 BOLT; COVER
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0108- ● ● ● ● ●
24 03.634 BOLT; COVER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.444 		8-97065-029-0 02 1 0108- ● ●
24 03.634 BOLT; COVER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 03.444 		8-97065-029-0 02 1 0108- ●
137 03.634 CHAMBER; POWER
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94158-416-0 01 1 9811-0105 ● ● ● ● ● ●
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-94158-416-0 01 1 0106- ● ● ● ● ●
137 03.634 CHAMBER; POWER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97173-330-0 01 1 9811-0010 ● ● ● ● ●
137 03.634 CHAMBER; POWER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97257-279-0 01 1 0011-0105 ● ● ● ● ●
137 03.634 CHAMBER; POWER
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0106-0107 ● ● ● ●
137 03.634 CHAMBER; POWER
EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0106-0107 ●
137 03.634 CHAMBER; POWER
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-279-0 01 1 0108- ● ● ● ● ●
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 9811-0105 ● ●
137 03.634 CHAMBER; POWER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97173-327-0 01 1 0106- ● ● ●
137 03.634 CHAMBER; POWER
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97173-327-0 01 1 0106- ● ● ●
137 03.634 CHAMBER; POWER
4JH1 ENG(RJX) EXHAUST BRAKE<NF8> REAR WIDE TREAD(V4T) 		8-97313-946-0 01 1 0106- ●
138 03.634 BEARING; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-004-0 01 1 9811-0105 ● ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-004-0 01 1 0106- ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 03.440 		8-94311-446-0 01 1 9811-0105 ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 9811-0105 ● ●
138 03.634 BEARING; EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0106-0107 ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0106-0107 ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 03.440 		8-94311-446-0 01 1 0106-0107 ●
138 03.634 BEARING; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0108- ● ● ● ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.440 		8-94311-446-0 01 1 0108- ● ●
138 03.634 BEARING; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 03.440 		8-94311-446-0 01 1 0108- ●
139 03.634 GASKET; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 9811-0105 ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0106-0107 ● ● ● ● ● ●
139 03.634 GASKET; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94328-234-0 01 1 0108- ● ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 9811-0105 ● ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> 		8-97093-854-0 01 1 0106- ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97093-853-0 01 1 9811-0010 ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97257-283-0 01 1 0011-0105 ● ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0106-0107 ● ● ● ●
140 03.634 INSULATOR; EXH BRK VLV
EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0106-0107 ●
140 03.634 INSULATOR; EXH BRK VLV
4HG1 ENG(RJH),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97257-283-0 01 1 0108- ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 9811-0105 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0106-0107 ● ● ● ● ● ●
141 03.636 NUT; CLEVIS,EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		9-88510-009-0 01 1 0108- ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97177-310-0 01 1 9811-0105 ● ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		8-97177-310-0 01 1 0106- ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97177-311-0 01 1 9811-0105 ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 9811-0105 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0106-0107 ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0106-0107 ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97177-311-0 01 1 0106-0107 ●
142 03.636 CLEVIS; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0108- ● ● ● ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97177-311-0 01 1 0108- ● ●
142 03.636 CLEVIS; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97177-311-0 01 1 0108- ●
143 03.636 PIN; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-008-0 01 1 9811-0105 ● ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 		5-22189-008-0 01 1 0106- ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-94311-452-0 01 1 9811-0105 ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 9811-0105 ● ●
143 03.636 PIN; EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0106-0107 ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0106-0107 ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-94311-452-0 01 1 0106-0107 ●
143 03.636 PIN; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0108- ● ● ● ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-94311-452-0 01 1 0108- ● ●
143 03.636 PIN; EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-94311-452-0 01 1 0108- ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.440 		8-97010-295-1 01 1 9811-0105 ● ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.440 		8-97010-295-1 01 1 0106- ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97029-428-0 01 1 9811-0105 ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 9811-0105 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0106-0107 ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0106-0107 ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97029-428-0 01 1 0106-0107 ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0108- ● ● ● ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97029-428-0 01 1 0108- ● ●
144 03.636 PIN; SPLIT,EXH BRK VLV
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97029-428-0 01 1 0108- ●
146 03.634 NUT; EXH BRK VLV
4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9811-0105 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0106-0107 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 0108-0201 ● ● ● ● ● ●
146 03.634 NUT; EXH BRK VLV
4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0202- ● ● ● ● ● ●
184 03.634 COVER; BRKT
4HF1 ENG(RLS) EXHAUST BRAKE<NF8> EXC. THAILAND EQUIPMENT(PM9) 		8-97311-447-0 01 1 9811-0105 ● ● ● ● ●
184 03.634 COVER; BRKT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 9811-0105 ● ●
184 03.634 COVER; BRKT
4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0106-0107 ● ● ● ● ●
184 03.634 COVER; BRKT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0106-0107 ● ●
184 03.634 COVER; BRKT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97311-447-0 01 1 0106-0107 ●
184 03.634 COVER; BRKT
4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS) EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0108- ● ● ● ● ●
184 03.634 COVER; BRKT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 		8-97311-447-0 01 1 0108- ● ●
184 03.634 COVER; BRKT
4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. REAR WIDE TREAD(V4T) 		8-97311-447-0 01 1 0108- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
