Sayfa 1-30 - Isuzu EPC

1-30 — AIR CLEANER (#23588) — 457 parça

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
	164	03.402 CLEANER ASM; AIR,SUB 4JG2 ENG(RJC),4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	9811-0105	●	●	●
	164	03.402 CLEANER ASM; AIR,SUB 4JB1 ENG(RLF) HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	0106-	●	●	●

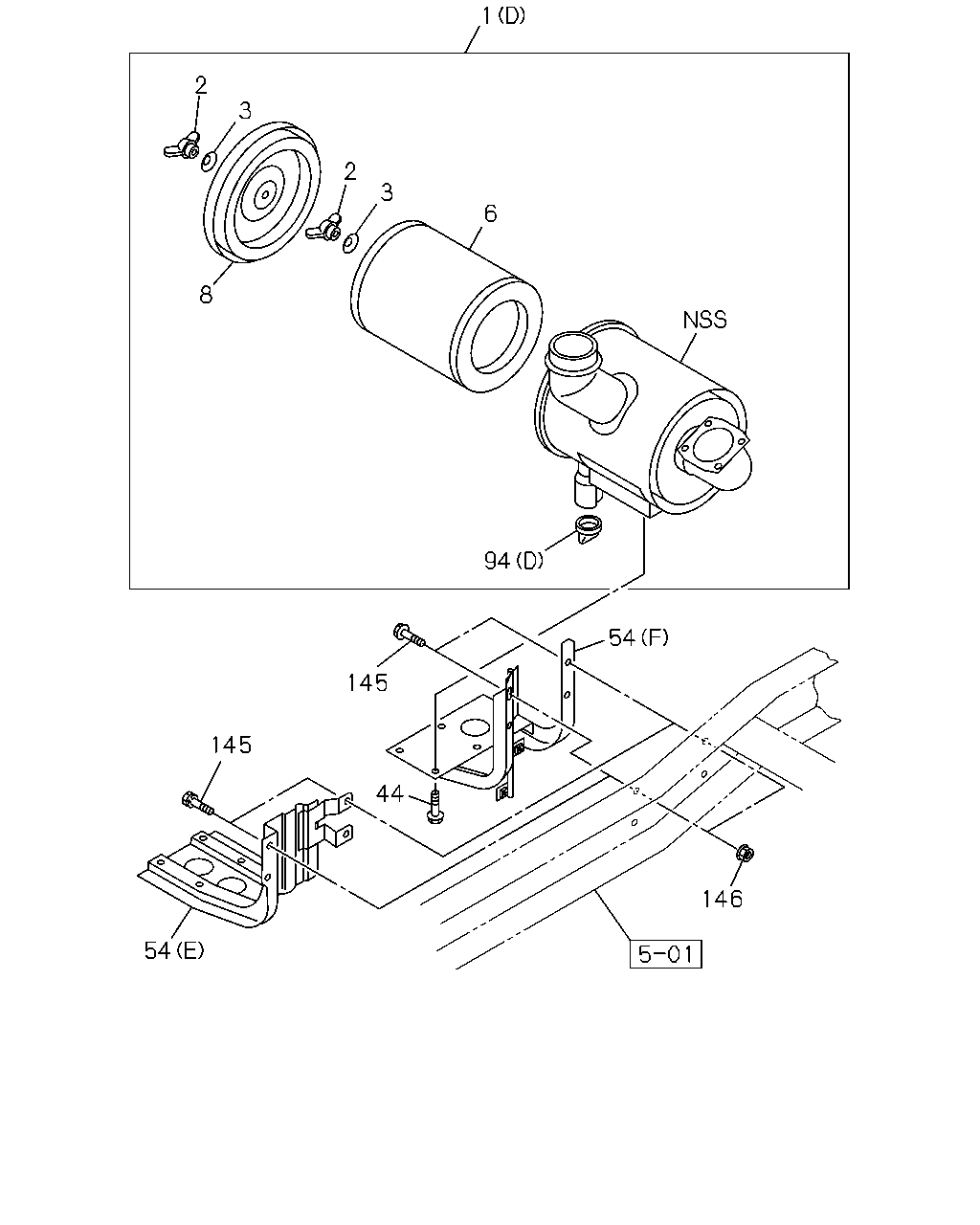

49 146 146 146 54 49 145 145 1 54 216 39 109 39 216 39 76 11 39 31 31 92 6 3 94 28 218 4 90 94 94

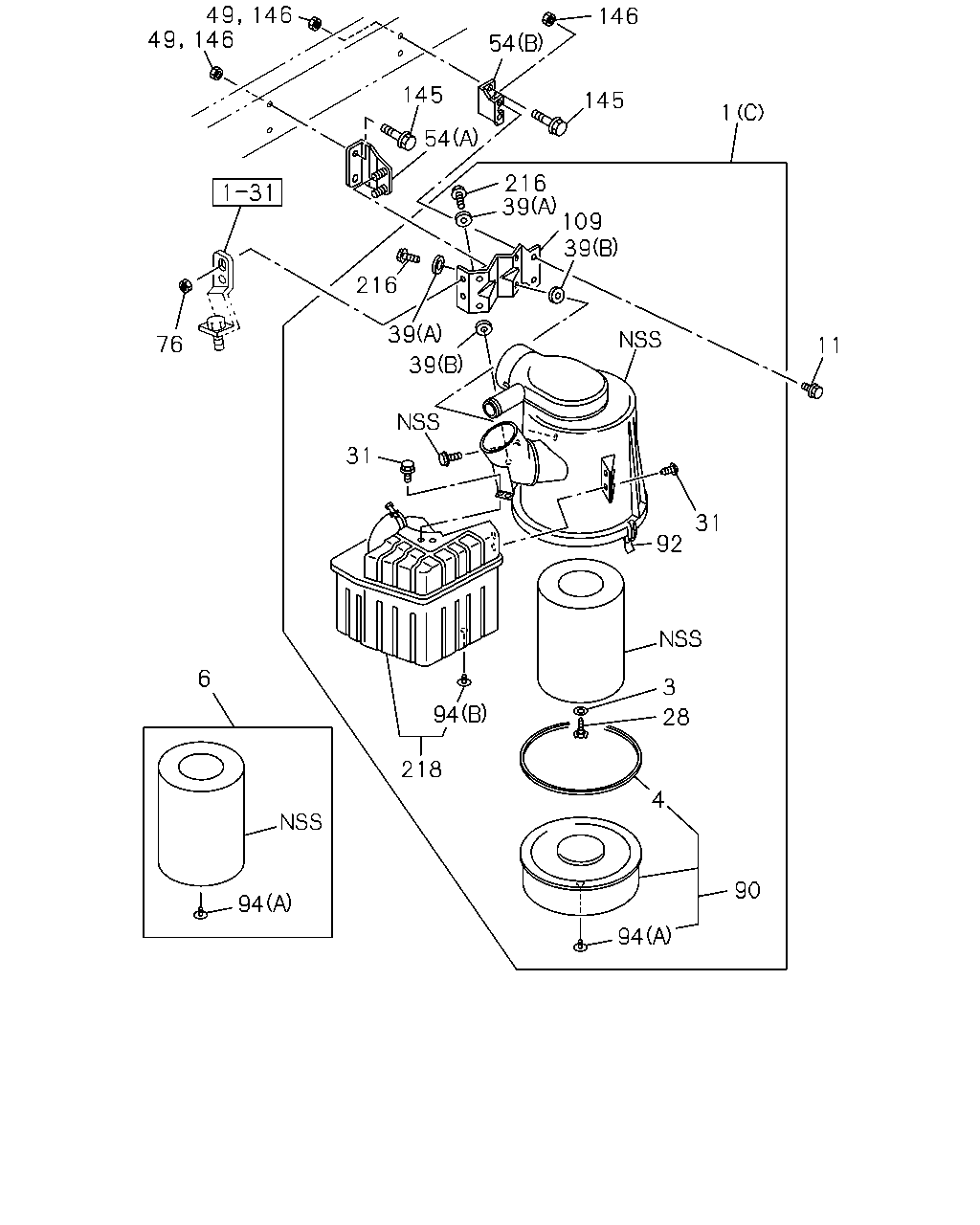

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97217-441-0	01	1	9811-	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	9811-0105	●			●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	0106-	●			●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-289-3	01	1	9811-9901	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97062-053-1	01	1	9902-0105	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97062-053-1	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (D)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-675-2	01	1	9811-	●				●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) (B)	8-97162-699-2	01	1	9811-0107		●	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97162-699-2	01	1	0108-		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97256-796-0	01	1	0106-			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-0105				●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	0106-	●			●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	9811-0105		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0106-0107		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-		●
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9811-0105	●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9811-0105				●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	0106-	●			●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	9811-0105	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	0106-	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-0105	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	9811-0105		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0106-0107		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-		●
6	03.410 FILTER; ACL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-			●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-0105	●			●	●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0106-	●			●		●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9811-	●				●	●
11	03.403 BOLT; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●
11	03.403 BOLT; ACL 03.405 M10X25 FLANGE	0-28681-025-0	02	1	9811-0105				●	●	●
11	03.403 BOLT; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0106-	●			●	●	●
28	03.403 BOLT; WING,ACL AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	9811-0105	●
28	03.403 BOLT; WING,ACL	9-14217-090-0	01	1	9811-0105				●	●	●
28	03.403 BOLT; WING,ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	9-14217-090-0	01	1	0106-	●			●	●	●
31	03.406 SCREW; ACL AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	9811-0105	●
31	03.406 SCREW; ACL 03.402	8-97100-001-0	04	1	9811-0105				●	●	●
31	03.406 SCREW; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 03.402	8-97100-001-0	04	1	0106-	●			●	●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	9811-0105	●
39	03.403 RUBBER; MTG,BOLT (A)	8-97100-002-0	04	1	9811-0105				●	●	●
39	03.403 RUBBER; MTG,BOLT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97100-002-0	04	1	0106-	●			●	●	●
39	03.403 RUBBER; MTG,BOLT AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	9811-0105	●
39	03.403 RUBBER; MTG,BOLT (B)	8-97100-007-0	02	1	9811-0105				●	●	●
39	03.403 RUBBER; MTG,BOLT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97100-007-0	02	1	0106-	●			●	●	●
49	03.403 NUT; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-	●				●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-0105	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-0105				●	●	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	0106-	●			●	●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97216-715-0	01	1	9811-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94140-144-3	01	1	9811-0105	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-94140-144-3	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97107-139-0	01	1	9811-0105	●	●	●	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (E)	8-97107-139-0	01	1	0106-		●	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-0105				●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4HF1 ENG(RLS) (B)	8-97084-884-0	01	1	9811-0105					●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	0106-				●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	9811-		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	9811-0107		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	9811-0107			●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0108-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	0108-			●
76	03.405 NUT; BRKT TO ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-9812	●				●	●
76	03.405 NUT; BRKT TO ACL 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-9812				●
76	03.405 NUT; BRKT TO ACL AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●
76	03.405 NUT; BRKT TO ACL 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105				●	●	●
76	03.405 NUT; BRKT TO ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
90	03.406 CUP; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	9811-0105	●
90	03.406 CUP; ACL	8-97215-621-0	01	1	9811-0105				●	●	●
90	03.406 CUP; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97215-621-0	01	1	0106-	●			●	●	●
92	03.405 CLIP; WIRE,ACL AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	9811-0105	●
92	03.405 CLIP; WIRE,ACL	8-94118-230-0	03	1	9811-0105				●	●	●
92	03.405 CLIP; WIRE,ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94118-230-0	03	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	0106-	●	●	●
109	03.405 STAY; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	9811-0105	●
109	03.405 STAY; ACL	8-97096-175-1	01	1	9811-0105				●	●	●
109	03.405 STAY; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97096-175-1	01	1	0106-	●			●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME M10X25 FLANGE	0-28681-025-0	02	1	9811-0105				●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	0106-	●			●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105		●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-0107	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0108-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105				●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105					●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-				●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●				●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812		●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105		●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0107	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0108-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-9812					●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
216	03.402 BOLT; ACL TO SILENCER AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	9811-0105	●
216	03.402 BOLT; ACL TO SILENCER	8-97126-074-0	04	1	9811-0105				●	●	●
216	03.402 BOLT; ACL TO SILENCER 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-074-0	04	1	0106-	●			●	●	●
218	03.417 RESONATOR; ACL AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	9811-0105	●
218	03.417 RESONATOR; ACL	8-97093-071-1	01	1	9811-0105				●	●	●
218	03.417 RESONATOR; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97093-071-1	01	1	0106-	●			●	●	●

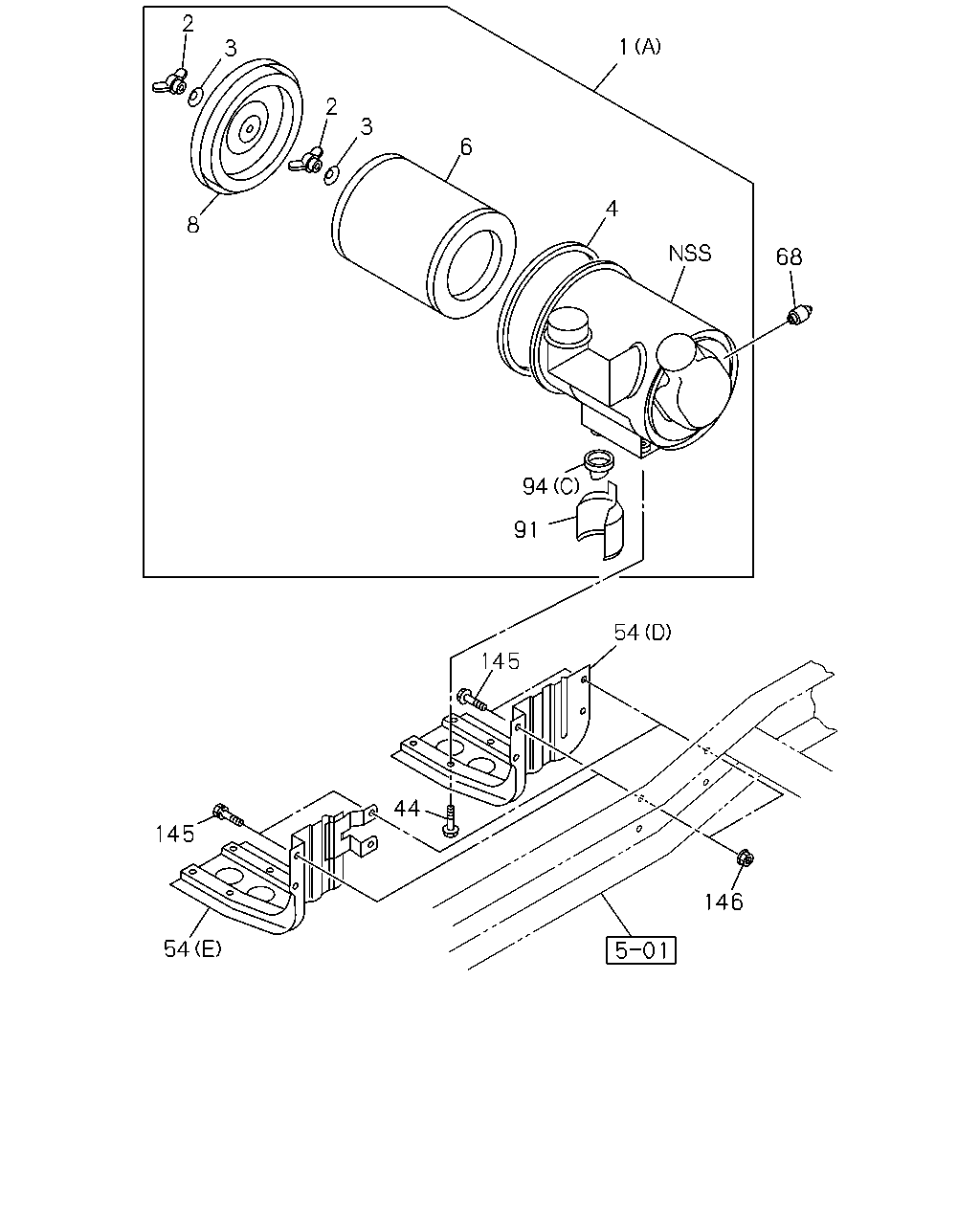

1 208 2 91 2 6 3 3 8 94 91 145 146 145 146 54 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97217-441-0	01	1	9811-	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	9811-0105	●			●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	0106-	●			●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-289-3	01	1	9811-9901	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97062-053-1	01	1	9902-0105	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97062-053-1	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (D)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-675-2	01	1	9811-	●				●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) (B)	8-97162-699-2	01	1	9811-0107		●	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97162-699-2	01	1	0108-		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97256-796-0	01	1	0106-			●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9811-0105	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	9811-0105		●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-0107	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	0106-0107	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0106-0107		●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0108-	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	0108-	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0108-		●
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0108-			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-0105				●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	0106-	●			●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	9811-0105		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0106-0107		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-		●
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-			●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-0105	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	9811-0105		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0106-0107		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-		●
6	03.410 FILTER; ACL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-			●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-0105	●			●	●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0106-	●			●		●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9811-	●				●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	9811-0107	●	●	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	0108-	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	9811-0105	●	●	●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	0106-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●	●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9811-0107	●	●	●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0108-	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9811-0105	●	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0106-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-0105	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-0105				●	●	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	0106-	●			●	●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97216-715-0	01	1	9811-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94140-144-3	01	1	9811-0105	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-94140-144-3	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97107-139-0	01	1	9811-0105	●	●	●	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (E)	8-97107-139-0	01	1	0106-		●	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-0105				●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4HF1 ENG(RLS) (B)	8-97084-884-0	01	1	9811-0105					●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	0106-				●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	9811-		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	9811-0107		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	9811-0107			●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0108-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	0108-			●
91	03.403 CLAMP 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-696-2	01	1	9811-0107	●	●	●
91	03.403 CLAMP 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-696-2	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	0106-	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME M10X25 FLANGE	0-28681-025-0	02	1	9811-0105				●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	0106-	●			●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105		●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-0107	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0108-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105				●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105					●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-				●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●				●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812		●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105		●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0107	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0108-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-9812					●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
208	03.407 DUCT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97074-904-1	01	1	9811-0107	●	●	●
208	03.407 DUCT; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97074-904-1	01	1	0108-	●	●	●

2 1 3 2 3 6 4 8 68 94 91 54 145 44 145 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97217-441-0	01	1	9811-	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	9811-0105	●			●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	0106-	●			●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-289-3	01	1	9811-9901	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97062-053-1	01	1	9902-0105	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97062-053-1	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (D)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-675-2	01	1	9811-	●				●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) (B)	8-97162-699-2	01	1	9811-0107		●	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97162-699-2	01	1	0108-		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97256-796-0	01	1	0106-			●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9811-0105	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	9811-0105		●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-0107	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	0106-0107	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0106-0107		●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0108-	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	0108-	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0108-		●
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0108-			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-0105				●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	0106-	●			●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	9811-0105		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0106-0107		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-		●
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-			●
4	03.403 GASKET; COVER TO BODY AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	9811-0105	●
4	03.403 GASKET; COVER TO BODY	8-94361-137-0	01	1	9811-0105				●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-94361-137-0	01	1	0106-	●			●	●	●
4	03.403 GASKET; COVER TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	9811-0105	●	●	●
4	03.403 GASKET; COVER TO BODY 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 03.410	8-94156-051-0	01	1	0106-	●	●	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-0105	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	9811-0105		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0106-0107		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-		●
6	03.410 FILTER; ACL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-			●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-0105	●			●	●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0106-	●			●		●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9811-	●				●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	9811-0107	●	●	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	0108-	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	9811-0105	●	●	●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	0106-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●	●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9811-0107	●	●	●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0108-	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9811-0105	●	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0106-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-0105	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-0105				●	●	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	0106-	●			●	●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97216-715-0	01	1	9811-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94140-144-3	01	1	9811-0105	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-94140-144-3	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97107-139-0	01	1	9811-0105	●	●	●	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (E)	8-97107-139-0	01	1	0106-		●	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-0105				●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4HF1 ENG(RLS) (B)	8-97084-884-0	01	1	9811-0105					●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	0106-				●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	9811-		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	9811-0107		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	9811-0107			●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0108-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	0108-			●
68	03.415 INDICATOR; SERVICE 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2)	1-14219-212-0	01	1	0106-			●
91	03.403 CLAMP 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-696-2	01	1	9811-0107	●	●	●
91	03.403 CLAMP 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-696-2	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	0106-	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME M10X25 FLANGE	0-28681-025-0	02	1	9811-0105				●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	0106-	●			●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105		●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-0107	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0108-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105				●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105					●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-				●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●				●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812		●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105		●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0107	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0108-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-9812					●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●

1 2 3 2 3 6 8 94 54 145 145 44 146 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97217-441-0	01	1	9811-	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	9811-0105	●			●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97090-029-2	01	1	0106-	●			●		●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-94140-289-3	01	1	9811-9901	●	●	●
1	03.402 CLEANER ASM; AIR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97062-053-1	01	1	9902-0105	●	●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97062-053-1	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4JH1 ENG(RJX) (D)	8-97240-054-2	01	1	0106-	●	●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97102-675-2	01	1	9811-	●				●	●
1	03.402 CLEANER ASM; AIR 4HF1 ENG(RLS) (B)	8-97162-699-2	01	1	9811-0107		●	●
1	03.402 CLEANER ASM; AIR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97162-699-2	01	1	0108-		●	●
1	03.402 CLEANER ASM; AIR 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97256-796-0	01	1	0106-			●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	9811-0105	●
2	03.403 NUT; WING,ELEMENT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	9811-0105		●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0106-0107	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	0106-0107	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0106-0107		●	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX)	1-14217-068-0	02	1	0108-	●
2	03.403 NUT; WING,ELEMENT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14217-068-0	02	1	0108-	●
2	03.403 NUT; WING,ELEMENT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0108-		●
2	03.403 NUT; WING,ELEMENT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14217-068-0	02	1	0108-			●
3	03.403 WASHER; SEAL,WING NUT AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT	9-14219-279-0	01	1	9811-0105				●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	9-14219-279-0	01	1	0106-	●			●	●	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	9811-0105	●
3	03.403 WASHER; SEAL,WING NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	9811-0105		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0106-0107	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0106-0107		●	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX)	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	1-14219-225-0	02	1	0108-	●
3	03.403 WASHER; SEAL,WING NUT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-		●
3	03.403 WASHER; SEAL,WING NUT 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	1-14219-225-0	02	1	0108-			●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	9811-0105	●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	9811-0105		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0106-0107	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0106-0107		●	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX)	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-052-0	01	1	0108-	●
6	03.410 FILTER; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-		●
6	03.410 FILTER; ACL 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94156-052-0	01	1	0108-			●
6	03.410 FILTER; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	9811-0105	●			●	●	●
6	03.410 FILTER; ACL 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-210-0	01	1	0106-	●			●		●
6	03.410 FILTER; ACL 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC>	8-97173-027-0	01	1	9811-	●				●	●
8	03.410 COVER ASM; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	9811-0107	●	●	●
8	03.410 COVER ASM; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3>	8-97093-023-0	01	1	0108-	●	●	●
8	03.410 COVER ASM; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	9811-0105	●	●	●
8	03.410 COVER ASM; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94156-050-0	01	1	0106-	●	●	●
8	03.410 COVER ASM; ACL 4JH1 ENG(RJX)	8-97313-386-0	01	1	0106-	●	●	●
44	03.403 BOLT; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9811-0107	●	●	●
44	03.403 BOLT; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 02.510 M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	0108-	●	●	●
44	03.403 BOLT; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	9811-0105	●	●	●
44	03.403 BOLT; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M8X18 W/LK WASHER	0-50040-818-0	04	1	0106-	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> FRT INDEPENDENT SUSPENSION(6PP) (F)	8-97315-605-0	01	1	0106-	●
54	03.405 BRACKET; ACL AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	9811-0105	●
54	03.405 BRACKET; ACL (A)	8-97038-519-1	01	1	9811-0105				●	●	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97038-519-1	01	1	0106-	●			●	●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-97216-715-0	01	1	9811-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94140-144-3	01	1	9811-0105	●
54	03.405 BRACKET; ACL 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. FRT INDEPENDENT SUSPENSION(6PP) (D)	8-94140-144-3	01	1	0106-	●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (E)	8-97107-139-0	01	1	9811-0105	●	●	●	●	●	●
54	03.405 BRACKET; ACL 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRAME-KICK UP<7EW> (E)	8-97107-139-0	01	1	0106-		●	●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	9811-0105				●
54	03.405 BRACKET; ACL 4JG2 ENG(RJC),4HF1 ENG(RLS) (B)	8-97084-884-0	01	1	9811-0105					●
54	03.405 BRACKET; ACL (B)	8-97084-884-0	01	1	0106-				●	●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) FRAME-KICK UP<7EW> (C)	8-97217-525-0	01	1	9811-		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	9811-0107		●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	9811-0107			●
54	03.405 BRACKET; ACL 4HF1 ENG(RLS) EXC. FRAME-KICK UP<7EW> (C)	8-97091-040-1	01	1	0108-		●
54	03.405 BRACKET; ACL 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97091-040-1	01	1	0108-			●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (A)	8-94439-205-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-94439-205-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	9811-0105	●
94	03.415 VALVE; VACUATOR (B)	8-97148-258-0	01	1	9811-0105				●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (B)	8-97148-258-0	01	1	0106-	●			●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0106-0107	●	●	●
94	03.415 VALVE; VACUATOR 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JH1 ENG(RJX) (D)	8-94447-157-0	01	1	0108-	●	●	●
94	03.415 VALVE; VACUATOR 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	9811-0105	●	●	●
94	03.415 VALVE; VACUATOR 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (C)	8-94160-187-0	01	1	0106-	●	●	●
145	03.405 BOLT; BRKT TO FRAME AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME M10X25 FLANGE	0-28681-025-0	02	1	9811-0105				●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> M10X25 FLANGE	0-28681-025-0	02	1	0106-	●			●	●	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105	●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	04	1	9811-0105		●	●
145	03.405 BOLT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0106-0107	●	●	●
145	03.405 BOLT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 03.162 M10X35 FLANGE	0-28681-035-0	04	1	0108-	●	●	●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105				●
145	03.405 BOLT; BRKT TO FRAME 4JG2 ENG(RJC),4HF1 ENG(RLS) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9811-0105					●
145	03.405 BOLT; BRKT TO FRAME 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-				●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●				●	●
146	03.405 NUT; BRKT TO FRAME AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812	●
146	03.405 NUT; BRKT TO FRAME 04.785 M10 FLANGE	0-91150-110-0	04	1	9811-9812		●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	04	1	9901-0105		●	●
146	03.405 NUT; BRKT TO FRAME 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0107	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HG1 ENG(RJH),4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> 04.785 M10 FLANGE	0-91150-110-0	04	1	0108-	●	●	●
146	03.405 NUT; BRKT TO FRAME 4HF1 ENG(RLS) 04.785 M10 FLANGE	0-91150-110-0	02	1	9811-9812					●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 04.785 M10 FLANGE	0-91150-110-0	02	1	9901-0105	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●
146	03.405 NUT; BRKT TO FRAME 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●			●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
