Sayfa 1-11 - Isuzu EPC

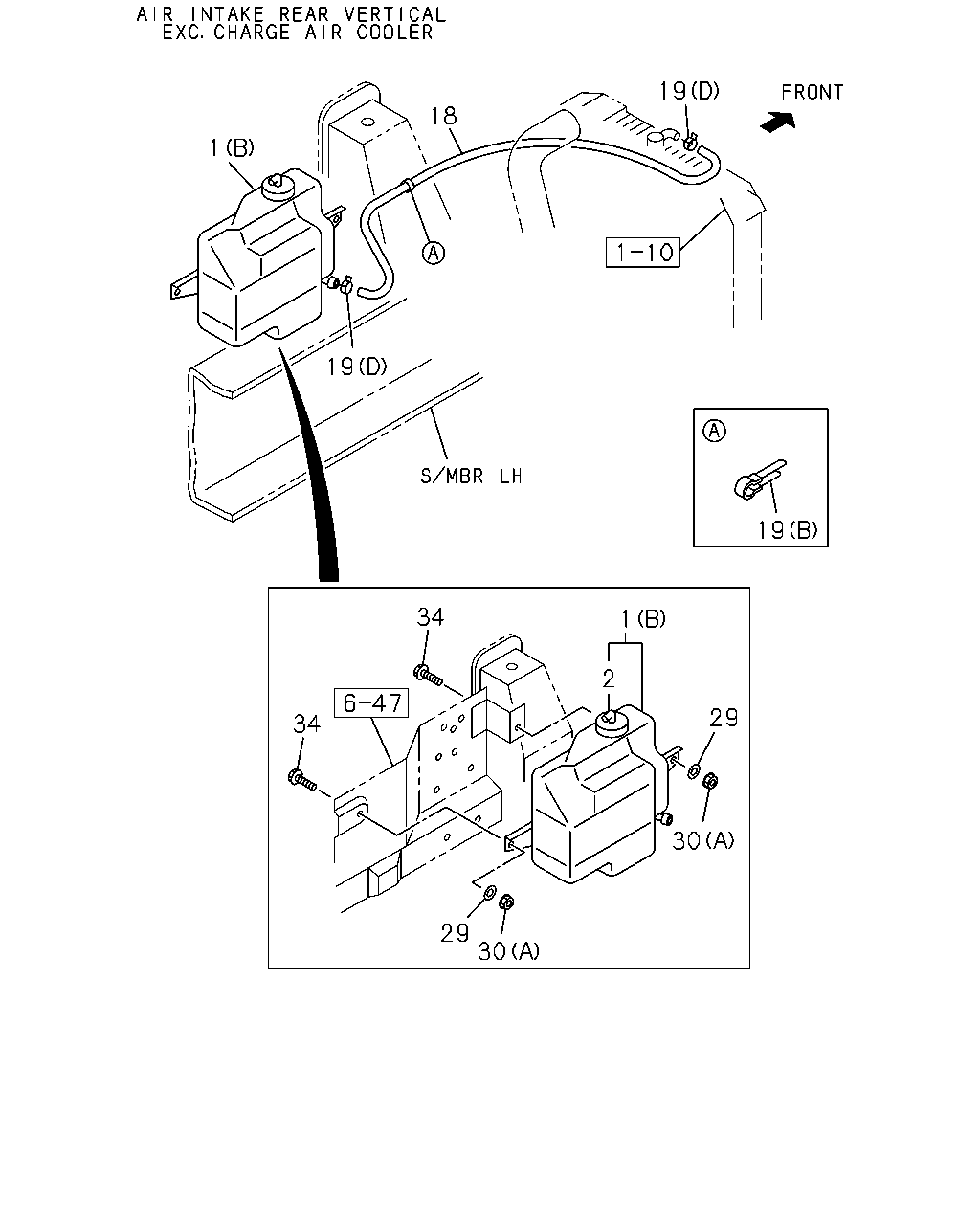

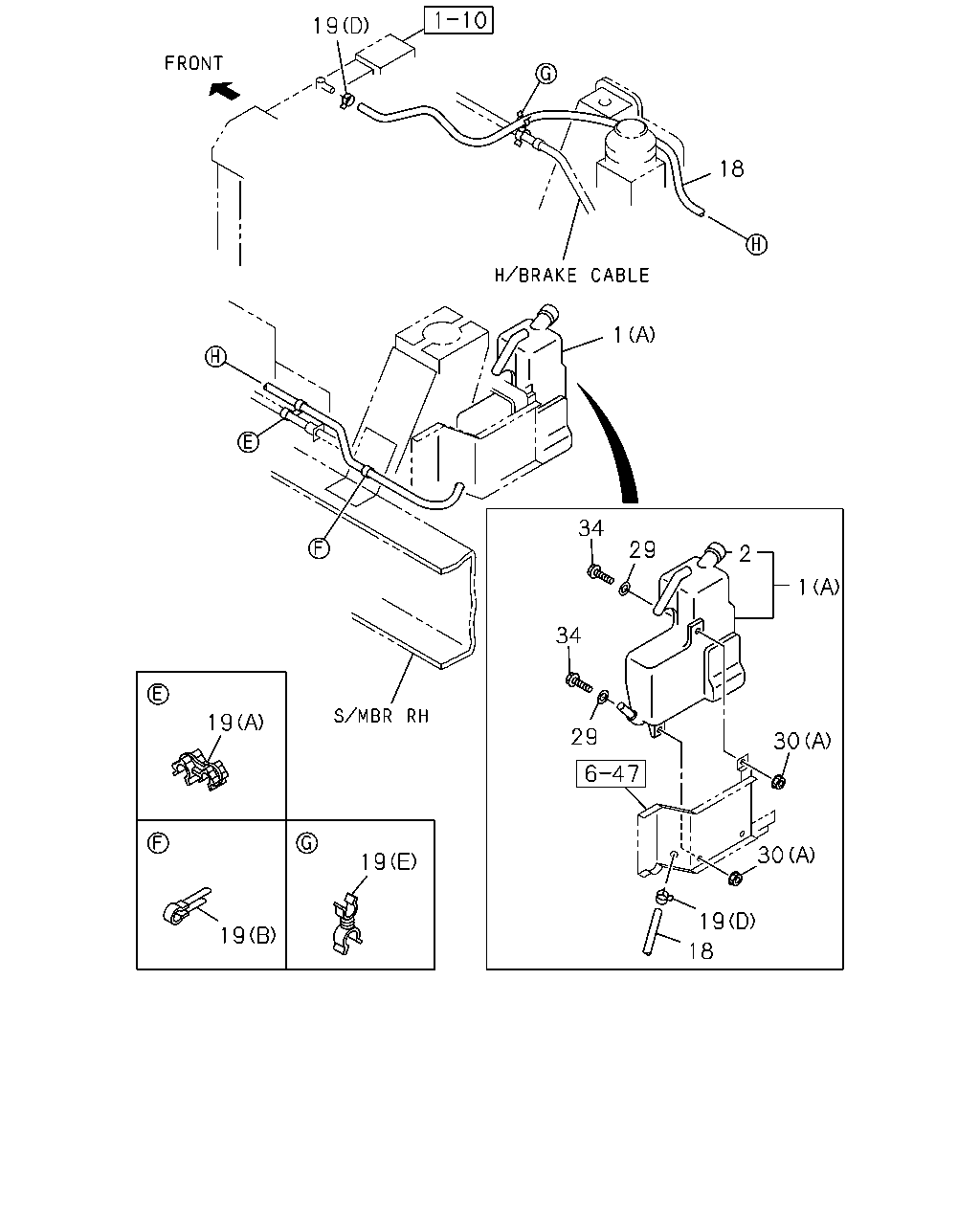

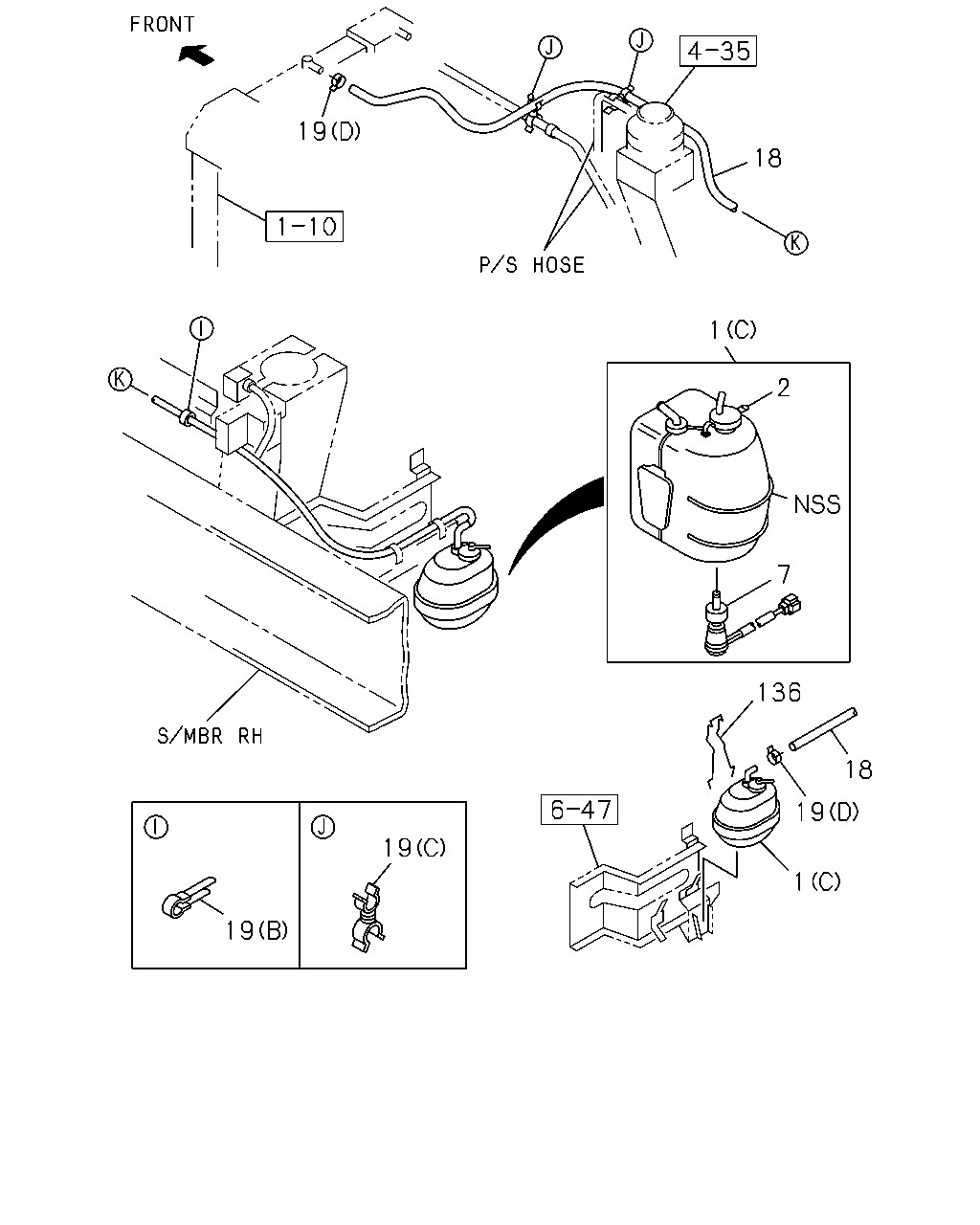

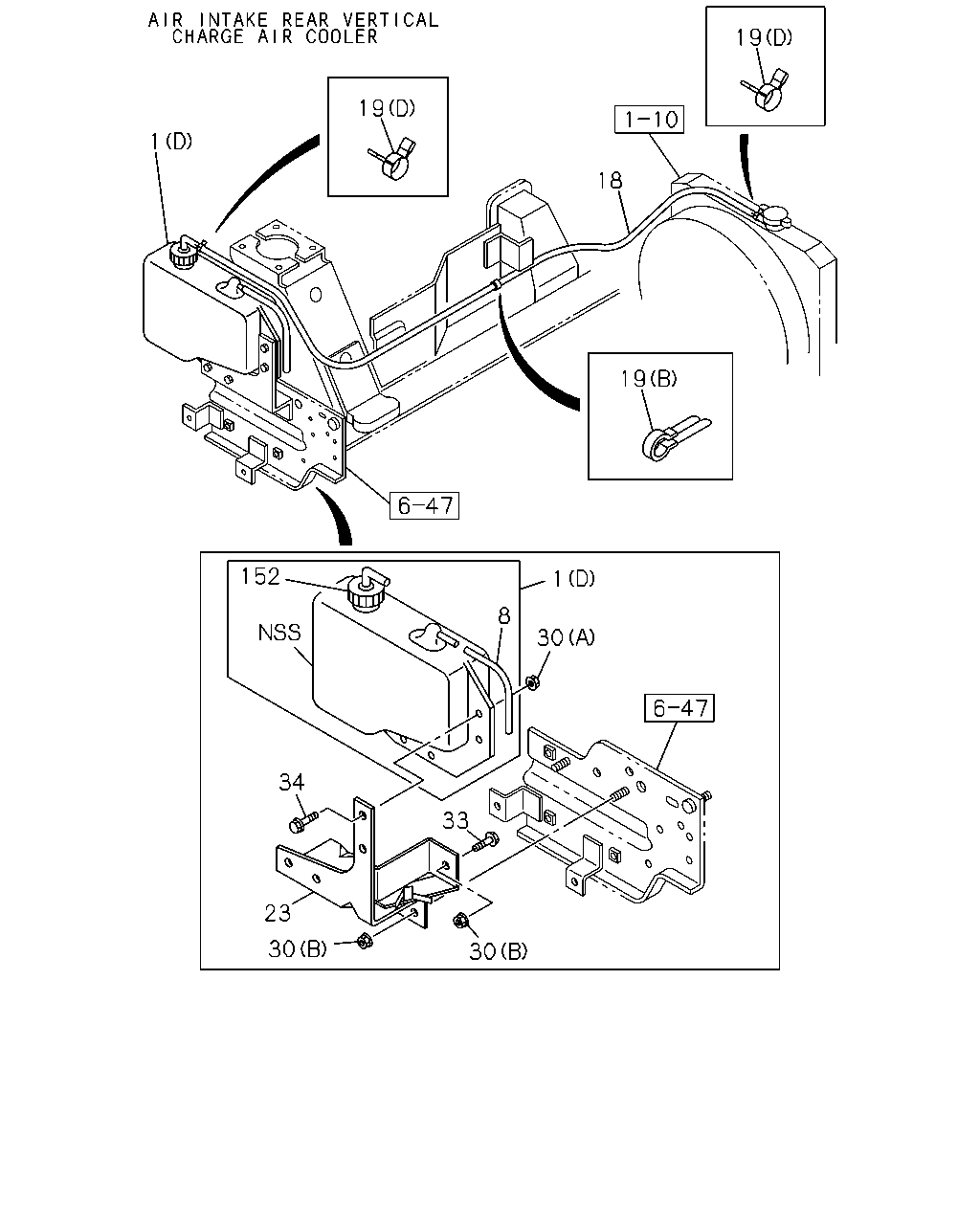

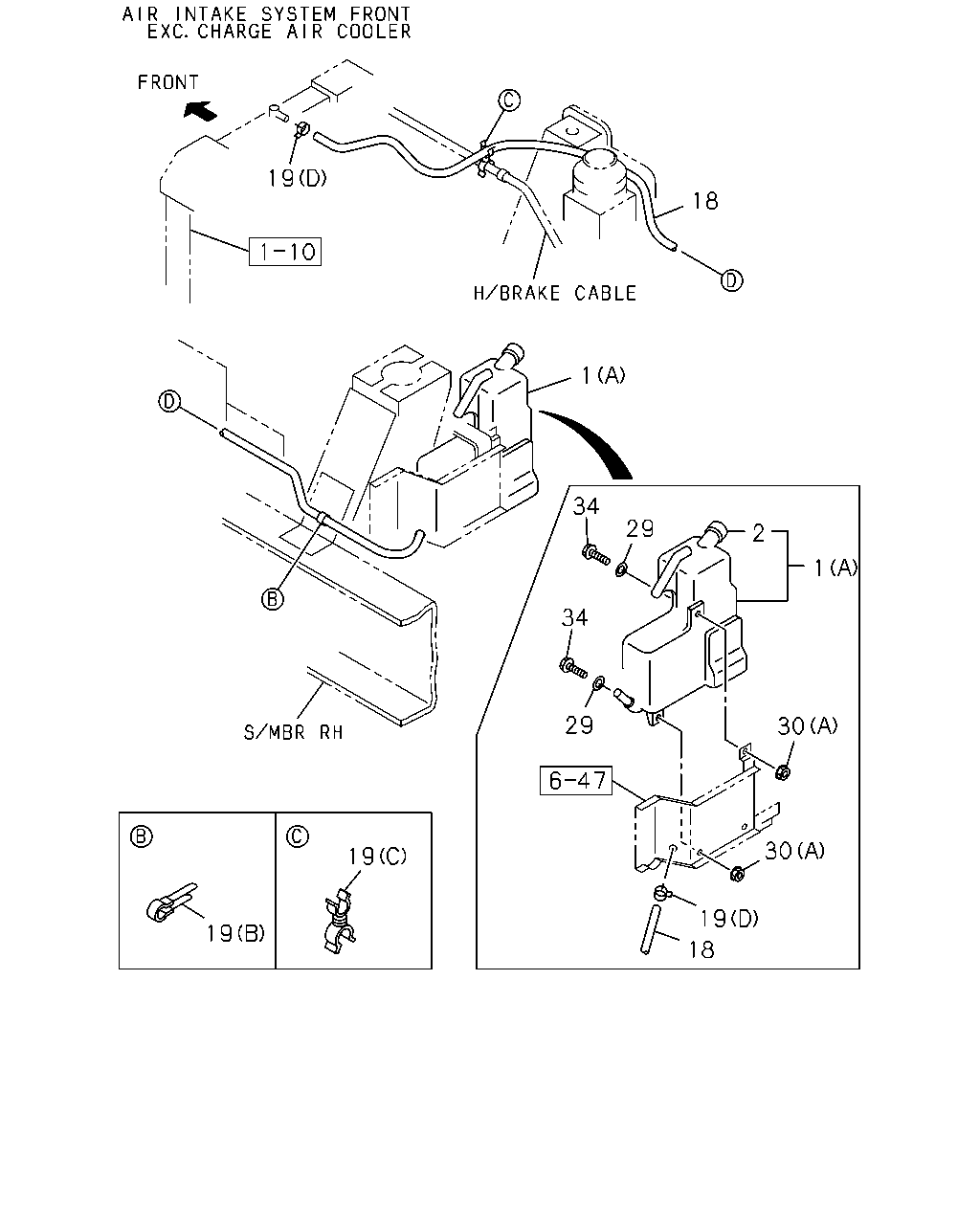

1-11 — RADIATOR HOSE AND SUB TANK (#23587) — 469 parça

19 19 1 18 19 152 1 8 30 34 33 23 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9811-0105	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97138-509-0	01	1	9811-0105		●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97131-202-0	01	1	9811-9811	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97131-202-0	01	1	9811-9811	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	9812-0105	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9812-0105	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0106-0107	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0106-0107	●			●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0108-	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0108-	●			●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-0105					●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS) (C)	8-94378-388-1	01	1	9811-0105						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0106-					●	●
8	01.166 HOSE; VINYL 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> 01.240 L=500	1-09366-179-0	01	1	0106-	●
8	01.166 HOSE; VINYL 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.240 L=500	1-09366-179-0	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0105	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) L=860	8-97163-002-1	01	1	9811-0105		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-307-1	01	1	0106-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97160-993-2	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9903-0107	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	0108-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9811-9901	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-0105	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	0106-	●			●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-0105					●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) L=1720	8-97162-124-1	01	1	9811-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	0106-					●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97148-533-0	01	1	9903-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1595	8-97148-533-1	01	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0106-0107	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0106-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	0106-	●			●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-					●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-				●
23	01.219 BRACKET; RESERVE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97225-271-1	01	1	0106-	●	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105				●
30	01.203 NUT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107				●
30	01.203 NUT 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●	●
33	01.277 BOLT; BRKT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105		●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-		●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●			●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●			●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●			●
152	01.203 CAP ASM; SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL>	8-97217-799-0	01	1	0106-	●
152	01.203 CAP ASM; SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97217-799-0	01	1	0106-		●	●

19 18 1 2 7 136 18 19 19 1 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9811-0105	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97138-509-0	01	1	9811-0105		●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97131-202-0	01	1	9811-9811	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97131-202-0	01	1	9811-9811	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	9812-0105	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9812-0105	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0106-0107	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0106-0107	●			●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0108-	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0108-	●			●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-0105					●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS) (C)	8-94378-388-1	01	1	9811-0105						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0105	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0105					●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94449-363-0	01	1	9811-0105		●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS)	8-94449-363-0	01	1	9811-0105						●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-		●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9811-9811	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	9812-0105	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-0105	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	0106-0107	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0106-0107	●			●
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97217-796-0	01	1	0108-	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0108-	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0105	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) L=860	8-97163-002-1	01	1	9811-0105		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-307-1	01	1	0106-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97160-993-2	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9903-0107	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	0108-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9811-9901	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-0105	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	0106-	●			●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-0105					●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) L=1720	8-97162-124-1	01	1	9811-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	0106-					●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97148-533-0	01	1	9903-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1595	8-97148-533-1	01	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0106-0107	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0106-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	0106-	●			●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-					●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-				●
136	01.219 STOPPER; SURGE TANK	8-97087-220-0	01	1	9811-0105					●
136	01.219 STOPPER; SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS)	8-97087-220-0	01	1	9811-0105						●
136	01.219 STOPPER; SURGE TANK	8-97087-220-0	01	1	0106-					●	●

56 128 56 56 55 128 56 56 55 56 56 128 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
55	01.173 HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97260-186-1	01	1	0106-	●
55	01.173 HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97260-187-1	01	1	0106-	●
55	01.173 HOSE; WATER,RAD OUTLET 4JH1 ENG(RJX)	8-97260-187-1	01	1	0106-		●	●
55	01.173 HOSE; WATER,RAD OUTLET 4HF1 ENG(RLS)	8-97124-740-0	01	1	9811-0107	●	●	●	●		●
55	01.173 HOSE; WATER,RAD OUTLET 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97124-740-0	01	1	0108-	●	●	●	●		●
55	01.173 HOSE; WATER,RAD OUTLET 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97089-916-1	01	1	9811-0105	●	●	●	●		●
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	9811-0105					●
55	01.173 HOSE; WATER,RAD OUTLET 4JB1 ENG(RLF)	8-97089-916-1	01	1	0106-	●	●	●	●
55	01.173 HOSE; WATER,RAD OUTLET	8-97089-916-1	01	1	0106-					●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=48	5-09704-049-0	02	1	9811-0001	●	●	●	●	●	●
56	01.166 CLIP; WATER HOSE,RAD 4HF1 ENG(RLS) (A) ID=40	8-97245-216-0	02	1	0002-0107	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=40	8-97245-216-0	02	1	0108-	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1 ENG(RLS) (B) ID=62	9-09915-068-1	01	1	9811-0001	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD 4HF1 ENG(RLS) (B) ID=50	8-97245-217-0	01	1	0002-0107	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=50	8-97245-217-0	01	1	0108-	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=48	5-09704-049-0	01	1	9811-0001	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	01	1	9811-0001					●
56	01.166 CLIP; WATER HOSE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) ID=48	5-09704-049-0	03	1	0002-0105	●	●	●	●		●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	03	1	0002-0105					●
56	01.166 CLIP; WATER HOSE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) (A) ID=48	5-09704-049-0	03	1	0106-	●	●	●
56	01.166 CLIP; WATER HOSE,RAD (A) ID=48	5-09704-049-0	03	1	0106-					●
56	01.166 CLIP; WATER HOSE,RAD 4JB1 ENG(RLF) (A) ID=48	5-09704-049-0	03	1	0106-				●
128	01.159 HOSE; WATER,RAD INL 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97177-853-0	01	1	0106-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4JH1 ENG(RJX)	8-97289-369-0	01	1	0106-	●	●	●
128	01.159 HOSE; WATER,RAD INL 4HF1 ENG(RLS)	8-97162-163-0	01	1	9811-0107	●	●	●	●		●
128	01.159 HOSE; WATER,RAD INL 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97162-163-0	01	1	0108-	●	●	●	●		●
128	01.159 HOSE; WATER,RAD INL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97147-473-0	01	1	9811-0105	●	●	●	●		●
128	01.159 HOSE; WATER,RAD INL	8-97147-473-0	01	1	9811-0105					●
128	01.159 HOSE; WATER,RAD INL 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97147-473-0	01	1	0106-	●	●	●	●	●	●

19 18 1 34 29 2 1 34 19 29 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9811-0105	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97138-509-0	01	1	9811-0105		●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97131-202-0	01	1	9811-9811	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97131-202-0	01	1	9811-9811	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	9812-0105	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9812-0105	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0106-0107	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0106-0107	●			●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0108-	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0108-	●			●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-0105					●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS) (C)	8-94378-388-1	01	1	9811-0105						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0105	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0105					●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94449-363-0	01	1	9811-0105		●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS)	8-94449-363-0	01	1	9811-0105						●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-		●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9811-9811	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	9812-0105	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-0105	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	0106-0107	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0106-0107	●			●
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97217-796-0	01	1	0108-	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0108-	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0105	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) L=860	8-97163-002-1	01	1	9811-0105		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-307-1	01	1	0106-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97160-993-2	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9903-0107	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	0108-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9811-9901	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-0105	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	0106-	●			●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-0105					●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) L=1720	8-97162-124-1	01	1	9811-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	0106-					●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97148-533-0	01	1	9903-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1595	8-97148-533-1	01	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0106-0107	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0106-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	0106-	●			●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-					●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-				●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0105	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0105				●
29	01.203 WASHER; PL,RESERVE TANK 4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107				●
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0108-	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105				●
30	01.203 NUT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107				●
30	01.203 NUT 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105		●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-		●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●			●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●			●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●			●

19 18 1 19 19 34 1 2 29 34 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9811-0105	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97138-509-0	01	1	9811-0105		●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97131-202-0	01	1	9811-9811	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97131-202-0	01	1	9811-9811	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	9812-0105	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9812-0105	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0106-0107	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0106-0107	●			●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0108-	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0108-	●			●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-0105					●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS) (C)	8-94378-388-1	01	1	9811-0105						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0105	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0105					●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94449-363-0	01	1	9811-0105		●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS)	8-94449-363-0	01	1	9811-0105						●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-		●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9811-9811	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	9812-0105	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-0105	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	0106-0107	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0106-0107	●			●
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97217-796-0	01	1	0108-	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0108-	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0105	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) L=860	8-97163-002-1	01	1	9811-0105		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-307-1	01	1	0106-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97160-993-2	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9903-0107	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	0108-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9811-9901	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-0105	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	0106-	●			●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-0105					●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) L=1720	8-97162-124-1	01	1	9811-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	0106-					●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97148-533-0	01	1	9903-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1595	8-97148-533-1	01	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0106-0107	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0106-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	0106-	●			●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-					●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-				●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0105	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0105				●
29	01.203 WASHER; PL,RESERVE TANK 4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107				●
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0108-	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105				●
30	01.203 NUT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107				●
30	01.203 NUT 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105		●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-		●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●			●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●			●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●			●

19 18 1 34 29 2 1 34 29 30 30 19 19 19 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97138-509-0	01	1	9811-0105	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97138-509-0	01	1	9811-0105		●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B)	8-97138-509-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-	●
1	01.219 TANK; SURGE,RAD 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D)	8-97205-136-0	01	1	0106-		●	●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97131-202-0	01	1	9811-9811	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97131-202-0	01	1	9811-9811	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	9812-0105	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	9812-0105	●			●
1	01.219 TANK; SURGE,RAD 4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0106-0107	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0106-0107	●			●
1	01.219 TANK; SURGE,RAD 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97210-844-0	01	1	0108-	●	●	●	●
1	01.219 TANK; SURGE,RAD 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97210-844-0	01	1	0108-	●			●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	9811-0105					●
1	01.219 TANK; SURGE,RAD 4JG2 ENG(RJC),4HF1 ENG(RLS) (C)	8-94378-388-1	01	1	9811-0105						●
1	01.219 TANK; SURGE,RAD (C)	8-94378-388-1	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3>	8-94449-363-0	01	1	9811-0105	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	9811-0105					●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94449-363-0	01	1	9811-0105		●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4HF1 ENG(RLS)	8-94449-363-0	01	1	9811-0105						●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-	●
2	01.203 CAP; SURGE TANK	8-94449-363-0	01	1	0106-					●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-94449-363-0	01	1	0106-		●	●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97126-876-0	01	1	9811-9811	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97126-876-0	01	1	9811-9811	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	9812-0105	●	●	●	●
2	01.203 CAP; SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	9812-0105	●			●
2	01.203 CAP; SURGE TANK 4HF1 ENG(RLS)	8-97217-796-0	01	1	0106-0107	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0106-0107	●			●
2	01.203 CAP; SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS)	8-97217-796-0	01	1	0108-	●	●	●	●
2	01.203 CAP; SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC>	8-97217-796-0	01	1	0108-	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> L=1740	8-97225-444-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> L=860	8-97163-002-1	01	1	9811-0105	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) L=860	8-97163-002-1	01	1	9811-0105		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-	●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> L=860	8-97163-002-1	01	1	0106-		●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97260-307-1	01	1	0106-	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS)	8-97160-993-2	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9902-9902	●	●	●	●		●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9903-0107	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	0108-	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97162-125-1	01	1	9811-9901	●	●	●	●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	9811-0105	●			●
18	01.240 HOSE; RAD TO SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> L=1450	8-97162-122-1	01	1	0106-	●			●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	9811-0105					●
18	01.240 HOSE; RAD TO SURGE TANK 4JG2 ENG(RJC) L=1720	8-97162-124-1	01	1	9811-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1720	8-97162-124-1	01	1	0106-					●
18	01.240 HOSE; RAD TO SURGE TANK 4HF1 ENG(RLS) L=1595	8-97148-533-0	01	1	9903-0105						●
18	01.240 HOSE; RAD TO SURGE TANK L=1595	8-97148-533-1	01	1	0106-						●
19	01.240 CLIP; HOSE,SURGE TANK 01.219 (D) ID=12	8-94238-610-0	02	1	9811-	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0106-0107	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) (B) ID=14 L=47	5-09700-319-0	01	1	9811-0105	●	●	●	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (B) ID=14 L=47	5-09700-319-0	02	1	0106-	●	●	●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) (A) ID=10 & 12	8-94416-613-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	9811-0107	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.559 (E) ID=10 & 11	8-94438-996-0	01	1	0108-	●	●	●	●		●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. POWER STEERING<N40> 02.559 (E) ID=10 & 11	8-94438-996-0	02	1	0106-	●			●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105	●			●
19	01.240 CLIP; HOSE,SURGE TANK 4JG2 ENG(RJC) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	9811-0105					●	●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> AIR INTAKE SYSTEM FRONT<6PC> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-	●
19	01.240 CLIP; HOSE,SURGE TANK POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-					●
19	01.240 CLIP; HOSE,SURGE TANK 4JB1 ENG(RLF) POWER STEERING<N40> 04.104 (C) ID=12 & 16.5	8-94400-865-0	02	1	0106-				●
29	01.203 WASHER; PL,RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0105	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	9811-0105				●
29	01.203 WASHER; PL,RESERVE TANK 4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0106-0107				●
29	01.203 WASHER; PL,RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0108-	●	●	●	●
29	01.203 WASHER; PL,RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 02.587 ID=6.4 OD=18	9-09160-706-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	9811-0105				●
30	01.203 NUT 4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107	●	●	●
30	01.203 NUT 4JB1 ENG(RLF),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0106-0107				●
30	01.203 NUT 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 04.594 (A) M6 FLANGE	0-91150-106-0	03	1	0108-	●	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0106-	●	●	●
30	01.203 NUT 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.540 (B) M8 FLANGE	0-91150-208-0	03	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.738 M6X16 FLANGE	0-28080-616-0	03	1	9811-0105		●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 00.738 M6X16 FLANGE	0-28080-616-0	03	1	0106-		●	●
34	01.203 BOLT; RESERVE TANK 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●	●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	9811-0105	●			●
34	01.203 BOLT; RESERVE TANK 4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0106-0107	●			●
34	01.203 BOLT; RESERVE TANK 4HG1 ENG(RJH),4HF1 ENG(RLS) 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●	●	●	●
34	01.203 BOLT; RESERVE TANK 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.670 M6X20 FLANGE	0-28080-620-0	03	1	0108-	●			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
