Sayfa 1-01 - Isuzu EPC

1-01 — ACCELERATOR PEDAL AND CONTROL (#23585) — 209 parça

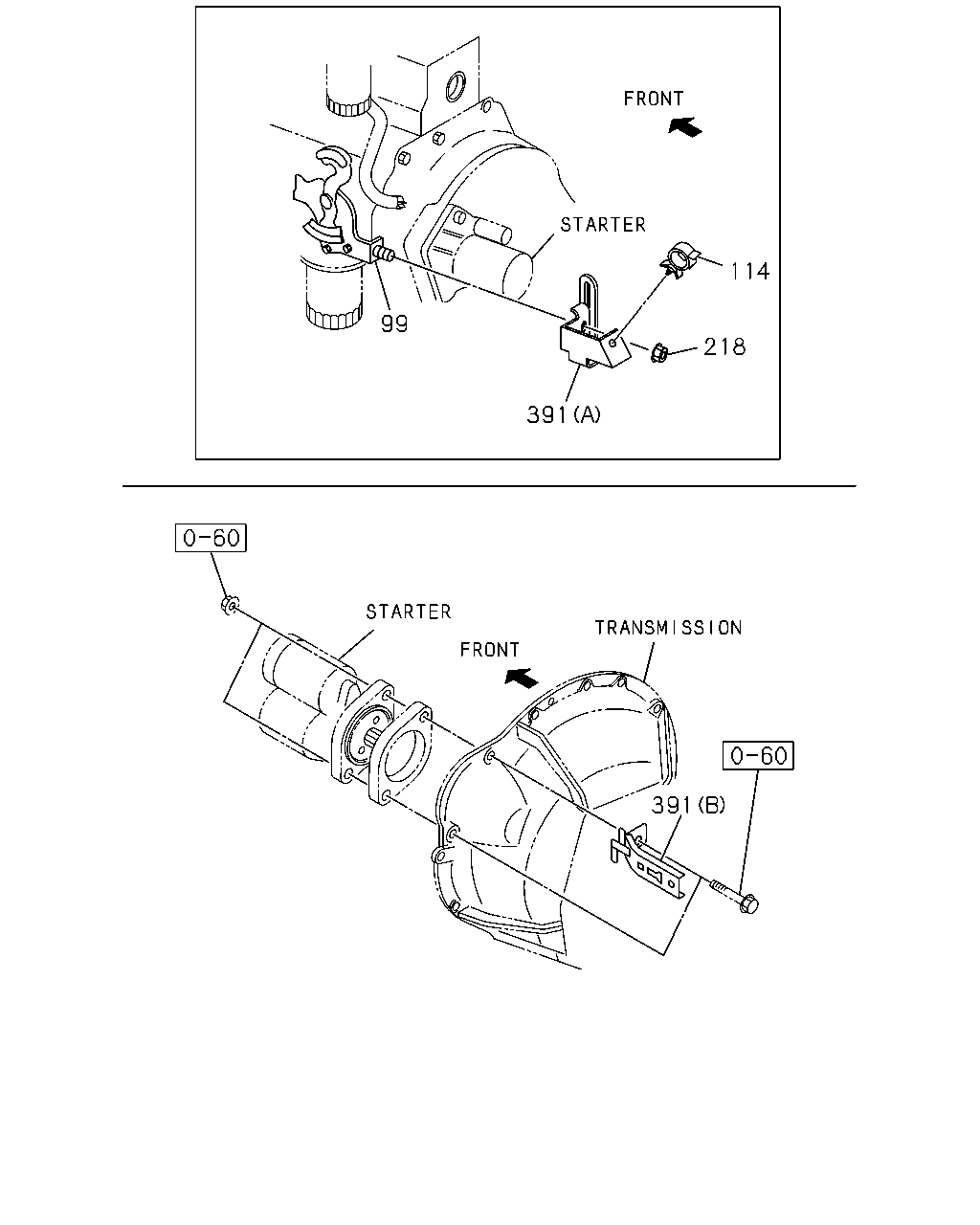

114 99 218 391 391

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	9811-0107	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0108-	●	●	●	●	●
114	03.483 CLIP; HARNESS CONNECTOR 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.559 ID=7-10	8-94472-578-0	01	1	9811-0107	●	●	●		●
114	03.483 CLIP; HARNESS CONNECTOR 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 02.559 ID=7-10	8-94472-578-0	01	1	0108-	●	●	●		●
218	03.452 NUT; BRKT 4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0107	●	●	●	●	●
218	03.452 NUT; BRKT 4HG1 ENG(RJH),4HF1 ENG(RLS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51> 02.483 (B)	8-97068-801-1	01	1	9811-0105	●	●	●		●	●
391	03.452 BRACKET; ENG CONT 4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,FRT INDEPENDENT SUSPENSION(6PP) 02.483 (B)	8-97068-801-1	01	1	0106-	●	●	●		●	●
391	03.452 BRACKET; ENG CONT 4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	9811-0107	●	●	●	●	●
391	03.452 BRACKET; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97172-882-0	01	1	0108-	●	●	●	●	●

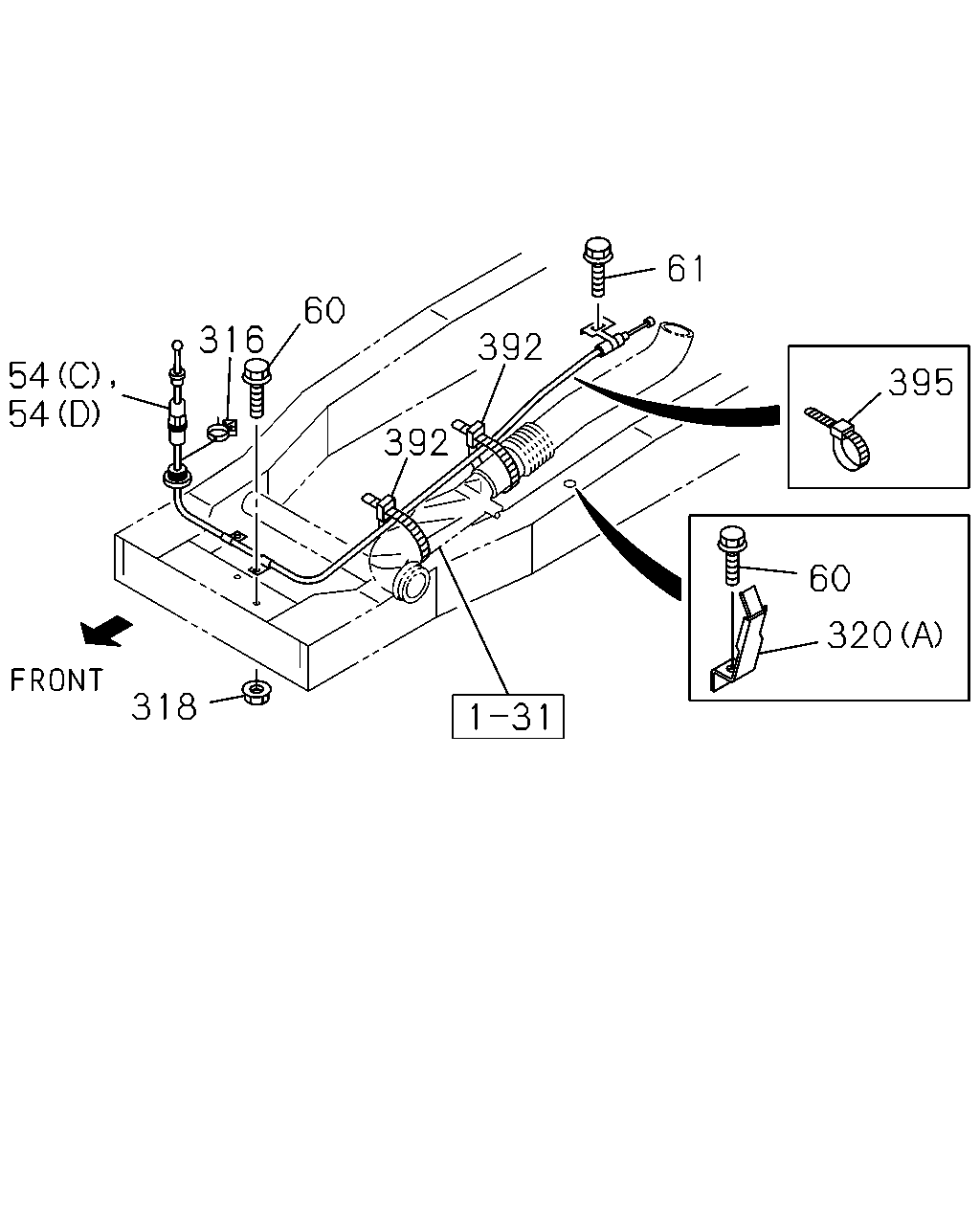

61 60 316 392 54 54 395 392 60 320 318

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) L=2330	8-97208-002-1	01	1	0106-	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-1	01	1	9811-0105	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-2	01	1	0106-	●	●	●
54	03.430 CABLE; ENG CONT ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-2	01	1	0106-				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-4	01	1	9811-0105	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-4	01	1	0106-0107	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0108-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-0107	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0108-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) L=2300	8-97046-362-3	01	1	9811-0105	●	●	●	●	●
54	03.430 CABLE; ENG CONT (C) L=2300	8-97046-362-3	01	1	9811-0105						●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=2300	8-97046-362-4	01	1	0106-	●	●	●		●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-0105	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0107	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0108-	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0105	●	●	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0105	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-0107	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-0107	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0108-	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0108-	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JG2 ENG(RJC),4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105	●	●	●	●	●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	9811-0105						●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 4JB1 ENG(RLF) 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●		●
61	03.483 BOLT; BRKT TO FRAME ENG CONT CAB 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-						●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9811-0105	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4JB1 ENG(RLF),4HF1 ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0106-0107	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0108-	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9811-0105	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0106-0107	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0108-	●	●	●	●	●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) (A)	8-94167-969-2	01	1	9811-0105	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) (A)	8-94167-969-2	01	1	9811-0105		●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0106-	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0106-		●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9811-0107	●	●	●	●	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0108-	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> ID=6 & 10.5	1-09709-218-0	01	1	0106-	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 L=330	5-09709-118-0	02	1	9811-0105	●			●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 L=330	5-09709-118-0	02	1	0106-	●				●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 ID=16	9-09525-552-0	01	1	0106-	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) ID=6 & 10	8-94154-844-0	01	1	9811-0107	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=6 & 10	8-94154-844-0	01	1	0108-0109	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. HEATER & DEFROSTER(C41) 08.852 L=350	8-94152-256-1	01	1	0110-	●			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-1	01	1	9811-0105	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	01	1	9811-0105		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0106-	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	9811-0107	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0108-	●	●	●	●	●

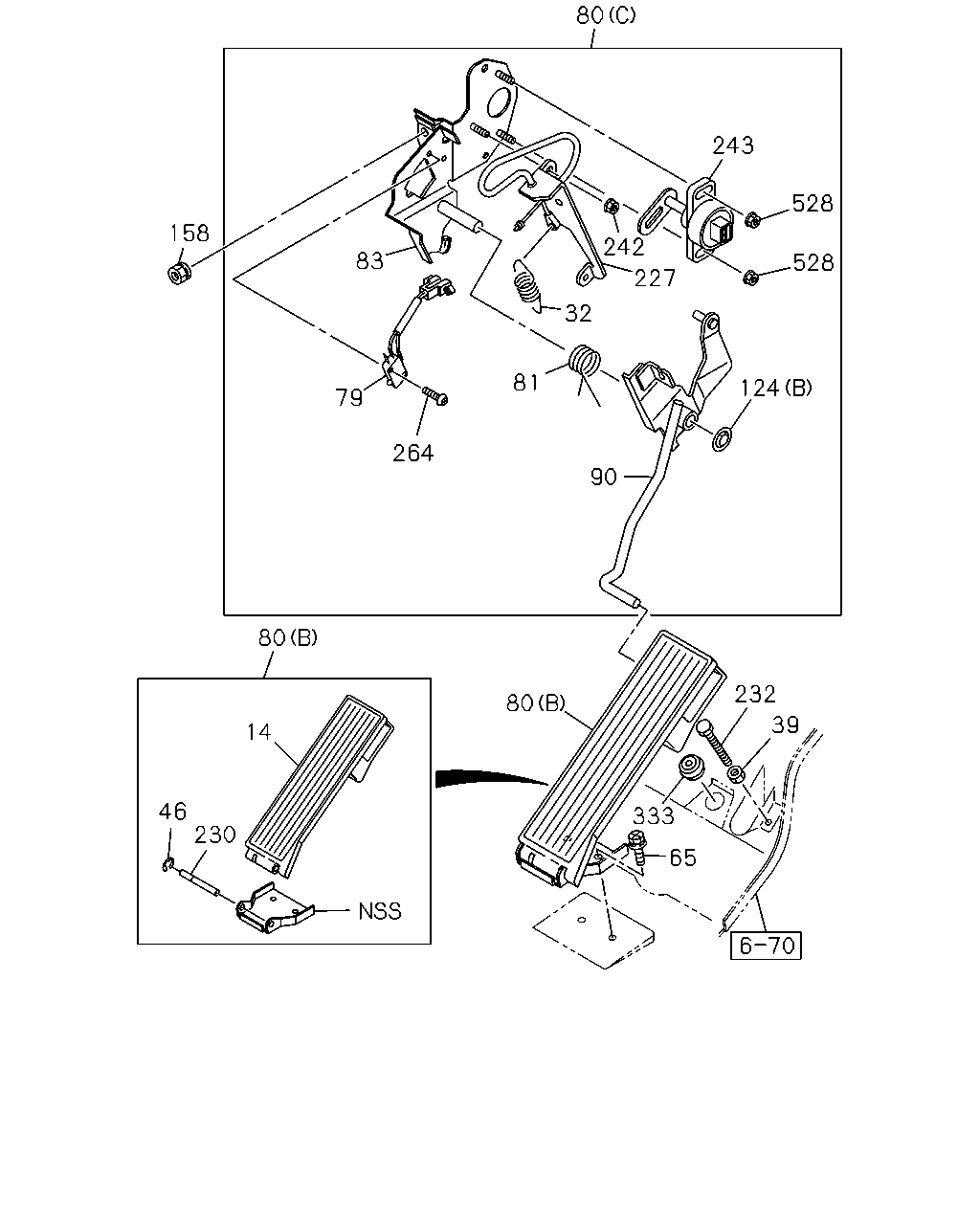

80 243 528 158 242 83 528 227 32 81 124 79 264 90 80 232 80 39 14 46 230 333 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9811-	●	●	●	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	1-71907-268-0	01	1	0106-0208	●	●	●
32	03.459 SPRING; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97997-917-0	01	1	0209-	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9811-	●	●	●	●	●	●
79	03.451 SWITCH; ACCEL PEDAL 4JH1 ENG(RJX)	8-97224-056-0	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-0105	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-7	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97853-057-9	01	1	0106-0107	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97853-057-9	01	1	0108-	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9811-0105	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-2	01	1	0106-	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-201-4	01	1	0106-0107	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-201-4	01	1	0108-	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9811-0105	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-2	01	1	0106-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97868-039-0	01	1	0106-0107	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97868-039-0	01	1	0108-	●	●	●	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0107	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0108-	●	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-	●	●	●
124	03.463 NUT; LEVER 4JB1 ENG(RLF),4HF1 ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0107	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0108-	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●
227	03.430 CABLE ASM; RETURN,ACCEL PEDAL 4JH1 ENG(RJX)	8-97892-203-5	01	1	0106-	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9811-	●	●	●	●	●	●
242	03.483 NUT; ACCEL PEDAL 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	01	1	0106-	●	●	●
243	03.425 SENSOR; ACCEL 4JH1 ENG(RJX)	8-97200-308-0	01	1	0106-	●	●	●
264	03.425 SCREW; ACCEL SW 4JH1 ENG(RJX) 03.451 M3X16 TAPPING	0-71280-316-0	02	1	0106-	●	●	●
333	03.671 GROMMET; HOLE,CABLE 4JH1 ENG(RJX) 16.545 OD=24.5 T=7.5	8-97224-683-0	01	1	0106-	●	●	●
528	03.463 NUT; ACCEL SENSOR 4JH1 ENG(RJX) 10.147 M6 W/DISHED WASHER	8-94423-325-0	02	1	0106-	●	●	●

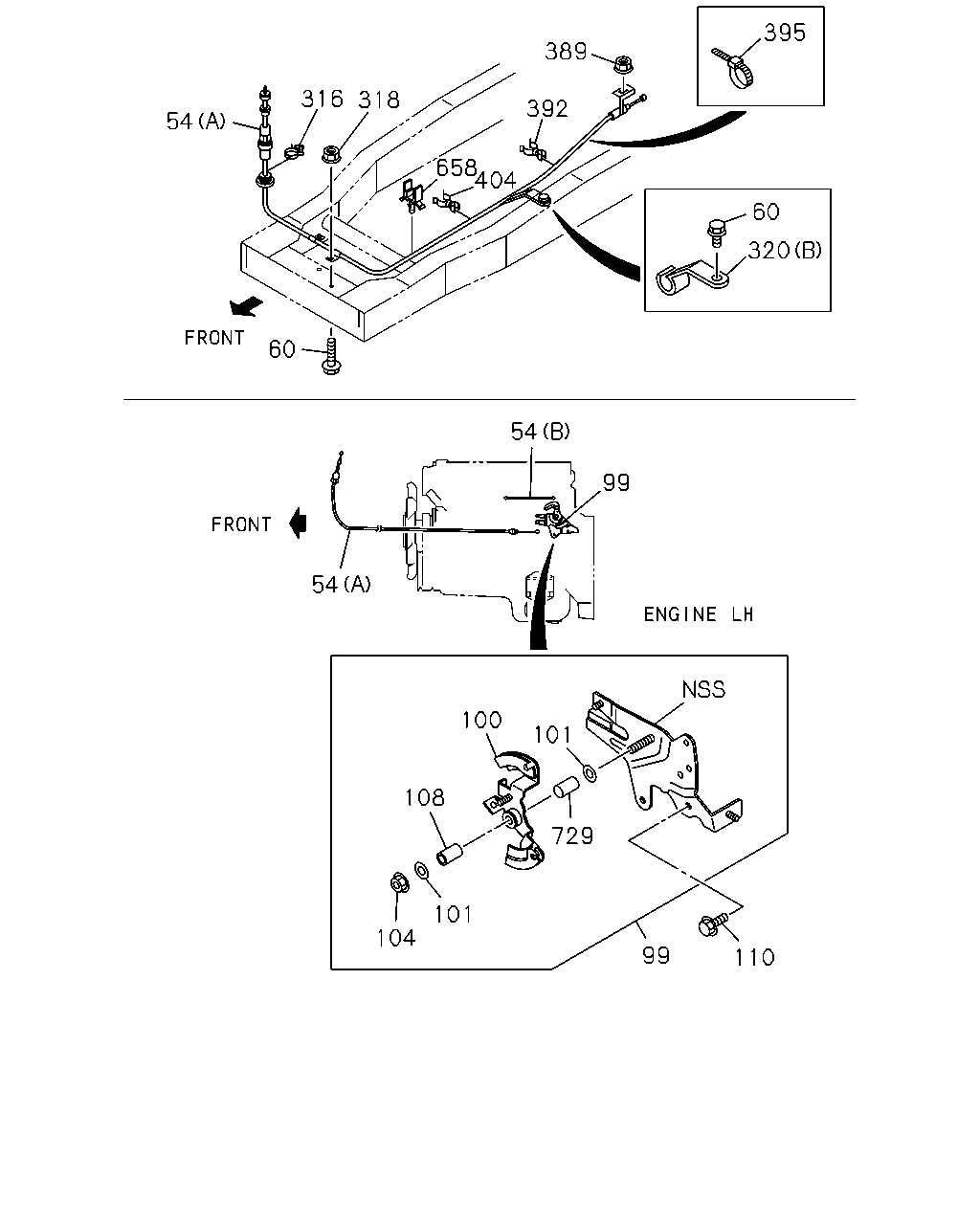

395 389 316 318 392 54 658 404 60 320 60 54 99 54 100 101 108 729 101 104 99 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (D) L=2330	8-97208-002-1	01	1	0106-	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-1	01	1	9811-0105	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-2	01	1	0106-	●	●	●
54	03.430 CABLE; ENG CONT ENGINE POWER N-SPEC(7QV) (A) L=2600	8-97118-865-2	01	1	0106-				●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-4	01	1	9811-0105	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-4	01	1	0106-0107	●	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (A) L=2703	8-97071-711-5	01	1	0108-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	9811-0107	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) (B) L=293	8-97115-730-0	01	1	0108-	●	●	●	●	●
54	03.430 CABLE; ENG CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) L=2300	8-97046-362-3	01	1	9811-0105	●	●	●	●	●
54	03.430 CABLE; ENG CONT (C) L=2300	8-97046-362-3	01	1	9811-0105						●
54	03.430 CABLE; ENG CONT 4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (C) L=2300	8-97046-362-4	01	1	0106-	●	●	●		●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0106-	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	9811-0105	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0106-0107	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0108-	●	●	●	●	●	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0105	●	●	●	●	●
60	08.155 BOLT; CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9811-0105	●
60	08.155 BOLT; CABLE 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-0107	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0106-0107	●	●	●
60	08.155 BOLT; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0108-	●	●	●	●	●
60	08.155 BOLT; CABLE 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> 02.664 M8X20 FLANGE	0-28680-820-0	01	1	0108-	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	9811-0107	●	●	●	●	●
99	03.463 BRACKET ASM; ENG CONT,INL MANIF 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-729-0	01	1	0108-	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	9811-0107	●	●	●	●	●
100	03.463 SHAFT ASM; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-737-0	01	1	0108-	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	9811-0107	●	●	●	●	●
101	03.463 WASHER; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 01.276	8-94142-117-0	02	1	0108-	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0107	●	●	●	●	●
104	03.463 NUT; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV) 07.633 M8 FLANGE	0-91150-108-0	01	1	0108-	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	9811-0107	●	●	●	●	●
108	03.463 BUSHING; ENG CONT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97120-004-0	01	1	0108-	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	9811-0107	●	●	●	●	●
110	03.463 BOLT; BRKT TO HANGER 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. ENGINE POWER N-SPEC(7QV) 01.062 M8X16 FLANGE	0-28080-816-0	03	1	0108-	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 16.065 ID=9	5-09707-027-0	01	1	9811-0105	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4JB1 ENG(RLF),4HF1 ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0106-0107	●	●	●	●	●	●
316	03.425 CLIP; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 16.065 ID=9	5-09707-027-0	01	1	0108-	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	9811-0105	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0106-0107	●	●	●	●	●	●
318	03.275 NUT; LAMP BRKT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.833 M8 W/LK WASHER	8-94327-073-0	02	1	0108-	●	●	●	●	●	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) (A)	8-94167-969-2	01	1	9811-0105	●
320	03.483 CLIP; FRAME 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41) (A)	8-94167-969-2	01	1	9811-0105		●	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0106-	●
320	03.483 CLIP; FRAME 4JB1 ENG(RLF) EXC. HEATER & DEFROSTER(C41),CHARGE AIR COOLER<6PL> (A)	8-94167-969-2	01	1	0106-		●	●
320	03.483 CLIP; FRAME 4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	9811-0107	●	●	●	●	●
320	03.483 CLIP; FRAME 4HG1 ENG(RJH),4HF1 ENG(RLS) EXC. HEATER & DEFROSTER(C41) 06.672 (B)	8-94178-110-0	01	1	0108-	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	9811-0107	●	●	●	●	●
389	03.483 NUT; ACCEL CONT CABLE FIX 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.594 M6 FLANGE	0-91150-106-0	01	1	0108-	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL> ID=6 & 10.5	1-09709-218-0	01	1	0106-	●
392	03.483 CLIP; ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 L=330	5-09709-118-0	02	1	9811-0105	●			●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> 03.008 L=330	5-09709-118-0	02	1	0106-	●				●	●
392	03.483 CLIP; ACCEL CONT CABLE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> 02.334 ID=16	9-09525-552-0	01	1	0106-	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HF1 ENG(RLS) ID=6 & 10	8-94154-844-0	01	1	9811-0107	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) ID=6 & 10	8-94154-844-0	01	1	0108-0109	●	●	●	●	●
392	03.483 CLIP; ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> EXC. HEATER & DEFROSTER(C41) 08.852 L=350	8-94152-256-1	01	1	0110-	●			●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> 03.162 L=140	5-09707-031-1	01	1	9811-0105	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JG2 ENG(RJC),4JB1 ENG(RLF) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	01	1	9811-0105		●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4JB1 ENG(RLF) HEATER & DEFROSTER(C41) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL> 03.162 L=140	5-09707-031-1	01	1	0106-	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	9811-0107	●	●	●	●	●
395	03.483 CLIP; BAND,ACCEL CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) 03.162 L=140	5-09707-031-1	02	1	0108-	●	●	●	●	●
404	03.483 CLIP; CABLE 4HF1 ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	9811-0107	●	●	●	●	●
404	03.483 CLIP; CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) HEATER & DEFROSTER(C41) ID=20.2 & 6	8-94472-577-0	01	1	0108-	●	●	●	●	●
658	03.430 CLIP; ENG CONT CABLE 4HG1 ENG(RJH),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. HEATER & DEFROSTER(C41) 04.930 ID=10 H=40	8-94462-219-0	01	1	0110-	●	●	●
729	03.451 COLLAR; JOINT 4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	9811-0107	●	●	●	●	●
729	03.451 COLLAR; JOINT 4HG1 ENG(RJH),4HF1 ENG(RLS) FLOOR REMOTE SHIFT<M11> EXC. ENGINE POWER N-SPEC(7QV)	8-97118-760-0	01	1	0108-	●	●	●	●	●

68 70 158 35 83 80 89 67 124 81 124 124 87 90 124 80 232 80 39 14 46 230 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
14	03.451 PAD; PEDAL,ACCEL	8-97853-062-2	01	1	9811-	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97857-401-1	01	1	9811-0012	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL	8-97302-305-0	01	1	0101-0105	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97302-305-0	01	1	0106-0107	●	●	●	●	●	●
35	03.459 STOPPER; ACCEL PEDAL 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97302-305-0	01	1	0108-	●	●	●	●	●	●
39	03.459 NUT; ACCEL PEDAL STOPPER 02.559 M8	9-09110-408-0	01	1	9811-	●	●	●	●	●	●
46	03.485 RING; SNAP,ACCEL CONT PEDAL 04.040 ID=4	9-09185-404-0	01	1	9811-	●	●	●	●	●	●
65	03.483 BOLT 16.550 M8X16 W/LK&PL WASHER	8-94310-730-0	02	1	9811-	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT L=439	8-97853-058-1	01	1	9811-0105	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4JB1 ENG(RLF),4HF1 ENG(RLS) L=439	8-97853-058-1	01	1	0106-0107	●	●	●	●	●	●
67	03.480 CABLE ASM; IDLE CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) L=439	8-97853-058-1	01	1	0108-	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT	8-97853-765-1	01	1	9811-0105	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-765-1	01	1	0106-0107	●	●	●	●	●	●
68	03.480 KNOB; IDLE CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-765-1	01	1	0108-	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE M18	8-97853-233-0	01	1	9811-0105	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE 4JB1 ENG(RLF),4HF1 ENG(RLS) M18	8-97853-233-0	01	1	0106-0107	●	●	●	●	●	●
70	03.483 NUT; CONT CABLE 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) M18	8-97853-233-0	01	1	0108-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT (A)	8-97853-057-9	01	1	9811-0105	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JH1 ENG(RJX) (C)	8-97892-195-7	01	1	0106-	●	●	●
80	03.452 LINK ASM; ENG CONT (B)	8-97853-061-2	01	1	9811-	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97853-057-9	01	1	0106-0107	●	●	●	●	●	●
80	03.452 LINK ASM; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97853-057-9	01	1	0108-	●	●	●	●	●	●
81	03.459 SPRING; RETURN,ENG CONT LEVER	8-97853-205-1	01	1	9811-	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK	8-97853-201-4	01	1	9811-0105	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4JH1 ENG(RJX)	8-97892-196-2	01	1	0106-	●	●	●
83	03.452 BRACKET; CONT LINK 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-201-4	01	1	0106-0107	●	●	●	●	●	●
83	03.452 BRACKET; CONT LINK 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-201-4	01	1	0108-	●	●	●	●	●	●
87	03.454 LINK; ENG CONT	8-97853-204-1	01	1	9811-0105	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-204-1	01	1	0106-0107	●	●	●	●	●	●
87	03.454 LINK; ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97853-204-1	01	1	0108-	●	●	●	●	●	●
89	03.454 LEVER; RELAY	8-97868-042-0	01	1	9811-0105	●	●	●	●	●	●
89	03.454 LEVER; RELAY 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97868-042-0	01	1	0106-0107	●	●	●	●	●	●
89	03.454 LEVER; RELAY 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97868-042-0	01	1	0108-	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT	8-97868-039-0	01	1	9811-0105	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JH1 ENG(RJX)	8-97892-197-2	01	1	0106-	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97868-039-0	01	1	0106-0107	●	●	●	●	●	●
90	03.454 LEVER; RELAY,ENG CONT 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS)	8-97868-039-0	01	1	0108-	●	●	●	●	●	●
124	03.463 NUT; LEVER (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	9811-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0106-0107	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (A) ID=4.9 PUSH NUT	8-94279-042-0	02	1	0108-	●	●	●	●	●	●
124	03.463 NUT; LEVER 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	9811-0105	●	●	●	●	●	●
124	03.463 NUT; LEVER 4JH1 ENG(RJX) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	01	1	0106-	●	●	●
124	03.463 NUT; LEVER 4JB1 ENG(RLF),4HF1 ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0106-0107	●	●	●	●	●	●
124	03.463 NUT; LEVER 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 09.011 (B) ID=9.9 PUSH NUT	8-97012-098-0	02	1	0108-	●	●	●	●	●	●
158	03.452 NUT; BRKT 08.857 M8 FLANGE	8-94279-060-0	02	1	9811-	●	●	●	●	●	●
230	03.452 PIN; JOINT,ACCEL PEDAL TO BRKT	8-97853-064-0	01	1	9811-	●	●	●	●	●	●
232	03.459 BOLT; STOPPER,ACCEL PEDAL 04.642 M8X65	0-20800-865-0	01	1	9811-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
