0-86 — MISCELLANEOUS PARTS; INJECTION PUMP (#23584) — 15 parça

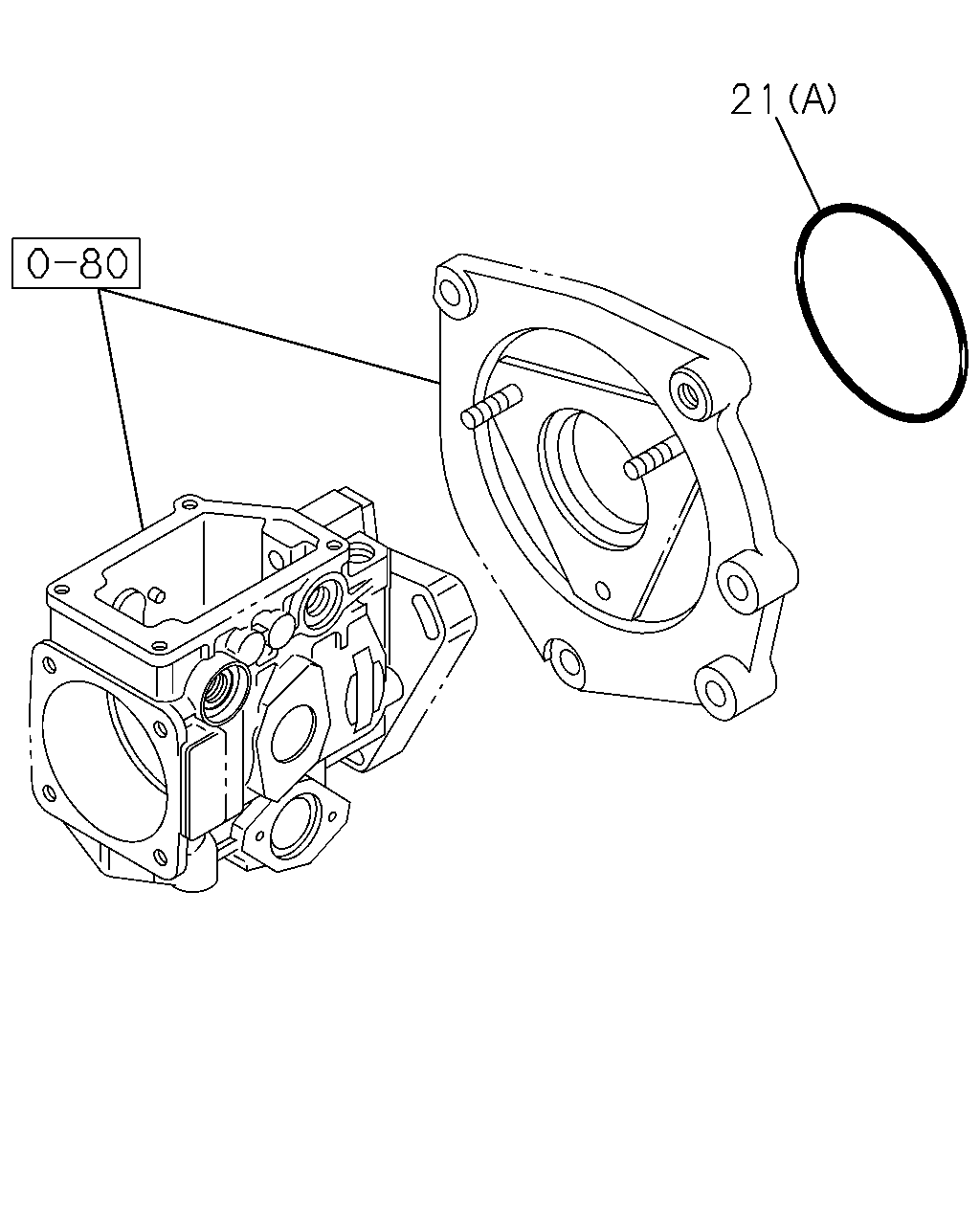

çizim 7916
21
BalonParca AdiParca NoAdetTipApplied Date A B
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9811- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9811- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9811- ●

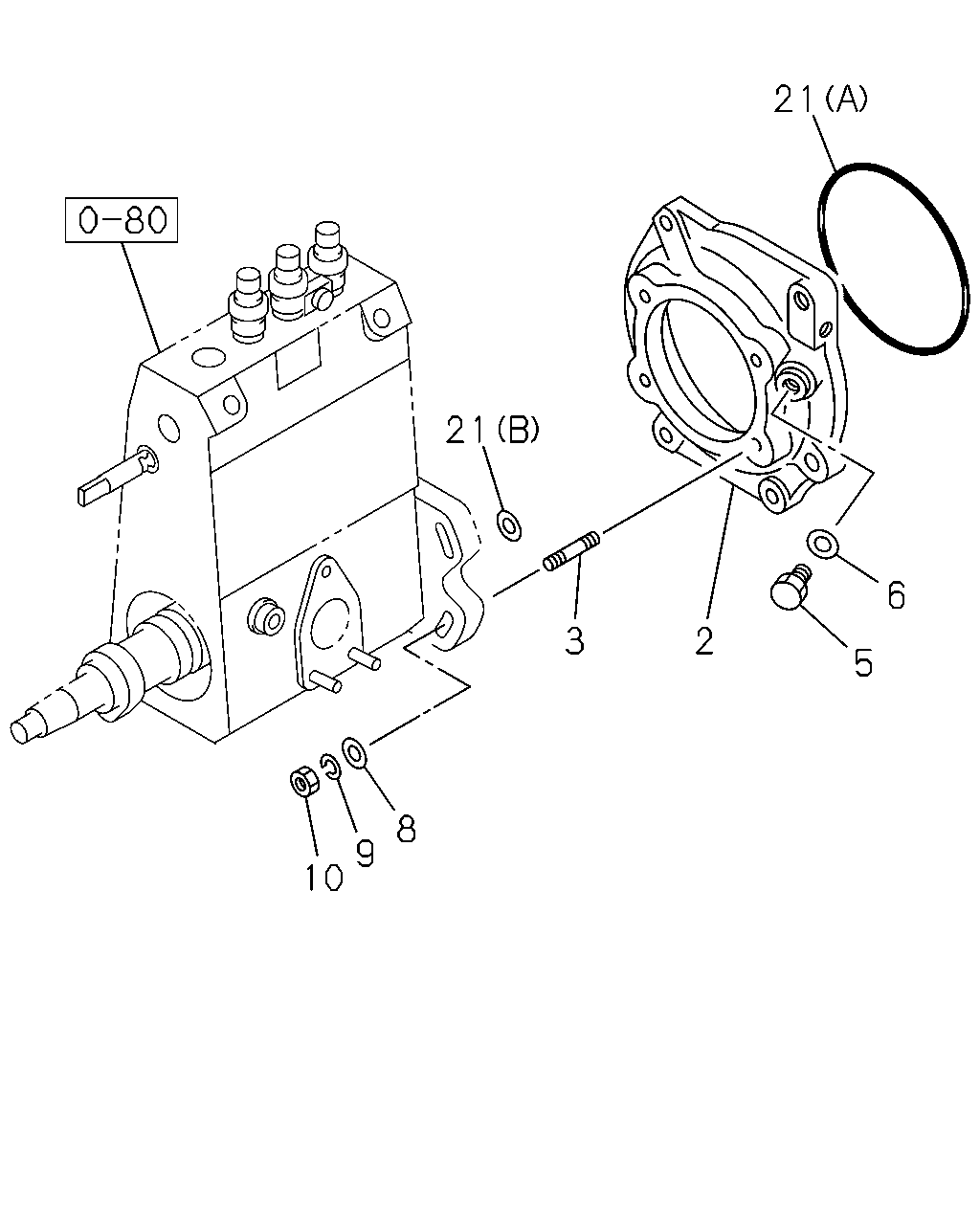

çizim 48525
21 21 6 3 2 5 8 9 10
BalonParca AdiParca NoAdetTipApplied Date A B
2 03.306 BRACKET; HSG & TIMER,INJ PUMP 8-97123-609-0 01 1 0108- ●
2 03.306 BRACKET; HSG & TIMER,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		8-97121-616-0 01 1 9811- ●
3 03.330 STUD; HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 08.981 M10X30 L=45 		9-04101-030-0 04 1 9811- ●
5 03.306 PLUG; HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		8-97026-919-0 01 1 9811- ● ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 9811-0107 ●
6 03.306 GASKET; PLUG,INJ PUMP BRKT
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 03.308 		1-15729-787-0 01 1 0108- ● ●
8 03.306 WASHER; PL,HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 06.896 ID=10.5 		9-09164-510-0 04 1 9811- ● ●
9 03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2 		9-09150-610-0 04 1 0108- ●
10 03.306 NUT; HSG BRKT,INJ PUMP
EXC. AIR CONDITIONER MANUAL CONT(C60), ENGINE POWER N-SPEC(7QV) 		5-15639-002-0 04 1 9811- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A) 		8-97039-200-1 01 1 9811- ● ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE POWER N-SPEC(7QV). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9811- ●
21 03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0 		9-09572-014-0 04 1 9811- ●
