Sayfa 1-50B - Isuzu EPC

1-50B — EXHAUST PIPE AND SILENCER (#2358) — 357 parça

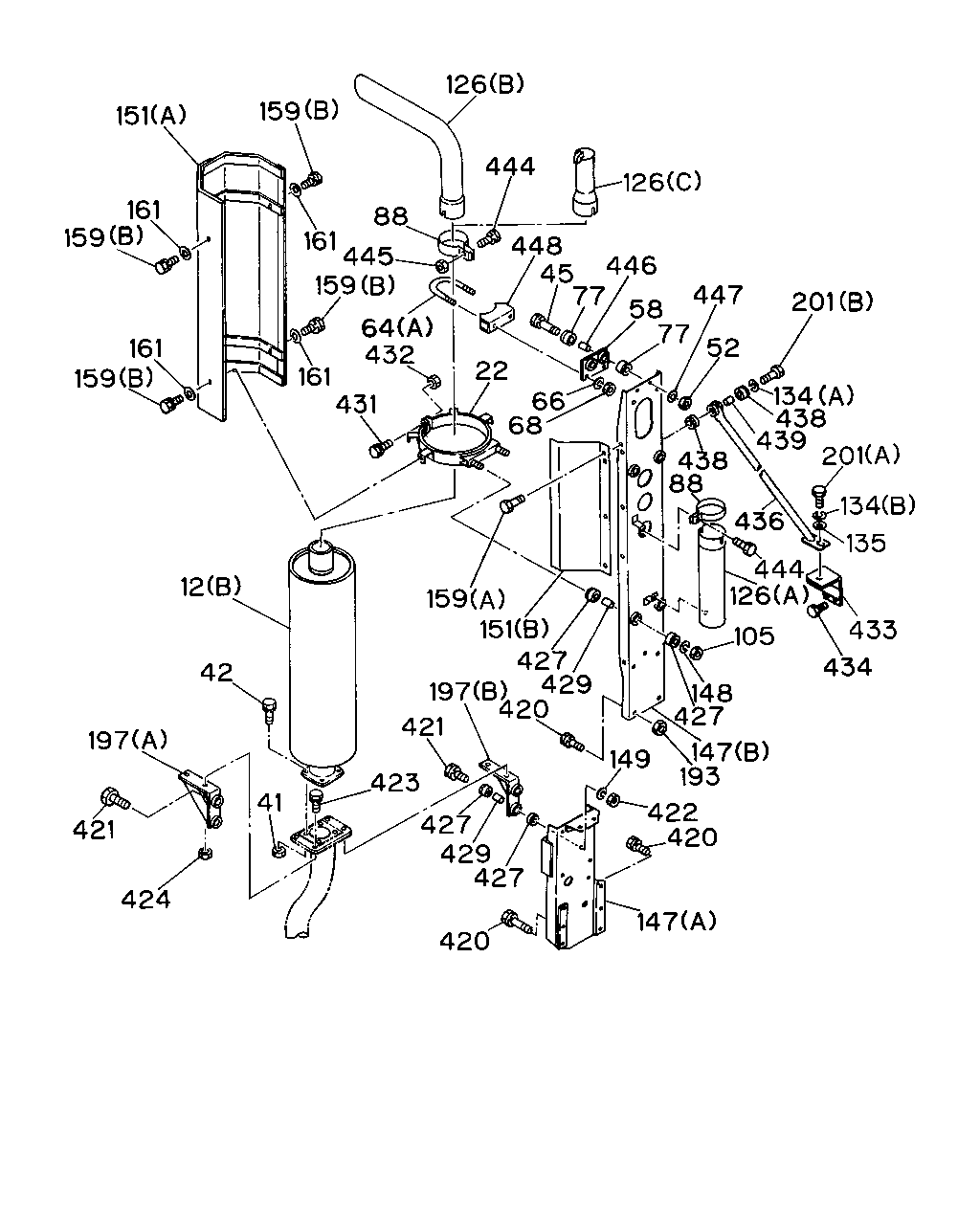

151 161 159 161 159 159 126 88 161 445 159 444 64 161 431 22 448 126 45 446 77 447 58 66 68 77 52 201 134 438 88 439 438 436 201 444 126 134 135 433 434 105 148 427 149 147 193 422 420 147 420 427 429 427 423 41 424 421 197 42 12 421 159 197 151 420 429 427 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-1	01	1	9002-9103	●	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-2	01	1	9104-9306	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22140-596-1	01	1	9002-9410	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9411-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-681-0	01	1	9411-	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-754-1	01	1	9307-	●		●
22	CLAMP; EXH PIPE	1-22133-163-0	01	1	9002-		●	●
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	01	1	9002-	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9002-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9305-	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●
45	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	02	1	9002-9004	●	●
45	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9005-	●	●	●
52	NUT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●	●	●
58	BRACKET; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22131-169-0	01	1	9002-	●	●	●
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9002-	●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8 L=173.5	1-22113-020-0	01	1	9002-9412	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22113-061-0	01	1	9501-	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9002-9502	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-	●
66	WASHER; LK,U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9002-	●
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-	●	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9002-	●
77	RUBBER; CUSHION,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9002-9306	●	●
77	RUBBER; CUSHION,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	04	1	9307-	●		●
88	CLAMP; EXH PIPE THAILAND EQUIPMENT(PM9) EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	02	1	9002-	●		●
88	CLAMP; EXH PIPE ID=97	1-22133-043-1	01	1	9002-		●
88	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,THAILAND EQUIPMENT(PM9) ID=97	1-22133-043-1	01	1	9002-	●		●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	01	1	9002-	●
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22112-265-1	01	1	9002-	●		●
126	PIPE; EXH,RR (C)	1-22112-639-1	01	1	9002-		●
126	PIPE; EXH,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22112-639-1	01	1	9002-	●		●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22112-640-1	01	1	9002-9306	●
126	PIPE; EXH,RR ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22122-396-1	01	1	9307-	●
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) ID=10.2	9-09150-510-0	01	1	9002-	●	●	●
134	WASHER; LK,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) ID=14.2	9-09150-614-0	01	1	9002-	●	●	●
135	WASHER; PL,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=15	9-09160-514-0	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) UPPER	1-22151-408-5	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) LOWER	1-22151-582-2	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B) LOWER	1-22151-518-4	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-	●
148	WASHER; LK,CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
149	WASHER; LK,PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22159-099-1	01	1	9002-	●	●	●
151	PROTECTOR; HEAT,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22159-104-2	01	1	9002-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9204	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9205-9302	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01900-820-0	08	1	9002-9204	●
161	WASHER; PL,HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	08	1	9002-	●	●	●
193	NUT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9002-	●	●	●
197	BRACKET; EXH PIPE,VERTICAL (B)	1-22151-405-2	01	1	9002-		●	●
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22151-405-2	01	1	9002-	●
197	BRACKET; EXH PIPE,VERTICAL (A)	1-22151-409-2	01	1	9002-		●	●
197	BRACKET; EXH PIPE,VERTICAL EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22151-409-2	01	1	9002-	●
197	BRACKET; EXH PIPE,VERTICAL ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-593-0	01	1	9002-9306	●
197	BRACKET; EXH PIPE,VERTICAL ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-594-0	01	1	9002-9306	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	9-01056-050-0	01	1	9002-9004	●	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X50	0-10806-050-0	01	1	9005-	●	●	●
201	BOLT; STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M14X40	9-92061-440-0	01	1	9002-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X25	9-01911-225-0	04	1	9002-9005	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X25 W/LK WASHER	0-50041-225-0	04	1	9006-	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X32 W/LK WASHER	9-01911-232-0	03	1	9002-9005	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12X32 W/LK WASHER	0-50041-232-0	03	1	9006-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X45	9-01911-245-0	03	1	9002-9005	●	●
420	BOLT; BRKT,VERTICAL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12X45 W/LK WASHER	0-50041-245-0	03	1	9006-	●	●	●
420	BOLT; BRKT,VERTICAL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X50	0-10806-250-0	03	1	9307-	●		●
420	BOLT; BRKT,VERTICAL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 W/LK WASHER	0-50041-240-0	03	1	9307-	●		●
421	BOLT; PIPE BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	04	1	9002-9004	●	●
421	BOLT; PIPE BRKT EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	04	1	9005-	●	●	●
422	NUT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-	●	●	●
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
423	BOLT; PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●	●
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	04	1	9002-9304	●	●
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9305-9306	●	●
424	NUT; BRKT TO PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9307-	●		●
427	SUPPORT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	16	1	9002-9306	●	●
427	SUPPORT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	16	1	9307-	●		●
429	COLLAR; DIST,SUPPORT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	08	1	9002-	●	●	●
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40	9-01901-040-0	02	1	9002-9204	●	●
431	BOLT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	02	1	9205-	●	●	●
432	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●	●	●
433	BRACKET; STAY,EXH PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-532-0	01	1	9002-	●	●	●
433	BRACKET; STAY,EXH PIPE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-523-1	01	1	9307-	●		●
434	BOLT; BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	0-50041-035-0	04	1	9002-	●	●	●
436	STAY; SUPPORT,EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-608-0	01	1	9002-9306	●	●
436	STAY; SUPPORT,EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22151-513-0	01	1	9307-	●		●
438	RUBBER; SUPPORT,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	02	1	9002-9306	●	●
438	RUBBER; SUPPORT,STAY EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	02	1	9307-	●		●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=23.2	9-22159-009-1	01	1	9002-9109	●	●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22.0	9-22159-024-0	01	1	9110-9507	●	●	●
439	TUBE; DIST,SUPPORT RUBBER EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=25	1-14234-083-0	01	1	9508-	●	●	●
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10X40 W/LK WASHER	0-50041-040-0	02	1	9002-	●		●
444	BOLT; PIPE CLAMP M10X40 W/LK WASHER	0-50041-040-0	01	1	9002-		●
444	BOLT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M10X40 W/LK WASHER	0-50041-040-0	01	1	9002-	●		●
445	NUT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●		●
445	NUT; PIPE CLAMP M10	9-09110-510-0	01	1	9002-		●
445	NUT; PIPE CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M10	9-09110-510-0	01	1	9002-	●		●
446	PIECE; DIST,EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	02	1	9002-	●	●	●
447	WASHER; LK,BRKT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9002-	●	●	●
448	PIECE; DIST,U-BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-064-0	01	1	9002-	●	●	●

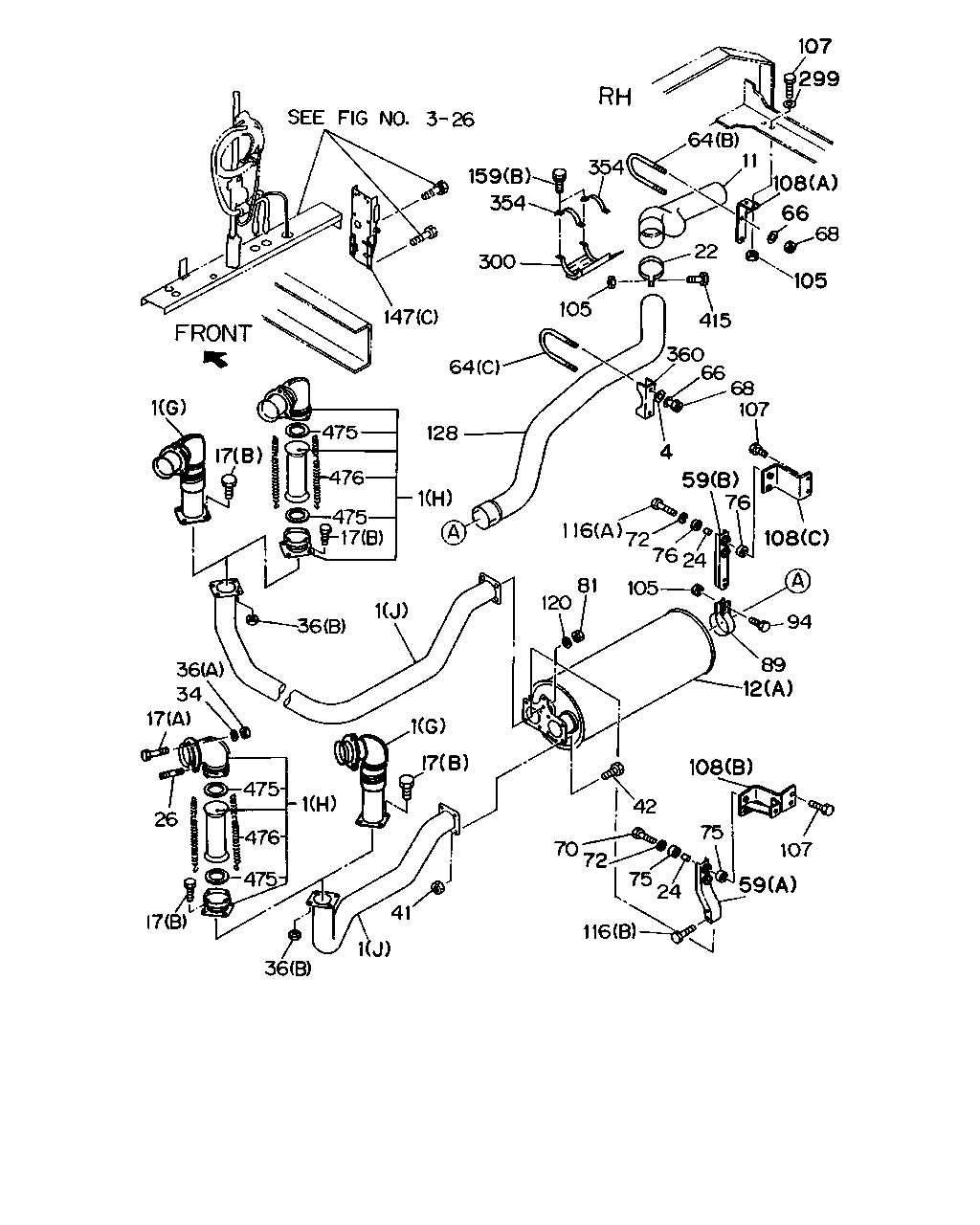

17 26 17 475 476 34 36 36 1 475 36 1 1 17 1 120 81 70 41 116 72 75 24 42 75 59 108 107 12 94 89 105 116 72 76 76 24 108 59 4 107 68 66 360 415 105 64 128 1 17 475 476 475 17 1 147 300 354 159 354 64 107 299 108 11 66 68 105 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-916-0	01	1	9002-9509	●	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-789-0	01	1	9510-	●		●
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-917-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-701-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-780-0	01	1	9510-	●		●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-702-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-596-1	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (M)	1-22122-779-0	01	1	9510-	●		●
1	PIPE; EXH AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (E)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (H)	1-22121-771-0	01	1	9111-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (J)	1-22121-881-0	01	1	9002-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22121-881-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (H)	1-22121-770-0	01	1	9111-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (J)	1-22121-880-0	01	1	9002-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22121-880-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9411-9509	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9510-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22122-659-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-541-2	01	1	9510-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-541-2	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22122-653-0	01	1	9411-	●
4	WASHER; PL,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	02	1	9002-	●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22112-976-1	01	1	9002-9306	●
11	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22122-395-0	01	1	9307-	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-1	01	1	9002-9103	●	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-659-2	01	1	9104-9306	●	●
12	SILENCER ASM; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22140-706-0	01	1	9002-9306	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22140-596-1	01	1	9002-9410	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-596-1	01	1	9411-	●
12	SILENCER ASM; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (A)	1-22140-681-0	01	1	9411-	●
12	SILENCER ASM; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22140-754-1	01	1	9307-	●		●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9410	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-	●
22	CLAMP; EXH PIPE	1-22133-163-0	01	1	9002-		●	●
22	CLAMP; EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22133-163-0	01	1	9002-	●
22	CLAMP; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=97	1-22133-043-1	01	1	9002-	●
24	COLLAR; DIST,CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> L=22	9-22159-024-0	04	1	9002-	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	08	1	9002-	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9305-	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22151-353-2	01	1	9002-9410	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22151-353-2	01	1	9411-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-379-0	01	1	9002-	●
59	BRACKET; EXH SILENCER,FRT TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (A)	1-22151-604-0	01	1	9411-	●
64	U-BOLT; EXH PIPE,RR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22113-063-1	01	1	9002-	●	●	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8 L=173.5	1-22113-020-0	01	1	9002-9412	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22113-061-0	01	1	9501-	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8 L=142.5	1-22139-077-1	01	1	9002-9502	●
64	U-BOLT; EXH PIPE,RR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) L=150	1-22113-008-1	01	1	9503-	●
66	WASHER; LK,U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
66	WASHER; LK,U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.2	9-09150-508-0	04	1	9002-	●
68	NUT; U BOLT EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-	●	●	●
68	NUT; U BOLT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	04	1	9002-	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	9-01056-050-0	02	1	9002-9004	●
70	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X50	0-10806-050-0	02	1	9005-	●
72	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	04	1	9002-	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9002-9306	●
75	RUBBER; SUPPORT,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> OD=40	1-22159-094-0	08	1	9307-	●
76	SUPPORT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22159-065-0	04	1	9002-9306	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	02	1	9002-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9307-	●
81	NUT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	02	1	9402-	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> D=79	1-22133-218-0	01	1	9002-9410	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. ANTI NOISE EQUIPMENT<SV9> D=79	1-22133-218-0	01	1	9411-	●
89	CLAMP; EXH SILENCER,RR TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9>	1-22133-172-2	01	1	9411-	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	9-01910-835-0	02	1	9002-9005	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 W/LK WASHER	0-50040-835-0	02	1	9006-9302	●
94	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8X35 FLANGE	0-28080-835-0	02	1	9303-	●
105	NUT; CLAMP EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M10	9-09110-510-0	04	1	9002-	●	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M8	9-09110-408-0	02	1	9002-	●
105	NUT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	01	1	9002-	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M10X30 W/LK WASHER	0-50041-030-0	02	1	9002-9306	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M8X30 W/LK WASHER	0-50040-830-0	02	1	9307-	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35	9-01911-235-0	05	1	9002-9005	●
107	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 W/LK WASHER	0-50041-235-0	06	1	9006-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (A)	1-22131-594-1	01	1	9002-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (B)	1-22151-576-2	01	1	9002-	●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-22151-577-2	01	1	9002-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	9-01056-050-0	02	1	9002-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M10X50	0-10806-050-0	02	1	9005-	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	9-01056-075-0	02	1	9002-9004	●
116	BOLT; BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M10X75	0-10806-075-0	02	1	9005-	●
120	WASHER; LK,BRKT TAIL PIPE SINGLE HORIZONTAL<NC2> ID=10.2	9-09150-510-0	02	1	9002-	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22112-975-0	01	1	9002-9410	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22112-975-0	01	1	9411-	●
128	PIPE; EXH,RR TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH>	1-22126-154-0	01	1	9411-	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) UPPER	1-22151-408-5	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) LOWER	1-22151-582-2	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (B) LOWER	1-22151-518-4	01	1	9002-	●	●	●
147	BRACKET; VERTICAL PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (C)	1-53497-365-2	01	1	9401-	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01910-820-0	08	1	9002-9005	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9006-9204	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 W/LK WASHER	0-50040-820-0	08	1	9205-9302	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	08	1	9303-	●	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	9-01960-818-0	03	1	9002-9204	●	●
159	BOLT; HEAT PROTECTOR EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) M8X18 W/LK&PL WASHER	0-50140-818-0	03	1	9205-	●	●	●
159	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M8X20 W/LK WASHER	9-01900-820-0	08	1	9002-9204	●
299	WASHER; PL,U-BOLT,FRT EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ID=8.4 OD=22	9-09160-708-0	02	1	9002-	●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-247-0	02	1	9002-9306	●
300	PROTECTOR; HEAT,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-248-0	02	1	9307-	●
354	CLAMP; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-246-0	04	1	9002-	●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22119-162-0	01	1	9002-9412	●
360	PIECE; DIST,EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2>	1-22113-060-1	01	1	9501-	●
415	BOLT; CLAMP TAIL PIPE SINGLE HORIZONTAL<NC2> M10X35 W/LK WASHER	0-50041-035-0	01	1	9002-	●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-223-0	04	1	9111-9408	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	04	1	9409-	●	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-248-0	08	1	9111-	●	●	●

342 17 26 34 36 475 476 475 20 1 343 1 21 1 343 342 475 475 476 1 343 1 342 34 36 17 26 21 1 26 17 41 42 1 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-916-0	01	1	9002-9509	●	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-789-0	01	1	9510-	●		●
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-917-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-701-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-780-0	01	1	9510-	●		●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-702-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-596-1	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (M)	1-22122-779-0	01	1	9510-	●		●
1	PIPE; EXH AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (E)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (H)	1-22121-771-0	01	1	9111-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (J)	1-22121-881-0	01	1	9002-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22121-881-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (H)	1-22121-770-0	01	1	9111-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (J)	1-22121-880-0	01	1	9002-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22121-880-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9411-9509	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9510-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22122-659-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-541-2	01	1	9510-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-541-2	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22122-653-0	01	1	9411-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9410	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-	●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●	●
21	NUT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9407	●	●	●
21	NUT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9408-	●	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	08	1	9002-	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-412-0	04	1	9002-9304	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	04	1	9002-9304	●
41	NUT; EXH PIPE TO EXH SILENCER M12	9-99110-512-0	04	1	9305-	●	●	●
41	NUT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	04	1	9305-	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●
42	BOLT; EXH PIPE TO EXH SILENCER M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●		●
42	BOLT; EXH PIPE TO EXH SILENCER TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●
342	BOLT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
342	BOLT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-9306	●	●
342	BOLT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9307-9509	●	●	●
342	BOLT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	08	1	9510-	●	●	●
342	BOLT; 3 WAY PIPE ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
342	BOLT; 3 WAY PIPE ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9306	●
343	NUT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9304	●	●
343	NUT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9305-9306	●	●
343	NUT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9307-9509	●	●	●
343	NUT; 3 WAY PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	08	1	9510-	●	●	●
343	NUT; 3 WAY PIPE ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-412-0	08	1	9002-9304	●
343	NUT; 3 WAY PIPE ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12	9-99110-512-0	08	1	9305-9306	●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-223-0	04	1	9111-9408	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	04	1	9409-	●	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-248-0	08	1	9111-	●	●	●

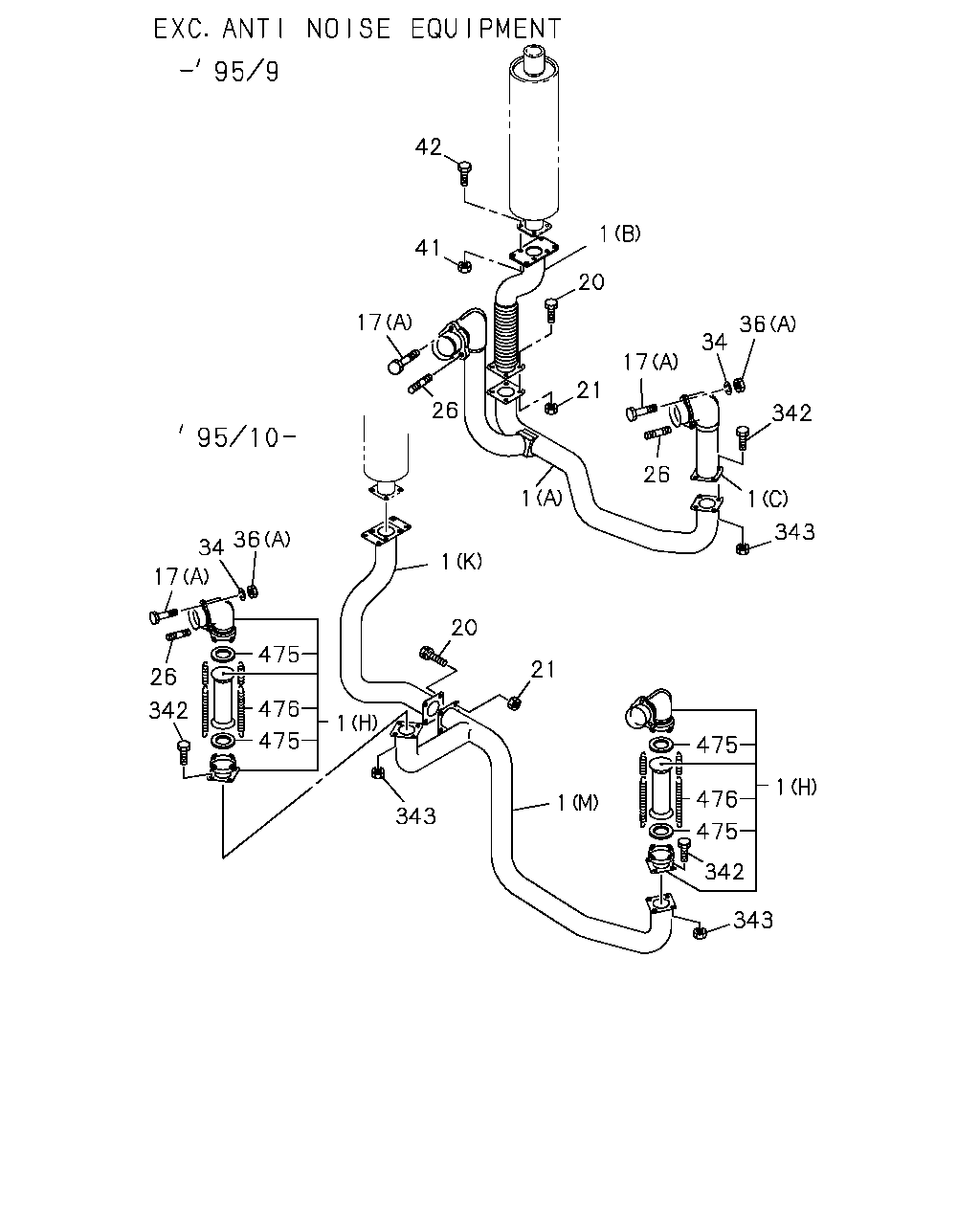

475 476 475 26 1 17 34 36 1 20 1 21 1 475 476 17 475

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-916-0	01	1	9002-9509	●	●	●
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-789-0	01	1	9510-	●		●
1	PIPE; EXH AIR DRYER<PS7> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-917-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (A)	1-22121-701-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (K)	1-22122-780-0	01	1	9510-	●		●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7>,ANTI NOISE EQUIPMENT<SV9> (B)	1-22121-702-0	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (C)	1-22121-596-1	01	1	9002-9509	●	●	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (M)	1-22122-779-0	01	1	9510-	●		●
1	PIPE; EXH AIR DRYER<PS7> ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (E)	1-22121-943-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-945-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (F)	1-22121-944-0	01	1	9002-9306	●
1	PIPE; EXH ANTI NOISE EQUIPMENT<SV9> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,AIR DRYER<PS7> (E)	1-22122-027-0	01	1	9002-9306	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22121-250-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (H)	1-22121-771-0	01	1	9111-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-771-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (J)	1-22121-881-0	01	1	9002-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22121-881-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (G)	1-22121-248-0	01	1	9002-9110	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (H)	1-22121-770-0	01	1	9111-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-770-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> (J)	1-22121-880-0	01	1	9002-9410	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22121-880-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9411-9509	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-542-2	01	1	9510-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-542-2	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22122-659-0	01	1	9411-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-541-2	01	1	9411-9509	●
1	PIPE; EXH EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> (H)	1-22121-541-2	01	1	9510-	●		●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (H)	1-22121-541-2	01	1	9510-	●
1	PIPE; EXH TAIL PIPE SINGLE HORIZONTAL<NC2> EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (J)	1-22122-653-0	01	1	9411-	●
17	BOLT; EXH PIPE (A) M12X120	1-09000-293-0	02	1	9002-	●	●	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	9-01911-230-0	08	1	9002-9005	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9006-9410	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> (B) M12X30 W/LK WASHER	0-50041-230-0	08	1	9411-	●
17	BOLT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12X30 W/LK WASHER	0-50041-230-0	04	1	9411-	●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	9-01911-230-0	04	1	9002-9005	●	●
20	BOLT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12X30 W/LK WASHER	0-50041-230-0	04	1	9006-	●	●	●
21	NUT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-412-0	04	1	9002-9407	●	●	●
21	NUT; FLANGE,EXH PIPE EXC. TAIL PIPE SINGLE HORIZONTAL<NC2>,ANTI NOISE EQUIPMENT<SV9> M12	9-99110-512-0	04	1	9408-	●	●	●
26	STUD; EXH MANIF M12X90 L=110	1-09302-035-0	04	1	9002-	●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	06	1	9002-	●	●	●
36	NUT; EXH PIPE (A) M12	1-09400-010-0	06	1	9002-	●	●	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12	9-99110-512-0	08	1	9002-	●
36	NUT; EXH PIPE TAIL PIPE SINGLE HORIZONTAL<NC2> ANTI NOISE EQUIPMENT<SV9> (B) M12	9-99110-512-0	04	1	9411-	●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-223-0	04	1	9111-9408	●	●	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	04	1	9409-	●	●	●
476	SPRING; VIBNON,EXH PIPE	1-09583-248-0	08	1	9111-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
