1 |

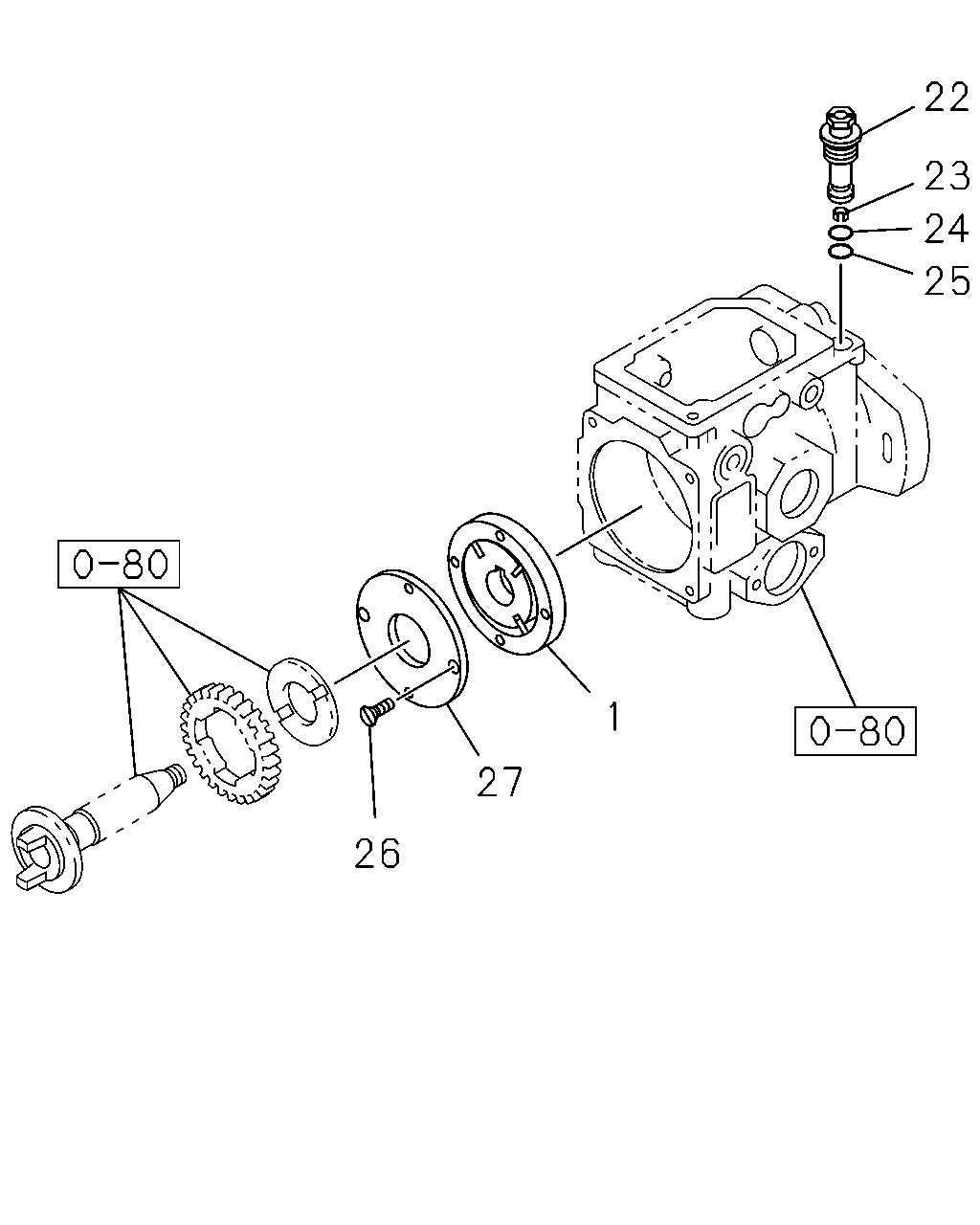

03.900 PUMP ASM; FUEL FEED,INJ PUMP
03.340
ASM PART: F = 8-97216-365-0, 97216365, G = 8-97216-366-0, 97216366
|
8-94227-477-0 |
01 |
1 |
- |
| |
1 |
03.900 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092
|
8-94478-848-0 |
01 |
1 |
- |
| |
22 |
03.901 VALVE; REGULATING,INJ PUMP
STAMP 06
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092, F = 8-97216-365-0, 97216365,
G = 8-97216-366-0, 97216366
|
8-94174-819-0 |
01 |
1 |
- |
| |
23 |
03.901 RING; SPRING,REGULATING VLV,INJ
03.320
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092, F = 8-97216-365-0, 97216365,
G = 8-97216-366-0, 97216366
|
8-94227-643-0 |
01 |
1 |
- |
| |
24 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092, F = 8-97216-365-0, 97216365,
G = 8-97216-366-0, 97216366
|
8-94227-641-0 |
01 |
1 |
- |
| |
25 |
03.904 GASKET; REGULATING VLV,INJ PUMP
03.330
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092, F = 8-97216-365-0, 97216365,
G = 8-97216-366-0, 97216366
|
8-94227-640-0 |
01 |
1 |
- |
| |
26 |
03.901 SCREW; COVER FIX,FUEL FEED PUMP
03.330
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092, F = 8-97216-365-0, 97216365,
G = 8-97216-366-0, 97216366
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
03.910 COVER; FUEL FEED PUMP
03.322
ASM PART: A = 8-97120-179-1, 97120179, B = 8-97120-180-1, 97120180,
C = 8-97120-181-1, 97120181, D = 8-97122-090-1, 97122090,
E = 8-97122-092-1, 97122092, F = 8-97216-365-0, 97216365,
G = 8-97216-366-0, 97216366
|
8-94227-478-0 |
01 |
1 |
- |
