Sayfa 0-84A - Isuzu EPC

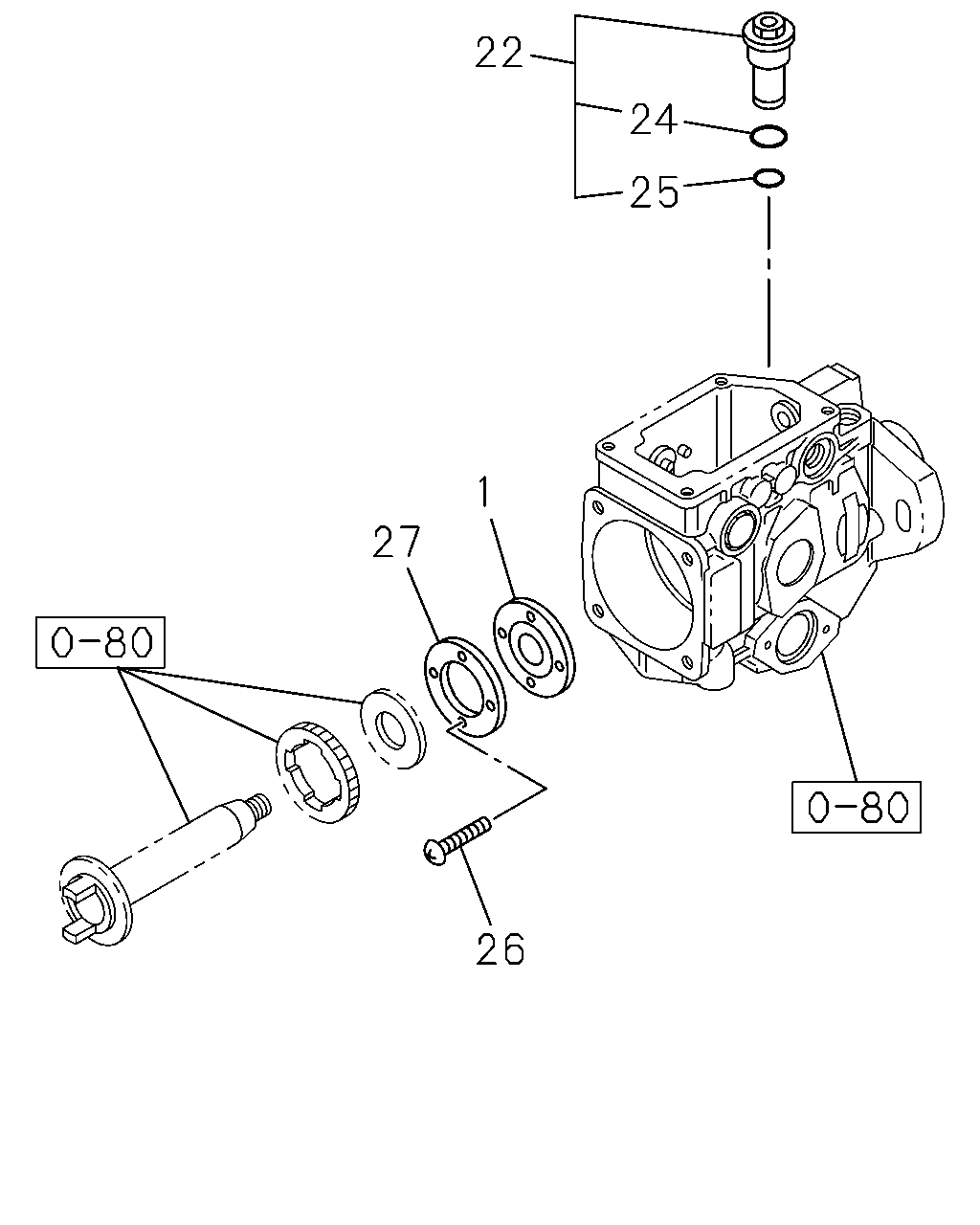

0-84A — FEED PUMP; INJECTION PUMP (#23573) — 6 parça

22 24 25 1 27 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.900 PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-765-0	01	1	-
22	03.901 VALVE; REGULATING,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-916-0	01	1	-
24	03.904 GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-212-0	01	1	-
25	03.904 GASKET; REGULATING VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97209-534-0	01	1	-
26	03.901 SCREW; COVER FIX,FUEL FEED PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-184-0	02	1	-
27	03.910 COVER; FUEL FEED PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-932-0	01	1	-
