◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50A - EXHAUST PIPE AND SILENCER ▶
1-50A — EXHAUST PIPE AND SILENCER (#2357) — 98 parça

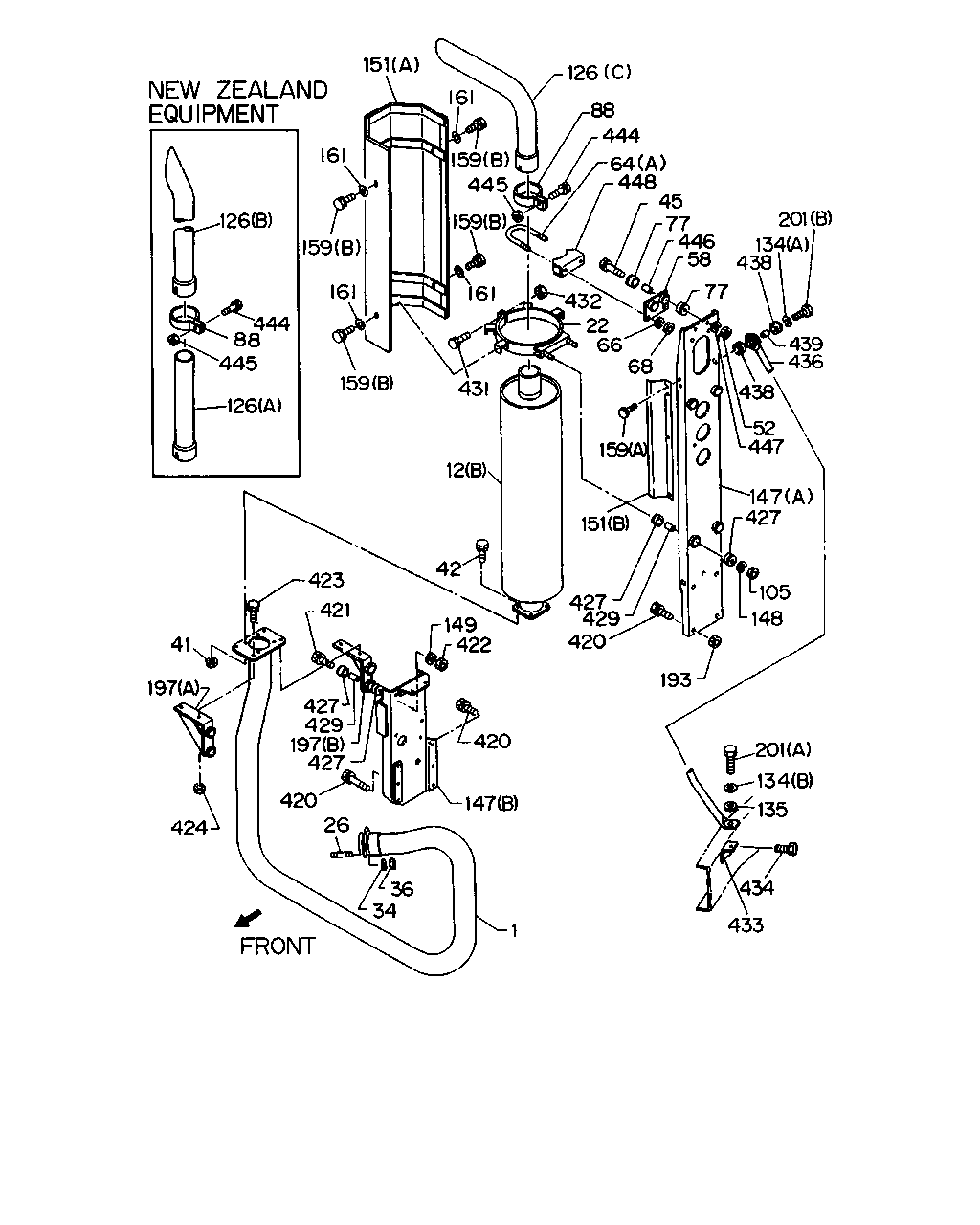

çizim 29508
151 161 126 444 88 445 126 161 159 161 159 445 159 161 159 431 12 432 22 66 68 159 126 88 444 64 448 45 77 201 134 438 77 58 446 439 436 438 52 447 147 151 427 105 148 193 420 429 427 42 423 41 197 424 34 1 36 26 420 427 197 427 429 421 149 422 420 147 433 135 434 134 201
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH 1-22122-026-0 01 1 9002-9012 ●
1 PIPE; EXH 1-22122-081-1 01 1 9101-9306 ●
1 PIPE; EXH 1-22122-081-1 01 1 9002- ●
1 PIPE; EXH 1-22121-930-0 01 1 9002-9306 ●
12 SILENCER ASM; EXH
(B) 		1-22140-641-2 01 1 9002-9103 ●
12 SILENCER ASM; EXH
(B) 		1-22140-627-3 01 1 9104-9306 ● ●
12 SILENCER ASM; EXH
(B) 		1-22140-626-2 01 1 9002-9103 ●
12 SILENCER ASM; EXH
(B) 		1-22140-627-2 01 1 9002-9103 ●
12 SILENCER ASM; EXH
(B) 		1-22140-756-1 01 1 9307- ●
12 SILENCER ASM; EXH
(B) 		1-22140-659-2 01 1 9104-9306 ●
22 CLAMP; EXH PIPE 1-22133-163-0 01 1 9002- ● ● ●
26 STUD; EXH MANIF 1-09302-090-0 03 1 9002- ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=26 DISH 		1-09556-002-0 03 1 9002- ● ● ●
36 NUT; EXH PIPE
M12 		1-09400-010-0 03 1 9002- ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-412-0 04 1 9002-9304 ● ● ●
41 NUT; EXH PIPE TO EXH SILENCER
M12 		9-99110-512-0 04 1 9305- ● ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 		9-01911-240-0 04 1 9002-9005 ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X40 W/LK WASHER 		0-50041-240-0 04 1 9006- ● ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		9-01911-230-0 04 1 9002-9005 ●
42 BOLT; EXH PIPE TO EXH SILENCER
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9006-9306 ●
45 BOLT; BRKT
M10X50 		9-01056-050-0 02 1 9002-9004 ● ● ●
45 BOLT; BRKT
M10X50 		0-10806-050-0 02 1 9005- ● ● ●
52 NUT; BRKT
M10 		9-09110-510-0 02 1 9002- ● ● ●
58 BRACKET; EXH PIPE,RR 1-22131-169-0 01 1 9002- ● ● ●
64 U-BOLT; EXH PIPE,RR
(A) 		1-22113-063-1 01 1 9002- ● ● ●
66 WASHER; LK,U BOLT
ID=8.2 		9-09150-508-0 02 1 9002- ● ● ●
68 NUT; U BOLT
M8 		9-09110-408-0 02 1 9002- ● ● ●
77 RUBBER; CUSHION,BRKT 1-22159-065-0 04 1 9002-9306 ● ● ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 04 1 9307- ●
88 CLAMP; EXH PIPE
NEW ZEALAND EQUIPMENT(PK5) ID=97 		1-22133-043-1 02 1 9002- ● ●
88 CLAMP; EXH PIPE
EXC. NEW ZEALAND EQUIPMENT(PK5) ID=97 		1-22133-043-1 01 1 9002- ● ●
88 CLAMP; EXH PIPE
ID=97 		1-22133-043-1 01 1 9002- ●
105 NUT; CLAMP
M10 		9-09110-510-0 04 1 9002- ● ● ●
126 PIPE; EXH,RR
NEW ZEALAND EQUIPMENT(PK5) (A) 		1-22112-265-1 01 1 9002- ● ●
126 PIPE; EXH,RR
EXC. NEW ZEALAND EQUIPMENT(PK5) (C) 		1-22112-639-1 01 1 9002- ● ●
126 PIPE; EXH,RR
(C) 		1-22112-639-1 01 1 9002- ●
126 PIPE; EXH,RR
NEW ZEALAND EQUIPMENT(PK5) (B) 		1-22112-640-1 01 1 9002- ● ●
134 WASHER; LK,STAY
(A) ID=10.2 		9-09150-510-0 01 1 9002- ● ● ●
134 WASHER; LK,STAY
(B) ID=14.2 		9-09150-614-0 01 1 9002- ● ● ●
135 WASHER; PL,STAY
ID=15 		9-09160-514-0 01 1 9002- ● ● ●
147 BRACKET; VERTICAL PIPE
(A) UPPER 		1-22151-408-5 01 1 9002- ● ● ●
147 BRACKET; VERTICAL PIPE
AIR DRYER<PS7> (B) LOWER 		1-22151-582-2 01 1 9002- ● ● ●
147 BRACKET; VERTICAL PIPE
EXC. AIR DRYER<PS7> (B) LOWER 		1-22151-518-4 01 1 9002- ● ● ●
148 WASHER; LK,CLAMP
ID=10.2 		9-09150-510-0 04 1 9002- ● ● ●
149 WASHER; LK,PIPE BRKT
ID=10.2 		9-09150-510-0 04 1 9002- ● ● ●
151 PROTECTOR; HEAT,EXH PIPE
(A) 		1-22159-099-1 01 1 9002- ● ● ●
151 PROTECTOR; HEAT,EXH PIPE
(B) 		1-22159-104-2 01 1 9002- ● ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 W/LK WASHER 		9-01910-820-0 08 1 9002-9005 ● ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 W/LK WASHER 		0-50040-820-0 08 1 9006-9204 ● ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 W/LK WASHER 		0-50040-820-0 08 1 9205-9302 ● ● ●
159 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28080-820-0 08 1 9303- ● ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X18 W/LK&PL WASHER 		9-01960-818-0 03 1 9002-9204 ● ● ●
159 BOLT; HEAT PROTECTOR
(A) M8X18 W/LK&PL WASHER 		0-50140-818-0 03 1 9205- ● ● ●
161 WASHER; PL,HEAT PROTECTOR
ID=8.4 OD=22 		9-09160-708-0 08 1 9002- ● ● ●
193 NUT; BRKT,VERTICAL PIPE
M12 		9-99110-512-0 04 1 9002- ● ● ●
197 BRACKET; EXH PIPE,VERTICAL
(B) 		1-22151-405-2 01 1 9002- ● ● ●
197 BRACKET; EXH PIPE,VERTICAL
(A) 		1-22151-409-2 01 1 9002- ● ● ●
201 BOLT; STAY
(B) M10X50 		9-01056-050-0 01 1 9002-9004 ● ● ●
201 BOLT; STAY
(B) M10X50 		0-10806-050-0 01 1 9005- ● ● ●
201 BOLT; STAY
(A) M14X40 		9-92061-440-0 01 1 9002- ● ● ●
420 BOLT; BRKT,VERTICAL PIPE
M12X25 		9-01911-225-0 04 1 9002-9005 ● ● ●
420 BOLT; BRKT,VERTICAL PIPE
M12X25 W/LK WASHER 		0-50041-225-0 04 1 9006- ● ● ●
420 BOLT; BRKT,VERTICAL PIPE
M12X32 W/LK WASHER 		9-01911-232-0 03 1 9002-9005 ● ● ●
420 BOLT; BRKT,VERTICAL PIPE
M12X32 W/LK WASHER 		0-50041-232-0 03 1 9006- ● ● ●
420 BOLT; BRKT,VERTICAL PIPE
M12X45 		9-01911-245-0 03 1 9002-9005 ● ● ●
420 BOLT; BRKT,VERTICAL PIPE
M12X45 W/LK WASHER 		0-50041-245-0 03 1 9006- ● ● ●
421 BOLT; PIPE BRKT
M10X50 		9-01056-050-0 04 1 9002-9004 ● ● ●
421 BOLT; PIPE BRKT
M10X50 		0-10806-050-0 04 1 9005- ● ● ●
422 NUT; PIPE
M10 		9-09110-510-0 04 1 9002- ● ● ●
423 BOLT; PIPE
M12X30 W/LK WASHER 		9-01911-230-0 04 1 9002-9005 ● ● ●
423 BOLT; PIPE
M12X30 W/LK WASHER 		0-50041-230-0 04 1 9006- ● ● ●
424 NUT; BRKT TO PIPE
M12 		9-99110-412-0 04 1 9002-9304 ● ● ●
424 NUT; BRKT TO PIPE
M12 		9-99110-512-0 04 1 9305-9306 ● ● ●
424 NUT; BRKT TO PIPE
M12 		9-99110-512-0 04 1 9307- ●
427 SUPPORT; CLAMP 1-22159-065-0 16 1 9002-9306 ● ● ●
427 SUPPORT; CLAMP
OD=40 		1-22159-094-0 16 1 9307- ●
429 COLLAR; DIST,SUPPORT
L=22 		9-22159-024-0 08 1 9002- ● ● ●
431 BOLT; CLAMP
M10X40 		9-01901-040-0 02 1 9002-9204 ● ● ●
431 BOLT; CLAMP
M10X40 W/LK WASHER 		0-50041-040-0 02 1 9205- ● ● ●
432 NUT; CLAMP
M10 		9-09110-510-0 02 1 9002- ● ● ●
433 BRACKET; STAY,EXH PIPE 1-22151-532-0 01 1 9002- ● ● ●
434 BOLT; BRKT
M10X35 W/LK WASHER 		0-50041-035-0 04 1 9002- ● ● ●
436 STAY; SUPPORT,EXH 1-22151-608-0 01 1 9002-9306 ● ● ●
436 STAY; SUPPORT,EXH 1-22151-513-0 01 1 9307- ●
438 RUBBER; SUPPORT,STAY 1-22159-065-0 02 1 9002-9306 ● ● ●
438 RUBBER; SUPPORT,STAY
OD=40 		1-22159-094-0 02 1 9307- ●
439 TUBE; DIST,SUPPORT RUBBER
L=23.2 		9-22159-009-1 01 1 9002-9109 ● ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=22.0 		9-22159-024-0 01 1 9110-9507 ● ● ●
439 TUBE; DIST,SUPPORT RUBBER
L=25 		1-14234-083-0 01 1 9508- ●
444 BOLT; PIPE CLAMP
NEW ZEALAND EQUIPMENT(PK5) M10X40 W/LK WASHER 		0-50041-040-0 02 1 9002- ● ●
444 BOLT; PIPE CLAMP
EXC. NEW ZEALAND EQUIPMENT(PK5) M10X40 W/LK WASHER 		0-50041-040-0 01 1 9002- ● ●
444 BOLT; PIPE CLAMP
M10X40 W/LK WASHER 		0-50041-040-0 01 1 9002- ●
445 NUT; PIPE CLAMP
NEW ZEALAND EQUIPMENT(PK5) M10 		9-09110-510-0 02 1 9002- ● ●
445 NUT; PIPE CLAMP
EXC. NEW ZEALAND EQUIPMENT(PK5) M10 		9-09110-510-0 01 1 9002- ● ●
445 NUT; PIPE CLAMP
M10 		9-09110-510-0 01 1 9002- ●
446 PIECE; DIST,EXH PIPE,RR
L=22 		9-22159-024-0 02 1 9002- ● ● ●
447 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 9002- ● ● ●
448 PIECE; DIST,U-BOLT 1-22113-064-0 01 1 9002- ● ● ●
