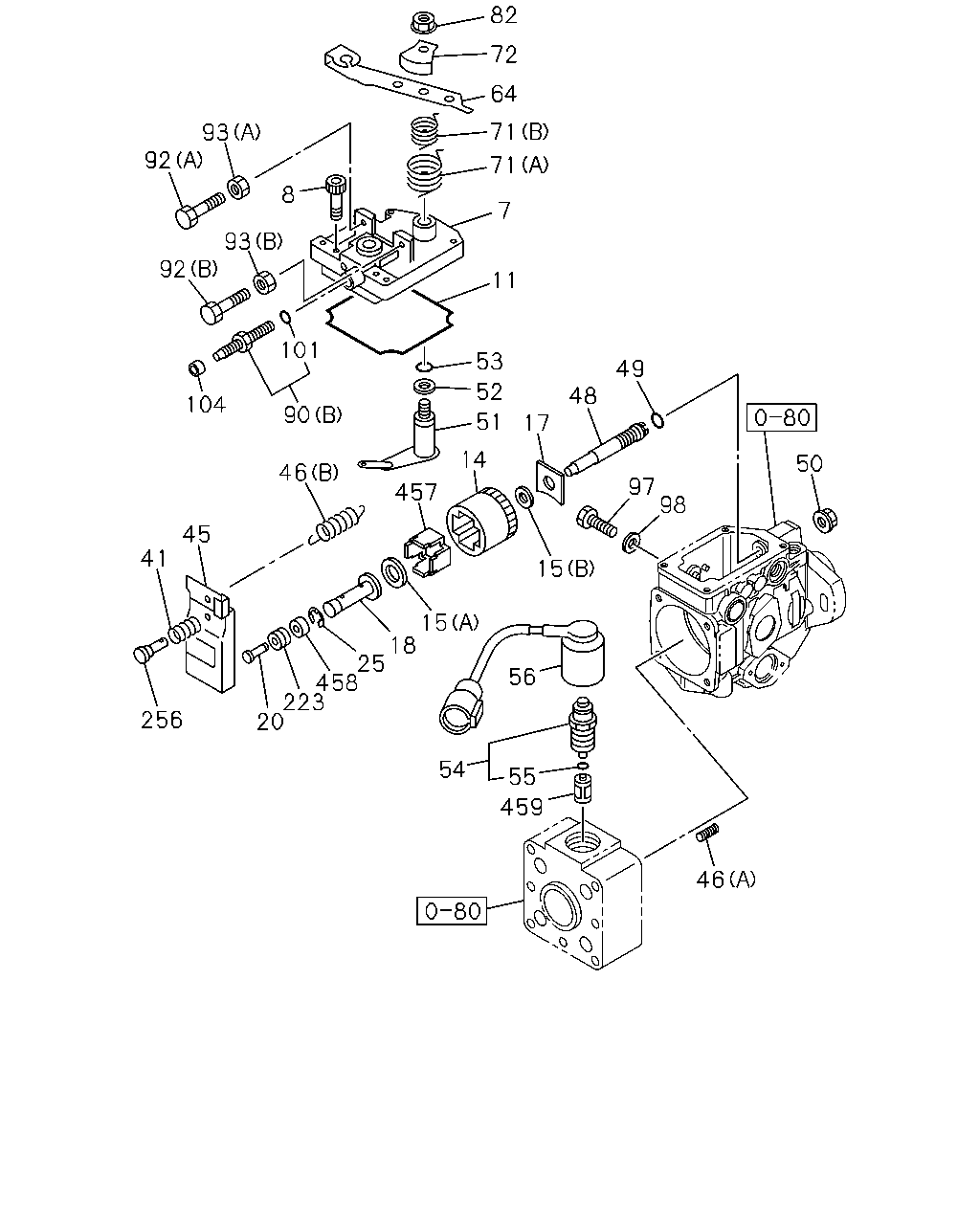

0-81A — GOVERNOR; INJECTION PUMP (#23562) — 95 parça

82 72 64 71 93 92 71 8 7 93 92 11 101 53 49 52 48 104 90 51 17 14 46 97 98 457 45 41 15 15 18 25 458 223 20 56 256 54 55 459 46 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	03.308 COVER; GOV HSG,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-743-0	01	1	-
8	01.531 BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-178-0	04	1	-
11	03.308 GASKET; COVER TO HSG,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-201-0	01	1	-
14	03.308 HOLDER; GOV FLYWEIGHT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-921-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97140-828-0	01	1	-
15	03.308 WASHER; LK,FLYWEIGHT FIX,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97140-830-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.05 ASM PART: A = 8-97138-842-2, 97138842	8-97141-308-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.25 ASM PART: A = 8-97138-842-2, 97138842	8-97141-311-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.45 ASM PART: A = 8-97138-842-2, 97138842	8-97141-313-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.65 ASM PART: A = 8-97138-842-2, 97138842	8-97141-314-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.85 ASM PART: A = 8-97138-842-2, 97138842	8-97141-316-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.55 ASM PART: A = 8-97138-842-2, 97138842	8-97141-318-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.75 ASM PART: A = 8-97138-842-2, 97138842	8-97141-319-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=2.05 ASM PART: A = 8-97138-842-2, 97138842	8-97141-320-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.30 ASM PART: A = 8-97138-842-2, 97138842	8-97141-323-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.40 ASM PART: A = 8-97138-842-2, 97138842	8-97141-324-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-97138-842-2, 97138842	8-97141-325-0	01	1	-
17	03.308 SHIM; FLYWEIGHT SLEEVE,GOV T=1.60 ASM PART: A = 8-97138-842-2, 97138842	8-97141-326-0	01	1	-
18	03.308 SLEEVE; GOV D=0.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-861-0	01	1	-
18	03.308 SLEEVE; GOV D=0.45 ASM PART: A = 8-97138-842-2, 97138842	8-97161-862-0	01	1	-
18	03.308 SLEEVE; GOV D=0.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-863-0	01	1	-
18	03.308 SLEEVE; GOV D=0.55 ASM PART: A = 8-97138-842-2, 97138842	8-97212-361-0	01	1	-
18	03.308 SLEEVE; GOV D=0.60 ASM PART: A = 8-97138-842-2, 97138842	8-97212-362-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.80 ASM PART: A = 8-97138-842-2, 97138842	8-97141-381-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.90 ASM PART: A = 8-97138-842-2, 97138842	8-97141-384-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.00 ASM PART: A = 8-97138-842-2, 97138842	8-97141-386-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.10 ASM PART: A = 8-97138-842-2, 97138842	8-97141-387-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.20 ASM PART: A = 8-97138-842-2, 97138842	8-97141-388-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.30 ASM PART: A = 8-97138-842-2, 97138842	8-97141-389-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.40 ASM PART: A = 8-97138-842-2, 97138842	8-97141-390-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-923-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-925-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-926-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-927-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-928-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-929-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-930-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=3.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-931-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-932-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-933-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-934-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.80 ASM PART: A = 8-97138-842-2, 97138842	8-97161-935-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=4.90 ASM PART: A = 8-97138-842-2, 97138842	8-97161-936-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-937-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-938-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-939-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-940-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-941-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-942-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-943-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.70 ASM PART: A = 8-97138-842-2, 97138842	8-97161-944-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.80 ASM PART: A = 8-97138-842-2, 97138842	8-97161-945-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=5.90 ASM PART: A = 8-97138-842-2, 97138842	8-97161-946-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.00 ASM PART: A = 8-97138-842-2, 97138842	8-97161-947-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.10 ASM PART: A = 8-97138-842-2, 97138842	8-97161-948-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.20 ASM PART: A = 8-97138-842-2, 97138842	8-97161-949-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.30 ASM PART: A = 8-97138-842-2, 97138842	8-97161-950-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.40 ASM PART: A = 8-97138-842-2, 97138842	8-97161-951-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.50 ASM PART: A = 8-97138-842-2, 97138842	8-97161-952-0	01	1	-
20	03.308 PLUG; CLOSING,GOV SLEEVE L=6.60 ASM PART: A = 8-97138-842-2, 97138842	8-97161-953-0	01	1	-
25	03.308 RING; SNAP ASM PART: A = 8-97138-842-2, 97138842	8-97141-563-0	01	1	-
41	03.308 SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-904-0	01	1	-
45	03.308 LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-859-0	01	1	-
46	03.308 SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-159-0	02	1	-
46	03.308 SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-908-0	01	1	-
48	03.308 SHAFT; GOV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-865-0	01	1	-
49	03.308 GASKET; GOV SHAFT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97140-848-0	01	1	-
50	03.308 NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97161-864-0	01	1	-
51	03.308 SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-860-0	01	1	-
52	03.308 WASHER; CONT SHAFT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-264-0	01	1	-
53	03.308 GASKET; CONT SHAFT,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-190-0	01	1	-
54	03.308 VALVE; MAG,ENG STOP,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97202-042-0	01	1	-
55	03.308 GASKET; MAG VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97202-044-0	01	1	-
56	03.308 WIRE; LEAD,MAG VLV,INJ PUMP ASM PART: A = 8-97138-842-2, 97138842	8-97141-439-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 605 ASM PART: A = 8-97138-842-2, 97138842	8-97161-912-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 606 ASM PART: A = 8-97138-842-2, 97138842	8-97161-913-0	01	1	-
64	03.308 LEVER; LOAD CONT,GOV MARK 607 ASM PART: A = 8-97138-842-2, 97138842	8-97161-914-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97161-909-0	01	1	-
71	03.306 SPRING; CONT LEVER,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-910-0	01	1	-
72	03.308 SEAT; SPRING,CONT LEVER,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97161-907-0	01	1	-
82	03.308 NUT; CONT LEVER FIX,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97141-567-0	01	1	-
90	03.308 SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97161-873-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-437-0	01	1	-
92	03.308 BOLT; FULL LOAD STOPPER,GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97141-438-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-97138-842-2, 97138842	8-97141-177-0	01	1	-
93	03.162 NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-97138-842-2, 97138842	8-97141-216-0	01	1	-
97	03.308 BOLT; PIVOT,GOV LEVER ASM PART: A = 8-97138-842-2, 97138842	8-97141-250-0	02	1	-
98	03.308 GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 8-97138-842-2, 97138842	8-97202-045-0	02	1	-
101	03.308 GASKET; ADJ SPRING CAPSULE,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97209-533-0	01	1	-
104	03.308 CAP; LOCK NUT,ADJ SCREW ID=7.9 L=8 ASM PART: A = 8-97138-842-2, 97138842	8-97141-372-0	01	1	-
223	03.308 BEARING; SLEEVE ASM PART: A = 8-97138-842-2, 97138842	8-97141-564-0	01	1	-
256	03.308 SEAT; GOV SPRING ASM PART: A = 8-97138-842-2, 97138842	8-97161-905-0	01	1	-
457	03.308 FLYWEIGHT; GOV ASM PART: A = 8-97138-842-2, 97138842	8-97140-822-0	04	1	-
458	03.308 RING; SLEEVE,GOV ASM PART: A = 8-97138-842-2, 97138842	8-97140-859-0	01	1	-
459	03.300 FILTER; SOLENOID ASM PART: A = 8-97138-842-2, 97138842	8-97141-571-0	01	1	-
