0-80A — INJECTION PUMP (#23556) — 63 parça

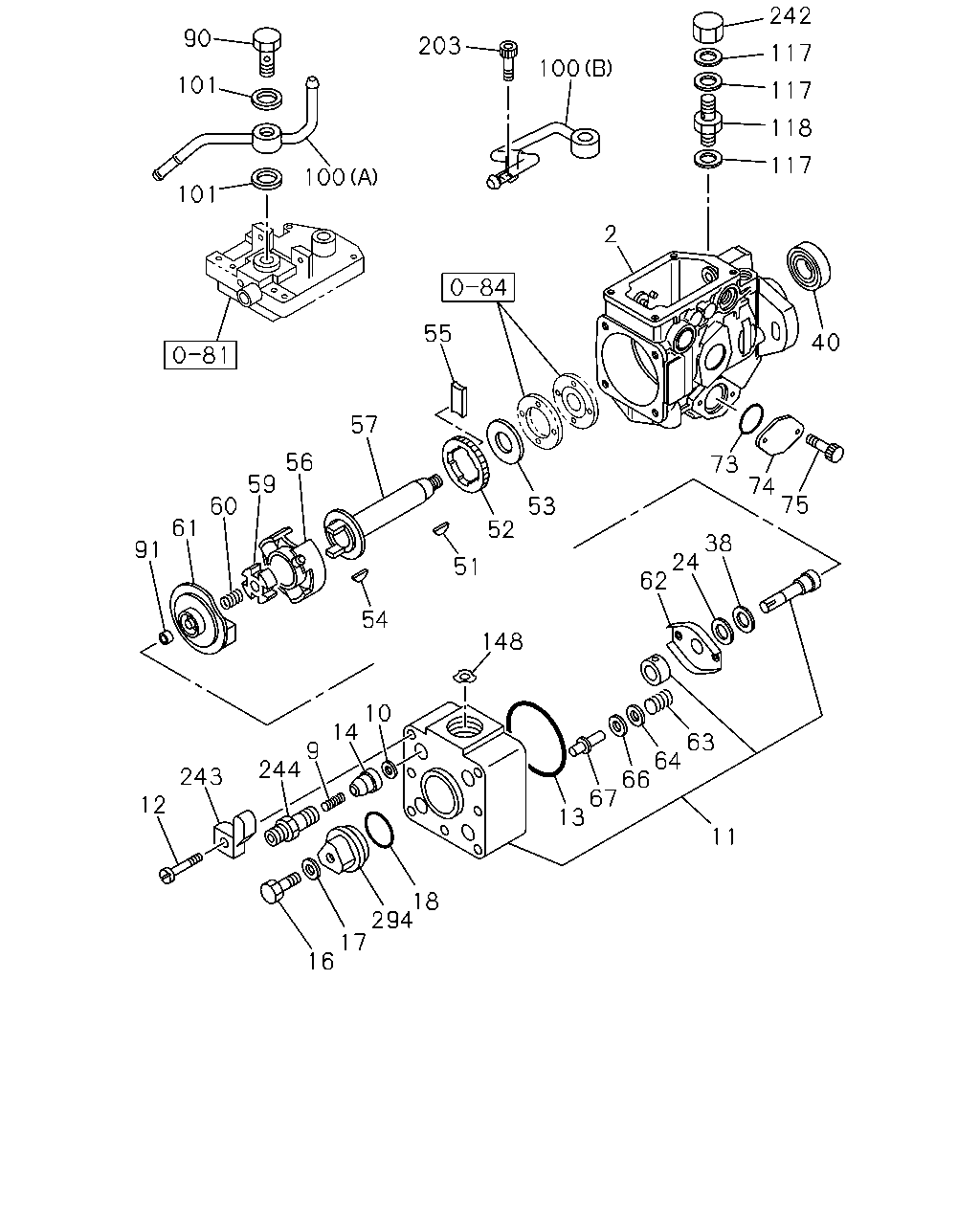

çizim 10398
242 90 203 117 100 101 117 118 117 100 101 2 55 40 57 56 73 74 75 59 60 53 61 52 38 24 62 91 51 54 148 10 14 63 64 66 67 13 9 244 243 12 11 18 294 17 16
BalonParca AdiParca NoAdetTipApplied Date
2 03.300 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-855-0 01 1 -
9 03.302 SPRING; DELIVERY VLV
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-868-0 04 1 -
10 03.340 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-880-0 04 1 -
11 03.330 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-856-0 01 1 -
12 03.330 SCREW; DISTR HD,INJ PUMP
M6X45 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-258-0 04 1 -
13 03.330 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-158-0 01 1 -
14 03.302 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-867-0 04 1 -
16 03.330 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-902-0 01 1 -
17 03.306 GASKET; BOLT,DISTR PLUG,INJ PUMP
03.308 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-149-0 01 1 -
18 03.306 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97209-532-0 01 1 -
24 03.318 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-905-0 01 1 -
38 03.318 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-903-0 01 1 -
40 03.340 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-940-0 01 1 -
51 03.340 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-939-0 01 1 -
52 03.340 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-927-0 01 1 -
53 03.330 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-930-0 01 1 -
54 03.340 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-936-0 01 1 -
55 03.340 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-928-0 02 1 -
56 03.340 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-858-0 01 1 -
57 03.340 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-857-0 01 1 -
59 03.340 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-877-0 01 1 -
60 03.320 SPRING; DRIVE DISC,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-876-0 01 1 -
61 03.300 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-869-0 01 1 -
62 03.320 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-151-0 01 1 -
63 03.302 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-155-0 02 1 -
64 03.320 SEAT; PLUNGER SPRING LWR,INJ PUM
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-156-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-265-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-266-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-267-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-268-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-269-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-270-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-271-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-272-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-273-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-274-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-275-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-918-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.30 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-919-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-920-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-921-0 02 1 -
66 03.302 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-922-0 02 1 -
67 03.330 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-152-0 02 1 -
73 03.306 GASKET; COVER TO HSG
03.330, ID=27.5 ASM PART: A = 8-97138-842-2, 97138842 		8-97140-980-0 01 1 -
74 03.300 COVER; HSG,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97140-967-0 01 1 -
75 03.330 SCREW; COVER TO HSG
M6X16 ASM PART: A = 8-97138-842-2, 97138842 		8-97140-853-0 02 1 -
90 03.318 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-906-0 01 1 -
91 03.306 SHIM; PLUNGER,INJ PUMP
T=1.90 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-431-0 01 1 -
91 03.306 SHIM; PLUNGER,INJ PUMP
T=2.20 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-955-0 01 1 -
91 03.306 SHIM; PLUNGER,INJ PUMP
T=2.40 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-956-0 01 1 -
91 03.306 SHIM; PLUNGER,INJ PUMP
T=2.70 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-957-0 01 1 -
91 03.306 SHIM; PLUNGER,INJ PUMP
T=2.90 ASM PART: A = 8-97138-842-2, 97138842 		8-97161-958-0 01 1 -
100 03.330 PIPE; FUEL INJ PUMP
(B) ASM PART: A = 8-97138-842-2, 97138842 		8-97161-964-1 01 1 -
100 03.330 PIPE; FUEL INJ PUMP
(A) ASM PART: A = 8-97138-842-2, 97138842 		8-97161-965-0 01 1 -
101 03.162 GASKET; OVERFLOW VLV,INJ PUMP
ID=12.2 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-182-0 02 1 -
117 03.162 GASKET; EYE BOLT,INJ PUMP
ID=12.2 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-182-0 03 1 -
118 03.162 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-240-0 01 1 -
148 03.306 GASKET; COVER FIX BOLT
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-573-0 01 1 -
203 03.330 BOLT; FUEL INL
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-960-0 01 1 -
242 03.308 NUT; CAP
ASM PART: A = 8-97138-842-2, 97138842 		8-97141-252-0 01 1 -
243 03.308 CLIP; DISTR HD,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-968-0 01 1 -
244 03.302 VALVE; SNUBBER,INJ PUMP
ASM PART: A = 8-97138-842-2, 97138842 		8-97161-866-0 04 1 -
294 03.305 PLUG; DISTR,INJ PUMP
03.330 ASM PART: A = 8-97138-842-2, 97138842 		8-97141-143-0 01 1 -
