Sayfa 0-66 - Isuzu EPC

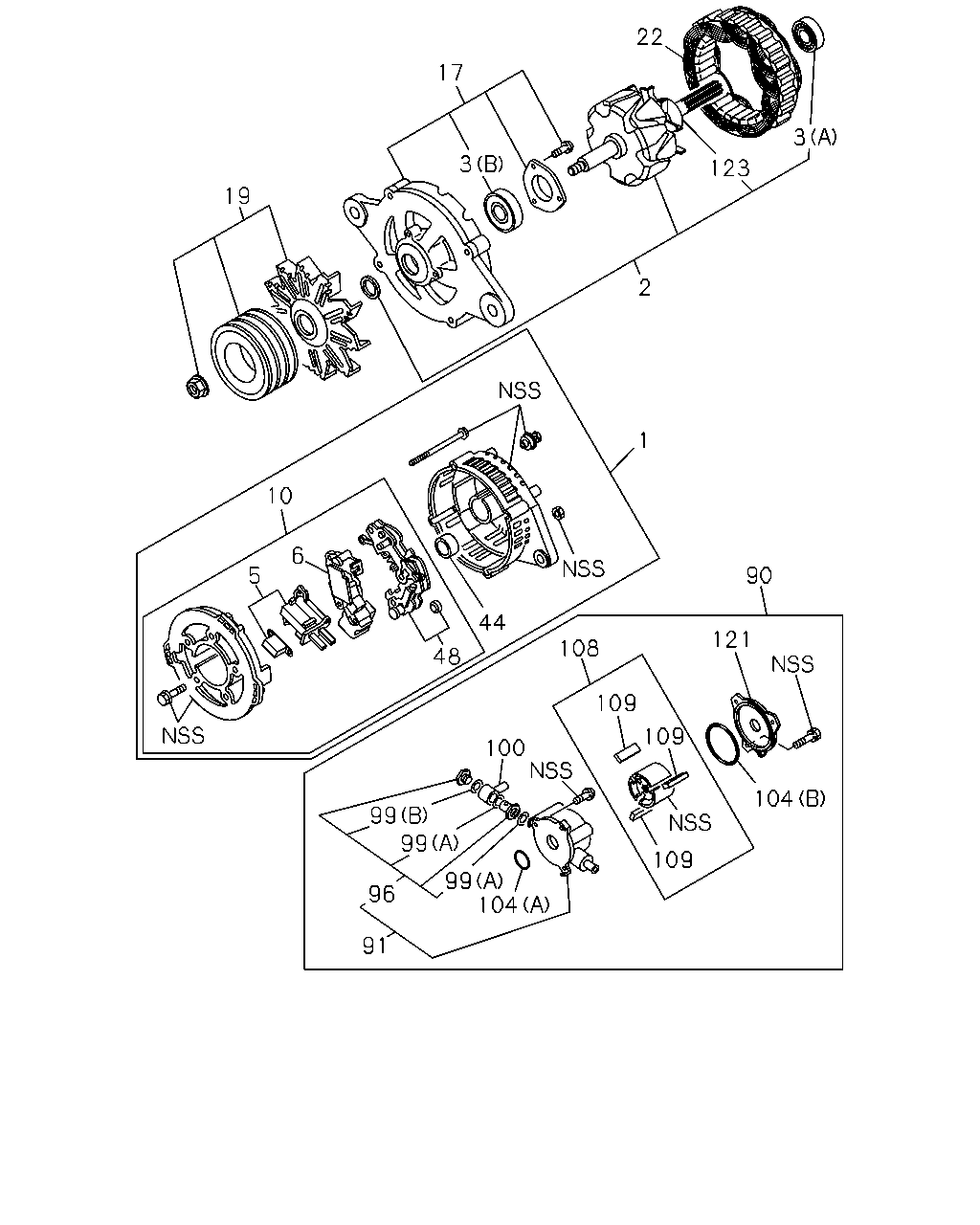

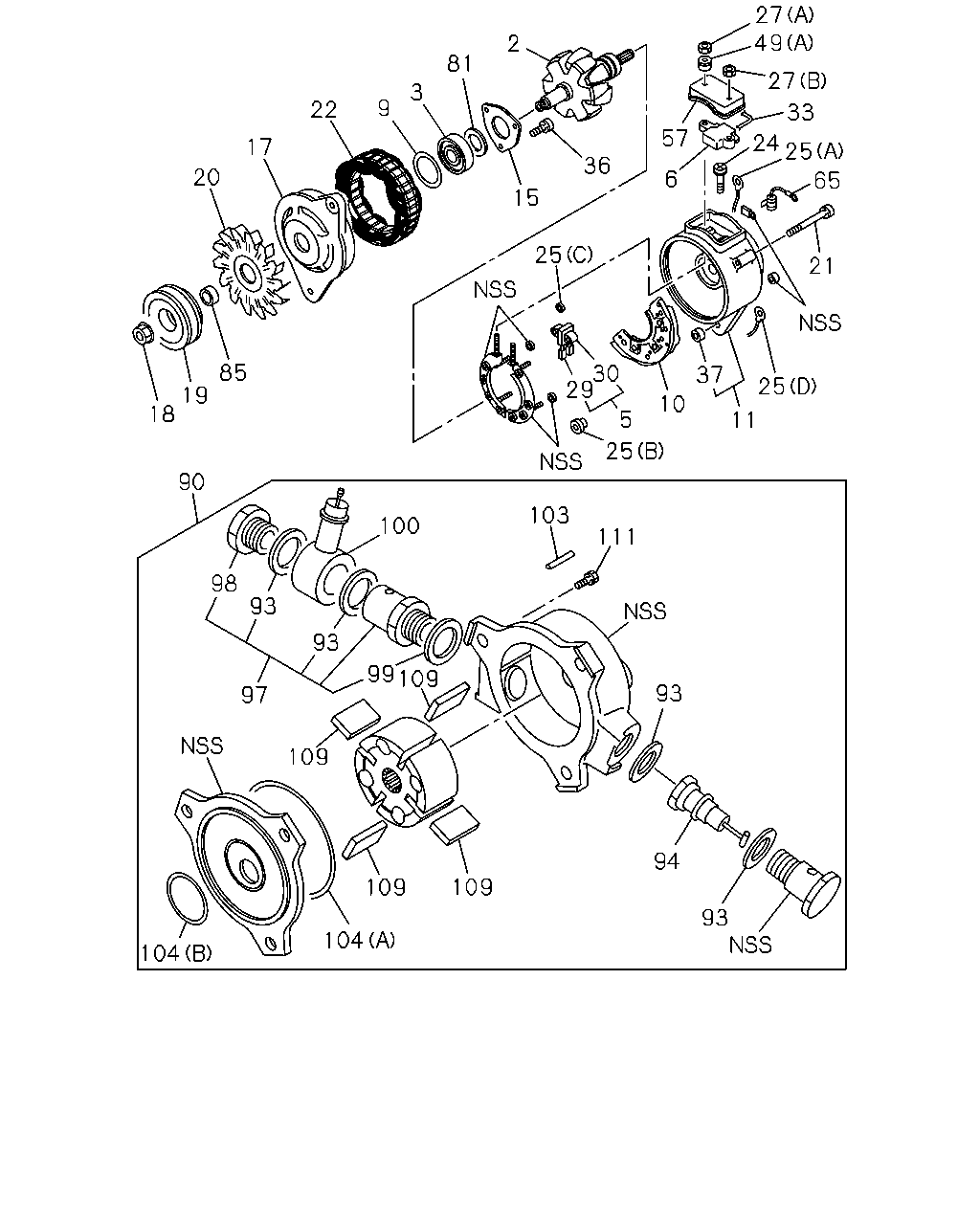

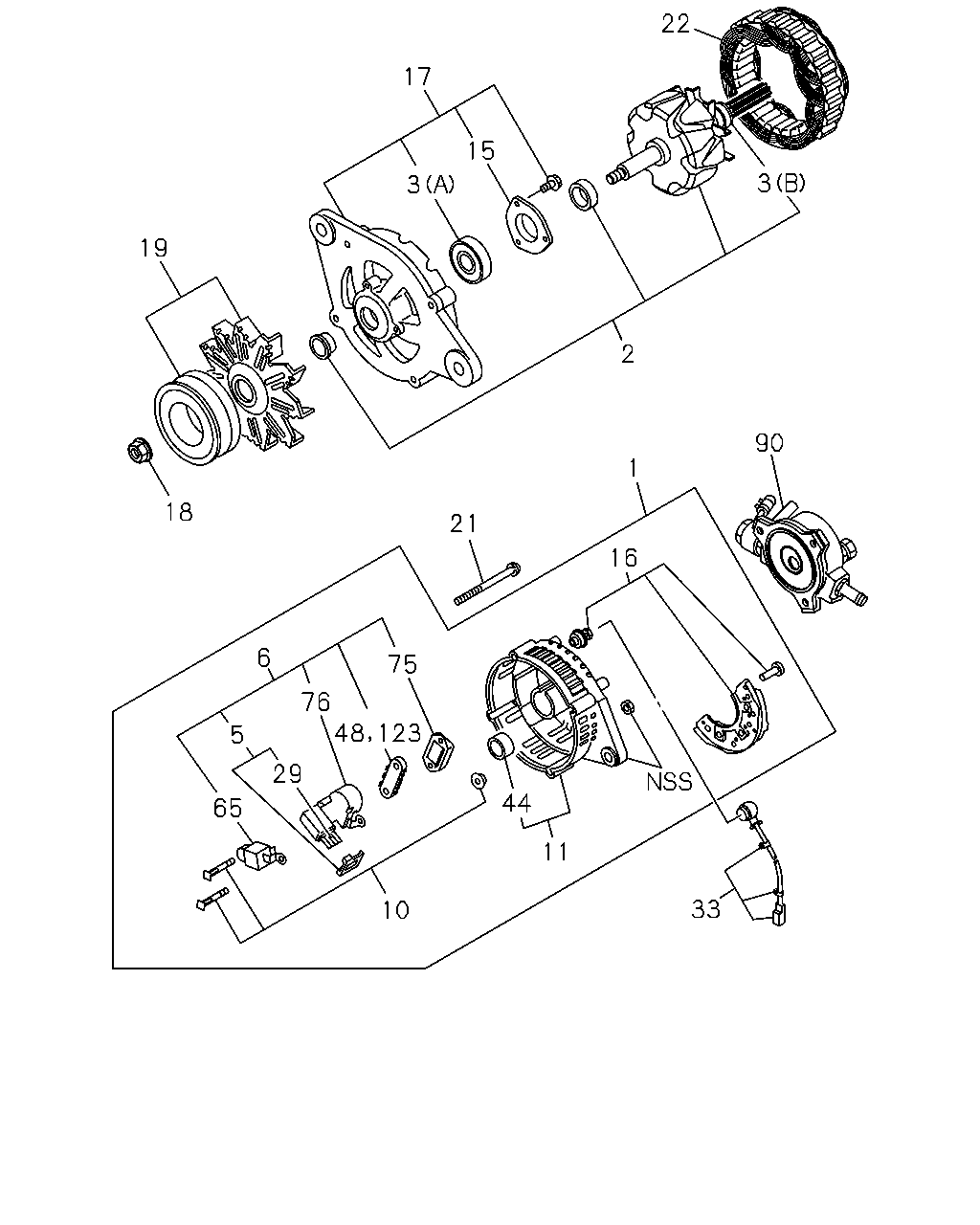

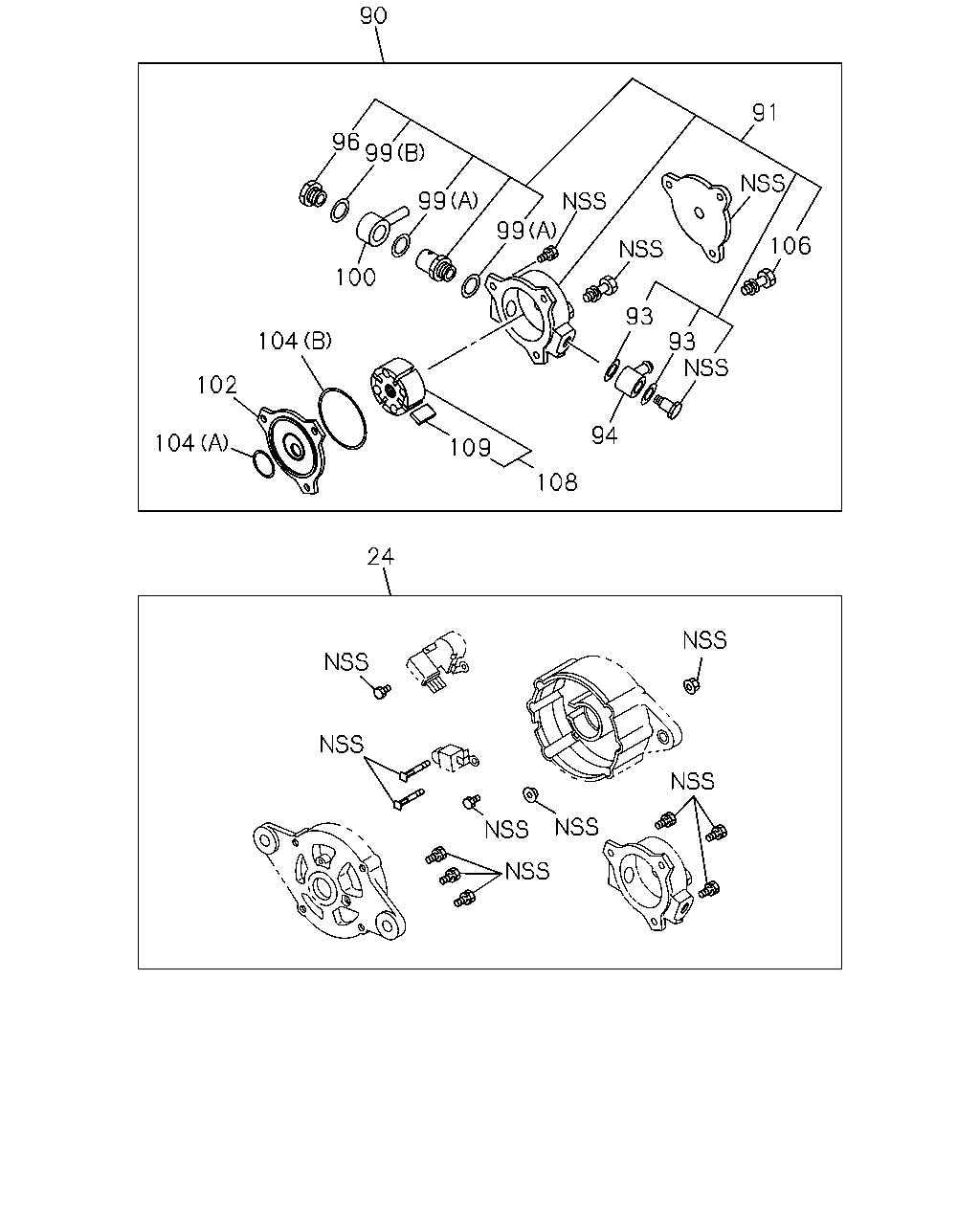

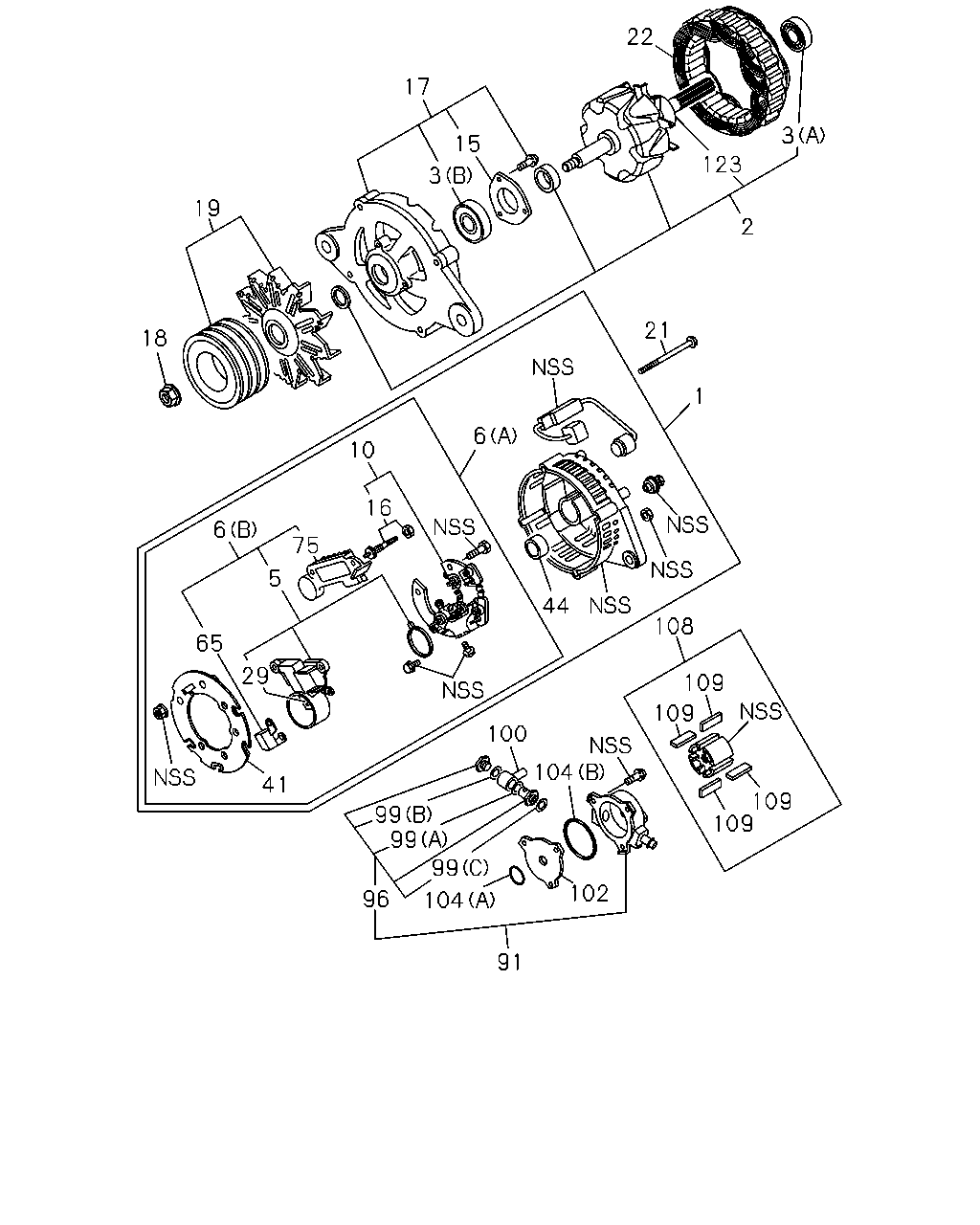

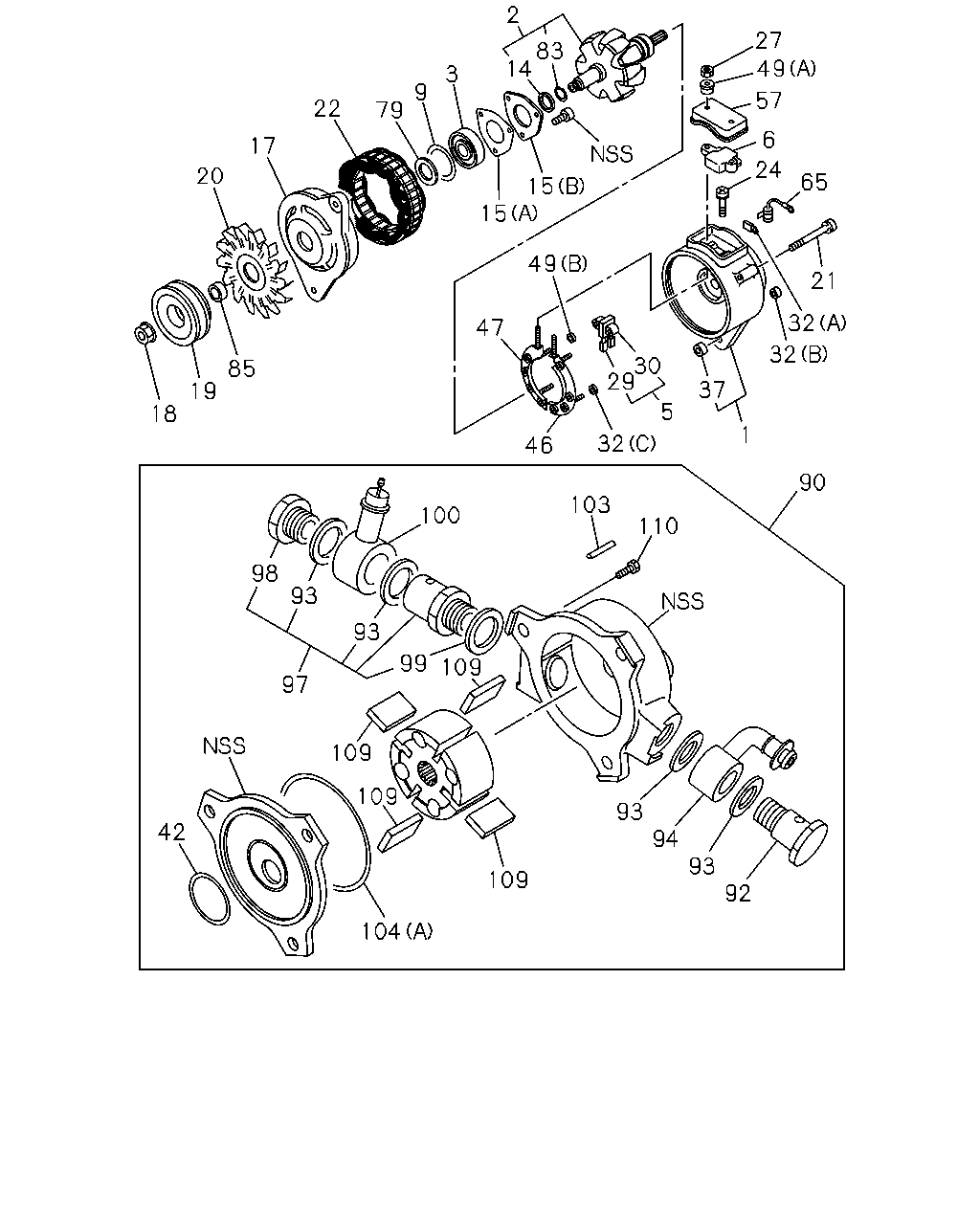

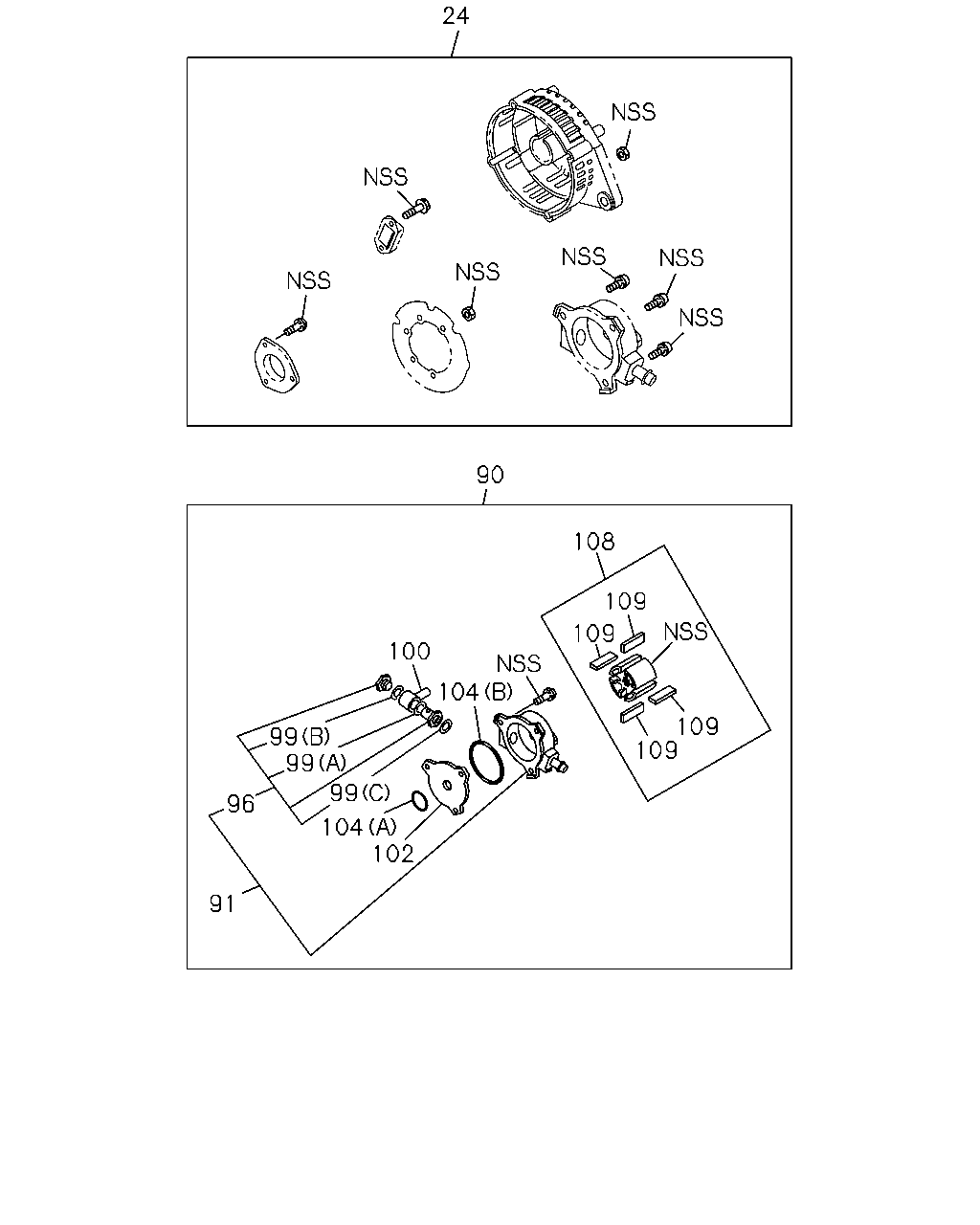

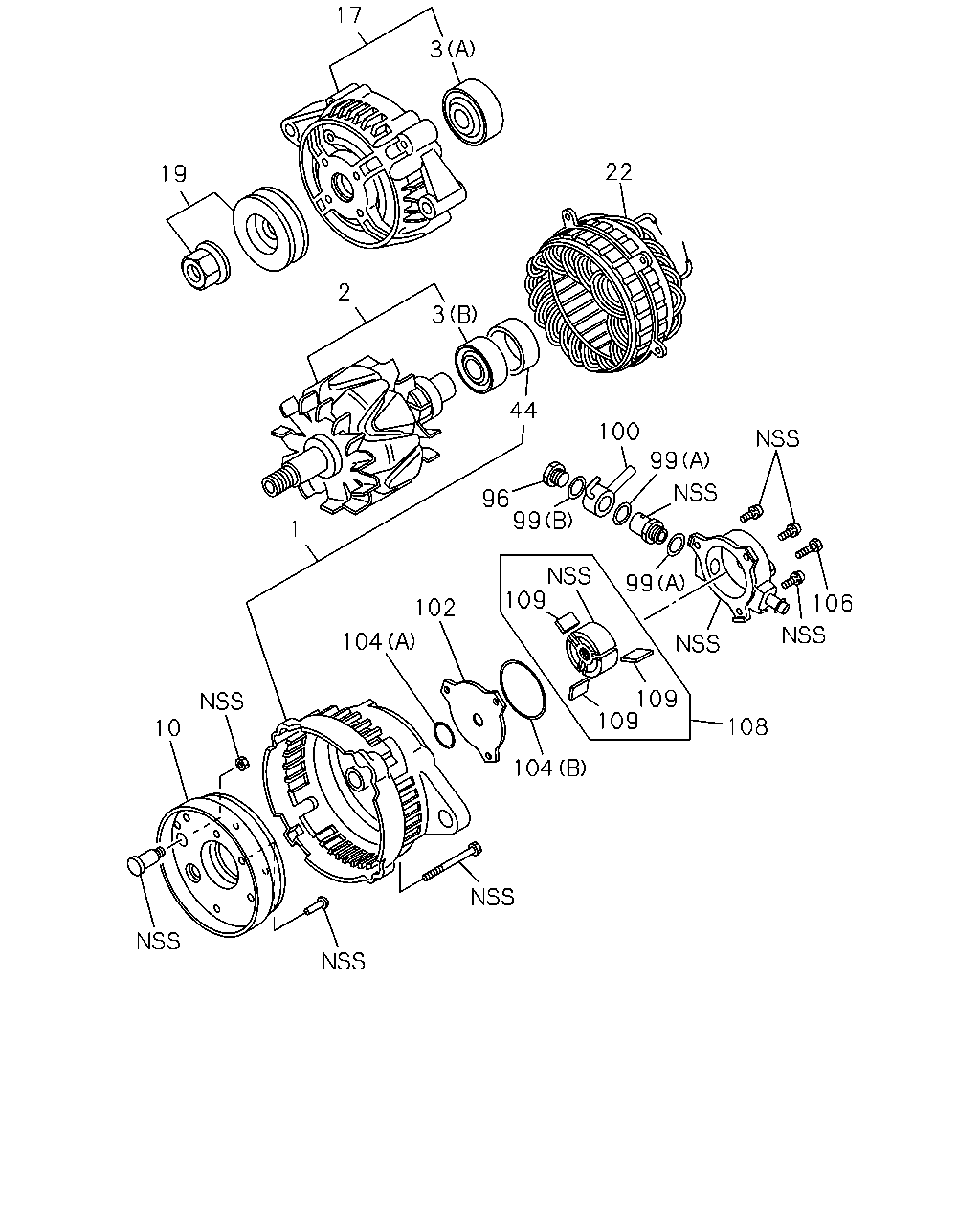

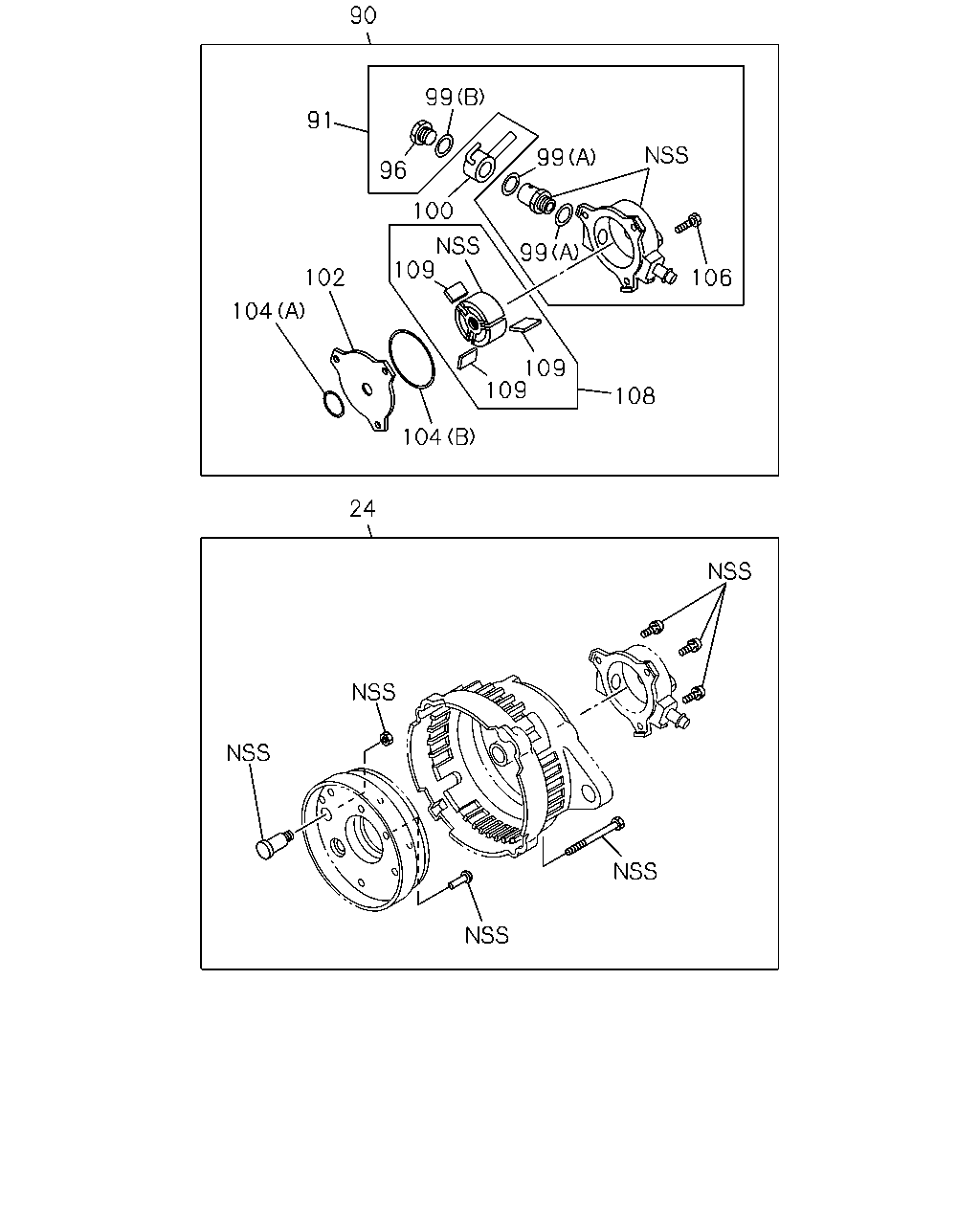

0-66 — GENERATOR (#23555) — 917 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: C = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-

22 17 3 15 123 3 19 2 21 18 1 6 10 16 6 75 5 44 108 65 29 109 109 100 104 41 109 109 99 99 99 102 96 104 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: G = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: D = 8-97144-392-1, 97144392, F = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: C = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: C = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: F = 8-97187-657-1, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	8-94456-590-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-593-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-038-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, 94310379	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97115-044-0, 97115044	5-81229-106-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94310-379-0, 94310379	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-046-0	02	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-606-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-050-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: F = 8-97187-657-1, 97187657	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97111-267-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

2 27 49 83 14 3 9 57 22 79 6 17 24 20 65 15 15 49 21 32 47 32 30 29 85 37 19 5 18 1 32 46 90 103 100 110 98 93 93 99 109 97 109 109 93 42 94 93 109 92 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: G = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: D = 8-97144-392-1, 97144392, F = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81214-102-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-591-0	01	1	-
14	02.307 COLLAR; STEEL ASM PART: A = 8-94310-379-0, 94310379	8-94456-596-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: F = 8-97187-657-1, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	8-94456-590-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-593-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-038-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
20	02.274 FAN; GEN ASM PART: C = 8-97115-044-0, 97115044	1-81223-008-0	01	1	-
20	02.274 FAN; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-587-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, 94310379	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97115-044-0, 97115044	5-81229-106-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: C = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (A) ASM PART: C = 8-97115-044-0, 97115044	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94206-188-0	06	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94310-379-0, 94310379	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-046-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-81216-002-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94310-379-0, 94310379	1-81229-410-0	01	1	-
32	02.291 TERMINAL; RECTIFIER,GEN 02.313, (C) ASM PART: A = 8-94310-379-0, 94310379	1-81229-411-0	02	1	-
32	02.291 TERMINAL; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-602-0	01	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-599-0	01	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-041-0	01	1	-
42	02.307 GASKET; RR COVER,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-608-0	01	1	-
46	02.291 RECTIFIER; (+),GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-600-0	01	1	-
47	02.291 RECTIFIER; (-),GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-601-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	5-81229-105-0	02	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-604-0	01	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-047-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-606-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-050-0	01	1	-
79	02.307 WASHER; FELT,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-589-0	02	1	-
83	02.307 RING; SLIP,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	5-81229-109-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: C = 8-97115-044-0, 97115044	1-81229-415-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: A = 8-94310-379-0, 94310379	8-94456-586-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
92	03.280 BOLT; DELIVERY,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	5-19679-001-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: F = 8-97187-657-1, 97187657	5-19679-004-2	01	1	-0208
93	03.280 GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-081-0	04	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	5-19619-034-0	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-613-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-031-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
103	03.286 PIN; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
110	03.280 BOLT; THROUGH ASM PART: A = 8-94310-379-0, 94310379	8-94456-611-0	03	1	-

24 90 108 109 109 100 104 109 109 99 99 99 96 104 102 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: C = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-

90 99 91 99 96 100 109 99 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: C = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-

27 49 2 81 27 3 9 22 33 57 24 25 17 36 20 6 65 15 25 21 85 30 29 37 25 19 18 10 5 11 25 90 103 100 111 98 93 93 99 109 93 97 109 94 109 109 93 104 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: G = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: D = 8-97144-392-1, 97144392, F = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81214-102-0	01	1	-
9	02.307 COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-591-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: C = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: C = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-040-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: F = 8-97187-657-1, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	8-94456-590-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-593-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-038-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
20	02.274 FAN; GEN ASM PART: C = 8-97115-044-0, 97115044	1-81223-008-0	01	1	-
20	02.274 FAN; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-587-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, 94310379	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97115-044-0, 97115044	5-81229-106-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: C = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL (A) ASM PART: C = 8-97115-044-0, 97115044	1-81229-410-0	01	1	-
25	02.313 BUSHING; INSULATION TERMINAL (B) ASM PART: C = 8-97115-044-0, 97115044	1-81229-411-0	02	1	-
25	02.313 BUSHING; INSULATION TERMINAL (C) ASM PART: C = 8-97115-044-0, 97115044	5-81229-105-0	02	1	-
25	02.313 BUSHING; INSULATION TERMINAL (D) ASM PART: C = 8-97115-044-0, 97115044	8-97128-044-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (A) ASM PART: C = 8-97115-044-0, 97115044	8-94206-186-0	01	1	-
27	02.291 NUT; RECTIFIER,GEN 02.313, (B) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94206-188-0	06	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94310-379-0, 94310379	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-046-0	02	1	-
30	02.277 SPRING; BRUSH,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-81216-002-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-049-0	01	1	-
36	02.277 SCREW; FRT COVER 02.307 ASM PART: C = 8-97115-044-0, 97115044	1-81229-406-0	03	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-599-0	01	1	-
37	02.291 BUSHING; RR COVER,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-041-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	1-81229-413-0	01	1	-
49	02.313 BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	5-81229-105-0	02	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-604-0	01	1	-
57	02.277 COVER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-047-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-606-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-050-0	01	1	-
81	02.307 SPACER; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-403-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: C = 8-97115-044-0, 97115044	1-81229-415-0	01	1	-
85	02.277 SPACER; PULLEY,GEN 02.307 ASM PART: A = 8-94310-379-0, 94310379	8-94456-586-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: F = 8-97187-657-1, 97187657	5-19679-004-2	01	1	-0208
93	03.280 GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-081-0	04	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	5-19619-034-0	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-613-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-031-0	01	1	-
97	03.280 VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94456-612-0	01	1	-
98	03.280 BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09000-134-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
103	03.286 PIN; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-099-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
111	03.280 BOLT; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-94456-611-0	03	1	-

22 17 15 3 3 19 2 90 1 18 21 16 6 75 76 123 5 29 44 65 11 33 10 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: G = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: D = 8-97144-392-1, 97144392, F = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: C = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: C = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
11	02.305 COVER; RR,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-040-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN 02.307 ASM PART: F = 8-97187-657-1, 97187657	8-94223-974-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0, 94310379	8-94456-590-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0, 94310379	8-94456-593-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-291-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-038-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-287-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97111-390-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	8-94167-948-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-293-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-880-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, 94310379	1-81229-031-0	03	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: C = 8-97115-044-0, 97115044	5-81229-106-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-94116-435-0	04	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-602-0	04	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: A = 8-94310-379-0, 94310379	5-81215-018-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-593-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-356-0	02	1	-
29	02.285 BRUSH; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-046-0	02	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-213-0	01	1	-
33	02.500 WIRE; LEAD,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-049-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94237-727-0	01	1	-
48	02.319 DIODE; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-110-1	01	1	-
65	02.319 CONDENSER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-594-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-606-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97084-357-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-050-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN 02.500 ASM PART: F = 8-97187-657-1, 97187657	8-94250-964-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97111-267-0	01	1	-
76	02.319 BLOCK; REG,GEN 02.500 ASM PART: F = 8-97187-657-1, 97187657	8-94156-591-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

17 3 22 19 2 3 44 100 99 96 99 1 109 99 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: G = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: D = 8-97144-392-1, 97144392, F = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: C = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: C = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-

90 91 96 99 99 99 106 100 93 104 93 102 94 104 109 108 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: C = 8-97115-044-0, 97115044	1-81229-419-0	03	1	-
24	02.307 SCREW; RECTIFIER,GEN 02.291 ASM PART: A = 8-94310-379-0, 94310379	1-81229-419-0	04	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97187-657-1, 97187657	8-94156-603-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-294-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97161-697-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
93	03.280 GASKET; CONN,VAC PUMP ID=16 OD=22 ASM PART: F = 8-97187-657-1, 97187657	5-19679-004-2	01	1	-0208
93	03.280 GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	9-88130-081-0	04	1	-
93	03.280 GASKET; CONN,VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	9-88130-081-0	03	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	5-19619-034-0	01	1	-0208
94	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-613-0	01	1	-
94	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-031-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97137-334-0	01	1	-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97183-175-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-

22 17 3 3 123 19 2 1 10 6 90 5 44 121 108 48 109 109 100 104 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-598-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-107-1	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-107-1	01	1	-0003
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-178-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-852-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-370-0	01	1	0004-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-440-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-441-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-595-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97083-006-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-039-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97161-470-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: G = 8-97240-270-1, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: H = 8-97249-209-1, 97249209	8-97313-436-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: C = 8-97115-044-0, 97115044	1-81229-466-1	01	1	-
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: E = 8-97186-551-1, 97186551	8-94121-178-0	01	1	-0003
3	02.306 BEARING; ROTOR,GEN 02.298, (B) ASM PART: D = 8-97144-392-1, 97144392, F = 8-97187-657-1, 97187657	8-94121-178-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-592-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: F = 8-97187-657-1, 97187657	8-97062-654-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: E = 8-97186-551-1, 97186551	8-97248-128-0	01	1	0004-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97248-128-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-603-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-053-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-283-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-045-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-108-1	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-614-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97026-052-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: B = 8-97075-882-3, 97075882	8-97111-262-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: B = 8-97075-882-3, 97075882	8-97111-264-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-032-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-109-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-285-0	01	1	-
10	02.319 RECTIFIER; GEN LOWER ASM PART: C = 8-97115-044-0, 97115044	8-97128-042-0	01	1	-
10	02.319 RECTIFIER; GEN UPPER ASM PART: C = 8-97115-044-0, 97115044	8-97128-043-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-169-1	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97148-169-1	01	1	-0003
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97188-870-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97253-577-0	01	1	0004-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-444-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-588-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97071-214-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-037-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-447-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-585-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97029-004-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-036-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-448-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-607-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97075-882-3, 97075882	8-97083-275-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-048-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97186-551-1, 97186551	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97187-657-1, 97187657	8-97203-864-0	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97240-270-1, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: H = 8-97249-209-1, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-589-0	01	1	-
48	02.319 DIODE; GEN ASM PART: F = 8-97187-657-1, 97187657	8-94237-727-0	01	1	-
48	02.319 DIODE; GEN ASM PART: D = 8-97144-392-1, 97144392	8-97148-110-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0, 94310379	8-94456-609-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97115-044-0, 97115044	8-97128-033-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-114-1	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97171-006-0	01	1	-0208
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97075-882-3, 97075882	8-97183-173-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97187-657-1, 97187657	8-97351-341-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94424-381-0	01	1	-0208
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-300-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-694-0	01	1	0209-
91	03.280 BODY; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-301-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97075-882-3, 97075882	5-19679-002-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-993-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=22 OD=27 ASM PART: B = 8-97075-882-3, 97075882	8-97083-302-0	01	1	-
99	03.280 GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	9-88130-126-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-94407-283-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-597-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-030-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97209-180-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97313-452-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (A) ASM PART: A = 8-94310-379-0, 94310379, C = 8-97115-044-0, 97115044	5-09623-017-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551, F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: F = 8-97187-657-1, 97187657, G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 02.307, (B) ASM PART: C = 8-97115-044-0, 97115044	8-94456-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97075-882-3, 97075882, D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-297-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97137-333-0	01	1	-0208
108	03.280 ROTOR; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-97236-693-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-97236-693-0	01	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	04	1	-0208
109	03.280 VANE; VAC PUMP ASM PART: G = 8-97240-270-1, 97240270, H = 8-97249-209-1, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: F = 8-97187-657-1, 97187657	8-94223-985-0	03	1	0209-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-94310-379-0, 94310379	8-94456-610-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97083-298-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97075-882-3, 97075882	8-97083-298-0	04	1	-
109	03.280 VANE; VAC PUMP ASM PART: C = 8-97115-044-0, 97115044	8-97128-034-0	04	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: D = 8-97144-392-1, 97144392, E = 8-97186-551-1, 97186551	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: B = 8-97075-882-3, 97075882	8-97083-274-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
