1 |

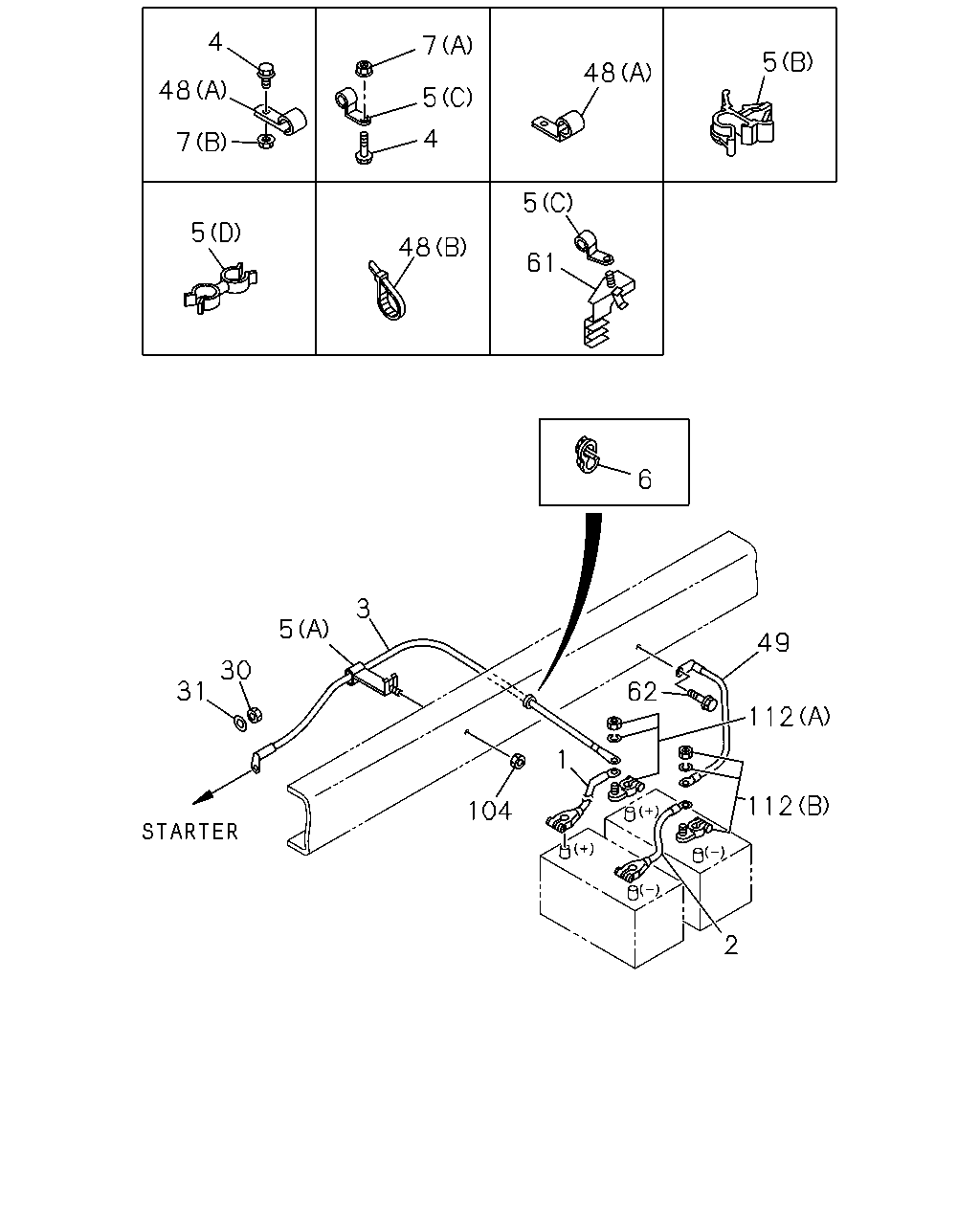

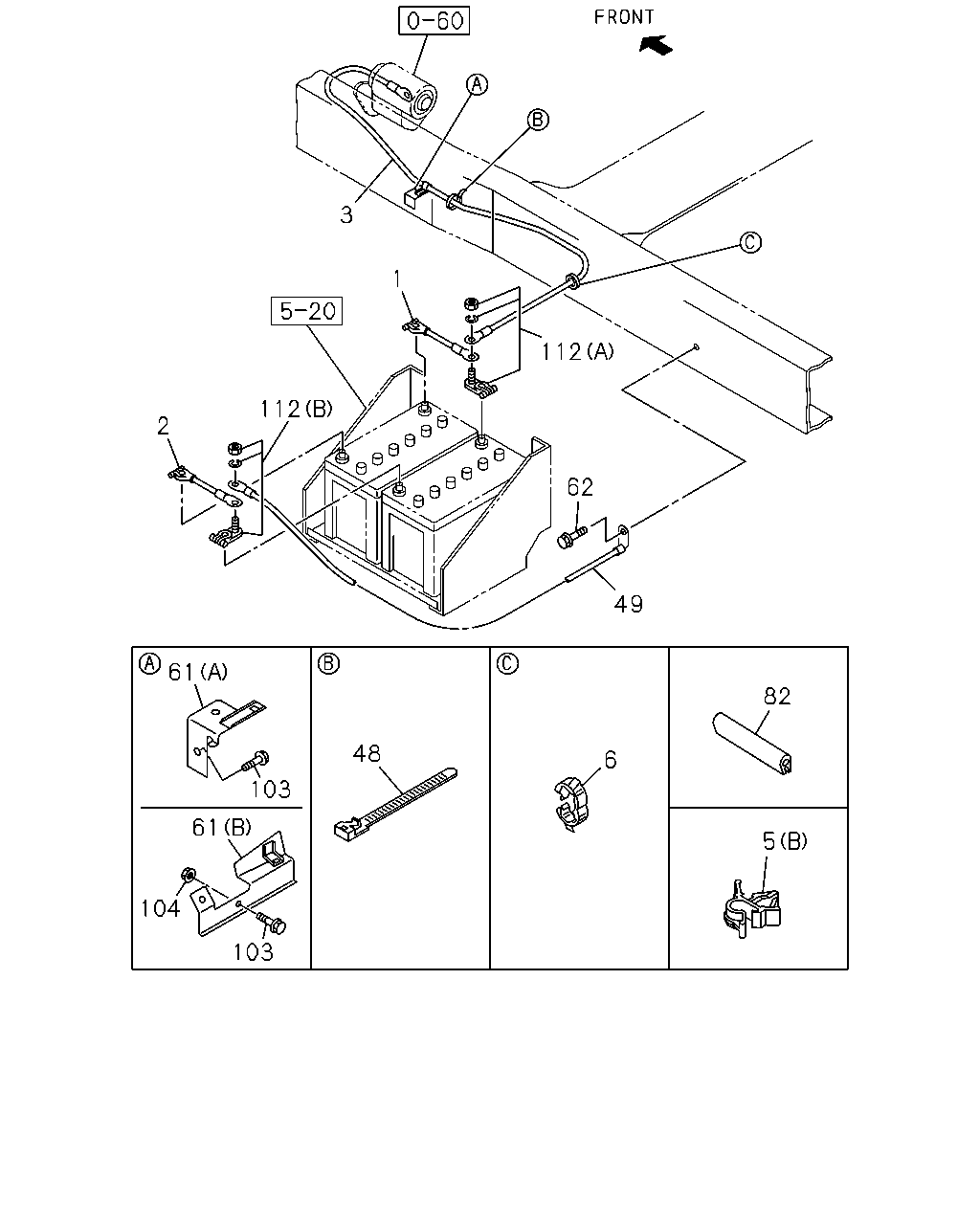

02.341 CABLE; BATTERY
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
L=180
|
8-97033-975-1 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
BATTERY 80D26R<6KC>
L=180
|
8-97230-530-2 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
1 |
02.341 CABLE; BATTERY
L=180
|
8-97230-530-2 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
1 |
02.341 CABLE; BATTERY
L=180
|
1-82650-265-0 |
01 |
1 |
9811-0105 |
|
|
|
● |
● |
| |
1 |
02.341 CABLE; BATTERY
L=280
|
8-97230-719-1 |
01 |
1 |
0106- |
|
|
|
● |
● |
| |
2 |
02.341 CABLE; BATTERY
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
L=180
|
8-97034-115-1 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
BATTERY 80D26R<6KC>
L=180
|
8-97230-538-1 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
2 |
02.341 CABLE; BATTERY
L=180
|
8-97230-538-1 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
L=1100
|
8-97102-975-0 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
L=1100
|
8-97214-200-0 |
01 |
1 |
9904-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>
L=1100
|
8-97214-200-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
|
8-97102-979-0 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
|
8-97214-188-0 |
01 |
1 |
9904-0011 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
|
8-97289-355-0 |
01 |
1 |
0012-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
|
8-97289-355-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=800
|
8-97110-151-0 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=800
|
8-97214-204-0 |
01 |
1 |
9904-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=800
|
8-97214-204-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
|
8-97110-140-0 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
L=900
|
8-97214-208-0 |
01 |
1 |
9904-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
L=900
|
8-97214-208-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
|
8-97068-729-1 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
|
8-97214-185-0 |
01 |
1 |
9904-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 80D26R<6KC>
|
8-97214-185-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=900
|
8-97015-533-2 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF)
L=900
|
8-97015-533-2 |
01 |
1 |
9811-9903 |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB(NKB5WC)
SMALL DUAL RR TIRE(NKN5SC)
L=900
|
8-97015-533-2 |
01 |
1 |
9811-9903 |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=900
|
8-97214-207-0 |
01 |
1 |
9904-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DBL CAB&MIDDLE(NK**WF)
L=900
|
8-97214-207-0 |
01 |
1 |
9904-0105 |
● |
|
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB(NKB5WC)
SMALL DUAL RR TIRE(NKN5SC)
L=900
|
8-97214-207-0 |
01 |
1 |
9904-0105 |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=900
|
8-97214-207-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&DBL CAB(NKB5WC)
SMALL DUAL RR TIRE(NKN5SC)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
L=900
|
8-97214-207-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>,BATTERY 115E41R<6XD>
|
8-97102-994-1 |
01 |
1 |
9811-9903 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>,BATTERY 115E41R<6XD>
|
8-97214-203-0 |
01 |
1 |
9904-0105 |
● |
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
|
8-97214-203-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
BATTERY 80D26R<6KC>
|
8-97090-341-1 |
01 |
1 |
9811-9903 |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SMALL DUAL RR TIRE(NKN***)
BATTERY 80D26R<6KC>
|
8-97214-184-0 |
01 |
1 |
9904-0105 |
|
● |
|
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97313-565-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE REAR VERTICAL<KJ3>
|
8-97079-015-3 |
01 |
1 |
9811- |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE SYSTEM FRONT<6PC>
|
8-97065-467-3 |
01 |
1 |
9811- |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
|
8-97215-917-0 |
01 |
1 |
9811- |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
|
8-97066-648-4 |
01 |
1 |
9811-0107 |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
|
8-97066-648-4 |
01 |
1 |
9811-0107 |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
|
8-97066-648-4 |
01 |
1 |
0108- |
|
|
|
● |
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
|
8-97066-648-4 |
01 |
1 |
0108- |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
|
8-97066-646-3 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
|
8-97066-646-3 |
01 |
1 |
0106- |
|
|
|
|
● |
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL TIRE&SGL CAB(NKB*S*)
EXC. FRT INDEPENDENT SUSPENSION(6PP)
|
8-97260-483-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
EXC. REAR WIDE TREAD(V4T)
|
8-97260-483-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
SGL CAB&MIDDLE(NK**SF)
|
8-97260-483-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
3 |
02.525 HARNESS; CABLE,BATTERY TO STARTE
DUAL RR TIRE&SHORT(NKC**C)
REAR WIDE TREAD(V4T)
|
8-97302-193-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
4 |
02.559 BOLT; BATTERY CABLE
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
02.334
M6X25 FLANGE
|
0-28680-625-0 |
01 |
1 |
9811- |
|
|
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
(A)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
ID=13 L=90
|
8-97015-782-1 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>,BATTERY
55D23R<6EU>,BATTERY 80D26R<6KC>
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SMALL DUAL RR TIRE(NKN***)
BATTERY 80D26R<6KC>
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>,BATTERY
80D26R<6KC>
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0106-0106 |
|
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
MIDDLE(NK***F)
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0106-0106 |
|
● |
● |
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SMALL DUAL RR TIRE(NKN***)
BATTERY 80D26R<6KC>
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0106-0106 |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0106-0106 |
|
|
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>,BATTERY
80D26R<6KC>
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0107- |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL CAB&MIDDLE(NK**SF)
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0107- |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SMALL DUAL RR TIRE(NKN***)
BATTERY 80D26R<6KC>
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0107- |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
04.342
(B)
ID=14-12
|
8-94379-592-0 |
01 |
1 |
0107- |
|
|
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
03.430
(C)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
FRT INDEPENDENT SUSPENSION(6PP)
03.483
(D)
ID=6 & 10
|
8-94154-844-0 |
01 |
1 |
0106- |
|
● |
|
|
● |
| |
5 |
02.559 CLIP; BATTERY CABLE TO BODY
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
03.430
(C)
ID=13 H=15 L=25
|
1-09700-888-0 |
02 |
1 |
9811- |
|
|
|
|
● |
| |
6 |
02.343 GROMMET; BATTERY CABLE
EXC. FRAME-KICK UP<7EW>
ID=17
|
8-94128-319-2 |
01 |
1 |
9811-0105 |
● |
● |
|
|
● |
| |
6 |
02.343 GROMMET; BATTERY CABLE
EXC. FRAME-KICK UP<7EW>
ID=17
|
8-94128-319-2 |
01 |
1 |
0106- |
|
● |
● |
|
● |
| |
7 |
02.343 NUT; (+) CABLE
00.002
(B)
M8
|
9-09110-508-0 |
01 |
1 |
9811- |
|
|
|
● |
● |
| |
7 |
02.343 NUT; (+) CABLE
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
04.594
(A)
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
9811- |
|
|
|
|
● |
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
● |
| |
30 |
02.334 NUT; CABLE,STARTER TO BATTERY
02.559
M8
|
9-09110-408-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
● |
| |
31 |
02.334 WASHER; LK,CABLE,STARTER TO BATT
00.002
ID=8.2
|
9-09150-508-0 |
01 |
1 |
0106- |
|
● |
● |
● |
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE REAR VERTICAL<KJ3>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
9811-0105 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0106-0107 |
|
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE REAR VERTICAL<KJ3>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0106-0107 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0106-0107 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0106-0107 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY 80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0108- |
|
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0108- |
|
|
|
● |
● |
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE REAR VERTICAL<KJ3>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0108- |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
03.162
(B)
L=140
|
5-09707-031-1 |
02 |
1 |
0108- |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE SYSTEM FRONT<6PC>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
48 |
02.343 CLIP; CABLE
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE SYSTEM FRONT<6PC>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
0106- |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
03.162
(B)
L=140
|
5-09707-031-1 |
01 |
1 |
0106- |
|
|
|
|
● |
| |
48 |
02.343 CLIP; CABLE
03.430
(A)
ID=13 H=15 L=25
|
1-09700-888-0 |
01 |
1 |
9811- |
|
|
|
● |
● |
| |
48 |
02.343 CLIP; CABLE
SGL CAB&MIDDLE(NK**SF)
02.559
L=250
|
5-09707-030-1 |
02 |
1 |
0106- |
|
|
● |
|
|
| |
48 |
02.343 CLIP; CABLE
DUAL RR TIRE&SHORT(NKC**C)
02.559
L=250
|
5-09707-030-1 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
BATTERY 80D26R<6KC>
L=500
|
8-97035-845-3 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
L=500
|
8-97035-845-3 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
L=250
|
8-94175-388-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB5SC)
DUAL RR TIRE&SGL CAB&MIDDLE(NKC5SF)
BATTERY NX200-10<S9C>
L=250
|
8-94175-388-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&SHORT(NK**WC)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9811-0105 |
● |
|
● |
● |
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DBL CAB&MIDDLE(NK**WF)
BATTERY 115E41R<6XD>
L=300
|
8-94166-037-0 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&DBL CAB(NKB5WC)
SMALL DUAL RR TIRE(NKN5SC)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
BATTERY 95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&DBL CAB(NKB5WC)
SMALL DUAL RR TIRE(NKN5SC)
BATTERY NX200-10<S9C>,BATTERY
95D31R<6DN>
L=300
|
8-94166-037-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>,BATTERY
115E41R<6XD>
L=350
|
8-94176-446-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
MIDDLE(NK***F)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
9811-0105 |
● |
|
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
9811-0105 |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY NX200-10<S9C>
L=350
|
8-94176-446-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
BATTERY 95D31R<6DN>
L=350
|
8-94176-446-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY 95D31R<6DN>
L=400
|
8-94166-038-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
BATTERY 95D31R<6DN>
L=400
|
8-94166-038-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE REAR VERTICAL<KJ3>
L=250
|
8-94311-957-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
L=250
|
8-94311-957-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
L=250
|
8-94311-957-0 |
01 |
1 |
9811-0105 |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE REAR VERTICAL<KJ3>
L=250
|
8-94311-957-0 |
01 |
1 |
0106- |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
FRAME-KICK UP<7EW>
L=250
|
8-94311-957-0 |
01 |
1 |
0106- |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&DBL CAB(NKC5WF)
SMALL DUAL RR TIRE(NKN5SC)
L=250
|
8-94311-957-0 |
01 |
1 |
0106- |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE SYSTEM FRONT<6PC>
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9811-0107 |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9811-0107 |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
9811-0107 |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL CAB&MIDDLE(NK**SF)
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
0108- |
|
|
|
● |
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
SGL TIRE&SGL CAB(NKB*S*)
AIR INTAKE SYSTEM FRONT<6PC>
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
0108- |
|
|
|
|
● |
| |
49 |
02.342 CABLE; BATTERY TO S/MBR,RH
DUAL RR TIRE&SHORT(NKC**C)
EXC. FRAME-KICK UP<7EW>
L=200 30BY
|
9-82933-456-0 |
01 |
1 |
0108- |
|
|
|
|
● |
| |
61 |
02.333 BRACKET; BATTERY CABLE
SGL TIRE&SGL CAB(NKB*S*)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97062-179-3 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
FRT INDEPENDENT SUSPENSION(6PP)
(B)
|
8-97313-404-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
61 |
02.333 BRACKET; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97312-657-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
62 |
02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
● |
| |
62 |
02.343 BOLT; EARTH CABLE FIX
M8X25 W/LK&PL WASHER
|
8-97087-203-0 |
01 |
1 |
0106- |
|
● |
● |
|
● |
| |
104 |
02.343 NUT; BATTERY CABLE
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
07.633
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
104 |
02.343 NUT; BATTERY CABLE
EXC. FRT INDEPENDENT SUSPENSION(6PP)
04.594
M6 FLANGE
|
0-91150-106-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC>
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
(A)
<+>
|
8-94361-935-0 |
01 |
1 |
0106- |
|
|
● |
|
|
| |
112 |
02.343 TERMINAL; BATTERY
BATTERY 55D23R<6EU>,BATTERY
80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
9811-0105 |
● |
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
BATTERY 80D26R<6KC>
(B)
<->
|
8-97035-508-0 |
01 |
1 |
0106- |
|
● |
|
|
|
| |
112 |
02.343 TERMINAL; BATTERY
(B)
<->
|
8-97035-508-0 |
01 |
1 |
0106- |
|
|
● |
|
|
