◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#23552) — 371 parça

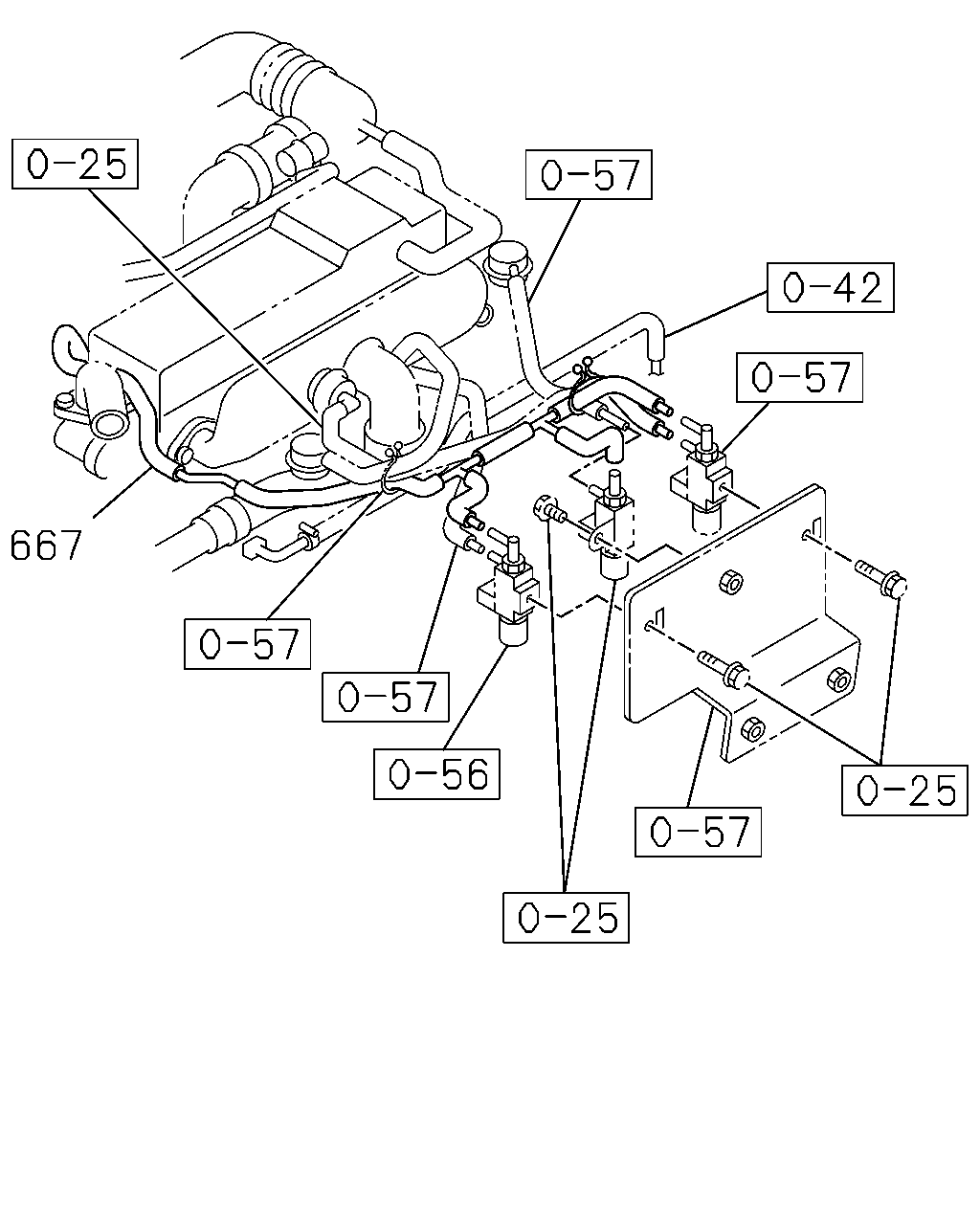

çizim 7792
667
BalonParca AdiParca NoAdetTipApplied Date A B C D E
667 03.280 HOSE; VAC,PUMP TO VSV
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97228-358-1 01 1 0106- ●

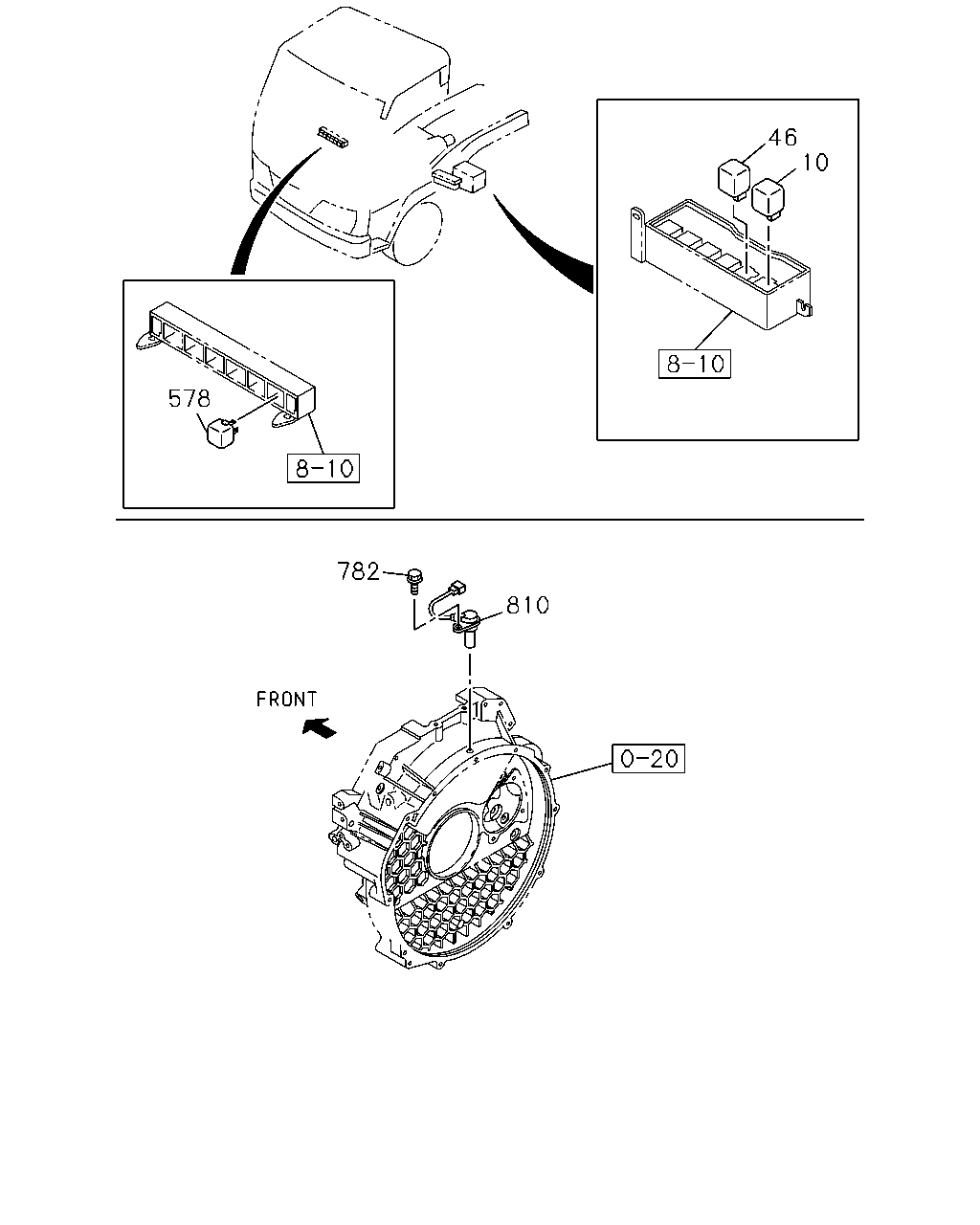

çizim 9437
46 10 578 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811-0105 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811-0105 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0106- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0106- ● ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0106- ●
810 01.150 SENSOR; CRANK ANGLE 8-97240-034-0 01 1 0106-0106 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-0 01 1 0107- ●

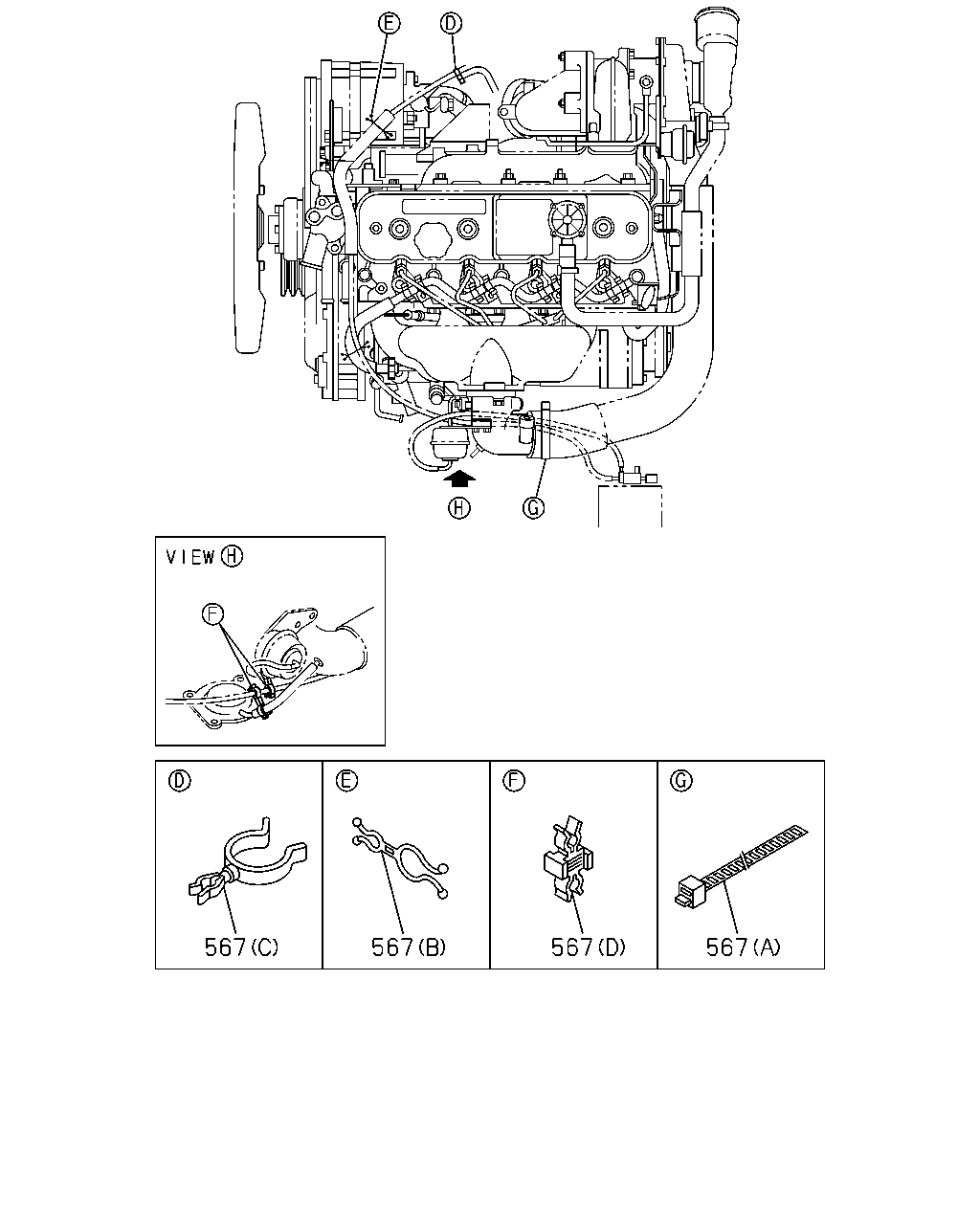

çizim 10482
567 567 567 567
BalonParca AdiParca NoAdetTipApplied Date A B C D E
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 (A) L=300 		1-09707-001-1 01 1 9811-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 08.852 (B) ID=8 & 16 		5-09707-032-0 01 1 9811-0105 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. CHARGE AIR COOLER<6PL> 08.852 (B) ID=8 & 16 		5-09707-032-0 01 1 0106- ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.430 (C) ID=6 & 16.5 		8-94165-402-0 01 1 9811-0009 ●
567 03.726 CLIP; VAC HOSE
TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.483 (D) ID=6 & 6 		8-94463-708-0 02 1 9811-0009 ●
çizim 10849
46 10 578 782 810
BalonParca AdiParca NoAdetTipApplied Date A B C D E
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811-0105 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811-0105 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0106- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0106- ● ●
782 02.510 BOLT; SENSOR
04.439 M6X16 FLANGE 		0-28680-616-0 01 1 0106- ●
810 01.150 SENSOR; CRANK ANGLE 8-97240-034-0 01 1 0106-0106 ●
810 01.150 SENSOR; CRANK ANGLE 8-97306-601-0 01 1 0107- ●

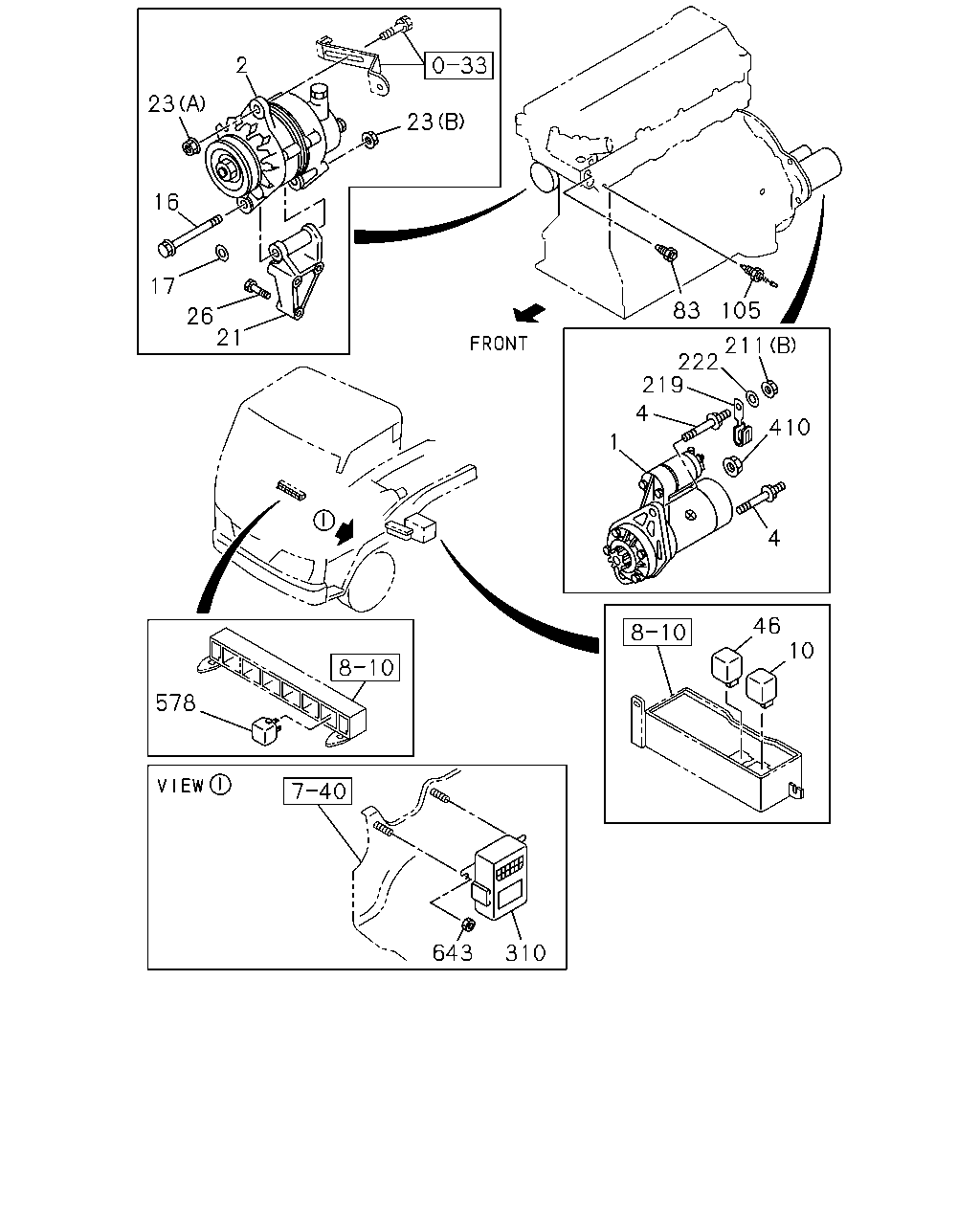

çizim 44242
2 23 23 16 17 83 105 26 21 211 222 219 4 410 1 4 46 10 578 643 310
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97940-212-0 01 1 9811-9905 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW DENSO 		8-97941-023-0 01 1 9906-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002-0107 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 50A 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 40A 		8-94310-379-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9811-0107 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
EXC. THAILAND EQUIPMENT(PM9) M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0106- ●
4 02.042 BOLT; STARTER
THAILAND EQUIPMENT(PM9) 00.002 M12X84 		8-94107-769-2 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811- ● ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811-0105 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0106-0107 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0108- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
17 02.277 WASHER; PL,GEN
GENERATOR DENSO(7KH) 16.716 ID=8.4 OD=18 		9-09160-608-0 01 1 9811-0105 ●
21 02.277 BRACKET; GEN 8-97075-884-2 01 1 9811- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0106-0107 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0108- ● ● ● ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
26 02.277 BOLT; GEN BRKT
08.900 M10X50 FLANGE 		0-28181-050-0 01 1 9811- ● ●
26 02.277 BOLT; GEN BRKT
03.890 M10X70 FLANGE 		0-28181-070-0 02 1 9811- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811-0105 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0106- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0108- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0108- ● ● ● ●
105 01.150 SWITCH; THERMO,QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-94457-511-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0106- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811- ● ●
211 02.343 NUT; CABLE FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9901-0107 ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9901-0107 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-0107 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0108- ● ●
219 03.483 CLIP; ENG STOP CABLE
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97101-436-0 01 1 9811-0107 ●
219 03.483 CLIP; ENG STOP CABLE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97101-436-0 01 1 0108- ● ●
222 03.485 WASHER; PL,CONT CABLE
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 9811-0107 ●
222 03.485 WASHER; PL,CONT CABLE
EXC. ENGINE POWER N-SPEC(7QV) 04.085 ID=10.5 OD=26 		9-09164-710-0 01 1 0108- ● ●
310 02.510 CONTROLLER; QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-97047-029-0 01 1 9811-0105 ●
410 02.343 BOLT; BRKT,GRAND
12.187 M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9811- ● ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0106- ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ●
çizim 45747
553 211 553 489 209 211 403
BalonParca AdiParca NoAdetTipApplied Date A B C D E
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 9811-0107 ●
209 02.483 NUT; BRKT TO BODY
EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 04.785 M10 FLANGE 		0-91150-110-0 02 1 0108- ● ●
211 02.343 NUT; CABLE FIX
04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9811-9812 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9901-0107 ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 9901-0107 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 04.594 (A) M6 FLANGE 		0-91150-106-0 01 1 0108- ● ●
211 02.343 NUT; CABLE FIX
SGL CAB(NK**S*) EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-0107 ●
211 02.343 NUT; CABLE FIX
EXC. ENGINE POWER N-SPEC(7QV) 08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0108- ● ●
403 02.343 CLIP; CABLE
EXC. ENGINE POWER N-SPEC(7QV) 		8-97125-981-0 01 1 9811- ● ●
489 03.483 BOLT; ENG STOPPER
EXC. DUMP CHASSIS(V4D),ENGINE POWER N-SPEC(7QV) 03.405 M10X25 FLANGE 		0-28681-025-0 01 1 9811- ● ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97105-993-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97230-999-0 01 1 9911-0007 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-066-0 01 1 0008-0107 ●
553 03.485 MOTOR ASM; ENG STOP
SGL CAB&MIDDLE(NK**SF) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-066-0 01 1 0108- ● ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97090-625-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97234-406-0 01 1 9911-0004 ●
553 03.485 MOTOR ASM; ENG STOP
SGL TIRE&SGL CAB(NKB*S*) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-043-0 01 1 0005- ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC5SC) SMALL DUAL RR TIRE(NKN5SC) EXC. ENGINE POWER N-SPEC(7QV) 		8-97105-992-2 01 1 9811-9910 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC5SC) SMALL DUAL RR TIRE(NKN5SC) EXC. ENGINE POWER N-SPEC(7QV) 		8-97234-418-0 01 1 9911-0005 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SGL CAB&SHORT(NKC5SC) SMALL DUAL RR TIRE(NKN5SC) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-070-0 01 1 0006-0105 ●
553 03.485 MOTOR ASM; ENG STOP
DUAL RR TIRE&SHORT(NKC**C) EXC. ENGINE POWER N-SPEC(7QV) 		8-97255-070-0 01 1 0106- ●
553 03.485 MOTOR ASM; ENG STOP
SMALL DUAL RR TIRE(NKN***) 		8-97255-070-0 01 1 0106- ●

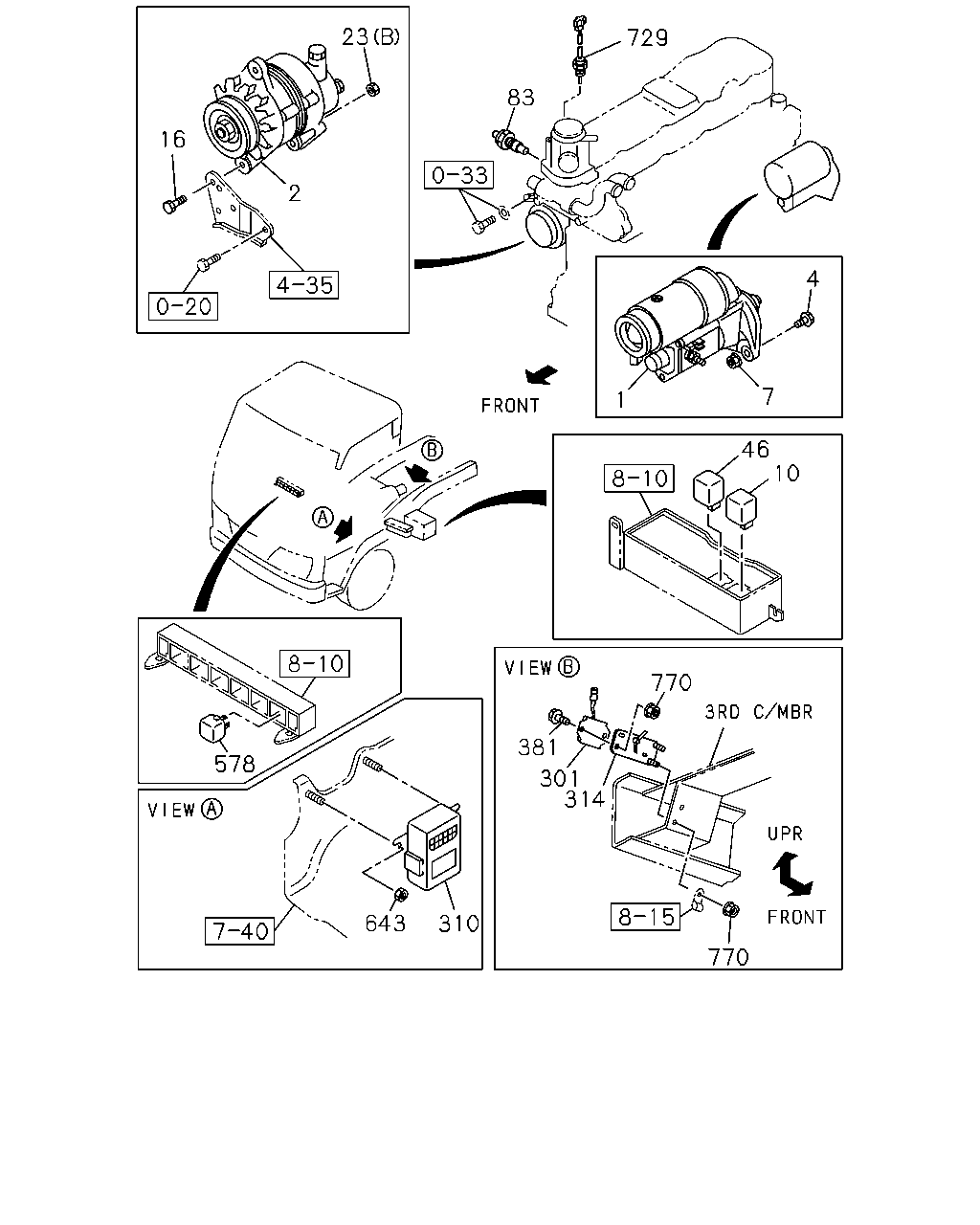

çizim 48061
23 729 83 16 2 4 7 1 46 10 770 381 578 301 314 643 310 770
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97940-212-0 01 1 9811-9905 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW DENSO 		8-97941-023-0 01 1 9906-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002-0107 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 50A 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 40A 		8-94310-379-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9811-0107 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
EXC. THAILAND EQUIPMENT(PM9) M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0106- ●
4 02.042 BOLT; STARTER
THAILAND EQUIPMENT(PM9) 00.002 M12X84 		8-94107-769-2 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811-0105 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0106- ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811-0105 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0106-0107 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0108- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0106-0107 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0108- ● ● ● ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811-0105 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0106- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0108- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0108- ● ● ● ●
301 02.510 RESISTOR; DROPPING
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 		8-94389-802-1 01 1 9811-0105 ●
310 02.510 CONTROLLER; QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-97047-029-0 01 1 9811-0105 ●
314 02.500 BRACKET; DROPPING RESISTOR 8-97061-910-2 01 1 9811-0105 ●
381 02.183 BOLT; DROPPING RESISTOR
02.334 M6X25 FLANGE 		0-28680-625-0 02 1 9811-0105 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0106- ● ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ●
729 01.150 SENSOR; QOS THERMO
HONG KONG EQUIPMENT(PQ1) 		8-97018-064-0 01 1 9811-0105 ●
770 02.183 NUT; DROPPING REGISTER
04.594 M6 FLANGE 		0-91150-106-0 04 1 9811-0105 ●

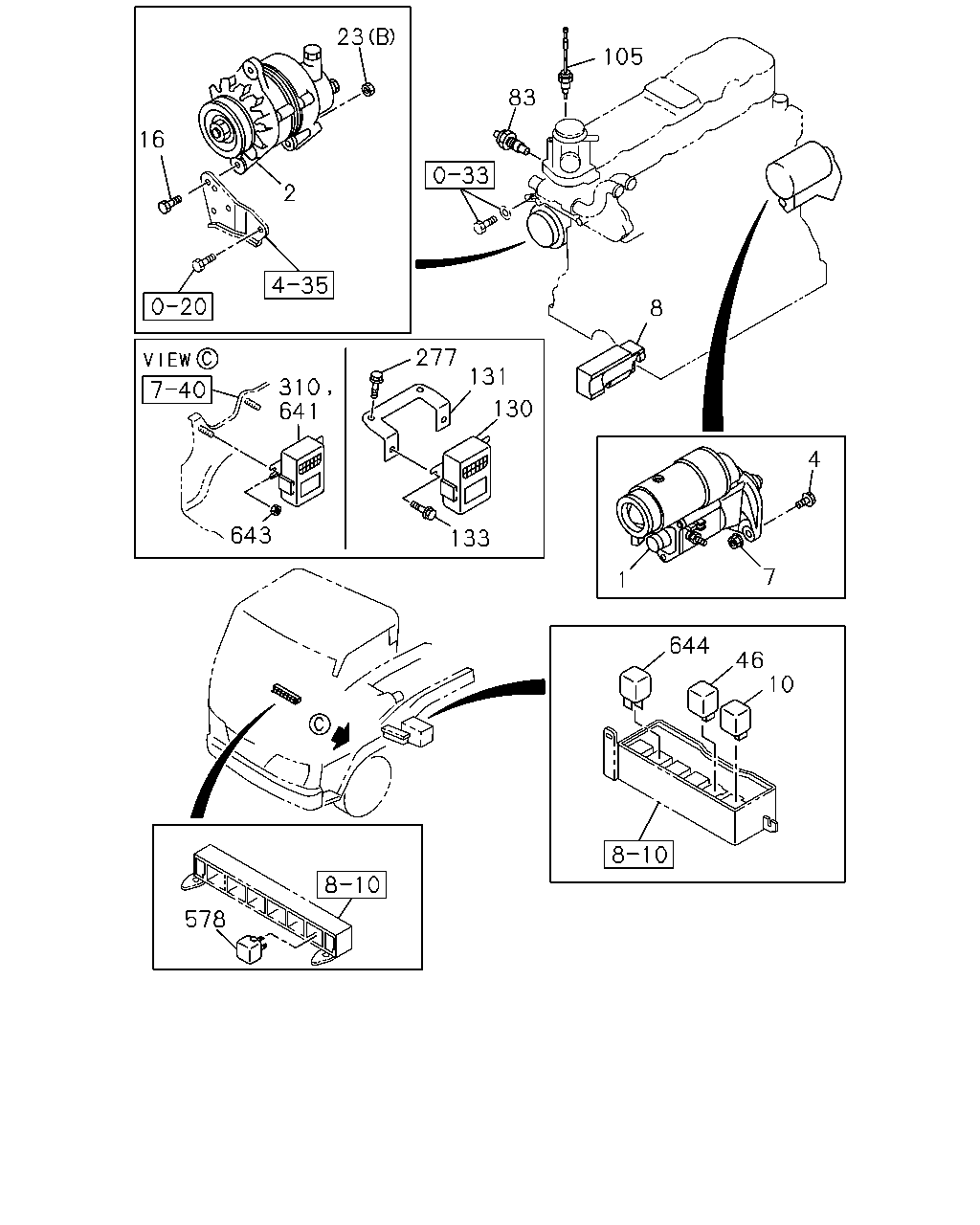

çizim 48526
23 105 83 16 2 8 277 131 310 641 130 4 643 133 7 1 644 46 10 578
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97940-212-0 01 1 9811-9905 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW DENSO 		8-97941-023-0 01 1 9906-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002-0107 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 50A 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 40A 		8-94310-379-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9811-0107 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
EXC. THAILAND EQUIPMENT(PM9) M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0106- ●
4 02.042 BOLT; STARTER
THAILAND EQUIPMENT(PM9) 00.002 M12X84 		8-94107-769-2 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811- ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 9811-0105 ● ●
7 02.042 NUT; STARTER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0106- ●
8 02.042 SPACER; STARTER
NOISE PACK FOR REGULATION VAR.2<7TF> 		8-97210-762-0 01 1 0111- ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 02.510 24V 50A 		8-97173-947-0 01 1 9811-0106 ●
10 02.100 RELAY; STARTER
VOLTAGE 24V<7AE> 24V 50A 		8-97264-947-0 01 1 0107- ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 9811-0105 ● ●
10 02.100 RELAY; STARTER
EXC. VOLTAGE 24V<7AE> 02.510 12V 80A 		8-97173-951-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0106-0107 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0108- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0106-0107 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0108- ● ● ● ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 02 1 9811-0105 ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 9811-0105 ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> VOLTAGE 24V<7AE> 24V 50A 		8-97173-947-0 01 1 0106- ● ● ●
46 02.510 RELAY; GLOW PLUG
FAST GLOW SYSTEM<KM6> EXC. VOLTAGE 24V<7AE> 12V 80A 		8-97173-951-0 01 1 9811- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0108- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0108- ● ● ● ●
105 01.150 SWITCH; THERMO,QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-94457-511-0 01 1 9811-0105 ●
105 01.150 SWITCH; THERMO,QOS 8-94457-511-0 01 1 0106- ●
105 01.150 SWITCH; THERMO,QOS 8-94121-152-1 01 1 9811- ● ●
130 02.510 CONTROLLER; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97201-734-3 01 1 0106- ●
131 03.670 BRACKET; EGR
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-97217-813-1 01 1 0106- ●
133 02.500 BOLT; EGR CONTROLLER
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
277 02.510 BOLT; BRKT
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 04.930 M6X20 FLANGE 		0-28680-620-0 02 1 0106- ●
310 02.510 CONTROLLER; QOS
EXC. THAILAND EQUIPMENT(PM9) 		8-97047-029-0 01 1 9811-0105 ●
578 02.510 RELAY; CHARGE WARNING
VOLTAGE 24V<7AE> 		8-97063-440-2 01 1 9811- ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-1 01 1 9811-0105 ● ●
578 02.510 RELAY; CHARGE WARNING
EXC. VOLTAGE 24V<7AE> 12V 		8-97063-441-2 01 1 0106- ● ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-646-0 01 1 9811- ●
641 02.510 TIMER; QOS
FAST GLOW SYSTEM<KM6> 		8-97215-648-0 01 1 9811- ●
643 02.510 NUT; TIMER,QOS
04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 9811-0105 ● ●
643 02.510 NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> 04.594 M6 FLANGE 		0-91150-106-0 02 1 0106- ● ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> 08.852 12V 20A 		8-97060-926-1 01 1 9811-0105 ●
644 02.510 RELAY; COLD START DEVICE
FAST GLOW SYSTEM<KM6> EXC. CHARGE AIR COOLER<6PL> 08.852 12V 20A 		8-97060-926-1 01 1 0106- ●

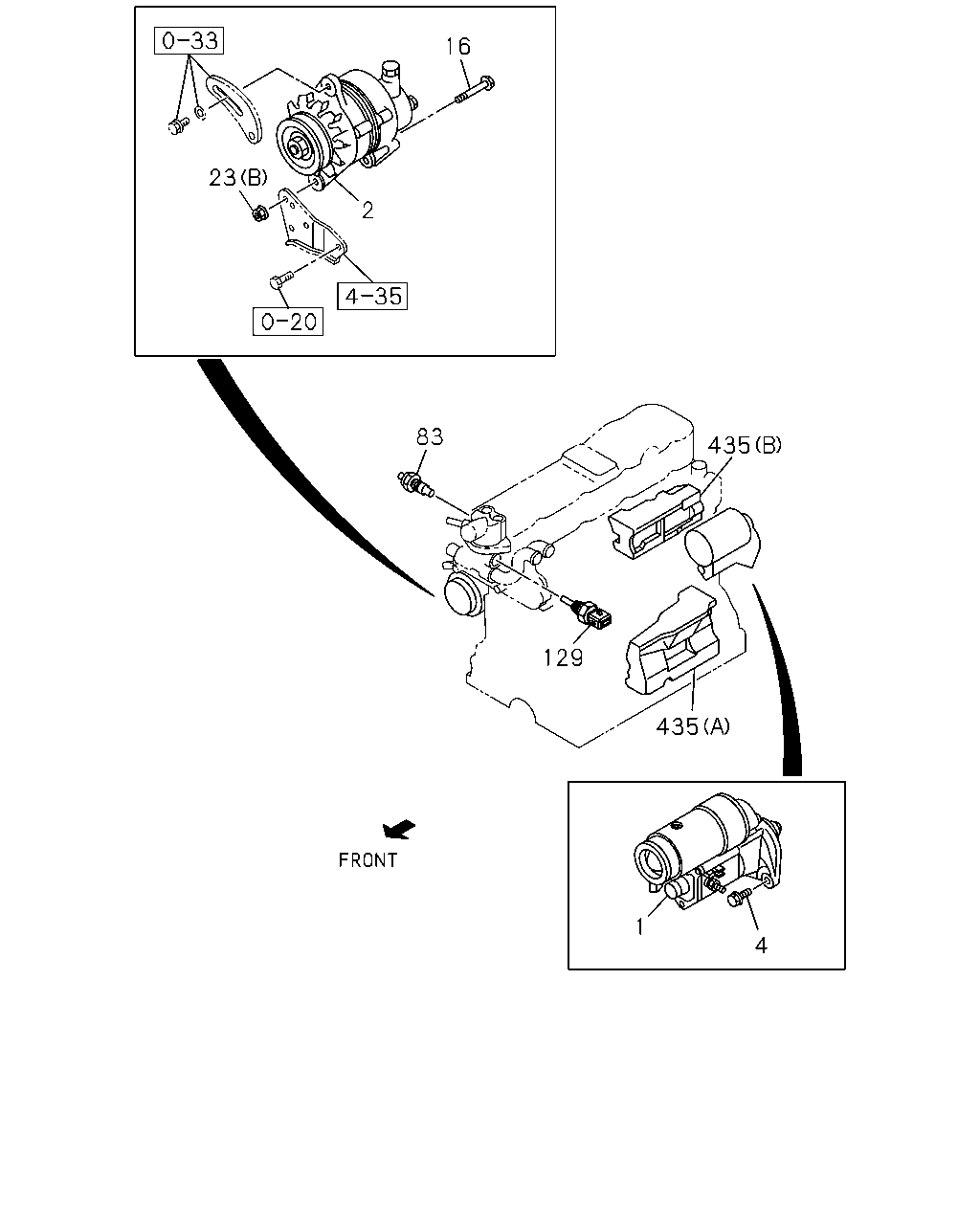

çizim 49205
16 23 2 83 435 129 435 1 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97120-356-2 01 1 9811-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW 		8-97120-356-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW 		8-97940-212-0 01 1 9811-9905 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 2.0KW DENSO 		8-97941-023-0 01 1 9906-0105 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.2KW DENSO 		8-97042-997-2 01 1 0106- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97216-186-1 01 1 9811-0002 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97226-787-1 01 1 0003-0109 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. STARTER 24V4.5KW<78M> 24V 4.5KW HITACHI 		8-97323-935-0 01 1 0110- ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW 		8-97095-811-5 01 1 9811-9811 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97216-185-0 01 1 9812-0001 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0002-0107 ●
1 02.041 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. EXC. STARTER 24V4.5KW<78M> 24V 4.0KW HITACHI 		8-97172-211-1 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9) 12V 50A 		8-97187-657-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A 		8-97187-657-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. THAILAND EQUIPMENT(PM9) 12V 40A 		8-94310-379-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 12V80A(K97) 12V 80A 		8-97249-209-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR DENSO(7KH) 24V 35A 		8-97115-044-0 01 1 9811-0105 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 12V80A(K97) 12V 60A 		8-97240-270-1 01 1 0106- ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 9811-0107 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V35A(K83) 24V 35A 		8-97075-882-3 01 1 0108- ● ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97144-392-1 01 1 9811-0001 ●
2 02.275 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(6QN) 24V 50A 		8-97186-551-1 01 1 0002- ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
EXC. THAILAND EQUIPMENT(PM9) M12X80 		0-28081-280-0 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X80 		0-28081-280-0 02 1 0106- ●
4 02.042 BOLT; STARTER
THAILAND EQUIPMENT(PM9) 00.002 M12X84 		8-94107-769-2 02 1 9811-0105 ●
4 02.042 BOLT; STARTER
M12X40 		0-28781-240-0 02 1 0106-0111 ●
4 02.042 BOLT; STARTER
M12X35 FLANGE 		0-28781-235-0 02 1 0112- ●
4 02.042 BOLT; STARTER
M10X15,M14X75 L=103 		8-97212-602-0 02 1 9811- ● ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
HONG KONG EQUIPMENT(PQ1) M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 9911-0105 ●
16 02.277 BOLT; GEN
M10X130 FLANGE 		0-28086-013-0 01 1 0106- ● ●
16 02.277 BOLT; GEN
M8X130 FLANGE 		0-28085-813-0 01 1 9811-9910 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60), GENERATOR DENSO(7KH) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0106-0107 ●
16 02.277 BOLT; GEN
EXC. AIR CONDITIONER MANUAL CONT(C60) 02.317 M8X40 W/WASHER 		8-97011-792-4 01 1 0108- ● ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) 03.415 M8X35 FLANGE 		0-28080-835-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
GENERATOR DENSO(7KH) M10X120 FLANGE 		0-28086-012-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
EXC. GENERATOR DENSO(7KH) M10X133 		8-97146-998-0 01 1 9811-0105 ●
16 02.277 BOLT; GEN
M10X133 		8-97146-998-0 01 1 0106- ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9811-9910 ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 9911-0105 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0106-0107 ● ● ●
23 02.277 NUT; GEN
08.917 (B) M10 FLANGE 		0-91150-210-0 01 1 0108- ● ● ● ●
23 02.277 NUT; GEN
01.540 (B) M8 FLANGE 		0-91150-208-0 01 1 9811-9910 ●
23 02.277 NUT; GEN
EXC. GENERATOR DENSO(7KH) 07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 9811-0105 ●
23 02.277 NUT; GEN
07.633 (A) M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
DENSO 		8-94235-691-0 01 1 0108- ● ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 9811-0105 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0106-0107 ● ● ●
83 01.150 THERMOMETER UNIT
YAZAKI 		8-94237-861-0 01 1 0108- ● ● ● ●
129 01.150 SENSOR; GLOW PLUG,THERMO 8-97069-786-1 01 1 0106- ●
435 02.363 RUBBER; CUSHION
(A) 		8-97259-609-3 01 1 0106- ●
435 02.363 RUBBER; CUSHION
(B) 		8-97308-356-0 01 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
