◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-56 - EMISSION SYSTEM ▶
0-56 — EMISSION SYSTEM (#23550) — 9 parça

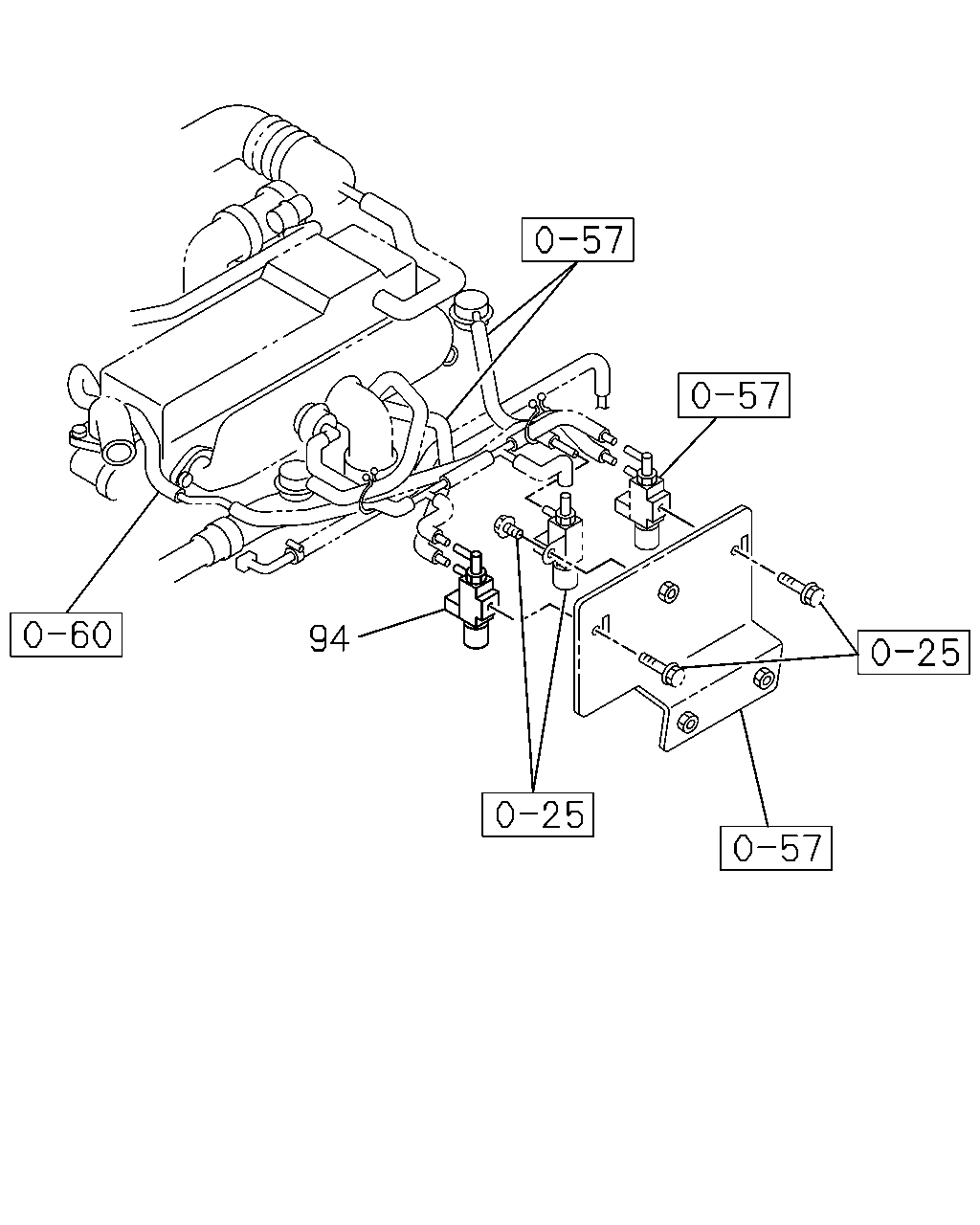

çizim 10850
94
BalonParca AdiParca NoAdetTipApplied Date A B C
94 03.670 VALVE; VAC SWITCH,FAST IDLE
TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> 		8-94384-335-0 01 1 0106- ●

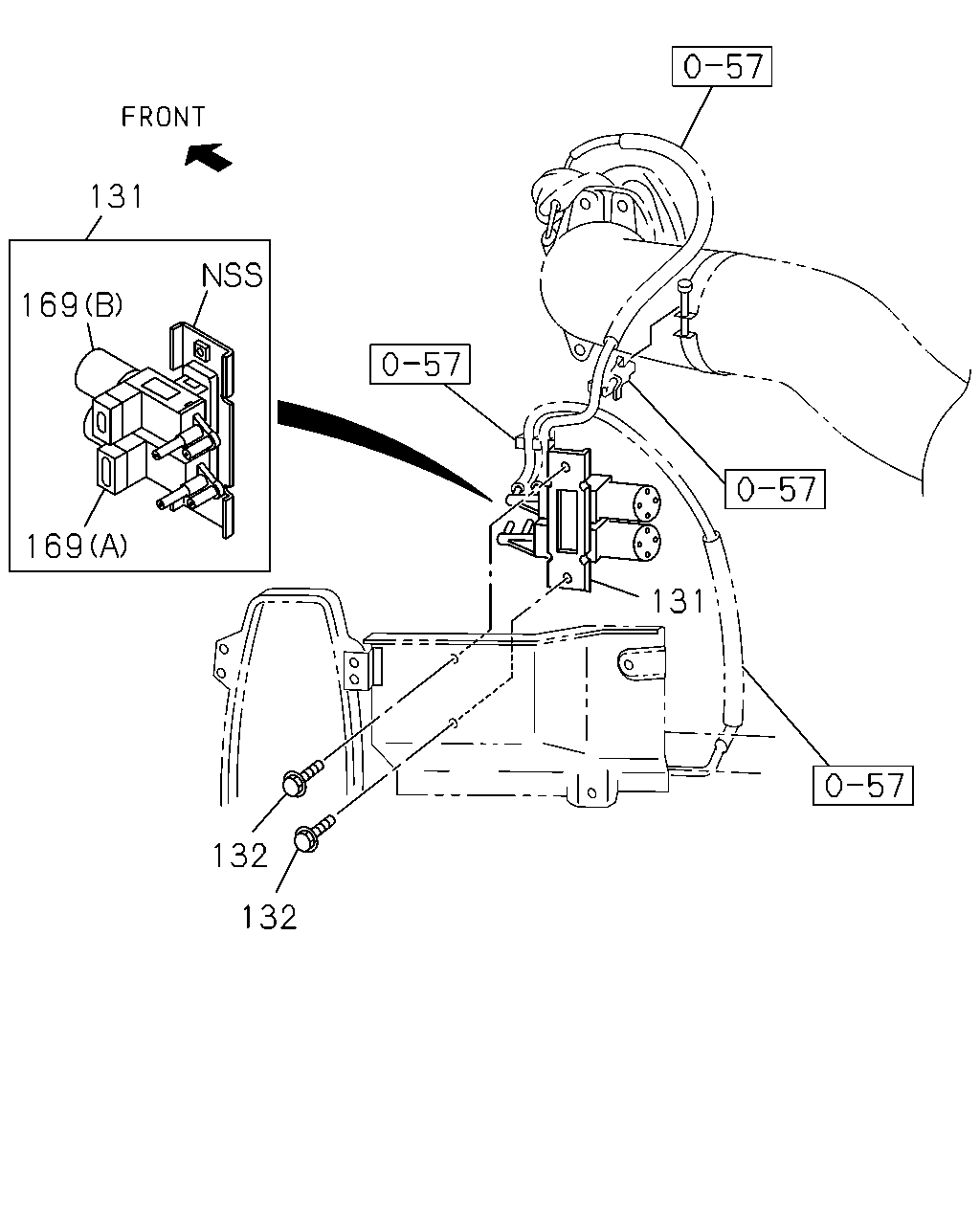

çizim 47335
131 169 169 131 132 132
BalonParca AdiParca NoAdetTipApplied Date A B C
131 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> 		8-97030-324-1 01 1 9811- ●
131 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97116-759-0 01 1 9811-0107 ●
131 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97116-759-0 01 1 0108- ● ●
132 03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 9811-0107 ●
132 03.680 BOLT; VSV BRKT
EXHAUST BRAKE<NF8> 01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0108- ● ●
169 03.670 VALVE; VAC SWITCHING
AIR CONDITIONER MANUAL CONT(C60) EXHAUST BRAKE<NF8> (A) 		8-97012-878-0 01 1 9811- ●
169 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B) 		8-97021-705-1 01 1 9811-0107 ●
169 03.670 VALVE; VAC SWITCHING
EXHAUST BRAKE<NF8> (B) 		8-97021-705-1 01 1 0108- ● ●
