1-45A — WATER SEDIMENTER; FUEL (#2355) — 20 parça

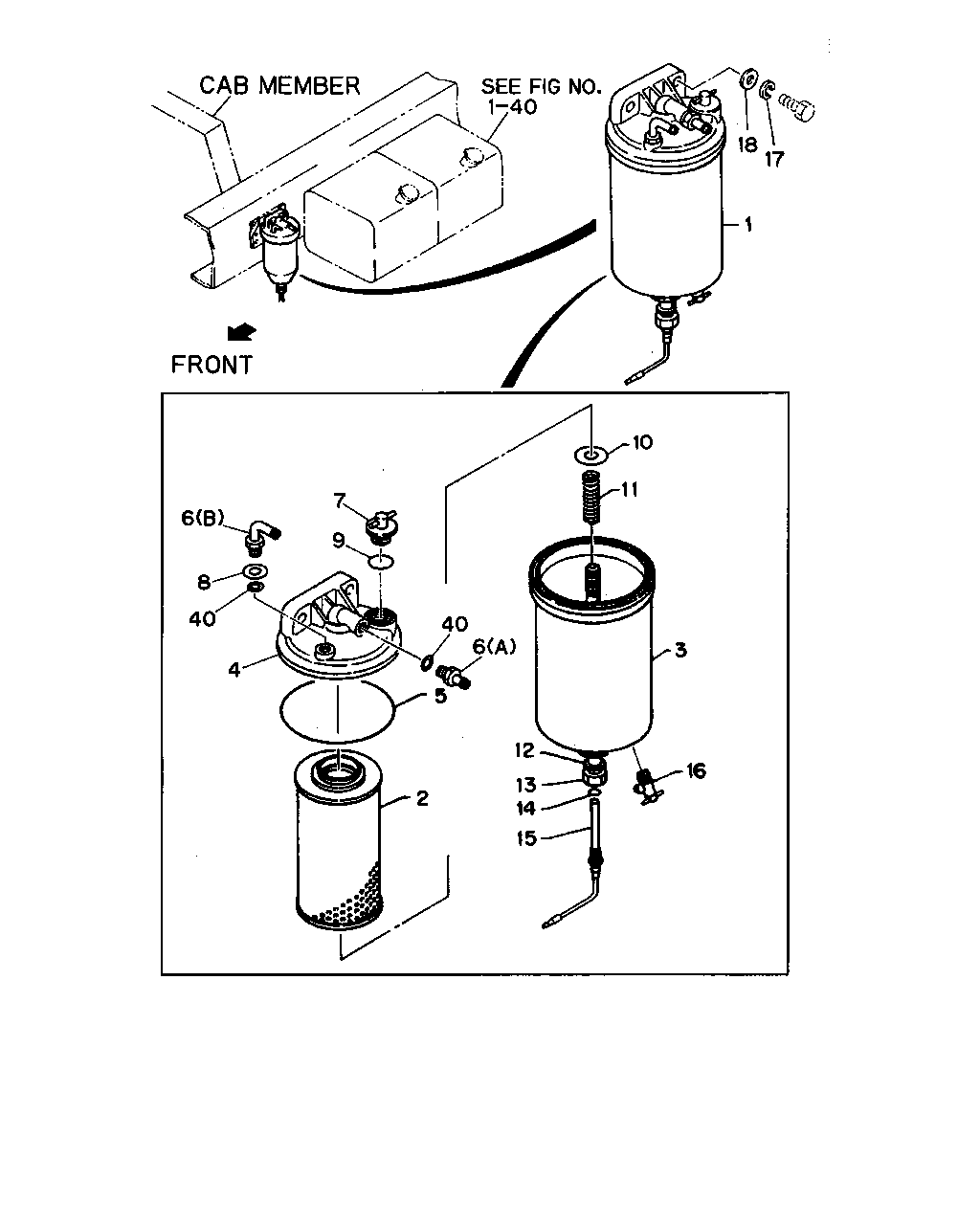

çizim 94315
6 8 40 4 9 7 10 11 3 40 5 2 6 12 13 14 15 16 1 17 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SEDIMENTER; FUEL 1-13200-468-1 01 1 9002- ● ● ●
2 ELEMENT; FUEL FILTER 1-13240-020-0 01 1 9002- ● ● ●
3 BODY ASM; SEDIMENTER 1-13211-116-0 01 1 9002- ● ● ●
4 COVER; UPR,SEDIMENTER ASM 1-13212-055-0 01 1 9002- ● ● ●
5 GASKET; UPR COVER,SEDIMENTER 1-09630-072-0 01 1 9002- ● ● ●
6 CONNECTOR ASM; SEDIMENTER
(A) 		1-13229-003-0 01 1 9002- ● ● ●
6 CONNECTOR ASM; SEDIMENTER
(B) 		1-13229-004-0 01 1 9002- ● ● ●
7 PLUG; DRAIN,SEDIMENTER 1-13219-059-0 01 1 9002- ● ● ●
8 STOPPER; CONN,SEDIMENTER 1-13229-001-0 01 1 9002- ● ● ●
9 GASKET; DRAIN PLUG & CONNECTOR 1-13219-060-0 01 1 9002- ● ● ●
10 SEAT; ELEMENT,SEDIMENTER 1-13249-020-0 01 1 9002- ● ● ●
11 SPRING; SET,SCREEN 1-13249-019-0 01 1 9002- ● ● ●
12 GASKET; CENTER BOLT 1-13219-057-0 01 1 9002- ● ● ●
13 BOLT; CENTER,SEDIMENTER 1-13231-058-0 01 1 9002- ● ● ●
14 GASKET; SENSOR TO CENTER BOLT 9-09562-110-0 01 1 9002- ● ● ●
15 SENSOR ASM; SEDIMENTER 1-13249-028-0 01 1 9002- ● ● ●
16 COCK ASM; DRAIN 1-13219-058-0 01 1 9002- ● ● ●
17 WASHER; LK,FUEL SEDIMENTER
ID=14.2 		9-09150-514-0 02 1 9002- ● ● ●
18 WASHER; PL,FUEL SEDIMENTER
ID=15 		9-09160-514-0 02 1 9002- ● ● ●
40 GASKET; CONNECTOR TO COVER
ID=14.2 OD=19.2 		1-09630-085-0 02 1 9002- ● ● ●
