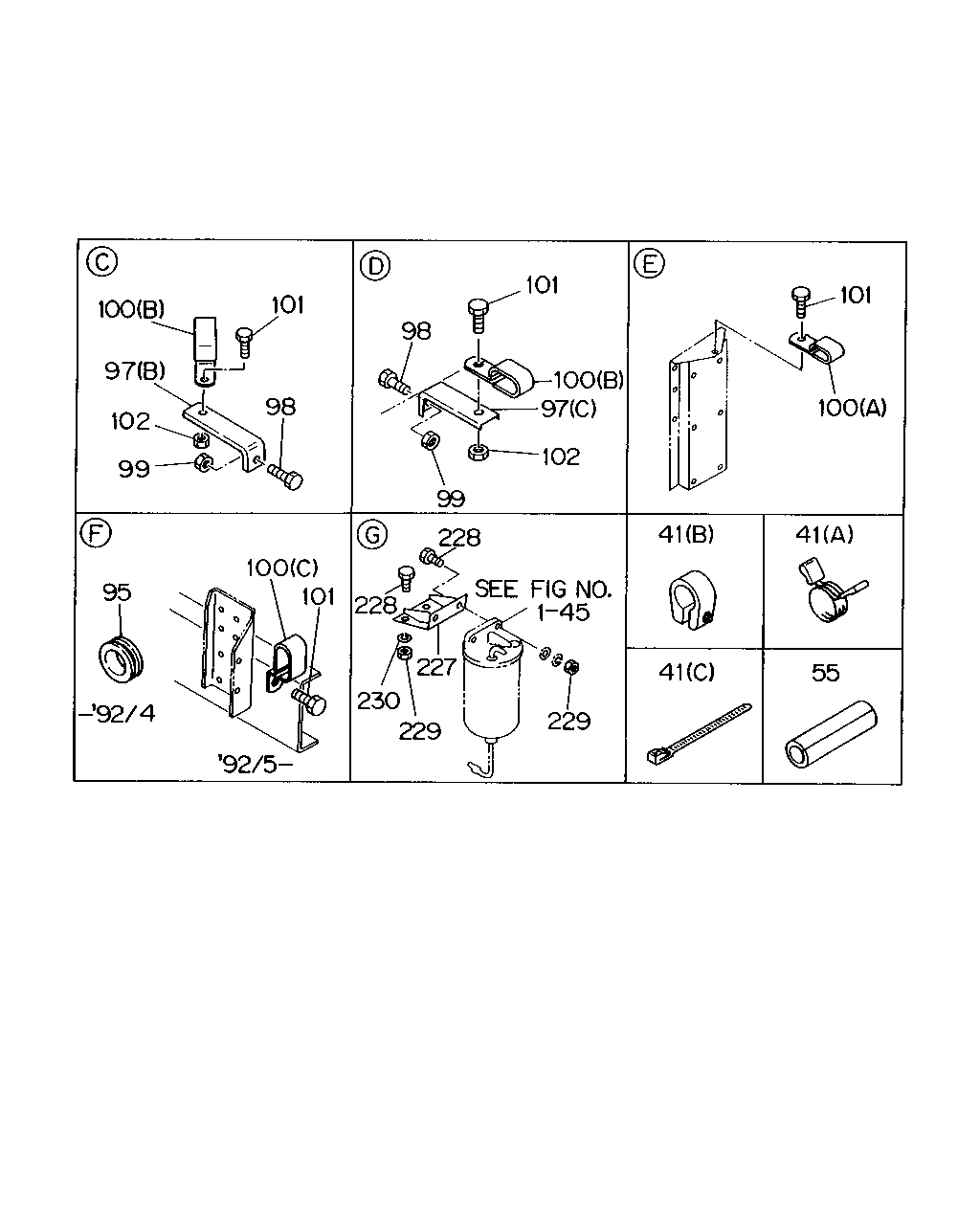

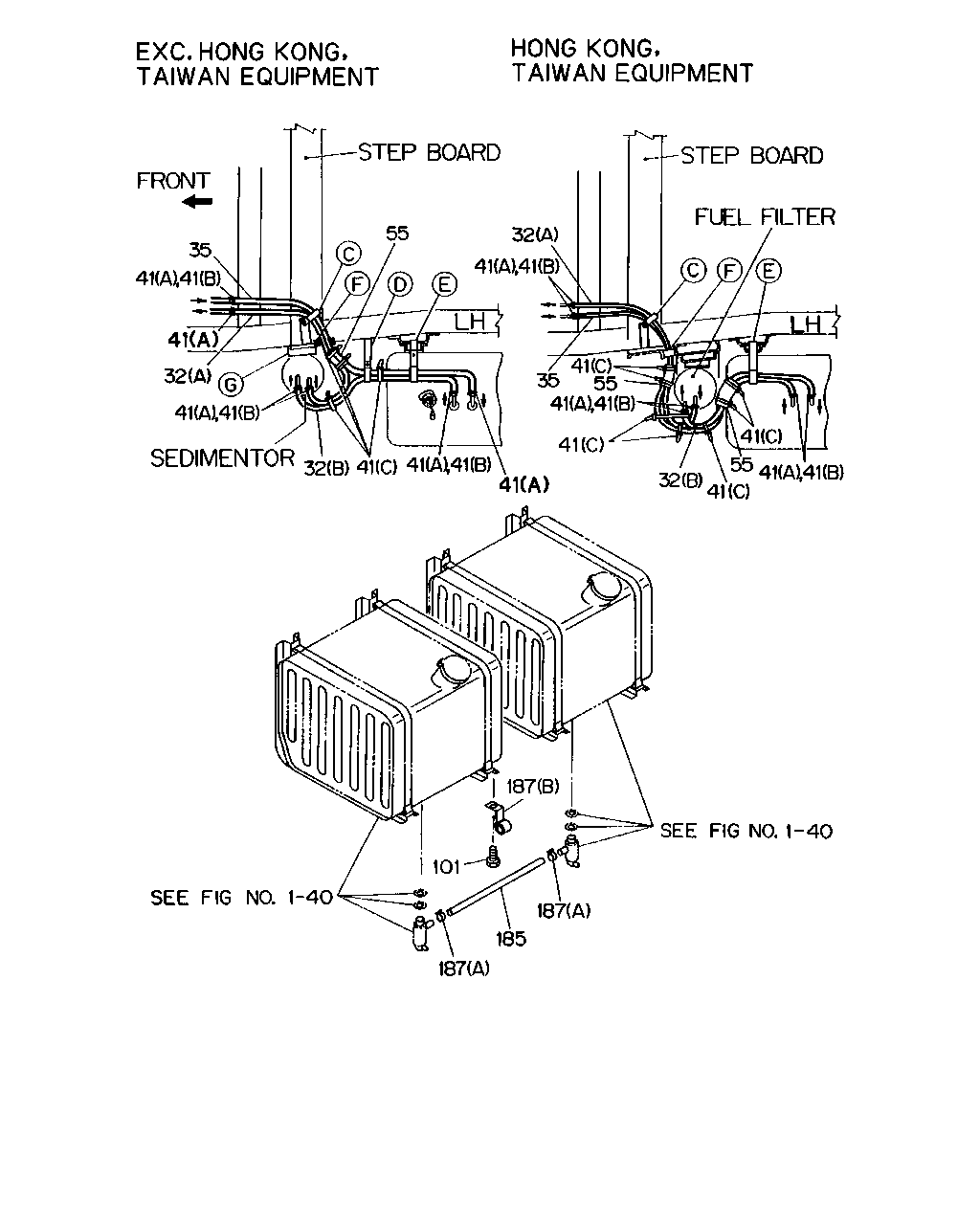

1-41B — FUEL PIPING; CHASSIS (#2354) — 78 parça

32 41 41 55 35 41 41 41 32 41 41 32 41 41 41 41 35 55 41 41 41 41 32 41 55 41 41 41 187 101 187 187 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9002-9306	●	●
32	PIPE; DELIVERY,FUEL TANK (B) L=1100 SERVICED BY L=10000	9-09914-701-0	01	1	9307-	●		●
32	PIPE; DELIVERY,FUEL TANK (A) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	9002-9307	●	●	●
32	PIPE; DELIVERY,FUEL TANK (A) L=1150 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●		●
35	PIPE; FUEL TANK,RETURN L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9002-9307		●	●
35	PIPE; FUEL TANK,RETURN EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9002-9307	●
35	PIPE; FUEL TANK,RETURN L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9308-		●	●
35	PIPE; FUEL TANK,RETURN EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1250 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●
35	PIPE; FUEL TANK,RETURN HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	9002-9306	●
35	PIPE; FUEL TANK,RETURN HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9307-9307	●
35	PIPE; FUEL TANK,RETURN HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	9308-	●
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	04	1	9002-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) (C) L=250	5-09707-030-0	03	1	9207-9306	●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) (C) L=250	5-09707-030-0	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9002-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9002-	●	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9002-9204	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9205-9306		●	●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=150	1-09369-006-1	01	1	9205-9306	●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-		●	●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	01	1	9307-	●
55	COVER; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	02	1	9205-	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9002-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	0-50040-820-0	01	1	9002-9302	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
185	PIPE; FUEL TANK TO TANK FUEL TANK 200L+300L<W64> L=900 ID=12 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●	●	●
185	PIPE; FUEL TANK TO TANK EXC. FUEL TANK 200L+300L<W64> L=650 SERVICED BY L=10000	9-09914-914-0	01	1	9002-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (B) ID=17	1-09700-840-0	02	1	9002-	●	●	●
187	CLIP; FUEL PIPE TANK TO TANK (A) ID=18	1-09707-011-1	02	1	9002-	●	●	●

100 101 97 102 99 98 98 101 100 97 99 102 101 100 41 41 55 41 229 229 227 230 228 228 101 100 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
41	CLIP; FUEL PIPE,FUEL TANK (C) L=250	5-09707-030-0	04	1	9002-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) (C) L=250	5-09707-030-0	03	1	9207-9306	●
41	CLIP; FUEL PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1) (C) L=250	5-09707-030-0	02	1	9307-	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	04	1	9002-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=15	9-09715-098-0	02	1	9002-	●	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9002-9204	●	●
55	COVER; PIPE,FUEL TANK L=150	1-09369-006-1	01	1	9205-9306		●	●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=150	1-09369-006-1	01	1	9205-9306	●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	9307-		●	●
55	COVER; PIPE,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	01	1	9307-	●
55	COVER; PIPE,FUEL TANK HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) L=1300	1-09360-677-1	02	1	9205-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	9002-9204	●	●
97	BRACKET; CLIP (B) L=135	1-22518-099-0	01	1	9002-9306	●	●
97	BRACKET; CLIP EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) L=135	1-22518-099-0	01	1	9307-	●		●
97	BRACKET; CLIP FRAME EQUIPMENT HEAVY DUTY<F03> EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> (C) L=55	1-47475-304-0	01	1	9307-9404	●	●	●
97	BRACKET; CLIP EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> (C) L=55	1-47475-304-0	01	1	9002-9306	●	●	●
97	BRACKET; CLIP EXC. FUEL TANK 200L+300L<W64> (C) L=95	1-82699-085-0	01	1	9405-	●		●
98	BOLT; BRKT,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9002-9302	●	●
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28080-820-0	01	1	9303-9306	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	9307-	●		●
98	BOLT; BRKT,FUEL PIPE EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X25 FLANGE	0-28080-825-0	01	1	9002-9306	●	●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X25 FLANGE	0-28080-825-0	01	1	9307-9404	●		●
98	BOLT; BRKT,FUEL PIPE EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FUEL TANK 200L+300L<W64> M8X25 FLANGE	0-28080-825-0	01	1	9405-	●		●
98	BOLT; BRKT,FUEL PIPE FRAME EQUIPMENT HEAVY DUTY<F03> EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8X30 FLANGE	0-28080-830-0	01	1	9307-	●		●
99	NUT; BRKT,CLIP,FUEL TANK EXC. SUB AIR TANK<SJD>,FUEL TANK 200L+300L<W64> M8	9-09110-408-0	01	1	9002-	●	●	●
99	NUT; BRKT,CLIP,FUEL TANK M8	9-09110-408-0	01	1	9002-	●	●	●
100	CLIP; FUEL PIPE (A) ID=16X2 L=50	9-09535-586-0	01	1	9002-	●	●	●
100	CLIP; FUEL PIPE (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	9205-	●	●	●
100	CLIP; FUEL PIPE EXC. FUEL TANK 200L+300L<W64> (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-9204	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9002-9204	●	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	01	1	9205-	●	●	●
100	CLIP; FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> (B) ID=16X2 L=20	9-09535-536-0	01	1	9205-	●	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 W/LK WASHER	0-50040-820-0	03	1	9002-9302	●	●
101	BOLT; CLIP,FUEL PIPE M8X20 FLANGE	0-28080-820-0	03	1	9303-	●	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 W/LK WASHER	0-50040-820-0	01	1	9002-9302	●	●
101	BOLT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5),FUEL TANK 200L+300L<W64> M8X20 FLANGE	0-28080-820-0	01	1	9303-	●	●	●
102	NUT; CLIP,FUEL PIPE M8	9-09110-408-0	01	1	9002-9204	●	●
102	NUT; CLIP,FUEL PIPE EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) M8	9-09110-408-0	01	1	9205-	●	●	●
227	BRACKET; FUEL SEDIMENTER	1-22518-081-0	01	1	9002-9204	●	●
227	BRACKET; FUEL SEDIMENTER EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5)	1-22518-081-1	01	1	9205-	●	●	●
228	BOLT; BRKT,SEDIMENTER M14X45	0-20801-445-0	02	1	9002-	●	●	●
228	BOLT; BRKT,SEDIMENTER M12X35	9-92061-235-0	02	1	9002-9204	●	●
228	BOLT; BRKT,SEDIMENTER EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) M12X35	9-92061-235-0	02	1	9205-	●	●	●
229	NUT; BRKT,FUEL FILTER M14	9-99110-414-0	02	1	9002-	●	●	●
229	NUT; BRKT,FUEL FILTER M12	9-99110-512-0	02	1	9002-9204	●	●
229	NUT; BRKT,FUEL FILTER EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) M12	9-99110-512-0	02	1	9205-	●	●	●
230	WASHER; LK,BRKT,FUEL TANK ID=12.2	9-09150-812-0	02	1	9002-9204	●	●
230	WASHER; LK,BRKT,FUEL TANK EXC. HONG KONG EQUIPMENT(PQ1),TAIWAN EQUIPMENT(WW5) ID=12.2	9-09150-812-0	02	1	9205-	●	●	●
