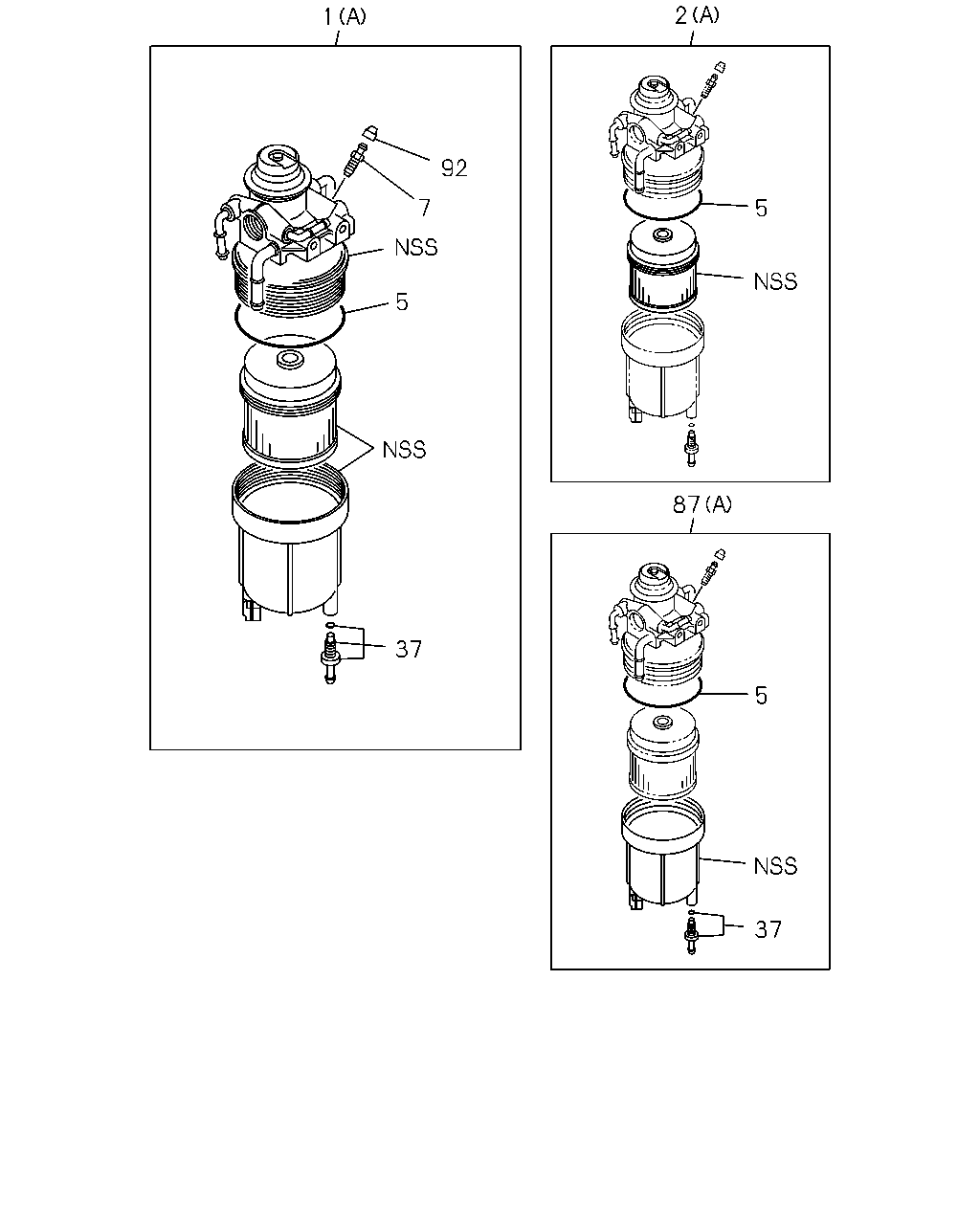

1-45 — WATER SEDIMENTER; FUEL (#23523) — 27 parça

1 87 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL (A)	8-98023-327-2	01	1	0910-1002
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1003-
1	SEDIMENTER; FUEL (B)	8-98086-193-1	01	1	0910-
2	ELEMENT; FUEL FILTER (B) BEST VALUE PARTS	1-87610-094-0	01	1	0910-
2	ELEMENT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-0	01	1	1112-
2	ELEMENT; FUEL FILTER (A)	8-98037-011-0	01	1	0910-1002
2	ELEMENT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1111
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1112-
2	ELEMENT; FUEL FILTER (B)	8-98092-481-1	01	1	0910-
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	0910-
87	CASE ASM; SEDIMENTER (B)	8-98092-482-1	01	1	0910-

2 1 92 7 5 5 87 37 5 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL (A)	8-98023-327-2	01	1	0910-1002
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1003-
1	SEDIMENTER; FUEL (B)	8-98086-193-1	01	1	0910-
2	ELEMENT; FUEL FILTER (B) BEST VALUE PARTS	1-87610-094-0	01	1	0910-
2	ELEMENT; FUEL FILTER (A) BEST VALUE PARTS	1-87610-093-0	01	1	1112-
2	ELEMENT; FUEL FILTER (A)	8-98037-011-0	01	1	0910-1002
2	ELEMENT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1111
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1112-
2	ELEMENT; FUEL FILTER (B)	8-98092-481-1	01	1	0910-
5	GASKET; UPR COVER,SEDIMENTER	8-98037-015-0	01	1	0910-1111
5	GASKET; UPR COVER,SEDIMENTER	8-98203-600-0	01	1	1112-
7	PLUG; DRAIN,SEDIMENTER M8X10	8-98034-312-0	01	1	0910-
37	PLUG; SENSOR	8-98037-095-0	01	1	0910-
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	0910-
87	CASE ASM; SEDIMENTER (B)	8-98092-482-1	01	1	0910-
92	CAP; DRAIN	8-98034-314-0	01	1	0910-
