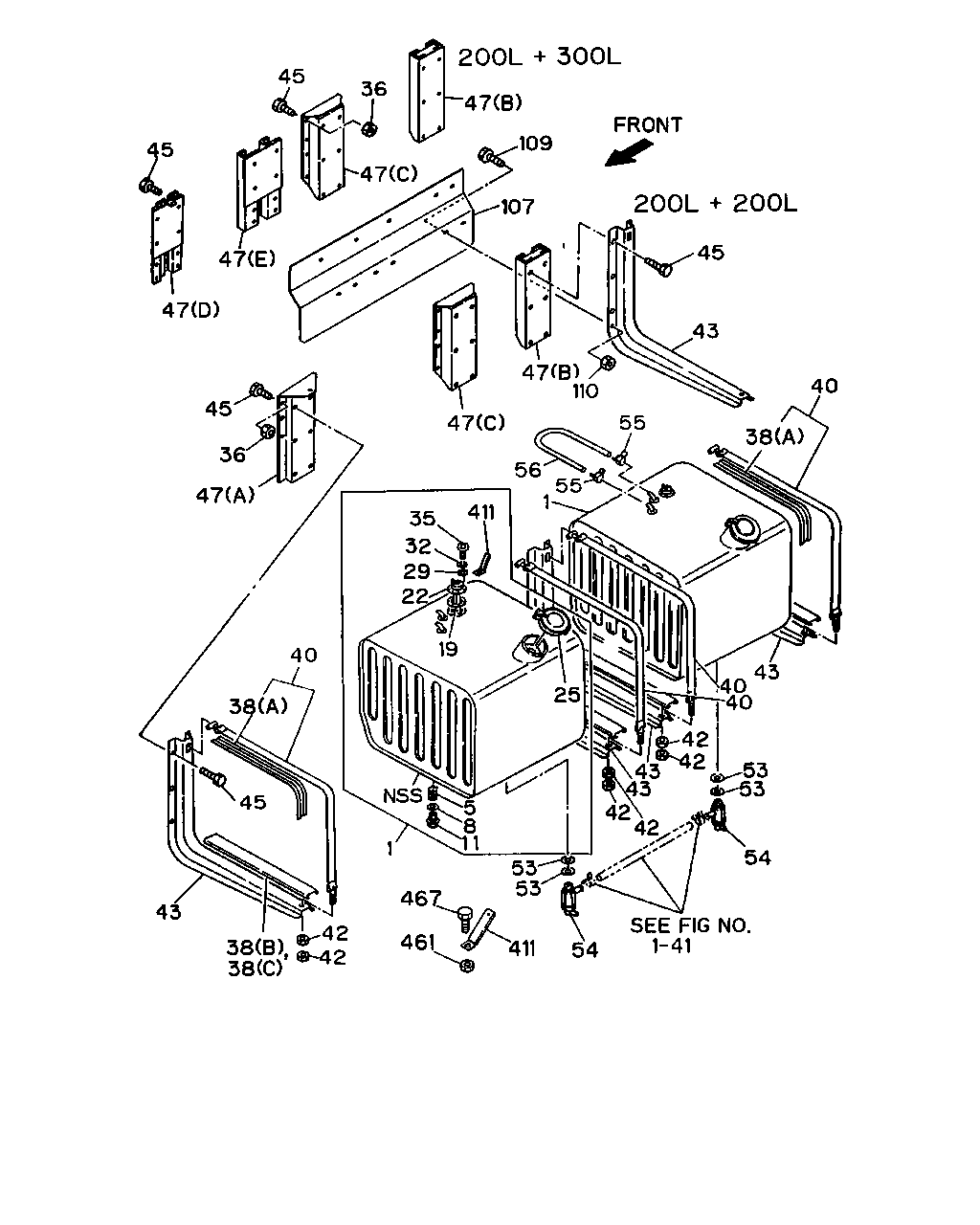

1-40B — FUEL TANK (#2352) — 74 parça

36 45 45 47 47 107 109 47 47 45 47 36 47 47 45 43 110 40 38 55 56 55 1 411 35 32 29 22 40 38 45 43 1 42 42 38 38 461 467 5 19 25 8 11 411 54 53 53 42 42 54 53 43 43 40 40 53 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> FUEL TANK 200L+300L<W64> 600X649X549 200L	1-22400-857-0	01	1	9002-	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> FUEL TANK 200L+300L<W64> 900X649X549 300L	1-22400-859-1	01	1	9002-	●	●	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+300L<W64> 600X649X549 200L	1-22400-857-0	02	1	9002-	●	●	●
1	TANK; FUEL EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>,FUEL TANK 200L+300L<W64> 600X649X549 200L	1-22400-856-0	02	1	9002-	●	●	●
1	TANK; FUEL FUEL TANK 200L+300L<W64> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 600X649X549 200L	1-22400-856-0	01	1	9002-	●	●	●
1	TANK; FUEL FUEL TANK 200L+300L<W64> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> 900X649X549 300L	1-22400-858-1	01	1	9002-	●	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L+300L<W64>	1-22460-001-1	01	1	9002-9402	●	●	●
5	STRAINER; FUEL TANK EXC. FUEL TANK 200L+300L<W64>	1-22460-001-1	02	1	9002-9402	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+300L<W64> T=2.0	9-09923-030-0	01	1	9002-	●	●	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+300L<W64> T=2.0	9-09923-030-0	02	1	9002-	●	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+300L<W64>	1-09604-052-0	01	1	9002-	●	●	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+300L<W64>	1-09604-052-0	02	1	9002-	●	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+300L<W64>	9-83135-003-0	01	1	9002-	●	●	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+300L<W64>	9-83135-003-0	02	1	9002-	●	●	●
22	UNIT; FUEL TANK FUEL TANK 200L+300L<W64>	1-83141-081-1	01	1	9002-	●	●	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+300L<W64>	1-83141-081-1	02	1	9002-	●	●	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	9002-	●	●	●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-033-2	02	1	9002-	●	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+300L<W64> ID=4.3	9-09160-504-0	01	1	9002-	●	●	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+300L<W64> ID=4.3	9-09160-504-0	02	1	9002-	●	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+300L<W64> ID=4.1	9-09150-504-0	05	1	9002-	●	●	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+300L<W64> ID=4.1	9-09150-504-0	10	1	9002-	●	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+300L<W64> M4X10	9-93497-410-0	05	1	9002-	●	●	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+300L<W64> M4X10	9-93497-410-0	10	1	9002-	●	●	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L+300L<W64> M12	9-99110-412-0	06	1	9002-9304		●	●
36	NUT; SPACER,FUEL TANK FUEL TANK 200L+300L<W64> M12	9-99110-512-0	06	1	9305-	●	●	●
36	NUT; SPACER,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12	9-99110-412-0	18	1	9002-9304		●	●
36	NUT; SPACER,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12	9-99110-512-0	18	1	9305-	●	●	●
38	INSULATION; SUPPORT BELT (A) L=650	1-22553-022-1	04	1	9002-	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+300L<W64> (B) 200L L=580	1-22553-003-0	02	1	9002-	●	●	●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+300L<W64> (C) 300L L=580	1-22553-018-0	02	1	9002-	●	●	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+300L<W64> (B) L=580	1-22553-003-0	04	1	9002-	●	●	●
40	BELT; SUPPORT,FUEL TANK	1-22550-208-2	04	1	9002-	●	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	08	1	9002-	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+300L<W64> 200L	1-53461-376-0	02	1	9002-	●	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L+300L<W64> 300L	1-53461-377-0	02	1	9002-	●	●	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L+300L<W64> 200L	1-53461-376-0	04	1	9002-	●	●	●
45	BOLT; BRKT,FUEL TANK M12X35	9-01911-235-0	24	1	9002-9005		●	●
45	BOLT; BRKT,FUEL TANK M12X35 W/LK WASHER	0-50041-235-0	24	1	9006-9307	●	●	●
45	BOLT; BRKT,FUEL TANK M12X35 FLANGE	0-28081-235-0	24	1	9308-9312	●	●
45	BOLT; BRKT,FUEL TANK FRAME EQUIPMENT HEAVY DUTY<F03> M12X35 FLANGE	0-28081-235-0	24	1	9401-	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+300L<W64> M12X35	9-01911-235-0	28	1	9002-9005		●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+300L<W64> M12X35 W/LK WASHER	0-50041-235-0	28	1	9006-9306	●	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12X30 W/LK WASHER	9-01911-230-0	24	1	9002-9005		●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12X30 W/LK WASHER	0-50041-230-0	24	1	9006-9306		●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12X30 W/LK WASHER	0-50041-230-0	24	1	9501-	●	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+300L<W64> M12X35 FLANGE	0-28081-235-0	28	1	9308-9412	●	●
45	BOLT; BRKT,FUEL TANK FUEL TANK 200L+300L<W64> M12X35 W/LK WASHER	0-50041-235-0	28	1	9501-	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12X30 FLANGE	0-28081-230-0	24	1	9308-9312	●	●
45	BOLT; BRKT,FUEL TANK EXC. FUEL TANK 200L+300L<W64> M12X30 FLANGE	0-28081-230-0	24	1	9401-9412	●	●
45	BOLT; BRKT,FUEL TANK EXZ&RHD(EX5*) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X30 FLANGE	0-28081-230-0	24	1	9401-9412		●
45	BOLT; BRKT,FUEL TANK EXZ&LHD(EX6*) M12X30 FLANGE	0-28081-230-0	24	1	9401-9412		●
45	BOLT; BRKT,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X30 FLANGE	0-28081-230-0	24	1	9401-9412	●
45	BOLT; BRKT,FUEL TANK EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M12X30 FLANGE	0-28081-230-0	24	1	9501-	●	●
47	SPACER; FUEL TANK (B) L=435	1-53461-191-1	01	1	9002-	●	●	●
47	SPACER; FUEL TANK FUEL TANK 200L+300L<W64> (C) L=435	1-53461-192-3	01	1	9002-	●	●	●
47	SPACER; FUEL TANK FUEL TANK 200L+300L<W64> (D) L=380	1-53461-193-1	01	1	9002-	●	●	●
47	SPACER; FUEL TANK FUEL TANK 200L+300L<W64> (E) L=380	1-53461-194-1	01	1	9002-	●	●	●
47	SPACER; FUEL TANK EXC. FUEL TANK 200L+300L<W64> (A) L=435	1-53461-190-3	01	1	9002-	●	●	●
47	SPACER; FUEL TANK EXC. FUEL TANK 200L+300L<W64> (C) L=435	1-53461-192-3	02	1	9002-	●	●	●
53	GASKET; COCK,FUEL TANK T=1.600	1-22416-001-0	02	1	9002-	●	●	●
53	GASKET; COCK,FUEL TANK T=0.80	1-22416-004-0	02	1	9002-	●	●	●
54	COCK ASM; FUEL TANK	9-09904-176-0	02	1	9002-	●	●	●
55	CLIP; FUEL PIPE ID=15	9-09715-098-0	02	1	9002-	●	●	●
56	PIPE; FUEL SHUTTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9002-	●	●	●
107	PROTECTOR; HEAT,FUEL TANK TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1)	1-22159-179-3	01	1	9002-		●
109	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) M8X20 W/LK&PL WASHER	9-01960-820-0	07	1	9002-9204		●
109	BOLT; HEAT PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) M8X20 W/LK&PL WASHER	0-50140-820-0	07	1	9205-		●
110	NUT; PROTECTOR TAIL PIPE SINGLE HORIZONTAL<NC2> HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	07	1	9002-		●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L+300L<W64> L=50	1-09700-416-0	01	1	9002-	●	●	●
461	NUT; CLIP,FUEL PIPE M8	9-09110-408-0	02	1	9002-	●	●	●
467	BOLT M8X20 W/LK WASHER	9-01900-820-0	02	1	9002-9204		●	●
467	BOLT M8X20 W/LK WASHER	0-50040-820-0	02	1	9205-9302		●	●
467	BOLT M8X20 FLANGE	0-28080-820-0	02	1	9303-	●	●	●
