1-31 — AIR DUCT (#23519) — 111 parça

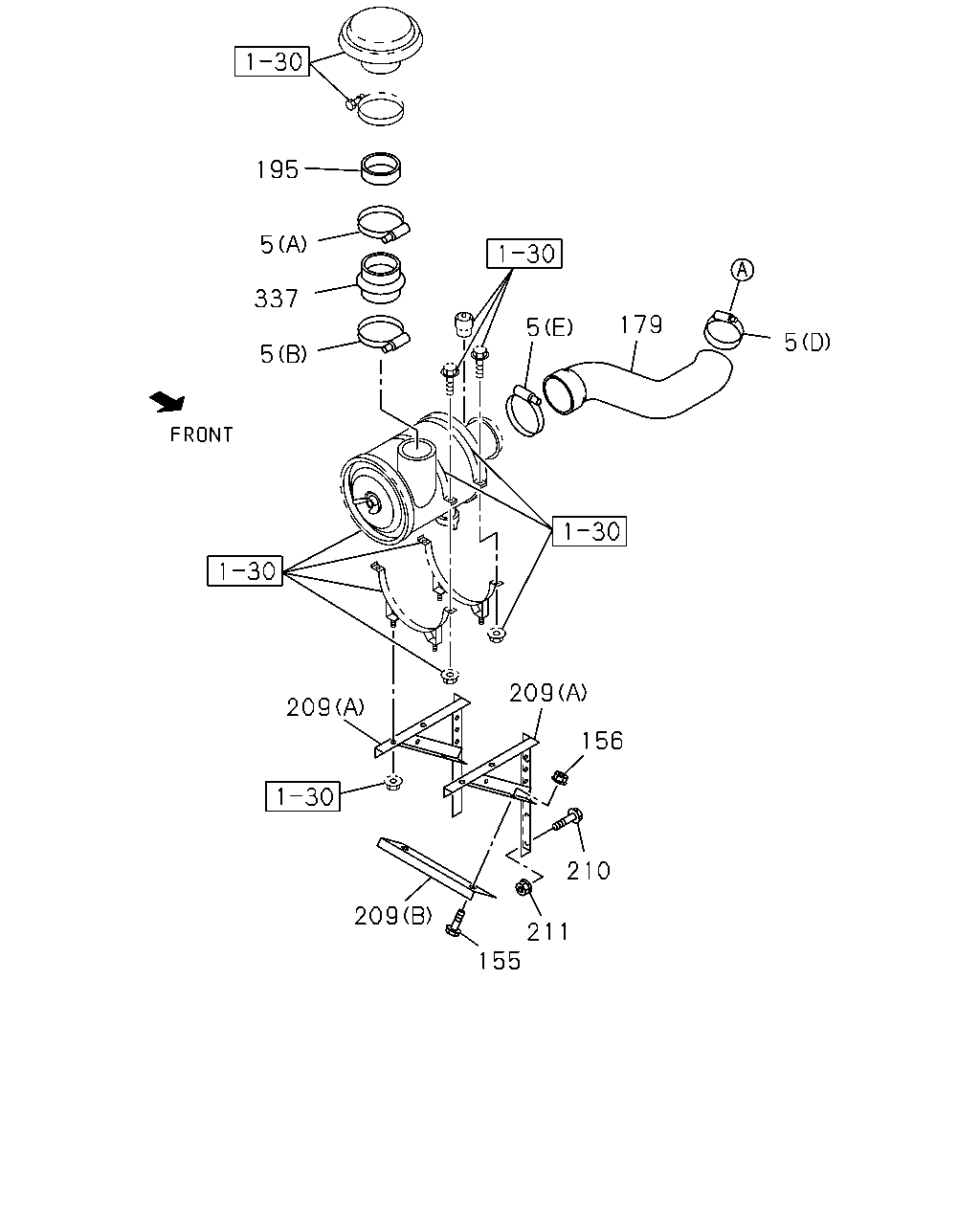

çizim 130223
195 5 337 179 5 5 5 209 209 156 210 209 211 155
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 0911-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (E) ID=130-169 		8-98155-950-0 01 1 0911-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 0910-1211
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0910-1211
5 CLIP; AIR DUCT
(C) ID=114 		8-15178-030-0 01 1 0910-
5 CLIP; AIR DUCT
(D) ID=110-130 		8-98133-359-0 01 1 0910-0910
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=110-130 		8-98133-359-0 01 1 0911-
5 CLIP; AIR DUCT
(E) ID=130-150 		8-98133-360-0 01 1 0910-0910
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (E) ID=130-150 		8-98133-360-0 01 1 0911-
155 BOLT; BRKT
M10X30 FLANGE 		0-28061-030-0 02 1 0910-
155 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0910-
155 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0910-
155 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0910-
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0910-
156 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0910-
179 HOSE; AIR INT 8-98101-784-1 01 1 0910-
195 PIPE; CONN 8-98105-942-0 01 1 0910-1211
209 BRACKET; ACL
(A) 		1-53419-420-1 02 1 0910-
209 BRACKET; ACL
(B) 		1-53419-421-0 01 1 0910-
210 BOLT; ACL BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0910-
210 BOLT; ACL BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0910-
210 BOLT; ACL BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0910-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0910-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0910-
337 HOSE; CONN,DUCT TO RESONATOR 1-14231-970-0 01 1 0910-1211

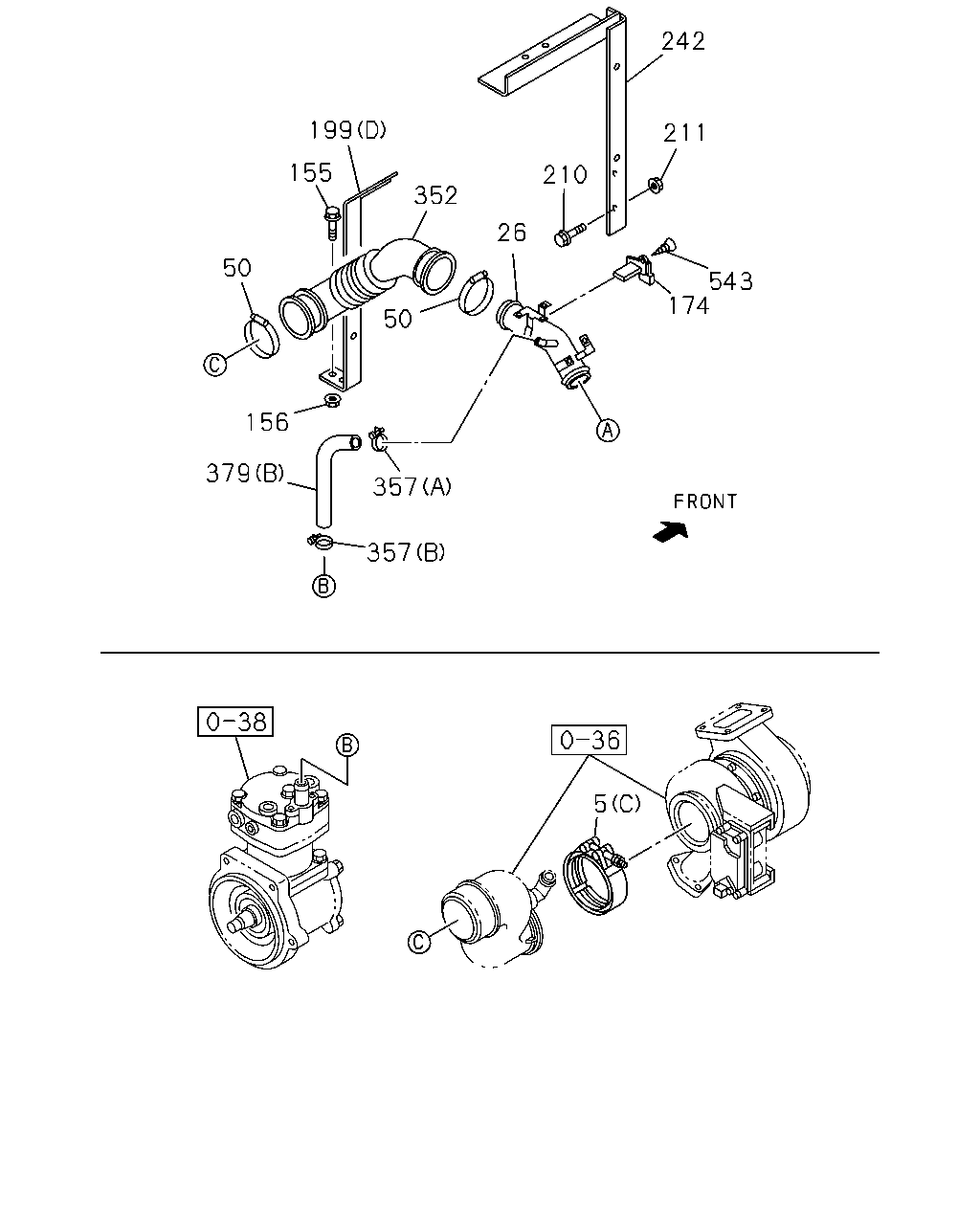

çizim 130224
242 199 211 155 210 352 26 50 543 174 50 156 379 357 357 5
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (D) ID=104-142 		1-09707-139-0 01 1 0911-
5 CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (E) ID=130-169 		8-98155-950-0 01 1 0911-
5 CLIP; AIR DUCT
(A) ID=104-142 		1-09707-155-0 01 1 0910-1211
5 CLIP; AIR DUCT
(B) ID=130-169 		1-09707-157-0 01 1 0910-1211
5 CLIP; AIR DUCT
(C) ID=114 		8-15178-030-0 01 1 0910-
5 CLIP; AIR DUCT
(D) ID=110-130 		8-98133-359-0 01 1 0910-0910
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (D) ID=110-130 		8-98133-359-0 01 1 0911-
5 CLIP; AIR DUCT
(E) ID=130-150 		8-98133-360-0 01 1 0910-0910
5 CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (E) ID=130-150 		8-98133-360-0 01 1 0911-
26 DUCT; AIR INT 8-98030-607-3 01 1 0910-
50 CLIP; JOINT HOSE
EXC. KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 02 1 1002-
50 CLIP; JOINT HOSE
EXC. KD PREPARATORY PACK<6HF> ID=104-142 		1-09707-139-0 02 1 0911-0911
50 CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=100-120 		8-98133-366-0 01 1 0911-0911
50 CLIP; JOINT HOSE
ID=100-120 		8-98133-366-0 01 1 0911-1001
50 CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=100-120 		8-98133-366-0 01 1 1002-
50 CLIP; JOINT HOSE
ID=120-140 		8-98133-367-0 02 1 0910-0910
50 CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=120-140 		8-98133-367-0 02 1 0911-0911
50 CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 01 1 0911-0911
50 CLIP; JOINT HOSE
ID=110-130 		8-98133-359-0 01 1 0911-1001
50 CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 01 1 0911-1001
50 CLIP; JOINT HOSE
KD PREPARATORY PACK<6HF> ID=110-130 		8-98133-359-0 02 1 1002-
155 BOLT; BRKT
M10X30 FLANGE 		0-28061-030-0 02 1 0910-
155 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0910-
155 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0910-
155 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0910-
156 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0910-
156 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0910-
174 SENSOR; AIR FLOW CONT 8-97601-967-0 01 1 0910-
199 BRACKET; PIPE
(B) 		1-14239-273-2 01 1 0910-
199 BRACKET; PIPE
(D) 		8-97616-150-2 01 1 0910-
199 BRACKET; PIPE
(C) 		8-98058-210-0 01 1 0910-
199 BRACKET; PIPE
(A) 		8-98105-136-0 01 1 0910-
210 BOLT; ACL BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0910-
210 BOLT; ACL BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0910-
210 BOLT; ACL BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0910-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0910-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0910-
242 BRACKET; AIR DUCT 8-97616-179-0 01 1 0910-
352 HOSE; RUBBER,AIR DUCT TO ENG 8-98004-246-0 01 1 0910-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (D) L=64 		1-09707-138-0 01 1 0911-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 02 1 0911-
357 CLIP; RUBBER HOSE
(C) ID=75-95 		8-98133-357-0 02 1 0910-0910
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 02 1 0911-
357 CLIP; RUBBER HOSE
(D) ID=80-100 		8-98133-358-0 01 1 0910-0910
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (D) ID=80-100 		8-98133-358-0 01 1 0911-
357 CLIP; RUBBER HOSE
(A) ID=36 		1-09704-094-0 01 1 0910-
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0910-
379 HOSE; RUBBER
(A) 		1-09360-998-0 01 1 0910-1408
379 HOSE; RUBBER
(A) 		8-98245-236-0 01 1 1409-
379 HOSE; RUBBER
(B) 		8-98049-144-0 01 1 0910-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 0910-

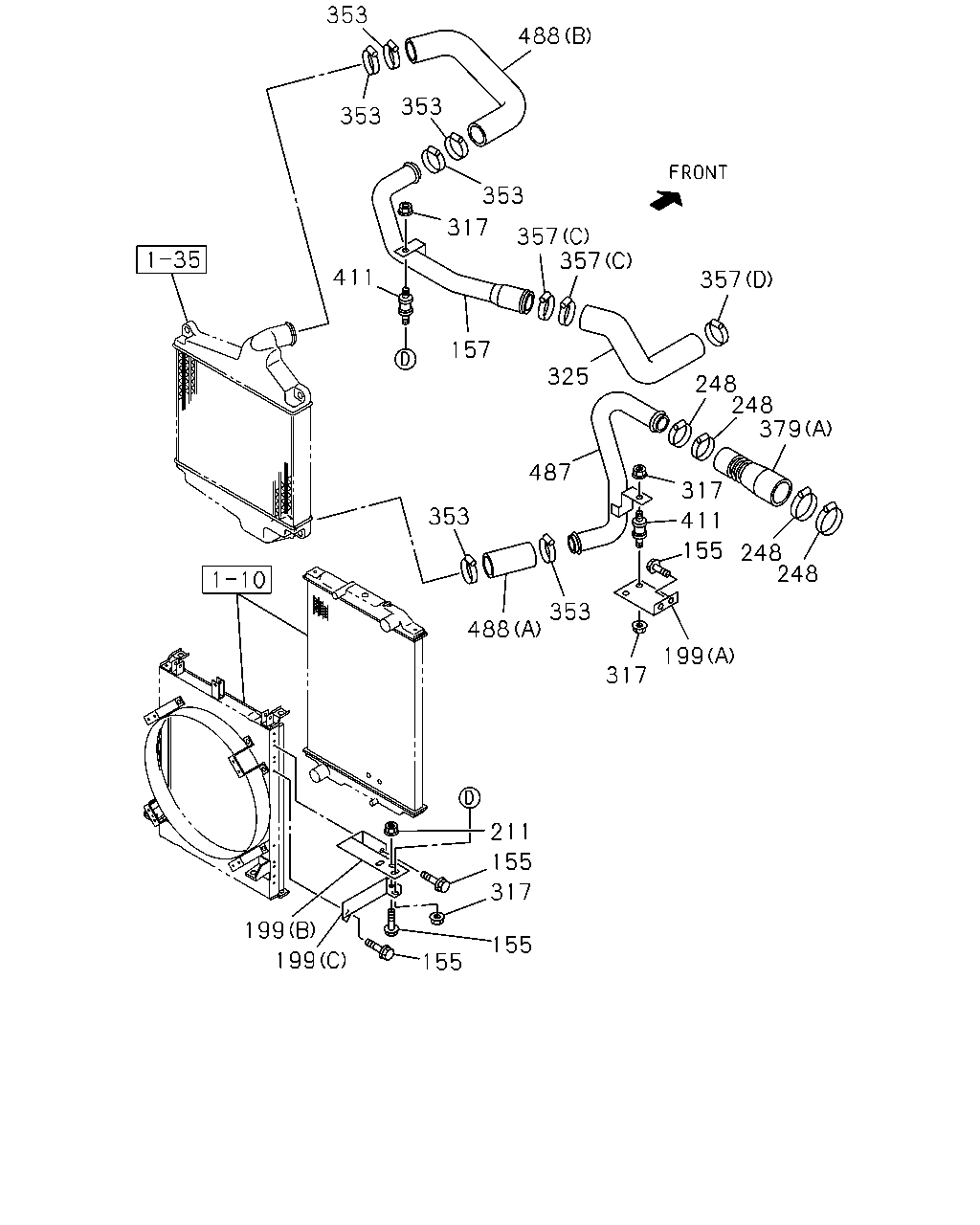

çizim 130226
353 488 353 353 353 317 357 357 411 357 157 325 248 248 379 487 317 353 411 155 248 248 353 488 199 317 211 155 317 199 155 199 155
BalonParca AdiParca NoAdetTipApplied Date
155 BOLT; BRKT
M10X30 FLANGE 		0-28061-030-0 02 1 0910-
155 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0910-
155 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0910-
155 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0910-
157 PIPE; AIR 8-97616-164-2 01 1 0910-
199 BRACKET; PIPE
(B) 		1-14239-273-2 01 1 0910-
199 BRACKET; PIPE
(D) 		8-97616-150-2 01 1 0910-
199 BRACKET; PIPE
(C) 		8-98058-210-0 01 1 0910-
199 BRACKET; PIPE
(A) 		8-98105-136-0 01 1 0910-
211 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0910-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0910-
248 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 04 1 0911-
248 CLIP; RUBBER HOSE
ID=65-85 		8-98133-350-0 04 1 0910-0910
248 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 04 1 0911-
317 NUT; CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 04 1 0910-
325 HOSE; RUBBER,ENG TO PIPE 1-09361-149-0 01 1 0910-
353 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> ID=68-85 		8-98096-592-0 06 1 0911-
353 CLIP; RUBBER HOSE
ID=65-85 		8-98133-350-0 06 1 0910-0910
353 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> ID=65-85 		8-98133-350-0 06 1 0911-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (D) L=64 		1-09707-138-0 01 1 0911-
357 CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=77-99 		1-09707-141-0 02 1 0911-
357 CLIP; RUBBER HOSE
(C) ID=75-95 		8-98133-357-0 02 1 0910-0910
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=75-95 		8-98133-357-0 02 1 0911-
357 CLIP; RUBBER HOSE
(D) ID=80-100 		8-98133-358-0 01 1 0910-0910
357 CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (D) ID=80-100 		8-98133-358-0 01 1 0911-
357 CLIP; RUBBER HOSE
(A) ID=36 		1-09704-094-0 01 1 0910-
357 CLIP; RUBBER HOSE
(B) ID=29.5 		8-97354-979-0 01 1 0910-
379 HOSE; RUBBER
(A) 		1-09360-998-0 01 1 0910-1408
379 HOSE; RUBBER
(A) 		8-98245-236-0 01 1 1409-
379 HOSE; RUBBER
(B) 		8-98049-144-0 01 1 0910-
411 RUBBER; CUSHION 8-94394-268-1 02 1 0910-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98105-144-1 01 1 0910-
488 HOSE; RUBBER,PIPE
(B) 		1-09361-002-0 01 1 0910-
488 HOSE; RUBBER,PIPE
(A) 		8-98105-423-0 01 1 0910-1408
488 HOSE; RUBBER,PIPE
(A) 		8-98251-411-0 01 1 1409-
