Isuzu WW
▶
BUSES
▶
LV
▶
11208 - LV434(LHD) EURO3
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

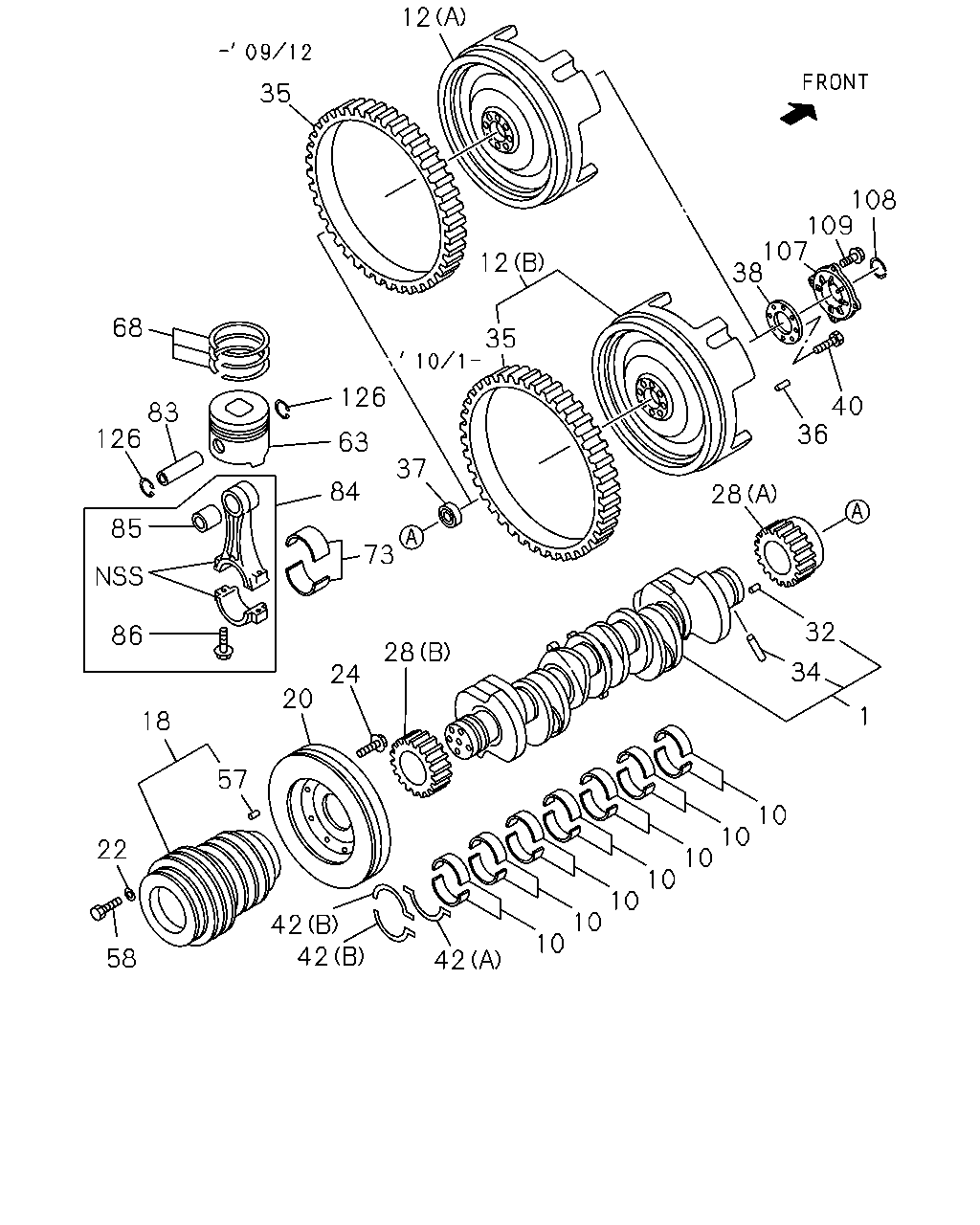

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#23491) — 37 parça
10
10
10
10
10
10
10
42
42
42
58
22
57
18
20
24
28
73
84
37
63
126
83
126
85
86
68
35
12
28
32
34
1
36
40
38
107
109
108
12
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-97603-004-0
01
1
0910-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
07
1
0910-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
07
1
0910-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
07
1
0910-
12
FLYWHEEL
(A)
8-97603-813-0
01
1
0910-0912
12
FLYWHEEL
(B)
8-98154-823-1
01
1
1001-
18
PULLEY; CR/SHF
7-GROOVE
8-94395-505-2
01
1
0910-
20
DAMPER; CR/SHF
8-97604-900-0
01
1
0910-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
0910-
24
BOLT; DAMPER
M10X16 FLANGE
0-28151-016-0
06
1
0910-
28
GEAR; CR/SHF
(A) Z=42
8-94392-255-1
01
1
0910-
28
GEAR; CR/SHF
(B) Z=41
8-94396-954-2
01
1
0910-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
02
1
0910-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0910-
35
GEAR; RING
Z=160
1-12333-011-3
01
1
0910-0912
35
GEAR; RING
Z=160
8-98154-894-0
01
1
1001-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0910-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-200-1
01
1
0910-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
0910-
40
BOLT; FLYWHEEL
M16X62
8-94393-070-2
08
1
0910-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
0910-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
0910-
57
PIN; PULLEY
OD=8 L=16
9-08150-816-0
01
1
0910-
58
BOLT; CR/SHF PULLEY
M16X50
0-20951-650-0
04
1
0910-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
06
1
0910-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
06
1
0910-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-97616-358-0
06
1
0910-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-97616-359-0
06
1
0910-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
06
1
0910-
84
ROD ASM; CONN
8-98018-425-2
06
1
0910-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
06
1
0910-
86
BOLT; CONNROD
M13X57 FLANGE
1-12235-035-0
12
1
0910-1004
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
12
1
1005-
107
RETAINER; BRG
8-97603-812-0
01
1
0910-
108
RING; SNAP,BRG SET
OD=76.5
9-09180-172-0
01
1
0910-
109
BOLT; RET
M10X20 FLANGE
0-28151-020-0
04
1
0910-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
12
1
0910-
