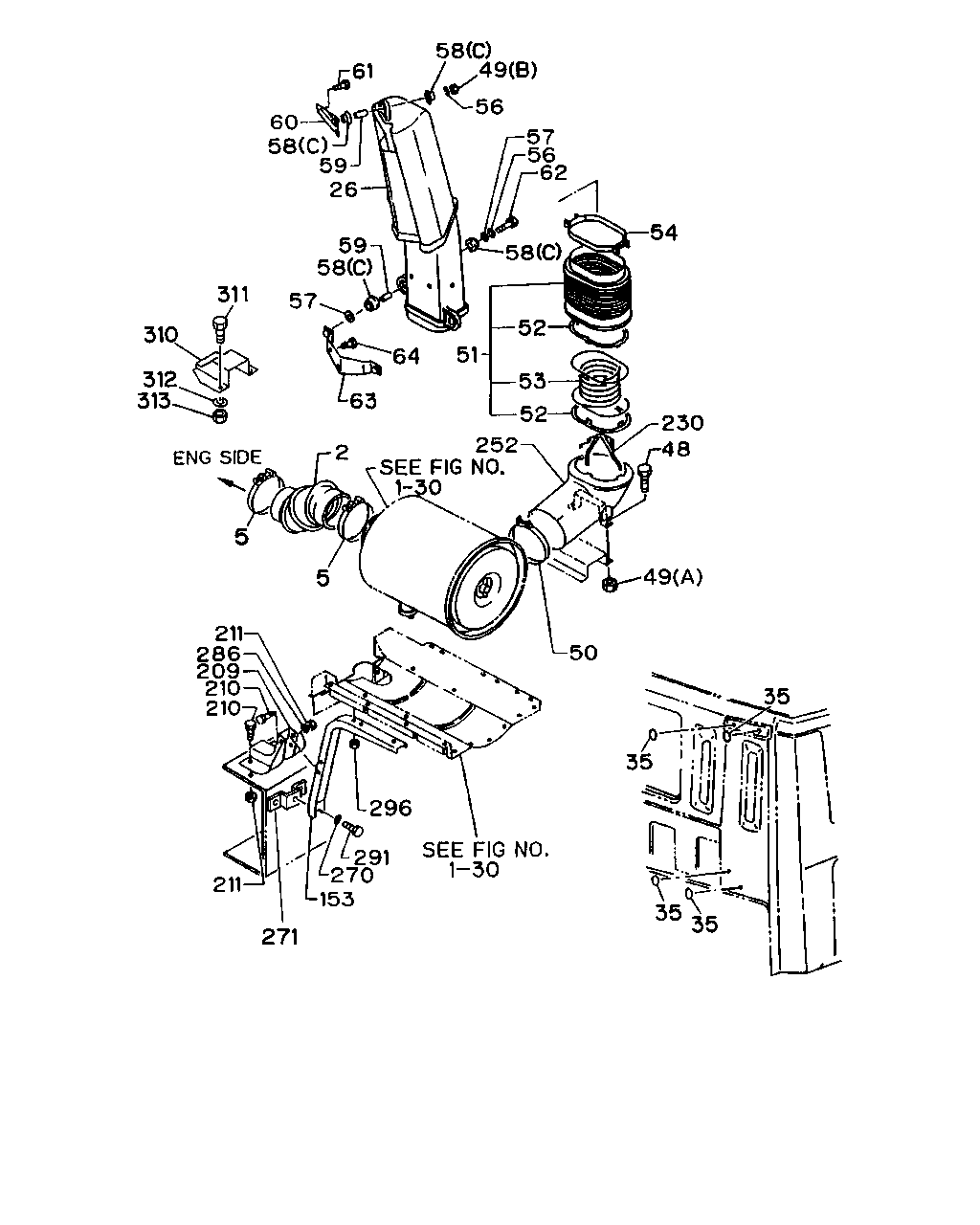

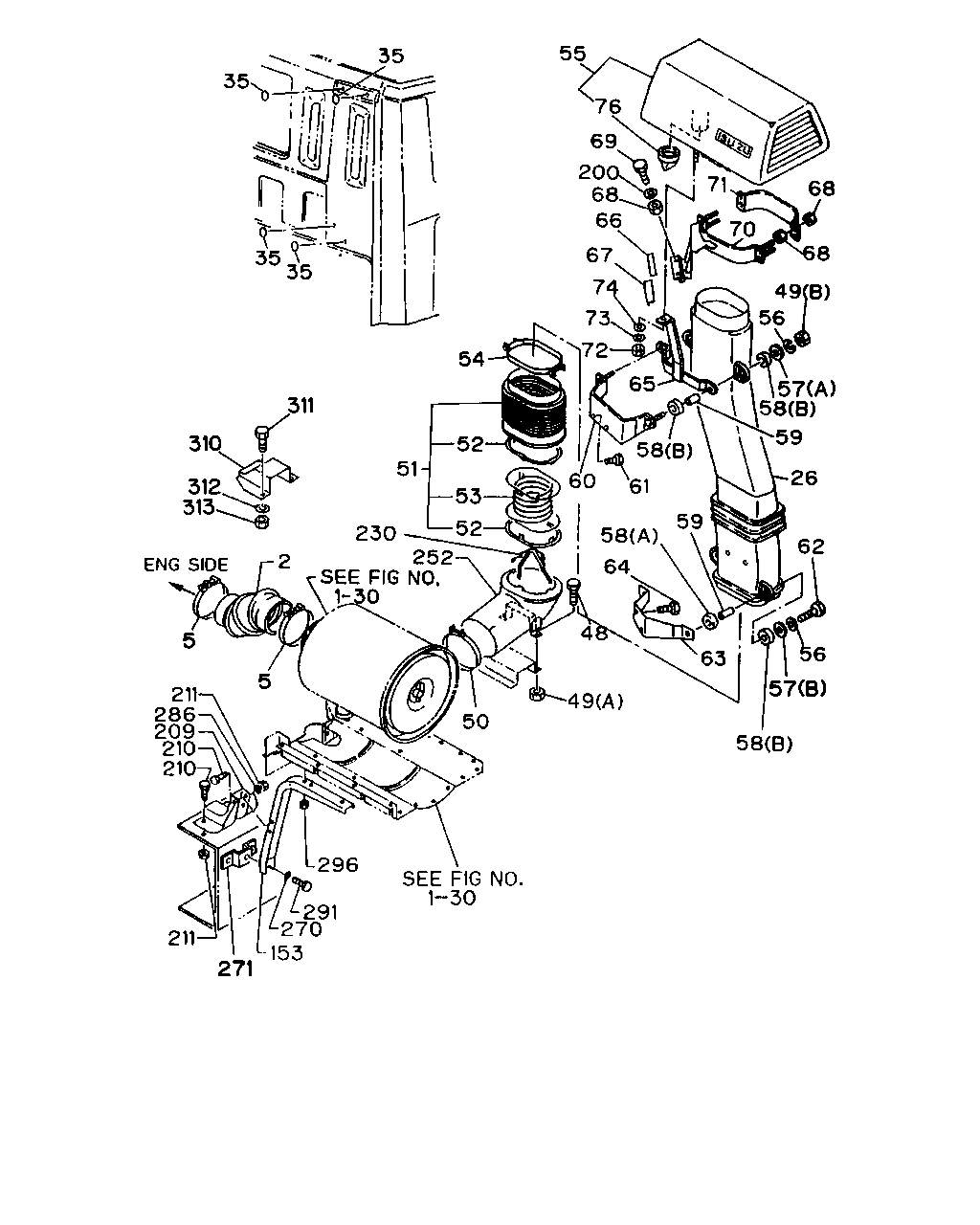

1-31B — AIR DUCT (#2349) — 168 parça

211 271 153 270 296 291 210 211 286 209 210 5 5 2 50 49 48 63 58 57 56 62 26 59 58 57 58 61 60 58 59 64 52 252 230 51 52 53 65 311 310 312 313 35 35 35 35 55 76 69 200 71 70 68 68 56 49 65 72 73 74 67 66 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-441-0	01	1	9307-	●
2	HOSE; ACL	1-14231-521-0	01	1	9002-9306		●
2	HOSE; ACL	1-14231-811-0	01	1	9002-			●
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-811-0	01	1	9002-	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204		●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-		●	●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-	●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9307-	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●	●
55	CLEANER ASM; AIR,PRE PRE CLEANER<W17>	1-14210-495-0	01	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
65	BRACKET; PRE ACL PRE CLEANER<W17>	1-14239-157-1	01	1	9002-	●	●	●
66	GASKET; SPACER PRE CLEANER<W17>	1-14239-170-0	01	1	9002-	●	●	●
67	SPACER; AIR DUCT PRE CLEANER<W17>	1-14239-171-0	01	1	9002-	●	●	●
68	NUT; DUCT CLIP PRE CLEANER<W17> M10	1-09400-053-0	10	1	9002-	●	●	●
69	BOLT; DUCT CLIP PRE CLEANER<W17>	1-09000-372-0	02	1	9002-	●	●	●
70	CLIP; BAND,ACL TO DUCT PRE CLEANER<W17>	1-14239-197-0	01	1	9002-	●	●	●
71	CLIP; AIR DUCT PRE CLEANER<W17>	1-14239-165-1	01	1	9002-	●	●	●
72	NUT; ACL TO BRKT PRE CLEANER<W17> M10	1-09400-053-0	01	1	9002-	●	●	●
73	WASHER; LK,ACL PRE CLEANER<W17>	1-09500-033-0	01	1	9002-	●	●	●
74	WASHER; PL,ACL PRE CLEANER<W17> ID=10.5	1-09985-107-0	01	1	9002-	●	●	●
76	VALVE; PRE ACL PRE CLEANER<W17>	1-14219-129-0	02	1	9002-	●	●	●
153	BRACKET; ACL,FRT EXC. CAB UP 50MM(W60)	1-53419-149-2	01	1	9002-9108		●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108			●
153	BRACKET; ACL,FRT EXC. CAB UP 50MM(W60)	1-53419-247-0	01	1	9109-		●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●		●
153	BRACKET; ACL,FRT CAB UP 50MM(W60)	8-94300-329-3	01	1	9002-		●
200	WASHER; PL,CLAMP PRE CLEANER<W17> ID=10.5	1-09985-107-0	02	1	9307-	●	●	●
209	BRACKET; ACL EXC. CAB UP 50MM(W60)	1-53419-150-1	01	1	9002-9108		●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108			●
209	BRACKET; ACL EXC. CAB UP 50MM(W60)	1-53419-248-0	01	1	9109-		●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●		●
209	BRACKET; ACL CAB UP 50MM(W60)	1-53419-171-0	01	1	9002-		●
210	BOLT; ACL BRKT EXC. CAB UP 50MM(W60) M8X65	0-10805-865-0	02	1	9002-		●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9002-	●		●
210	BOLT; ACL BRKT EXC. CAB UP 50MM(W60) M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005		●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005			●
210	BOLT; ACL BRKT EXC. CAB UP 50MM(W60) M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-		●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●		●
210	BOLT; ACL BRKT CAB UP 50MM(W60) M8X65	0-10805-865-0	03	1	9002-		●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	03	1	9002-	●		●
210	BOLT; ACL BRKT CAB UP 50MM(W60) M12X30 W/LK WASHER	9-01911-230-0	03	1	9002-9005		●
210	BOLT; ACL BRKT CAB UP 50MM(W60) M12X30 W/LK WASHER	0-50041-230-0	03	1	9006-		●
211	NUT; BRKT EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9002-		●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●		●
211	NUT; BRKT CAB UP 50MM(W60) M8	9-09110-408-0	03	1	9002-		●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306		●	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306	●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-			●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-	●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-	●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●	●
271	SPACER; BRKT,ACL	1-53497-111-0	01	1	9002-	●	●	●
286	WASHER; LK,BRKT EXC. CAB UP 50MM(W60) ID=8.2	9-09150-508-0	02	1	9002-		●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●		●
286	WASHER; LK,BRKT CAB UP 50MM(W60) ID=8.2	9-09150-508-0	03	1	9002-		●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9002-	●	●	●
296	NUT; ACL M12	9-99110-512-0	02	1	9002-	●	●	●
310	PROTECTOR; HEAT,ACL	1-53497-199-0	01	1	9002-9306		●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	9-01960-816-0	02	1	9002-9204		●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9205-9306		●
312	WASHER; PL,HEAT PROTECTOR ID=8.4	9-09160-508-0	02	1	9002-9306		●
313	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9002-9306		●

35 35 35 35 296 291 270 153 271 211 210 210 211 286 209 5 5 2 313 312 310 311 57 58 59 26 59 58 60 61 58 49 56 57 56 62 54 58 64 63 51 52 53 52 252 230 48 49 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; ACL EXC. AIR CLEANER HEAVY DUTY<K45>	1-14231-441-0	01	1	9307-	●
2	HOSE; ACL	1-14231-521-0	01	1	9002-9306		●
2	HOSE; ACL	1-14231-811-0	01	1	9002-			●
2	HOSE; ACL AIR CLEANER HEAVY DUTY<K45>	1-14231-811-0	01	1	9002-	●
5	CLIP; AIR DUCT ID=104-142	1-09707-155-0	01	1	9002-	●	●	●
5	CLIP; AIR DUCT ID=130-169	1-09707-157-0	01	1	9002-	●	●	●
26	DUCT; AIR INT PRE CLEANER<W17>	1-14231-583-3	01	1	9002-	●	●	●
26	DUCT; AIR INT EXC. PRE CLEANER<W17>	1-14231-572-3	01	1	9002-	●	●	●
35	SEAL; DUCT,INT OD=36 BLACK	1-76798-018-0	04	1	9109-	●	●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	9-01961-025-0	02	1	9002-9204		●	●
48	BOLT; AIR DUCT M10X25 W/LK&PL WASHER	0-50141-025-0	02	1	9205-	●	●	●
49	NUT; AIR DUCT (A) M10	9-09110-510-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT PRE CLEANER<W17> (B) M10	1-09984-121-0	02	1	9002-	●	●	●
49	NUT; AIR DUCT EXC. PRE CLEANER<W17> (B) M10	1-09984-121-0	01	1	9002-	●	●	●
50	CLIP; JOINT HOSE ID=183.5	1-09707-098-2	01	1	9002-		●	●
50	CLIP; JOINT HOSE AIR CLEANER HEAVY DUTY<K45> ID=183.5	1-09707-098-2	01	1	9002-	●
50	CLIP; JOINT HOSE EXC. AIR CLEANER HEAVY DUTY<K45> ID=158	1-09707-097-1	01	1	9307-	●
51	GASKET ASM; RUBBER	1-14230-058-1	01	1	9002-	●	●	●
52	SEAT; SPR	1-14239-111-1	02	1	9002-	●	●	●
53	SPRING	1-14239-113-2	01	1	9002-	●	●	●
54	CLIP; GASKET,AIR DUCT	1-09707-173-0	01	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT PRE CLEANER<W17> ID=10	1-09985-180-0	04	1	9002-	●	●	●
56	WASHER; LK,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10	1-09985-180-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (A) ID=10.5 OD=41.0	1-09503-205-0	03	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT PRE CLEANER<W17> (B) ID=10.5 OD=32.0	1-09503-206-0	01	1	9002-	●	●	●
57	WASHER; PL,AIR INT DUCT EXC. PRE CLEANER<W17> ID=10.5 OD=26 T=2.3	1-09985-172-0	04	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (A) OD=38 T=24	8-94126-708-0	02	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT PRE CLEANER<W17> (B) OD=38 T=16	8-94251-102-0	06	1	9002-	●	●	●
58	SUPPORT; AIR INL DUCT EXC. PRE CLEANER<W17> (C) OD=40 T=18.5	1-14119-267-0	06	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT PRE CLEANER<W17> L=37.2	1-14234-078-0	04	1	9002-	●	●	●
59	TUBE; DIST,AIR INT DUCT EXC. PRE CLEANER<W17> L=37.2	1-14234-078-0	03	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR PRE CLEANER<W17>	1-14239-154-0	01	1	9002-	●	●	●
60	BRACKET; AIR DUCT,UPR EXC. PRE CLEANER<W17>	1-79997-216-0	01	1	9002-	●	●	●
61	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9002-	●	●	●
63	BRACKET; AIR DUCT,LWR	1-14234-070-3	01	1	9002-	●	●	●
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9002-	●	●	●
153	BRACKET; ACL,FRT EXC. CAB UP 50MM(W60)	1-53419-149-2	01	1	9002-9108		●
153	BRACKET; ACL,FRT	1-53419-149-2	01	1	9002-9108			●
153	BRACKET; ACL,FRT EXC. CAB UP 50MM(W60)	1-53419-247-0	01	1	9109-		●
153	BRACKET; ACL,FRT	1-53419-247-0	01	1	9109-	●		●
153	BRACKET; ACL,FRT CAB UP 50MM(W60)	8-94300-329-3	01	1	9002-		●
209	BRACKET; ACL EXC. CAB UP 50MM(W60)	1-53419-150-1	01	1	9002-9108		●
209	BRACKET; ACL	1-53419-150-1	01	1	9002-9108			●
209	BRACKET; ACL EXC. CAB UP 50MM(W60)	1-53419-248-0	01	1	9109-		●
209	BRACKET; ACL	1-53419-248-0	01	1	9109-	●		●
209	BRACKET; ACL CAB UP 50MM(W60)	1-53419-171-0	01	1	9002-		●
210	BOLT; ACL BRKT EXC. CAB UP 50MM(W60) M8X65	0-10805-865-0	02	1	9002-		●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	02	1	9002-	●		●
210	BOLT; ACL BRKT EXC. CAB UP 50MM(W60) M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005		●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	9-01911-230-0	01	1	9002-9005			●
210	BOLT; ACL BRKT EXC. CAB UP 50MM(W60) M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-		●
210	BOLT; ACL BRKT M12X30 W/LK WASHER	0-50041-230-0	01	1	9006-	●		●
210	BOLT; ACL BRKT CAB UP 50MM(W60) M8X65	0-10805-865-0	03	1	9002-		●
210	BOLT; ACL BRKT M8X65	0-10805-865-0	03	1	9002-	●		●
210	BOLT; ACL BRKT CAB UP 50MM(W60) M12X30 W/LK WASHER	9-01911-230-0	03	1	9002-9005		●
210	BOLT; ACL BRKT CAB UP 50MM(W60) M12X30 W/LK WASHER	0-50041-230-0	03	1	9006-		●
211	NUT; BRKT EXC. CAB UP 50MM(W60) M8	9-09110-408-0	02	1	9002-		●
211	NUT; BRKT M8	9-09110-408-0	02	1	9002-	●		●
211	NUT; BRKT CAB UP 50MM(W60) M8	9-09110-408-0	03	1	9002-		●
230	GUIDE	1-14239-125-0	01	1	9002-	●	●	●
252	DUCT; AIR INT	1-14231-400-2	01	1	9002-9306		●	●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14231-400-2	01	1	9002-9306	●
252	DUCT; AIR INT	1-14230-057-2	01	1	9307-			●
252	DUCT; AIR INT AIR CLEANER HEAVY DUTY<K45>	1-14230-057-2	01	1	9307-	●
252	DUCT; AIR INT EXC. AIR CLEANER HEAVY DUTY<K45>	1-14230-055-2	01	1	9307-	●
270	WASHER; PL,BRKT,ACL ID=12.5 OD=26	9-09160-612-0	01	1	9002-	●	●	●
271	SPACER; BRKT,ACL	1-53497-111-0	01	1	9002-	●	●	●
286	WASHER; LK,BRKT EXC. CAB UP 50MM(W60) ID=8.2	9-09150-508-0	02	1	9002-		●
286	WASHER; LK,BRKT ID=8.2	9-09150-508-0	02	1	9002-	●		●
286	WASHER; LK,BRKT CAB UP 50MM(W60) ID=8.2	9-09150-508-0	03	1	9002-		●
291	BOLT; ACL M12X30 W/LK WASHER	0-50041-230-0	02	1	9002-	●	●	●
296	NUT; ACL M12	9-99110-512-0	02	1	9002-	●	●	●
310	PROTECTOR; HEAT,ACL	1-53497-199-0	01	1	9002-9306		●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	9-01960-816-0	02	1	9002-9204		●
311	BOLT; HEAT PROTECTOR M8X16 W/LK&PL WASHER	0-50140-816-0	02	1	9205-9306		●
312	WASHER; PL,HEAT PROTECTOR ID=8.4	9-09160-508-0	02	1	9002-9306		●
313	NUT; HEAT PROTECTOR M8	9-09110-408-0	02	1	9002-9306		●
