◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11166 - FTS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#23479) — 38 parça

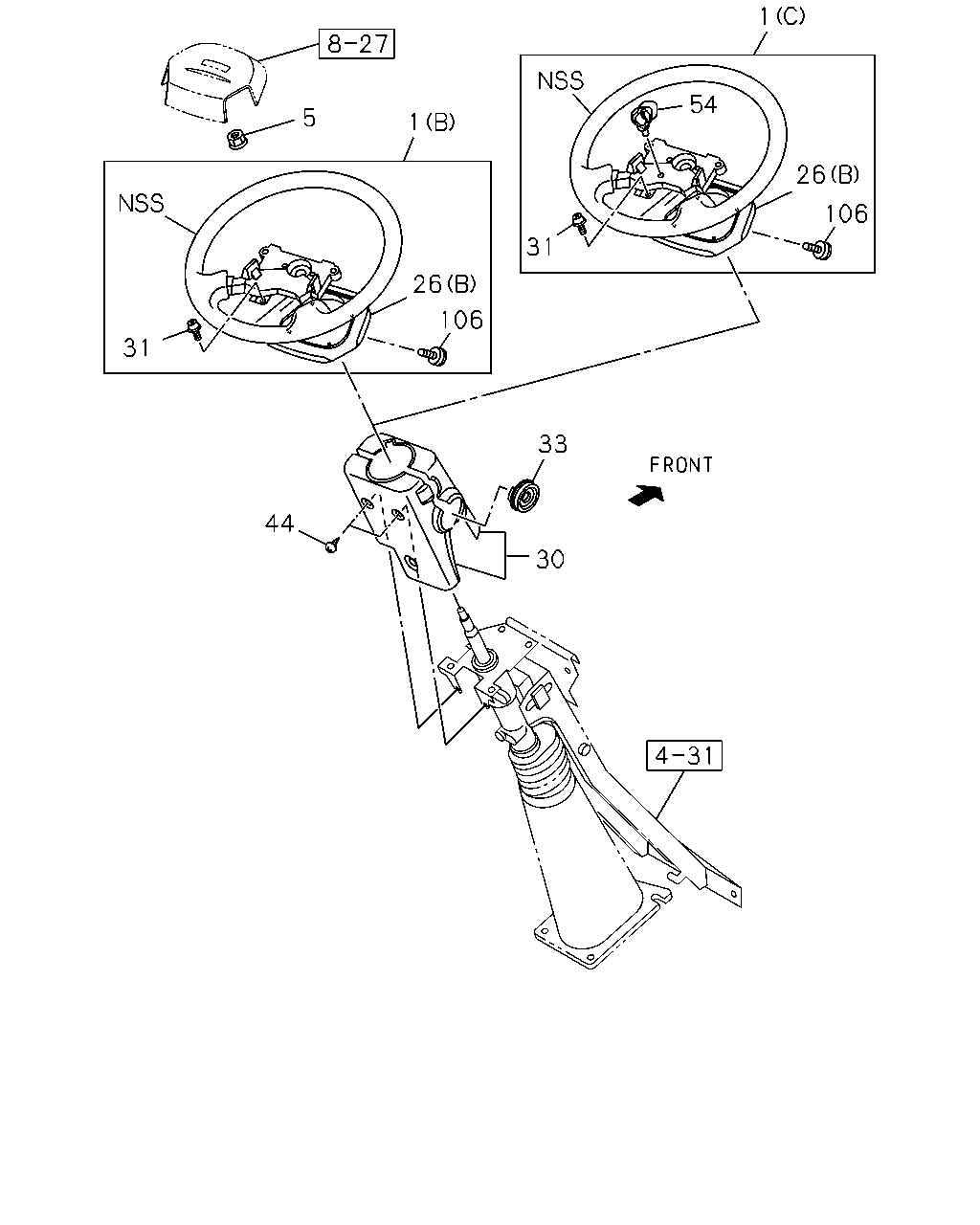

çizim 61502
5 1 26 31 106 44 33 30 106 31 1 54 26
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
AIR BAG DRIVER<AJ3> (B) DARK GRAY 		8-97407-720-0 01 1 1001-1210
1 WHEEL; STRG
AIR BAG DRIVER<AJ3> (C) DARK GRAY 		8-97423-998-0 01 1 1211-1411
1 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97412-555-1 01 1 1001-1411
1 WHEEL; STRG
(A) DARK GRAY 		8-97412-555-1 01 1 1412-
5 NUT; STRG WHEEL TO SHAFT
M14 SOU 		0-91111-514-0 01 1 1001-
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> (B) DARK GRAY 		8-97405-841-0 01 1 1001-1210
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> (B) DARK GRAY 		8-97421-978-0 01 1 1211-1411
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97409-275-2 01 1 1001-1411
26 COVER; STRG WHEEL,LWR
(A) DARK GRAY 		8-97409-275-2 01 1 1412-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 1412-
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1001-1411
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 1412-
31 SCREW; BOSS TO COVER
AIR BAG DRIVER<AJ3> M4X12 		8-97167-588-0 04 1 1001-1411
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 1412-
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1001-
54 CLIP; HARNESS
AIR BAG DRIVER<AJ3> 		8-98165-703-0 01 1 1211-1411
106 BOLT; TORX 8-98231-397-0 02 1 1001-
çizim 102088
30 33 106 26 44 6 5 20 81 1
BalonParca AdiParca NoAdetTipApplied Date
1 WHEEL; STRG
AIR BAG DRIVER<AJ3> (B) DARK GRAY 		8-97407-720-0 01 1 1001-1210
1 WHEEL; STRG
AIR BAG DRIVER<AJ3> (C) DARK GRAY 		8-97423-998-0 01 1 1211-1411
1 WHEEL; STRG
EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97412-555-1 01 1 1001-1411
1 WHEEL; STRG
(A) DARK GRAY 		8-97412-555-1 01 1 1412-
5 NUT; STRG WHEEL TO SHAFT
M14 SOU 		0-91111-514-0 01 1 1001-
6 SCREW; HORN SPR CONTACT
EXC. AIR BAG DRIVER<AJ3> M4X12 		8-97167-588-0 04 1 1001-1411
6 SCREW; HORN SPR CONTACT
M4X12 		8-97167-588-0 04 1 1412-
20 SHROUD; PAD,STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97405-985-1 01 1 1001-1411
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97405-985-1 01 1 1412-
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> (B) DARK GRAY 		8-97405-841-0 01 1 1001-1210
26 COVER; STRG WHEEL,LWR
AIR BAG DRIVER<AJ3> (B) DARK GRAY 		8-97421-978-0 01 1 1211-1411
26 COVER; STRG WHEEL,LWR
EXC. AIR BAG DRIVER<AJ3> (A) DARK GRAY 		8-97409-275-2 01 1 1001-1411
26 COVER; STRG WHEEL,LWR
(A) DARK GRAY 		8-97409-275-2 01 1 1412-
30 COWL; STEERING
EXC. DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97405-356-5 01 1 1412-
30 COWL; STEERING
DARK GRAY 		8-97411-503-1 01 1 1001-1411
30 COWL; STEERING
DRIVING POSITION WIDE LEG SPACE<PR2> DARK GRAY 		8-97411-503-1 01 1 1412-
33 COVER; STRG COWL
EXC. IMMOBILIZER SYSTEM<7KC> DARK GRAY 		8-97409-495-0 01 1 1412-
44 SCREW; STRG COWL
M5X12 		0-38050-512-0 03 1 1001-
81 EMBLEM; STRG WHEEL
EXC. AIR BAG DRIVER<AJ3> DARK GRAY 		8-97405-986-0 01 1 1001-1411
81 EMBLEM; STRG WHEEL
DARK GRAY 		8-97405-986-0 01 1 1412-
106 BOLT; TORX 8-98231-397-0 02 1 1001-
