Sayfa 4-25 - Isuzu EPC

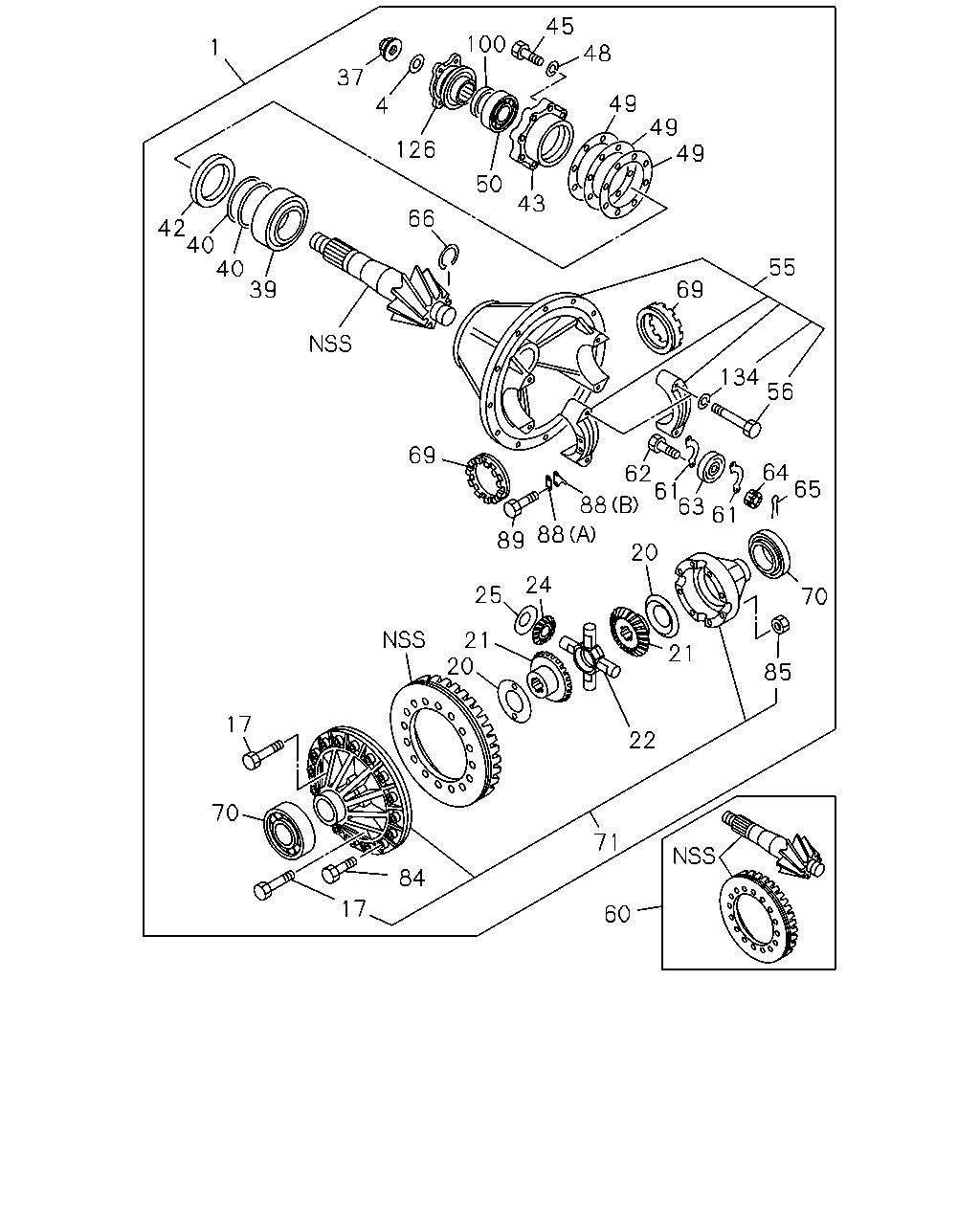

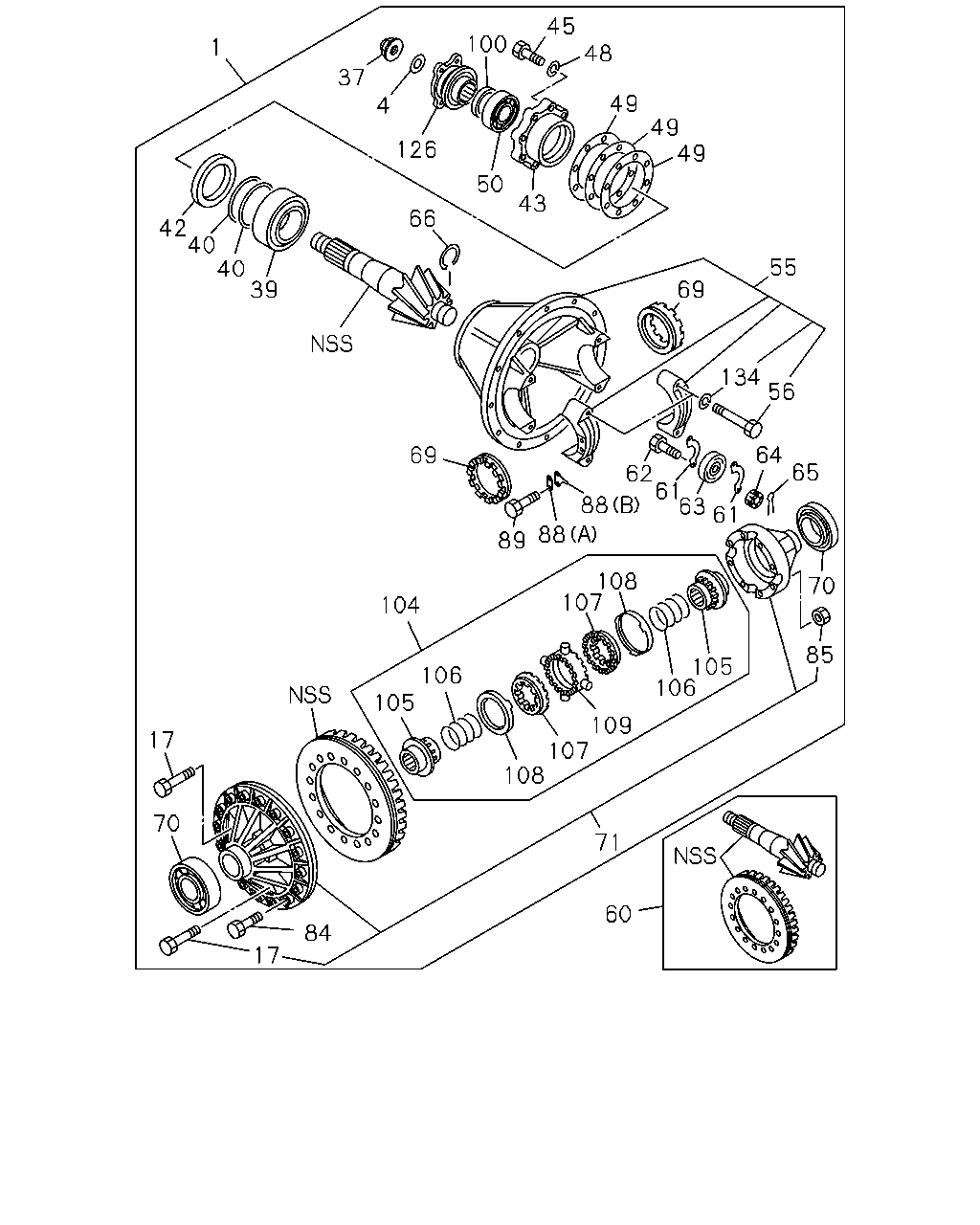

4-25 — REAR FINAL DRIVE (#23478) — 463 parça

45 48 100 1 37 49 4 49 49 126 50 43 66 42 40 40 39 55 69 134 56 69 64 65 62 61 63 61 88 88 89 20 24 25 70 21 20 21 85 17 22 70 71 84 17 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-547-0	01	1	1001-1411
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-547-0	01	1	1412-1501
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-547-0	01	1	1502-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-257-0	01	1	1001-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1001-1411
4	GASKET; FLANGE,FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> ID=42	9-09921-116-0	01	1	1412-1501
4	GASKET; FLANGE,FINAL PINION EXC. ANTI LOCK BRAKE<JE5> ID=42	9-09921-116-0	01	1	1412-1501
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1502-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1001-1411
17	BOLT; DIFF CAGE SETTING ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M14X95 FLANGE	1-09044-007-0	12	1	1412-1501
17	BOLT; DIFF CAGE SETTING EXC. ANTI LOCK BRAKE<JE5> M14X95 FLANGE	1-09044-007-0	12	1	1412-1501
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1502-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.75	1-41562-139-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.80	1-41562-140-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.85	1-41562-141-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.90	1-41562-142-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=2.95	1-41562-143-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.00	1-41562-144-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.05	1-41562-145-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.10	1-41562-146-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.15	1-41562-147-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.20	1-41562-148-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.25	1-41562-149-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.30	1-41562-150-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.35	1-41562-151-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.40	1-41562-152-0	AR	1	1001-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF VAR2<G86> T=3.45	1-41562-153-0	AR	1	1001-
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=16	1-41561-159-1	02	1	1001-
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41521-061-0	01	1	1001-
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF VAR2<G86> Z=10	1-41551-051-0	04	1	1001-
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF VAR2<G86>	1-41552-012-0	04	1	1001-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1001-1411
37	NUT; DRIVING PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M36 FLANGE	1-09449-067-0	01	1	1412-1501
37	NUT; DRIVING PINION EXC. ANTI LOCK BRAKE<JE5> M36 FLANGE	1-09449-067-0	01	1	1412-1501
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1502-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1001-1411
39	BEARING; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09812-218-0	01	1	1412-1501
39	BEARING; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> JTEKT	1-09812-218-0	01	1	1412-1501
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1502-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.50	1-41229-256-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.50	1-41229-256-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.51	1-41229-257-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.51	1-41229-257-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.52	1-41229-258-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.52	1-41229-258-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.53	1-41229-259-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.53	1-41229-259-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.54	1-41229-260-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.54	1-41229-260-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.55	1-41229-261-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.55	1-41229-261-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.56	1-41229-262-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.56	1-41229-262-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.57	1-41229-263-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.57	1-41229-263-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.58	1-41229-264-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.58	1-41229-264-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.59	1-41229-265-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.59	1-41229-265-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.60	1-41229-266-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.60	1-41229-266-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=7.40	1-41229-267-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=7.40	1-41229-267-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=7.60	1-41229-268-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=7.60	1-41229-268-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=7.80	1-41229-269-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=7.80	1-41229-269-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=8.00	1-41229-270-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=8.00	1-41229-270-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=8.20	1-41229-271-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=8.20	1-41229-271-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1502-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1001-1411
43	CAGE; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-41151-028-1	01	1	1412-1501
43	CAGE; FINAL PINION EXC. ANTI LOCK BRAKE<JE5>	1-41151-028-1	01	1	1412-1501
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1502-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1001-1411
45	BOLT; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M14X50	0-16806-450-0	08	1	1412-1501
45	BOLT; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> M14X50	0-16806-450-0	08	1	1412-1501
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1502-
48	WASHER; LK,FINAL PINION ID=14.2 SOU	0-91510-514-0	08	1	1001-1411
48	WASHER; LK,FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> ID=14.2 SOU	0-91510-514-0	08	1	1412-1501
48	WASHER; LK,FINAL PINION EXC. ANTI LOCK BRAKE<JE5> ID=14.2 SOU	0-91510-514-0	08	1	1412-1501
48	WASHER; LK,FINAL PINION ID=14.2 SOU	0-91510-514-0	08	1	1502-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=0.30	1-41154-063-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=0.30	1-41154-063-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1502-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=0.40	1-41154-064-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=0.40	1-41154-064-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1502-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=1.00	9-41154-013-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=1.00	9-41154-013-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1502-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=0.50	9-41154-014-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=0.50	9-41154-014-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1502-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1001-1411
50	BEARING; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NSK	1-09812-041-2	01	1	1412-1501
50	BEARING; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> NSK	1-09812-041-2	01	1	1412-1501
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1502-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1001-1411
50	BEARING; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09812-042-1	01	1	1412-1501
50	BEARING; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> JTEKT	1-09812-042-1	01	1	1412-1501
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1502-
55	CARRIER; DIFF	1-41110-052-0	01	1	1001-1411
55	CARRIER; DIFF ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-41110-052-0	01	1	1412-1501
55	CARRIER; DIFF EXC. ANTI LOCK BRAKE<JE5>	1-41110-052-0	01	1	1412-1501
55	CARRIER; DIFF	1-41110-052-0	01	1	1502-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1001-1411
56	BOLT; BRG CAP ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M18X107	1-09050-002-1	04	1	1412-1501
56	BOLT; BRG CAP EXC. ANTI LOCK BRAKE<JE5> M18X107	1-09050-002-1	04	1	1412-1501
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1502-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1001-1411
60	GEAR SET; FINAL DRIVE,RR ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41210-280-3	01	1	1412-1501
60	GEAR SET; FINAL DRIVE,RR EXC. ANTI LOCK BRAKE<JE5> 39/7	1-41210-280-3	01	1	1412-1501
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1502-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1001-1411
61	RETAINER; PILOT BRG,PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=2.3	1-41227-006-0	02	1	1412-1501
61	RETAINER; PILOT BRG,PINION EXC. ANTI LOCK BRAKE<JE5> T=2.3	1-41227-006-0	02	1	1412-1501
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1502-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1001-1411
62	BOLT; RET ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M8X36 W/PIN HOLE	1-09042-035-0	02	1	1412-1501
62	BOLT; RET EXC. ANTI LOCK BRAKE<JE5> M8X36 W/PIN HOLE	1-09042-035-0	02	1	1412-1501
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1502-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1001-1411
63	BEARING; PINION PILOT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09810-229-2	01	1	1412-1501
63	BEARING; PINION PILOT EXC. ANTI LOCK BRAKE<JE5> JTEKT	1-09810-229-2	01	1	1412-1501
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1502-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1001-1411
63	BEARING; PINION PILOT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NSK	1-09810-230-1	01	1	1412-1501
63	BEARING; PINION PILOT EXC. ANTI LOCK BRAKE<JE5> NSK	1-09810-230-1	01	1	1412-1501
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1502-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1001-1411
64	NUT; RET ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M8 SLOTTED	0-91117-508-0	02	1	1412-1501
64	NUT; RET EXC. ANTI LOCK BRAKE<JE5> M8 SLOTTED	0-91117-508-0	02	1	1412-1501
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1502-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1001-1411
65	PIN; SPLIT,RET ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	0-81122-012-0	02	1	1412-1501
65	PIN; SPLIT,RET EXC. ANTI LOCK BRAKE<JE5>	0-81122-012-0	02	1	1412-1501
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1502-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1001-1411
66	RING; SNAP,PILOT BRG ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> OD=42	9-09950-179-0	01	1	1412-1501
66	RING; SNAP,PILOT BRG EXC. ANTI LOCK BRAKE<JE5> OD=42	9-09950-179-0	01	1	1412-1501
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1502-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1001-1411
69	NUT; ADJ,DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M143 H=29	1-41121-006-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> M143 H=29	1-41121-006-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1502-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1001-1411
69	NUT; ADJ,DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M143 H=24	1-41121-005-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> M143 H=24	1-41121-005-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1502-
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1001-1411
70	BEARING; DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NACHI	1-09812-151-0	02	1	1412-1501
70	BEARING; DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> NACHI	1-09812-151-0	02	1	1412-1501
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1502-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	1001-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-1411
70	BEARING; DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NSK	1-09812-150-0	02	1	1412-1501
70	BEARING; DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> NSK	1-09812-150-0	02	1	1412-1501
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1502-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1001-1411
71	CAGE ASM; DIFF,FINAL DRIVE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-41510-127-0	01	1	1412-1501
71	CAGE ASM; DIFF,FINAL DRIVE EXC. ANTI LOCK BRAKE<JE5>	1-41510-127-0	01	1	1412-1501
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1502-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1001-1411
84	BOLT; FINAL DRIVE GEAR ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M16X37.5 FLANGE	1-09020-167-0	16	1	1412-1501
84	BOLT; FINAL DRIVE GEAR EXC. ANTI LOCK BRAKE<JE5> M16X37.5 FLANGE	1-09020-167-0	16	1	1412-1501
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1502-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1001-1411
85	NUT; DIFF CAGE SETTING ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M14	1-09400-077-1	12	1	1412-1501
85	NUT; DIFF CAGE SETTING EXC. ANTI LOCK BRAKE<JE5> M14	1-09400-077-1	12	1	1412-1501
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1502-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1001-1411
88	PLATE; LK,ADJ NUT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=2.3	1-41124-002-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT EXC. ANTI LOCK BRAKE<JE5> (B) T=2.3	1-41124-002-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1502-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1001-1411
88	PLATE; LK,ADJ NUT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.0	9-41124-005-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT EXC. ANTI LOCK BRAKE<JE5> (A) T=1.0	9-41124-005-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1502-
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1001-1411
89	BOLT; LK PLATE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M8X16	0-20850-816-0	04	1	1412-1501
89	BOLT; LK PLATE EXC. ANTI LOCK BRAKE<JE5> M8X16	0-20850-816-0	04	1	1412-1501
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1502-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1001-1411
100	SEAL; OIL,FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NOK	1-09625-017-0	01	1	1412-1501
100	SEAL; OIL,FINAL PINION EXC. ANTI LOCK BRAKE<JE5> NOK	1-09625-017-0	01	1	1412-1501
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1502-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1001-1411
126	COUPLING; DRIVING PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-37245-388-0	01	1	1412-1501
126	COUPLING; DRIVING PINION EXC. ANTI LOCK BRAKE<JE5>	1-37245-388-0	01	1	1412-1501
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1502-
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1001-1411
134	WASHER; LK,BRG CAP ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> ID=18.2	0-91510-518-0	04	1	1412-1501
134	WASHER; LK,BRG CAP EXC. ANTI LOCK BRAKE<JE5> ID=18.2	0-91510-518-0	04	1	1412-1501
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1502-

45 48 100 1 37 49 4 49 49 126 50 43 66 42 40 40 39 55 69 134 56 64 69 65 62 61 63 61 88 88 89 108 107 70 104 85 105 106 106 105 109 107 108 17 70 71 60 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-547-0	01	1	1001-1411
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-547-0	01	1	1412-1501
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-547-0	01	1	1502-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41001-257-0	01	1	1001-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1001-1411
4	GASKET; FLANGE,FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> ID=42	9-09921-116-0	01	1	1412-1501
4	GASKET; FLANGE,FINAL PINION EXC. ANTI LOCK BRAKE<JE5> ID=42	9-09921-116-0	01	1	1412-1501
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	1502-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1001-1411
17	BOLT; DIFF CAGE SETTING ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M14X95 FLANGE	1-09044-007-0	12	1	1412-1501
17	BOLT; DIFF CAGE SETTING EXC. ANTI LOCK BRAKE<JE5> M14X95 FLANGE	1-09044-007-0	12	1	1412-1501
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	1502-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1001-1411
37	NUT; DRIVING PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M36 FLANGE	1-09449-067-0	01	1	1412-1501
37	NUT; DRIVING PINION EXC. ANTI LOCK BRAKE<JE5> M36 FLANGE	1-09449-067-0	01	1	1412-1501
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	1502-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1001-1411
39	BEARING; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09812-218-0	01	1	1412-1501
39	BEARING; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> JTEKT	1-09812-218-0	01	1	1412-1501
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	1502-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.50	1-41229-256-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.50	1-41229-256-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.51	1-41229-257-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.51	1-41229-257-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.52	1-41229-258-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.52	1-41229-258-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.53	1-41229-259-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.53	1-41229-259-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.54	1-41229-260-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.54	1-41229-260-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.55	1-41229-261-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.55	1-41229-261-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.56	1-41229-262-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.56	1-41229-262-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.57	1-41229-263-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.57	1-41229-263-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.58	1-41229-264-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.58	1-41229-264-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.59	1-41229-265-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.59	1-41229-265-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	1502-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1001-1411
40	SHIM; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=3.60	1-41229-266-0	AR	1	1412-1501
40	SHIM; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> T=3.60	1-41229-266-0	AR	1	1412-1501
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=7.40	1-41229-267-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=7.40	1-41229-267-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=7.60	1-41229-268-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=7.60	1-41229-268-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=7.80	1-41229-269-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=7.80	1-41229-269-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=8.00	1-41229-270-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=8.00	1-41229-270-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	1502-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1001-1411
42	COLLAR; DIST,COLLAPSIBLE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=8.20	1-41229-271-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE EXC. ANTI LOCK BRAKE<JE5> T=8.20	1-41229-271-0	AR	1	1412-1501
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	1502-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1001-1411
43	CAGE; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-41151-028-1	01	1	1412-1501
43	CAGE; FINAL PINION EXC. ANTI LOCK BRAKE<JE5>	1-41151-028-1	01	1	1412-1501
43	CAGE; FINAL PINION	1-41151-028-1	01	1	1502-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1001-1411
45	BOLT; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M14X50	0-16806-450-0	08	1	1412-1501
45	BOLT; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> M14X50	0-16806-450-0	08	1	1412-1501
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	1502-
48	WASHER; LK,FINAL PINION ID=14.2 SOU	0-91510-514-0	08	1	1001-1411
48	WASHER; LK,FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> ID=14.2 SOU	0-91510-514-0	08	1	1412-1501
48	WASHER; LK,FINAL PINION EXC. ANTI LOCK BRAKE<JE5> ID=14.2 SOU	0-91510-514-0	08	1	1412-1501
48	WASHER; LK,FINAL PINION ID=14.2 SOU	0-91510-514-0	08	1	1502-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=0.30	1-41154-063-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=0.30	1-41154-063-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	1502-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=0.40	1-41154-064-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=0.40	1-41154-064-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	1502-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=1.00	9-41154-013-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=1.00	9-41154-013-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	1502-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1001-1411
49	SHIM; FINAL PINION CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=0.50	9-41154-014-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE EXC. ANTI LOCK BRAKE<JE5> T=0.50	9-41154-014-0	AR	1	1412-1501
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	1502-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1001-1411
50	BEARING; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NSK	1-09812-041-2	01	1	1412-1501
50	BEARING; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> NSK	1-09812-041-2	01	1	1412-1501
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	1502-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1001-1411
50	BEARING; FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09812-042-1	01	1	1412-1501
50	BEARING; FINAL PINION EXC. ANTI LOCK BRAKE<JE5> JTEKT	1-09812-042-1	01	1	1412-1501
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	1502-
55	CARRIER; DIFF	1-41110-052-0	01	1	1001-1411
55	CARRIER; DIFF ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-41110-052-0	01	1	1412-1501
55	CARRIER; DIFF EXC. ANTI LOCK BRAKE<JE5>	1-41110-052-0	01	1	1412-1501
55	CARRIER; DIFF	1-41110-052-0	01	1	1502-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1001-1411
56	BOLT; BRG CAP ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M18X107	1-09050-002-1	04	1	1412-1501
56	BOLT; BRG CAP EXC. ANTI LOCK BRAKE<JE5> M18X107	1-09050-002-1	04	1	1412-1501
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	1502-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1001-1411
60	GEAR SET; FINAL DRIVE,RR ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> 39/7	1-41210-280-3	01	1	1412-1501
60	GEAR SET; FINAL DRIVE,RR EXC. ANTI LOCK BRAKE<JE5> 39/7	1-41210-280-3	01	1	1412-1501
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	1502-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1001-1411
61	RETAINER; PILOT BRG,PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> T=2.3	1-41227-006-0	02	1	1412-1501
61	RETAINER; PILOT BRG,PINION EXC. ANTI LOCK BRAKE<JE5> T=2.3	1-41227-006-0	02	1	1412-1501
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	1502-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1001-1411
62	BOLT; RET ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M8X36 W/PIN HOLE	1-09042-035-0	02	1	1412-1501
62	BOLT; RET EXC. ANTI LOCK BRAKE<JE5> M8X36 W/PIN HOLE	1-09042-035-0	02	1	1412-1501
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	1502-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1001-1411
63	BEARING; PINION PILOT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> JTEKT	1-09810-229-2	01	1	1412-1501
63	BEARING; PINION PILOT EXC. ANTI LOCK BRAKE<JE5> JTEKT	1-09810-229-2	01	1	1412-1501
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	1502-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1001-1411
63	BEARING; PINION PILOT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NSK	1-09810-230-1	01	1	1412-1501
63	BEARING; PINION PILOT EXC. ANTI LOCK BRAKE<JE5> NSK	1-09810-230-1	01	1	1412-1501
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	1502-
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1001-1411
64	NUT; RET ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M8 SLOTTED	0-91117-508-0	02	1	1412-1501
64	NUT; RET EXC. ANTI LOCK BRAKE<JE5> M8 SLOTTED	0-91117-508-0	02	1	1412-1501
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	1502-
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1001-1411
65	PIN; SPLIT,RET ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	0-81122-012-0	02	1	1412-1501
65	PIN; SPLIT,RET EXC. ANTI LOCK BRAKE<JE5>	0-81122-012-0	02	1	1412-1501
65	PIN; SPLIT,RET	0-81122-012-0	02	1	1502-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1001-1411
66	RING; SNAP,PILOT BRG ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> OD=42	9-09950-179-0	01	1	1412-1501
66	RING; SNAP,PILOT BRG EXC. ANTI LOCK BRAKE<JE5> OD=42	9-09950-179-0	01	1	1412-1501
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	1502-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1001-1411
69	NUT; ADJ,DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M143 H=29	1-41121-006-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> M143 H=29	1-41121-006-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	1502-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1001-1411
69	NUT; ADJ,DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M143 H=24	1-41121-005-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> M143 H=24	1-41121-005-0	01	1	1412-1501
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	1502-
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1001-1411
70	BEARING; DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NACHI	1-09812-151-0	02	1	1412-1501
70	BEARING; DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> NACHI	1-09812-151-0	02	1	1412-1501
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	1502-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	1001-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-1411
70	BEARING; DIFF CAGE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NSK	1-09812-150-0	02	1	1412-1501
70	BEARING; DIFF CAGE EXC. ANTI LOCK BRAKE<JE5> NSK	1-09812-150-0	02	1	1412-1501
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1502-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1001-1411
71	CAGE ASM; DIFF,FINAL DRIVE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-41510-127-0	01	1	1412-1501
71	CAGE ASM; DIFF,FINAL DRIVE EXC. ANTI LOCK BRAKE<JE5>	1-41510-127-0	01	1	1412-1501
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	1502-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1001-1411
84	BOLT; FINAL DRIVE GEAR ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M16X37.5 FLANGE	1-09020-167-0	16	1	1412-1501
84	BOLT; FINAL DRIVE GEAR EXC. ANTI LOCK BRAKE<JE5> M16X37.5 FLANGE	1-09020-167-0	16	1	1412-1501
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	1502-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1001-1411
85	NUT; DIFF CAGE SETTING ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M14	1-09400-077-1	12	1	1412-1501
85	NUT; DIFF CAGE SETTING EXC. ANTI LOCK BRAKE<JE5> M14	1-09400-077-1	12	1	1412-1501
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	1502-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1001-1411
88	PLATE; LK,ADJ NUT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> (B) T=2.3	1-41124-002-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT EXC. ANTI LOCK BRAKE<JE5> (B) T=2.3	1-41124-002-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	1502-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1001-1411
88	PLATE; LK,ADJ NUT ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> (A) T=1.0	9-41124-005-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT EXC. ANTI LOCK BRAKE<JE5> (A) T=1.0	9-41124-005-0	02	1	1412-1501
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	1502-
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1001-1411
89	BOLT; LK PLATE ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> M8X16	0-20850-816-0	04	1	1412-1501
89	BOLT; LK PLATE EXC. ANTI LOCK BRAKE<JE5> M8X16	0-20850-816-0	04	1	1412-1501
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	1502-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1001-1411
100	SEAL; OIL,FINAL PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> NOK	1-09625-017-0	01	1	1412-1501
100	SEAL; OIL,FINAL PINION EXC. ANTI LOCK BRAKE<JE5> NOK	1-09625-017-0	01	1	1412-1501
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	1502-
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	1001-1411
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	1412-1501
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF VAR2<G86>	1-41530-040-0	01	1	1502-
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	1001-1411
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	1412-1501
105	GEAR; SIDE LIMITED SLIP DIFF VAR2<G86>	1-41561-100-0	02	1	1502-
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	1001-1411
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	1412-1501
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF VAR2<G86>	1-09580-314-0	02	1	1502-
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	1001-1411
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	1412-1501
107	CLUTCH; DRIVEN LIMITED SLIP DIFF VAR2<G86>	1-41532-003-0	02	1	1502-
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	1001-1411
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	1412-1501
108	RING; HOLD OUT LIMITED SLIP DIFF VAR2<G86>	1-41539-032-0	02	1	1502-
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	1001-1411
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	1412-1501
109	SPIDER; DIFF LIMITED SLIP DIFF VAR2<G86>	1-41521-034-0	01	1	1502-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1001-1411
126	COUPLING; DRIVING PINION ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86>	1-37245-388-0	01	1	1412-1501
126	COUPLING; DRIVING PINION EXC. ANTI LOCK BRAKE<JE5>	1-37245-388-0	01	1	1412-1501
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	1502-
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1001-1411
134	WASHER; LK,BRG CAP ANTI LOCK BRAKE<JE5> EXC. LIMITED SLIP DIFF VAR2<G86> ID=18.2	0-91510-518-0	04	1	1412-1501
134	WASHER; LK,BRG CAP EXC. ANTI LOCK BRAKE<JE5> ID=18.2	0-91510-518-0	04	1	1412-1501
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	1502-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
