◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11166 - FTS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-16 - FREE WHEEL HUB ▶
4-16 — FREE WHEEL HUB (#23476) — 21 parça

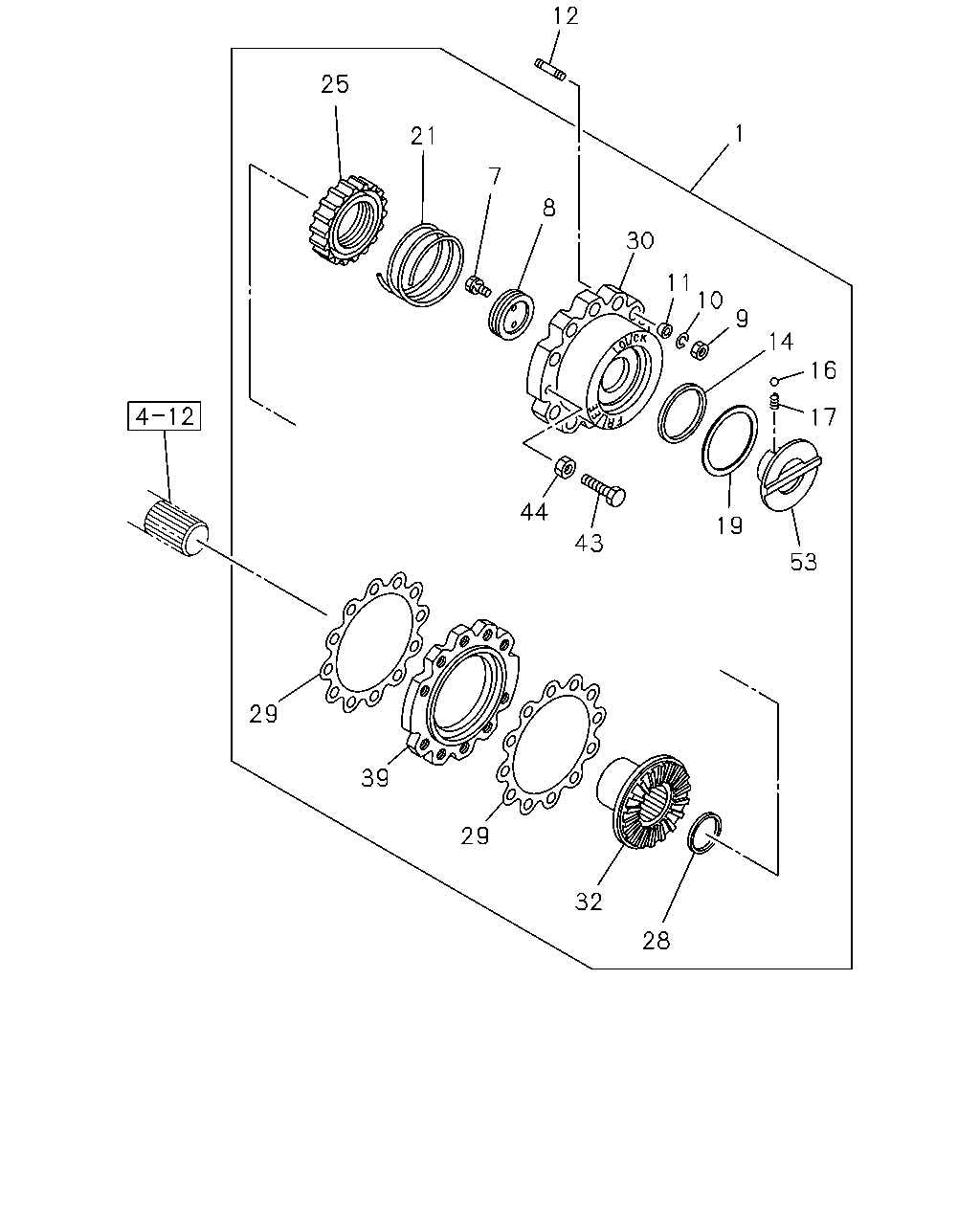

çizim 61506
12 25 1 21 7 8 30 11 10 9 14 16 17 44 19 43 53 29 39 29 32 28
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; FREE WHEEL
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42310-166-0 02 1 1001-1001
7 BOLT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M8X20 W/LK WASHER SOU 		0-50540-820-0 04 1 1001-1001
8 HUB; SCREW,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-011-0 02 1 1001-1001
9 NUT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M12 SOU 		0-91110-512-0 20 1 1001-1001
10 WASHER; LK,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) ID=12.2 SOU 		0-91510-612-0 20 1 1001-1001
11 COLLAR; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-42179-016-0 20 1 1001-1001
12 STUD; FRT HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M12X63 L=85 		1-09302-008-0 20 1 1001-1001
14 SEAL; OIL,KNOB,HUB LOCK
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-09924-555-0 02 1 1001-1001
16 BALL; LOCK,HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-00097-509-0 02 1 1001-1001
17 SPRING; HUB LOCK
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-09941-249-0 02 1 1001-1001
19 WASHER; THRUST,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-012-0 02 1 1001-1001
21 SPRING; CLU GEAR
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-013-0 02 1 1001-1001
25 GEAR; CLU,OUTER,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-009-0 02 1 1001-1001
28 PIECE; DIST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-014-0 02 1 1001-1001
29 GASKET; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		9-42175-011-0 04 1 1001-1001
30 HOUSING; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-019-0 02 1 1001-1001
32 FLANGE; FACE CLU
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-018-0 02 1 1001-1001
39 PLATE; GUIDE,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42312-017-0 02 1 1001-1001
43 BOLT; HSG PULLER
LOCKING HUB FRT WHEEL DRIVE(W12) M12X30 		0-20801-230-0 04 1 1001-1001
44 NUT; LK,HSG
LOCKING HUB FRT WHEEL DRIVE(W12) M12 		0-91111-512-0 04 1 1001-1001
53 KNOB; HUB LOCK,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) 		1-42319-015-0 02 1 1001-1001
