◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11166 - FTS(SOUTH AFRICA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#23471) — 158 parça

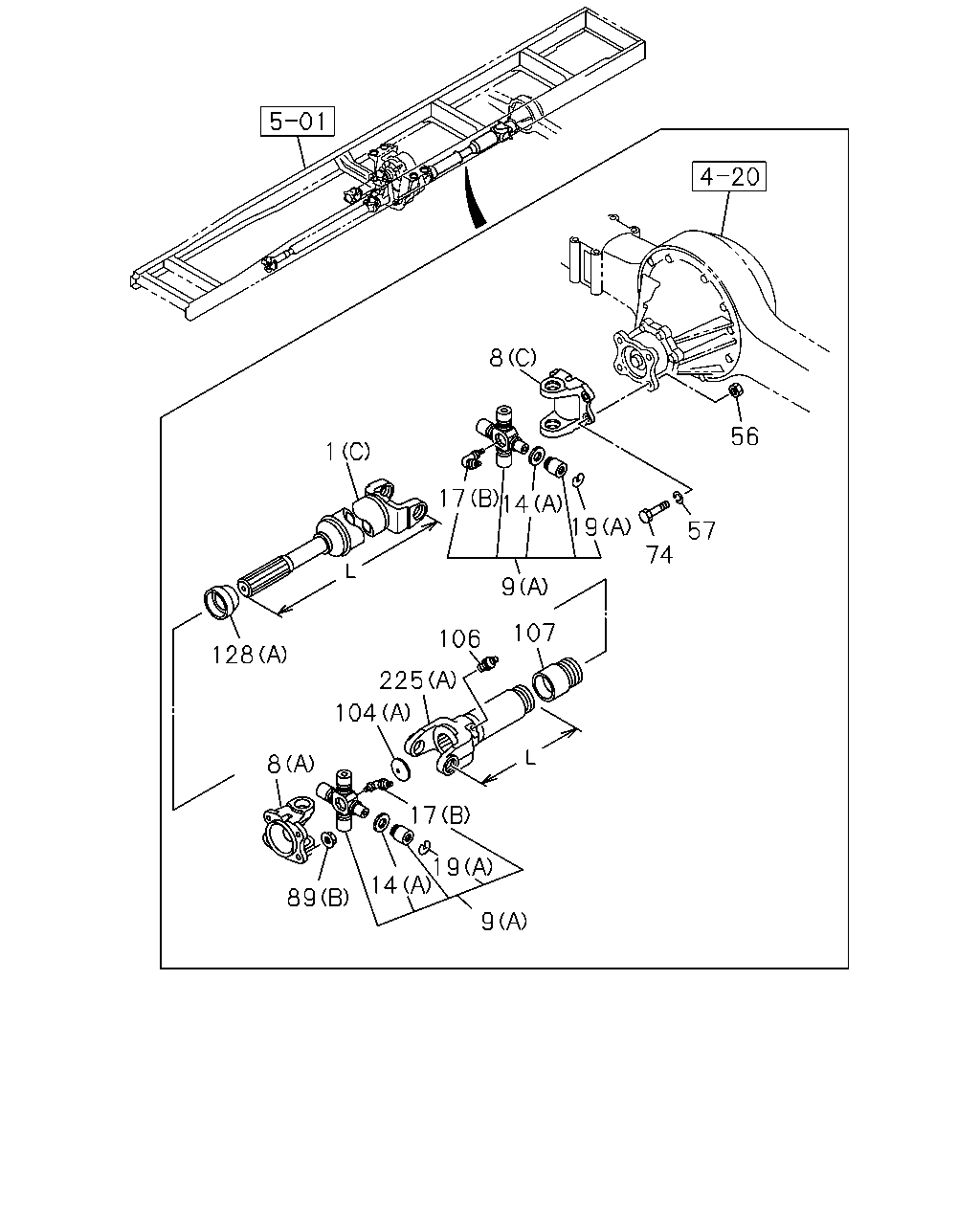

çizim 61500
8 56 1 17 14 19 57 74 9 107 106 128 225 104 8 17 19 14 89 9
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1001-
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1001-
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=395 		8-98113-376-0 01 1 1001-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=255 		1-37152-779-0 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1001-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-0 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1001-1111
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1001-1111
9 JOURNAL ASM; PROP SHAFT
(A) TRANS-TRFER 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-103-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1001-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		1-37319-012-0 04 1 1001-1505
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		1-37319-012-0 08 1 1001-1111
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		8-98020-800-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1001-
56 NUT; YOKE
M14 SOU 		0-91110-514-0 04 1 1001-
57 WASHER; LK,YOKE
ID=14.2 SOU 		0-91510-614-0 04 1 1001-
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 1001-
89 NUT; YOKE TO RR AXLE
(A) M12 SOU 		0-91110-512-0 04 1 1001-
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1001-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1001-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 1001-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1001-
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 1001-1111
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1001-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1001-

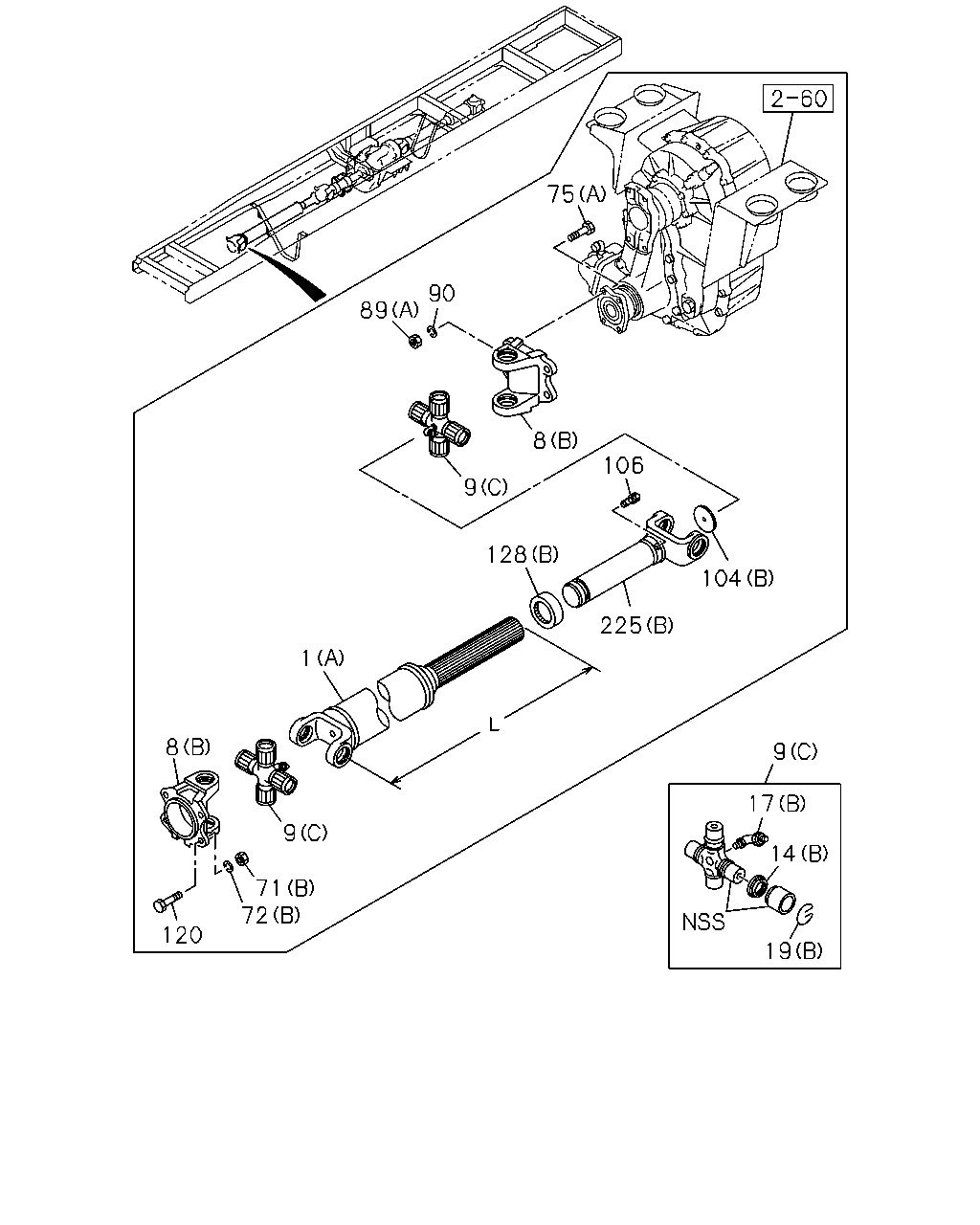

çizim 61505
75 90 89 8 106 9 128 104 225 1 8 9 17 9 14 71 72 120 19
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1001-
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1001-
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=395 		8-98113-376-0 01 1 1001-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=255 		1-37152-779-0 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1001-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-0 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1001-1111
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1001-1111
9 JOURNAL ASM; PROP SHAFT
(A) TRANS-TRFER 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-103-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1107-
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1001-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		1-37319-012-0 04 1 1001-1505
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		1-37319-012-0 08 1 1001-1111
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		8-98020-800-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1001-
71 NUT; YOKE
(B) M12 SOU 		0-91110-512-0 04 1 1001-
71 NUT; YOKE
(B) M12 SOU 		0-91110-512-0 04 1 1001-
71 NUT; YOKE
(A) M14 SOU 		0-91110-514-0 04 1 1001-
72 WASHER; LK,YOKE
(B) ID=12.2 SOU 		0-91510-612-0 04 1 1001-
72 WASHER; LK,YOKE
(B) ID=12.2 SOU 		0-91510-612-0 04 1 1001-
72 WASHER; LK,YOKE
(A) ID=14.2 SOU 		0-91510-614-0 04 1 1001-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1001-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1001-
89 NUT; YOKE TO RR AXLE
(A) M12 SOU 		0-91110-512-0 04 1 1001-
89 NUT; YOKE TO RR AXLE
(B) M16 FLANGE 		1-09449-065-0 04 1 1001-
90 WASHER; LK,YOKE TO RR AXLE
ID=12.2 SOU 		0-91510-612-0 04 1 1001-
104 PLUG; SLEEVE YOKE
(B) 		1-09600-014-0 01 1 1001-
104 PLUG; SLEEVE YOKE
(A) 		1-09600-064-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT SOU 		0-90301-410-0 01 1 1001-
120 BOLT; YOKE TO RR AXLE
M12X32 		1-09000-076-1 04 1 1001-
128 SEAL; SLEEVE
(B) 		1-37247-001-1 01 1 1001-
128 SEAL; SLEEVE
(A) 		1-37247-015-0 01 1 1001-1111
128 SEAL; SLEEVE
(A) 		1-37247-024-0 01 1 1112-
225 YOKE; SLEEVE,PROP SHAFT
(B) L=228 		1-37241-098-2 01 1 1001-
225 YOKE; SLEEVE,PROP SHAFT
(A) L=271 		1-37241-099-2 01 1 1001-

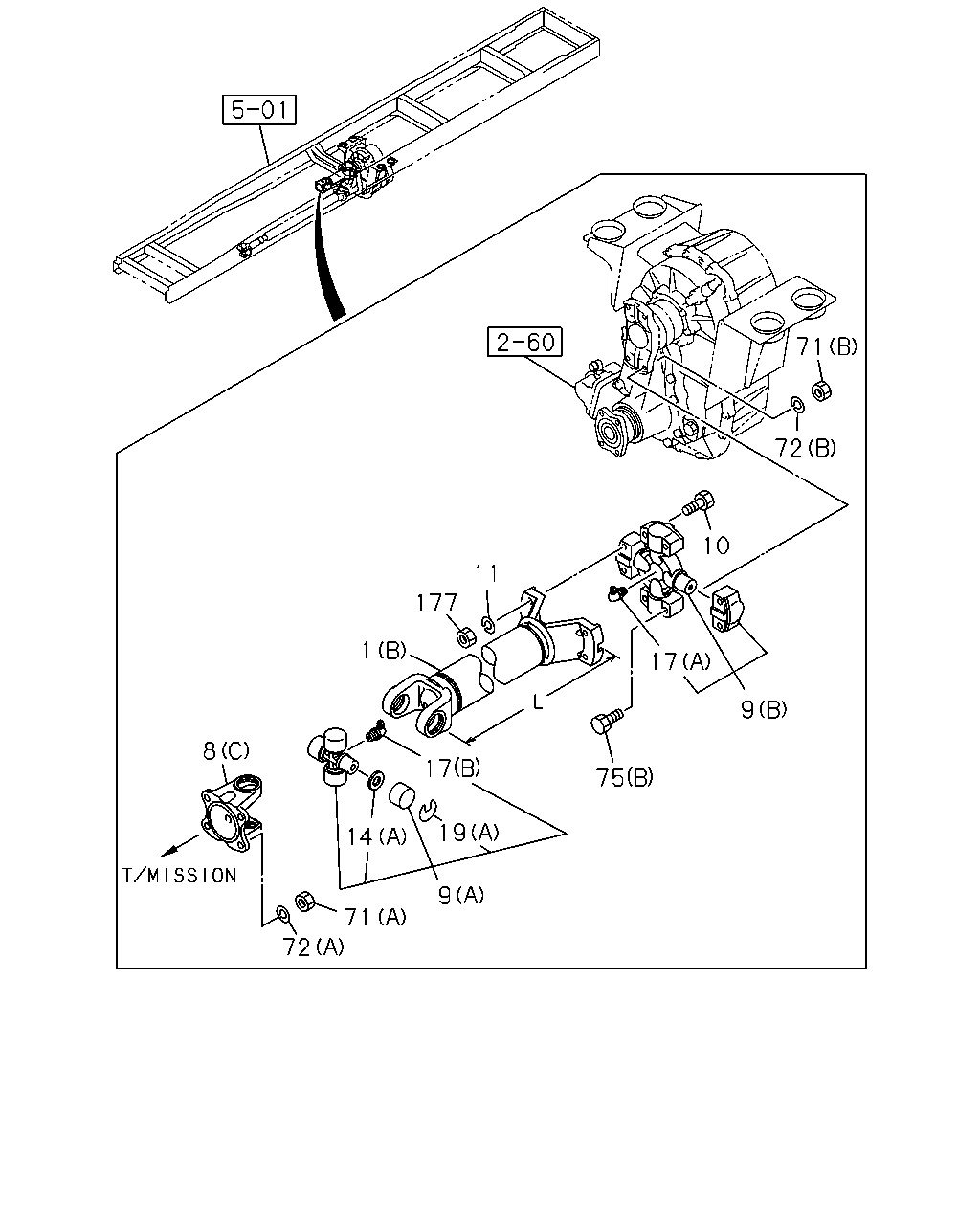

çizim 61558
71 72 10 11 177 1 17 9 8 17 75 19 14 9 71 72
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(A) L=1477 		1-37123-668-1 01 1 1001-
1 SHAFT; PROP
(C) L=1061 		8-98084-471-0 01 1 1001-
1 SHAFT; PROP
MLD6W M/T(Y2C) (B) L=395 		8-98113-376-0 01 1 1001-
1 SHAFT; PROP
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) L=255 		1-37152-779-0 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(B) D=80 		1-37211-037-4 02 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-1 01 1 1001-1111
8 YOKE; FLANGE,PROP SHAFT
(A) 		8-98178-052-0 01 1 1112-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1001-
8 YOKE; FLANGE,PROP SHAFT
(C) 		1-37211-056-3 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) TRFER-R/AXL 		8-98048-925-0 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506-
9 JOURNAL ASM; PROP SHAFT
(B) 		1-37300-059-1 01 1 1001-
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1001-1111
9 JOURNAL ASM; PROP SHAFT
(A) 		1-37300-102-1 AR 1 1001-1111
9 JOURNAL ASM; PROP SHAFT
(A) TRANS-TRFER 		1-37300-102-1 AR 1 1112-1505
9 JOURNAL ASM; PROP SHAFT
(C) 		1-37300-103-0 02 1 1001-1106
9 JOURNAL ASM; PROP SHAFT
(C) 		8-98020-789-1 02 1 1107-
10 BOLT; UJT
M12X75 		9-91061-275-0 04 1 1001-
11 WASHER; LK,UNIVERSAL,PROP SHAFT
ID=12.2 SOU 		0-91510-612-0 04 1 1001-
14 COVER; DUST,SPIDER
(B) 		1-37319-011-0 08 1 1001-1106
14 COVER; DUST,SPIDER
(B) 		8-98020-791-0 08 1 1107-
14 COVER; DUST,SPIDER
(A) TRANS-TRFER 		1-37319-012-0 04 1 1001-1505
14 COVER; DUST,SPIDER 8-98020-800-0 04 1 1506-
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		1-37319-012-0 08 1 1001-1111
14 COVER; DUST,SPIDER
(A) TRFER-R/AXL 		8-98020-800-0 08 1 1112-
17 NIPPLE; GREASE,PROP SHAFT
(A) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 01 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1001-
17 NIPPLE; GREASE,PROP SHAFT
(B) PT1/8 ELBOW 		0-90301-610-0 02 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=1.95 		1-09587-014-0 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.00 		1-09587-015-2 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(B) T=2.05 		1-09587-016-1 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 04 1 1001-
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
(A) OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 1001-
71 NUT; YOKE
(B) M12 SOU 		0-91110-512-0 04 1 1001-
71 NUT; YOKE
(B) M12 SOU 		0-91110-512-0 04 1 1001-
71 NUT; YOKE
(A) M14 SOU 		0-91110-514-0 04 1 1001-
72 WASHER; LK,YOKE
(B) ID=12.2 SOU 		0-91510-612-0 04 1 1001-
72 WASHER; LK,YOKE
(B) ID=12.2 SOU 		0-91510-612-0 04 1 1001-
72 WASHER; LK,YOKE
(A) ID=14.2 SOU 		0-91510-614-0 04 1 1001-
75 BOLT; PROP SHAFT TO TRANS
(A) M12X32 		1-09000-076-1 04 1 1001-
75 BOLT; PROP SHAFT TO TRANS
(B) M12X75 		9-91061-275-0 04 1 1001-
177 NUT
M12 SOU 		0-91110-512-0 04 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
