3-78 — FIXING PARTS; AIR PIPING (#23470) — 114 parça

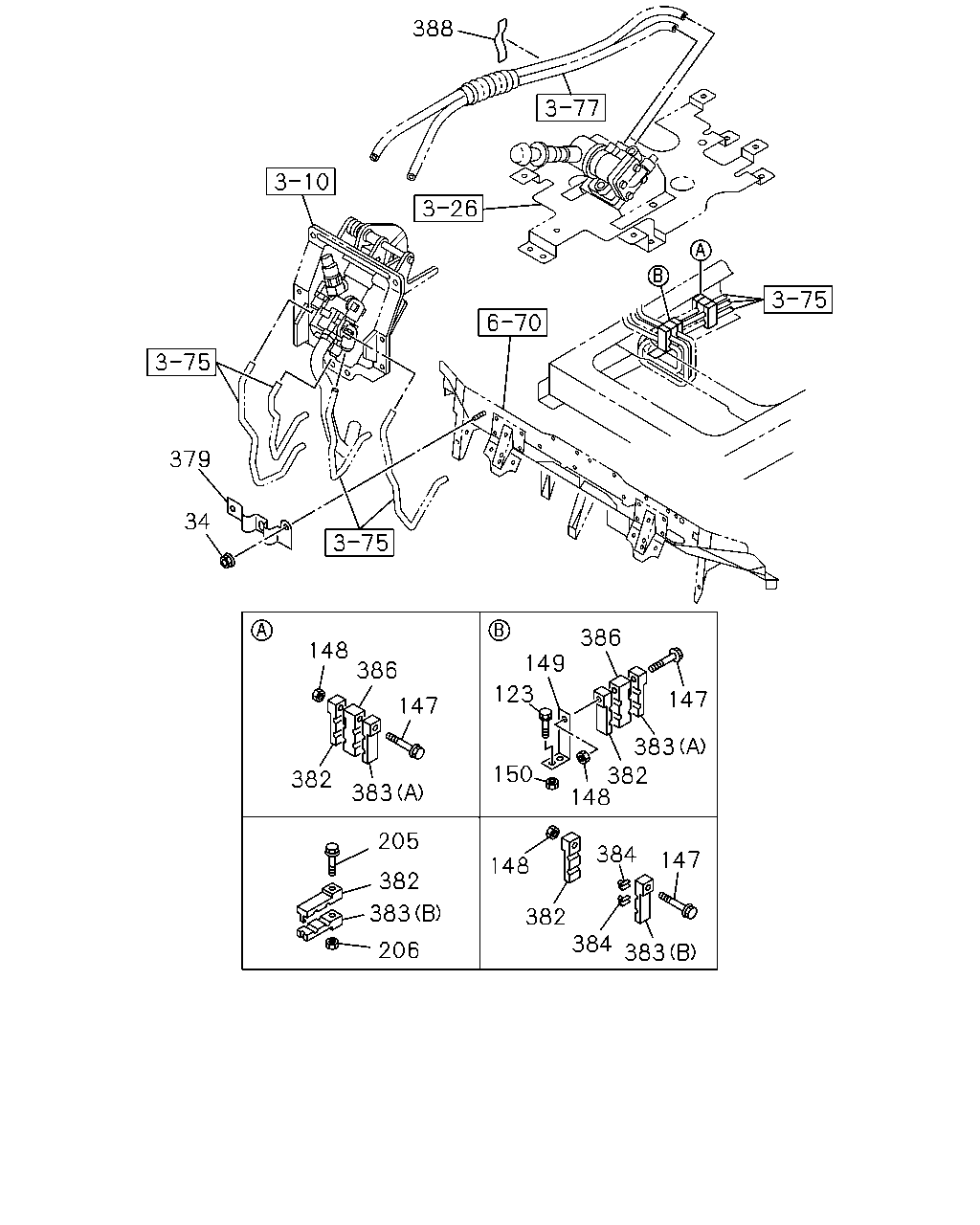

çizim 61501
388 379 34 386 148 386 149 123 147 147 383 150 382 148 382 383 205 384 147 148 382 383 382 384 206 383
BalonParca AdiParca NoAdetTipApplied Date
34 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 02 1 1001-
123 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 1001-
147 BOLT; PIPE CLIP
M8X70 FLANGE SOU 		0-28050-870-0 04 1 1001-
148 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 04 1 1001-
149 BRACKET; PIPE CLIP 1-47476-792-0 01 1 1001-1409
149 BRACKET; PIPE CLIP 8-98296-534-0 01 1 1410-
150 NUT; CLIP BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
205 BOLT; PIPE CLIP
M8X50 FLANGE 		0-28050-850-0 01 1 1001-
206 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
379 BRACKET; NYLON TUBE 8-98044-013-0 01 1 1001-
382 CLIP; UPR
BRAKE REGULATION ECE<TDV> ID=10 & 10 SOU 		1-09709-241-0 03 1 1502-
382 CLIP; UPR
EXC. BRAKE REGULATION ECE<TDV> ID=10 & 10 SOU 		1-09709-241-0 01 1 1502-
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 02 1 1001-
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 04 1 1001-
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 06 1 1001-1501
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 05 1 1502-
383 CLIP; LWR
BRAKE REGULATION ECE<TDV> (A) ID=10 & 10 SOU 		1-09709-241-0 02 1 1502-
383 CLIP; LWR
EXC. BRAKE REGULATION ECE<TDV> (B) ID=10 & 10 SOU 		1-09709-243-0 01 1 1502-
383 CLIP; LWR
EXC. BRAKE REGULATION ECE<TDV> (B) ID=10 & 10 SOU 		1-09709-243-0 02 1 1502-
383 CLIP; LWR
(A) ID=10 & 10 SOU 		1-09709-241-0 04 1 1001-
383 CLIP; LWR
(B) ID=10 & 10 SOU 		1-09709-243-0 02 1 1001-1501
383 CLIP; LWR
(B) ID=10 & 10 SOU 		1-09709-243-0 05 1 1502-
383 CLIP; LWR
(B) ID=10 & 10 SOU 		1-09709-243-0 06 1 1001-1501
383 CLIP; LWR
BRAKE REGULATION ECE<TDV> (B) ID=10 & 10 SOU 		1-09709-243-0 03 1 1502-
384 COLLAR
EXC. BRAKE REGULATION ECE<TDV> ID=6 		1-47459-010-0 02 1 1502-
384 COLLAR
ID=6 		1-47459-010-0 02 1 1001-1501
384 COLLAR
BRAKE REGULATION ECE<TDV> ID=6 		1-47459-010-0 04 1 1502-
386 CLIP; CENTER
BRAKE REGULATION ECE<TDV> ID=10 SOU 		1-09709-242-0 02 1 1502-
386 CLIP; CENTER
ID=10 SOU 		1-09709-242-0 04 1 1001-
388 SEAL
100X40 SOU 		1-72498-022-1 03 1 1001-

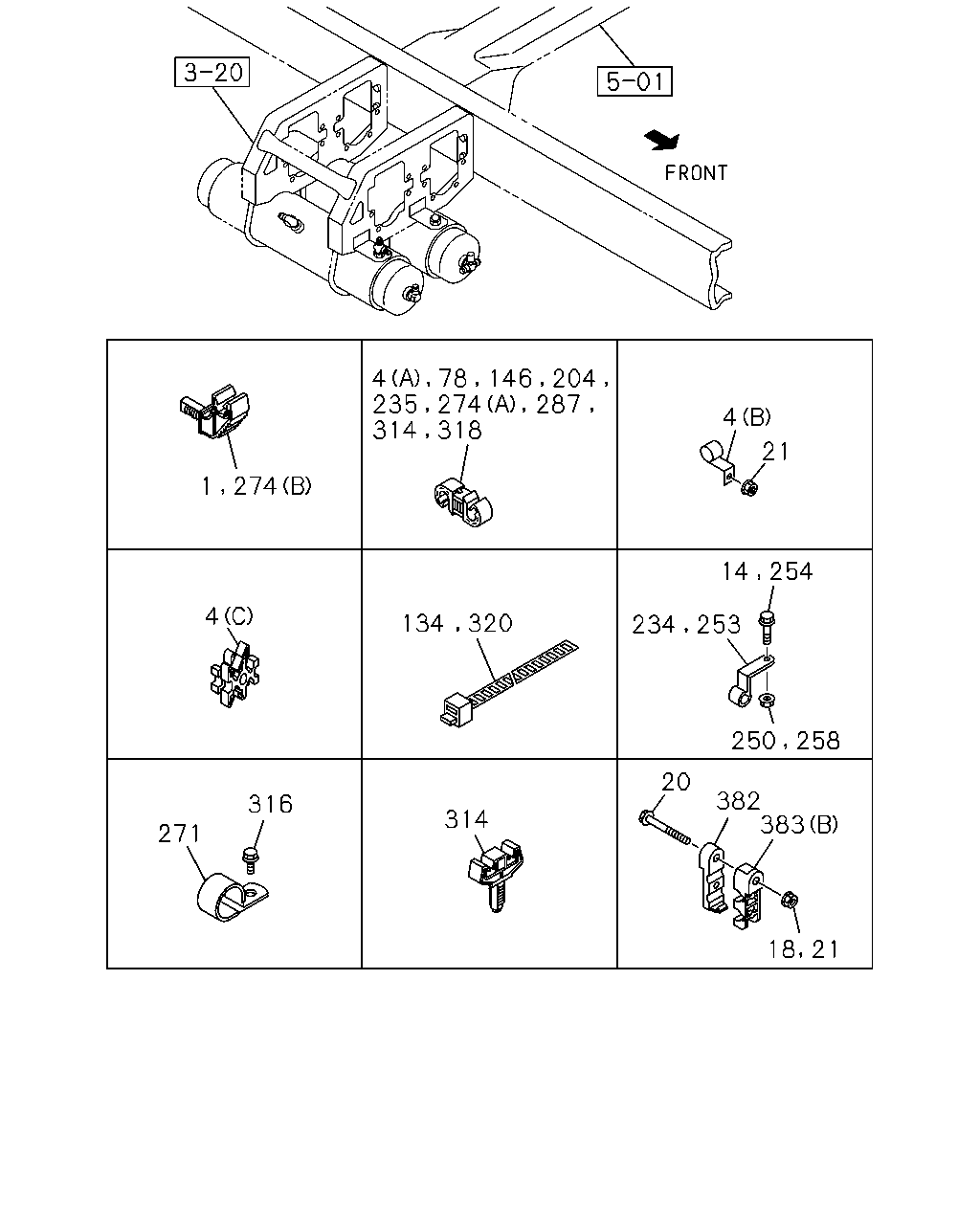

çizim 61517
271 4 1 274 4 314 235 78 318 274 146 204 287 4 21 234 134 320 253 14 254 250 382 383 258 20 314 316 18 21
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<TDV> 		8-98012-254-1 01 1 1502-
1 CLIP; AIR PIPE 8-98012-254-1 01 1 1001-1501
1 CLIP; AIR PIPE
BRAKE REGULATION ECE<TDV> 		8-98012-254-1 03 1 1502-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> (A) ID=6.35 & 10.0 		1-09709-274-1 02 1 1412-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> (A) ID=10 & 10 		1-09709-277-1 09 1 1412-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> (C) ID=4.7X4 		1-09701-304-0 01 1 1412-1501
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (C) ID=4.7X4 		1-09701-304-0 01 1 1502-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> (A) ID=6.35 & 12 		1-09709-275-1 02 1 1412-1501
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) ID=6.35 & 12 		1-09709-275-1 02 1 1502-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> (A) ID=4.76 & 10.0 		1-09709-305-0 03 1 1412-1501
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> EXC. BRAKE REGULATION ECE<TDV> (A) ID=4.76 & 10.0 		1-09709-305-0 03 1 1502-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) ID=12 & 12 		1-09709-280-1 01 1 1502-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (A) ID=4.76 & 4.76 		1-09709-303-0 01 1 1502-
4 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> BRAKE REGULATION ECE<TDV> (B) ID=13 H=12 L=20 		8-98038-485-0 01 1 1502-
4 CLIP; AIR PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1001-1501
4 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<TDV> (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1502-
4 CLIP; AIR PIPE
(A) ID=10 & 10 		1-09709-277-1 04 1 1001-1411
4 CLIP; AIR PIPE
EXC. ANTI LOCK BRAKE<JE5> (A) ID=10 & 10 		1-09709-277-1 04 1 1412-
4 CLIP; AIR PIPE
(A) ID=10 & 12 		1-09709-278-1 01 1 1001-
14 BOLT; PIPE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1001-
18 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
20 BOLT; CLIP
BRAKE REGULATION ECE<TDV> M8X70 FLANGE SOU 		0-28050-870-0 02 1 1502-
20 BOLT; CLIP
EXC. BRAKE REGULATION ECE<TDV> M8X50 FLANGE 		0-28050-850-0 02 1 1502-
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 02 1 1001-1501
20 BOLT; CLIP
BRAKE REGULATION ECE<TDV> M8X50 FLANGE 		0-28050-850-0 03 1 1502-
20 BOLT; CLIP
M8X50 FLANGE 		0-28050-850-0 05 1 1001-
21 NUT; CLIP
BRAKE REGULATION ECE<TDV> M8 FLANGE SOU 		0-91180-108-0 03 1 1502-
21 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 05 1 1001-
78 CLIP; AIR PIPE
AIR DRYER<PS7> ID=10 & 12 		1-09709-278-1 01 1 1001-
134 CLIP; AIR PIPE
L=350 		1-09707-183-0 01 1 1001-
146 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<TDV> ID=10 & 10 		1-09709-277-1 04 1 1502-
146 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 04 1 1001-1501
146 CLIP; AIR PIPE
BRAKE REGULATION ECE<TDV> ID=10 & 10 		1-09709-277-1 06 1 1502-
204 CLIP; AIR PIPE
ID=10 & 10 		1-09709-277-1 01 1 1001-
234 CLIP; UNION
BRAKE REGULATION ECE<TDV> ID=11 H=20 L=20 		8-98033-780-0 01 1 1502-
234 CLIP; UNION
ID=11 H=34 L=27 SOU 		1-09701-023-0 01 1 1001-1501
234 CLIP; UNION
EXC. BRAKE REGULATION ECE<TDV> ID=11 H=34 L=27 SOU 		1-09701-023-0 01 1 1502-
235 CLIP; AIR PIPE
BRAKE REGULATION ECE<TDV> ID=10 & 10 		1-09709-277-1 01 1 1502-
250 NUT; PIPE CLIP
EXC. BRAKE REGULATION ECE<TDV> M8 FLANGE SOU 		0-91180-108-0 03 1 1502-
250 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1001-1501
250 NUT; PIPE CLIP
BRAKE REGULATION ECE<TDV> M8 FLANGE SOU 		0-91180-108-0 02 1 1502-
253 CLIP; AIR PIPE
EXC. BRAKE REGULATION ECE<TDV> ID=11 H=20 L=20 		8-98033-780-0 03 1 1502-
253 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 05 1 1001-1501
253 CLIP; AIR PIPE
ID=11 H=20 L=20 		8-98033-780-0 02 1 1502-
253 CLIP; AIR PIPE
BRAKE REGULATION ECE<TDV> ID=11 H=20 L=20 		8-98033-780-0 02 1 1502-
254 BOLT; PIPE CLIP
EXC. BRAKE REGULATION ECE<TDV> M8X25 FLANGE SOU 		0-28650-825-0 03 1 1502-
254 BOLT; PIPE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1001-1501
254 BOLT; PIPE CLIP
BRAKE REGULATION ECE<TDV> M8X25 FLANGE SOU 		0-28650-825-0 02 1 1502-
258 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
271 CLIP; AIR PIPE FIX
ID=11 L=20 		0-95235-035-0 06 1 1001-
274 CLIP; AIR PIPE
(B) ID=6.35 		1-09701-247-1 02 1 1001-1411
274 CLIP; AIR PIPE
BRAKE REGULATION ADR<TDU> (B) ID=6.35 		1-09701-247-1 02 1 1412-
274 CLIP; AIR PIPE
(A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1001-1411
274 CLIP; AIR PIPE
BRAKE REGULATION ADR<TDU> (A) ID=6.35 & 6.35 		1-09709-273-1 01 1 1412-
274 CLIP; AIR PIPE
(B) 		8-98012-254-1 01 1 1001-1411
274 CLIP; AIR PIPE
BRAKE REGULATION ADR<TDU> (B) 		8-98012-254-1 01 1 1412-
287 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> AIR DRYER<PS7> ID=6.35 & 12 		1-09709-275-1 01 1 1412-
287 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7> ID=6.35 & 15 		1-09709-276-1 01 1 1412-1501
287 CLIP; AIR PIPE
ANTI LOCK BRAKE<JE5> EXC. AIR DRYER<PS7>,BRAKE REGULATION ECE<TDV> ID=6.35 & 15 		1-09709-276-1 01 1 1502-
287 CLIP; AIR PIPE
ID=6.35 & 10.0 		1-09709-274-1 01 1 1001-1411
287 CLIP; AIR PIPE
EXC. ANTI LOCK BRAKE<JE5> ID=6.35 & 10.0 		1-09709-274-1 01 1 1412-
314 CLIP; AIR PIPE
BRAKE REGULATION ECE<TDV> EXC. RIGID SEAT WO/ARM REST<TAZ> ID=6.35 & 10.0 		1-09709-274-1 01 1 1502-
314 CLIP; AIR PIPE 8-98012-254-1 02 1 1001-1411
314 CLIP; AIR PIPE
BRAKE REGULATION ADR<TDU> 		8-98012-254-1 02 1 1412-
314 CLIP; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98012-254-1 06 1 1001-
316 BOLT; CLIP
M8X10 FLANGE 		0-28050-810-0 04 1 1001-
318 CLIP; AIR PIPE
ID=6.35 & 15 		1-09709-276-1 02 1 1001-
318 CLIP; AIR PIPE
AIR DRYER<PS7> ID=6.35 & 12 		1-09709-275-1 01 1 1001-1501
318 CLIP; AIR PIPE
AIR DRYER<PS7> EXC. BRAKE REGULATION ECE<TDV> ID=6.35 & 12 		1-09709-275-1 01 1 1502-
320 CLIP; BAND,FLEX FIX
L=250 SOU 		5-09707-030-1 01 1 1001-
382 CLIP; UPR
BRAKE REGULATION ECE<TDV> ID=10 & 10 SOU 		1-09709-241-0 03 1 1502-
382 CLIP; UPR
EXC. BRAKE REGULATION ECE<TDV> ID=10 & 10 SOU 		1-09709-241-0 01 1 1502-
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 02 1 1001-
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 04 1 1001-
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 06 1 1001-1501
382 CLIP; UPR
ID=10 & 10 SOU 		1-09709-241-0 05 1 1502-
383 CLIP; LWR
BRAKE REGULATION ECE<TDV> (A) ID=10 & 10 SOU 		1-09709-241-0 02 1 1502-
383 CLIP; LWR
EXC. BRAKE REGULATION ECE<TDV> (B) ID=10 & 10 SOU 		1-09709-243-0 01 1 1502-
383 CLIP; LWR
EXC. BRAKE REGULATION ECE<TDV> (B) ID=10 & 10 SOU 		1-09709-243-0 02 1 1502-
383 CLIP; LWR
(A) ID=10 & 10 SOU 		1-09709-241-0 04 1 1001-
383 CLIP; LWR
(B) ID=10 & 10 SOU 		1-09709-243-0 02 1 1001-1501
383 CLIP; LWR
(B) ID=10 & 10 SOU 		1-09709-243-0 05 1 1502-
383 CLIP; LWR
(B) ID=10 & 10 SOU 		1-09709-243-0 06 1 1001-1501
383 CLIP; LWR
BRAKE REGULATION ECE<TDV> (B) ID=10 & 10 SOU 		1-09709-243-0 03 1 1502-
